KitchenAid 3KSMC895TWH1

Model: 3KSMC895TWH1

Save Part Not Listed?
product name

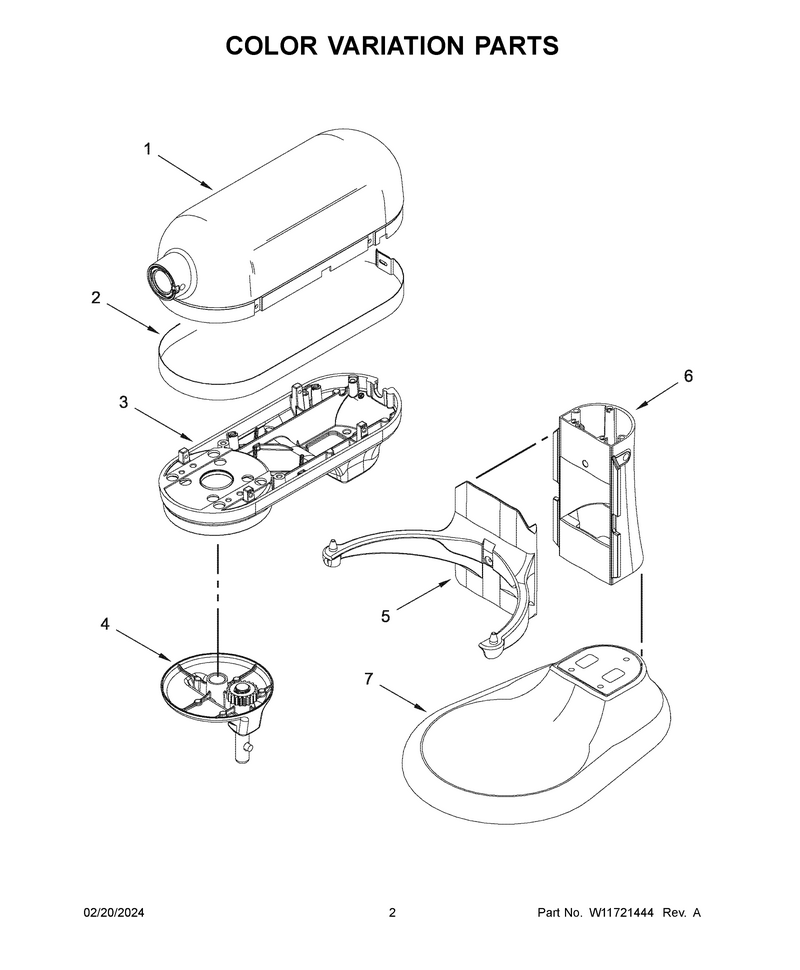

02 - Color Variation Parts

...
...
1
Motor Housing (White) WPL-9703311
...
2
Trim Band (Dark Platinum) WPL-W11174245
...
3
Lower Gearcase (White) WPL-W11520144
...
4
Planetary (White) WPL-W11591180
...
5
Bowl Support And Pins (White) WPL-9703674
...
6
Column And Pins (White) WPL-W10451002
...
7
Base And Foot Assembly (White) WPL-9703690

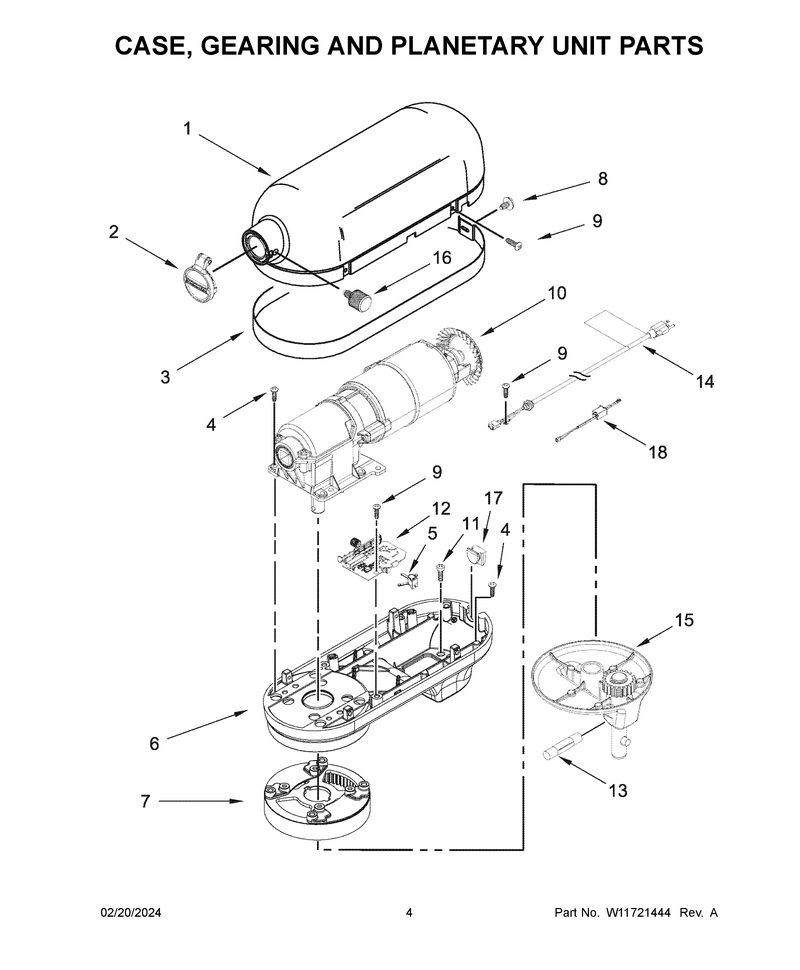

03 - Case, Gearing And Planetary Unit Parts

...
...
1
Motor Housing (Refer To Color Variation Parts Page) WPL---
...
2
Cap-Hub WPL-W11123129
...
3
Trim Band (Refer To Color Variation Parts Page) WPL---
...
4
Screw WPL-W10914506
...
5
Holder WPL-WPW10305968
...
6
Lower Gearcase (Refer To Color Variation Parts Page) WPL---
...
7
Gear WPL-W11672011
...
8
Screw WPL-W10853069
...
9
Screw WPL-WP3400814
...
10
Motor WPL-W11246392
...
11
Screw WPL-W10913677
...
12
Speed-Cntl WPL-W11759043
...
13
Pin-Groove WPL-WPW10234531
...
14
Cord, Power (Orange (Taiwan)) WPL-W11174457
...
15
Planetary Assembly (Refer To Color Variation Parts Page) WPL---
...
16
Screw WPL-WPW10360791
...
17
Clip, Plug WPL-W10417201
...
18
Filter-Rf WPL-W11319634

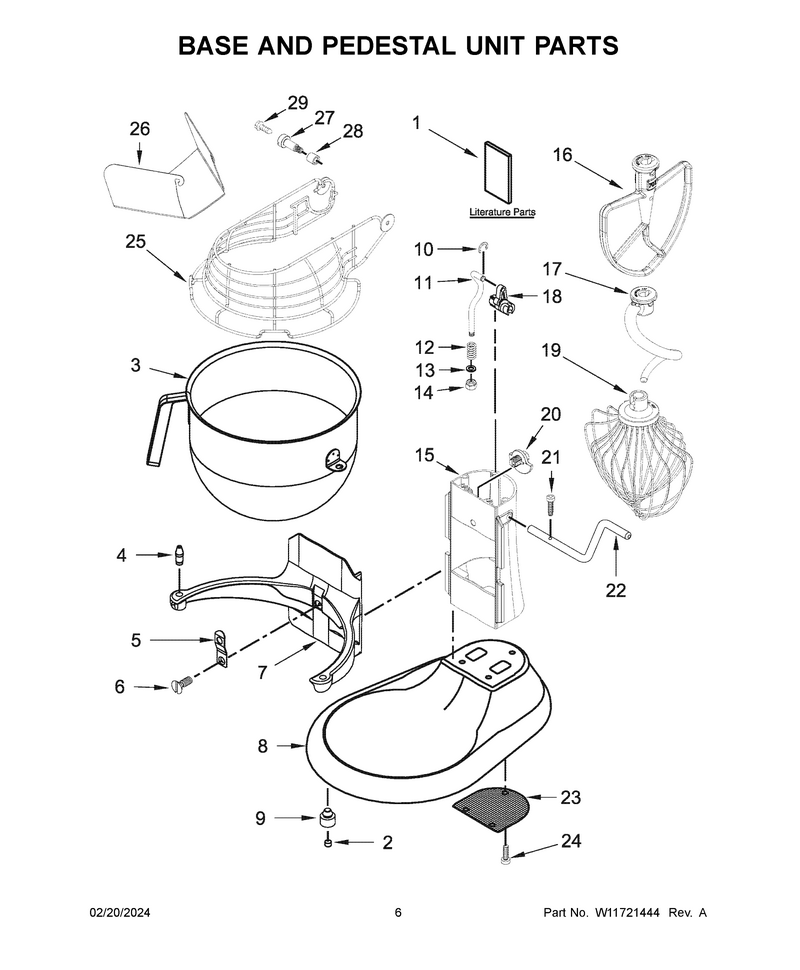

04 - Base And Pedestal Unit Parts

...
...
1
Use & Care Guide WPL-W11500800
...
2
Plug, Foot WPL-W10439369
...
3
Bowl-Mixer WPL-WPW10508588
...
4
Panel- Ove WPL-WP240185
...
5
Clip WPL-WPW10504114
...
6
Screw WPL-W10861883
...
7
Bowl Support And Pins (Refer To Color Variation Parts Page) WPL---
...
8
Base And Foot Assembly (Refer To Color Variation Parts Page) WPL---
...
9
Foot WPL-WP9708649
...
10
Ring-C WPL-WP9703307
...
11
Rod, Bowl Lift WPL-W11376364
...
12
Spring WPL-4159622
...
13
Washer WPL-W11708395
...
14
Nut WPL-8533907
...
15
Column And Pins (Refer To Color Variation Parts Page) WPL---
...
16
Beater-Mxr WPL-W11458649
...
17
Hook-Dough WPL-W11397072
...
18
Arm-Lift WPL-WP9706885
...
19
Whip-Wire WPL-WPW10600940
...
20
Cam WPL-W11721849
...
21
Screw WPL-WP3400814
...
22
Handle, Bowl Lift WPL-W11376371
...
23
Screen, Vent WPL-9706814
...
24
Screw WPL-W10913677
...
25
Guard WPL-W11029491
...
26
Chute, Pouring WPL-W10600050
...
27
Pin-Guard WPL-W11676535
...
28
Sleeve WPL-W11676536
...
29
Screw WPL-W10802060
