KitchenAid 3KSM60SPXTER0

Model: 3KSM60SPXTER0

Save Part Not Listed?
product name

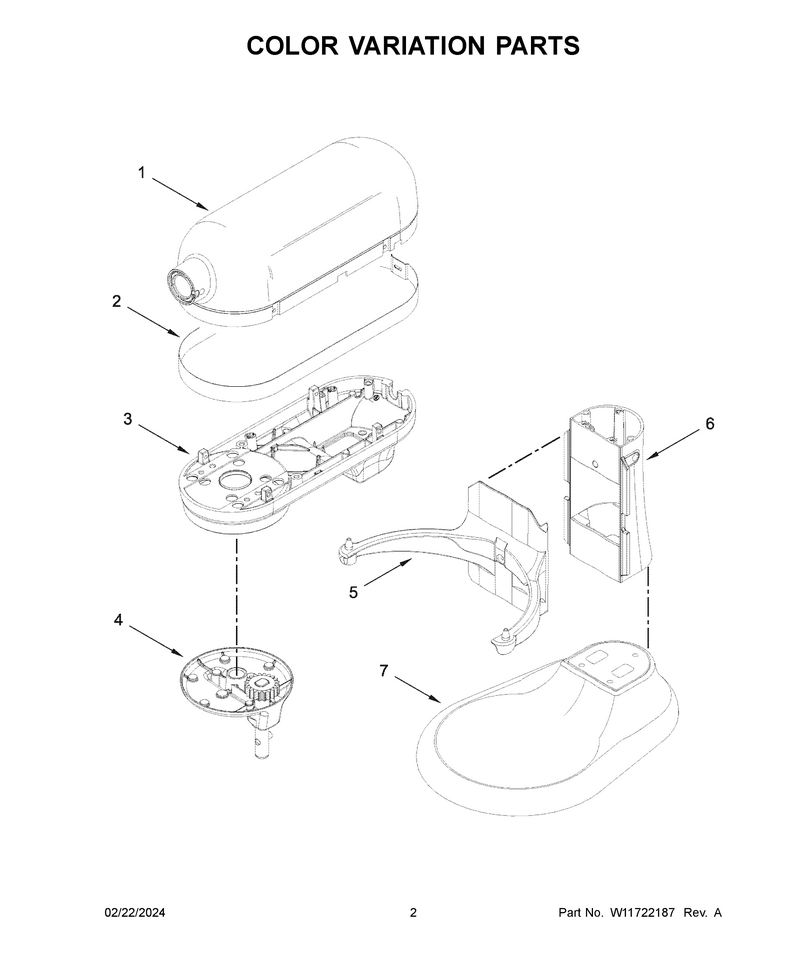

02 - Color Variation Parts

...
...
1
Motor Housing (Empire Red) WPL-9705300
...
1A
Motor Housing (White) WPL-9703311
...
2
Band-Trim WPL-W11649200
...
3
Lower Gearcase (Empire Red) WPL-W11520142
...
3A
Lower Gearcase (White) WPL-W11520144
...
4
Planetary (Empire Red) WPL-W11513270
...
4A
Planetary (White) WPL-W11513267
...
5
Bowl Support And Pins (Empire Red) WPL-9705360
...
5A
Bowl Support And Pins (White) WPL-9703674
...
6
Column And Pins (Empire Red) WPL-9705324
...
6A
Column And Pins (White) WPL-9703673
...
7
Base And Foot Assembly (Empire Red) WPL-9705348
...
7A
Base And Foot Assembly (White) WPL-9703690

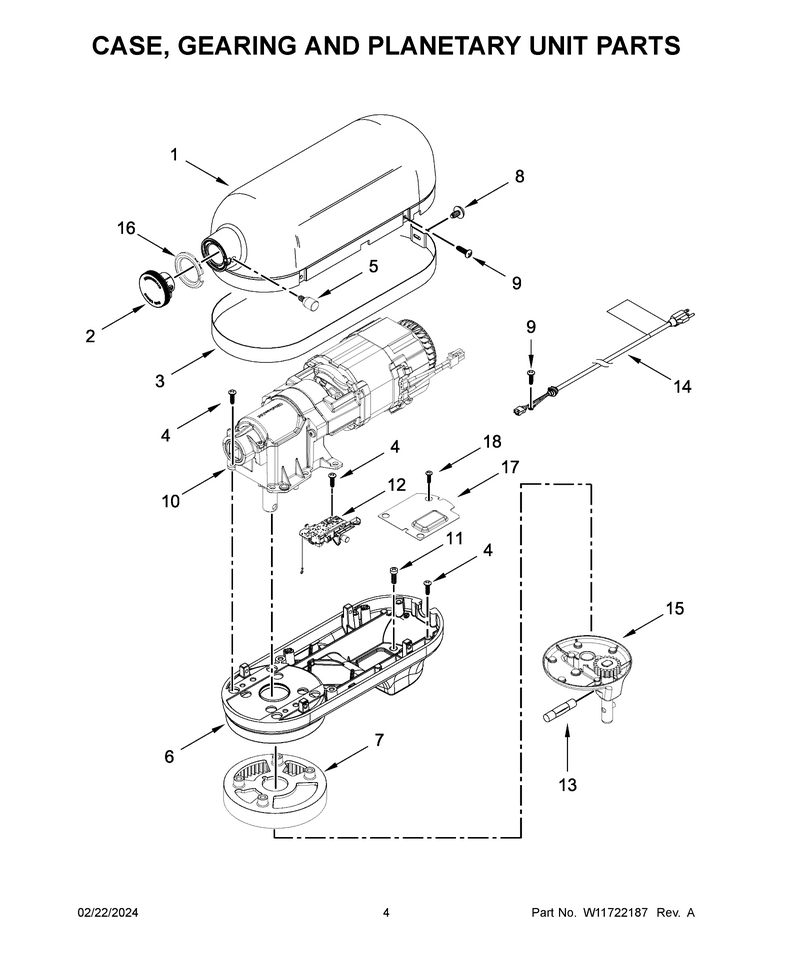

03 - Case, Gearing And Planetary Unit Parts

...
...
1
Motor Housing (Refer To Color Variation Parts Page) WPL---
...
2
Cap-Hub WPL-W11677160
...
3
Trim Band (Refer To Color Variation Parts Page) WPL---
...
4
Screw WPL-W10914506
...
5
Thumb Screw (Satin Chrome) WPL-W11521862
...
6
Lower Gearcase (Refer To Color Variation Parts Page) WPL---
...
7
Gear WPL-W11647948
...
8
Screw WPL-W10853069
...
9
Screw WPL-WP3400814
...
10
Motor WPL-W11680055
...
11
Screw WPL-W10913677
...
12
Speed-Cntl WPL-W11684019
...
13
Pin-Groove WPL-WPW10234531
...
14
Cord-Power WPL-W11690670
...
15
Planetary Assembly (Refer To Color Variation Parts Page) WPL---
...
16
Cap-Hub WPL-WP9703315
...
17
Plate, Lower Housing WPL-W11560130
...
18
Screw WPL-W11677192

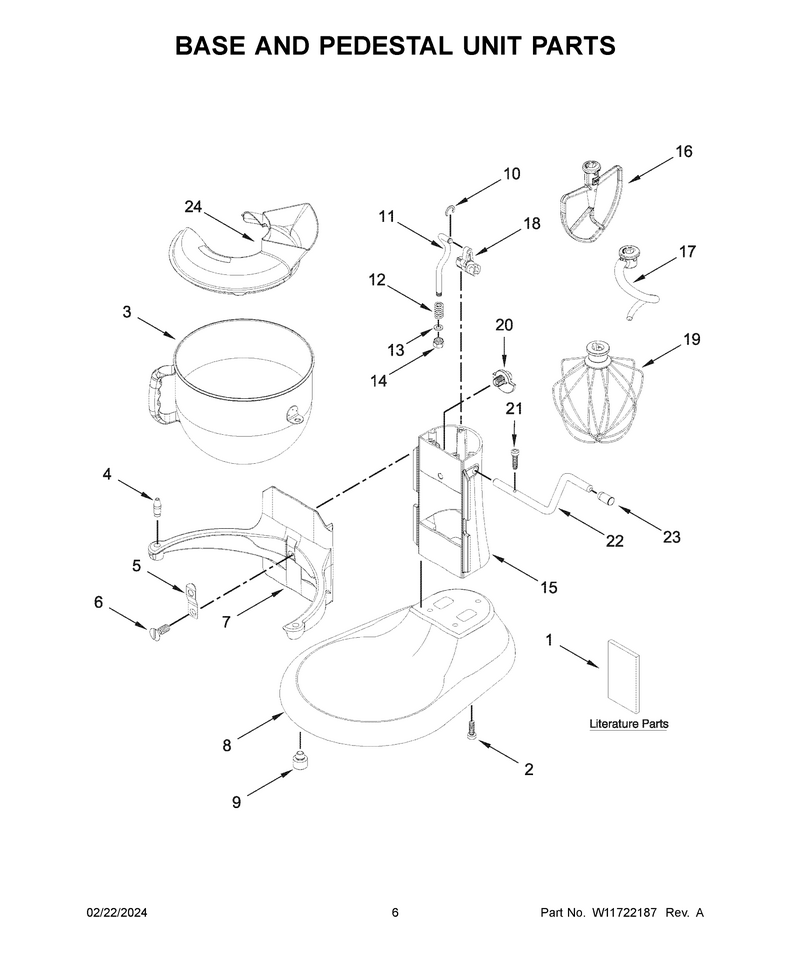

04 - Base And Pedestal Unit Parts

...
...
1
Use And Care Guide WPL-W11674259
...
2
Screw WPL-W10913677
...
3
Bowl-Mixer WPL-W11672198
...
4
Panel- Ove WPL-WP240185
...
5
Clip WPL-WPW10504114
...
6
Screw WPL-W10861883
...
7
Bowl Support And Pins (Refer To Color Variation Parts Page) WPL---
...
8
Base And Foot Assembly (Refer To Color Variation Parts Page) WPL---
...
9
Foot WPL-WP9708649
...
10
Ring-C WPL-WP9703307
...
11
Rod, Bowl Lift WPL-W11376364
...
12
Spring WPL-4159622
...
13
Washer WPL-W11708395
...
14
Nut WPL-8533907
...
15
Column And Pins (Refer To Color Variation Parts Page) WPL---
...
16
Beater-Mxr WPL-W11677164
...
17
Hook-Dough WPL-W11677163
...
18
Arm-Lift WPL-WP9706885
...
19
Whip-Wire WPL-WP9703491
...
20
Cam WPL-W11721849
...
21
Screw WPL-WP3400814
...
22
Handle, Bowl Lift WPL-W11376371
...
23
Handle WPL-W11682564
...
24
Sheld-Pour WPL-W11647946
