KitchenAid 3KSM150PSTAQ5

Model: 3KSM150PSTAQ5

Save Part Not Listed?
product name

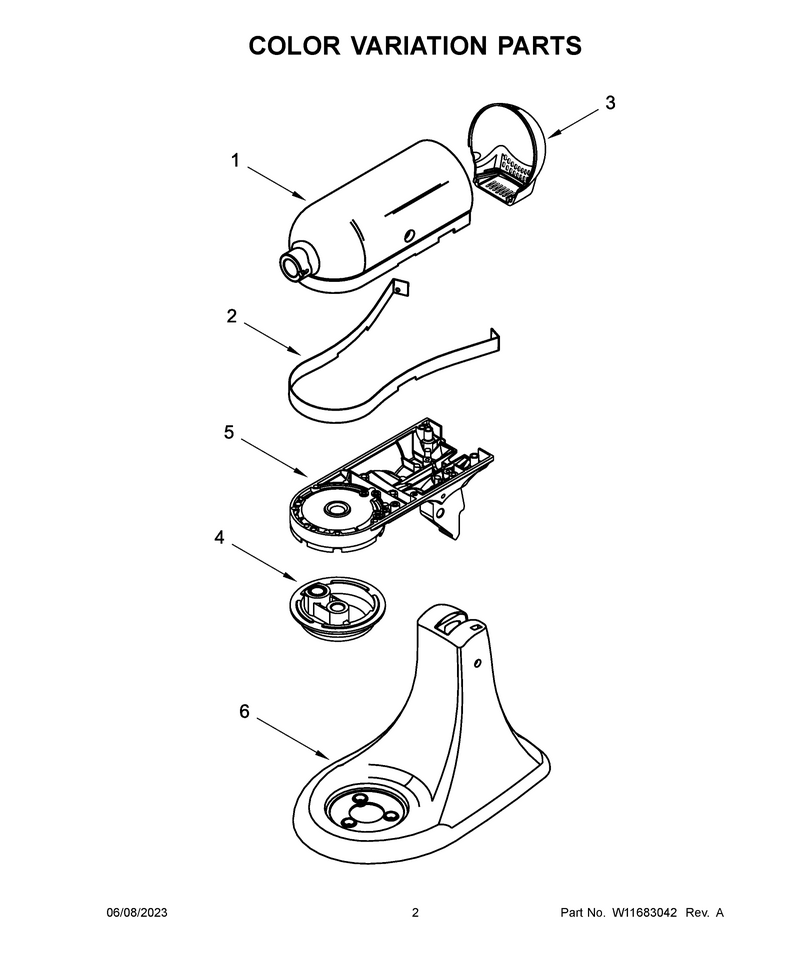

02 - Color Variation Parts

...
...
1
Motor Housing (Aqua Sky) WPL-W11601202
...
1A
Motor Housing (Black Matte) WPL-W11601739
...
1B
Motor Housing (Blue Velvet/matte Vintage Blue) WPL-W11604098
...
1C
Motor Housing (Empire Red) WPL-W11601656
...
1D
Motor Housing (Ice/ice Blue) WPL-W11617715
...
1E
Motor Housing (Matte Lavender Cream) WPL-W11604387
...
1F
Motor Housing (Matte Dried Rose) WPL-W11603722
...
1G
Motor Housing (Milkshake/matte Milkshake) WPL-W11603707
...
1H
Motor Housing (Passion/signature Red) WPL-W11610730
...
2
Band-Trim WPL-W11171098
...
3
End Cover (Aqua Sky) WPL-W10193496
...
3A
Cover WPL-W11170239
...
3B
End Cover (Blue Velvet/matte Vintage Blue) WPL-W11209472
...
3C
Cover WPL-W11084313
...
3D
End Cover (Ice/ice Blue) WPL-9707667
...
3E
End Cover (Matte Lavender Cream) WPL-W10678729
...
3F
End Cover (Matte Dried Rose) WPL-W11209501
...
3G
End Cover (Milkshake/matte Milkshake) WPL-W11113835
...
3H
End Cover (Passion/signature Red) WPL-W11298415
...
4
Planetary (Aqua Sky) WPL-W10193498
...
4A
Planetary WPL-W11170306
...
4B
Planetary (Blue Velvet/matte Vintage Blue) WPL-W11209470
...
4C
Planetary WPL-W11084831
...
4D
Planetary (Ice/ice Blue) WPL-9707665
...
4E
Planetary (Matte Lavender Cream) WPL-W10678731
...
4F
Planetary (Matte Dried Rose) WPL-W11209496
...
4G
Planetary (Milkshake/matte Milkshake) WPL-W11113886
...
4H
Planetary (Passion/signature Red) WPL-W11298422
...
5
Lower Gearcase (Aqua Sky) WPL-W10193504
...
5A
Housing WPL-W11170233
...
5B
Lower Gearcase (Blue Velvet/matte Vintage Blue) WPL-W11209465
...
5C
Lower Gearcase (Empire Red) WPL-240350-91
...
5D
Lower Gearcase (Ice/ice Blue) WPL-9708868
...
5E
Lower Gearcase (Matte Lavender Cream) WPL-W10678734
...
5F
Lower Gearcase (Matte Dried Rose) WPL-W11209493
...
5G
Lower Gearcase (Milkshake/matte Milkshake) WPL-W11113859
...
5H
Lower Gearcase (Passion/signature Red) WPL-W11298417
...
6
Pedestal (Aqua Sky) WPL-W11176415
...
6A
Pedestal, W/feet And Headlock (Black Matte) WPL-W11185575
...
6B
Pedestal W/feet And Headlock (Blue Velvet/matte Vintage Blue) WPL-W11209463
...
6C
Pedestal (Empire Red) WPL-3184280
...
6D
Pedestal With Feet And Headlock (Ice/ice Blue) WPL-9708865
...
6E
Pedestal (Matte Lavender Cream) WPL-W11176417
...
6F
Pedestal W/feet And Headlock (Matte Dried Rose) WPL-W11209491
...
6G
Pedestal (Milkshake/matte Milkshake) WPL-W11259895
...
6H
Pedestal (Passion/signature Red) WPL-W11298425

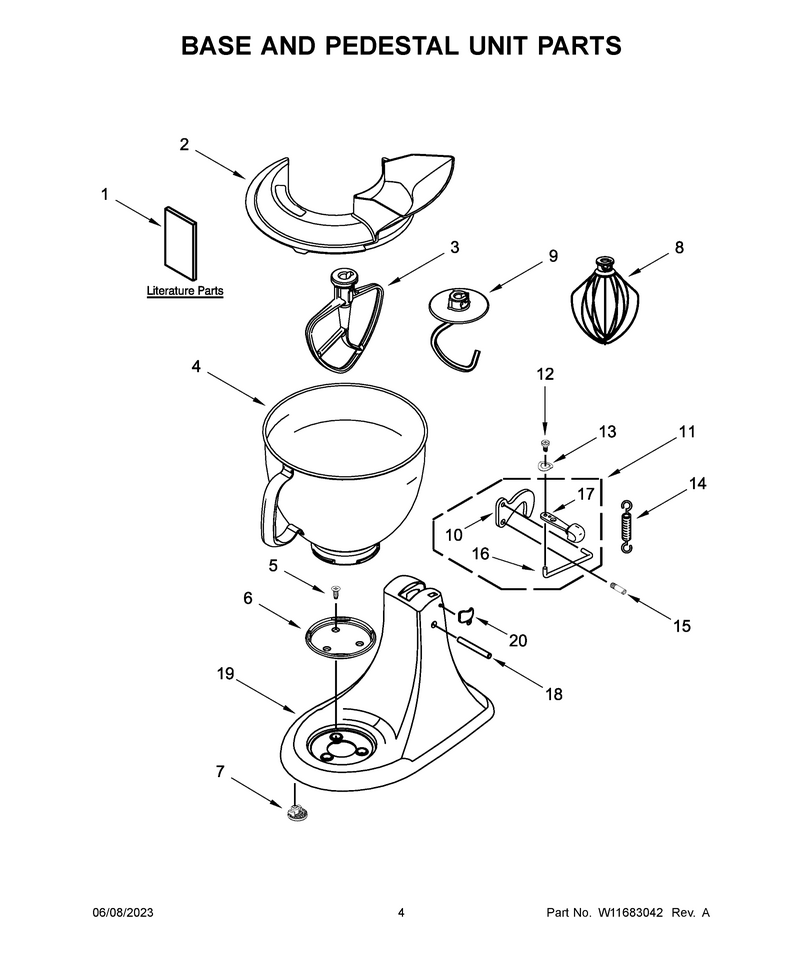

03 - Base And Pedestal Unit Parts

...
...
1
Use And Care Guide WPL-W11561671
...
2
Sheld-Pour WPL-W11573560
...
3
Beater-Mxr WPL-WPW10672617
...
4
Bowl-Mixer WPL-W11324096
...
5
Screw WPL-W11544572
...
6
Cap-Screw WPL-WPW10191926
...
7
Foot WPL-WP9709707
...
8
Whip-Wire WPL-WP9704329
...
9
Hook-Dough WPL-WPW10674618
...
10
Latch WPL-W11246352
...
11
Lever-Ltch WPL-WP3184200
...
12
Screw WPL-WP110679
...
13
Washer WPL-WP116241
...
14
Spring WPL-W11188450
...
15
Screw WPL-W10802060
...
16
Link-Latch WPL-W11232016
...
17
Lever-Ltch WPL-WP9709267
...
18
Pin-Dowel WPL-WP16910
...
19
Following Parts Not Illustrated WPL-N/P
...
20
Headlock WPL-WP3184264

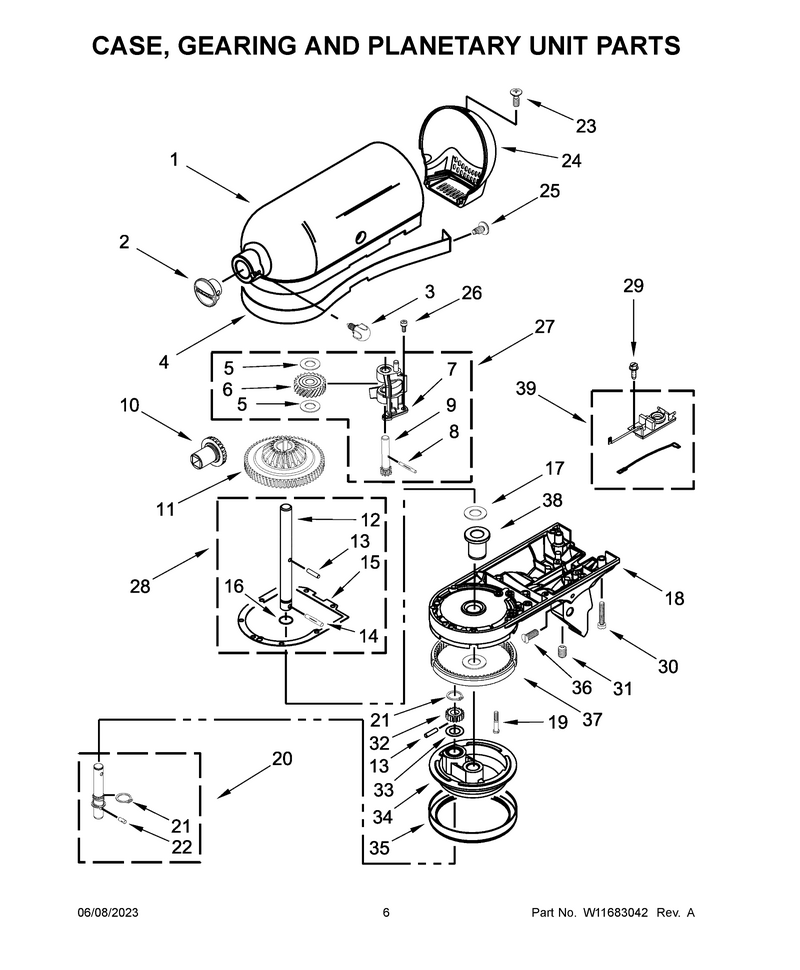

04 - Case, Gearing And Planetary Unit Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Cap-Hub WPL-W11048596
...
3
Screw WPL-WP9709194
...
4
Following Parts Not Illustrated WPL-N/P
...
5
Washer WPL-WPW10323373
...
6
Gear-Worm WPL-WPW10112253
...
7
Bearing WPL-W11082541
...
8
Pin-Groove WPL-WP9705444
...
9
Gear-Worm WPL-WP240210-2
...
10
Gear-Hub WPL-W11192794
...
11
Gear-Hub WPL-W11192794
...
12
Shaft-Cntr WPL-WP240026
...
13
Pin-Dowel WPL-WP9707223
...
14
Pin-Groove WPL-WP9705443
...
15
Gasket WPL-W11582479
...
16
Ring-O WPL-WP67500-55
...
17
Washer WPL-WPW10323378
...
18
Following Parts Not Illustrated WPL-N/P
...
19
Screw WPL-W11170598
...
20
Shaft-Agit WPL-WP243368
...
21
Ring-Retnr WPL-WP9703438
...
22
Pin-Groove WPL-W11664709
...
23
Screw WPL-WP241877
...
24
Following Parts Not Illustrated WPL-N/P
...
25
Screw WPL-W10853069
...
26
Screw WPL-W11097298
...
27
Gear-Worm WPL-WP240309-2
...
28
Shaft, Center Agitator Assembly WPL-4160474
...
29
Screw WPL-WP4159193
...
30
Screw WPL-W11173547
...
31
Screw WPL-WP3400203
...
32
Gear-Pinon WPL-W11133645
...
33
Washer WPL-WP9706090
...
34
Following Parts Not Illustrated WPL-N/P
...
35
Drip Ring WPL-WP240285
...
36
Screw WPL-W11028216
...
37
Gear WPL-W11340106
...
38
Bearing WPL-WP16897
...
39
Filter, Rfi WPL-W10548608

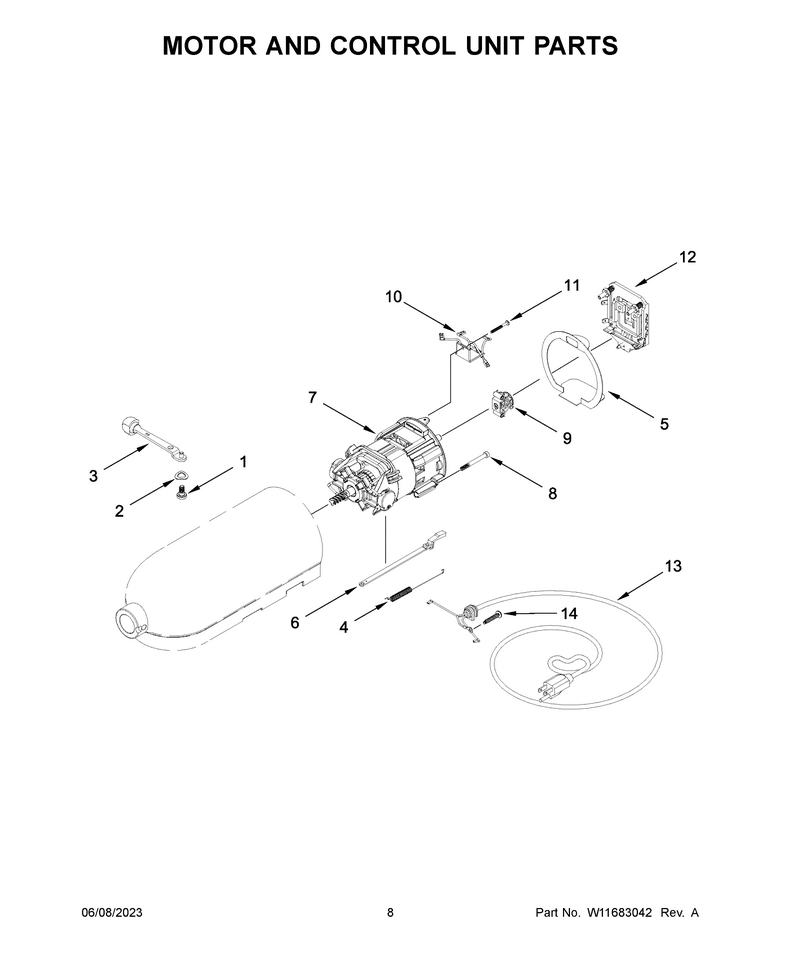

05 - Motor And Control Unit Parts

...
...
1
Screw WPL-WP110679
...
2
Washer WPL-WP116241
...
3
Lever-Spd WPL-WP9709276
...
4
Spring WPL-WP3183680
...
5
Seal WPL-WP240775-1
...
6
Link-Speed WPL-W11557271
...
7
Armature WPL-W11684110
...
8
Screw-Stat WPL-W11678787
...
9
Governor WPL-WPW10330804
...
10
Board-Phas WPL-W11157081
...
11
Screw WPL-W11084238
...
12
Plate-Ctrl WPL-WPW10119326
...
13
Cord, Power (Black (Taiwan)) WPL-W10904344
...
14
Screw WPL-W10914506
