Kenmore 116.52271503C Canister Vacuum

Model: 116.52271503C

Save Part Not Listed?
product name

Kenmore 116.52271503C

...
...
1
Tool Cover KC74PCMUZVKQ
...
2
Dust Cover KC60KBZTZUU1
...
3
Hood Latch KEN-KC01DBZTZV07
...
4
Tool Cover KC74PCTxZVUQ
...
5
Cord Rewind Button KC46NBZTZV06
...
6
Spring, Cord Rewind KS744258
...
7
Screw KEN-4368563
...
8
Canopy KC48HBZTZU01
...
9
Furniture Guard KC31ABZTZV06
...
10
Filter Cover KEN-KC41KBZTZV06
...
11

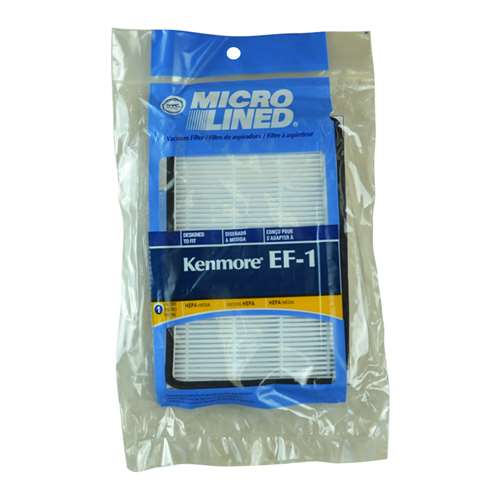

Exhaust Filter, OEM No. 20-40324 KEN-KC38KCEN1000
...
12
P.C.B. Assembly KC89VBZP2000
...
13
Filter Supporter KC32FBZT1V07
...
14
Receptacle, 3-Wire KC90EBZTZV06
...
15
Dust Bag, OEM No. 20-50410 KC16KCRMZ000
...
16

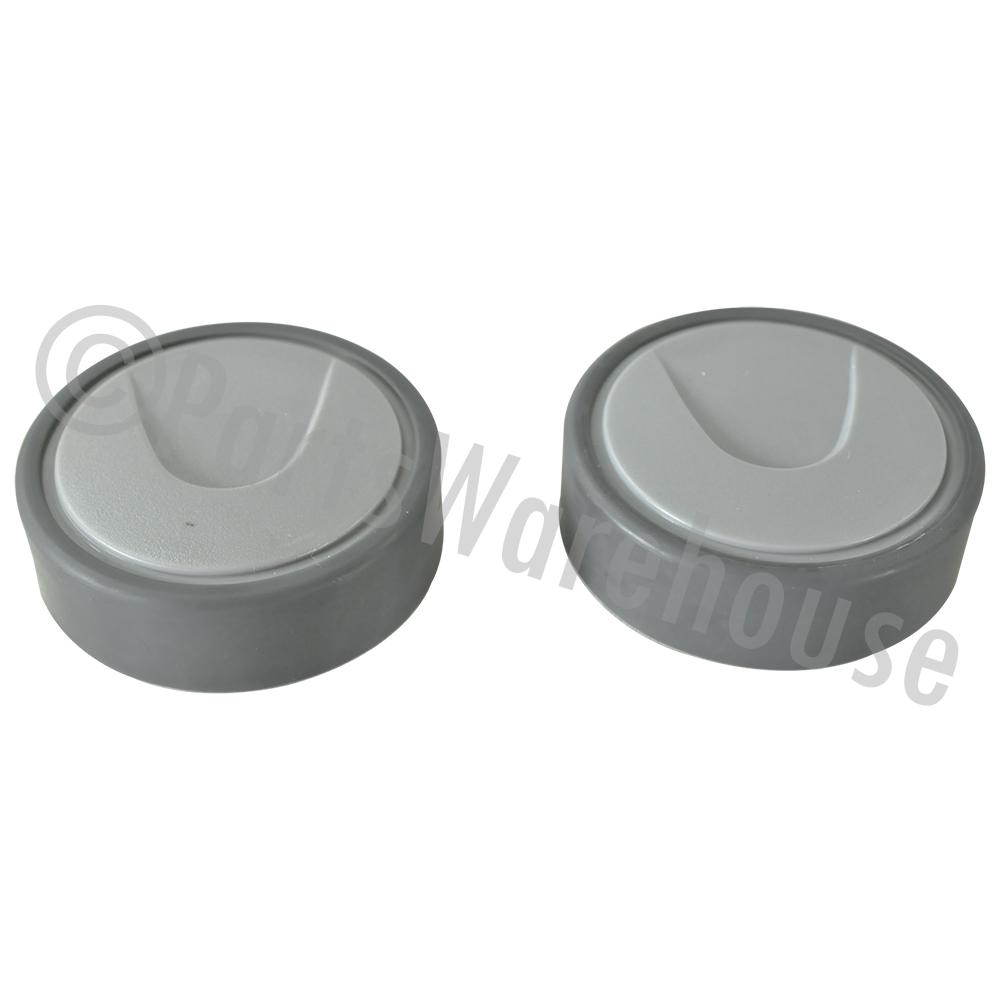

Wheel KEN-KC99CBZNZV07
...
17
Base, Lower Body KC03ABZT5V07
...
18
Cooling Guide KC41FBZPZ000
...
19

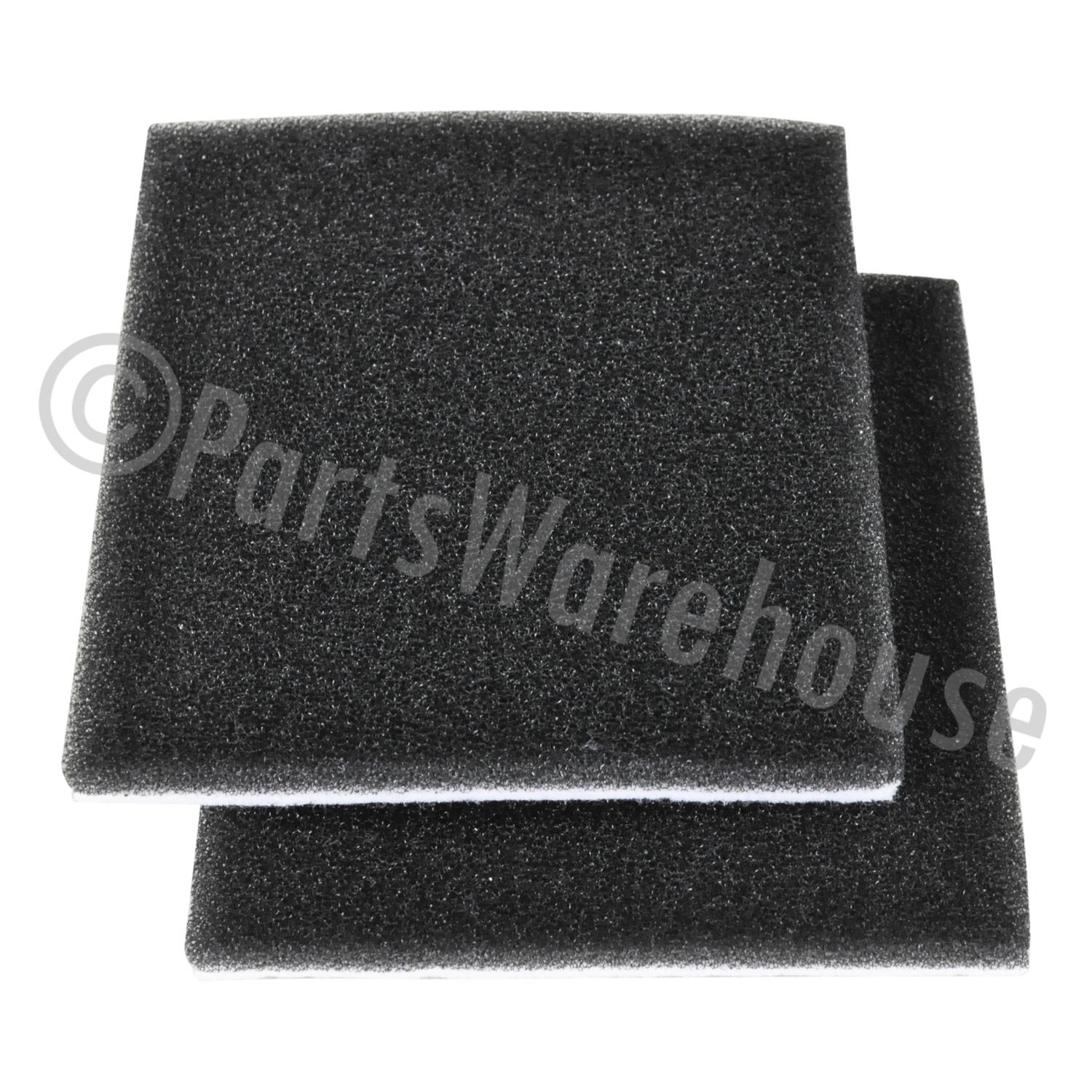

Secondary Filter, OEM No. 20-40321 KEN-8175084
...
21
Motor Enclosure KC10GBZTZV07
...
22
Motor Support Rubber, Rear KC03FBZTZ000
...
25
Motor Support Rubber, Front KC02FCUMZ000
...
26
Noise Suppressor 4370683
...
27
Fan Motor Unit KC92FCJNZ000
...
28
Lead Wire, Black KC38GATMZ000
...
29
Lead Wire Assembly KC43GAUYZ000
...
30
Upper Body KC02ABZTZV06
...
31
Performance Indicator 4370741
...
32
Adapter, Tube Vac Switch 4370677
...
33
Caster Unit KEN-KC95CBZTZV06
...
34
Counter Weight KC12CBZTZ000
...
35
Rubber Cushion KC41ABZTZV00
...
36
Caster Supporter KC34CBZTZV06
...
37
Caster Wheel KEN-4370691
...
38
Spring, Bag Mount KS706024
...
39
Bag Support KEN-KC11KAKTZR01
...
40
Gasket, Bag Mount 4370689
...
41
Inlet Packing KEN-4370688
...
42
Bag Mount KC10KBZTZR01
...
43
Wire Nut KS4154460
...
44
Ornamental Plate KC21TCPSZ000
...
45
Lead Assembly KC99WCYKZ000

Kenmore 116.52271503C

...
...
1
Bulb Socket 4370721
...
2
Light KEN-KC21HBZTZ000
...
3
Indicator Window 4369687
...
4
Nozzle Housing KC99RBZRZUU1
...
5
Agitator Unit KEN-8192535
...
6
Bulb, Light, OEM No. 20-40600 4370018
...
7
Wire Nut 4368522
...
8
Exhaust Foam 4370713
...
9
Nozzle Reflector KC84HBZTZ000
...
10
Screw KS681550
...
11
Swivel Cap KC25QAKTZV07
...
12
Window Reflector KC22HBZTZ000
...
13
Rear Cover KEN-4370717
...
14
Lead Wire "A" KC67VAxEZV06
...
15
Swivel KC92PBEY1V06
...
16
Foot Pedal KEN-8195108
...
17
Pad, Foot Pedal 4370577
...
18
Swivel Seal KEN-KS742019
...
19
Washer, Thrust KS722909
...
20
Washer KS725635
...
21
Catch Indexing KS722955
...
22
Indicator Lever 4370720
...
23
Cam Indicator KS747291
...
24
Ratchet Catch KS742016
...
25
Indicator Block Asembly 8191506
...
26
Spring Assist KS725775
...
27
Lifter KEN-4370726
...
28
Overload Protector KC76FAxEZ000
...
29
Screw KS681297
...
30
Motor Bridge KS705093
...
31
Motor KEN-KC90FCBJZ000
...
32
Motor Gasket KS747156
...
33
Belt (OEM No. 20-40118) KC28SBZTZ000
...
34
Motor Adjustment Spring KS742002
...
35
Handle Release Pedal KEN-KC47AGJ3R01
...
36
Wheel KEN-KC99CBZTZV07
...
37
Screw KEN-4368563
...
38
Lower Plate KC03RBZT2V07
...
39
Front Axle Assembly KEN-KS744029
...
40
Front Cover 4370967
...
41
Screw 4370280
...
42
Screw 4368551
...
43
Dirt Sensor Window 4369981
...
46
Dirt Sensor Unit KC87GCREZ000
...
47
P.C.B. Unit KC85VCREZ000
...
48
Indicator Block Asembly KEN-KC83MAKSZV06
...
49
Power-Mate Assembly KC50xBZRZU01

Kenmore 116.52271503C

...
...
1
Combination Brush KEN-KC63RBZTZV07
...
2
Upholstery Nozzle KC62RBZTZV07
...
3
Dusting Brush KC94QBZTZV07
...
4
Floor Brush KEN-4370614
...
5
Crevice Tool KEN-8175100
...
6
Telescoping Wand KEN-KC99PCPSZV06
...
7
Terminal Cover KEN-8191782
...
8
Screw 4370790
...
9
Window (Led) KC21HBZPZ000
...
10
P.C.B. Assembly (Light) KC47VBZPZ000
...
11
Cover (Led) / Couvercle KC38HBZPZV06
...
12
Quick Release, Upper KC70QCPMZV06
...
13
Quick Release Button KC13DCPMZV06
...
14
Sliding Knob KC57HASMZV07
...
15
Spring KEN-KC65DASMZ000
...
16
Sliding Pin KC27UASMZ000
...
17
Pipe Cover KC06QASMZV06
...
18
Belt KEN-8192011
...
19
Power-Mate Jr. (Complete Assembly) 4369133

Kenmore 116.52271503C

...
...
1
Switch Case KC68GBZPZV07
...
2
Electronic Label KC31TBZPZ000
...
3
P.C.B. Assembly KEN-KC87GBZNZ000
...
4
Screw 4369085
...
5
Handle Assembly KEN-KC93BBZTZV06
...
6
Wire Harness KC37GBZPZV06
...
7
Curved Wand KC30PATMZV06
...
8
Hose 4370560
...
9
Hose Adapter KEN-4370325
...
10
Connection Pipe KEN-KC92PBZTZV06
...
11
Hose Packing KC04RATMZ000
...
12
Suction Control KEN-4370593
...
13
Stub Tube Assembly KC56PCPSZV07
...
14
Hose Assembly KC94PCPSZV07

Kenmore 116.52271503C

...
...
1
Cord Reel Assembly KEN-8195114
...
2
Screw KEN-4368563
...
3
Cord Reel Bracket 8175266
...
4
Brake Lever Unit 4370692
...
5
Contact Base 4370924
...
6
Contact Disc Assembly With Power Cord 4370695
...
7
Cord Reel Hub Assembly 8175267
