Kenmore 116.50812007 Power-Mate

Model: 116.50812007

Save Part Not Listed?
product name

Kenmore 116.50812007

...
...
xx
Label, Wiring Diagram LIT4370922
...
xx
Owner'S Manual LIT8175060
...
xx
Repair Parts List LIT8175234
...
1
Cover, Filter 8175120
...
2
Button, Cord Rewind 4370675
...
4
Adapter, Vac Switch Tube 4370677
...
5
Filter, Exhaust Sears No. 2086880 8175116
...
6
Enclosure, Motor 8175262
...
7
Support, Motor Rubber (Rear) 4370679
...
8
Dust Bag Sears No. 2050557 4370680
...
9
Screw, Thread Cutting (4) 4148999
...
10
Spring, Cord Button 744258
...
11
Lens 4151920
...
12
Canopy 8175261
...
14
Connector, Wire 4154460
...
15
Light, Performance Indicator 4370741
...
16
Suppressor, Noise 4370683
...
18
Brush, Motor(2) 8175087
...
19
Support, Motor Rear 8175133
...
20
Lead Wire 8174980
...
22
Support, Motor Rubber (Front) 8175085
...
23
Motor, Fan 8175263
...
24
Screw, Relay 4368705
...
25
Relay, Motor KEN-8174981
...
26
Wheel 4370610
...
27
Base, Lower Body KEN-8175264
...
28
Filter, Secondary 4370609
...
29
Dust Box Assembly (Includes Tool Cover) 4370948
...
31
Buckle, Closure 4370687
...
32
Guard, Furniture 4370615
...
33
Bag Supporter Assembly KEN-4370617
...
34
Packing, Inlet KEN-4370688
...
35
Spring, Bag Mount 706024
...
36
Gasket, Bag Mount 4370689
...
37
Receptacle, 3Wire 4370608
...
38
Caster Roller Unit 4370690
...
39
Caster, Wheel KEN-4370691
...
40
Lead Wire Assembly 8174980

Kenmore 116.50812007

...
...
1
Hose, 3Wire 4370560
...
2

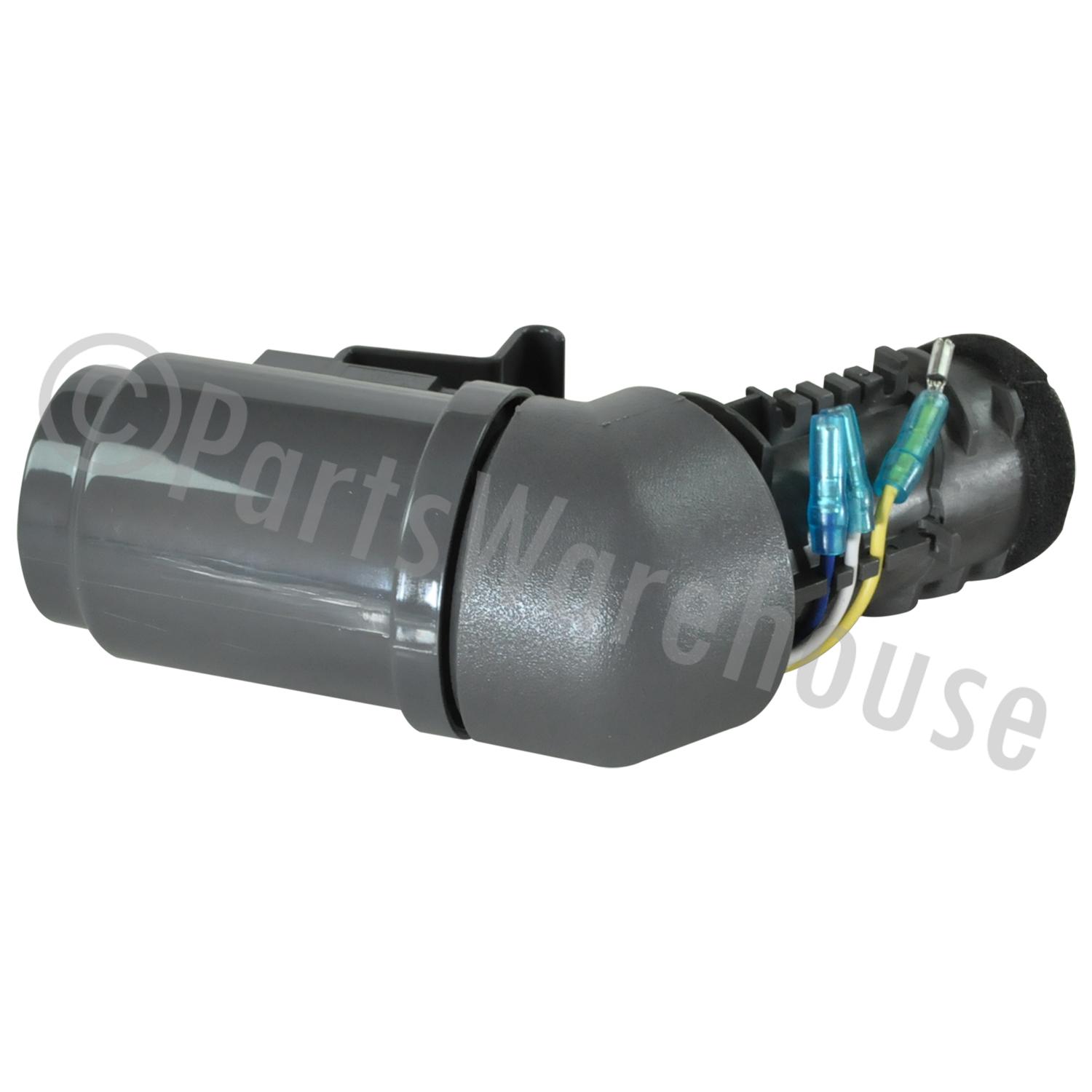

Pipe, Connection KEN-4370563
...
3
Brush, Floor KEN-4370614
...
6
Wand, Extension 4370972
...
7
Tool, Crevice KEN-4370333
...
8
Brush, Fabric KEN-4370707
...
9
Brush, Dusting KEN-4370559
...
10
Screw Handle 4369085
...
12
Handle Assembly 8174837
...
13
Curved Pipe Unit KEN-4370612
...
14
Sliding Knob 4370914
...
15
Control, Suction KEN-4370593
...
19
Switch, Slide KEN-4369108
...
23
Cover, Hose Connection KEN-4370325
...
24
Wire Harness KEN-4370561
...
29
Switch Case 4370989

Kenmore 116.50812007

...
...
xx
Label, Wiring Diagram LIT747155
...
3
Window, Cover (Light) KEN-4370711
...
4
Window, Cover (Height Adj.) 4369687
...
5
Button, Extension 4370940
...
7
Floor Nozzle Upper Unit (Includes Illus. 3, 8, And 9) 8175201
...
8
Filter, Intake/Exhaust (2) 4370713
...
9
Guard, Furniture 4370714
...
10
Cover, Agitator 4370715
...
11
Hose Assembly 4370951
...
12
Front Cover 4370967
...
15
Screw 681550
...
16
Swivel Cap Thermal Unit 4370970
...
18
Swivel 8195109
...
19
Pad, Foot Pedal 4370577
...
20
Indicator, Lever 4370720
...
21
Catch Indexing 722955
...
22
Swivel Seal 742019
...
23
Washer 725635
...
24
Cam, Indicator 747291
...
25
Indicator Block 742015
...
26
Spring Assist 725775
...
27
Agitator Unit 8175121
...
28
Bulb Sears No. 205240 4370018
...
29
Socket, Bulb 8175249
...
30
Pedal, Quick Release KEN-8195108
...
31
Cover, Rear KEN-4370717
...
32
Washer, Thrust 722909
...
33
Ratchet Catch 742016
...
34
Bearing Unit 4370532
...
35
Washer MSC-681424
...
36
Lead Wire, A Unit KEN-8175253
...
38
Pulley, Agitator 8175122
...
39
End Brush Tufted 8175101
...
40
Screw (2) 681605
...
41
Protector, Overload 8175256
...
42
Handle, Release Pedal 4370578
...
43
Wheel (Rear) KEN-4370724
...
44
Floor Nozzle Lower 4370725
...
45
Wire Nut 4368522
...
46
Spring, Motor Adjustment 742002
...
47
Lifter KEN-4370726
...
48
Motor Bridge 705093
...
50
Motor Gasket 747156
...
51
Screw (2) 681297
...
52
Belt (Sears No. 205201) KEN-8175123
...
53
Motor 8175246
...
54
Front Axle Assembly 744029
...
55
Screw (2) 681297
...
56
Screw 4368551
...
57
Screw 4370779

Kenmore 116.50812007

...
...
1
Screw KEN-4368563
...
2
Brake Lever Unit 4370692
...
3
Cord Reel (Complete) 8175265
...
4
Contact Base 4370924
...
5
Contact Disc Assembly, Rings (Power Cord) 4370695
...
7
Bracket, Cord Reel 8175266
...
8
Cord Reel Hub Assembly 8175267

Kenmore 116.50812007

...
...
1
Nozzle 4370731
...
2
Release, Button 4370734
...
3
Screw, 818 X5/8 (4) 4152468
...
4
Tube, Locking 4368508
...
6
Base 4370732
...
7
Belt Sears No. 205271 KEN-4368510
...
8
Cap, Dowel End (2) 4152440
...
9
Dowel Assembly (2) 4368511
...
10
Dowel, Shaft 4152439
