Kenmore 116.22040600CA Power-Mate

Model: 116.22040600CA

Save Part Not Listed?
product name

Kenmore 116.22040600CA

...
...
xx
Label, Wiring Diagram LIT8192080
...
xx
Owner's Manual LITKC01ZCYBZ0K0
...
xx
Repair Parts List LITKC44ZCYBZ0K0
...
1
Cover, Filter 8175093
...
2

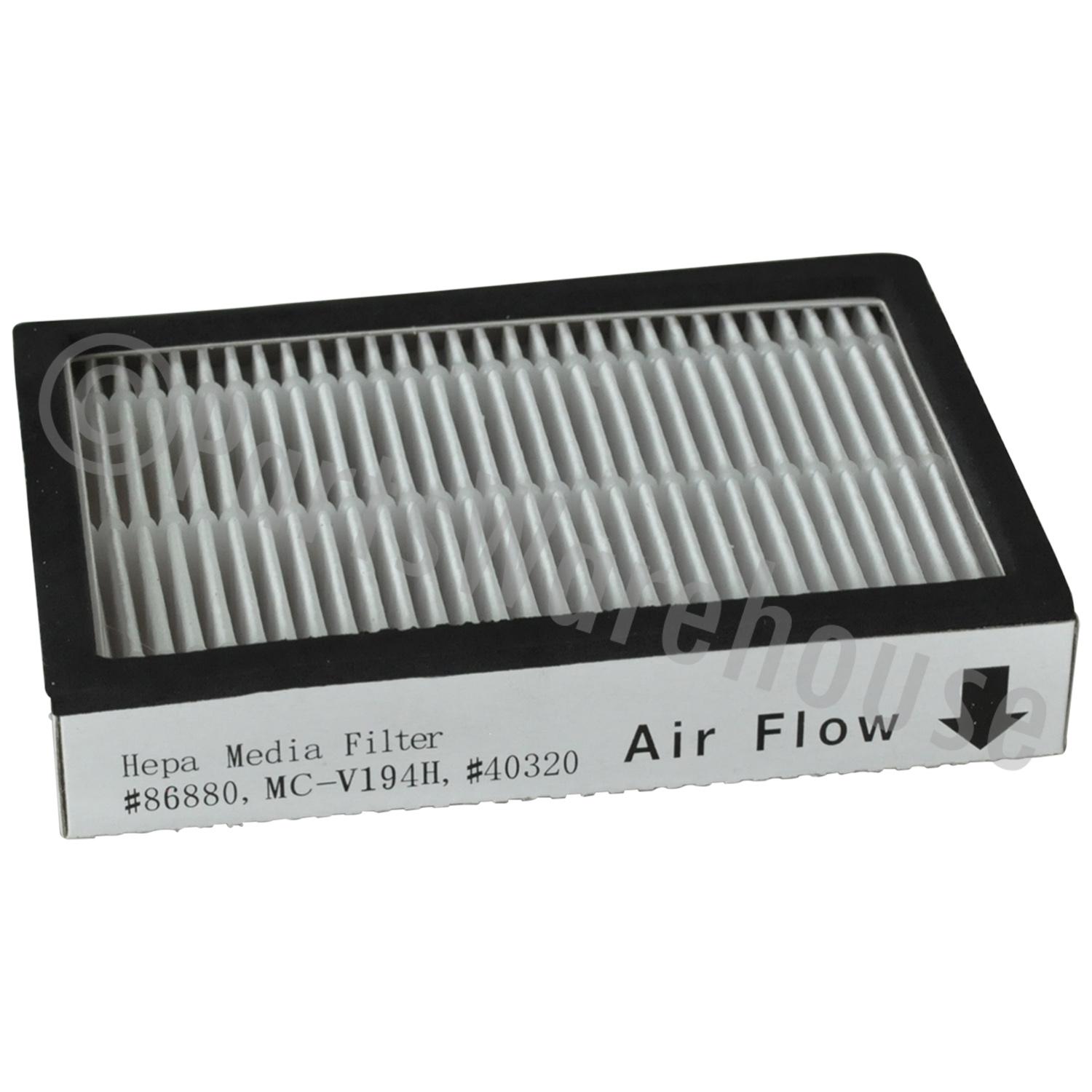

Filter, Exhaust *Sears No. 20-40325 KEN-8175258
...
3
Button, On/Off KC46NAXVZC06
...
4
Spring, Cord Button 8175183
...
5
Canopy KC90QBPJ2C06
...
6
Filter, Secondary KC38KBAR1000
...
7
Motor, Fan KC92FCPHZ010
...
9
Tool Storage Cover KC74PCYBZCUA
...
10
Hood KC60KCPHZC06
...
11
Furniture Guard 8191983
...
12
Motor Support Rubber (Rear) 8175182
...
13
Filter, Motor 8174919
...
14
Motor Support Rubber (Front) 8175085
...
15
Cover Cap KC38HCPHZU00
...
18
Filter, Secondary *Sears No. 20-40321 KEN-8175139
...
20
Hook, Cord 4370314
...
21
Latch, Hood 8175094
...
22
Support, Bag KEN-4370617
...
23
Packing, Inlet KEN-4370688
...
24
Spring, Bag Mount KS706024
...
25
Gasket, Bag Mount 4370689
...
27
Wheel 8175148
...
28
Base, Lower Body 8175153
...
29
Dust Bag *Sears No. 20-50403 KC16KCPHZ0K0
...
30
Caster Roller Unit 8175109
...
31
Caster Roller 8175108
...
32
Wire Nut KS4154460
...
33
Lead Assembly 8195123
...
34
Switch, On/Off KEN-4370761
...
35
Screw 4148999

Kenmore 116.22040600CA

...
...
1
Hose 4370529
...
2
Swivel Assembly 4370526
...
3
Floor Nozzle Assembly KC99RCYBZV06
...
5
Housing, Swivel 4370527
...
7
Handle Assembly 8192083
...
8
Plug, Frame 4370528
...
9
Control, Suction 4370328
...
16
Tool, Crevice KEN-8175100
...
17
Combination Brush 8175098
...
18
Brush Holder 8175099
...
19
Telescopic Wand 8192084
...
20
Hose Assembly KC94PBSNZVK6
...
21
Brush, Floor 4370140
...
22
Handi-Mate Jr. 8192024

Kenmore 116.22040600CA

...
...
1
Screw KEN-4368563
...
3
Cord Reel Assembly 8175155
...
4
Contact Base 4370924
...
5
Contact Disc Assembly With Power Cord 8174874
...
7
Cord Reel Bracket 8175105
...
8
Cord Reel Hub Assembly KEN-8175156
