Jonsered TA850 Trimmer Attachment (537353502)

Model: TA850

Save Part Not Listed?
product name

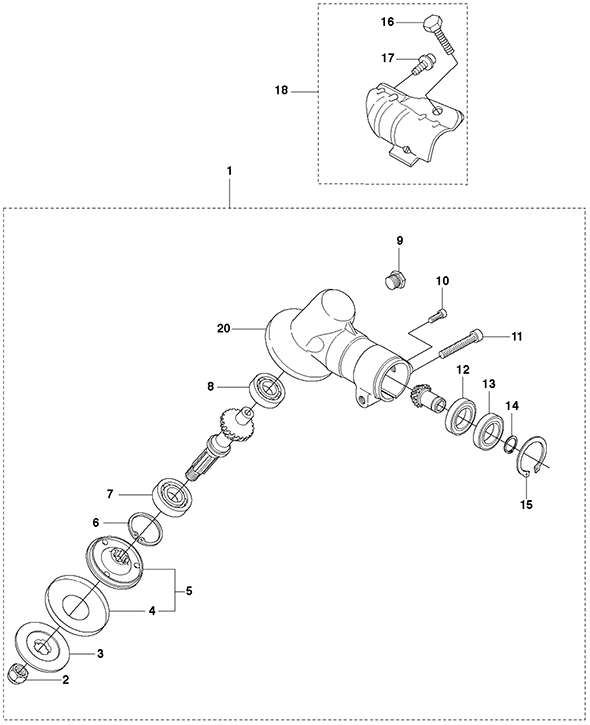

Jonsered TA850

...
...
1
Bevel Gear Assembly HUS-537199202
...
2
Nut HUS-503856301
...
3
Support Flange HUS-537285601
...
4
Cup HUS-537292601
...
5
Driver Assembly HUS-537234901
...
6
Circlip HUS-735312810
...
7
Ball Bearing HUS-503252401
...
8
Ball Bearing HUS-738219800
...
9
Screw HUS-503201501
...
10
Screw Ihscfmo HUS-503201412
...
11
Screw Ihscfm HUS-503200725
...
12
Ball Bearing HUS-738219900
...
13
Ball Bearing HUS-738219902
...
14
Circlip HUS-735311100
...
15
Circlip HUS-735312510
...
16
Screw HUS-725237051
...
17
Screw Ihscfm HUS-503200712
...
18
Clamp, Captive Screws HUS-574306901
...
19
Gear Wheel Kit HUS-537041001
...
20
Gear Housing HUS-537333701

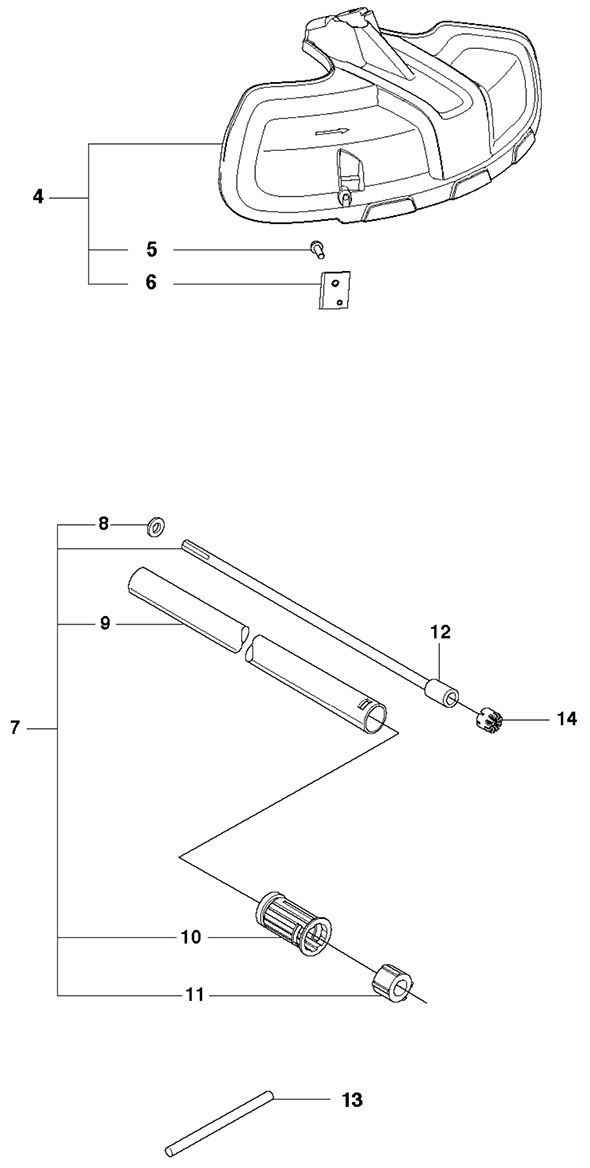

Jonsered TA850

...
...
4
Combination Guard For 537 35 35-02 HUS-588117902
...
5
Screw Itxscft HUS-576275601
...
6
Blade HUS-503798802
...
7
Tube Assembly HUS-587988101
...
8
Lockwasher HUS-735580810
...
9
Tube HUS-537082701
...
10
Plug HUS-587414601
...
11
Supporting Bearing HUS-503785202
...
12
Drive Shaft HUS-587411701
...
13
Stop HUS-502285901
...
14
Clip HUS-583938301
