Jonsered T36P Accessories and Tools, Serial No. 0000001

Model: T36P

Save Part Not Listed?
product name

Jonsered T36P

...
...
1
Transmission HUS-585235201
...
3
Case HUS-582150701
...
4
Reservoir HUS-582150901
...
5
O-Ring HUS-585469401
...
6
Bolt HUS-582151101
...
7
Cap HUS-582151201
...
8
Magnet HUS-505563901
...
10
Shaft Assembly HUS-582164301
...
11
Seal HUS-582162401
...
15
Cap HUS-582162501
...
16
Snap Ring HUS-586889301
...
20
Seal HUS-582162601
...
21
Screw HUS-535402851
...
22
Screw HUS-535402828
...
23
Magnet HUS-582162701
...
26
Filter HUS-582162801
...
33
Shaft HUS-582164401
...
34
Ring HUS-582162901
...
35
Bearing HUS-582163001
...
51
Torsion Spring HUS-582163101
...
53
Control Lever HUS-582163201
...
55
Washer HUS-582163301
...
59
Ring HUS-582163401
...
60
Nut HUS-582163501
...
72
Seal HUS-582163601
...
76
Arm HUS-582163701
...
78
Return Spring HUS-535402839
...
80
Pin Retaining Screw HUS-535402840
...
81
O-Ring HUS-535414619
...
82
Pin Retaining Screw HUS-535402841
...
83
Distance HUS-506986601
...
84
Pulley HUS-582164001
...
85
Fan HUS-506986801
...
86
Spring Washer HUS-506986501
...
88
Collar HUS-582164101
...
89
Washer HUS-578975301
...
90
Lockwasher HUS-578975201
...
91
Bolt HUS-578975101
...
99
Sealing HUS-505348701
...
200
Seal Kit HUS-582164201

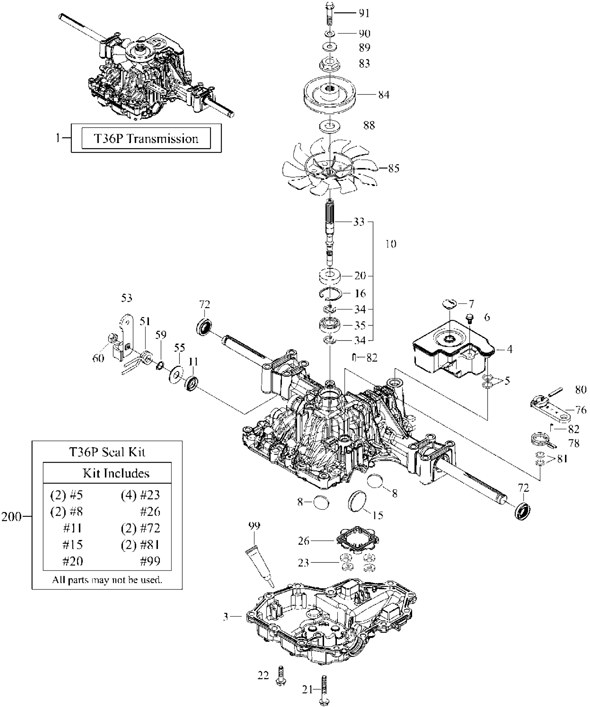

Schematic Image Zoomed
