Jonsered T-80012, 531017772, 2001-02 Trimmer

Model: T-80012-2001-02

Save Part Not Listed?
product name

Jonsered T-80012-2001-02

...
...
1
Tray HUS-531021221
...
2
Draw Bar HUS-531005302
...
3
Support HUS-531005303
...
4
Support HUS-531005304
...
5
Rear Door HUS-531021222
...
6
Wheel HUS-531021232
...
7
Shaft HUS-531005307
...
8
Dust Cap HUS-531005308
...
9
Washer HUS-531005309
...
10
Circlip HUS-531005310
...
11
Retainer HUS-531005311
...
12
Retainer HUS-531005312
...
13
Pin Retaining Screw HUS-531005313
...
14
Protector HUS-531005314
...
15
Protector HUS-531005315
...
16
Screw HUS-531021146
...
17
Washer HUS-531021184
...
18
Washer HUS-531021224
...
19
Nut HUS-531005316
...
20
Screw HUS-531021225
...
21
Nut HUS-531021226
...
22
Nut HUS-531021132
...
23
Pin Retaining Screw HUS-531005217
...
24
Decal HUS-531021228
...
25
Decal HUS-531021227
...
26
Decal HUS-531021229
...
27
Decal HUS-531021231
...
29
Bearing HUS-531021271

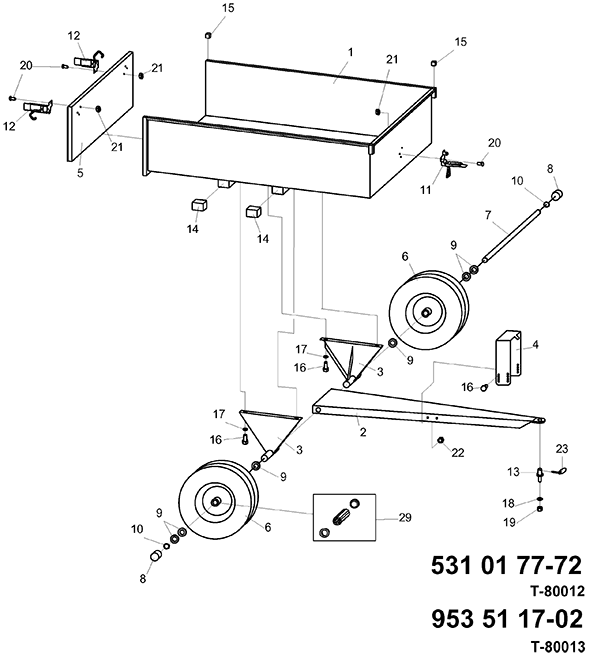

Schematic Image Zoomed
