Jonsered T-20436 StreetBrush, 201005

Model: T-20436

Save Part Not Listed?
product name

Jonsered T-20436

...
...
1
Mounting Frame HUS-576905901
...
2
Mounting Frame HUS-576906001
...
3
Driveshaft HUS-576906101
...
4
Wormgear,7:1 HUS-576906201
...
5
Pulley a112 HUS-576906701
...
6
Rollershaft HUS-576906801
...
7
Flange HUS-576906901
...
8
Bearing HUS-531005259
...
9
Guard,Brushroller HUS-576907001
...
10
Guard,Driveshaft HUS-576922901
...
11
Bearing HUS-576908001
...
12
Plate,Lock HUS-576907101
...
13
Anglecontroltube HUS-576907201
...
14
Tube,Pivotwheel HUS-576907301
...
15
Dustcap HUS-531005315
...
16
Supportwheel HUS-576489401
...
17
Collar HUS-576489201
...
18
Adjustingknob HUS-535415024
...
19
Supportwheel HUS-576907401
...
20
Grip HUS-576907501
...
21
Screw,Special HUS-506982601
...
22
Washer HUS-506559701
...
23
Grip HUS-576907601
...
24
Cover HUS-576907701
...
25
Brushring HUS-576906301
...
26
Collar,Plastic HUS-535414804
...
27
Spring HUS-535414852
...
28
Chaintightener HUS-576906401
...
29
Rubberstrap HUS-506599601
...
30
Collar HUS-576906501
...
31
Chaincover HUS-576906601
...
32
Cover HUS-576919301
...
33
Support HUS-576919401
...
34
Screw HUS-531021239
...
35
Washer HUS-576491701
...
36
Nut,Lock HUS-531021130
...
37
Nut HUS-531021226
...
38
Washer HUS-531021197
...
39
Hexsocketcap HUS-576919501
...
40
Nut,Tensilock HUS-576919601
...
41
Screw,Lock HUS-576919701
...
42
Nut,Lock HUS-531021219
...
43
Screw HUS-531021196
...
44
Washer HUS-535415011
...
45
Drivechain HUS-576919801
...
46
Chainwheel HUS-576919901
...
47
Washer HUS-531021216
...
48
Screw HUS-531021299
...
49
Nut,Lock HUS-531021198
...
50
Plate,Upper HUS-576920101
...
51
Clamp HUS-531005182
...
52
Setscrew HUS-531021169
...
53
Screw HUS-535415036
...
54
Screw,Special HUS-531021195
...
55
Screw HUS-576920201
...
56
Screw HUS-531021146
...
57
Screw HUS-535415045
...
58
Nut HUS-531021129
...
59
Hexsocketcap HUS-576920301
...
60
Screw,Special HUS-576923101
...
61
Adapter,Washer HUS-576923201

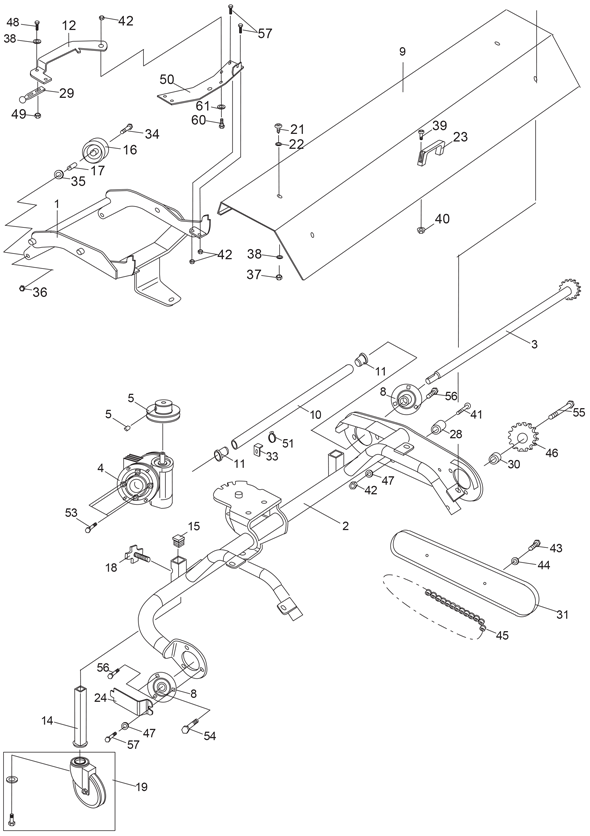

Schematic Image Zoomed
