Jonsered T-20435 Street Brush 966833301

Model: T-20435

Save Part Not Listed?
product name

Jonsered T-20435

...
...
1
Guard, Brush Roller HUS-535466679
...
2
Rubber HUS-535414835
...
3
Support, Rubber HUS-535414836
...
4
Dust Cap HUS-535466601
...
5
Tube HUS-535415098
...
6
Chain Tightener HUS-535414811
...
7
Shaft HUS-535414810
...
8
Chain Tightener HUS-535414837
...
9
Bearing HUS-531001046
...
10
Slide Ring HUS-535414843
...
11
Plate, Upper HUS-535466680
...
12
Support Wheel HUS-535415099
...
13
Plate, Side HUS-535466681
...
14
Plate, Lower HUS-535414840
...
15
Locking Knob HUS-535466602
...
16
Mounting Plate HUS-535466673
...
17
Mounting Plate HUS-535414809
...
18
Pulley A112 HUS-535466682
...
19
Key HUS-531005278
...
20
Spiral Gear Box HUS-535466683
...
21
Washer HUS-535414848
...
22
Washer HUS-531021137
...
23
Collar HUS-535466684
...
24
Shaft HUS-535466685
...
26
Screw HUS-531021173
...
29
Mounting Frame HUS-535466686
...
34
Flange HUS-535414808
...
35
Roller Shaft HUS-535414806
...
36
Flange HUS-535414807
...
38
Roller Shaft HUS-535414805
...
40
Chain HUS-535414826
...
41
Chain Shackle HUS-535414827
...
42
Collar, Plastic HUS-535414834
...
43
Spring HUS-535414852
...
44
Brush Ring Kit HUS-535414861
...
45
Bearing HUS-535414801
...
46
Screw HUS-535466635
...
47
Collar, Plastic HUS-535414804
...
48
Mounting Plate HUS-535414813
...
49
Brush Ring HUS-535414803
...
50
Washer HUS-535415094
...
51
Protection, Plastic HUS-535414815
...
52
Screw HUS-535414812
...
54
Angle Control Rod HUS-535466641
...
55
Rod, Lock HUS-535466619
...
56
Spring HUS-535466643
...
57
Pin HUS-535466644
...
58
Nut HUS-531021226
...
59
Rod HUS-535466645
...
60
Support HUS-535466646
...
61
Tarpaulin HUS-535466647
...
63
Screw, Special HUS-506982601
...
64
Washer HUS-506559701
...
65
Decal HUS-535437401
...
66
Screw HUS-535415045
...
67
Nut, Lock HUS-531021219
...
68
Screw HUS-535466649
...
69
Screw HUS-531021225
...
70
Washer HUS-535466657
...
71
Screw HUS-531021259
...
72
Washer HUS-531021184
...
76
Screw HUS-535415036
...
77
Washer HUS-535415011
...
78
Nut, Lock HUS-531021130
...
79
Pin, Split HUS-535466653
...
80
Pop Rivet HUS-535466654
...
81
Washer HUS-535466655
...
82
Pin Set HUS-531005217
...
83
Nut, Lock HUS-531021198
...
84
Slide Ring HUS-535466606
...
85
Screw HUS-535415040
...
86
Grip HUS-535466617
...
87
Nut HUS-531021132
...
88
Decal, Street Brush HUS-531021234

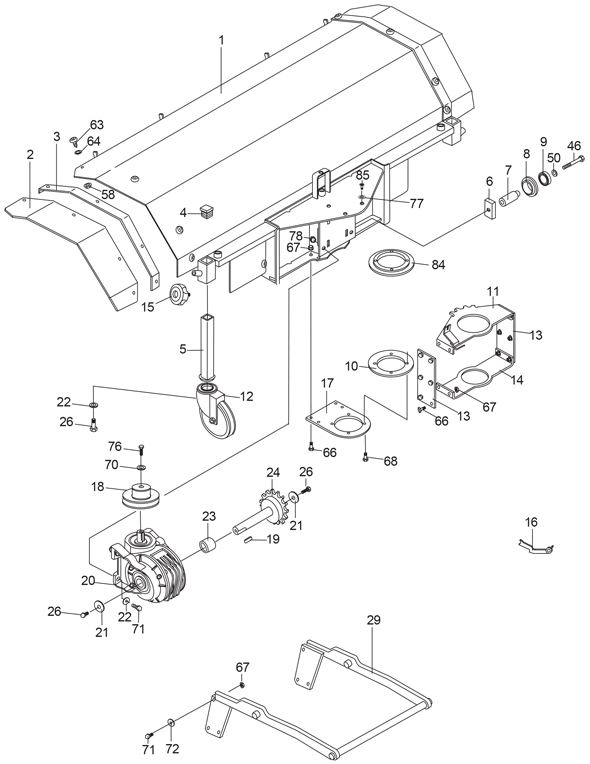

Schematic Image Zoomed
