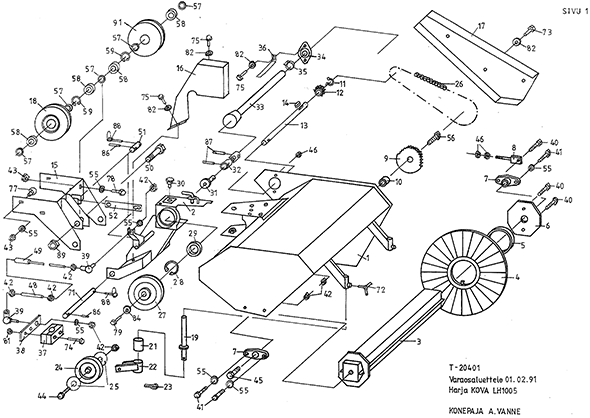

Jonsered T-20401, 997103910, 2010-01 Trimmer

Model: T-20401

Save Part Not Listed?
product name

Jonsered T-20401

...
...
1
Frame HUS-531005150
...
2
Weldment HUS-KOVA27103
...
3
Roller Shaft HUS-531005152
...
4
Brush Ring HUS-531005153
...
5
Collar, Plastic HUS-531005154
...
6
Flange HUS-531005155
...
7
Bearing, Flange HUS-531005108
...
8
Chain Tightener HUS-531005157
...
9
Chain Wheel HUS-531005158
...
10
Collar HUS-531005159
...
11
Circlip HUS-531021151
...
12
Chain Wheel HUS-531005160
...
13
Drive Shaft HUS-531005161
...
14
Key HUS-531005220
...
15
Frame HUS-KOVA27105
...
16
Belt Guard HUS-531021153
...
17
Chain Guard HUS-531005165
...
18
Pulley HUS-531005166
...
19
Support Shaft, Wheel HUS-531005167
...
20
Frame HUS-531021176
...
21
Bushing, Plastic HUS-531005169
...
22
Support, Wheel HUS-531005170
...
23
Pin, Split HUS-531005171
...
24
Support Wheel HUS-531005172
...
25
Guard, Support HUS-531005173
...
26
Drive Chain HUS-531005111
...
27
Pulley HUS-531005175
...
28
Circlip HUS-531005176
...
29
Bearing HUS-531005112
...
30
Screw HUS-531005177
...
31
Pin HUS-531005178
...
32
Universal Joint HUS-531005179
...
33
Guard, Drive Shaft HUS-531005180
...
34
Bearing HUS-531005181
...
35
Clamp HUS-531005182
...
36
Support HUS-531005183
...
37
Mounting, Plastig HUS-KOVA27114
...
38
Mounting Plate HUS-KOVA27115
...
39
Angle Joint HUS-KOVA29301
...
40
Screw HUS-531021127
...
41
Screw HUS-531021128
...
42
Nut HUS-531021129
...
43
Nut, Lock HUS-531021130
...
44
Screw HUS-531021131
...
45
Screw, Special HUS-531005187
...
46
Nut HUS-531021132
...
47
Nut, Lock HUS-531021219
...
48
Screw HUS-KOVA27116
...
49
Rod, Lift HUS-KOVA27117
...
50
Screw HUS-531005191
...
51
Shaft HUS-531005192
...
52
Weldment, Lift HUS-531021158
...
53
Pulley HUS-531021159
...
54
Pulley HUS-531021160
...
55
Washer HUS-531021137
...
56
Screw HUS-531005191
...
57
Collar HUS-531005197
...
58
Bearing HUS-531021138
...
59
Circlip HUS-531005198
...
60
Pulley HUS-531005199
...
61
V-Belt HUS-531005101
...
62
V-Belt HUS-531005104
...
63
Collar HUS-531021161
...
64
Arm HUS-531021162
...
65
Arm HUS-531021177
...
66
Collar HUS-531021164
...
67
Spring HUS-531005203
...
68
Shaft HUS-531021166
...
69
Tightener, Belt HUS-531005204
...
70
Tightener, Belt HUS-531021179
...
71
Shaft HUS-531021168
...
72
Screw HUS-531005212
...
73
Screw HUS-531021144
...
74
Screw HUS-KOVA97014
...
75
Screw HUS-531021146
...
76
Screw HUS-535415045
...
77
Screw (Carriage Bolt HUS-531021172
...
78
Screw HUS-531021173
...
79
Screw HUS-531021149
...
80
Screw HUS-531021131
...
81
Nut, Lock HUS-531021198
...
82
Washer HUS-531021184
...
83
Collar HUS-531005215
...
84
Washer HUS-531021185
...
85
Set Screw HUS-531021169
...
86
Pin, Spring HUS-531005216
...
87
Pin, Spring HUS-531021170
...
88
Pin Set HUS-531005217
...
89
Nut, Lock HUS-531005218
...
90
Screw HUS-531021127
...
91
Pulley HUS-531005168
...
92
Guide, Belt HUS-531021171
