Jonsered SV730-0022 Kohler 25 hp Engine

Model: SV730-0022

Save Part Not Listed?
product name

Jonsered SV730-0022

...
...
1
Kit, Breather Valve Cover (Includes 2[Qty 1]) HUS-531029969
...
2
O-Ring, Valve Cover HUS-531029915
...
3
Screw, Flg M6X1.0X30 HUS-531029914
...
5
Kit, Retainer HUS-531029717
...
6
Cap, Valve Spring HUS-531029716
...
7
Spring, Valve HUS-531029715
...
8
Retainer, Spring HUS-531029714
...
9
Seal, Valve Stem HUS-531029713
...
10
Valve, Intake (Std) HUS-531029711
...
11
Valve, Exhaust (Std) HUS-531029709
...
12
Kit, Breather Hose (Includes 13) HUS-531029945
...
13
Clamp, Hose 1/2" HUS-531029604
...
14
Kit, Breather Housing (Includes 15,16) HUS-531029947
...
15
Nut, Lock M5X.8 HUS-531029805
...
16
Washer, Sealing HUS-531029946
...
17
Stud, Breather Cover HUS-531029948
...
18
Tappet HUS-531029962
...
20
Kit, Cylinder Head Gasket (Includes 26[Qty 4] & 24 041 49-S, 24 153 27-S) HUS-525590201
...
26
Screw, Flg M10X1.5X90 HUS-531029703
...
28
Kit, Breather Valve Cover (Includes 2[Qty 1], 3[Qty 4]) HUS-531029875
...
29
Strap, Lifting HUS-525588901
...
30
Screw, Flg Thd Frm M6X1.0X16 HUS-531029762
...
31
Kit, Breather Cover (Includes 32) HUS-531029951
...
33
Filter, Breather HUS-531029953
...
34
Kit,1 Cylinder Head Assembly (Includes Exhaust Mounting Hardware) HUS-525589701
...
35
Kit, 2 Cylinder Head Assembly (Includes Exhaust Mounting Hardware) HUS-531029964
...
36
Plate, Guide HUS-504576201
...
37
Stud, Rocker HUS-504575901
...
38
Arm, Rocker HUS-531029965
...
39
Hex Nut Assembly (Includes 40) HUS-525589101
...
40
Screw, Set HUS-525588801
...
41
Pivot, Rocker Arm HUS-504575601
...
42
Rod, Push HUS-525590001
...
43
Kit, Fuel Pump Hose W/Clamp (Includes 44) HUS-525589801
...
44
Clamp, Hose HUS-531029993

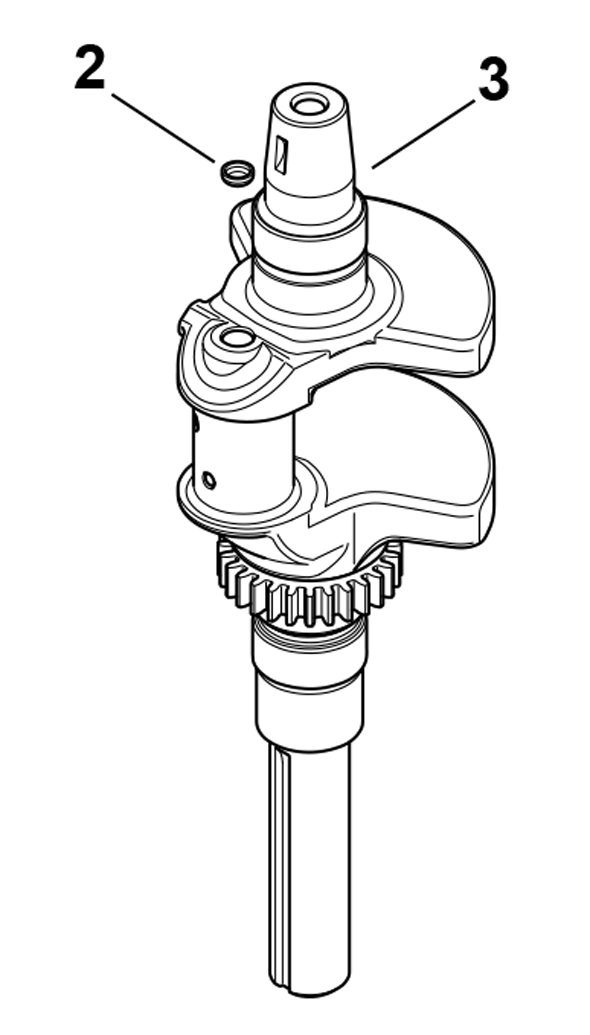

Jonsered SV730-0022

...
...
2
Plug, Cup HUS-531029654
...
3
Crankshaft (Includes 2) HUS-531029943

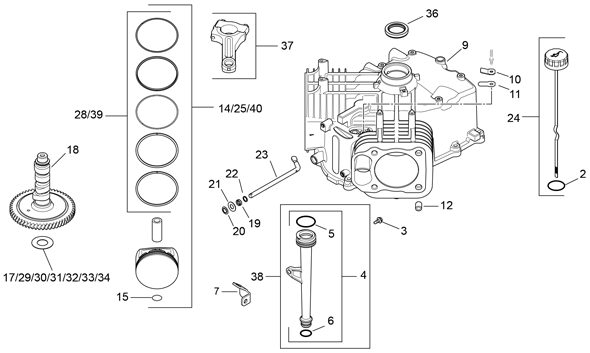

Jonsered SV730-0022

...
...
2
Dipstick, Assembly (Cub Yellow) (Includes 2) HUS-531029944
...
3
Screw, Flg Thd Frm M5X0.8X13 HUS-531029550
...
7
Bracket, Oil Fill Tube HUS-531029659
...
10
Retainer, Breather Reed HUS-531029656
...
11
Reed, Breather HUS-544840301
...
12
Pin, Locating HUS-531029635
...
14
Kit, Piston W/Ring Set (Std) (Includes 15, 16) HUS-531029904
...
15
Retainer, Piston Pin HUS-531029645
...
17
Shim, Camshaft (White .028") HUS-531029648
...
18
Kit, Camshaft (Includes 25 357 14-S) HUS-531029950
...
19
Seal, Governor Cross Shaft HUS-531029668
...
20
Retainer, Ring HUS-531029666
...
21
Washer, Flat 9 Mm HUS-531029667
...
22
Washer, Flat 11/32" HUS-531029669
...
23
Shaft, Governor Cross HUS-531029670
...
24
Dipstick, Assembly (Includes 2) HUS-531029663
...
25
Kit, Piston W/Ring Set (0.25) 83Mm HUS-525589001
...
28
Ring Set (.25) HUS-531029909
...
29
Shim, Camshaft (Blue .03") HUS-531029649
...
30
Shim, Camshaft (Red .032") HUS-531029646
...
31
Shim, Camshaft (Yellow .034") HUS-531029650
...
32
Shim, Camshaft (Green .036") HUS-531029651
...
33
Shim, Camshaft (Gray .038") HUS-531029652
...
34
Shim, Camshaft (Black .04") HUS-531029647
...
36
Seal, Oil (Helix Lip) HUS-531029779
...
37
Connecting Rod (Std) HUS-531029636
...
38
Tube Assembly (Includes 4-6) HUS-531029660
...
39
Ring Set (Std) HUS-525586201
...
40
Use 24 874 27-S Kit HUS-544841401

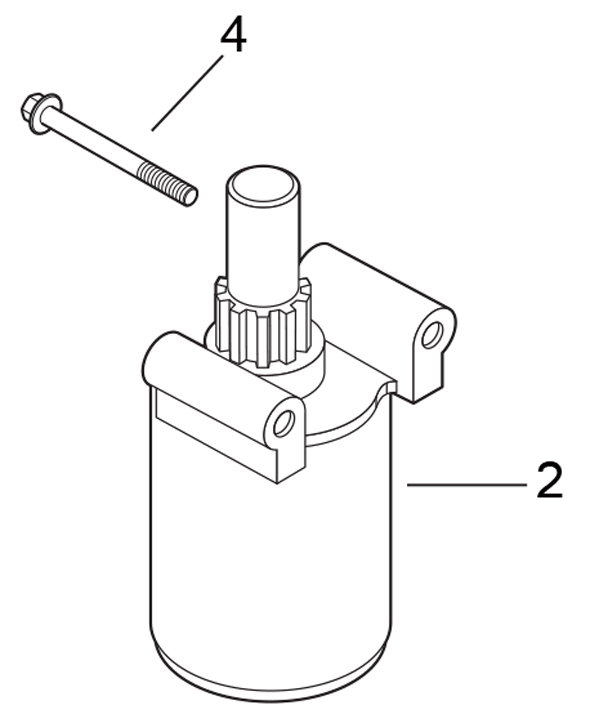

Jonsered SV730-0022

...
...
2
Starter Assembly HUS-531029985
...
4
Screw, Flg M8X1.25X80 HUS-525590401

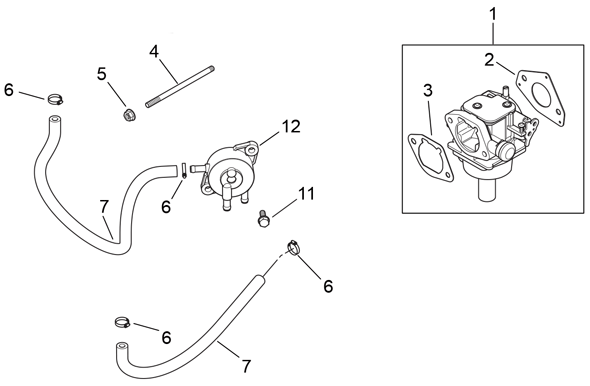

Jonsered SV730-0022

...
...
1
Kit, Carburetor, 22Mm Keihin (Includes 2,3) HUS-504577401
...
2
Gasket, Carburetor HUS-531029590
...
3
Gasket, Air Cleaner Base HUS-531029780
...
4
Stud, M6X1.0X106 HUS-531029992
...
5
Nut, Flg M6X1.0 HUS-531029602
...
6
Clamp, Hose 1/2" HUS-531029604
...
7
Line, Fuel (24"-Cut To Length) HUS-531029987
...
11
Screw, Tap M6X1.7X18 HUS-531029679
...
12
Pump, Fuel HUS-531029787
...
13
Filter, Fuel HUS-531029862
...
14
Clip, Cable HUS-531029783

Jonsered SV730-0022

...
...
2

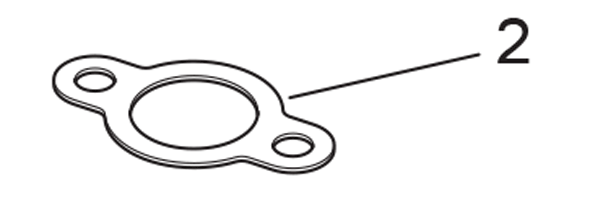

Gasket, Exhaust HUS-531029843

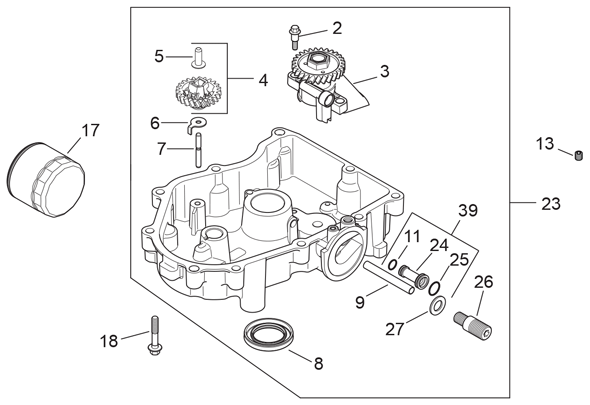

Jonsered SV730-0022

...
...
2
Screw, Shd Thd Frm M6X.0X6.5 HUS-531029955
...
3
Pump Assembly, Oil HUS-531029956
...
4
Kit, Covernor Gear W/Pin (Includes 5) HUS-531029678
...
5
Pin, Governor Regulating HUS-531029549
...
6
Tab, Locking HUS-531029912
...
7
Shaft, Governor Gear HUS-531029681
...
8
Seal, Oil HUS-531029683
...
9
Tube, Oil Feed - Filter To Pan HUS-531029957
...
11
O-Ring, Oil Pick-Up HUS-531029674
...
13
Plug, Ctsk Pipe 1/8" HUS-531029543
...
17
Filter, Oil HUS-531029786
...
18
Screw, Flg M8X1.25X45 HUS-531029688
...
23
Pan Assembly, Oil (Includes 2-9,11[Qty 1],24-27) HUS-531029954
...
24
Tube, Oil Feed HUS-525589301
...
25
O-Ring HUS-525589601
...
26
Nipple, Oil Filter HUS-525589501
...
27
Washer, Flat HUS-525590101
...
39
Oil Feed Tube Assembly (Includes 11[Qty 1],24,25) HUS-525589401

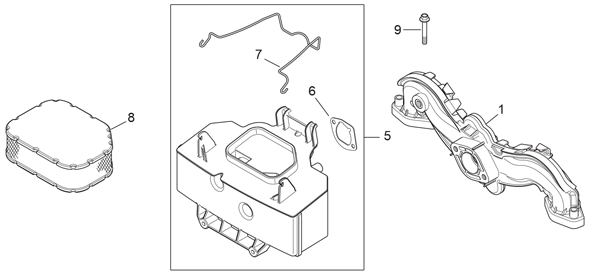

Jonsered SV730-0022

...
...
1
Kit, Intake Manifold HUS-525586301
...
5
Kit, Air Cleaner Base HUS-531029996
...
6
Gasket, Air Cleaner Base HUS-531029780
...
7
Latch, Air Cleaner Element HUS-531029997
...
8
Element, Air Filter HUS-531029902
...
9
Screw, Flg M6X1.0X40 HUS-531029841

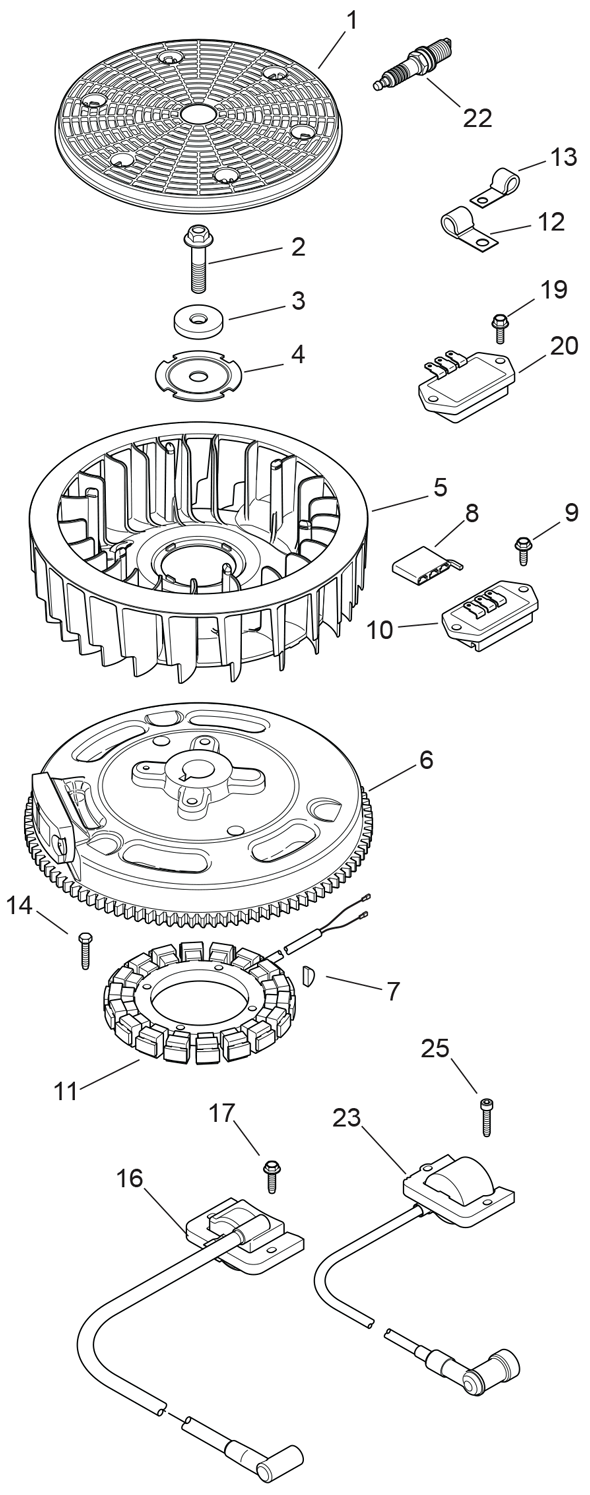

Jonsered SV730-0022

...
...
1
Screen, Grass HUS-531029970
...
2
Screw, Flg M10X1.5X45 HUS-531029573
...
3
Washer, Flat 13/32" HUS-531029574
...
4
Plate, Fan Mounting HUS-544936801
...
5
Fan HUS-531029973
...
6
Flywheel Assembly (Sv710/Sv730) HUS-531029974
...
7
Key, 3/16" X 5/8" HUS-531029511
...
8
Connector HUS-523060601
...
11
Kit, 15 Amp Stator (Includes 25 452 01-S) HUS-531029582
...
12
Clip, Cable HUS-531029783
...
14
Screw, Thd Frm M5X0.8X25 HUS-531029581
...
16
Use 24 584 45-S Ignitionition Module HUS-531029976
...
17
Screw, Flg Thd Frm M5X.8X20 HUS-531029584
...
22
Spark Plug, Rfi HUS-531029975

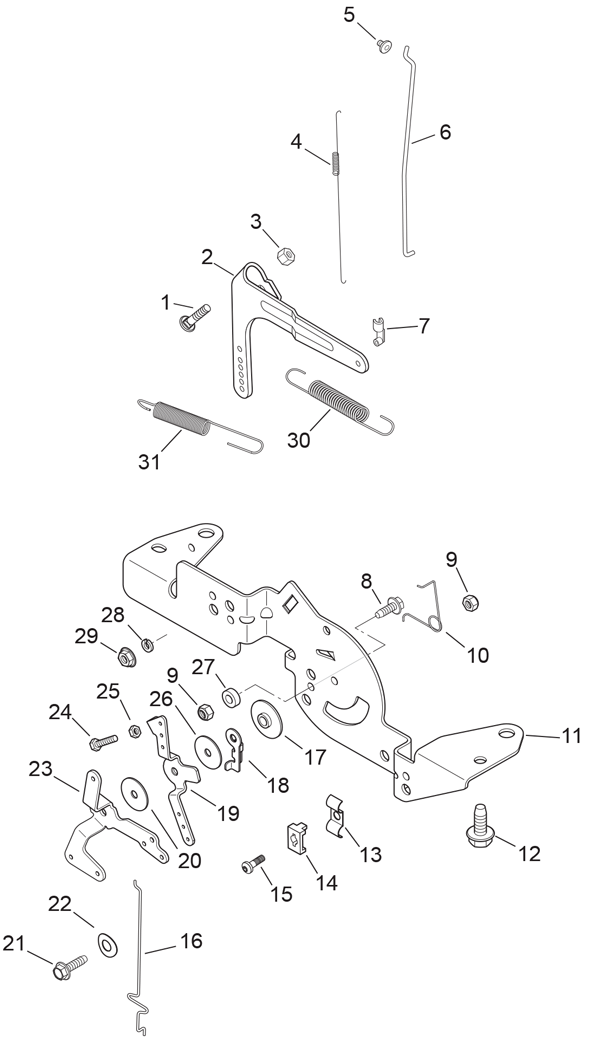

Jonsered SV730-0022

...
...
1
Bolt, Rd Hd Sq Neck M6X1.0X25 HUS-531029797
...
2
Lever, Governor HUS-531029798
...
3
Nut, Flg M6X1.0 HUS-531029602
...
4
Spring, Linkage HUS-531029800
...
5
Bushing, Linkage Retaining HUS-531029626
...
6
Linkage, Throttle HUS-531029802
...
7
Bushing, Throttle Linkage HUS-531029624
...
8
Screw, Flg Thd Frm M5X0.8X16 HUS-531029661
...
9
Nut, Lock M5X0.8 HUS-531029805
...
10
Spring, Choke Return HUS-531029806
...
11
Bracket, Control HUS-531029933
...
12
Screw, Flg Thd Frm M6X1.0X16 HUS-531029762
...
14
Clamp, Cable HUS-531029613
...
15
Screw, Lbd Thd Frm M5X0.8X16 HUS-531029614
...
16
Linkage, Choke HUS-531029821
...
17
Spacer, Control Assembly HUS-531029811
...
18
Lever, Throttle Actuator HUS-531029812
...
19
Lever, Throttle Control HUS-531029815
...
20
Washer, Flat 5.5 Mm HUS-531029816
...
21
Screw, Flg Thd Frm M5X0.8X20 HUS-531029584
...
22
Washer, Spring 1/4" HUS-531029819
...
23
Lever, Choke HUS-531029818
...
24
Screw, Slt Hd Cap M4X0.7X25 HUS-531029728
...
25
Nut, M4X0.7 HUS-531029814
...
26
Washer, Flat 5 Mm HUS-531029813
...
28
Washer, Spring Lock 1/4" HUS-525590501
...
29
Nut, Flg M5X0.8 HUS-525590301
...
30
Spring, Governor HUS-531029823
...
31
Spring, Governor HUS-531029934

Jonsered SV730-0022

...
...
1

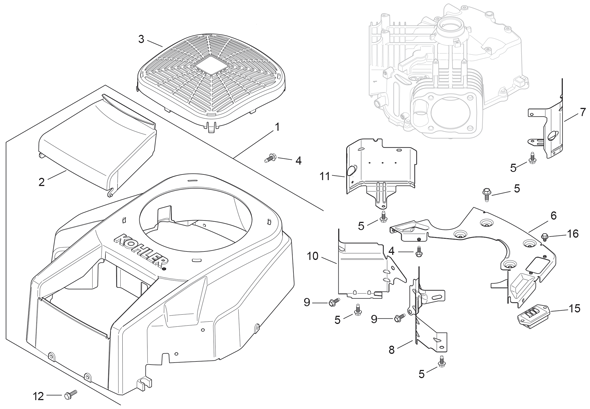

Kit, Housing Blower (Includes 2, 41 037 10-S) HUS-531029978
...
2
Cover, Air Cleaner HUS-531029979
...
4
Screw, Flg Thd Frm M5X0.8X16 HUS-531029661
...
5
Screw, Flg Thd Frm M6X1.0X16 HUS-531029762
...
6
Kit, Backing Plate HUS-531029980
...
7
Baffle, Cyl Barrel-2 Side HUS-531029981
...
8
Baffle, Valley 2 Side HUS-531029982
...
9
Screw, Flg Thd Frm M5X.8X10 HUS-531029655
...
10
Baffle, Valley 1 Side HUS-531029983
...
11
Baffle, Cyl Barrel-1 Side HUS-531029984
...
12
Screw, Tap M6X1.7X18 HUS-531029679
...
15
Regulator/Rectifier HUS-504577101
...
16
Screw, Flng Thd Frm M6X1.0X10 HUS-525586401

Jonsered SV730-0022

...
...
1
Decal, Clear Laminate HUS-531029842
...
4
Decal, Fill Check HUS-525589201
...
6
Decal, 25 Hp HUS-544840801
