Jonsered SV590-0007 Kohler Tractor Engine

Model: SV590-0007

Save Part Not Listed?
product name

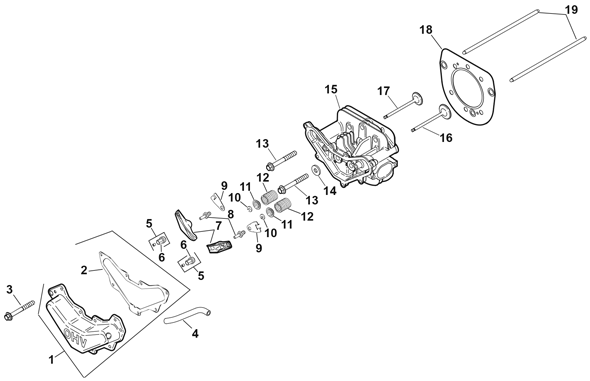

Jonsered SV590-0007

...
...
1
Kit, Valve Cover (Includes 2) HUS-531029878
...
2
Gasket, Valve Cover HUS-531029554
...
3
Screw, Hex. Flange M6X1.0X20 (7) HUS-531029555
...
4
Hose, Breather HUS-531029556
...
5
Screw, Set (2) HUS-531029558
...
6
Pivot, Rocker Arm (2) HUS-531029557
...
7
Arm, Rocker (2) HUS-531029559
...
8
Stud, Rocker (2) HUS-531029560
...
9
Plate, Push Rod Guide (2) HUS-531029561
...
10
Lock, Retainer (2) HUS-531029562
...
11
Cap, Valve Spring (2) HUS-531029563
...
12
Spring, Valve (2) HUS-531029564
...
13
Screw, Hex. Flange M10X1.5X37 (6) HUS-531029565
...
14
Washer, Flat 1/2" HUS-531029566
...
15
Head, Cylinder HUS-531029567
...
16
Valve, Exhaust HUS-531029568
...
17
Valve, Intake HUS-531029569
...
18
Kit, Cylinder Head Gasket (94 Mm) HUS-531029690
...
19
Rod, Push (2) HUS-531029571

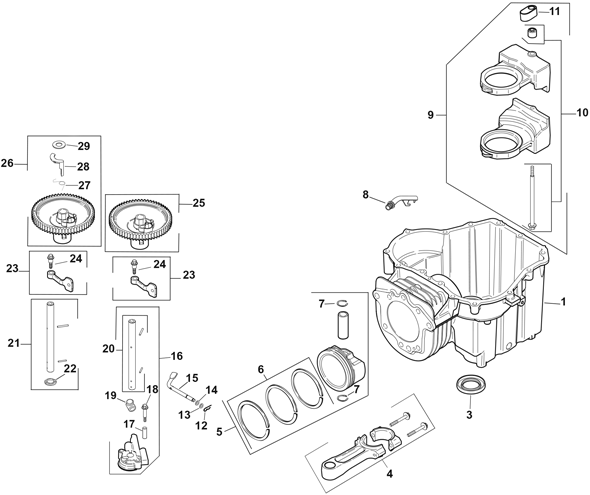

Jonsered SV590-0007

...
...
3
Seal, Oil HUS-531029514
...
4
Rod, Connecting HUS-531029516
...
5
Piston W/Ring Set (Includes 6,7) HUS-531029621
...
6
Ring Set (94 Mm) HUS-525451301
...
7
Retainer, Piston Pin (2) HUS-531029519
...
8
Tube, Drain-Back HUS-531029799
...
9
Kit, Balance Weight (Includes 10,11) HUS-531029520
...
10
Kit, Screw/Guide Pin HUS-531029521
...
11
Shoe, Guide HUS-531029522
...
12
Clip, Hitch Pin HUS-531029523
...
13
Washer, Plain HUS-531029524
...
14
Washer, Plain HUS-531029539
...
15
Shaft, Governor Cross HUS-531029525
...
16
Pump Assembly, Oil (Includes 16-19) HUS-531029839
...
17
Spacer, Oil Pump Screw (2) HUS-531029527
...
18
Screw, Oil Pump (2) HUS-531029528
...
19
Seal, Oil Pump Outlet HUS-531029758
...
20
Shaft Center, Cam - Intake HUS-531029530
...
21
Shaft Center, Cam - Exhaust (Includes 21) HUS-531029877
...
22
Washer, Thrust HUS-531029532
...
23
Lever Assembly, Cam (2) (In Cludes 23) HUS-531029533
...
24
Screw, Shoulder HUS-531029534
...
25
Gear Assembly, Cam (Includes 25-27) HUS-531029535
...
26
Spring, Acr HUS-531029536
...
27
Weight, Acr HUS-531029537
...
28
Washer, Thrust - Acr HUS-531029538

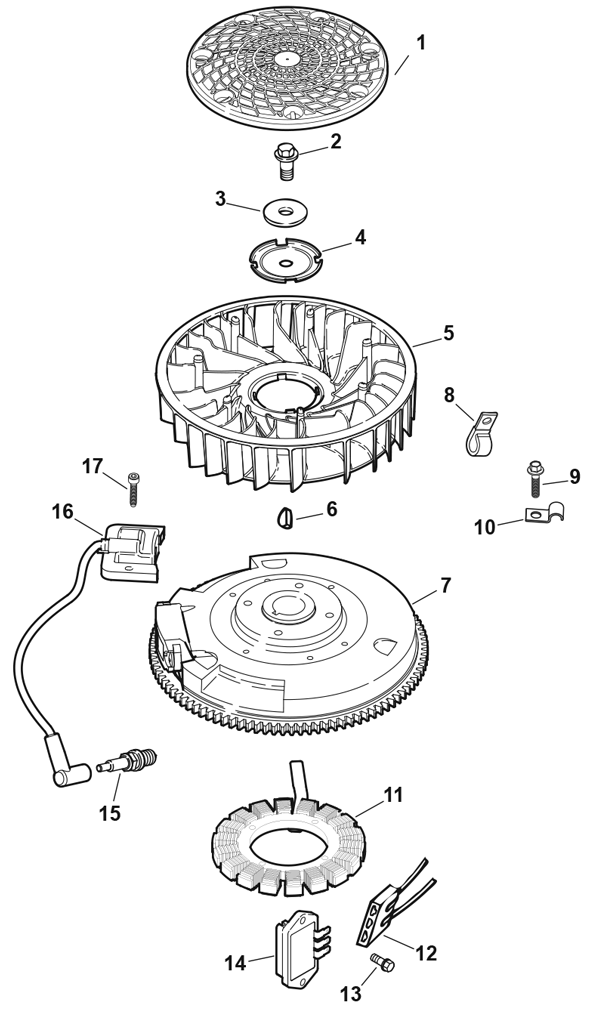

Jonsered SV590-0007

...
...
1
Screen, Grass HUS-531029572
...
2
Screw, Hex. Flange M10X1.5X46 HUS-531029573
...
3
Washer, Spring 3/16" HUS-531029574
...
4
Plate, Fan Mounting HUS-531029575
...
5
Fan HUS-531029576
...
6
Key, Woodruff HUS-531029511
...
7
Flywheel HUS-531029578
...
8
Screw, Hex. Flange M5X0.8X25 (2) HUS-531029579
...
9
Clip, Cable (2) HUS-531029580
...
10
Screw, Hex. Hd. M5X0.8X25 (2) HUS-531029581
...
11
Kit, Stator HUS-531029582
...
12
Connector, Body HUS-531029583
...
13
Screw, Hex. Flange M5X0.8X20 (2) HUS-531029584
...
14
Rectifier-Regulator HUS-531029585
...
15
Plug, Spark HUS-531029586
...
16
Module, Ignitionition HUS-531029587

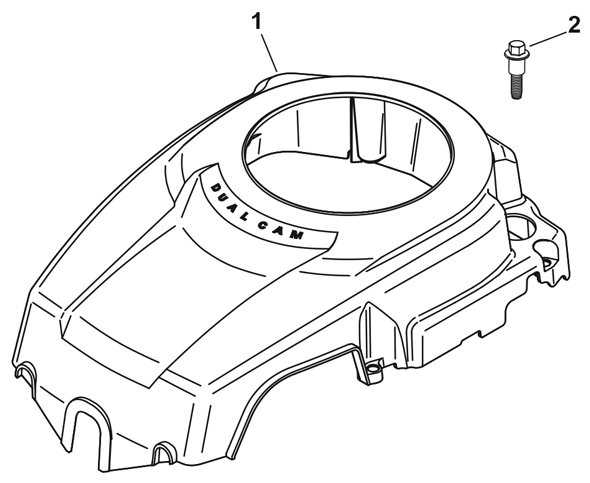

Jonsered SV590-0007

...
...
1
Housing, Blower HUS-531029589
...
2
Screw, Shoulder M5X0.8X36 (4) HUS-531029534
...
3
Washer, Plain HUS-531029591

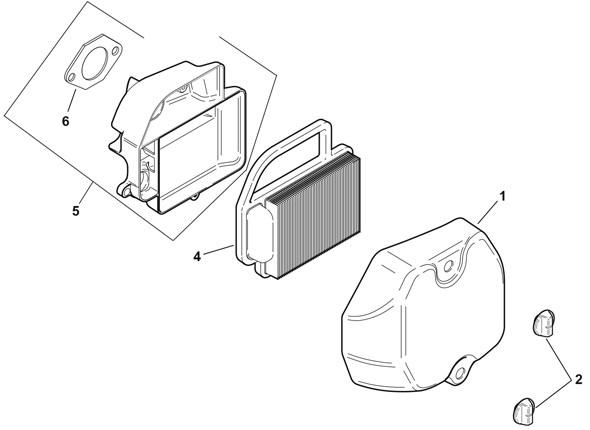

Jonsered SV590-0007

...
...
1
Cover, Air Cleaner HUS-531029627
...
2
Knob, Cover (2) HUS-531029628
...
4
Element, Air Cleaner HUS-531029501
...
5
Kit, Air Cleaner Base (Includes 6) HUS-531029629
...
6
Gasket, Air Cleaner Base HUS-531029600

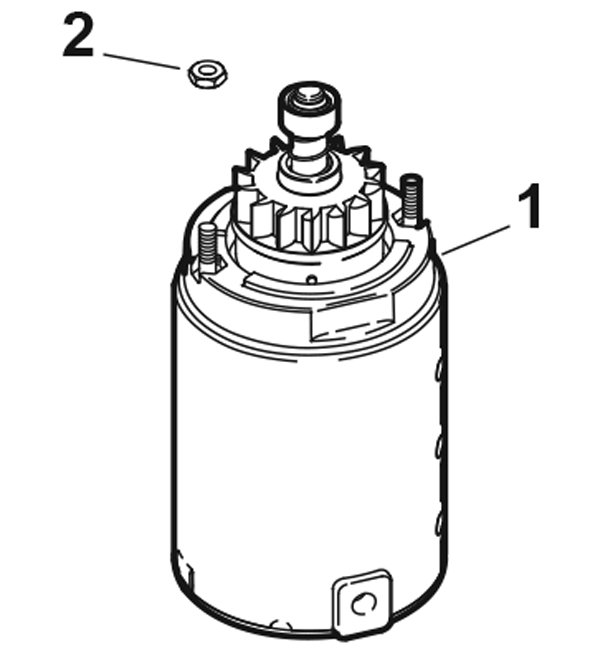

Jonsered SV590-0007

...
...
1
Starter Assembly, Inertia Drive HUS-531029593
...
2
Nut, Hex. Serrated Flange (2) HUS-531029594

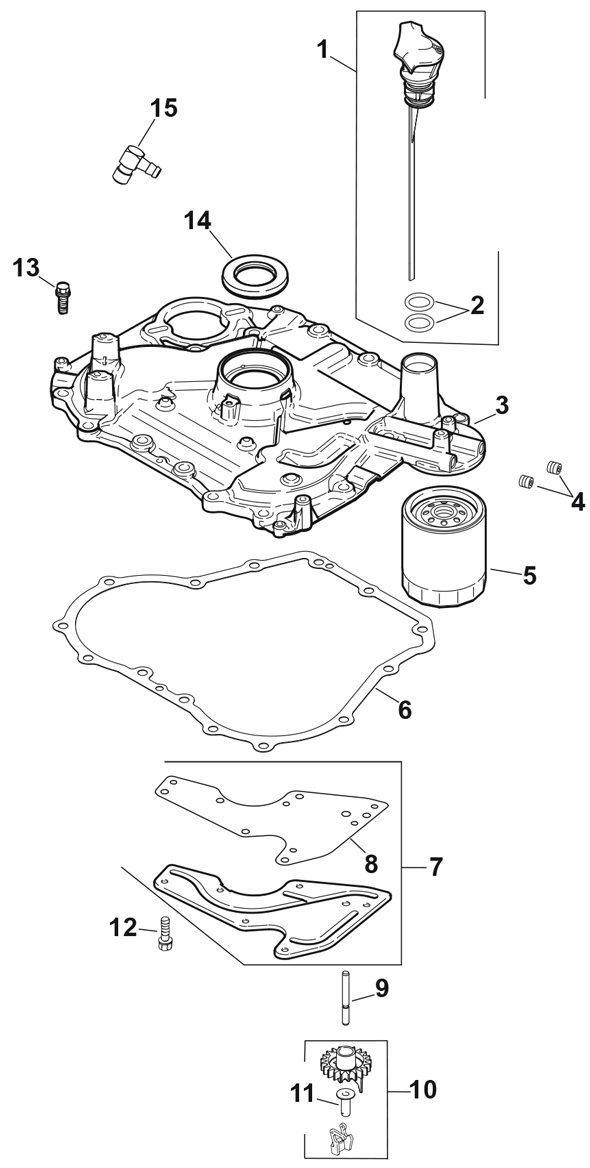

Jonsered SV590-0007

...
...
1
Kit, Dipstick Assembly (Includes 2) HUS-531029540
...
2
O-Ring, Dipstick (2) HUS-531029541
...
3
Plate Assembly, Closure (Includes 4,10,11) HUS-531029542
...
4
Plug, Pipe (2) HUS-531029543
...
5
Filter, Oil HUS-531029503
...
6
Gasket, Closure Plate HUS-531029544
...
7
Kit, Oil Passage Cover (Includes 8) HUS-531029545
...
8
Gasket, Oil Passage HUS-531029546
...
9
Shaft, Governor Gear HUS-531029547
...
10
Kit, Gear And Weight Assembly (Includes 11) HUS-531029548
...
11
Pin, Governor Regulating HUS-531029549
...
12
Screw, Hex. Flange M5X0.8X13 (6) HUS-531029550
...
13
Screw, Hex. Flange M8X1.25X30 (14) HUS-531029551
...
14
Seal, Oil HUS-531029514
...
15
Connector, 90 Degree HUS-531029873

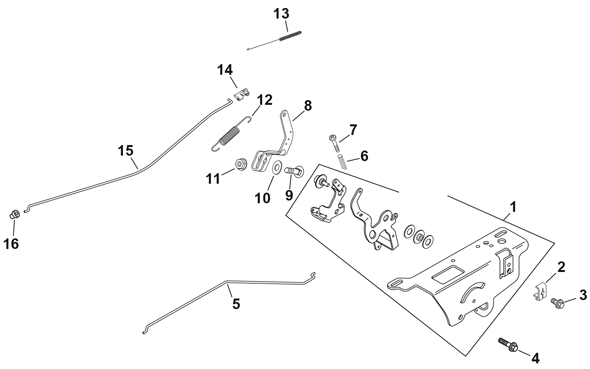

Jonsered SV590-0007

...
...
1
Control Assembly, Speed HUS-531029612
...
2
Clamp, Cable HUS-531029613
...
3
Screw, Torx Hd. Ctsk. M5X0.8X16 HUS-531029614
...
4
Screw, Lobed Sckt. M6X1.0X20 (2) HUS-531029615
...
5
Linkage, Choke - Single Wire HUS-531029616
...
6
Spring, Speed Control (2) HUS-531029617
...
7
Screw, Thread Forming M4X0.7X25 (2) HUS-531029618
...
8
Lever, Governor HUS-531029619
...
9
Bolt, Round Head 1/4-20X1" HUS-531029620
...
10
Washer, Lock 1/4" HUS-531029606
...
11
Nut, Hex. Flange 1/4-20" HUS-531029622
...
12
Spring, Governor HUS-531029623
...
13
Bushing, Throttle Linkage HUS-531029624
...
14
Linkage, Throttle HUS-531029625
...
15
Bushing, Linkage Retaining HUS-531029626

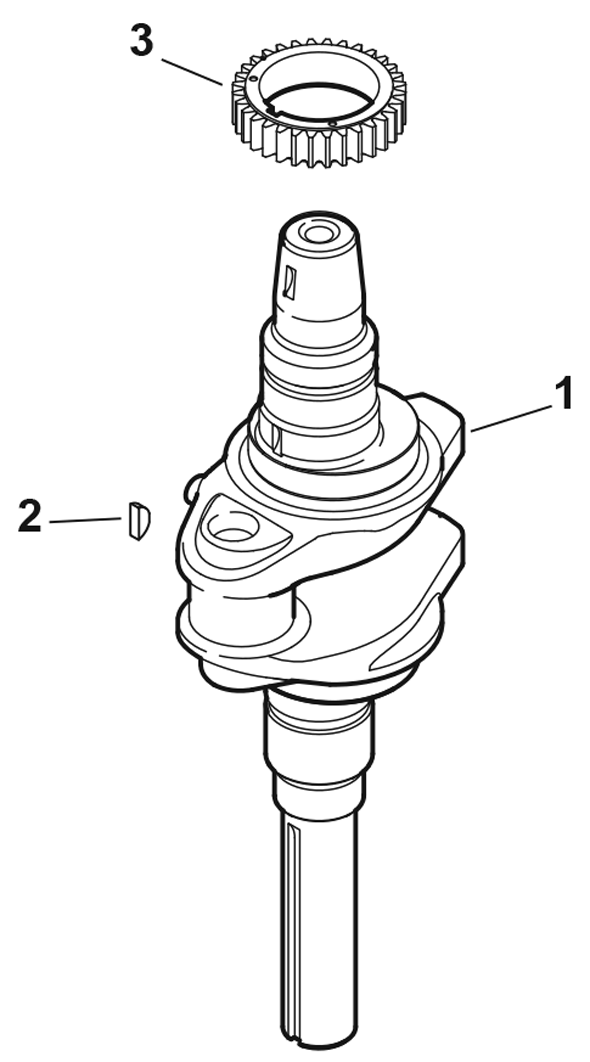

Jonsered SV590-0007

...
...
1
Crankshaft (Includes 2) HUS-531029552
...
2
Key 3/16" HUS-531029511
...
3
Gear, Crankshaft HUS-531029512

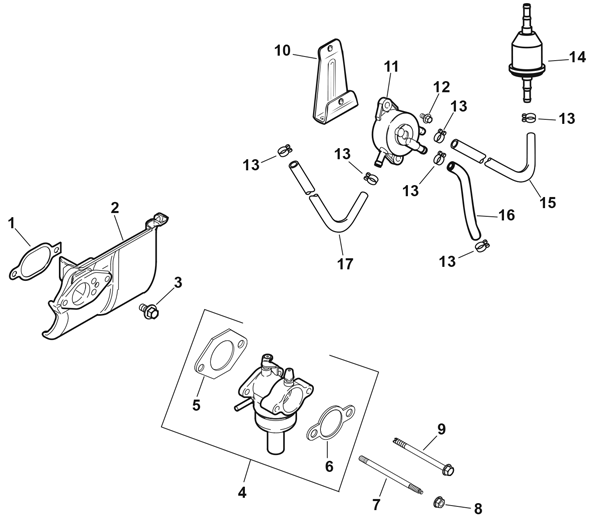

Jonsered SV590-0007

...
...
1
Gasket, Heat Deflector HUS-531029595
...
2
Deflector, Heat HUS-531029596
...
3
Screw, Hex. Flange M6X1.0X20 HUS-531029597
...
4
Carburetor W/Gaskets (Includes 5,6) HUS-531029883
...
5
Gasket, Carburetor HUS-531029599
...
6
Gasket, Air Cleaner HUS-531029600
...
7
Stud, Carburetor Mounting HUS-531029601
...
8
Nut, Hex. Flange M6X1.0 (2) HUS-531029602
...
9
Screw, Carb S60X1.42X85 HUS-531029603
...
13
Clamp, Hose (2) HUS-531029604
...
14
Filter, Fuel HUS-531029502
...
15
Line, Fuel 8" HUS-531029605

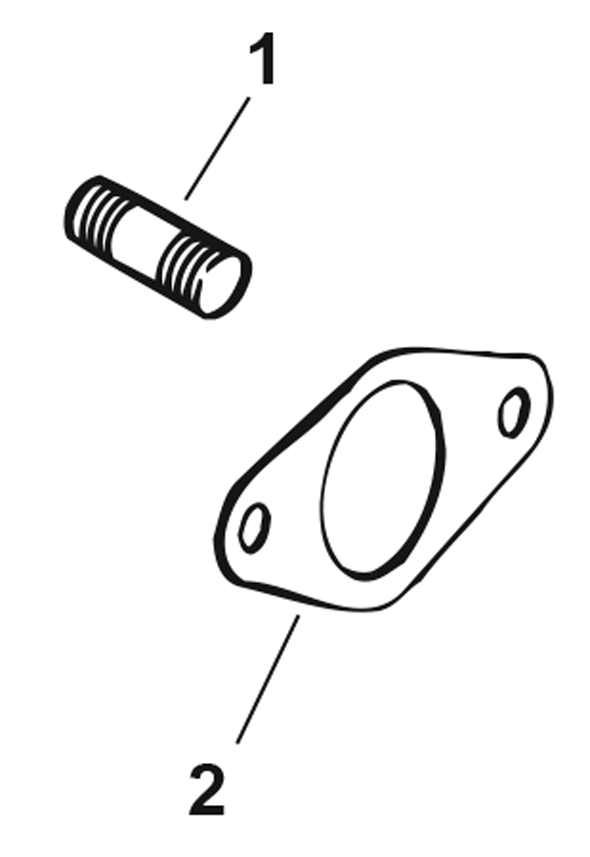

Jonsered SV590-0007

...
...
1
Stud, Exhaust (2) HUS-531029631
...
2
Gasket, Exhaust HUS-531029632
