Jonsered ST2368EP Snow Thrower (96192007601)

Model: ST2368EP

Save Part Not Listed?
product name

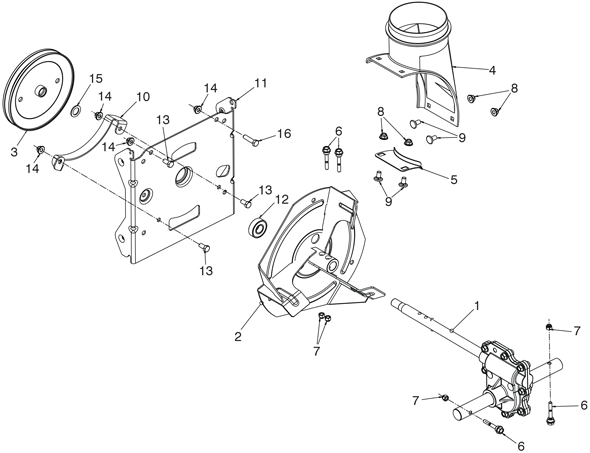

Jonsered ST2368EP

...
...
1
Gearbox Auger HUS-586714801
...
2
Impeller Steel HUS-586607202
...
3
Pulley Impeller Screw On HUS-586715201
...
4
Chute Discharge Base HUS-585056901
...
5
Bracket Corner Discharge Base HUS-532178675
...
6
Bolt Shear 1/4-20 HUS-585511801
...
7
Nut Nylock 1/4-20 HUS-873800400
...
8
Nut Flange Nylock 5/16-18 - Black HUS-585691301
...
9
Bolt Carriage Wafer Head 5/16-18 X 5/8 Black HUS-585691201
...
10
Bracket Belt Keeper Lower HUS-581632002
...
11
Bracket Interface HUS-581592502
...
12
Bearing Ball HUS-532198791
...
13
Screw Hex Head 5/16-18 X 5/8 HUS-532163183
...
14
Nut Flange Nylock 5/16-18 HUS-532427942
...
15
Washer Impeller Pulley 1.00D X .641Id X .075Thk HUS-587392701
...
16
Screw Hex Head 5/16-18 X 1.25 HUS-874520520

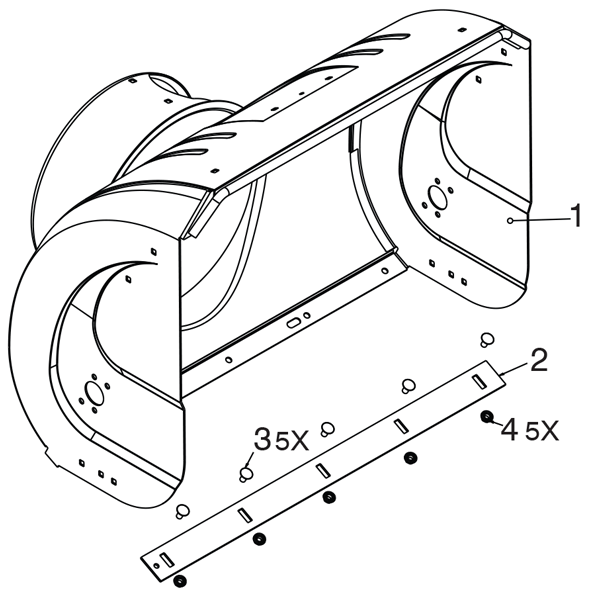

Jonsered ST2368EP

...
...
1
Auger Housing HUS-586184007
...
2
Scraper Bar HUS-532407727
...
3
Carriage Bolt 5/16-18 X .625 Gr5 HUS-872270505
...
4
Nut 5/16-18 HUS-532155377

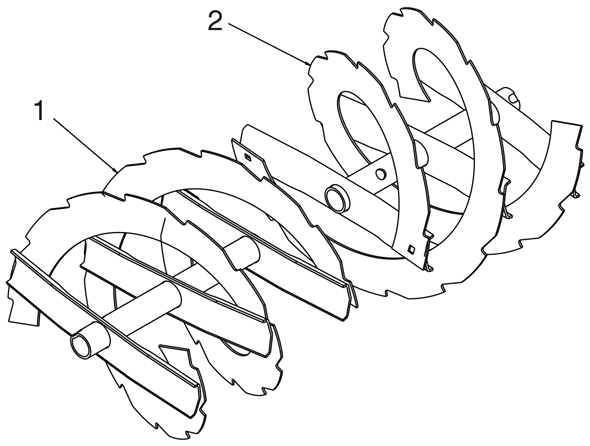

Jonsered ST2368EP

...
...
1
Auger 27 Lh HUS-532420495
...
2
Auger 27 Rh HUS-532420496

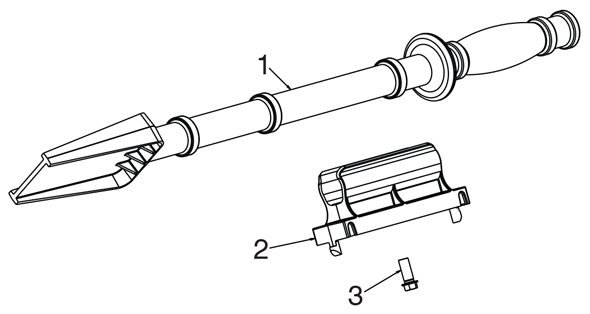

Jonsered ST2368EP

...
...
1
Tool Cleanout HUS-532192199
...
2
Clip Cleanout Tool HUS-532405400
...
3
Screw Hex Washer 13-16 X 5/8 HUS-532194189

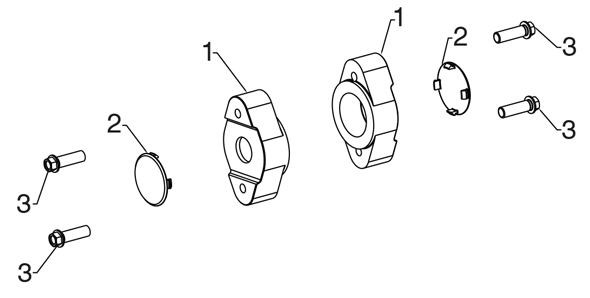

Jonsered ST2368EP

...
...
1
Auger Bearing HUS-532420478
...
2
Bearing Plug HUS-532411939
...
3
Screw Hi-Lo Washd 5/16-14 X 1.00 HUS-584299401

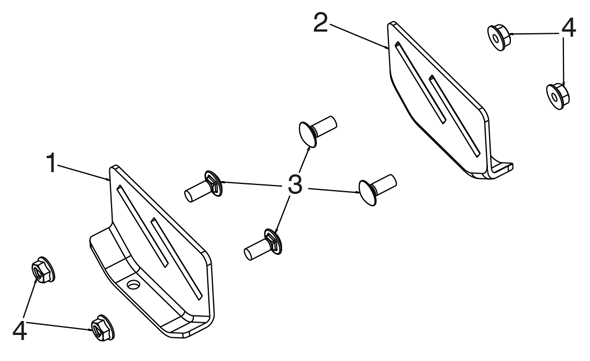

Jonsered ST2368EP

...
...
1
Skid Plate Lh HUS-532184093
...
2
Skid Plate Rh HUS-532184094
...
3
Bolt Carriage Black 5/16-18 X .75 HUS-585691701
...
4
Nut Black 5/16-18 HUS-585691301

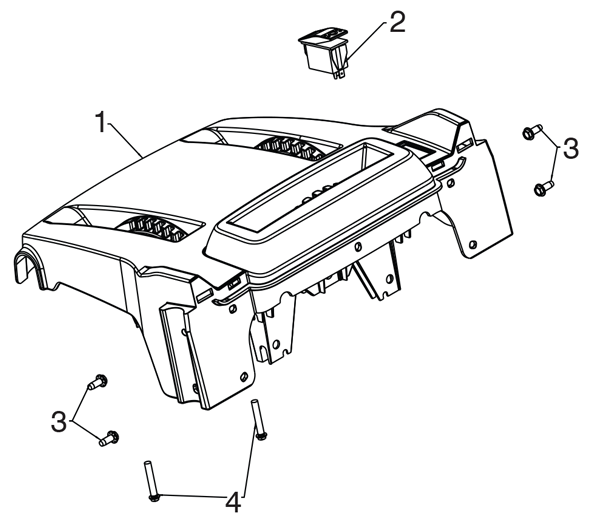

Jonsered ST2368EP

...
...
1
Console Base Multicont W/Switch HUS-581131203
...
2
Switch Grip Heated Black HUS-585805001
...
3
Screw Ta Semi Gimle 1/4-20 X .62 HUS-817060410
...
4
Screw Hex Washer 13-16 X 1.50 HUS-581329501

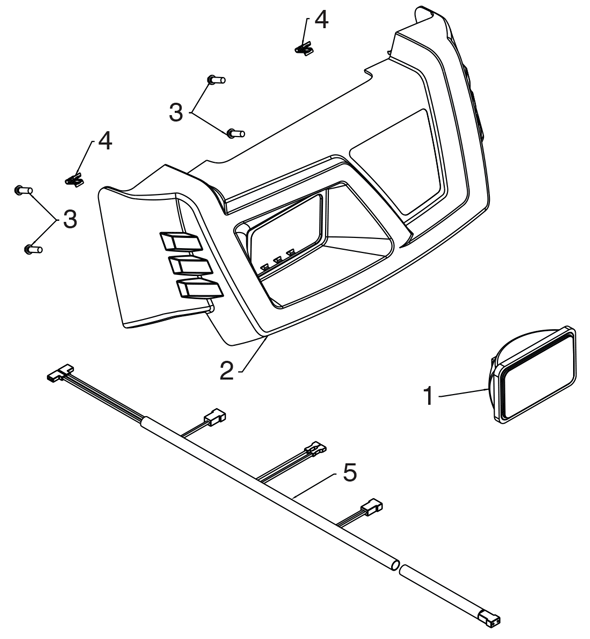

Jonsered ST2368EP

...
...
xx
Bulb HUS-532183784
...
1
Flood Headlight HUS-586181001
...
2
Console Cover Jonsered HUS-581128107
...
3
Screw Hi-Lo 13-16 X 5/8 HUS-532194189
...
4
Panel Clip HUS-581928701
...
5
Wire Harness Light & Grip HUS-587535701

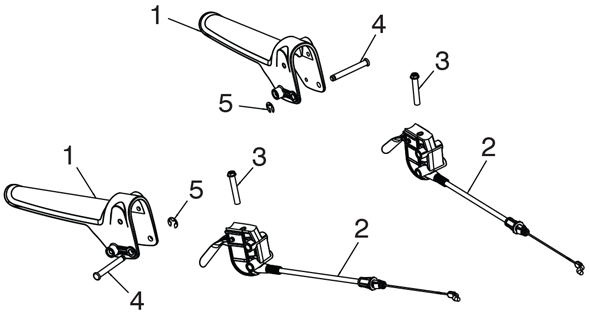

Jonsered ST2368EP

...
...
1
Lever Control Dssst Opp Mpp HUS-587463001
...
2
Control Unit Assembly Lever Pivot HUS-581208201
...
3
Screw Hexhd 10-24 X 1.50 HUS-585690701
...
4
Grooved Pin HUS-532431762
...
5
E-Ring External HUS-812000014

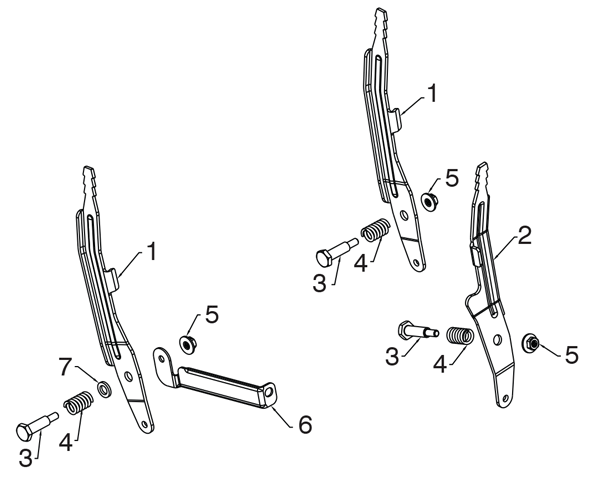

Jonsered ST2368EP

...
...
1
Lever Control Speed/Defl HUS-581123902
...
2
Lever Control Chute Rot HUS-581241602
...
3
Bolt Shoulder 1/4-20 HUS-581329701
...
4
Spring Compression HUS-581329601
...
5
Nut Fl Lock 1/4-20 HUS-586668901
...
6
Brace Support Speed HUS-584468402
...
7
Washer .625 X .375 X .094 Nylon 6/6 HUS-587031301

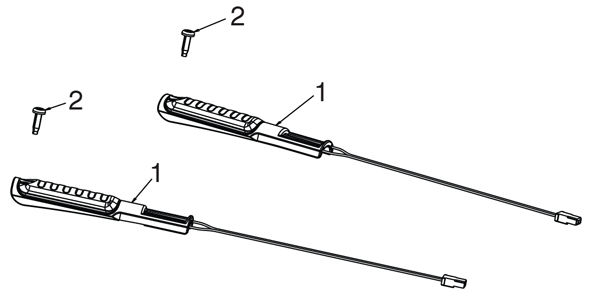

Jonsered ST2368EP

...
...
1
Grip Handle Heated HUS-581146301
...
2
Screw Pan Hd Torx 1/4-20 X .75 HUS-532442250

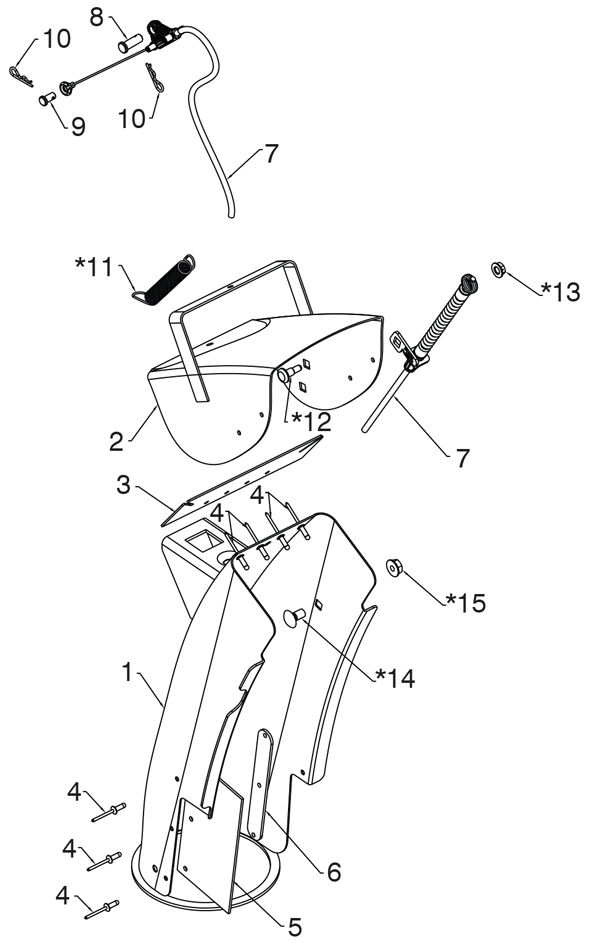

Jonsered ST2368EP

...
...
1
Chute Weldment HUS-532443680
...
2
Delfector Weldment HUS-532184534
...
3
Deflector Seal HUS-532420325
...
4
Pop Rivet HUS-532128415
...
5
Chute Snow Shield HUS-532430324
...
6
Shield Strap Retainer HUS-532421728
...
7
Cable Assembly Deflector HUS-586961501
...
8
Pin Clevis 5/16 X .875 HUS-581329401
...
9
Pin Clevis 1/4 X .312 HUS-585808301
...
10
Hairpin Retainer HUS-532423303
...
11
Deflector Spring HUS-532184505
...
12
Shoulder Bolt 1/4-20 X .375 HUS-585832201
...
13
Nut 1/4-20 HUS-585691401
...
14
Carriage Bolt 3/8-16 X .625 HUS-585832001
...
15
Nut 5/16-18 HUS-585691501

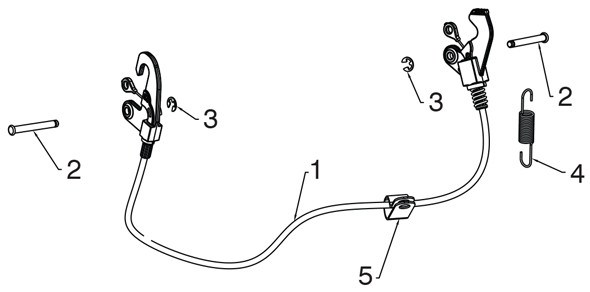

Jonsered ST2368EP

...
...
1
Cable Interlock HUS-580664701
...
2
Pin Grooved HUS-532431762
...
3
E-Ring HUS-812000014
...
4
Spring Return HUS-581151201
...
5
Clip Cable Black HUS-532197991

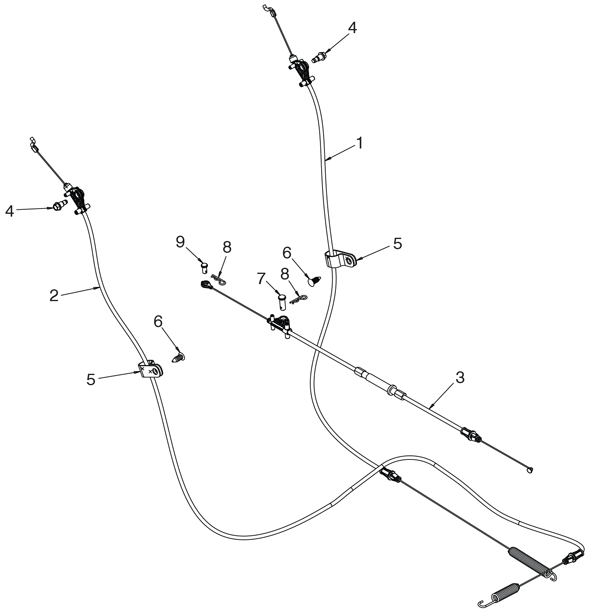

Jonsered ST2368EP

...
...
1
Cable Control Drive HUS-581128301
...
2
Cable Control Auger HUS-587428701
...
3
Cable Control Speed HUS-587343801
...
4
Bolt Shoulder 1/4 HUS-581726101
...
5
Clip Cable HUS-532197991
...
6
Fastener Push .250 HUS-532428124
...
7
Pin Clevis 5/16 HUS-581329401
...
8
Hairpin HUS-532423303
...
9
Pin Clevis 1/4 HUS-585808301

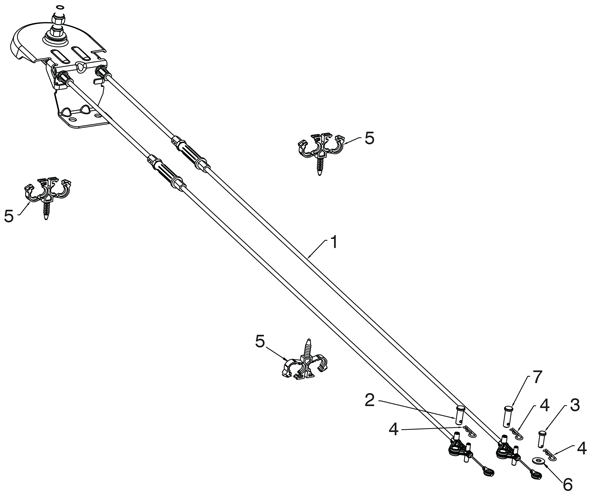

Jonsered ST2368EP

...
...
1
Cable Rotator Assembly HUS-581680301
...
2
Pin Clevis 5/16 X 7/8 HUS-581329401
...
3
Pin Clevis 1/4 X 3/4 HUS-877100812
...
4
Hairpin Soft Zinc HUS-532423303
...
5
Clip Conduit Double HUS-584652201
...
6
Washer HUS-586682101
...
7
Pin Clevis 5/16 X 1 HUS-587130801

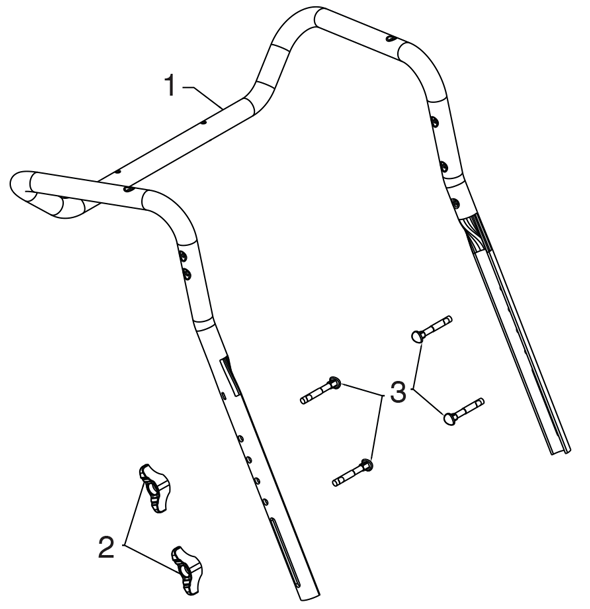

Jonsered ST2368EP

...
...
1
Upper Handle HUS-581123604
...
2
Handle Knob Std Black HUS-532191938
...
3
Bolt 5/16-18 X 1.75 Concave Head HUS-587359001

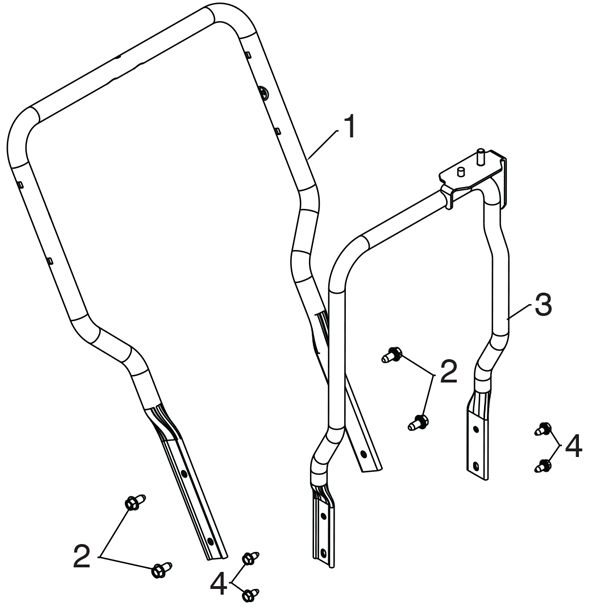

Jonsered ST2368EP

...
...
1
Lower Handle HUS-581123502
...
2
Screw Hex Wash Hd 3/8-16 X .75 HUS-817000612
...
3
Chute Rotator Support Assembly HUS-581622002
...
4
Bolt Hex 5/16-18 HUS-817000510

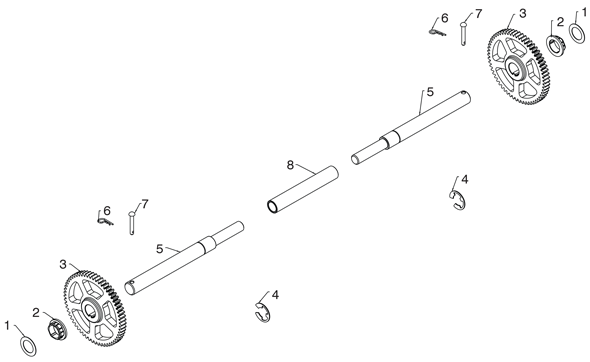

Jonsered ST2368EP

...
...
1
Washer 1.00 HUS-532444949
...
2
Bushing Hex 1 Shaft HUS-581122301
...
3
Gear 59T Driven HUS-580757301
...
4
Retaining Ring HUS-812000053
...
5
Axle Shaft Split HUS-580752601
...
6
Retainer Spring 1 Zinc HUS-532124788
...
7
Rivet Rd Hd Drilled 1/4 Dia HUS-532171271
...
8
Axle Sleeve HUS-580752501

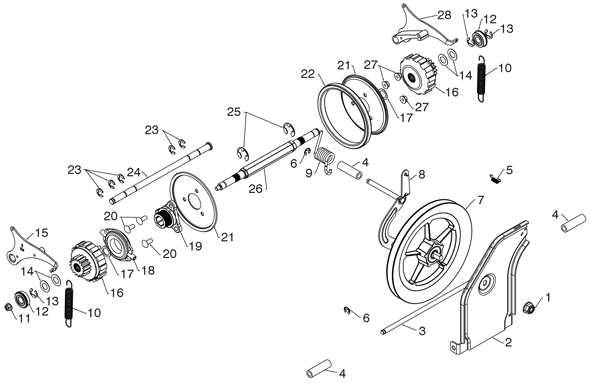

Jonsered ST2368EP

...
...
1
Nut Hex Flange Lk 1/2-13 HUS-521991101
...
2
Swing Plate Friction Pull HUS-581446903
...
3
Rod Tip Plate HUS-581123001
...
4
Spacer Drive HUS-581732701
...
5
Latch Spring HUS-532193885
...
6
E-Ring Retainer HUS-812000007
...
7
Friction Disc Combo Pulley HUS-581328401
...
8
Bracket Yoke Weldment HUS-581454203
...
9
Spring Torsion Drive HUS-581315301
...
10
Extension Spring HUS-585263801
...
11
Nut Hex Flange Lock 5/16-18 HUS-585691501
...
12
Bearing 9/16 I.D. 1622-2Rsnr HUS-580756201
...
13
Retainer Ring 1622-2Rsnr HUS-580756101
...
14
Washer Flat .59 I.D. X 1.065 X 25 Ga HUS-580751301
...
15
Pawl Assembly Rh HUS-580756601
...
16
Gear Assembly Planetary HUS-580756001
...
17
Washer Flat .6875 I.D. X 1.00 X 21 Ga HUS-580756301
...
18
Trunnion Bearing Assembly HUS-532175344
...
19
Hub Rubber Wheel HUS-581090901
...
20
Bolt Carriage 5/16-18 X .75 HUS-872110506
...
21
Plate Rubber Wheel HUS-581091002
...
22
Ring Rubber Wheel HUS-581091101
...
23
E-Ring HUS-586644301
...
24
Rod Pawl HUS-580755101
...
25
E-Ring HUS-812000022
...
26
Shaft Reduction Pwr Str HUS-580752401
...
27
Nut Hex Flange Lk 5/16-18 HUS-532751153
...
28
Pawl Assembly Lh HUS-580756701

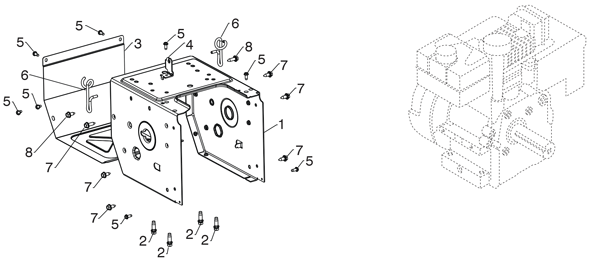

Jonsered ST2368EP

...
...
xx
Complete Lct Engine-Pw2Hk18750178E HUS-585335703
...
1
Frame HUS-580839407
...
2
Engine Bolt 3/8-16 X 1.208 Dogpoint HUS-532150406
...
3
Frame Cover HUS-580839507
...
4
Shifter Bracket HUS-581122402
...
5
Screw Hex Washer 1/4-20 X 5/8 HUS-817060410
...
6
Wireform Support Cable HUS-585206001
...
7
Bolt Hexhd Washer 5/16-18 X .75 HUS-532428867
...
8
Bolt Hexhd Washer 5/16-18 X 1.00 HUS-585217501

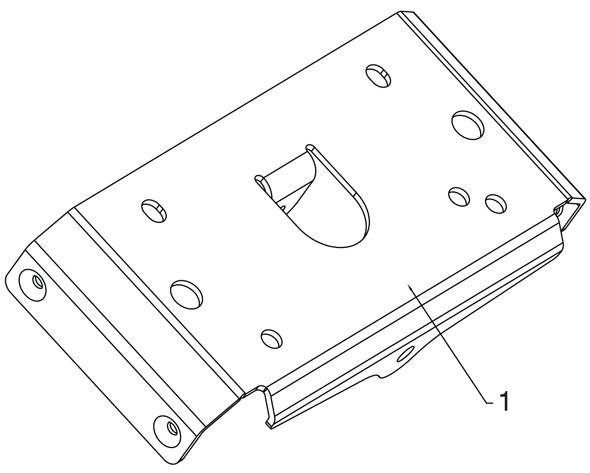

Jonsered ST2368EP

...
...
1
Small Mounting Plate HUS-583940502

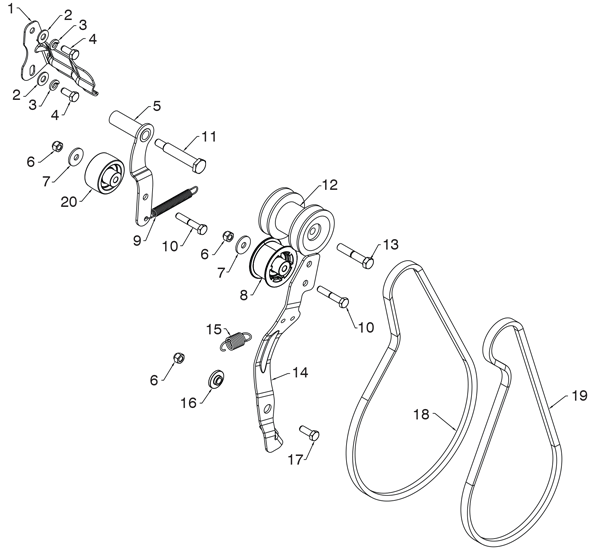

Jonsered ST2368EP

...
...
1
Belt Keeper Bracket HUS-581623702
...
2
Washer 11/32 X 3/4 X 16 Ga HUS-819111216
...
3
Lockwasher 5/16 Split Hvy HUS-810040500
...
4
Capscrew Hexhd 5/16-24 X .75 Gr5 HUS-874610512
...
5
Idler Arm Drive Weldment HUS-581338203
...
6
Nut Nylock 5/16-18 HUS-873800500
...
7
Washer Flat .328 X 1.00 X .097 HUS-532059289
...
8
Idler Pulley 2.0 W/Spacer HUS-581141401
...
9
Return Spring Idler Arm Drive HUS-580753001
...
10
Bolt Hexhd 5/16-18 X 1.75 HUS-874760528
...
11
Shoulder Bolt 5/16-24 X 2.15 HUS-581413801
...
12
Pulley Assembly Impeller Drive HUS-581121501
...
13
Bolt Hexhd 3/8-24 X 2.00 HUS-532179617
...
14
Arm Idler HUS-580831104
...
15
Return Spring Idler Arm HUS-587031201
...
16
Bushing Idler Pivot HUS-532175331
...
17
Bolt Hexhd 5/16-18 X .875 HUS-874760514
...
18
Drive Belt 4L X 38.2 HUS-584216101
...
19
Impeller Belt HUS-581832401
...
20
Idler Pulley 2.0 Flangelss W/Spacer HUS-586880201

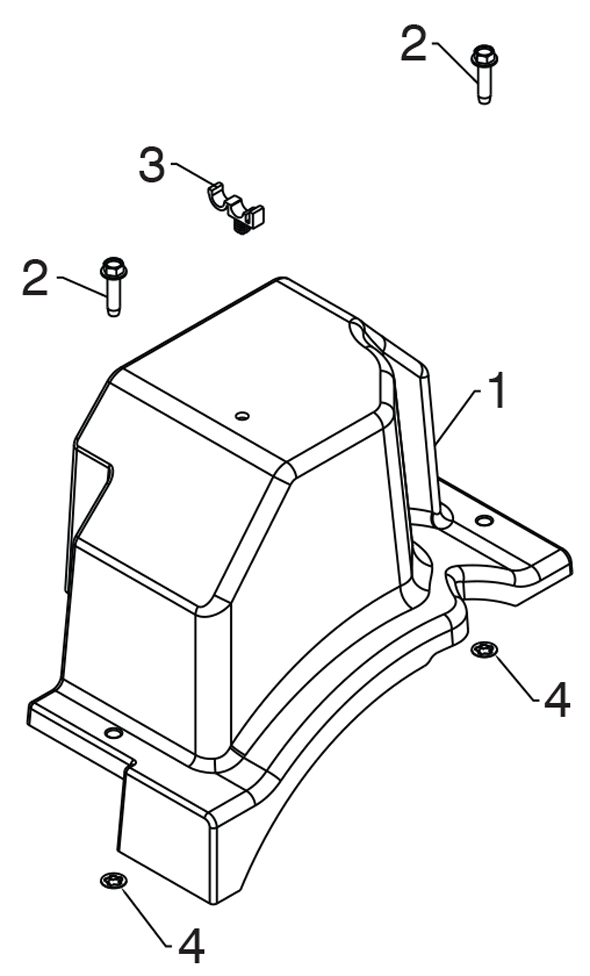

Jonsered ST2368EP

...
...
1
Belt Cover Black HUS-587105401
...
2
Bolt Hex Wsh Thdrl 1/4-20 X 1 HUS-585691101
...
3
Cable Guide HUS-532145006
...
4
Palnut 1/4 In HUS-532423062

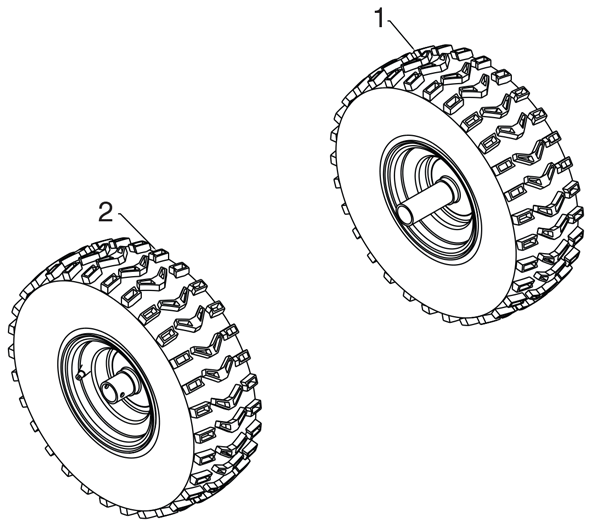

Jonsered ST2368EP

...
...
1
Wheel 15 X 5.00 Nps Lh 1.00 HUS-586710401
...
2
Wheel 15 X 5.00 Nps Rh 1.00 HUS-586710301

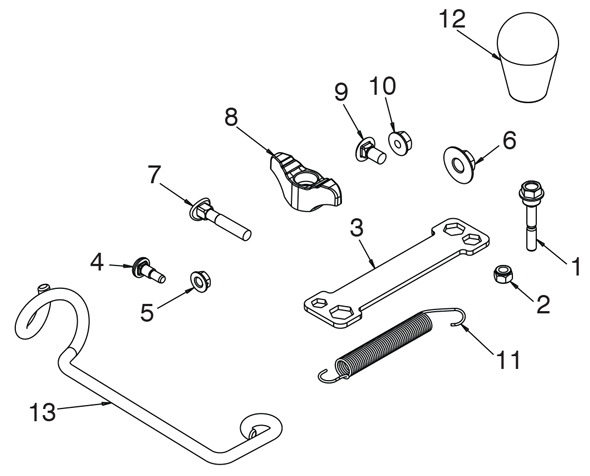

Jonsered ST2368EP

...
...
xx
Kit Replacement Bag Of Parts HUS-587421004
...
1
Bolt 1/4- 20 X 1.81 HUS-585511801
...
2
Nut Nylock 1/4-20 HUS-873800400
...
3
Wrench HUS-532429112
...
4
Bolt Shoulder HUS-585832201
...
5
Nut Hex Fl 1/4-20 Ctr HUS-585691401
...
6
Nut Nylock 3/8-16 HUS-585691001
...
7
Bolt 5/16-18 X 2.25 Concave HUS-587359001
...
8
Knob 5/16-18 Two Wing HUS-532191938
...
9
Bolt 5/16-18 X .625 HUS-585832001
...
10
Nut Serr Fl Lock 5/16-18 HUS-873970500
...
11
Spring Deflect Chute HUS-532184505
...
12
Knob Soft Touch Slotted HUS-581697501
...
13
Support Rotation Cable HUS-581897301

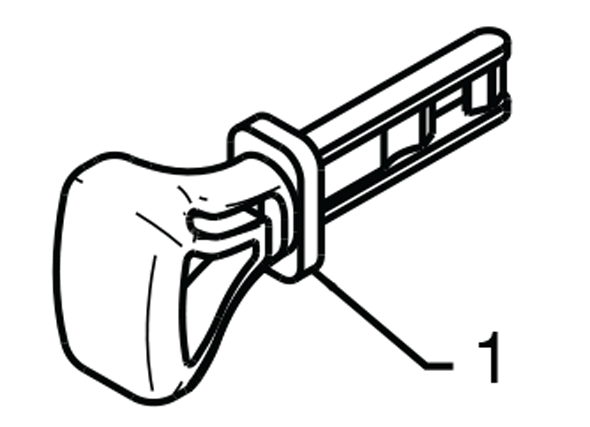

Jonsered ST2368EP

...
...
1
Safety Ignitionition Key Kit HUS-532443059

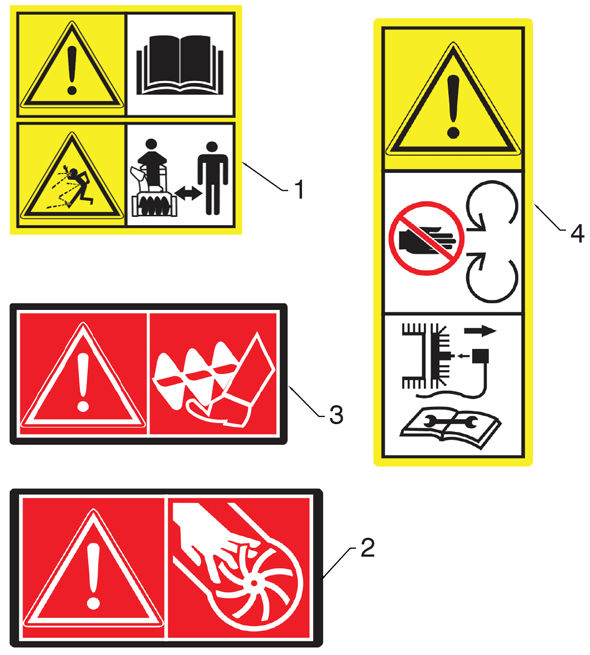

Jonsered ST2368EP

...
...
1
Decal Auger HUS-532184045
...
2
Decal Chute HUS-532199682
...
3
Decal Auger Safety HUS-532199683
...
4
Decal Belt Guide HUS-532184028

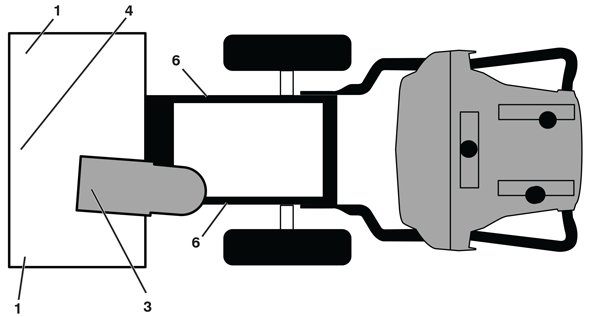

Jonsered ST2368EP

...
...
xx
Operator'sManual, English HUS-115682227
...
xx
Operator'sManual, French HUS-115682231
...
xx
Operator'sManual, Spanish HUS-115682246
...
1
Decal, Danger HUS-532199683
...
3
Decal, Danger, Deflector HUS-532199682
...
4
Decal, Auger HUS-532184045
...
6
Decal, Belt Guard HUS-532184028

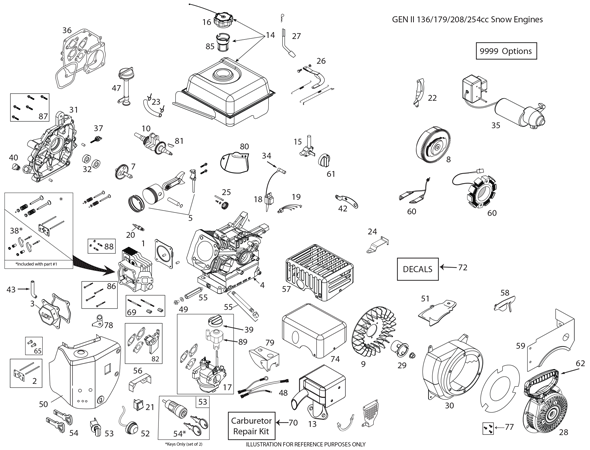

Jonsered ST2368EP

...
...
1
Cylinder Head Assembly -254Cc (Incl. Gasket) HUS-585771401
...
2
Push Rod & Plate Kit (254Cc)(Incl. Valve Cover Gskt) HUS-585771501
...
3
Valve Cover (254Cc) (Incl.Gasket) HUS-585771601
...
4
Cylinder - 254Cc (Front Oil Drain) HUS-587153801
...
5
Piston & Rod Assembly (254Cc) HUS-585771701
...
7
Camshaft - Mcr (254Cc)) HUS-585771801
...
8
Flywheel - Electric Start(8-Charging Magnets) (254Cc) HUS-585771901
...
9
Coollng Fan - Flywheel(Plastic - 208Cc) HUS-532420586
...
10
Crankshaft (18 Keyed 254Cc Snow) HUS-587153901
...
13
Muffler Assembly-Gen Ll Snow (254Cc) HUS-585772101
...
14
Fuel Tank (2.7L Gloss Black) (254Cc Snow)(Order Decal Kit Separate) HUS-587154001
...
15
Fuel Tank On/Off Valve - Gen Ii Snow HUS-532429234
...
16
Fuel Tank Cap - Black Cllck Style (Vented) HUS-532424942
...
17
Carburetor (L15D) (254Cc Snow W/Idle-Down Control) (W/Gskts) HUS-587154101
...
18
Ignitionition Coil (Cdi) (208/254Cc) (Hi-Temp) HUS-532443894
...
20
Spark Plug - Platinum HUS-532443898
...
21
On/Off Switch - Rocker HUS-532424957
...
22
Shield - Flywheel (Electric 208Cc) HUS-585772401
...
23
Fuel Hose -1/4 (318Mm Cut To 230Mm) HUS-532432144
...
24
Speed Control Bracket (Fixed)(254Cc Snow) HUS-585772501
...
25
Governor Gear Assembly (136/208Cc) HUS-532429646
...
26
Governor Arm & Link Kit (254Cc Snow) HUS-585772601
...
27
Governor Arm Paddle HUS-532420602
...
28
Recoil Starter (Round Style-Black) 136/208Cc Gen Ii Snow HUS-532436967
...
29
Starter Cup (Use With Round Style Starter)(208Cc Snow) HUS-532436968
...
30
Blower Housing (Gloss Black)(254Cc Snow W/Front Drain)(Order Decal Kit Separate) HUS-587154201
...
31
Crankcase Cover (Press-In Type High Oil-Fill Tube) HUS-585772701
...
32
Oil Seal Kit (2 Pcs) HUS-585772801
...
34
Spark Plug Boot - With Metal Shield (Snow) HUS-532436966
...
35
120V Electric Starter (208/254Cc Gen Ll) (Mounting Bolts On Side Of Block) HUS-532436466
...
36
Engine Gasket Kit (254Cc) HUS-585772901
...
38
Rocker Arm Kit (254Cc)(Incl. Gasket) HUS-585773001
...
39
Choke Control Knob (Gen Ii Red) HUS-532429224
...
40
Non-Removable Plastic Plug (136/208/254Cc) HUS-532420998
...
43
Breather Tube (136/208/254Cc) HUS-580353401
...
47
High Oil-Fill Tube/Dips-Tick (Press-In Type) (Sn >1265H0519257) HUS-581007201
...
48
Wire Harness (208Cc Snow) HUS-532429262
...
49
Oil Drain Plug W/Washer (136/208/254Cc) HUS-532435495
...
50
Heater Box Assembly (Gloss Black-254Cc)(Order Decal Kit Separate) HUS-587154301
...
52
Primer Bulb With Hose-Snow HUS-532424949
...
53
Key Switch - Safety (Push/Pull) Snow (Incl. Keys) HUS-532424954
...
54
Key Set - Red (2) (Snow) HUS-532443059
...
55
Front Oil Drain Pipe & Nut Assembly HUS-587154401
...
56
Carburetor Vapor Shield (254Ccsnow) HUS-585773301
...
58
Shield - Governor Linkage (254Cc-Snow) HUS-585773401
...
59
Fuel Tank Skirt Shield (Gloss Black-254Cc)(Order Decal Kit Separate) HUS-587154501
...
60
Charging Coil (60-Watt Ac)(208/254Cc) HUS-532443893
...
61
Fuel Control Knob (Gen Ii Snow - Red) HUS-532432752
...
62
Starter Grip-Snow (Deluxe) HUS-532443899
...
65
Tappet Kit (208/254Cc)(Set Of HUS-581372801
...
69
Carburetor Studs & Cou-Pllng Kit-Snow HUS-532424951
...
70
Carburetor Repair Kit (136/208/254Cc) HUS-580353601
...
72
Ariens 254 Snow Decal Kit HUS-587154601
...
74
Muffler Heat Shield Cover (136/208/254) HUS-581768801
...
77
Recoil Bolt Kit (Incl. (3) Mtg Bolts) HUS-532432688
...
79
Carburetor Cover (136/208/254Cc Snow) HUS-585773701
...
80
Shield Governor Link -254Cc Snow HUS-585773801
...
81
Woodruff Flywheel Keys (5-Pack) (5X6X18Mm) HUS-585297202
...
82
Carburetor Spacer (208/254Cc) HUS-585020503
...
85
Fuel Tank Strainer HUS-586325601
...
86
Cylinder Head Bolt Kit (4)(136-179-208-254Cc) HUS-586327301
...
87
Cc Cover Bolt Kit (6) (179-208-254Cc) HUS-586326901
...
88
Muffler Mtg Stud Kit (2) HUS-586326801
...
89
Speed Control Knob, Gen Ii,Snow HUS-587124801
...
9999
High Altitude Jet (>5,000Feet)(254Cc L15 Carburetor) HUS-587154801
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
