Jonsered ST2109E Snow Thrower (96191004008)

Model: ST2109E

Save
 Part Not Listed?Part Not Listed?
product name

Jonsered ST2109E

...
...
1
Impeller HUS-532184105
...
2
Gearbox Assembly HUS-584648301
...
3
Bearing HUS-532188909
...
4
Impeller Pulley HUS-585093201
...
5
Discharge Base HUS-532442438
...
6
Corner Bracket HUS-532184095
...
7
Clean Out Tool HUS-532192199
...
8
Tool Clip HUS-532405400
...
9
Nut 1/4-20 HUS-873800400
...
10
Screw 1/4-20 X .625 HUS-874780426
...
11
Nut 5/16-18 HUS-532427942
...
12
Screw 5/16-18 X .625 HUS-532163183
...
13
Carriage Bolt HUS-532180355
...
14
Screw 13-16 X .625 HUS-532194189
...
15
Plug HUS-532407760
...
16
Gearbox Cover Rh HUS-532427302
...
17
Gasket HUS-532427345
...
18
Seal HUS-532407770
...
19
Bearing HUS-532407762
...
20
Thrust Washer 1.00 HUS-532174697
...
21
Worm Gear HUS-532407763
...
22
Auger Shaft HUS-532407764
...
23
Square Key HUS-532189282
...
24
Bearing HUS-532407758
...
25
Thrust Washer HUS-532174683
...
26
Impeller Shaft HUS-584648401
...
27
Roll Pin HUS-532007836
...
28
Thrust Washer HUS-532174681
...
29
Thrust Bearing HUS-532174684
...
30
Bearing HUS-532407769
...
31
O-Ring HUS-532407768
...
32
Screw 5/16-18 X .750 HUS-532407767
...
33
Gearbox Cover Lh HUS-532427317
...
34
Shear Bolt HUS-532192090

Jonsered ST2109E

...
...

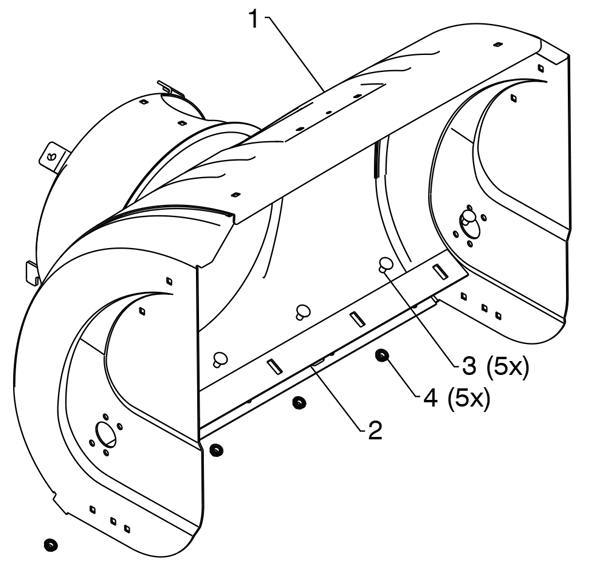

1
Auger Housing 27 HUS-532415605
...
2
Scraper Bar HUS-532415371
...
3
Carriage Bolt 5/16?18 X .625 HUS-872270505
...
4
Nut 5/16?18 HUS-532155377

Jonsered ST2109E

...
...
1
Auger 27 Lh HUS-532421135
...
2
Auger 27 Rh HUS-532421123

Jonsered ST2109E

...
...
1
Plastic Retainer HUS-532188170
...
2
Auger Ball Bearing HUS-532427762
...
3
Screw 5/16?18 X 1.00 HUS-532179582
...
4
Screw 1/4?20 X .625 HUS-874780426
...
5
Nut 1/4-20 HUS-873800400

Jonsered ST2109E

...
...
1
Skid Plate HUS-532407834
...
2
Carriage Bolt 5/16?18 X .750 HUS-872270506
...
3
Nut 5/16?18 HUS-532427942

Jonsered ST2109E

...
...

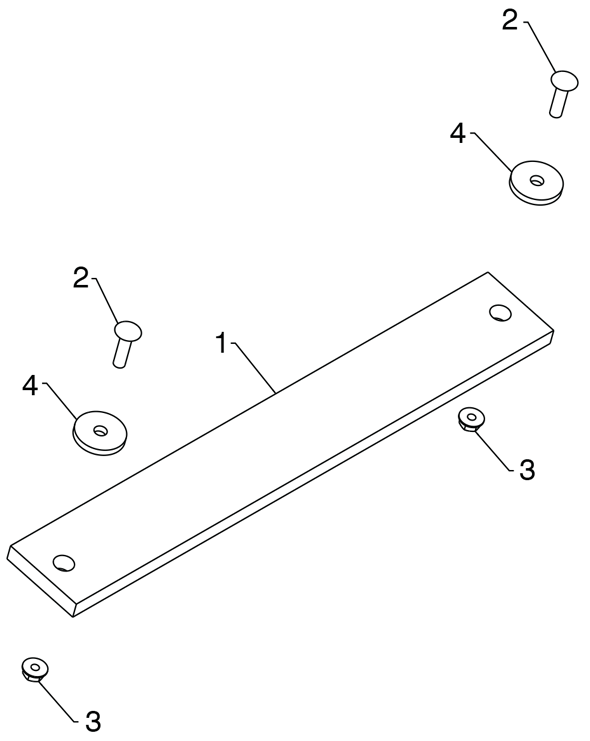

1
Weight Bar HUS-532182515
...
2
Carriage Bolt 5/16?18 X 1.25 HUS-872110510
...
3
Nut 5/16?18 HUS-532751153
...
4
Washer HUS-819112206

Jonsered ST2109E

...
...
1
Chute Weldment HUS-532443680
...
2
Deflector Weldment HUS-532184534
...
3
Deflector Control Assembly HUS-585271701
...
4
Deflector Seal HUS-532420325
...
5
Knob Black HUS-532414280
...
6
Pop Rivet HUS-532128415
...
7
Screw 10-24 X .625 HUS-817541008
...
8
Chute Show Shield HUS-532430324
...
9
Shield Retainer Strap HUS-532421728
...
10
Shoulder Bolt 1/4-20 X .375 HUS-532179829
...
11
Nut 1/4-20 HUS-532191730
...
12
Carriage Bolt 3/8-16 X .625 HUS-872250505
...
13
Nut 5/16-18 HUS-532751153
...
14
Deflector Spring HUS-532184505
...
15
(Service Part) Deflector Control HUS-532420679
...
16
(Service Part) Deflector Cable Black HUS-585271601
...
17
Chute Guard HUS-532435582
...
18
Push Nut HUS-532059349
...
19
Spring HUS-532435616

Jonsered ST2109E

...
...
1
Lever/Cable Rotator Assembly HUS-532428272
...
2
Screw 10-24 X .625 HUS-817541008
...
3
Rotator Head HUS-532420678
...
4
Rotator Pivot Bracket HUS-532405932
...
5
Pulley Pivot HUS-532420675
...
6
Cable Assembly Adjustable HUS-532428273
...
7
Cable Assembly Heat Shield HUS-532428310

Jonsered ST2109E

...
...
1
Steer Cable HUS-532438626
...
2
Screw 10?24 X 1.50 HUS-874041024

Jonsered ST2109E

...
...
1
Control Panel HUS-585198802
...
2
Lh Control Lever HUS-581779801
...
3
Rh Control Lever HUS-581779701
...
4
Interlock Control Rod HUS-584809001
...
5
Interlock Bracket HUS-585004703
...
6
1/4-20 X .625 Hex Head Screw HUS-874780410
...
7
Spacer HUS-532421613
...
8
1/4-20 Flange Nut (Top Lock) HUS-532088349
...
9
Knob Red HUS-532414281
...
10
Knob Black HUS-532414280
...
11
Handle Knob HUS-532178899
...
12
3/8 Washer HUS-819131316
...
13
Carriage Bolt 3/8-16 X 2.25 HUS-872120618
...
14
Retainer HUS-532169675

Jonsered ST2109E

...
...

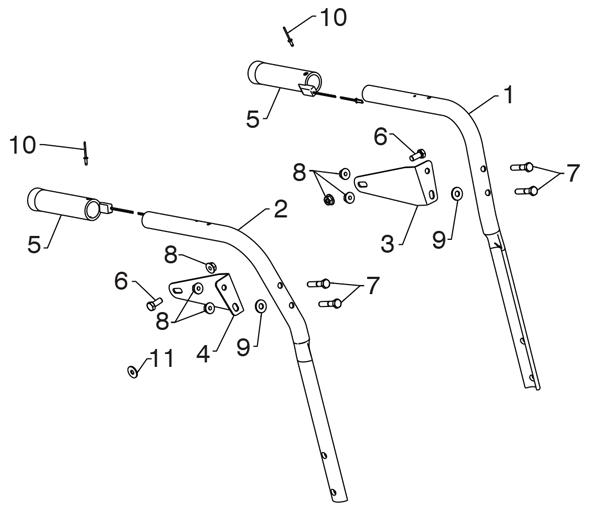

1
Plow Handle Lh HUS-532421069
...
2
Plow Handle Rh HUS-532421070
...
3
Panel Bracket Lh HUS-532429148
...
4
Panel Bracket Rh HUS-532429149
...
5
Heated Handle Grip HUS-532414515
...
6
Crew 5/16?18 X .750 HUS-874780512
...
7
Screw 5/16?18 X 1.50 HUS-874780524
...
8
Nut 5/16?18 HUS-532751153
...
9
Washer HUS-532155415
...
10
Pop Rivet 1/8 HUS-532178775
...
11
Washer HUS-532053847

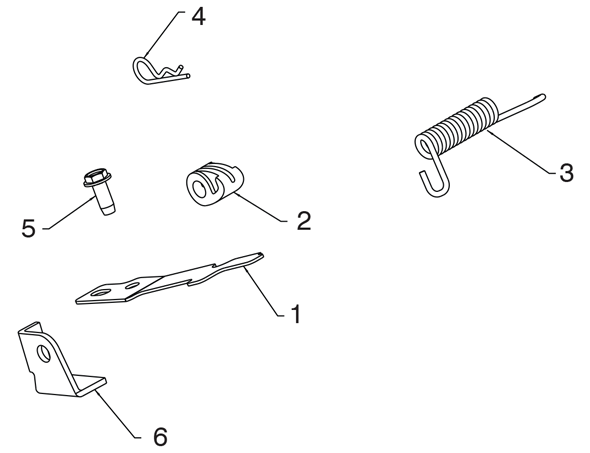

Jonsered ST2109E

...
...
1
Interlock Spring HUS-532416288
...
2
Interlock Cam HUS-532445291
...
3
Torsion Spring HUS-532443215
...
4
Retainer HUS-532169675
...
5
Screw 1/4?20 X .625 HUS-817060410
...
6
Interlock Stop HUS-532421814

Jonsered ST2109E

...
...
1
Rod Impeller Control HUS-584808701
...
2
Rod Traction Control HUS-584808801
...
3
Shifter Rod Top HUS-532180445
...
4
Shifter Rod Bottom HUS-532187716
...
5
Spring Sleeve HUS-532180447
...
6
Spring Control Rod HUS-580796201
...
7
Spring Traction Rod HUS-580802101
...
8
Carriage Bolt 5/16-18 X .75 HUS-872270505
...
9
Nut 5/16-18 HUS-532155377
...
10
Retainer Hairpin HUS-532169675

Jonsered ST2109E

...
...
1
Lower Handle HUS-585238102
...
2
Pivot Support Weldment HUS-532443617
...
3
Screw 5/16?18 X .750 HUS-817000510
...
4
Screw 3/8?16 X 1.00 HUS-817000616
...
5
Screw 3/8-16 X .750 HUS-817000612

Jonsered ST2109E

...
...
xx
Bulb (Not Shown) HUS-532183784
...
1
Console Panel HUS-532413927
...
2
Switch Grip HUS-532417760
...
3
Screw Hx Whsr Head HUS-532175262
...
4
Screw Shoulder .10-24 X .62 HUS-532184471
...
5
Headlight Bezel HUS-532178668
...
6
Headlight Flood HUS-532180927
...
7
Wire Harness Flood/Led HUS-580625601

Jonsered ST2109E

...
...
1
Axle Assembly (Assembly Of 1A,1B) HUS-532404923
...
1A
Axle Shaft HUS-532404307
...
1B
Roll Pin 3/16 X 1.50 HUS-532184206
...
2
Sprocket HUS-532402691
...
3
Thrust Washer HUS-532444949
...
4
Bearing HUS-532179830
...
5
Screw 5/16?18 X .625 HUS-532146315
...
6
Screw 5/16?18 X .500 HUS-817490508
...
7
Klik Pin 1/4 X 1.50 HUS-532171271
...
8
Square Key HUS-532189282
...
9
Retainer HUS-532124788

Jonsered ST2109E

...
...

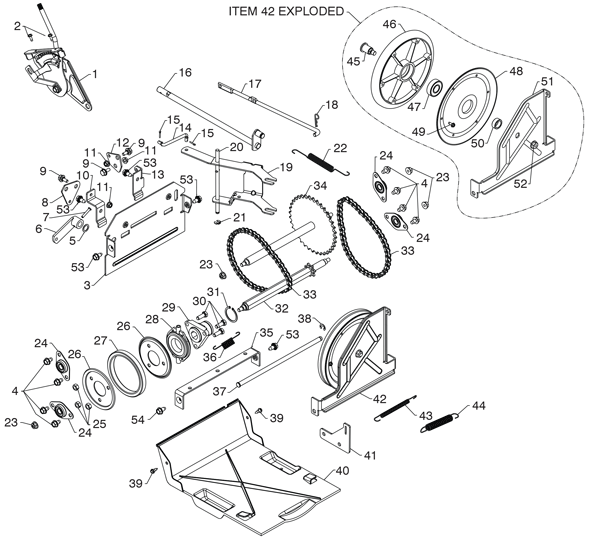

1
Speed Selector Assembly HUS-532198875
...
2
Screw 10-24 X .625 HUS-817541008
...
3
End Plate HUS-532437074
...
4
Screw 5/16-18 X .50 HUS-817490508
...
5
Washer HUS-532057079
...
6
Control Arm HUS-532405485
...
7
Clevis Pin HUS-532198580
...
8
Shifter Plate HUS-532415450
...
9
Shoulder Bolt HUS-532402881
...
10
Shifter Bracket HUS-532415433
...
11
Nut 1/4-20 HUS-532191730
...
12
Clutch Plate HUS-532415435
...
13
Clutch Bracket HUS-532416864
...
14
Shifter Link HUS-532187101
...
15
Retainer HUS-532700279
...
16
Control Shaft HUS-532427542
...
17
Clutch Rod HUS-532402568
...
18
Retainer HUS-532169675
...
19
Shifter Yoke HUS-581422501
...
20
Pivot Rod HUS-532402310
...
21
Retainer HUS-812000036
...
22
Return Spring HUS-532402878
...
23
Nut 5/16-18 HUS-532751153
...
24
Bearing HUS-532408981
...
25
Nut 5/16-18 HUS-873930500
...
26
Rubber Wheel Plate HUS-532199509
...
27
Rubber Ring HUS-585021001
...
28
Bearing HUS-532175344
...
29
Wheel Hub HUS-532178613
...
30
Screw 5/16-18-.875 HUS-874760514
...
31
Retainer Ring HUS-812000012
...
32
Sprocket Shaft HUS-532402187
...
33
Chain HUS-532401619
...
34
Sprocket Weldment HUS-532437303
...
35
Shifter Bracket HUS-532415429
...
36
Spring HUS-532180135
...
37
Plate Pivot Rod HUS-532402652
...
38
E-Ring .375 HUS-532428288
...
39
Shoulder Screw HUS-532184471
...
40
Bottom Pan HUS-532410877
...
41
Spring Bracket HUS-532416682
...
42
Drive Plate Assembly HUS-532402689
...
43
Idler Spring HUS-532414557
...
44
Idler Spring HUS-532178828
...
45
Pulley Shaft HUS-532402504
...
46
Drive Plate HUS-532401820
...
47
Bearing HUS-532198791
...
48
Pulley Half HUS-532402393
...
49
Screw 10-24 X .50 HUS-817541008
...
50
Spacer Bearing HUS-532402511
...
51
Swing Plate HUS-532422941
...
52
Nut 3/8-16 HUS-532132010
...
53
Screw 5/16-18 X .750 HUS-532428867
...
54
Bolt 5/16-18 X .625 HUS-817000510

Jonsered ST2109E

...
...

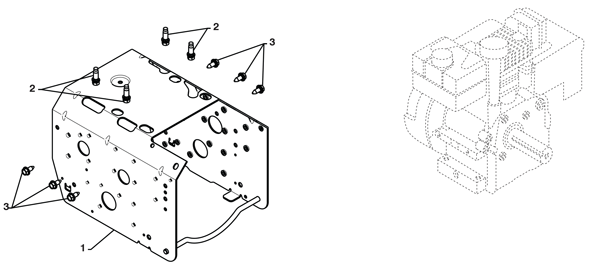

1
Frame HUS-532437071
...
2
Bolt 3/8-16 HUS-532150406
...
3
Screw 5/16-18 X .750 HUS-532428867

Jonsered ST2109E

...
...
1
Engine Mount Plate HUS-532436312

Jonsered ST2109E

...
...

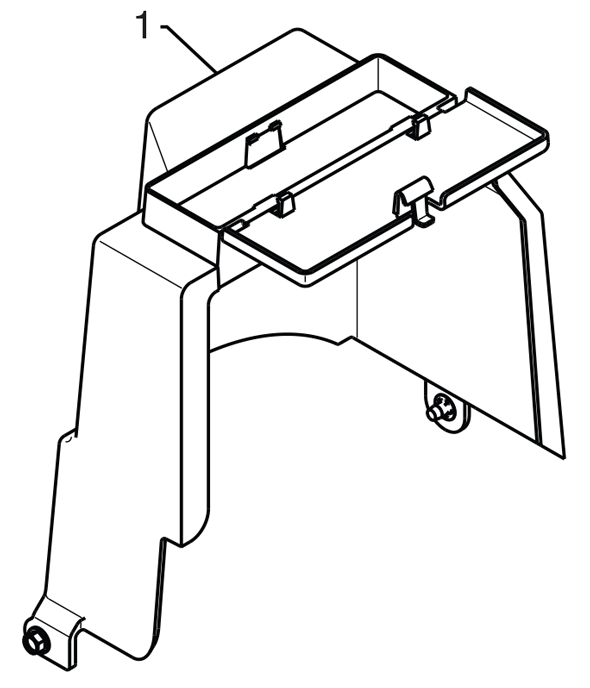

1
Cover Assembly HUS-532443030

Jonsered ST2109E

...
...
1
Impeller Belt HUS-532408007
...
2
Traction Belt HUS-532419744
...
3
Idler Arm Bracket HUS-584232402
...
4
Idler Pulley HUS-532180523
...
5
Nut 5/16-18 HUS-532426589
...
6
Capscrew 5/16-18 X 1.50 HUS-874780524
...
7
Idler Bracket HUS-585284901
...
8
Screw 5/16-18 Hex HUS-817000510
...
9
Shoulder Bolt 5/16-18 X .500 HUS-532424297
...
10
Nut 5/16-18 Top Lock HUS-532751153
...
11
Traction Idler Arm Assembly HUS-585238401
...
12
Capscrew 3/8-24 X 1.375 HUS-532851084
...
13
Washer HUS-532400026
...
14
Washer HUS-532059289
...
15
Pulley Eng Impeller HUS-532426491
...
16
Pulley Eng Traction HUS-532426490
...
17
Screw 5/16-18 X 1.00 HUS-874610516
...
18
Lockwaser 5/16 HUS-810040500
...
19
Belt Guide HUS-585058201
...
20
Washer HUS-532155415
...
21
Idler Bushing HUS-532175331
...
22
Capscrew Hex Head 5/16 X 1.25 Gr5 HUS-874610520

Jonsered ST2109E

...
...
1
Cover HUS-532405161
...
2
Shoulder Screw HUS-532184471
...
3
Retainer Spring HUS-812000045
...
4
Wheel Driver HUS-581645001
...
5
Retaining Ring HUS-532182466
...
6
Wheel Lobe HUS-532187622
...
7
Clutch Slide HUS-581644901
...
8
Spring HUS-532179139
...
9
Square Key HUS-532189282
...
10
Axle Lobe HUS-581645101
...
11
Thrust Washer HUS-532444949
...
12
Steering Yoke HUS-532445266
...
13
Steering Bracket HUS-532184197
...
14
Screw 5/16-18 X .50 HUS-817490508
...
15
Pivot Bracket HUS-532199511
...
16
Bellcrank HUS-532199518
...
17
Bellcrank Pin HUS-532181847
...
18
Screw 1/4-20 X .375 HUS-817600406
...
19
Steering Link HUS-532405077
...
20
Retainer HUS-532700279
...
21
Retainer HUS-532085179
...
22
Spring HUS-532193885
...
23
Lever Pin HUS-532182015
...
24
Pivot Bracket HUS-532199512

Jonsered ST2109E

...
...
1
Wheel Assembly Lh HUS-532436107
...
2
Wheel Assembly Rh HUS-532436108

Jonsered ST2109E

...
...
1
Cable Bracket Lh HUS-532438446
...
2
Cable Bracket Rh HUS-532438447
...
3
Screw 1/4 -20 X .500 HUS-817490408
...
4
Screw 1/4 -20 X .375 HUS-817600406

Jonsered ST2109E

...
...

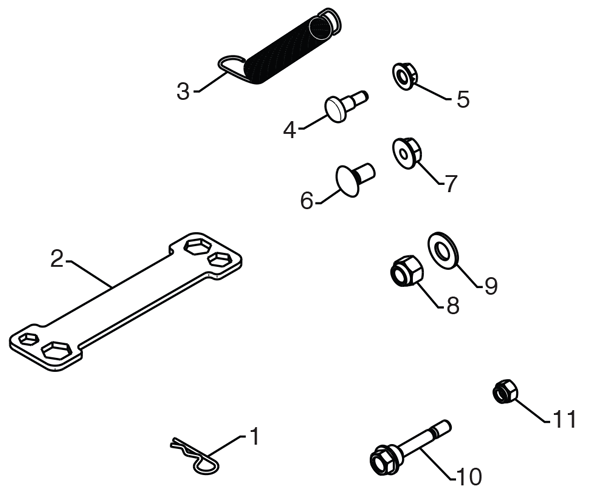

1
Retainer Pin HUS-532169675
...
2
Wrench HUS-532429112
...
3
Remote Spring HUS-532184505
...
4
Shoulder Bolt 1/4?20 HUS-532179829
...
5
Locknut 1/4?20 HUS-532191730
...
6
Carriage Bolt 5/16?18 X 5/8 HUS-872250505
...
7
Locknut 5/16?18 HUS-532751153
...
8
Locknut 3/8?16 HUS-873800600
...
9
Washer 3/8 HUS-819131316
...
10
Shear Bolt 1/4?20 X 1?3/4 HUS-532192090
...
11
Locknut 1/4?20 HUS-873800400

Jonsered ST2109E

...
...

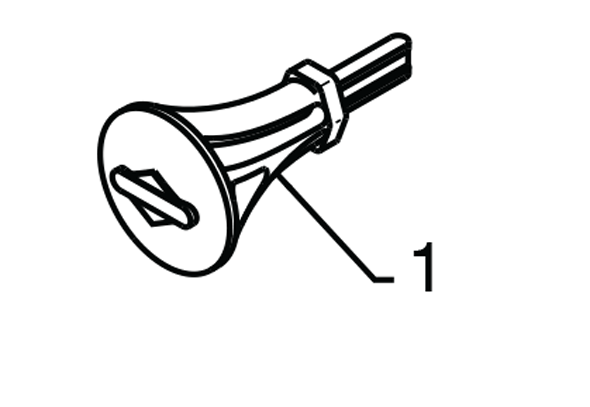

1
Safety Ignitionition Key HUS-532193071

Jonsered ST2109E

...
...
1
Shifter Rod Top HUS-532180445
...
2
Shifter Rod Bottom HUS-532187716
...
3
Carriage Bolt 5/16-18 X .75 HUS-872270505
...
4
Nut 5/16-18 HUS-532155377

Jonsered ST2109E

...
...
xx
Operator'sManual, European HUS-115611320
...
xx
Operator'sManual, Scandinavian HUS-115611310
...
xx
Operator'sManual, East Bloc HUS-115611350
...
xx
Operator'sManual, Baltic HUS-115611340
...
1
Decal, Aug Safety Eu/Sc HUS-532199683
...
3
Decal, Danger, Deflector HUS-532199682
...
4
Decal, Danger HUS-532184045
...
6
Decal, Instruction HUS-532184030
...
9
Decal, Console Rt Sdp/Lev/Pwrst HUS-581430101
...
10
Decal, Console Lt Defl/Lev/Pwrst HUS-581430102
...
12
Decal, Belt Guard Caution Euro/Scan HUS-532184028
...
14
Decal, Sound Level HUS-532180433
...
15
Decal, Console Handwarmer HUS-532444776
...
...
...
Processing
