Jonsered LM2155MD Rotary Lawn Mower (96121001904)

Model: LM2155MD

Save Part Not Listed?
product name

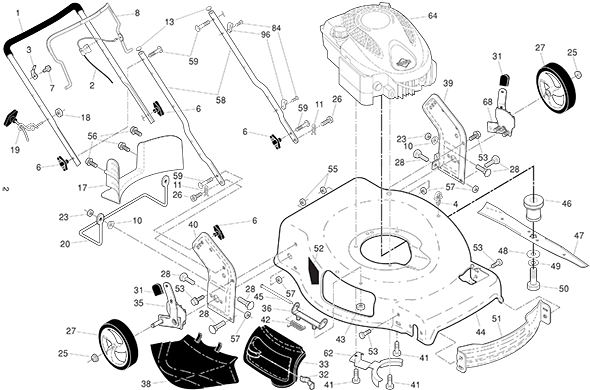

Jonsered LM2155MD

...
...
xx
Operator'sManual, European HUS-115546020
...
xx
Operator'sManual, Scandinavian HUS-115546010
...
xx
Operator'sManual, East Bloc HUS-115546050
...
xx
Operator'sManual, Baltic HUS-115546040
...
1
Upper Handle Assembly (Includes Foam Grip) HUS-580638707
...
2
Engine Zone Control Cable HUS-532424033
...
3
Bracket, Upstop HUS-532430034
...
4
Guide, Cable HUS-532145006
...
6
Handle Knob HUS-532191938
...
7
Screw, Hex Washer Head 10-16 X 5/8 HUS-532178848
...
8
Control Bar HUS-532426505
...
10
Palnut HUS-532423063
...
11
Hairpin HUS-532425575
...
13
Plug, Lower Handle Bar HUS-532437516
...
17
Rear Baffle HUS-532427307
...
18
Keps Locknut 1/4-20 HUS-532132004
...
19
Rope Guide HUS-532194788
...
20
Footguard HUS-532422467
...
23
Nut, Hex HUS-873970500
...
25
Nut, Hex, Flanged HUS-532409149
...
26
Screw HUS-532419945
...
27
Wheel & Tire Assembly, Rear HUS-532411324
...
28
Bolt, Carriage 5/16-18 X 5/8 HUS-872250505
...
31
Selector Knob HUS-532701037
...
32
Latch, Mulcher Door HUS-532441192
...
33
Mulcher Door HUS-532432642
...
35
Wheel Adjuster Assembly, Rh HUS-532431139
...
36
Hinge Bracket Assembly HUS-532175735
...
38
Discharge Deflector HUS-532426129
...
39
Handle Bracket, Lh HUS-581353703
...
40
Handle Bracket, Rh HUS-581353603
...
41
Screw, Dogpoint 3/8-16 X 1-1/8 HUS-532150406
...
42
Spring, Torsion HUS-532193000
...
43
Nut, Hex, Nylock HUS-532191730
...
44
Kit, Lawn Mower Housing HUS-581801701
...
45
Rod, Hinge HUS-532175650
...
46
Blade Adapter / Pulley HUS-532421782
...
47
Blade, 22" HUS-580244001
...
48
Washer, Hardened HUS-532851074
...
49
Washer, Helical HUS-532850263
...
50
Screw, Machine, Hex Head 3/8-24 X 1-3/8 Grade 8 HUS-532851084
...
51
Front Baffle HUS-532430599
...
52
Decal, Danger HUS-532182166
...
53
Screw, Hex Head 5/16 HUS-817000510
...
54
Washer, Flat HUS-532088348
...
55
Nut, Hex, Flanged 1/4-20 HUS-532191730
...
56
Screw, Hex Washer Head 13 X 3/4 HUS-817411312
...
57
Locknut, Hex 5/16-18 HUS-532155377
...
58
Bar, Lower Handle HUS-532441196
...
59
Handle Bolt HUS-532191574
...
62
Belt Retainer HUS-532435059
...
65
O-Ring HUS-532197480
...
68
Wheel Adjuster Assembly, Lh HUS-532431138
...
84
Fastener, Push HUS-532428124
...
96
Clip, Cable HUS-532197991

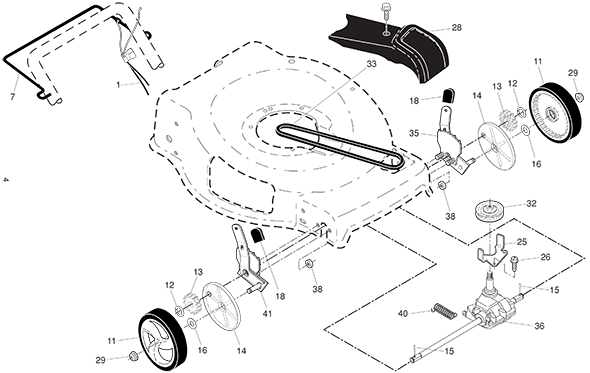

Jonsered LM2155MD

...
...
1
Cable, Drive Control HUS-581076701
...
7
Control Bar, Drive HUS-580659302
...
11
Wheel & Tire Assembly, Front HUS-532402567
...
12
E-Ring HUS-812000058
...
13
Pinion HUS-532403849
...
14
Dust Cover HUS-532189403
...
15
Pawl, Drive HUS-532404845
...
16
Washer, Flat 3/8 HUS-532067725
...
18
Selector Knob HUS-532701037
...
25
Belt Keeper HUS-532431711
...
26
Screw, Hi-Lo Thread 12 X 5/8 HUS-532163409
...
28
Drive Cover Assembly (Includes) HUS-532432675
...
29
Locknut, Hex HUS-532409148
...
32
Drive Pulley HUS-532443262
...
33
V-Belt HUS-532196853
...
35
Wheel Adjuster, Front, Lh (Includes Bearing) HUS-532431144
...
36
Gear Case Assembly, Complete HUS-532424741
...
38
Locknut, Hex 1/4-20 HUS-532191730
...
40
Spring HUS-532406558
...
41
Wheel Adjuster, Front, Rh (Includes Bearing) HUS-532431142
