product name

Jonsered LDX Pruner Att., 2010-08

Model: LDX-Pruner-Att

Save
 Part Not Listed?Part Not Listed?
product name

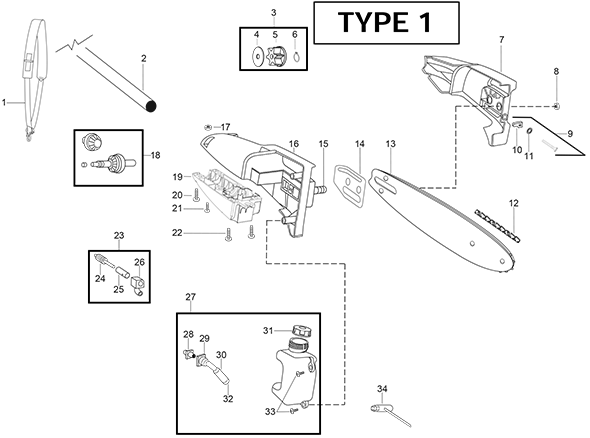

Jonsered LDX-Pruner-Att

...
...
xx
Wrench-Hex (5/32) HUS-530031159
...
xx
Scabbard HUS-530031190
...
xx
Screw (Harness Clamp) HUS-530015940
...
xx
Clamp Harness-Upper HUS-545113301
...
xx
Clamp Harness-Lower HUS-545056601
...
xx
Decal-Shaft Warning HUS-545002808
...
1
Harness HUS-537216201
...
2
Kit - Lower Driveshaft (Incl. Flex.) HUS-545006082
...
3
Kit - Sprocket Assembly. (Incl. 4,5,6) HUS-530071647
...
4
Washer HUS-530056521
...
5
Sprocket HUS-530056520
...
6
Retainer - Sprocket HUS-530056563
...
7
Assembly - Bar Clamp (Incl. 9) HUS-530057100
...
8
Nut - Bar Mounting HUS-530015917
...
9
Kit - Bar Adjust (Incl. 10,11) HUS-530069611
...
10
Pin - Bar Adjust HUS-530015826
...
11
Retainer - Bar Adjust HUS-530038593
...
12
Chain - 8" HUS-530051524
...
13
Bar - 8" HUS-530044908
...
14
Plate - Bar Pad HUS-530056523
...
15
Bolt - Bar HUS-530016133
...
16
Housing - Upper (Incl. 15) HUS-530056513
...
17
Nut HUS-530016284
...
18
Kit - Gear Assembly. HUS-530071646
...
19
Housing - Lower HUS-530056514
...
20
Screw HUS-530016312
...
21
Screw - AlIgnitionment HUS-530015805
...
22
Screw HUS-530015886
...
23
Kit - Oil Assembly (Incl. 24,25,26,28) HUS-530071645
...
24
Assembly. - Gear Plunger HUS-530053764
...
25
Barrel HUS-530053765
...
26
Block - Oil HUS-530056522
...
27
Assembly - Oil Tank (Incl. 28,29,30,31,32) HUS-530056528
...
28
Fitting - Oil Line HUS-530056524
...
29
Intake - Oil Line HUS-530021160
...
30
Filter - Oil HUS-530037821
...
31
Cap - Oil HUS-530053072
...
32
Plug - Oil Filter HUS-530030189
...
33
Screw HUS-530015843
...
34
Wrench - Bar HUS-530031163

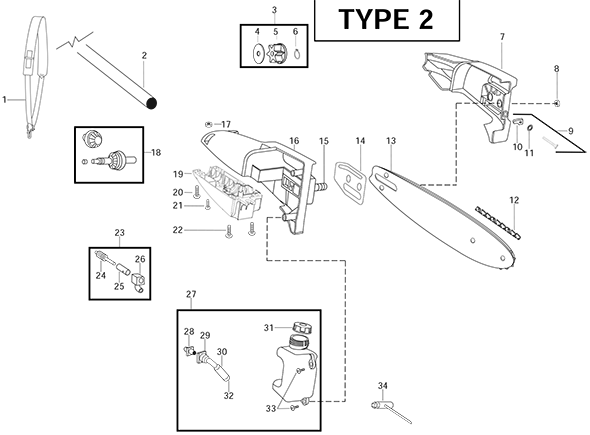

Jonsered LDX-Pruner-Att

...
...
xx
Wrench-Hex (5/32) HUS-530031159
...
xx
Scabbard HUS-530031190
...
xx
Screw (Harness Clamp) HUS-530015940
...
xx
Clamp Harness-Upper HUS-545113301
...
xx
Clamp Harness-Lower HUS-545056601
...
xx
Decal-Shaft Warning HUS-578666301
...
1
Harness HUS-537216201
...
2
Kit - Lower Driveshaft (Incl. Flex.) HUS-545006082
...
3
Kit - Sprocket Assembly. (Incl. 4,5,6) HUS-530071647
...
4
Washer HUS-530056521
...
5
Sprocket HUS-530056520
...
6
Retainer - Sprocket HUS-530056563
...
7
Assembly - Bar Clamp (Incl. 9) HUS-530057100
...
8
Nut - Bar Mounting HUS-530015917
...
9
Kit - Bar Adjust (Incl. 10,11) HUS-530069611
...
10
Pin - Bar Adjust HUS-530015826
...
11
Retainer - Bar Adjust HUS-530038593
...
12
Chain - 8" HUS-530051524
...
13
Bar - 8" HUS-530044908
...
14
Plate - Bar Pad HUS-530056523
...
15
Bolt - Bar HUS-530016133
...
16
Housing - Upper (Incl. 15) HUS-530056513
...
17
Nut HUS-530016284
...
18
Kit - Gear Assembly. HUS-530071646
...
19
Housing - Lower HUS-530056514
...
20
Screw HUS-530016312
...
21
Screw - AlIgnitionment HUS-530015805
...
22
Screw HUS-530015886
...
23
Kit - Oil Assembly (Incl. 24,25,26,28) HUS-530071645
...
24
Assembly. - Gear Plunger HUS-530053764
...
25
Barrel HUS-530053765
...
26
Block - Oil HUS-530056522
...
27
Assembly - Oil Tank (Incl. 28,29,30,31,32) HUS-530056528
...
28
Fitting - Oil Line HUS-530056524
...
29
Intake - Oil Line HUS-530021160
...
30
Filter - Oil HUS-530037821
...
31
Cap - Oil HUS-530053072
...
32
Plug - Oil Filter HUS-530030189
...
33
Screw HUS-530015843
...
34
Wrench - Bar HUS-530031163
...
...
...
