Jonsered KTM10E Transmission

Model: KTM10E

Save Part Not Listed?
product name

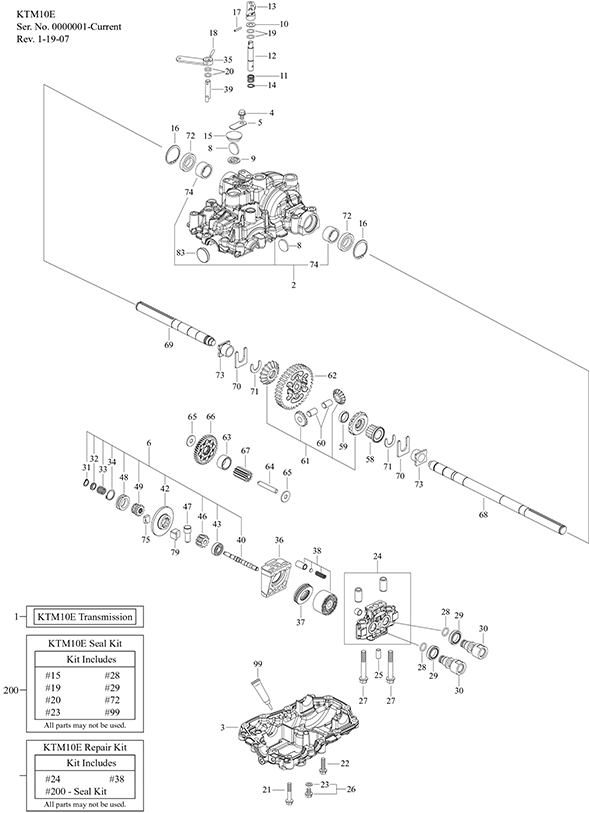

Jonsered KTM10E

...
...
1
Ktm10E Transaxle HUS-535483101
...
2
Upper Case Assembly HUS-502455501
...
3
Lower Case HUS-502455601
...
4
Bolt 8 * 12 HUS-535402852
...
5
Plate HUS-502455801
...
6
Shaft Cmp, Motor E HUS-502456601
...
8
Magnet HUS-535402829
...
9
Magnet Holder HUS-502452001
...
10
Washer 10.5 * 20 * 1 HUS-502460801
...
11
Bypass Spring HUS-502456201
...
12
Bypass Shaft HUS-502456101
...
13
Bypass Lever HUS-535402817
...
14
Snap Ring 12 HUS-502461201
...
15
Sealing Cap 30 HUS-502463201
...
16
Snap Ring 42 HUS-502461501
...
17
Spring Pin 3.0A * 20 HUS-535402816
...
18
Roll Pin 4Av * 25 HUS-502461701
...
19
O-Ring 1A P12 HUS-535414619
...
20
O-Ring 1A P10A HUS-535402815
...
21
Bolt 8 * 45 HUS-535414706
...
22
Tapping Bolt 8 * 30 HUS-502462701
...
23
Washer Seal 8 HUS-506957501
...
24
Center Case HUS-502455901
...
25
Dowel Pin 10 * 20 HUS-502461601
...
26
Bolt 8 * 12 HUS-535402852
...
27
Bolt 10 * 70 HUS-502463001
...
28
0-Ring P14.0 HUS-502462101
...
29
Seal Tc203007 HUS-502462401
...
30
Connector HUS-502456501
...
35
Clutch Arm HUS-502457301
...
36
Motor Housing HUS-502456301
...
37
Thrust (Ball) Bearing HUS-502460001
...
38
Cylinder Block Kit HUS-535402874
...
39
Clutch Shaft HUS-502457201
...
47
Brake Pin HUS-502459401
...
58
Differential Collar 25.4 HUS-502449901
...
59
Axle Collar HUS-502459101
...
60
Differential Pinion Pin HUS-535414638
...
61
Differential Gear Kit HUS-502449401
...
62
Final Gear (54T) HUS-502458301
...
63
Collar HUS-502457701
...
64
Reduction Shaft HUS-535414606
...
65
Washer 12 * 32 * 3.2 HUS-502460701
...
66
Reduction Gear (38T) HUS-502453001
...
67
Final Pinion Gear (10T) HUS-502452701
...
68
Axle Shaft A/L HUS-505324501
...
69
Axle Shaft A/S HUS-505324401
...
70
Thrust Washer HUS-535414645
...
71
Retaining Ring 23 HUS-535414696
...
72
Seal S 25.4 * 42 * 8 HUS-535402810
...
73
Bushing HUS-535414697
...
74
Bushing 25.4 HUS-535414690
...
75
Brake Shoe HUS-535414616
...
79
Brake Actuator HUS-535414618
...
83
Sealing Cap 35 HUS-502463301
...
200
Seal Kit HUS-502459801
