Jonsered J2153CMDB Rotary Lawn Mower LM2153CMD

Model: J2153CMDB

Save Part Not Listed?
product name

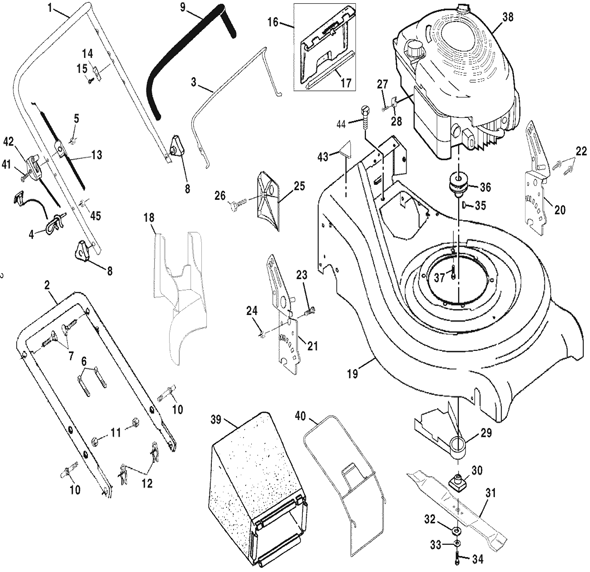

Jonsered J2153CMDB

...
...
xx
Warning Decal HUS-532182134
...
xx
Operator'sManual, European HUS-532190666
...
xx
Operator'sManual, Scandinavian HUS-532190667
...
1
Handle, Upper, Deluxe Comfort HUS-532167163
...
2
Handle, Lower HUS-532164556
...
3
Bail, Control, Wire, Deluxe Comfort HUS-532188768
...
4
Guide, Rope, Side HUS-532179585
...
5
Nut, Hex, With Lockwasher Insert 1/4-20 HUS-532132004
...
6
Wire, Tie HUS-532066426
...
7
Bolt, Handle 5/16-18 X 1.75 HUS-532131959
...
8
Knob, Handle HUS-532087692
...
9
Grip, Handle, Foam, Smooth HUS-532164265
...
10
Bolt, Carriage HUS-532161551
...
11
Nut, Hex, With Lockwasher Insert 5/16-18 Unc HUS-873990500
...
12
Cotter, Hairpin HUS-532051793
...
13
Cable, Mzr HUS-532133107
...
14
Bracket, Upstop HUS-532125162
...
15
Screw, Tapping, Hex Washer Head 10-24 HUS-532750634
...
16
Kit, Rear Door HUS-532162085
...
17
Seal, Rear Door HUS-532189059
...
18
Plug, Mulcher HUS-532182778
...
19
Kit, Housing HUS-532163424
...
20
Handle Bracket Assembly, Left HUS-532164548
...
21
Handle Bracket Assembly, Right HUS-532169306
...
22
Screw, Hex Washer Head HUS-532150078
...
23
Bolt, Hex Head 5/16-18 X 5/8 HUS-532163183
...
24
Nut, Hex, With Lockwasher Insert 5/16-18 HUS-873800500
...
25
Baffl E, Side HUS-532161333
...
26
Screw 12 X 5/8 HUS-532163409
...
27
Screw HUS-532750634
...
28
Cable Clamp HUS-532111190
...
29
Shield, Debris HUS-532182002
...
30
Adapter, Blade HUS-532184590
...
31
Blade, 21" HUS-532175052
...
32
Washer, Hardened HUS-532851074
...
33
Lockwasher, Helical Spring 3/8 HUS-532850263
...
34
Screw, Hex Head 3/8-24 X 1.38 HUS-532851084
...
35
Pulley, Engine HUS-532184941
...
36
Key, Hi-Pro HUS-532187723
...
37
Bolt, Engine HUS-532150406
...
39
Grass Bag HUS-532183632
...
40
Frame, Grass Bag HUS-532180026
...
41
Screw HUS-532183365
...
42
Throttle Control HUS-532182154
...
43
Decal, Danger HUS-532182166
...
44
Self-Tapping Screw HUS-532054583
...
45
Nut, Hex HUS-532132004

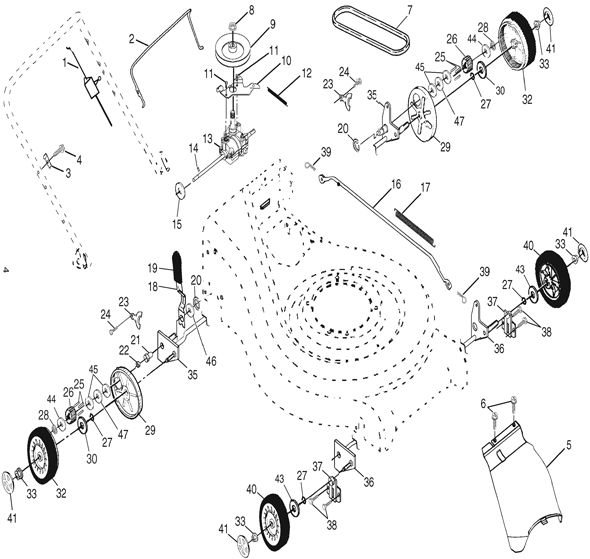

Jonsered J2153CMDB

...
...
1
Cable, Drive HUS-532187626
...
2
Bail, Control, Drive HUS-532161473
...
3
Bracket, Downstop HUS-532164557
...
4
Screw, Tapping, Hex Washer Head #10-24 HUS-532750634
...
5
Cover, Drive HUS-532161537
...
6
Screw, Threaded, Rolled #10-25 X .50 HUS-532750634
...
7
V-Belt HUS-532160816
...
8
Nut, Hex, Flangelock, Zinc Plated 3/8-16 HUS-532132010
...
9
Pulley, Driven HUS-532163939
...
10
Belt Keeper HUS-532164553
...
11
Screw, Hex Washer Head #10-24 X .668 HUS-817541011
...
12
Spring HUS-532187627
...
13
Gearcase Assembly (See Breakdown) HUS-532169611
...
14
Pin, Spring, Thrust HUS-532145354
...
15
Washer, Hardened HUS-532057079
...
16
Rod, Connecting HUS-532161584
...
17
Spring, Extension HUS-532161602
...
18
Spring, Selector HUS-532164554
...
19
Knob, Selector Spring HUS-532161961
...
20
E-Ring 7/8 HUS-812000022
...
21
Bearing, Support HUS-532163365
...
22
Bearing, Ball HUS-532169911
...
23
Retainer, Drive Assembly, Stamped" HUS-532164555
...
24
Screw, Tapping, Hex Head 1/4-20 X .75 HUS-532057808
...
25
Drive Pawl HUS-532170011
...
26
Pinion, Drive HUS-532166450
...
27
O-Ring HUS-532188152
...
28
E-Ring 7/16 HUS-812000058
...
29
Cover, Dust, Wheel HUS-532180504
...
30
Washer 1/2 X 1-1/2 X .134 HUS-532067725
...
32
Wheel 9 X 2 HUS-532180753
...
33
Nut, Hex, Flangeloc HUS-532083923
...
35
Shaft Assembly, Rear HUS-532164552
...
36
Shaft Assembly, Front HUS-532164550
...
37
Retainer, Front Shaft HUS-532161463
...
38
Screw #12 X 5/8 HUS-532163409
...
39
Clip, Retainer HUS-532700279
...
40
Wheel 8 X 2 HUS-532143593
...
41
Hubcap HUS-532150182
...
43
Washer, Flat 3/8 HUS-532088348
...
44
Washer HUS-532052160
...
45
Belleville Washer 1/2 HUS-532062335
...
46
Washer HUS-819572216
...
47
Felt Washer HUS-532088118

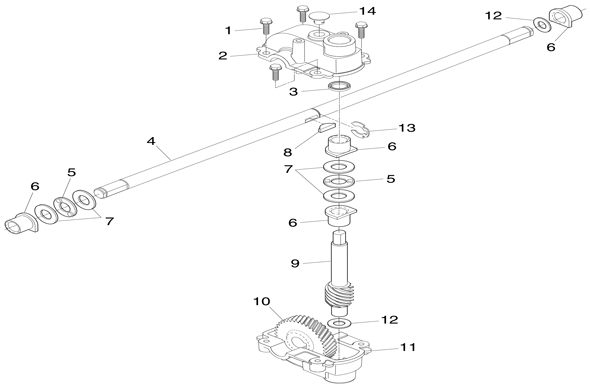

Jonsered J2153CMDB

...
...
xx
Grease HUS-532750369
...
xx
Kit, Gearcase Replacement (Includes Grease) HUS-532174535
...
1
Screw, Tapping 10-24 X .668 HUS-817541011
...
2
Gear Case, Upper HUS-532160672
...
3
Seal HUS-532057072
...
4
Drive Shaft HUS-532169611
...
5
Bearing, Needle, Thrust HUS-532160818
...
6
Bearing HUS-532077881
...
7
Washer, Thrust HUS-532160817
...
8
Key, Hi-Pro HUS-532850848
...
9
Shaft, Worm HUS-532160678
...
10
Gear, Helical HUS-532160679
...
11
Gear Case, Lower HUS-532160673
...
12
Washer, Hardened HUS-532057079
...
13
E-Ring HUS-812000039
...
14
Plug HUS-532086447
