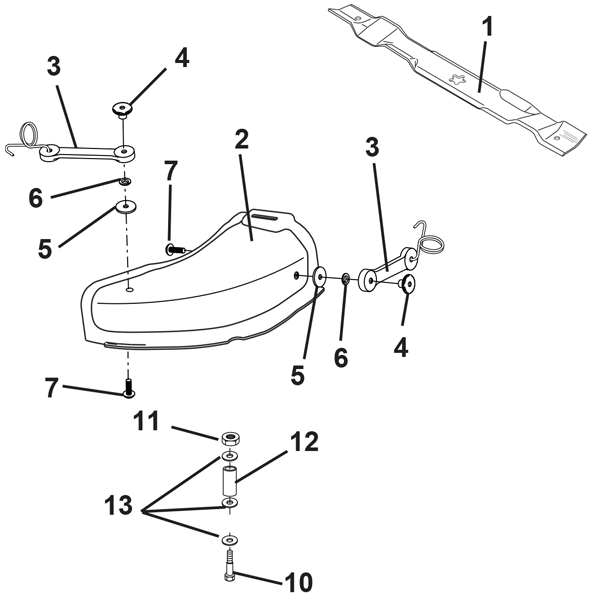

Jonsered I0700116 Mulch kit, 122 cm, 48"

Model: I0700116

Save Part Not Listed?
product name

Jonsered I0700116

...
...
1
Mulch Blade HUS-532180055
...
2
Mulch Cover HUS-532176898
...
3
Latch Hook HUS-532160793
...
4
Weld Nut HUS-532125004
...
5
Washer 3/16 X 3/4 HUS-819061216
...
6
Washer, Lock 10 HUS-810071000
...
7
Screw 10 X 5/8 HUS-871081010
...
10
Hex Bolt 1/4-20 X 2 HUS-874760432
...
11
Lock Nut 1/4-20 HUS-873800400
...
12
Latch Hook Spacer HUS-532121249
...
13
Washer 1/4 X 5/8 HUS-532126684
Schematic Image Zoomed
