Jonsered GC2043 Trimmers/Edgers

Model: GC2043

Save Part Not Listed?
product name

Popular Parts

Popular Parts

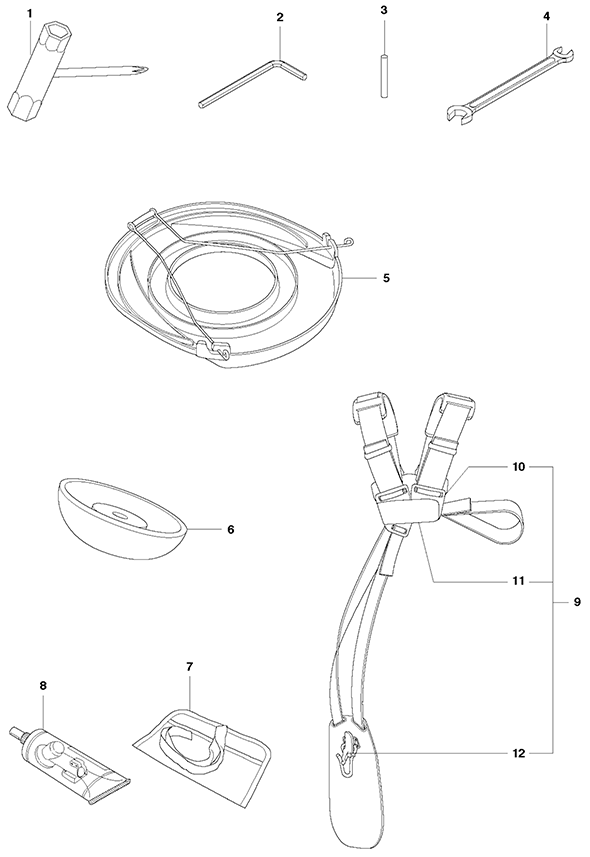

Jonsered GC2043

...
...
1
Box Spanner HUS-523111601
...
2
Wrench HUS-523112301
...
3
Stop HUS-502026101
...
4
Double-Ended Wrench HUS-523111701
...
5
Transport Guard HUS-544359101
...
6
Support Cup, S/N Up To - A42139 HUS-503901802
...
6
Support Cup, S/N From A42140 HUS-587743401
...
7
Tool Casing HUS-501192201
...
8
Grease HUS-503976501
...
9
Harness HUS-544845802
...
10
Front Piece HUS-537276901
...
11
Front Piece HUS-503734105
...
12
Welt Hook HUS-502022802

Jonsered GC2043

...
...

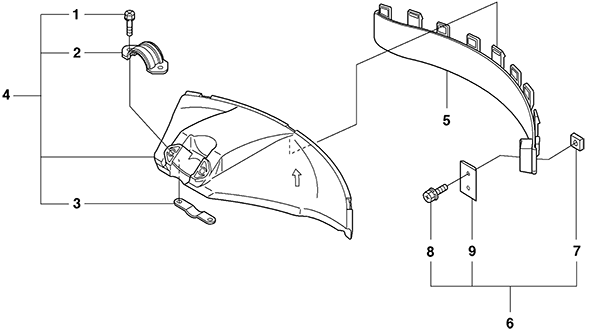

1
Bolt HUS-523121201
...
2
Bracket HUS-523097701
...
3
Threaded Bracket HUS-523097801
...
4
Safety Guard HUS-523095401
...
5
Cover HUS-574236401
...
6
Knife Assembly HUS-574236601
...
7
Nut HUS-523098201
...
8
Bolt HUS-523098101
...
9
Knife HUS-574236501

Jonsered GC2043

...
...

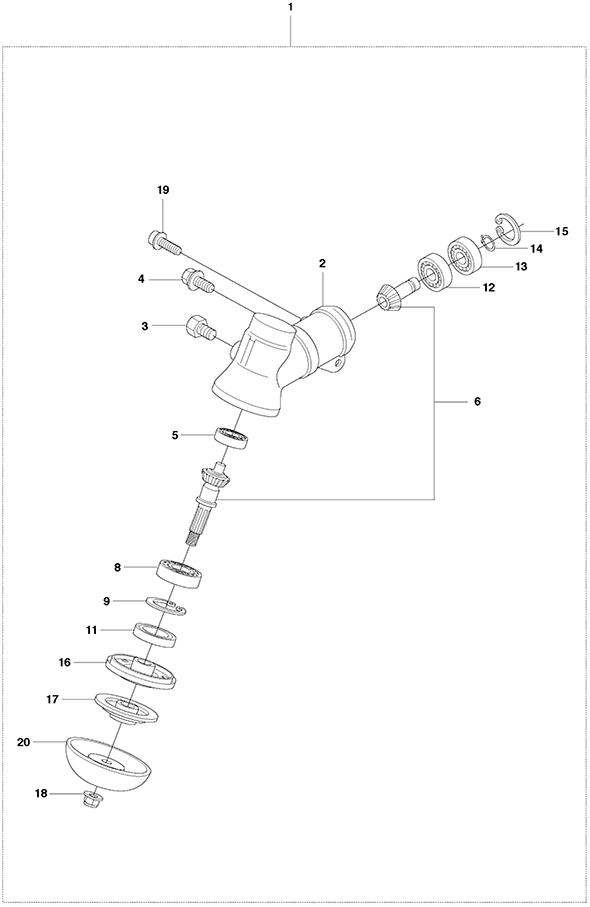

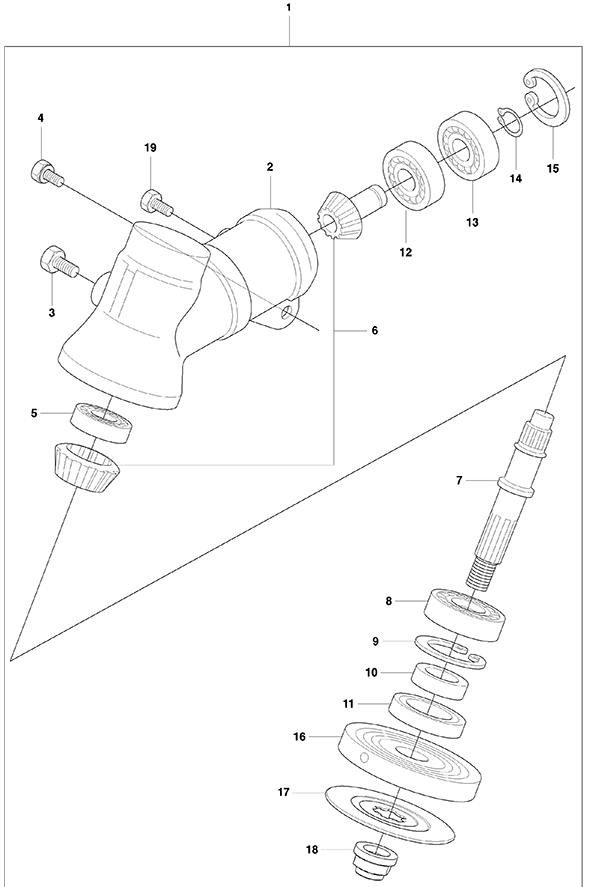

1
Gearcase Ass Y, Gc2053 S/N Up To - A42209 1 HUS-523098501
...
1
Gearcase Ass Y, Gc2043 S/N Up To - A42139 1 HUS-523098501
...
2
Gearcase HUS-523098601
...
3
Bolt HUS-523121301
...
4
Bolt HUS-523098701
...
5
Bearing HUS-523098801
...
6
Gear Set HUS-523098901
...
7
Blade Shaft HUS-523099001
...
8
Bearing HUS-523121401
...
9
Snap Ring HUS-523121501
...
10
Collar HUS-523099101
...
11
Oil Seal HUS-523121601
...
12
Bearing HUS-523121701
...
13
Bearing HUS-523121801
...
14
Snap Ring HUS-523121901
...
15
Snap Ring HUS-523122001
...
16
Boss (A) HUS-523099201
...
17
Boss (B) HUS-523099301
...
18
Nut Blade HUS-502291101
...
19
Bolt HUS-523099401

Jonsered GC2043

...
...
1
Gear Box Assembly, Gc2043 S/N From A42140 - 1 HUS-587742401
...
1
Gear Box Assembly, Bc2053 S/N From A42280 - 1 HUS-587742401
...
1
Gear Box Assembly, Bc2043 S/N From C32470 - 1 HUS-587742401
...
2
Gear Housing HUS-587742501
...
3
Bolt HUS-523121301
...
4
Bolt HUS-523098701
...
5
Ball Bearing HUS-587742601
...
6
Gear Set HUS-587742701
...
8
Ball Bearing HUS-587742801
...
9
Circlip HUS-587742901
...
11
Sealing HUS-587743001
...
12
Bearing HUS-523121701
...
13
Bearing HUS-523121801
...
14
Snap Ring HUS-523121901
...
15
Snap Ring HUS-523122001
...
16
Driver HUS-587743101
...
17
Support Flange HUS-587743201
...
18
Blade Nut HUS-587743301
...
19
Bolt HUS-523099401
...
20
Support Cup HUS-587743401

Jonsered GC2043

...
...

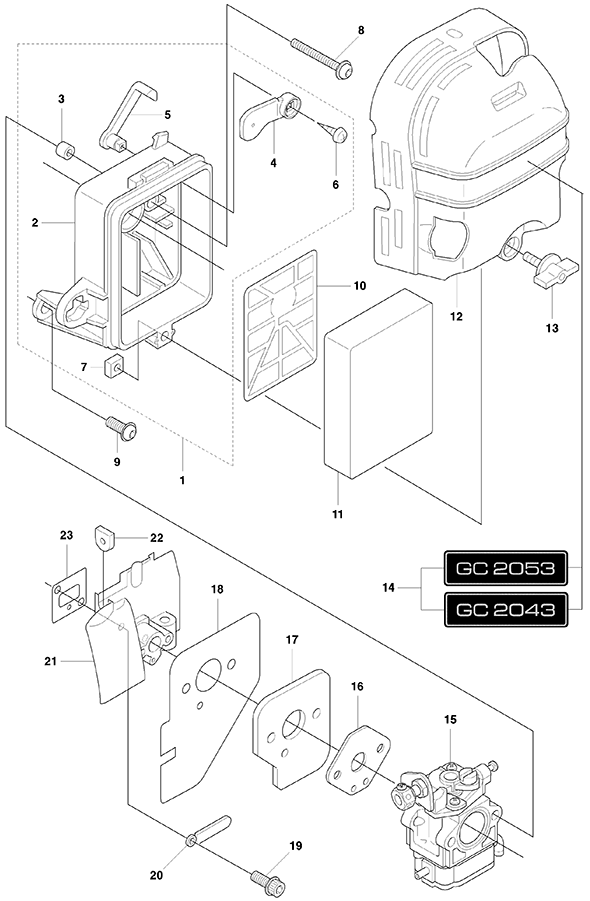

1
Case Ass Y HUS-523108601
...
2
Case Body HUS-523108701
...
3
Sleeve HUS-523108801
...
4
Valve HUS-523108901
...
5
Lever HUS-523109001
...
6
Screw HUS-523109101
...
7
Nut HUS-523109201
...
8
Cap Screw HUS-523109301
...
9
Cap Screw HUS-523109401
...
10
Plate HUS-523109501
...
11
Element HUS-523109601
...
12
Cleaner Cover HUS-523109701
...
13
Knob HUS-523109801
...
14
Label HUS-523111501
...
14
Label HUS-523350601
...
15
Carburetor Assembly HUS-523106501
...
16
Gasket HUS-523108301
...
17
Divider HUS-523108401
...
18
Gasket HUS-523108501
...
19
Cap Screw HUS-523100101
...
20
Clamp HUS-523104101
...
21
Insulator HUS-523099901
...
22
Grommet HUS-523103901
...
23
Gasket HUS-523100001

Jonsered GC2043

...
...

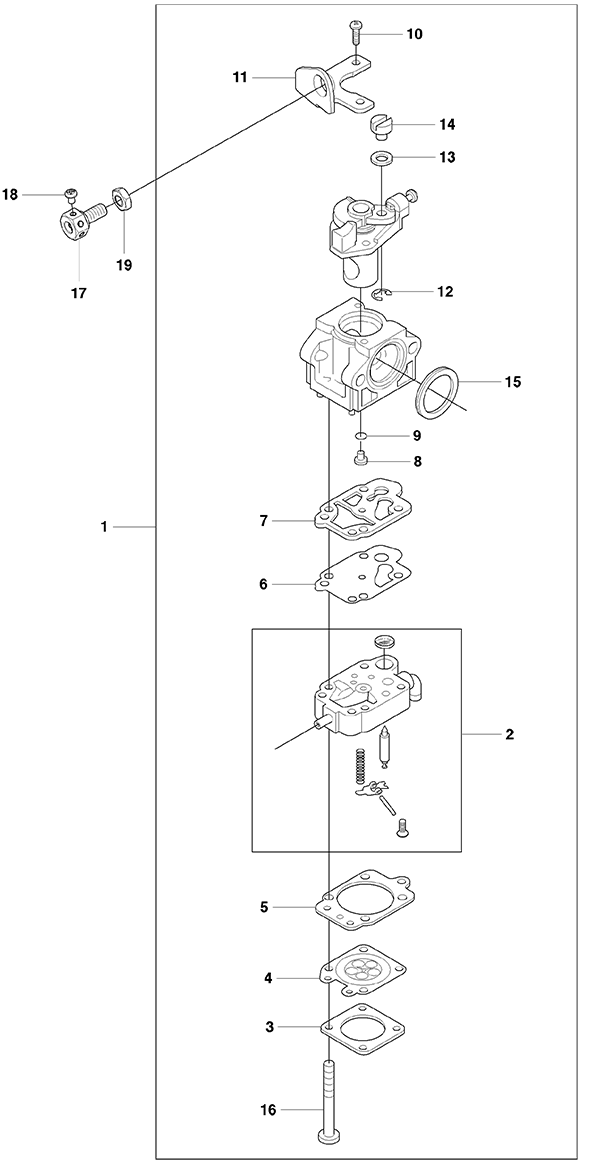

1
Carburetor Assembly HUS-523106501
...
2
Pump Body HUS-523106601
...
3
Cover Plate HUS-523106701
...
4
Diaphragm. Meterring HUS-523106801
...
5
Gasket HUS-523106901
...
6
Diaphragm.Fuel Pump HUS-523107001
...
7
Gasket HUS-523107101
...
8
Main Jet HUS-523107201
...
9
O-Ring HUS-523107301
...
10
Screw HUS-523107401
...
11
Bracket HUS-523107501
...
12
E-Ring HUS-523107601
...
13
Washer HUS-523107701
...
14
Swivel HUS-523107801
...
15
Packing HUS-523107901
...
16
Screw HUS-523108001
...
17
Screw HUS-521518701
...
18
Screw HUS-521518401
...
19
Nut HUS-523111401

Jonsered GC2043

...
...

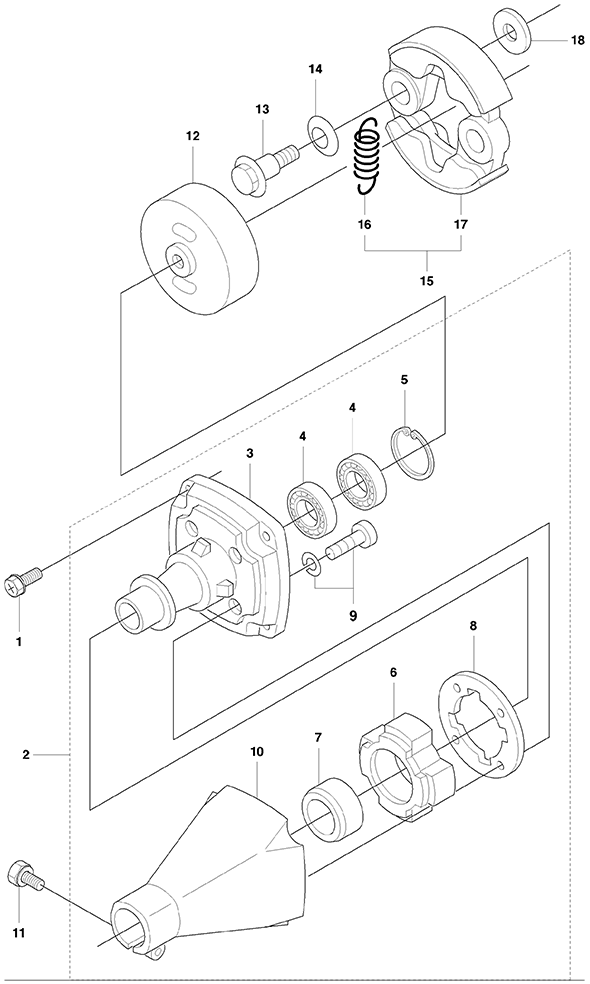

1
Bolt HUS-523098401
...
2
Clutch Case Ass Y HUS-523095801
...
3
Bearing Case HUS-523096001
...
4
Bearing HUS-523096101
...
5
Snap Ring HUS-523096201
...
6
Buffer (A) HUS-523096301
...
7
Buffer (B) HUS-523096401
...
8
Washer HUS-523096501
...
9
Screw HUS-523121001
...
10
Driveshaft Tube Adapter HUS-523096601
...
11
Bolt HUS-523096701
...
12
Clutch Drum HUS-523096801
...
13
Cap Screw HUS-523102101
...
13
Cap Screw HUS-523122901
...
14
Wave Washer HUS-523102301
...
15
Clutch Ass Y HUS-523101801
...
16
Spring.Clutch HUS-523102001
...
17
Clutch Shoe HUS-523101901
...
18
Washer HUS-523102201

Jonsered GC2043

...
...

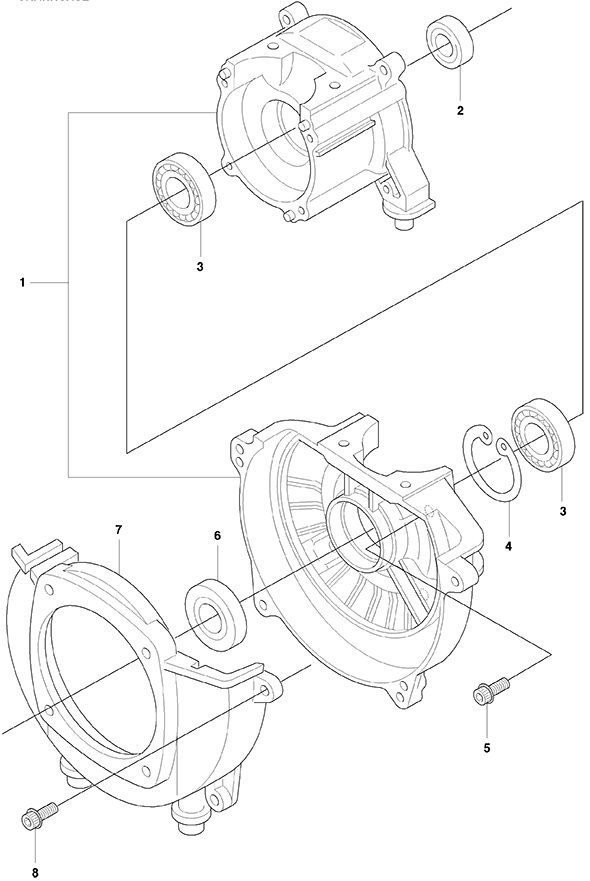

1
Crankcase HUS-523100801
...
2
Oil Seal HUS-523101101
...
3
Bearing HUS-523100901
...
4
Snap Ring HUS-523101201
...
5
Cap Screw HUS-523101301
...
6
Oil Seal HUS-523101001
...
7
Fan Cover HUS-523102401
...
8
Cap Screw HUS-523102501

Jonsered GC2043

...
...

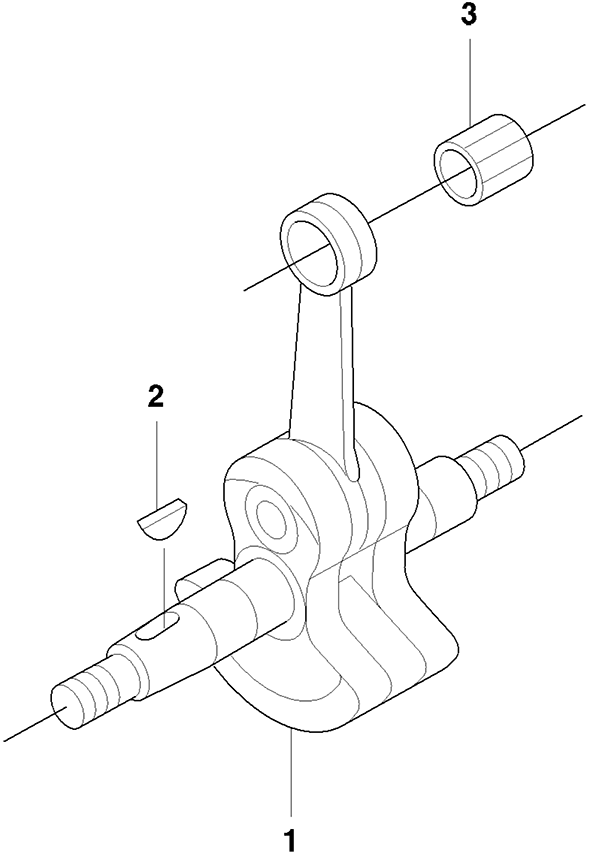

1
Crankshaft/Conn.Rod Ass Y HUS-523101701
...
2
Woodruff Key HUS-523103501
...
3
Bearing,Needle HUS-523122201

Jonsered GC2043

...
...

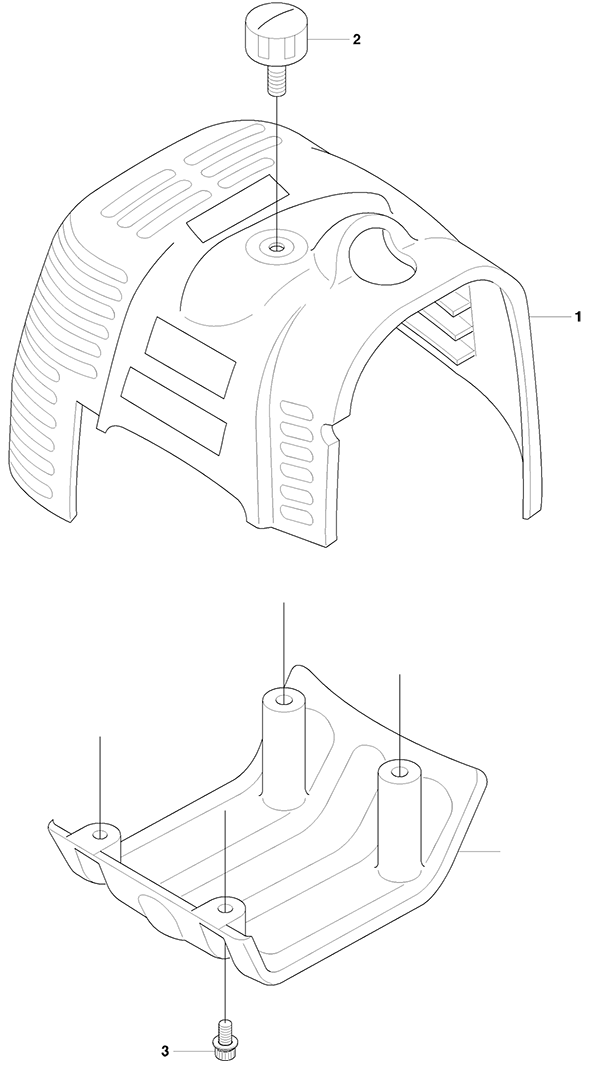

1
Top Cover HUS-523100601
...
2
Knob HUS-523100701
...
3
Cap Screw HUS-523106301

Jonsered GC2043

...
...

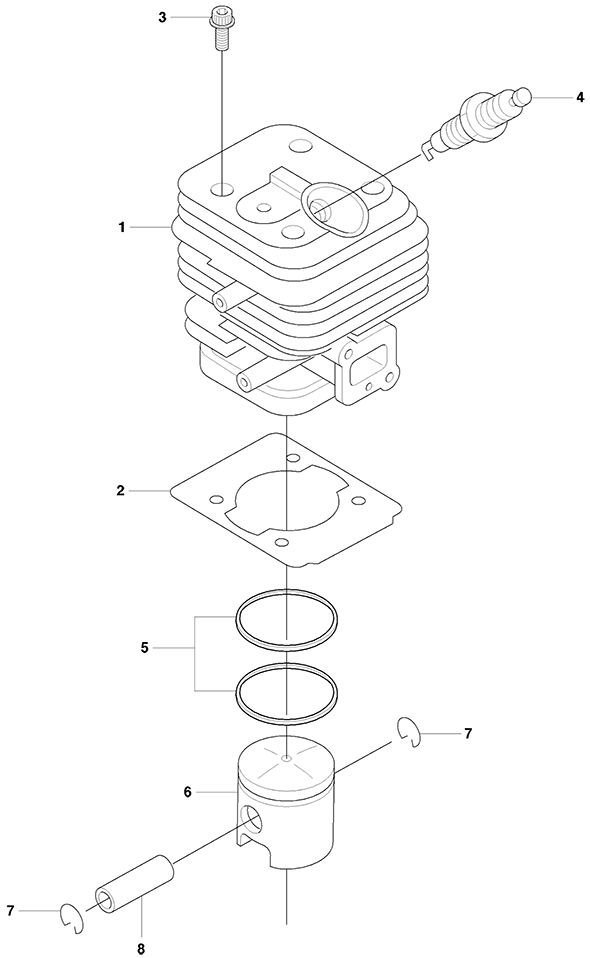

1
Cylinder HUS-523099601
...
1
Cylinder HUS-523122601
...
2
Gasket HUS-523099701
...
3
Cap Screw HUS-523099801
...
4
Spark Plug HUS-523103801
...
5
Piston Ring HUS-523101501
...
5
Piston Ring HUS-523122801
...
6
Piston HUS-523101401
...
6
Piston HUS-523122701
...
7
Clip.Piston Pin HUS-523101601
...
8
Piston Pin HUS-523122101

Jonsered GC2043

...
...

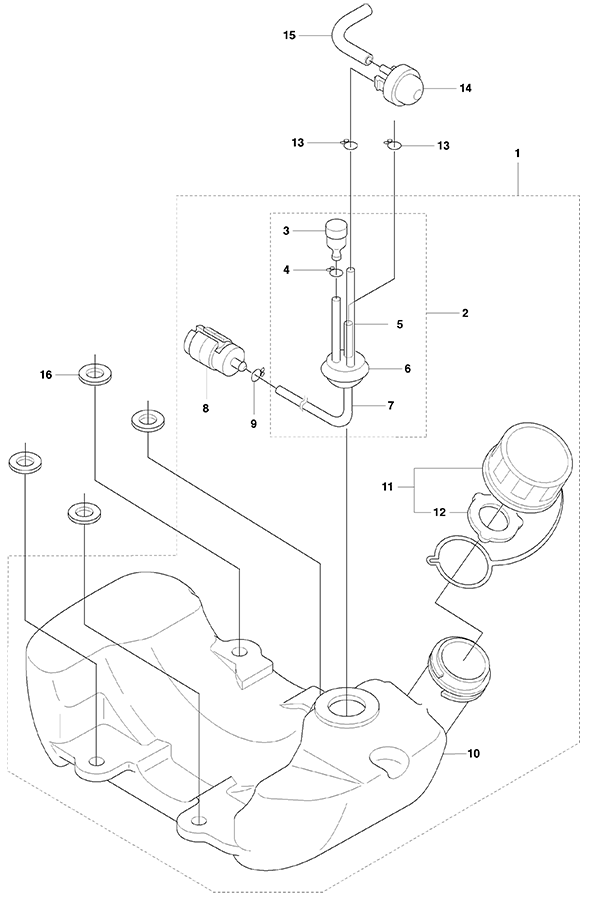

1
Fuel Tank Assembly HUS-523109901
...
2
Fuel Pipe Ass Y HUS-523110301
...
3
Breather HUS-523110701
...
4
Clip HUS-523110801
...
5
Return Pipe HUS-523110501
...
6
Grommet HUS-523110401
...
7
Fuel Pipe HUS-523110601
...
8
Fuel Filter Assembly HUS-523110901
...
9
Clip HUS-523111001
...
10
Fuel Tank HUS-523110001
...
11
Fuel Tank Cap Ass Y HUS-523110101
...
12
Gasket HUS-523110201
...
13
Clip HUS-523111101
...
14
Pump HUS-523108101
...
15
Fuel Pipe HUS-523108201
...
16
Washer HUS-574236001

Jonsered GC2043

...
...

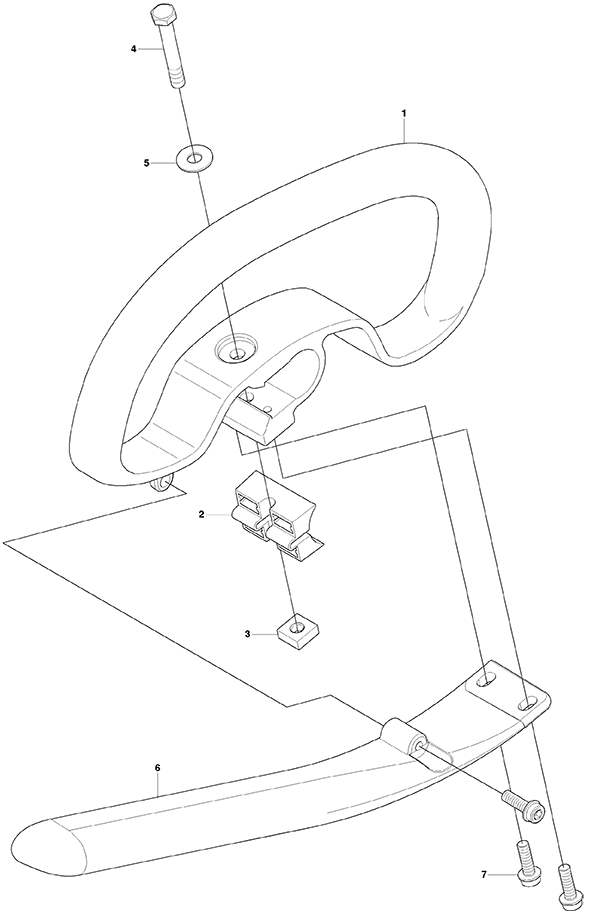

1
Handle Loop HUS-544101003
...
2
Spacing Block HUS-544101102
...
3
Square Nut HUS-502197101
...
4
Screw Ehhm HUS-725237851
...
5
Washer HUS-503230061
...
6
Handle HUS-503997802
...
7
Screw Ihscft HUS-503216816

Jonsered GC2043

...
...

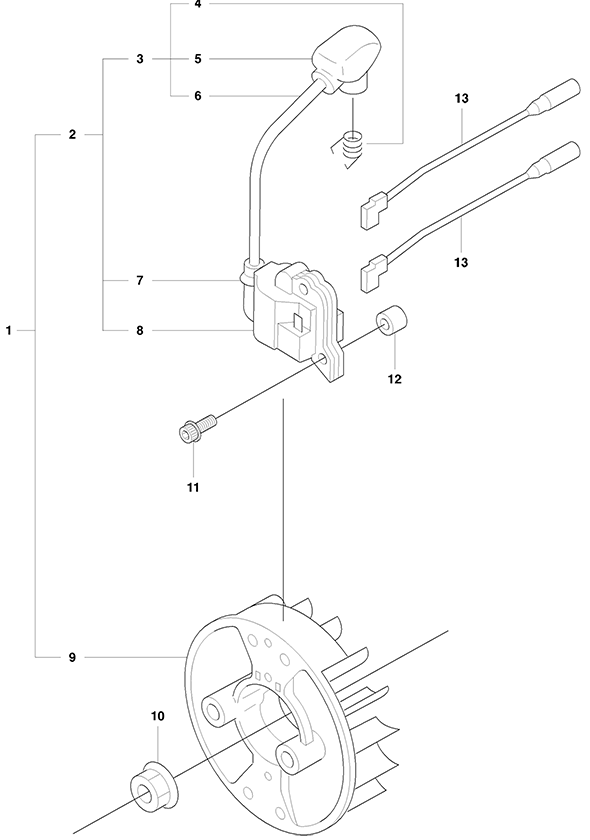

1
Magneto Ass Y HUS-523102601
...
2
Ignitionition Coil Ass Y HUS-523102801
...
3
Spark Plug Wire Ass Y HUS-523103001
...
4
Connector HUS-523103201
...
5
Plug Boot HUS-523103101
...
6
Spark Plug Wire HUS-523103301
...
7
Hub Cap HUS-523103401
...
8
Coil HUS-523102901
...
9
Rotor/Fan HUS-523102701
...
10
Nut.Rotor HUS-523103601
...
11
Cap Screw HUS-523103701
...
11
Cap Screw HUS-523123001
...
12
Spacer HUS-523122301
...
13
Lead HUS-523104001

Jonsered GC2043

...
...

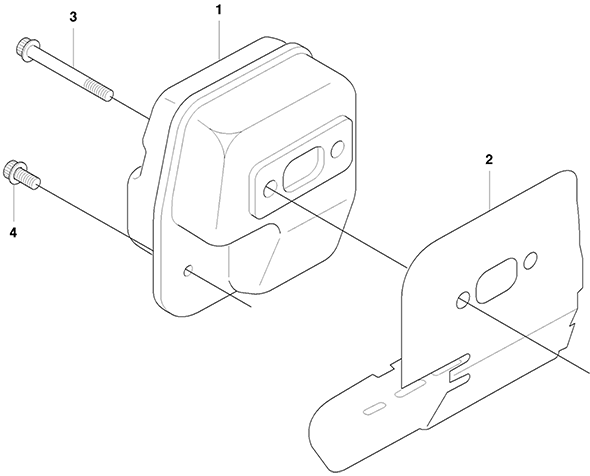

1
Muffler Comp. HUS-523100201
...
2
Gasket HUS-523100301
...
3
Cap Screw HUS-523100401
...
4
Screw HUS-523100501

Jonsered GC2043

...
...

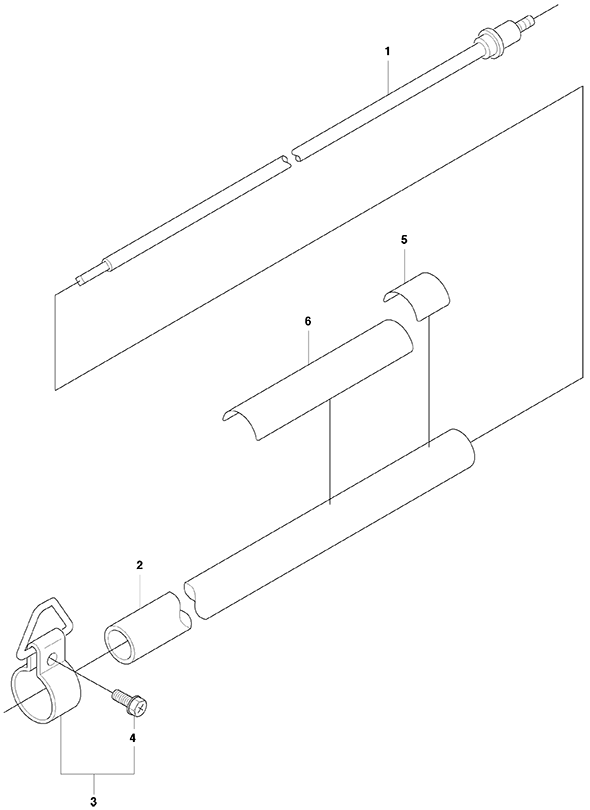

1
Driveshaft Ass Y HUS-523096901
...
2
Driveshaft Tube HUS-523097001
...
3
Hanging Bracket Ass Y HUS-523097401
...
4
Bolt HUS-523121101
...
5
Label HUS-523097601
...
6
Label HUS-523097501

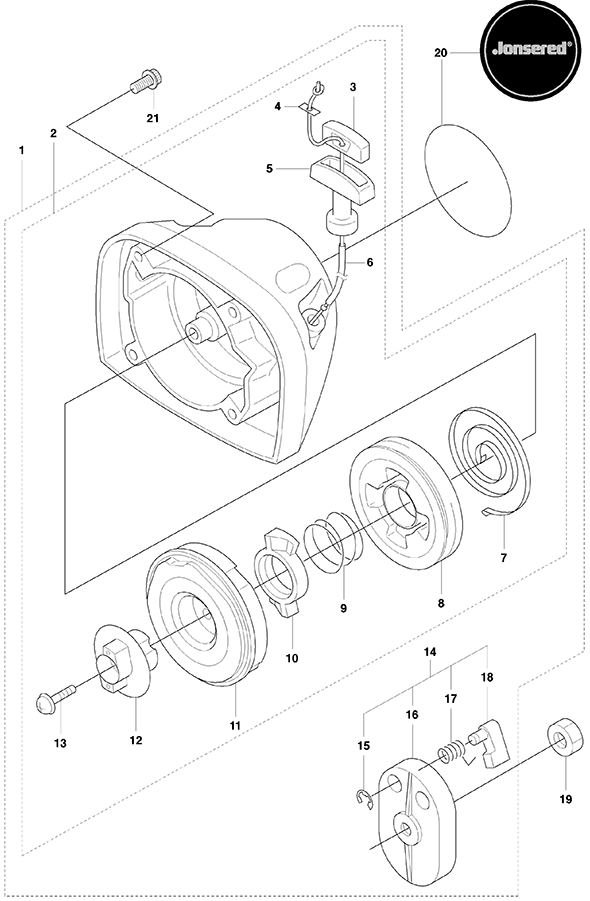

Jonsered GC2043

...
...
1
Recoil Starter Ass Y HUS-523104201
...
2
Recoil Ass Y HUS-523104301
...
3
Hub Cap HUS-523105301
...
4
Rope Stopper HUS-523105401
...
5
Starter Grip HUS-523105201
...
6
Starter Rope HUS-523105101
...
7
Spiral Spring HUS-523104501
...
8
Starter Pulley HUS-523104401
...
9
Return Spring HUS-523104701
...
10
Pawl HUS-523104601
...
11
Spring Comp. HUS-523104801
...
12
Plate HUS-523104901
...
13
Set Screw HUS-523105001
...
14
Starter Pulley Ass Y HUS-523105501
...
15
E-Ring HUS-523105901
...
16
Starter Pawl Attachment HUS-523105601
...
17
Return Spring HUS-523105801
...
18
Pawl HUS-523105701
...
19
Nut HUS-523106101
...
20
Label HUS-523106401
...
21
Cap Screw HUS-523106001

Jonsered GC2043

...
...

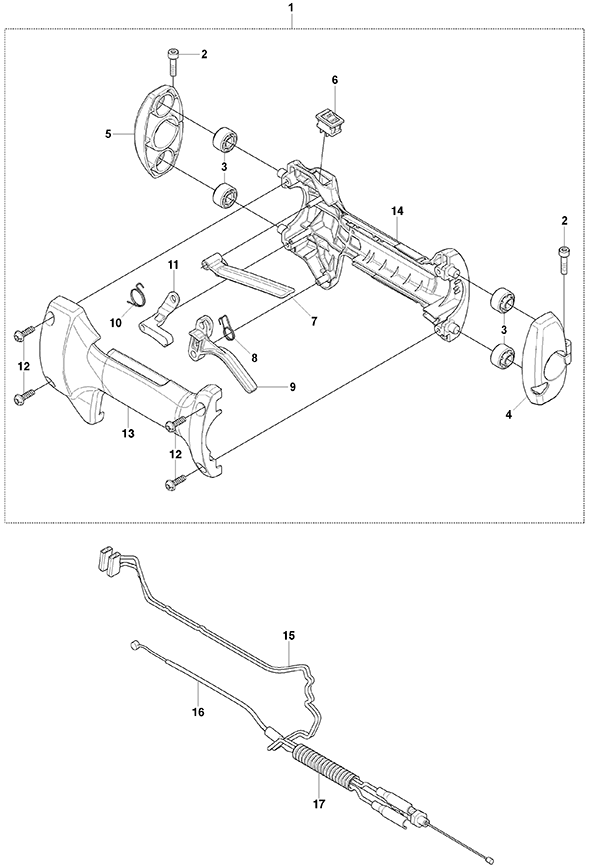

1
Throttle Control HUS-525314401
...
2
Bolt HUS-506616201
...
3
Absorber HUS-521667701
...
4
Holder HUS-525418601
...
5
Holder HUS-525418701
...
6
Switch HUS-521851601
...
7
Lever-S HUS-521667301
...
8
Spring HUS-521667201
...
9
Lever HUS-521667001
...
10
Spring HUS-521667501
...
11
Lever HUS-521667601
...
12
Element HUS-521597901
...
13
Body-L HUS-521666601
...
14
Body-R HUS-521666201
...
15
Cord Comp. HUS-523097201
...
16
Cable Comp. HUS-523097101
...
17
Tube HUS-523097301
