Jonsered FR2312M-2019-01 Frontriders, 967236901

Model: FR2312M-2019-01

Save Part Not Listed?
product name

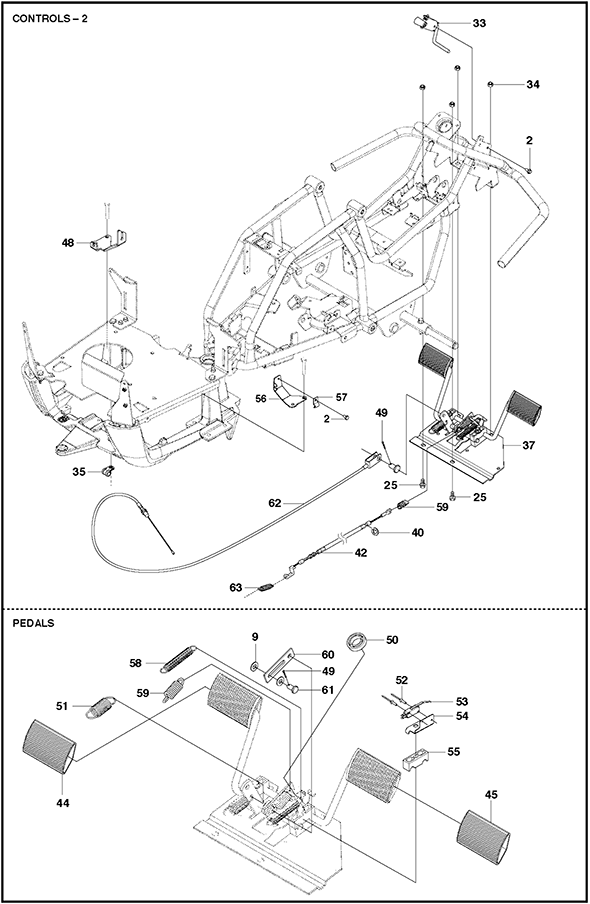

Jonsered FR2312M-2019-01

...
...
2
Screw Ehhft HUS-725236461
...
9
Washer HUS-734116401
...
25
Screw Ehhfm HUS-506570103
...
33
Locking Lever HUS-523346002
...
34
Blind Rivet Nut HUS-506916201
...
35
Clamp HUS-578996801
...
37
Pedal Plate Assembly HUS-574406601
...
40
E-Clip HUS-735310920
...
42
Wire HUS-574407602
...
44
Pedal Rubber HUS-535478802
...
45
Pedal Rubber HUS-535478801
...
48
Bracket HUS-581852801
...
49
Split Pin HUS-721615201
...
50
Ball Bearing HUS-738210204
...
51
Draw Spring HUS-544133401
...
52
Rivet HUS-544440701
...
53
Switch HUS-574316101
...
54
Bracket HUS-544415701
...
55
Bearing Support HUS-535480801
...
56
Bracket HUS-581855301
...
57
Clip HUS-506566501
...
58
Draw Spring HUS-544133601
...
59
Spring HUS-575355201
...
60
Link HUS-544127901
...
61
Clevis Pin HUS-721839901
...
62
Wire Assembly HUS-506952502
...
63
Draw Spring HUS-506535603

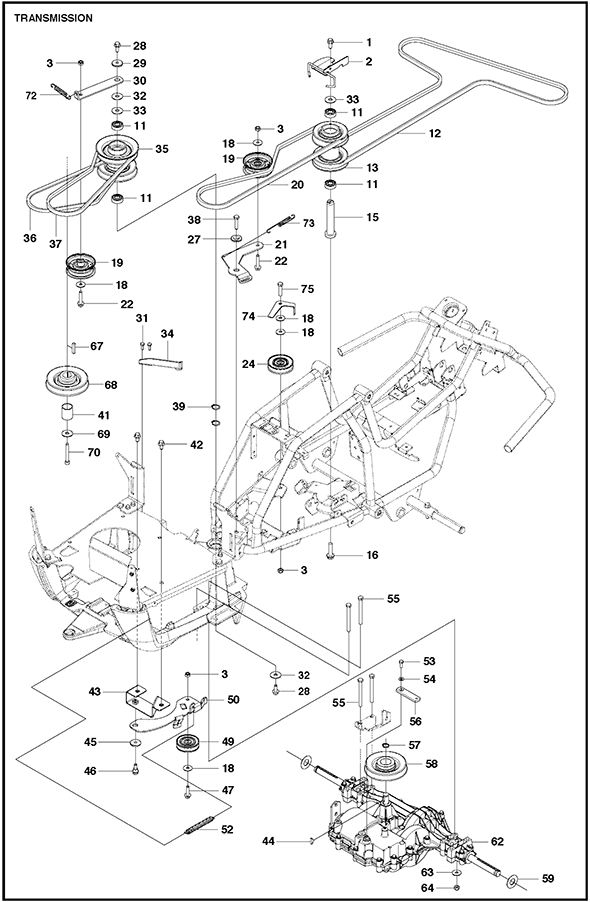

Jonsered FR2312M-2019-01

...
...
1
Screw Ehhfm HUS-506570103
...
2
Bracket HUS-577592101
...
3
Lock Nut HUS-732211801
...
11
Ball Bearing HUS-738210404
...
12
Belt HUS-589531401
...
13
Pulley HUS-574259501
...
15
Shaft HUS-574259801
...
16
Screw Ehhfm HUS-506675402
...
18
Washer HUS-734116441
...
19
Pulley HUS-539919078
...
20
Belt HUS-589532801
...
21
Belt Tensioner HUS-522602901
...
22
Screw Ehhm HUS-725245951
...
24
Belt Tens Wheel Assembly HUS-506946901
...
27
Washer HUS-581765201
...
28
Screw Ehhfm HUS-506570104
...
29
Washer HUS-574874101
...
30
Bracket HUS-522831601
...
31
Screw Ehhft HUS-725236861
...
32
Washer HUS-734117441
...
33
Washer HUS-506504805
...
34
Bracket HUS-581865101
...
35
Pulley HUS-584818801
...
36
Belt HUS-589531301
...
37
Belt HUS-589561701
...
38
Screw Ihcsfm HUS-725645301
...
39
Circlip HUS-735312200
...
41
Tube HUS-574412001
...
42
Screw Ehhfm HUS-506570103
...
43
Bracket HUS-581960401
...
44
Woodruff Key HUS-506509401
...
45
Washer HUS-574874101
...
46
Screw Ehhfm HUS-506570104
...
47
Screw HUS-725245551
...
49
Belt Tens Wheel Assembly HUS-506793401
...
50
Bracket HUS-581960201
...
52
Spring HUS-506988601
...
53
U6S-Unf1/4"X28 L=16 HUS-506557801
...
54
Washer HUS-734115601
...
55
Screw HUS-725246651
...
56
Bracket HUS-525320501
...
57
Circlip HUS-735311800
...
58
Pulley HUS-525320601
...
59
Washer HUS-506504805
...
62
Transaxle HUS-581847901
...
63
Washer HUS-734116401
...
64
Lock Nut HUS-732211801
...
67
Wedge HUS-506555902
...
68
Pulley HUS-522827601
...
69
Washer HUS-506597501
...
70
Screw Unc HUS-506556002
...
72
Spring HUS-574506101
...
73
Spring HUS-575567202
...
74
Bracket HUS-577418501
...
75
Screw HUS-725245751

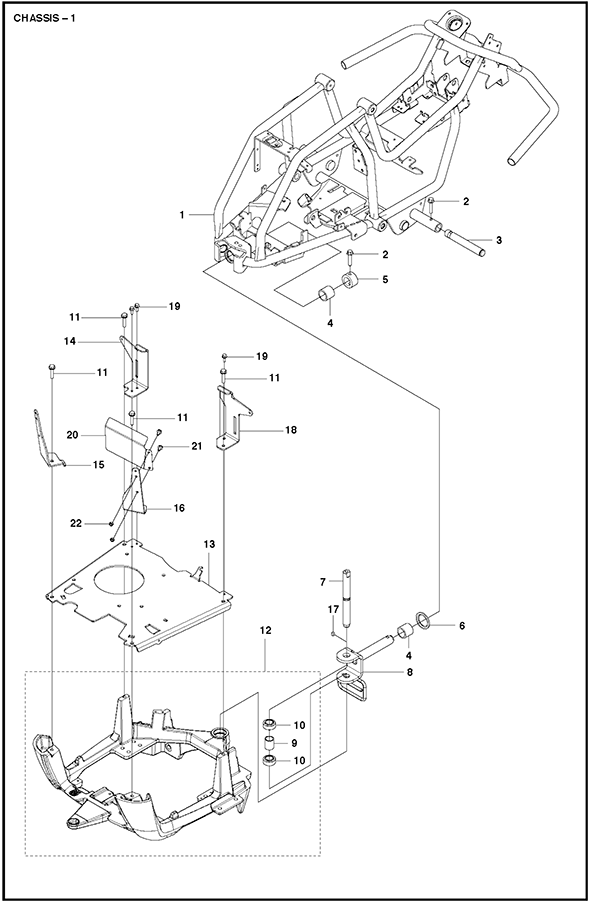

Jonsered FR2312M-2019-01

...
...
1
Frame HUS-581274102
...
2
Screw Ehhft HUS-725245961
...
3
Wheel Axle HUS-535470802
...
4
Glidlager HUS-506986101
...
5
Stop Sleeve HUS-522425201
...
6
Spacer HUS-522425301
...
7
Shaft HUS-579720401
...
8
Swing Axle HUS-580267401
...
9
Sleeve HUS-522424501
...
10
Bearing HUS-574368501
...
11
Screw Ehhfm HUS-506570106
...
12
Frame Assembly HUS-590268202
...
13
Bracket HUS-581550902
...
14
Bracket HUS-581613501
...
15
Bracket HUS-581613601
...
16
Bracket HUS-581613602
...
17
Key HUS-577708901
...
18
Bracket HUS-584899201
...
19
Screw Ehhft HUS-725236861
...
20
Heat Shield HUS-585022601
...
21
Screw Ehhfm HUS-535475212
...
22
Lock Nut HUS-732211601

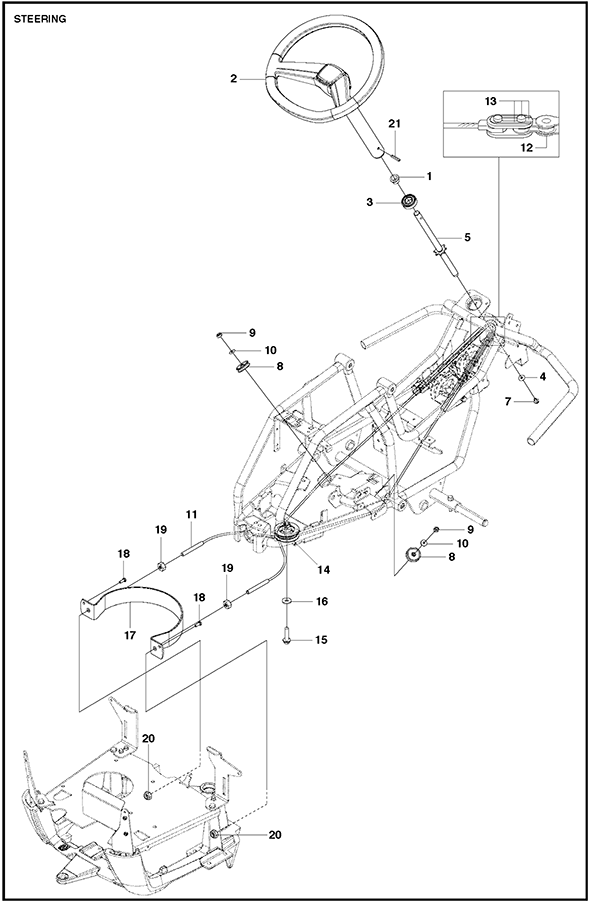

Jonsered FR2312M-2019-01

...
...
1
Spacer HUS-506887801
...
2
Steering System HUS-581193702
...
3
Ball Bearing HUS-738210404
...
4
Washer HUS-734115441
...
5
Steering Rod HUS-575632401
...
7
Screw Ehhfm HUS-535475212
...
8
Pulley HUS-581158201
...
9
Lock Nut HUS-732211801
...
10
Washer HUS-734116401
...
11
Wire Assembly HUS-577199901
...
12
Chain HUS-506554601
...
13
Linkage HUS-506554701
...
14
Pulley HUS-576492502
...
15
Screw Ehhfm HUS-506675402
...
16
Washer HUS-734117441
...
17
Guide Rail HUS-525404301
...
18
Screw Ehhft HUS-725236861
...
19
Hexagon Nut HUS-731232051
...
20
Nut HUS-732212051
...
21
Spring Pin HUS-721434701

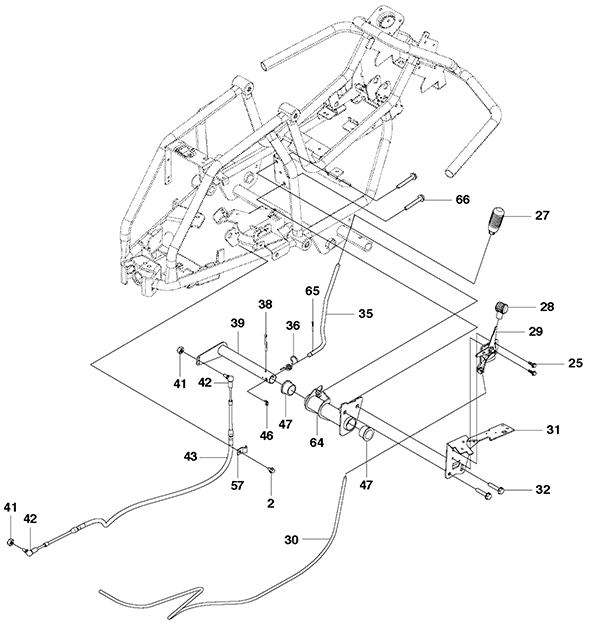

Jonsered FR2312M-2019-01

...
...
2
Screw Ehhft HUS-725236461
...
25
Screw Ehhfm HUS-506570103
...
27
Handle HUS-506542002
...
28
Knob HUS-506889101
...
29
Throttle Control HUS-522505901
...
30
Wire HUS-544301704
...
31
Sheet HUS-575240301
...
32
Screw Ehhfm HUS-506570104
...
35
Rod HUS-525316501
...
36
Spring HUS-574377801
...
38
Split Pin HUS-721620101
...
39
Gearshift Lever HUS-574377701
...
41
Lock Nut HUS-732211401
...
42
Vinkell.As8 Din71802 HUS-506557301
...
43
Control Cable HUS-574411104
...
46
E-Clip HUS-735311220
...
47
Bearing HUS-506556501
...
57
Clip HUS-506566501
...
64
Bracket HUS-574369702
...
65
Split Pin HUS-721615201
...
66
Screw Ehhm HUS-725246071

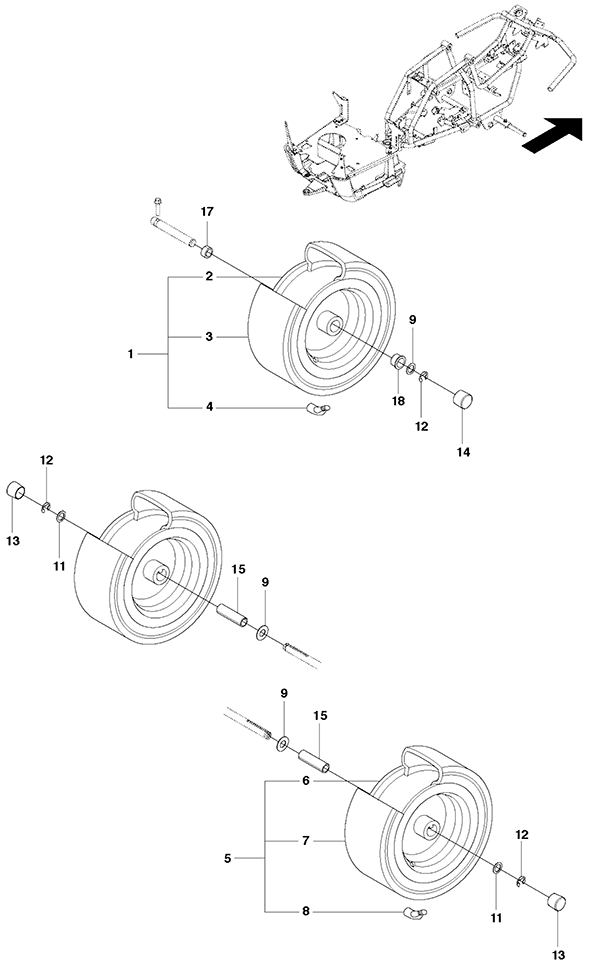

Jonsered FR2312M-2019-01

...
...
1
Wheel HUS-576885001
...
2
Rim HUS-573981601
...
3
Tire HUS-576949301
...
4
Valve HUS-523034701
...
5
Wheel HUS-576885101
...
6
Rim HUS-573981501
...
7
Tire HUS-576949301
...
8
Valve HUS-523034701
...
9
Washer HUS-506504805
...
11
Washer HUS-506504803
...
12
E-Clip HUS-506899001
...
13
Hub Cap HUS-577772901
...
14
Hub Cap HUS-577892501
...
15
Spacing Sleeve HUS-506596214
...
17
Spacing Sleeve HUS-580408901
...
18
Bearing HUS-574671701

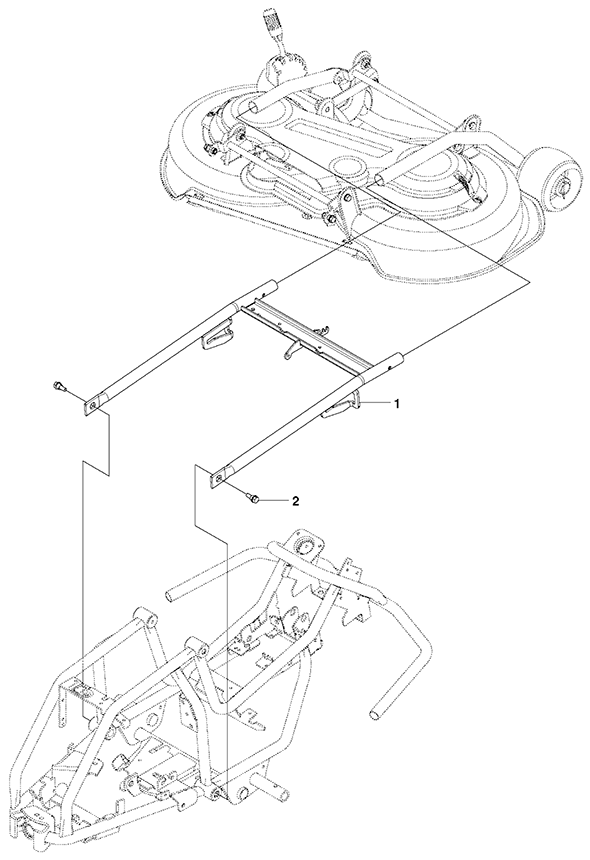

Jonsered FR2312M-2019-01

...
...
1
Equipment Frame HUS-584833003
...
2
Collar Screw HUS-506895801

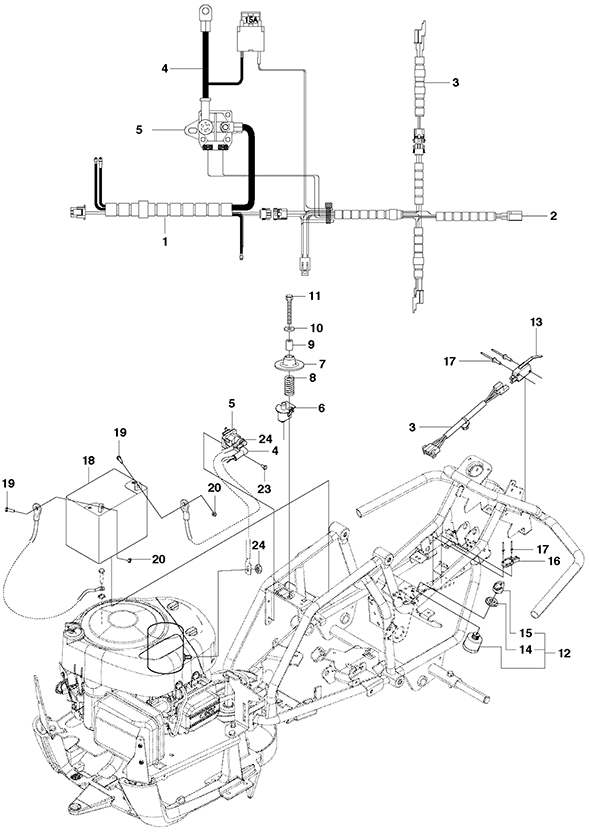

Jonsered FR2312M-2019-01

...
...
1
Wiring HUS-581972401
...
2
Wiring HUS-574269501
...
3
Wiring HUS-574269601
...
4
Cable HUS-574269801
...
5
Relay HUS-544439801
...
6
Switch HUS-506909601
...
7
Spring Washer HUS-506909701
...
8
Spring HUS-544441201
...
9
Spacing Tube HUS-506909902
...
10
Washer HUS-734116401
...
11
Screw Ehhm HUS-725246051
...
12
Ignitionition Switch HUS-544442201
...
13
Switch HUS-544415901
...
14
Nut HUS-544442301
...
15
Ignitionition Key HUS-544442401
...
16
Switch HUS-574316101
...
17
Rivet HUS-544440701
...
18
Battery HUS-574397201
...
19
Screw Ehhm HUS-522622101
...
20
Nut HUS-522624301
...
23
Screw Ehhft HUS-725236461
...
24
Nut HUS-506899801

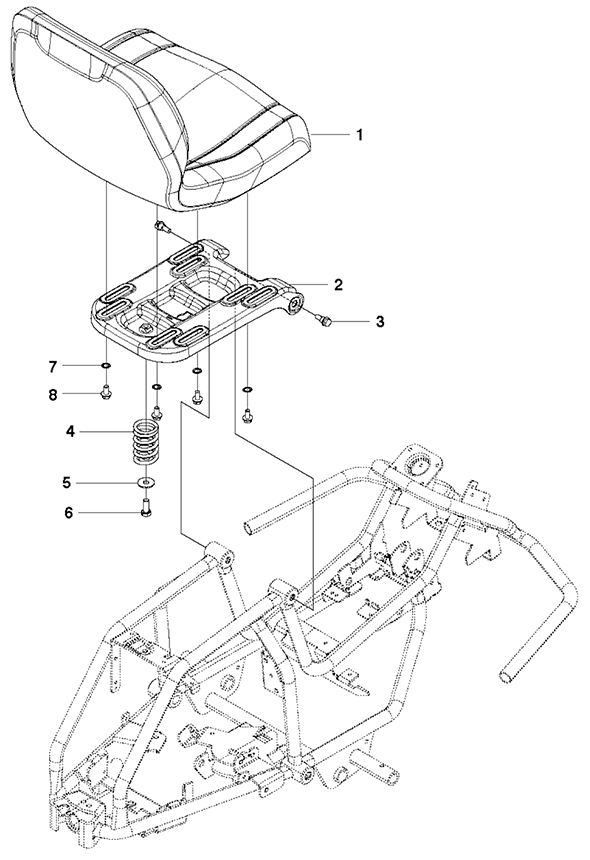

Jonsered FR2312M-2019-01

...
...
1
Seat HUS-576376401
...
2
Seat Bracket HUS-581041502
...
3
Screw Ehhfm HUS-506597401
...
4
Compression Spring HUS-506915301
...
5
Washer HUS-734117441
...
6
Screw Ehhm HUS-725249371
...
7
Lockwasher HUS-735216400
...
8
Screw Ehhfm HUS-506570103

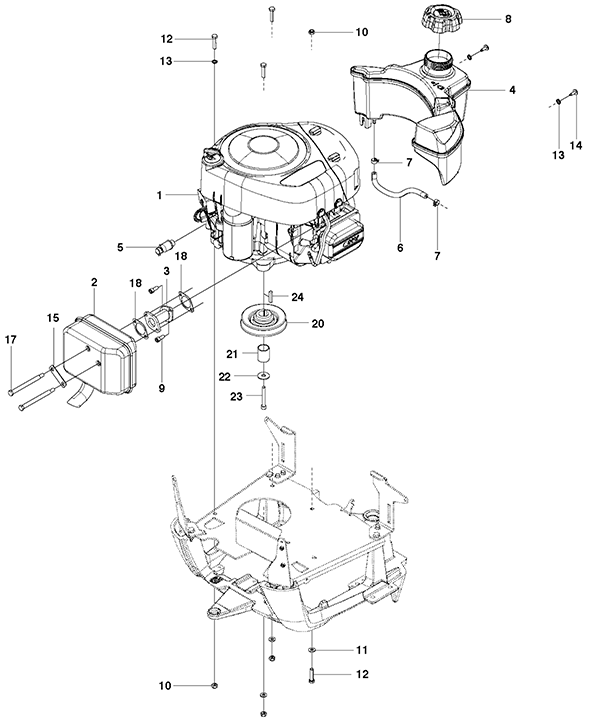

Jonsered FR2312M-2019-01

...
...
1
Engine HUS-584872401
...
2
Muffler Assembly HUS-584244301
...
3
Manifold HUS-584805101
...
4
Fuel Tank HUS-581614301
...
5
Plug HUS-532428287
...
6
Fuel Hose HUS-504800015
...
7
Hose Brace HUS-535469701
...
8
Cap HUS-584248701
...
9
Screw Unc HUS-506556301
...
10
Lock Nut HUS-732211801
...
11
Washer HUS-734116401
...
12
Screw HUS-725245751
...
13
Lockwasher HUS-735216400
...
14
Screw HUS-544400401
...
15
Washer HUS-578259301
...
17
Collar Screw HUS-578259101
...
18
Gasket HUS-506914501
...
20
Pulley HUS-522827601
...
21
Tube HUS-574412001
...
22
Washer HUS-506597501
...
23
Screw Unc HUS-506556002
...
24
Wedge HUS-506555902

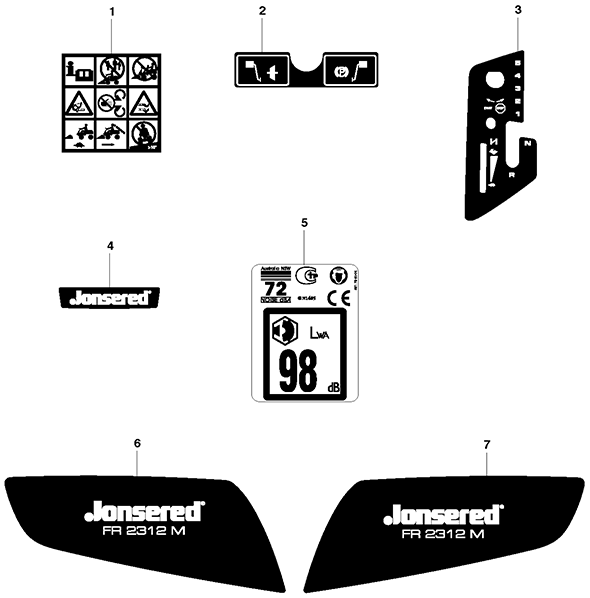

Jonsered FR2312M-2019-01

...
...
1
Decal HUS-574854803
...
2
Decal HUS-586031001
...
3
Decal HUS-586031101
...
4
Decal HUS-576951801
...
5
Label HUS-581784004
...
6
Decal HUS-585131801
...
7
Decal HUS-585131802

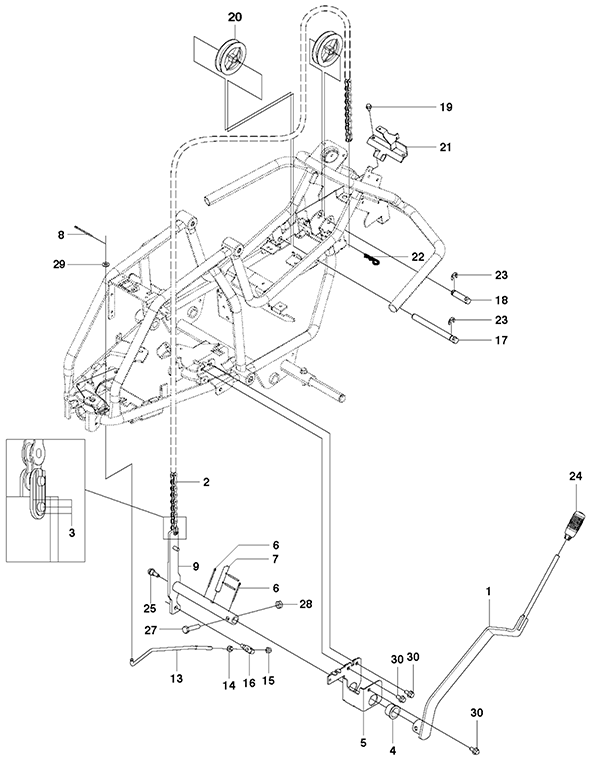

Jonsered FR2312M-2019-01

...
...
1
Lever Assembly HUS-580389001
...
2
Chain HUS-506554611
...
3
Linkage HUS-506554701
...
4
Bearing HUS-506556501
...
5
Bracket HUS-525404701
...
6
Split Pin HUS-721618701
...
7
Pen HUS-525406601
...
8
Split Pin HUS-721618301
...
9
Lever Assembly HUS-522560202
...
13
Rod HUS-522560101
...
14
Hexagon Nut HUS-731231801
...
15
Lock Nut HUS-732211801
...
16
Joint HUS-525491301
...
17
Shaft HUS-525404401
...
18
Shaft HUS-525404501
...
19
Screw Ehhft HUS-725236461
...
20
Offset Pulley HUS-506905601
...
21
Bracket HUS-574315801
...
22
Spring Cotter HUS-721680251
...
23
E-Clip HUS-735311820
...
24
Handle HUS-506542002
...
25
Screw Ehhfm HUS-506597401
...
27
Screw Ehhm HUS-725250051
...
28
Nut HUS-732212051
...
29
Washer HUS-734116401
...
30
Screw Ehhfm HUS-506570103

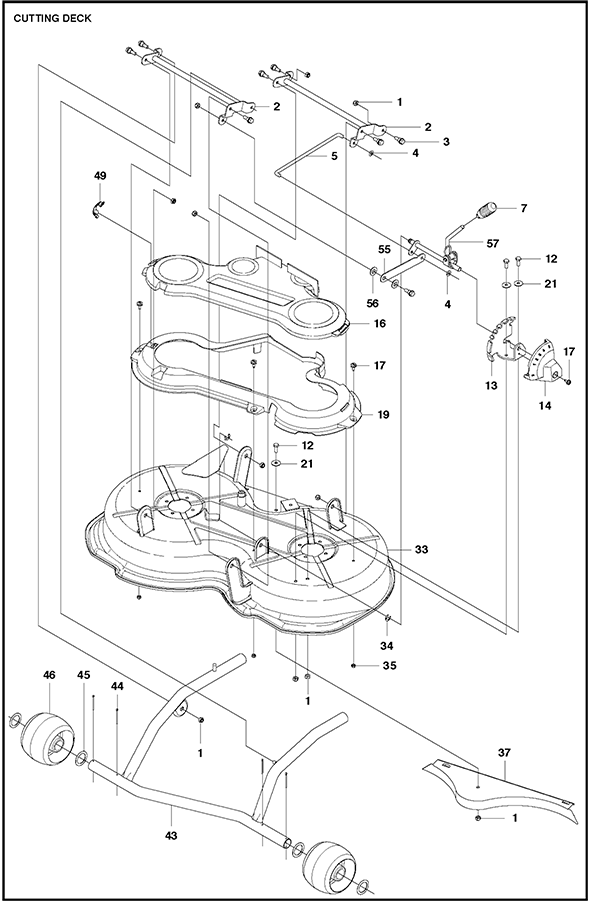

Jonsered FR2312M-2019-01

...
...
XX
Cutting Deck HUS-586147002
...
1
Lock Nut HUS-732211801
...
2
Cross Bar HUS-522450902
...
3
Screw Ehhfm HUS-506597401
...
4
Washer HUS-735585200
...
5
Rod HUS-522602301
...
7
Handle HUS-574328801
...
12
Screw Ehhm HUS-725245171
...
13
Bracket HUS-522523201
...
14
Cover HUS-573971802
...
16
Cover HUS-574172102
...
17
Screw HUS-544400501
...
19
Cover HUS-574172002
...
21
Washer HUS-734116541
...
33
Cutting Deck HUS-586147002
...
34
E-Clip HUS-735311520
...
35
Lock Nut HUS-732211601
...
37
Plug HUS-574041702
...
43
Equipment Frame HUS-522451902
...
44
Split Pin HUS-721618701
...
45
Washer HUS-574264501
...
46
Wheel HUS-522735901
...
49
Snap Locking HUS-503894704
...
55
Arm HUS-525855701
...
56
Washer HUS-734116541
...
57
Lever Assembly HUS-575802101

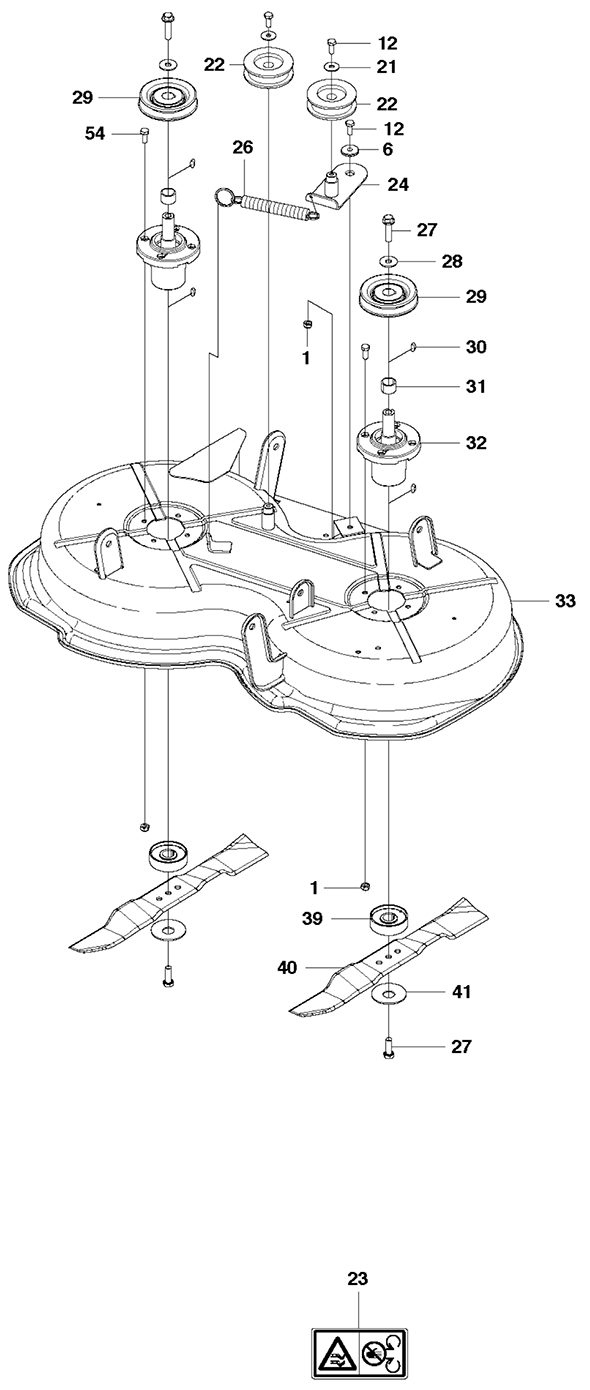

Jonsered FR2312M-2019-01

...
...
xx
Cutting Deck HUS-586147002
...
1
Lock Nut HUS-732211801
...
6
Washer HUS-506918702
...
12
Screw Ehhm HUS-725245371
...
21
Washer HUS-734116441
...
22
Belt Tensioner Wheel HUS-506793202
...
23
Decal HUS-574510001
...
24
Belt Tensioner HUS-573969501
...
26
Spring HUS-584298801
...
27
Screw Ehhfm HUS-506675402
...
28
Washer HUS-734117441
...
29
Pulley HUS-574460701
...
30
Parallel Key HUS-506533501
...
31
Tube HUS-573966501
...
32
Bearing Housing Assembly HUS-573968601
...
33
Cutting Deck HUS-581061102
...
39
Adapter HUS-581249701
...
40
Blade HUS-581083501
...
41
Knife Plate HUS-506792303
...
54
Screw Ehhm HUS-725245171

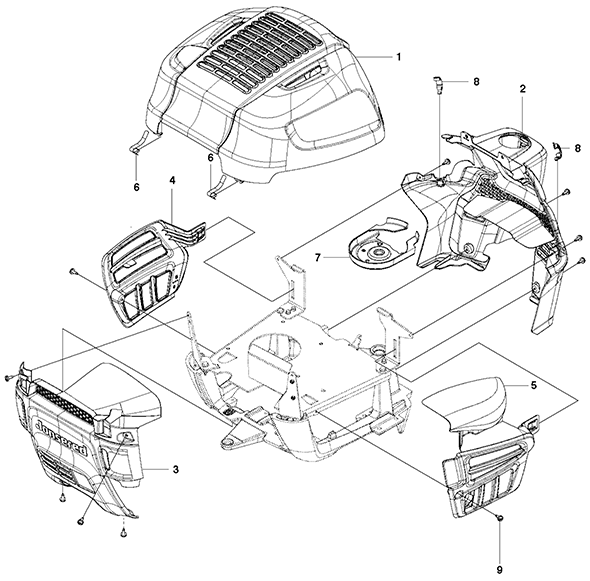

Jonsered FR2312M-2019-01

...
...
1
Cover HUS-584819001
...
2
Cover HUS-581613402
...
3
Cover HUS-584819301
...
4
Cover HUS-581614202
...
5
Cover HUS-584263102
...
6
Spring HUS-584926701
...
7
Cover HUS-522508102
...
8
Snap Locking HUS-503894704
...
9
Screw HUS-544400501

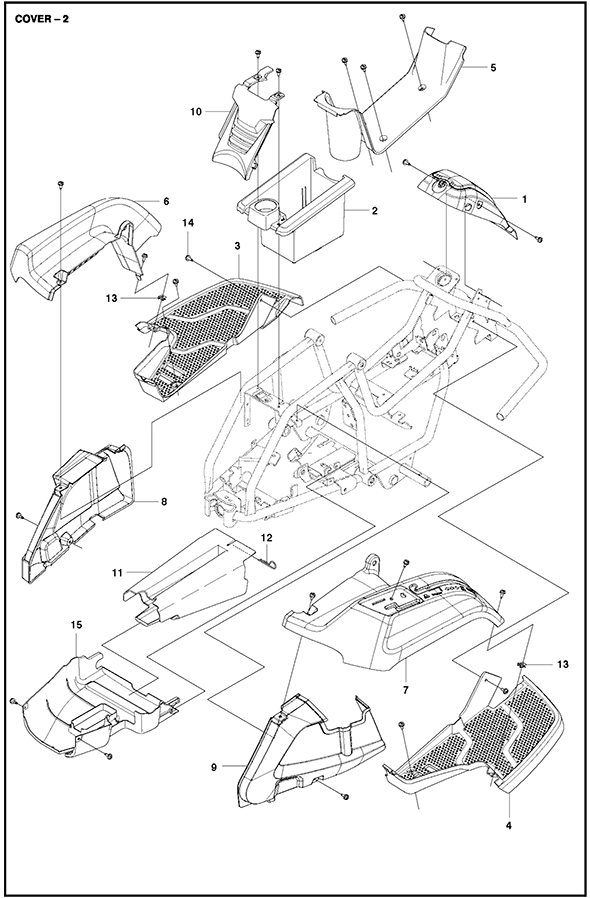

Jonsered FR2312M-2019-01

...
...
1
Cover HUS-576376702
...
2
Battery Box HUS-525477802
...
3
Foot Plate HUS-521889102
...
4
Foot Plate HUS-521889204
...
5
Cover HUS-522601802
...
6
Cover HUS-576376101
...
7
Cover HUS-576376002
...
8
Cover HUS-585619802
...
9
Cover HUS-585620102
...
10
Cover HUS-525477902
...
11
Cover HUS-525396102
...
12
Spring Cotter HUS-721680251
...
13
Spring Nut HUS-535429101
...
14
Screw HUS-544400501
...
15
Cover HUS-575751402
