Jonsered FR2311M-2011-02 Frontriders, 966639701, 966639785

Model: FR2311M-2011-02

Save Part Not Listed?
product name

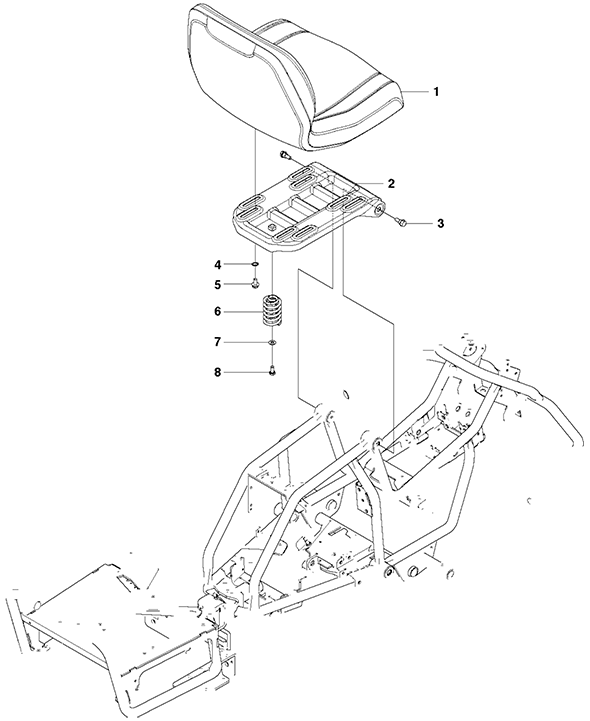

Jonsered FR2311M-2011-02

...
...
1
Seat HUS-576376401
...
2
Seat Bracket HUS-522775102
...
3
Screw Ehhfm HUS-506597401
...
4
Lockwasher HUS-735216400
...
5
Screw Ehhfm HUS-506570103
...
6
Compression Spring HUS-506915301
...
7
Washer HUS-734117441
...
8
Screw Ehhm HUS-725249371

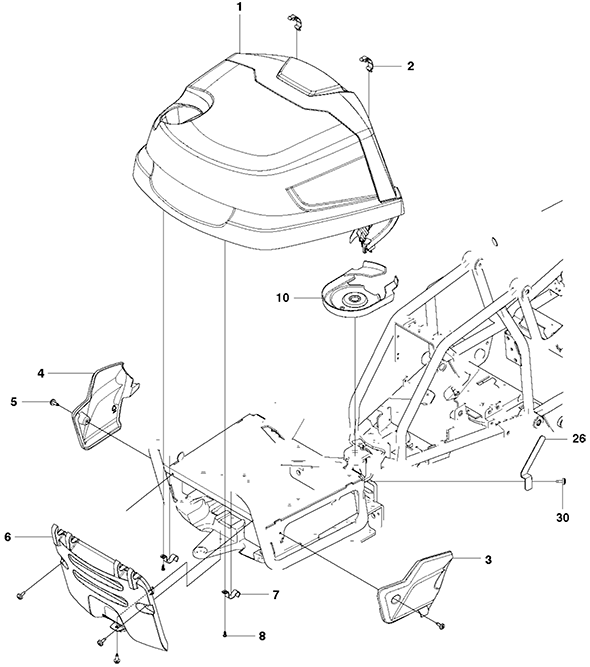

Jonsered FR2311M-2011-02

...
...
1
Engine Hood Assembly HUS-577551801
...
2
Snap Locking HUS-503894704
...
3
Cover HUS-525497802
...
4
Cover HUS-525497902
...
5
Screw HUS-544400501
...
6
Cover HUS-576375801
...
7
Sheet HUS-525881101
...
8
Screw Ihsct HUS-503217416
...
10
Cover HUS-522508102
...
26
Bracket HUS-575354901
...
30
Screw HUS-544400501

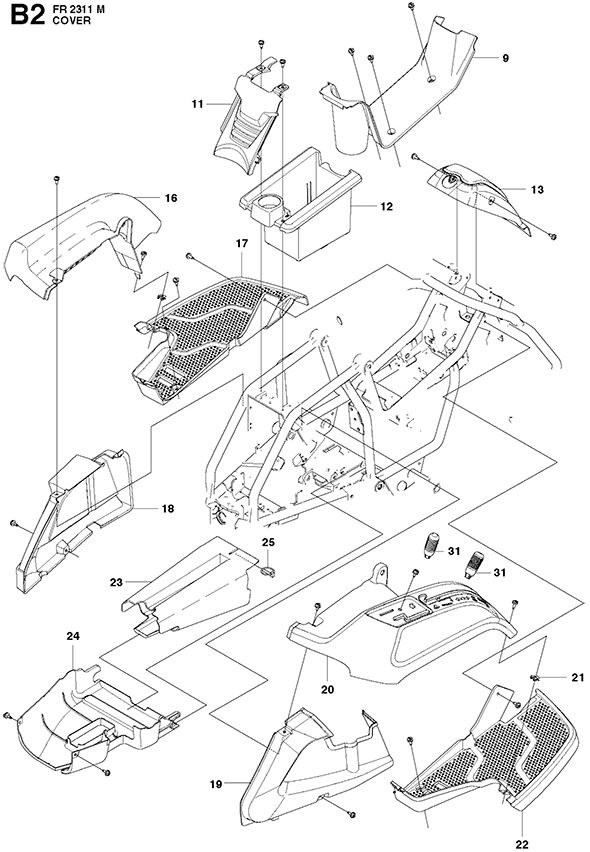

Jonsered FR2311M-2011-02

...
...
9
Cover HUS-522601802
...
11
Cover HUS-525477902
...
12
Battery Box HUS-525477802
...
13
Cover HUS-576376701
...
16
Cover HUS-576376101
...
17
Foot Plate HUS-521889102
...
18
Cover HUS-522601902
...
19
Cover HUS-522602002
...
20
Cover HUS-576376002
...
21
Spring Nut HUS-535429101
...
22
Foot Plate HUS-521889204
...
23
Cover HUS-525396102
...
24
Cover HUS-575751402
...
25
Sprint HUS-574600801
...
31
Handle HUS-506542002

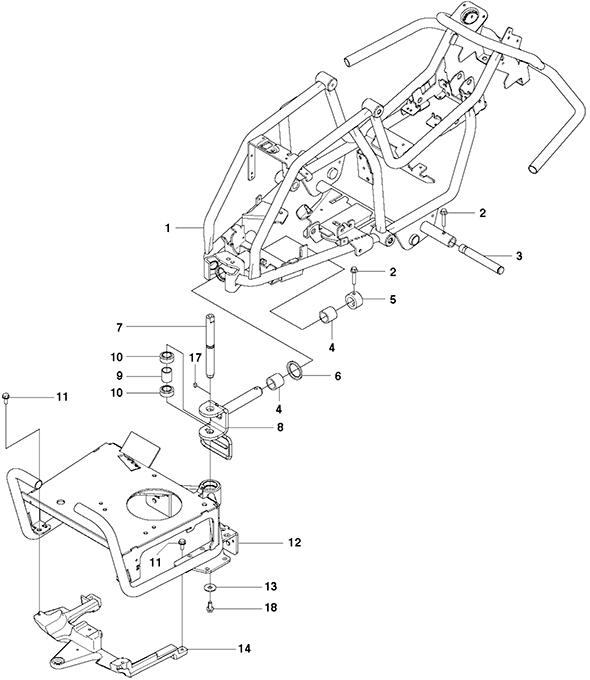

Jonsered FR2311M-2011-02

...
...
1
Frame HUS-522416102
...
2
Screw Ehhft HUS-725245961
...
3
Wheel Axle HUS-535470801
...
4
Glidlager HUS-506986101
...
5
Stop Sleeve HUS-522425201
...
6
Spacer HUS-522425301
...
7
Shaft HUS-577674801
...
8
Swing Axle HUS-577705001
...
9
Sleeve HUS-522424501
...
10
Bearing HUS-574368501
...
11
Screw Ehhfm HUS-506570104
...
12
Frame HUS-522423102
...
13
Washer HUS-544221601
...
14
Counterweight HUS-525352302
...
17
Key HUS-577708901
...
18
Screw HUS-577216501

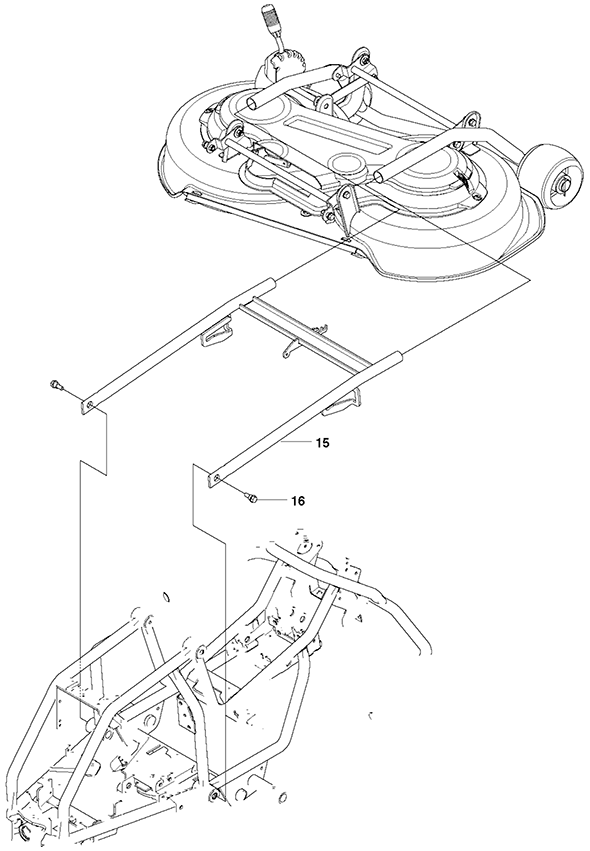

Jonsered FR2311M-2011-02

...
...
15
Equipment Frame HUS-522451502
...
16
Collar Screw HUS-506895801

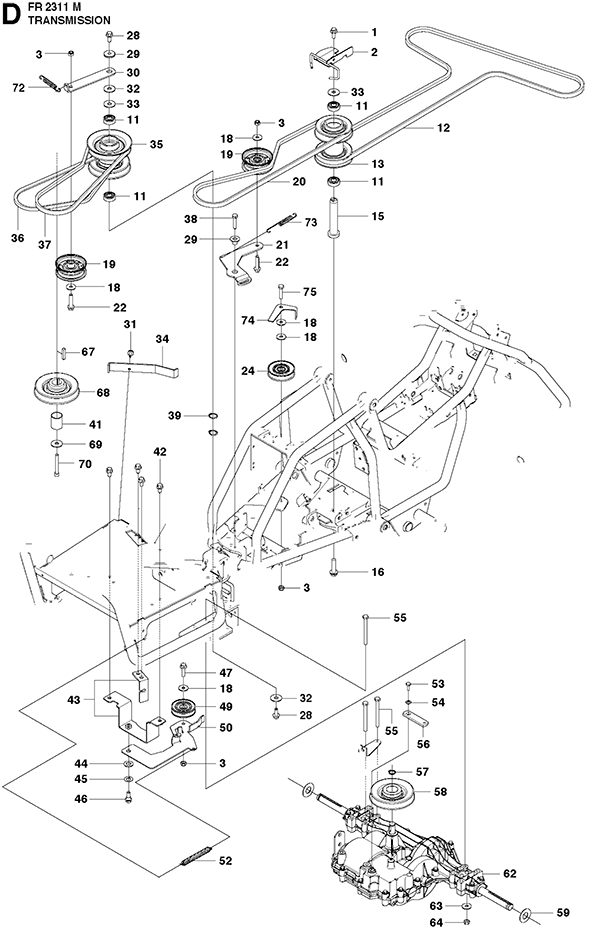

Jonsered FR2311M-2011-02

...
...
1
Screw Ehhfm HUS-506570103
...
2
Bracket HUS-577592101
...
3
Lock Nut HUS-732211801
...
11
Ball Bearing HUS-738210404
...
12
Belt HUS-589531401
...
13
Pulley HUS-574259501
...
15
Shaft HUS-574259801
...
16
Screw Ehhfm HUS-506675402
...
18
Washer HUS-734116441
...
19
Pulley HUS-539919078
...
20
Belt HUS-589532801
...
21
Belt Tensioner HUS-522602901
...
22
Screw Ehhm HUS-725245951
...
24
Belt Tens Wheel Assembly HUS-506946901
...
28
Screw Ehhfm HUS-506570105
...
29
Washer HUS-574874101
...
30
Bracket HUS-522831601
...
31
Screw HUS-544400501
...
32
Washer HUS-734117441
...
33
Washer HUS-506504805
...
34
Sheet HUS-575580301
...
35
Pulley HUS-525604501
...
36
Belt HUS-589534101
...
37
Belt HUS-589533301
...
38
Screw Ehhfm HUS-506570105
...
39
Circlip HUS-735312200
...
41
Tube HUS-574412001
...
42
Screw Ehhfm HUS-506570104
...
43
Bracket HUS-575545601
...
44
Washer HUS-734117801
...
45
Spring Washer HUS-506839401
...
46
Screw Ehhfm HUS-506597401
...
47
Screw HUS-725245551
...
49
Belt Tens Wheel Assembly HUS-506793401
...
50
Belt Tensioner HUS-575558101
...
52
Spring HUS-506988601
...
53
U6S-Unf1/4"X28 L=16 HUS-506557801
...
54
Washer HUS-734115601
...
55
Screw HUS-725246651
...
56
Bracket HUS-525320501
...
57
Circlip HUS-735311800
...
58
Pulley HUS-525320601
...
59
Washer HUS-506504805
...
62
Gear Case Mst 205 HUS-506955501
...
63
Washer HUS-734116401
...
64
Hexagon Nut HUS-731231801
...
67
Wedge HUS-506555902
...
68
Pulley HUS-522827601
...
69
Washer HUS-506597501
...
70
Screw Unc HUS-506556002
...
72
Spring HUS-574506101
...
73
Spring HUS-575567201
...
74
Bracket HUS-577418501
...
75
Screw HUS-725245751

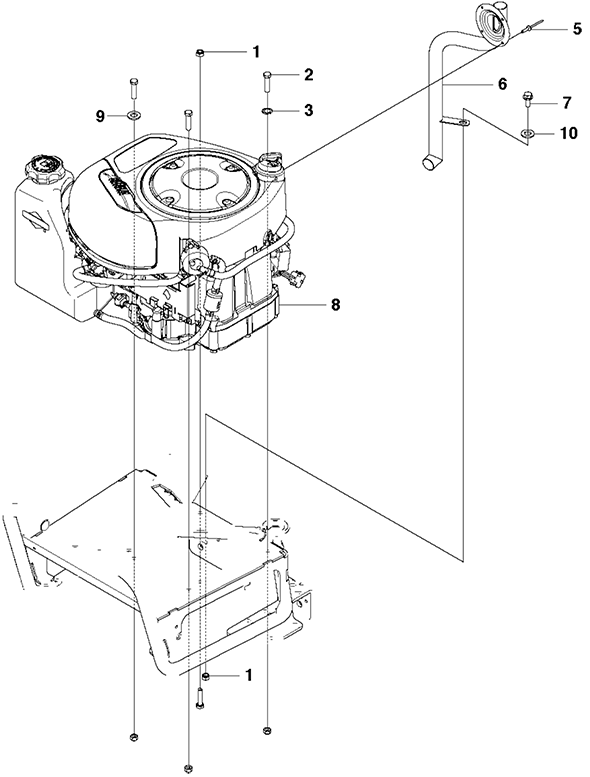

Jonsered FR2311M-2011-02

...
...
1
Lock Nut HUS-732211801
...
2
Screw HUS-725245751
...
3
Lockwasher HUS-735216400
...
5
Rivet HUS-722792309
...
6
Exhaust Pipe Assembly HUS-522603401
...
7
Screw Ehhfm HUS-506570104
...
8
Engine HUS-577445601
...
9
Washer HUS-734116401
...
10
Washer HUS-734116441

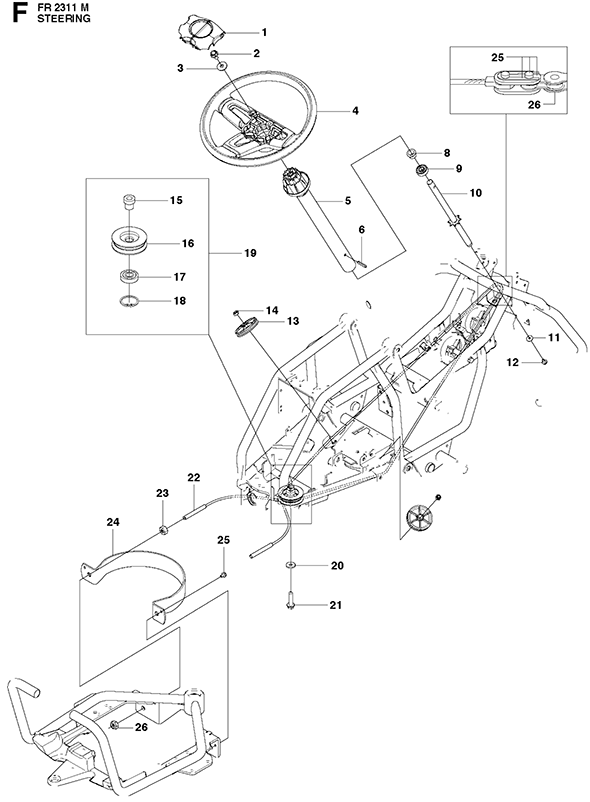

Jonsered FR2311M-2011-02

...
...
1
Hub Cap HUS-577365401
...
2
Screw HUS-725249751
...
3
Washer HUS-574379201
...
4
Steering Wheel HUS-577365301
...
5
Steering System HUS-525398002
...
6
Spring Pin HUS-721434701
...
8
Spacer HUS-506887801
...
9
Ball Bearing HUS-738210404
...
10
Steering Rod HUS-575632401
...
11
Washer HUS-734115441
...
12
Screw Ehhfm HUS-535475212
...
13
Wheel HUS-575585801
...
14
Lock Nut HUS-732211601
...
15
Bushing HUS-506500802
...
16
Barring Wheel HUS-506500701
...
17
Ball Bearing HUS-738220419
...
18
Circlip HUS-735314010
...
19
Barring Wheel HUS-506500902
...
20
Washer HUS-734117441
...
21
Screw Ehhfm HUS-506675402
...
22
Wire Assembly HUS-577199901
...
23
Hexagon Nut HUS-731232051
...
24
Guide Rail HUS-525404301
...
25
Linkage HUS-506554701
...
25
Screw Ehhft HUS-725236861
...
26
Chain HUS-506554601
...
26
Nut HUS-732212051

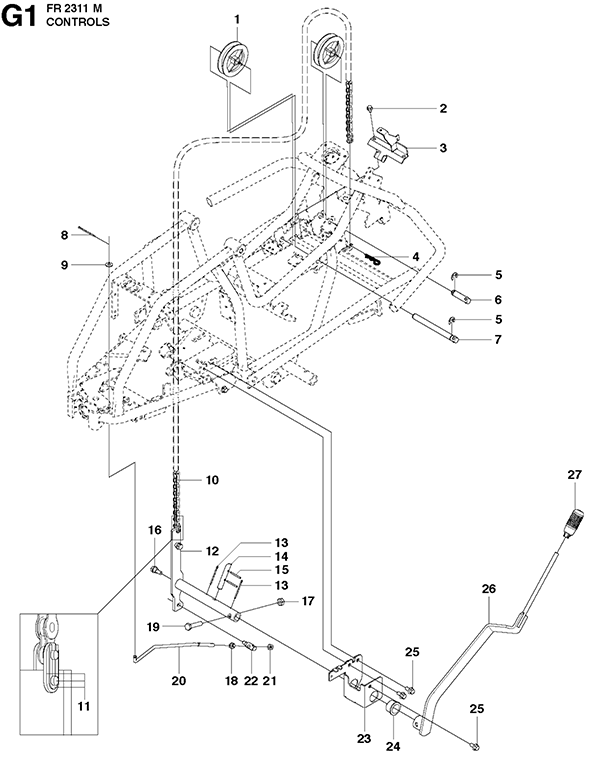

Jonsered FR2311M-2011-02

...
...
1
Offset Pulley HUS-506905601
...
2
Screw Ehhft HUS-725236461
...
3
Bracket HUS-574315801
...
4
Spring Cotter HUS-721680251
...
5
E-Clip HUS-735311820
...
6
Shaft HUS-525404501
...
7
Shaft HUS-525404401
...
8
Split Pin HUS-721618301
...
9
Washer HUS-734116401
...
10
Chain HUS-506554611
...
11
Linkage HUS-506554701
...
12
Lever Assembly HUS-522560202
...
13
Split Pin HUS-721618701
...
14
Pen HUS-506905301
...
15
Grooved Pin HUS-721125930
...
16
Screw Ehhfm HUS-506597401
...
17
Nut HUS-732212051
...
18
Hexagon Nut HUS-731231801
...
19
Screw Ehhm HUS-725250051
...
20
Rod HUS-522560101
...
21
Lock Nut HUS-732211801
...
22
Joint HUS-525491301
...
23
Bracket HUS-525404701
...
24
Bearing HUS-506556501
...
25
Screw Ehhfm HUS-506570103
...
26
Lever HUS-522508301
...
27
Handle HUS-506542002

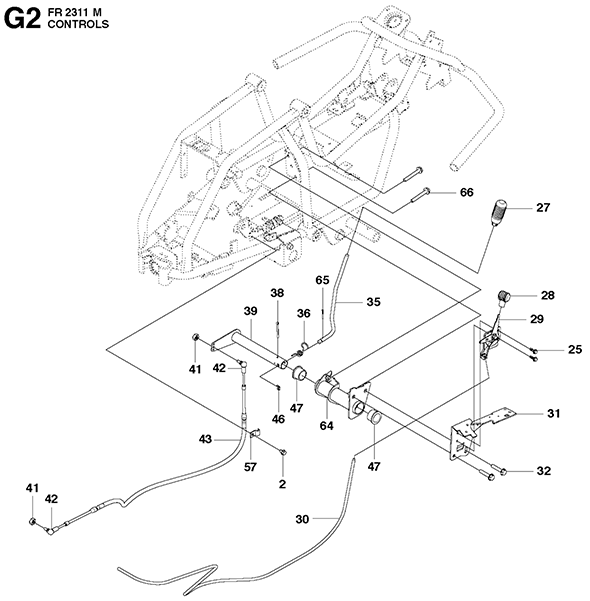

Jonsered FR2311M-2011-02

...
...
2
Screw Ehhft HUS-725236461
...
25
Screw Ehhfm HUS-506570103
...
27
Handle HUS-506542002
...
28
Knob HUS-506889101
...
29
Throttle Control HUS-522505901
...
30
Wire HUS-544301704
...
31
Sheet HUS-575240301
...
32
Screw Ehhfm HUS-506570104
...
35
Rod HUS-525316501
...
36
Spring HUS-574377801
...
38
Split Pin HUS-721620101
...
39
Gearshift Lever HUS-574377701
...
41
Lock Nut HUS-732211401
...
42
Vinkell.As8 Din71802 HUS-506557301
...
43
Control Cable HUS-574411104
...
46
E-Clip HUS-735311220
...
47
Bearing HUS-506556501
...
57
Clip HUS-506566501
...
64
Bracket HUS-574369702
...
65
Split Pin HUS-721615201
...
66
Screw Ehhm HUS-725246071

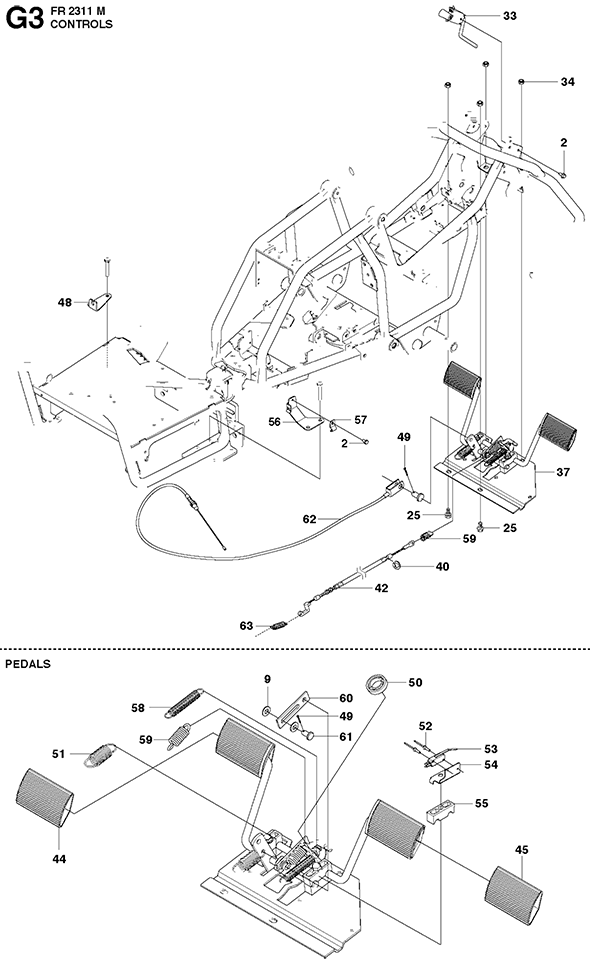

Jonsered FR2311M-2011-02

...
...
2
Screw Ehhft HUS-725236461
...
9
Washer HUS-734116401
...
25
Screw Ehhfm HUS-506570103
...
33
Locking Lever HUS-523346002
...
34
Blind Rivet Nut HUS-506916201
...
37
Pedal Plate Assembly HUS-574406601
...
40
E-Clip HUS-735310920
...
42
Wire HUS-574407602
...
44
Pedal Rubber HUS-535478802
...
45
Pedal Rubber HUS-535478801
...
48
Bracket HUS-525292201
...
49
Split Pin HUS-721615201
...
50
Ball Bearing HUS-738210204
...
51
Draw Spring HUS-544133401
...
52
Rivet HUS-544440701
...
53
Switch HUS-574316101
...
54
Bracket HUS-544415701
...
55
Bearing Support HUS-535480801
...
56
Bracket HUS-525314601
...
57
Clip HUS-506566501
...
58
Draw Spring HUS-544133601
...
59
Spring HUS-575355201
...
60
Link HUS-544127901
...
61
Clevis Pin HUS-721839901
...
62
Wire Assembly HUS-506952502
...
63
Draw Spring HUS-506535603

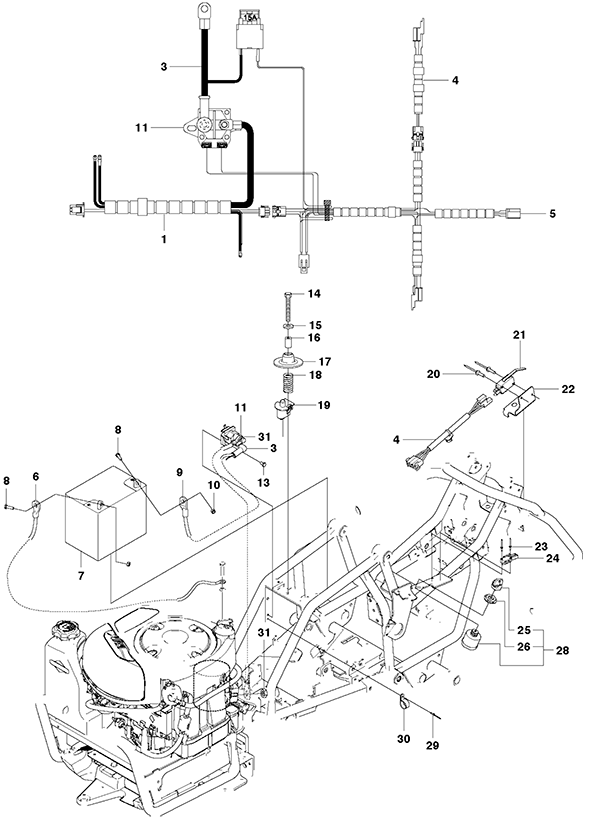

Jonsered FR2311M-2011-02

...
...
1
Wiring HUS-574269701
...
3
Cable HUS-574269801
...
4
Wiring HUS-574269601
...
5
Wiring HUS-574269501
...
7
Battery HUS-510138501
...
8
Screw Ehhm HUS-522622101
...
10
Nut HUS-522624301
...
11
Relay HUS-544439801
...
13
Screw Ehhft HUS-725236461
...
14
Screw Ehhm HUS-725246051
...
16
Spacing Tube HUS-506909902
...
17
Spring Washer HUS-506909701
...
18
Spring HUS-544441201
...
19
Switch HUS-506909601
...
20
Rivet HUS-544440701
...
21
Switch HUS-574316101
...
22
Bracket HUS-544415701
...
23
Rivet HUS-544440701
...
24
Switch HUS-574316101
...
25
Ignitionition Key HUS-544442401
...
26
Nut HUS-544442301
...
28
Ignitionition Switch HUS-544442101
...
29
Rivet HUS-722795402
...
30
Cable Clamp HUS-575269901
...
31
Nut HUS-506899801

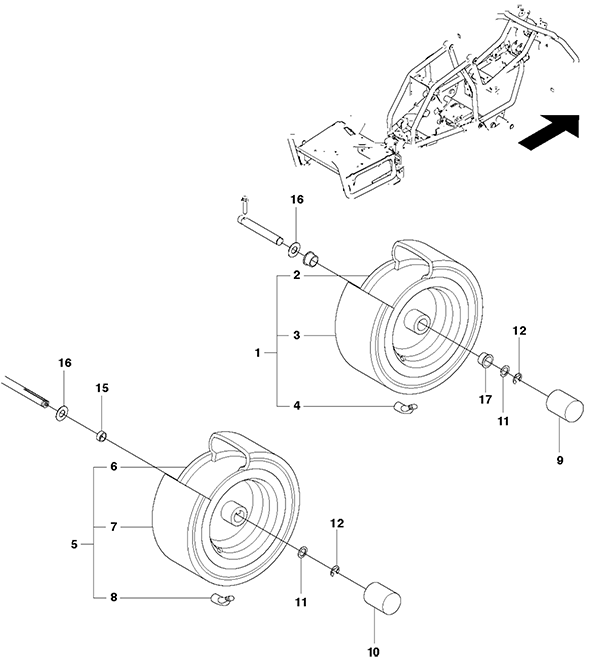

Jonsered FR2311M-2011-02

...
...
1
Wheel HUS-576885001
...
2
Rim HUS-573981601
...
3
Tire HUS-576949301
...
4
Valve HUS-523034701
...
5
Wheel HUS-576885101
...
6
Rim HUS-573981501
...
7
Tire HUS-576949301
...
8
Valve HUS-523034701
...
9
Rund Fot Ukb 30 S HUS-506923001
...
10
Hub Cap HUS-577772901
...
11
Washer HUS-506504803
...
12
E-Clip HUS-506899001
...
15
Spacing Sleeve HUS-506596201
...
16
Washer HUS-506504805
...
17
Bearing HUS-574671701

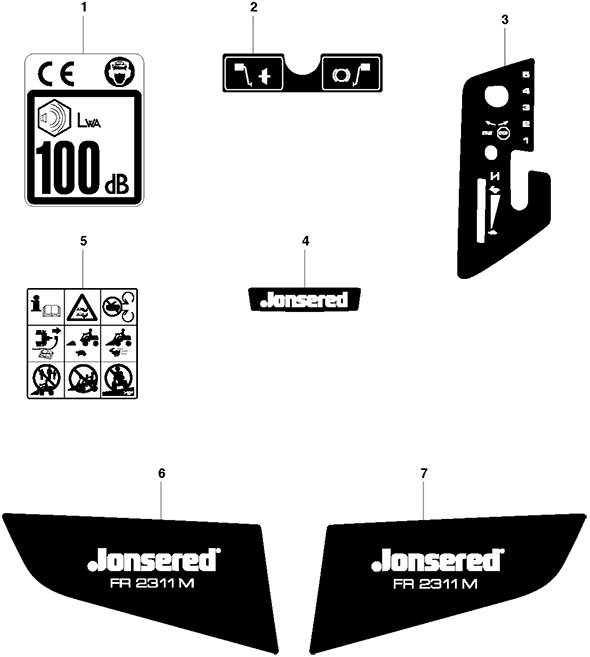

Jonsered FR2311M-2011-02

...
...
1
Label HUS-505217701
...
2
Decal HUS-575221301
...
3
Decal HUS-576951902
...
4
Decal HUS-576951801
...
5
Decal HUS-574854801
...
6
Decal HUS-576952301
...
7
Decal HUS-576952302

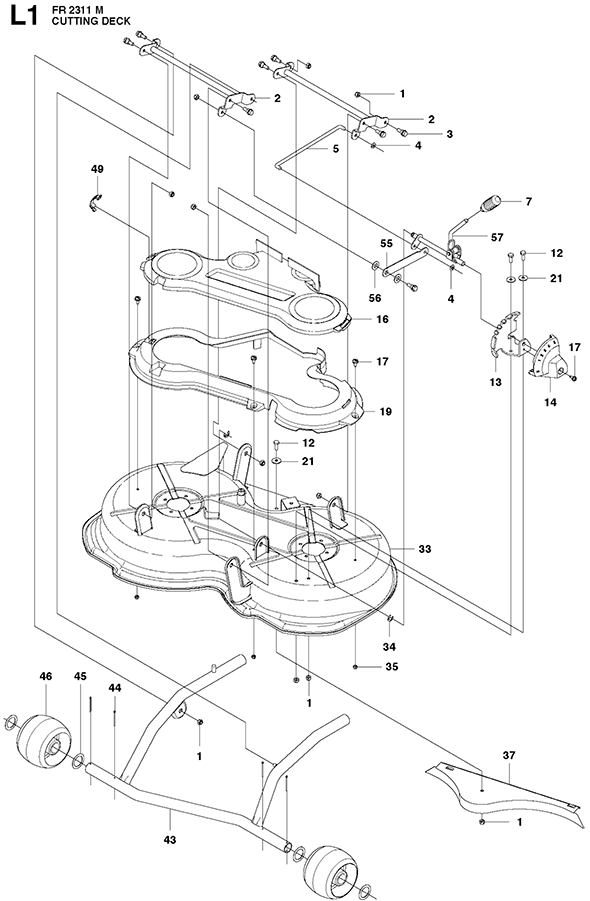

Jonsered FR2311M-2011-02

...
...
1
Lock Nut HUS-732211801
...
2
Cross Bar HUS-522450901
...
3
Screw Ehhfm HUS-506597401
...
4
Washer HUS-735585200
...
5
Rod HUS-522602301
...
7
Handle HUS-574328802
...
12
Screw Ehhm HUS-725245371
...
13
Bracket HUS-522523201
...
14
Cover HUS-573971802
...
16
Cover HUS-574172102
...
17
Screw HUS-544400501
...
19
Cover HUS-574172002
...
21
Washer HUS-734116441
...
33
Cutting Deck HUS-586147002
...
34
E-Clip HUS-735311520
...
35
Lock Nut HUS-732211601
...
37
Plug HUS-574041702
...
43
Equipment Frame HUS-522451902
...
44
Split Pin HUS-721618701
...
45
Washer HUS-574264501
...
46
Wheel HUS-522735901
...
49
Snap Locking HUS-503894704
...
55
Arm HUS-525855701
...
56
Washer HUS-734116541
...
57
Lever Assembly HUS-575802101

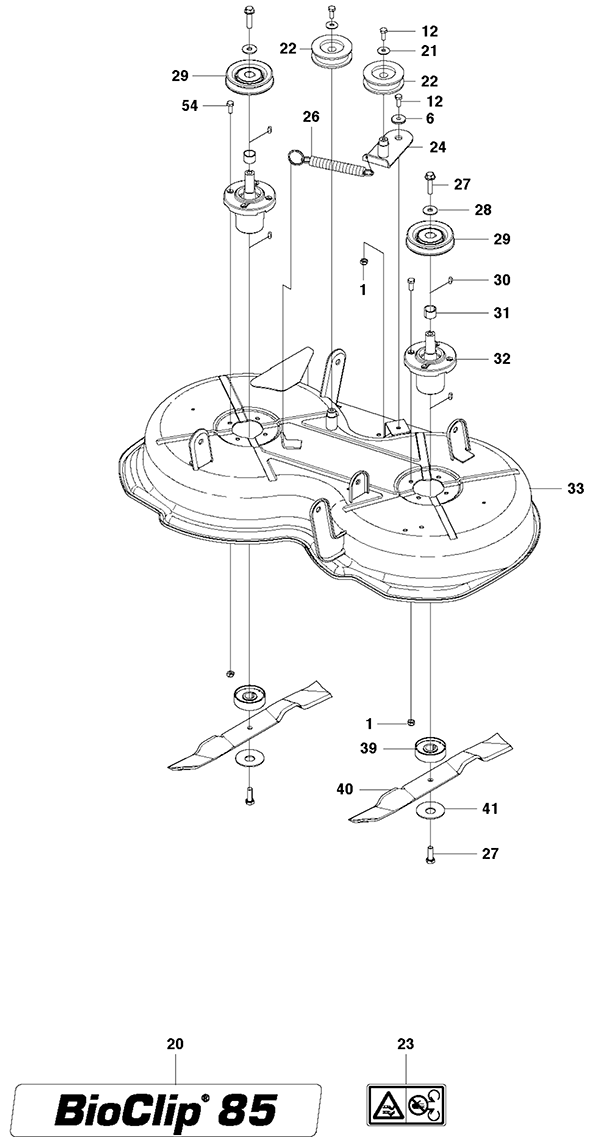

Jonsered FR2311M-2011-02

...
...
1
Lock Nut HUS-732211801
...
6
Washer HUS-734117441
...
12
Screw Ehhm HUS-725245371
...
20
Decal HUS-574849701
...
21
Washer HUS-734116441
...
22
Belt Tensioner Wheel HUS-506793202
...
23
Decal HUS-574510001
...
24
Belt Tensioner HUS-573969501
...
26
Spring HUS-584298801
...
27
Screw Ehhfm HUS-506675402
...
28
Washer HUS-734117771
...
29
Pulley HUS-574460701
...
30
Parallel Key HUS-506533501
...
31
Tube HUS-573966501
...
32
Bearing Housing Assembly HUS-573968601
...
33
Cutting Deck HUS-522450002
...
39
Adapter HUS-577791101
...
40
Blade HUS-581083501
...
41
Knife Plate HUS-506792303
...
54
Screw Ehhm HUS-725245171
