product name

Jonsered FC2256 Brushcutters/clearing Saws

Model: FC2256

Save Part Not Listed?
product name

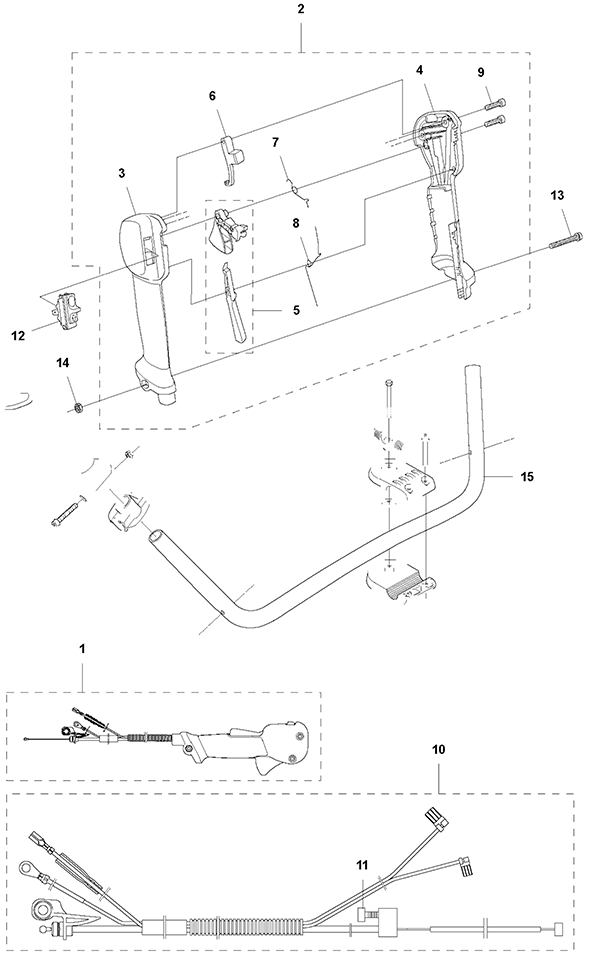

Jonsered FC2256

...
...
1
Throttle Handle Assembly, Index Finger-Operated Throttle HUS-502232304
...
2
Throttle Handle Assembly, Index Finger-Operated Throttle HUS-504209805
...
3
Handle Half HUS-537180712
...
4
Handle Half HUS-537180812
...
5
Throttle Control HUS-506497702
...
6
Throttle Lockout HUS-537160702
...
7
Spring Throttle Trig HUS-537174201
...
8
Spring HUS-537174301
...
9
Screw Ihsct HUS-503216674
...
10
Wiring, Canada Only HUS-544203102
...
11
Screw Ihsct HUS-503216616
...
12
Switch HUS-537419001
...
13
Screw Ihscfm HUS-503200782
...
14
Hexagon Nut HUS-503221013
...
15
Handlebar HUS-505433303

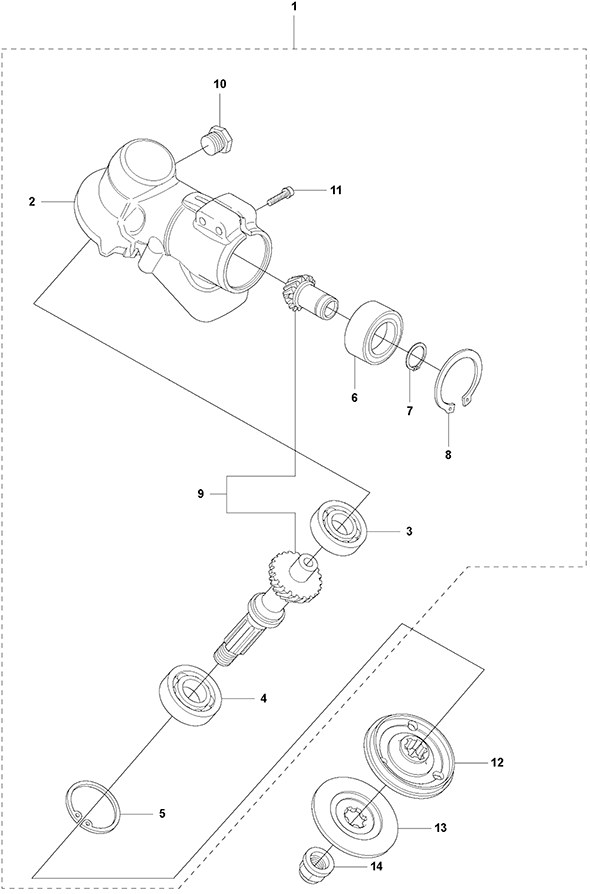

Jonsered FC2256

...
...
1
Bevel Gear, Incl. Pos. 2-11 HUS-537428204
...
2
Gear Housing HUS-537428301
...
3
Ball Bearing HUS-738210110
...
4
Ball Bearing HUS-503252501
...
5
Circlip HUS-735313310
...
6
Bearing HUS-503251801
...
7
Circlip HUS-735311700
...
8
Circlip HUS-735313110
...
9
Gear Wheel Kit HUS-502434701
...
10
Screw HUS-503201501
...
11
Screw Ihscm HUS-725537265
...
12
Driver HUS-544197801
...
13
Support Flange HUS-537343502
...
14
Nut HUS-503227301

Jonsered FC2256

...
...

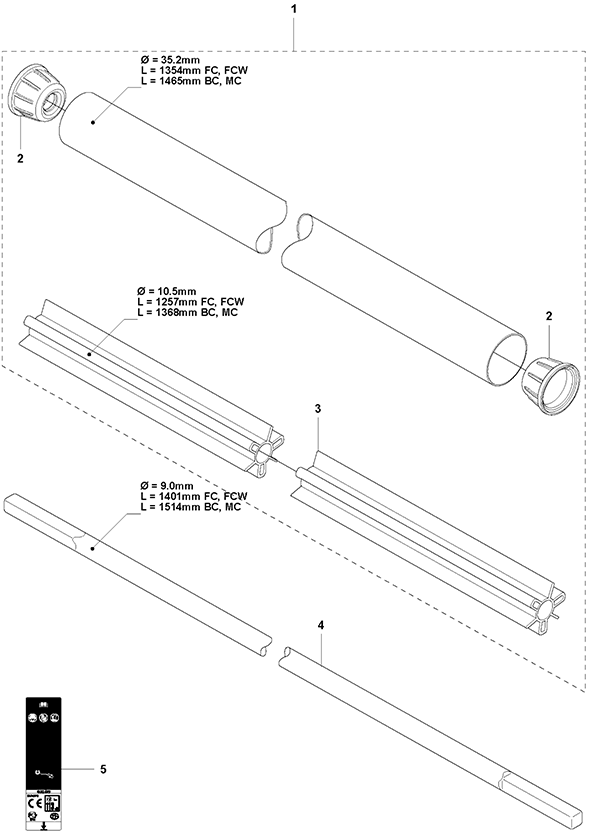

1
Tube, Incl. Pos. 2-3, Reinforced HUS-502259401
...
2
Spacer HUS-544320501
...
3
Bearing Shaft, L=1257Mm, =10.5Mm HUS-505131301
...
4
Drive Shaft, L=1401Mm, =9.0Mm HUS-544156701
...
5
Label HUS-589295101

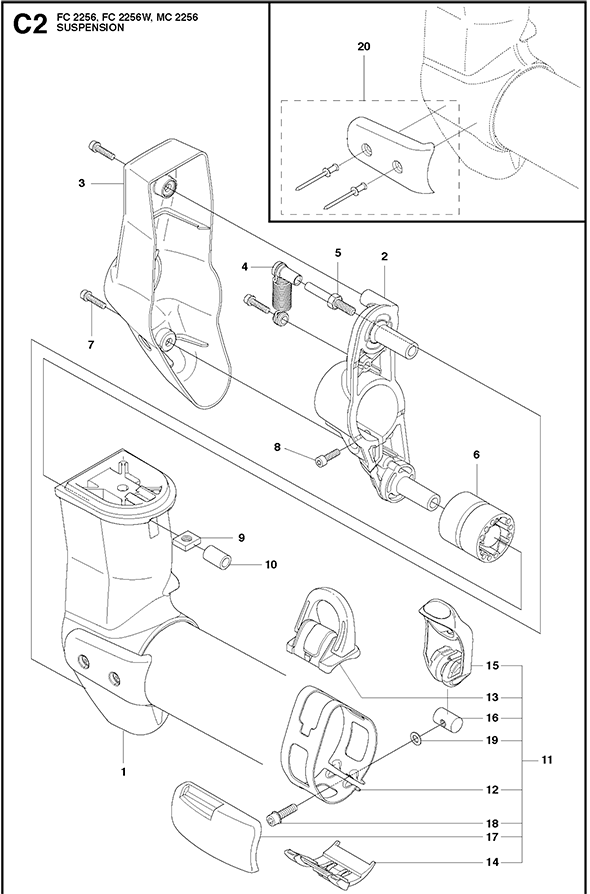

Jonsered FC2256

...
...
1
Suspension, Fc, Fcw HUS-581978802
...
1
Suspension, Mc HUS-581978804
...
2
Retainer HUS-544378301
...
3
Cover HUS-544378502
...
4
Spring HUS-506068801
...
5
Parallel Pin HUS-544367701
...
6
Antivibration Element HUS-544230901
...
7
Screw Ihscfm HUS-503200774
...
8
Screw Ihscm HUS-725537265
...
9
Square Nut HUS-502197101
...
10
Cover HUS-503857302
...
11
Loop, Incl. Pos. 12-19 HUS-504023802
...
12
Band HUS-537395701
...
13
Loop HUS-537201804
...
14
Guide Rail HUS-537427402
...
15
Lever HUS-537427002
...
16
Nut HUS-537427301
...
17
Wear Protection HUS-544250702
...
18
Screw Ihscfm HUS-503200725
...
19
Washer HUS-503230011
...
20
Wear Protection HUS-586202704

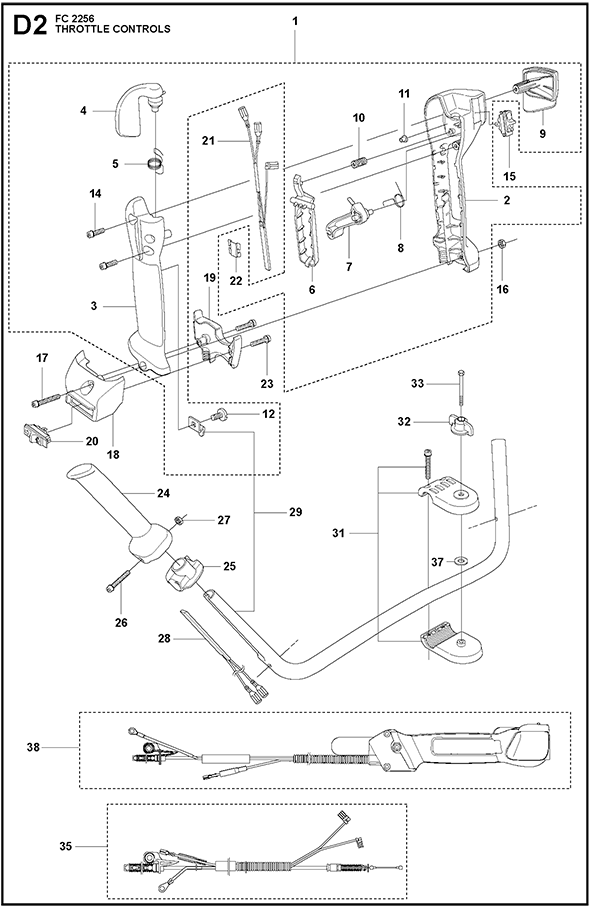

Jonsered FC2256

...
...
1
Throttle Handle, Incl. Pos. 2-14 HUS-537197214
...
2
Handle Half HUS-537155205
...
3
Handle Half HUS-537155305
...
4
Throttle Trigger HUS-537263402
...
5
Spring Throttle Trig HUS-537283701
...
6
Throttle Lockout HUS-537155602
...
7
Throttle Lever HUS-537263501
...
8
Spring HUS-537342701
...
9
Cover HUS-537182402
...
10
Spring HUS-537199701
...
11
Sleeve HUS-537307201
...
12
Screw Ccrpant HUS-503217010
...
14
Screw Ihscft HUS-503217520
...
15
Switch HUS-537419001
...
16
Hexagon Nut HUS-731231405
...
17
Screw Ihscfm, Fc HUS-503200235
...
17
Screw Ihscfm, Fcw HUS-503200245
...
18
Retainer, Fcw HUS-537201502
...
19
Retainer, Fcw HUS-537201602
...
20
Switch, Fcw HUS-503718202
...
21
Element, Fcw HUS-537227101
...
22
Securing Plate HUS-537265101
...
23
Screw Ihsct, Fcw HUS-503216674
...
24
Handle HUS-537172808
...
25
Bracket HUS-537172904
...
26
Screw Ihscfm HUS-503200245
...
27
Hexagon Nut HUS-731231405
...
28
Element, Fcw HUS-537227201
...
29
Handlebar HUS-525882001
...
31
Handlebar Bracket, S/N From 20173300001 Up To 20181100180 HUS-595303602
...
31
Handlebar Bracket HUS-596283302
...
32
Turning Knob HUS-502219301
...
33
Screw Ehhm HUS-725238381
...
35
Wiring, Fc HUS-537403401
...
35
Wiring, Fcw HUS-537403402
...
37
Washer HUS-502282101
...
38
Throttle Handle HUS-537197211

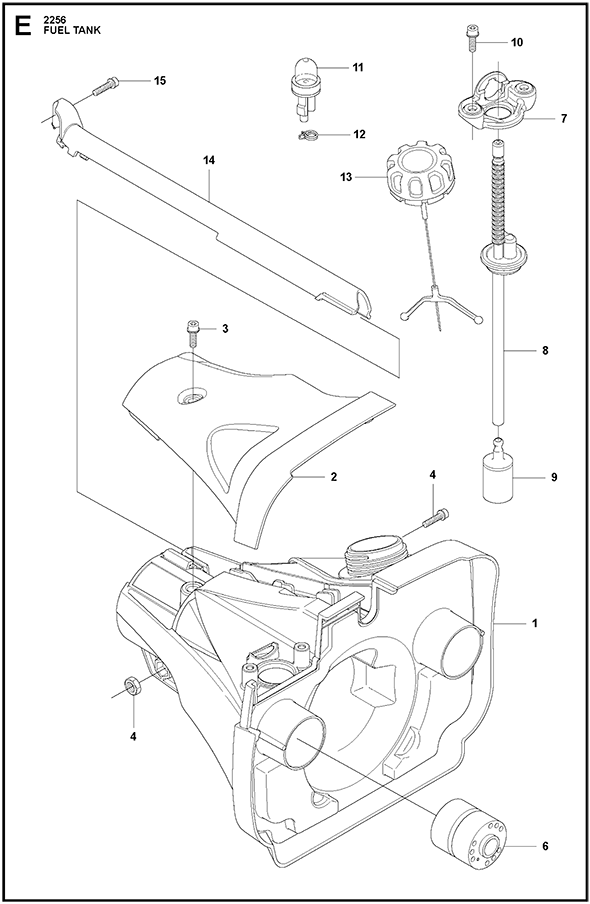

Jonsered FC2256

...
...
1
Fuel Tank HUS-537358802
...
2
Cover HUS-537358602
...
3
Screw Ihscfm HUS-503200772
...
4
Screw Ihscfm HUS-503200776
...
5
Hexagon Nut HUS-503221012
...
6
Antivibration Element HUS-544230901
...
7
Bracket HUS-544215301
...
8
Fuel Hose HUS-544215401
...
9
Fuel Filter HUS-503443201
...
10
Screw Ihscfm HUS-503200776
...
11
Purge HUS-503936601
...
12
Hose Clamp HUS-544348601
...
13
Tank Cap HUS-504113201
...
14
Wiring Protection, Bc HUS-544109503
...
14
Wiring Protection, Fc, Fcw, Mc HUS-544109504
...
15
Screw Ihscfm HUS-503200774

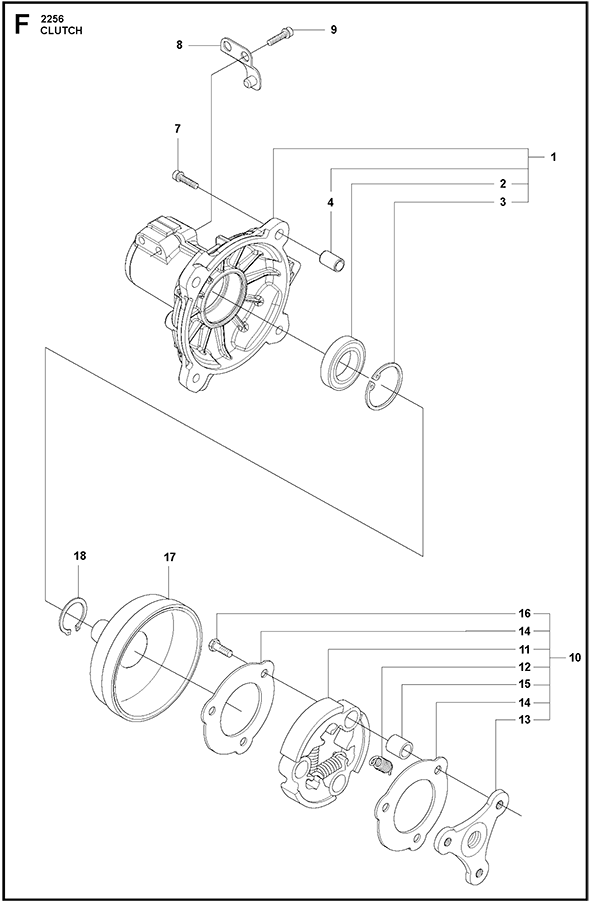

Jonsered FC2256

...
...
1
Clutch Cover Assembly, From S/N 20191600181-Incl. Pos. 2-4 HUS-597519201
...
1
Clutch Cover Assembly, Up To S/N - 20191600180.Incl. Pos. 2-4 HUS-597519202
...
2
Ball Bearing HUS-738220219
...
3
Circlip HUS-735313310
...
4
Guide Bushing, From S/N 20191600181 HUS-593806001
...
4
Sleeve, Up To S/N - 20191600180 HUS-597371101
...
7
Screw Ihscfm HUS-503200778
...
8
Locking Plate HUS-544294801
...
9
Screw Ihscm HUS-725537265
...
10
Clutch Assembly, Incl. Pos. 11-16 HUS-579164002
...
11
Clutch Shoe, 1 Clutch Shoe Only HUS-537403701
...
12
Clutch Spring, 1.8 Mm HUS-578769401
...
13
Clutch Hub HUS-537403601
...
14
Washer HUS-544892801
...
15
Bearing Bush HUS-537135401
...
16
Screw Ehhm HUS-503201802
...
17
Clutch Drum Assembly HUS-586553303
...
18
Circlip HUS-735311700

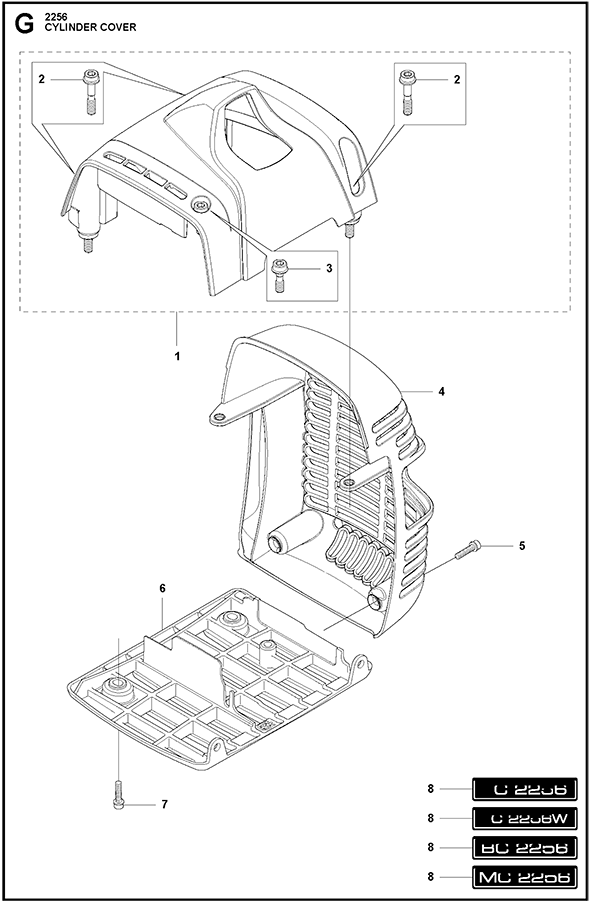

Jonsered FC2256

...
...
1
Cylinder Cover Assembly, Spare Part Incl. Screws Pos. 2-3 HUS-575527701
...
2
Screw Ihscfmo, Captive Screw M5 HUS-573994304
...
3
Screw Ihscfmo, Captive Screw M5 HUS-573994301
...
4
Heat Protector HUS-544326301
...
5
Screw Ihscfm HUS-503200776
...
6
Protective Cover HUS-505492602
...
7
Screw Ihscfm HUS-503200776
...
8
Decal, Fc HUS-504061505
...
8
Decal, Fcw HUS-504061506
...
8
Decal, Bc HUS-504061507
...
8
Decal, Mc HUS-504061508

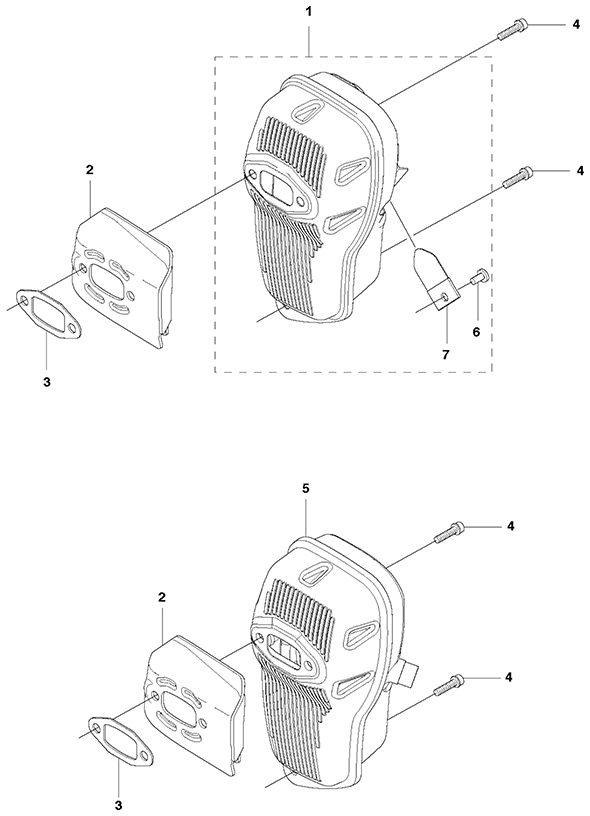

Jonsered FC2256

...
...
1
Muffler Assembly, Mesh HUS-537360301
...
2
Plate HUS-537345701
...
3
Gasket HUS-503821101
...
4
Screw Ihscfm HUS-503200220
...
5
Muffler, Pipe HUS-504037901
...
6
Screw Crpanm HUS-724128759
...
7
Spark Arrestor Scree HUS-537354601

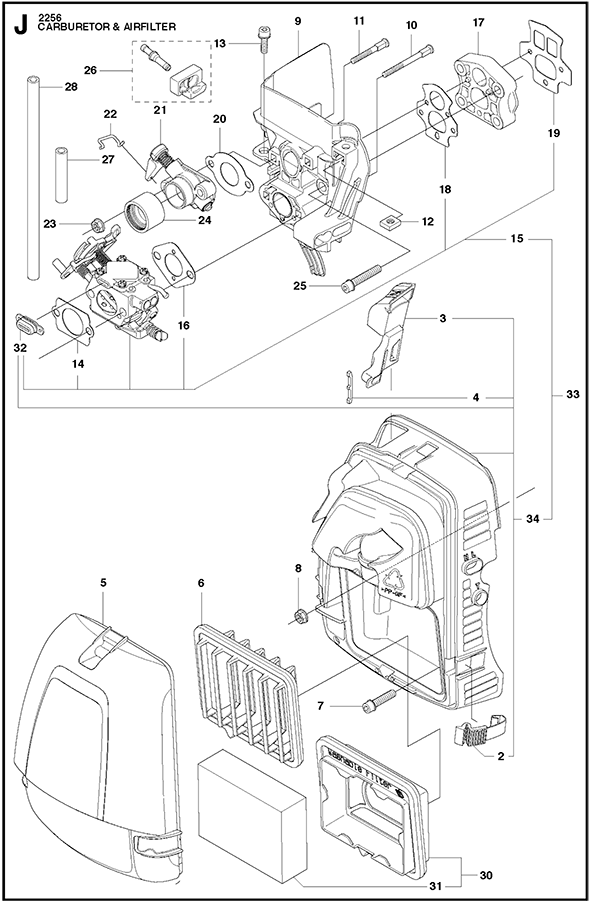

Jonsered FC2256

...
...
2
Snap Locking HUS-503740103
...
3
Choke Control HUS-537352601
...
4
Grommet HUS-537387801
...
5
Filter Cover HUS-544278601
...
6
Filter, Nylon 80/32 Winter HUS-537410801
...
6
Filter, Nylon 44/27 HUS-537410802
...
7
Screw Ihscfm HUS-503200776
...
8
Hexagon Nut Flange HUS-731711451
...
9
Insulation Wall HUS-537350401
...
10
Screw HUS-503988101
...
11
Screw HUS-503988104
...
12
Square Nut HUS-503226504
...
13
Screw Ihscfm HUS-503200776
...
14
Gasket HUS-544429901
...
15
Carburettor, S/N From 20130600067 HUS-586108801
...
16
Gasket HUS-510043701
...
17
Manifold HUS-544043301
...
18
Gasket HUS-544043001
...
19
Gasket HUS-544043101
...
20
Gasket HUS-544160801
...
21
Valve Housing HUS-544214001
...
22
Link HUS-544847801
...
23
Hexagon Nut Flange HUS-731711451
...
24
Inlet Pipe HUS-537410501
...
25
Screw Ihscfm HUS-503200780
...
26
Grommet, Kit HUS-544161501
...
27
Fuel Hose HUS-581756141
...
28
Fuel Hose HUS-544324914
...
30
Filter, Bc, Incl. Pos. 31 HUS-505034702
...
31
Filter HUS-505031003
...
32
Sealing Plug, S/N From 20130600067 HUS-577969301
...
32
Sealing Plug, S/N Up To - 20130600067 HUS-579620101
...
33
Carburettor Kit, S/N Up To - 20130600066 HUS-586154101
...
34
Filter Holder HUS-580482701

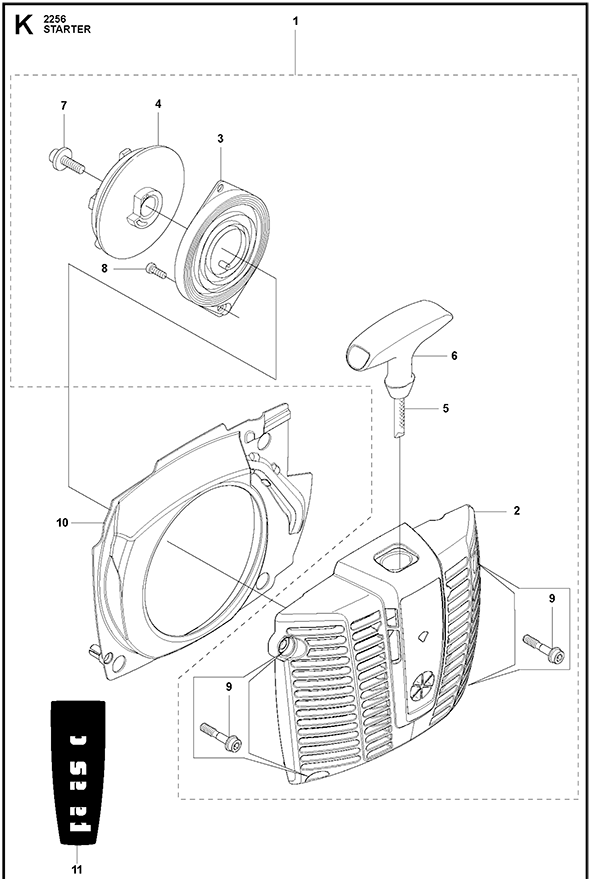

Jonsered FC2256

...
...
1
Starter Assembly, Incl. Pos. 2-9 HUS-575527901
...
2
Starter Housing, Spare Part Incl. Screws Pos. 9 HUS-575541601
...
3
Spring Cassette Assembly HUS-502200601
...
4
Starter Pulley HUS-503957301
...
5
Starter Cord HUS-505305125
...
6
Starter Handle HUS-544376501
...
7
Screw Ihsct HUS-503216916
...
8
Screw Ccrpant HUS-503212906
...
9
Screw Ihscfmo, Captive Screw M5 HUS-573994304
...
10
Air Conductor HUS-544278901
...
11
Decal HUS-504061401

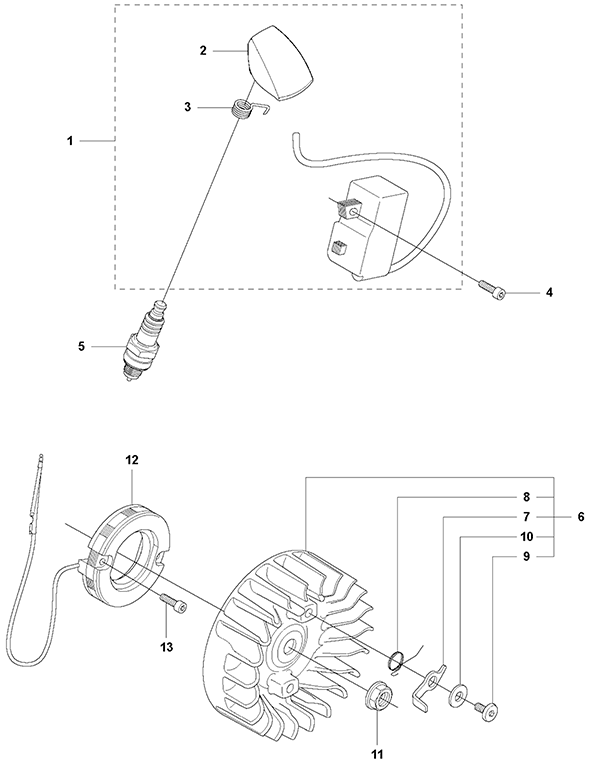

Jonsered FC2256

...
...
1
Ignitionition Module, Pos. 2-3 HUS-504708701
...
2
Spark Plug Cap HUS-544307001
...
3
Contact Spring HUS-501485601
...
4
Screw Ihscm HUS-503202516
...
5
Spark Plug, Ngk Bpmr7A HUS-503235111
...
6
Flywheel Assembly, Bc, Fc, Mc Incl. Pos. 7-10 1 HUS-537240501
...
6
Flywheel Assembly, Fcw Incl. Pos. 7-10 HUS-537240502
...
7
Starter Pawl HUS-503812401
...
8
Spring HUS-503812901
...
9
Screw HUS-501819903
...
10
Washer HUS-503230042
...
11
Nut HUS-503220401
...
12
Generator Stator, Fcw HUS-537256302
...
13
Screw Ihsct, Fcw HUS-544444301

Jonsered FC2256

...
...

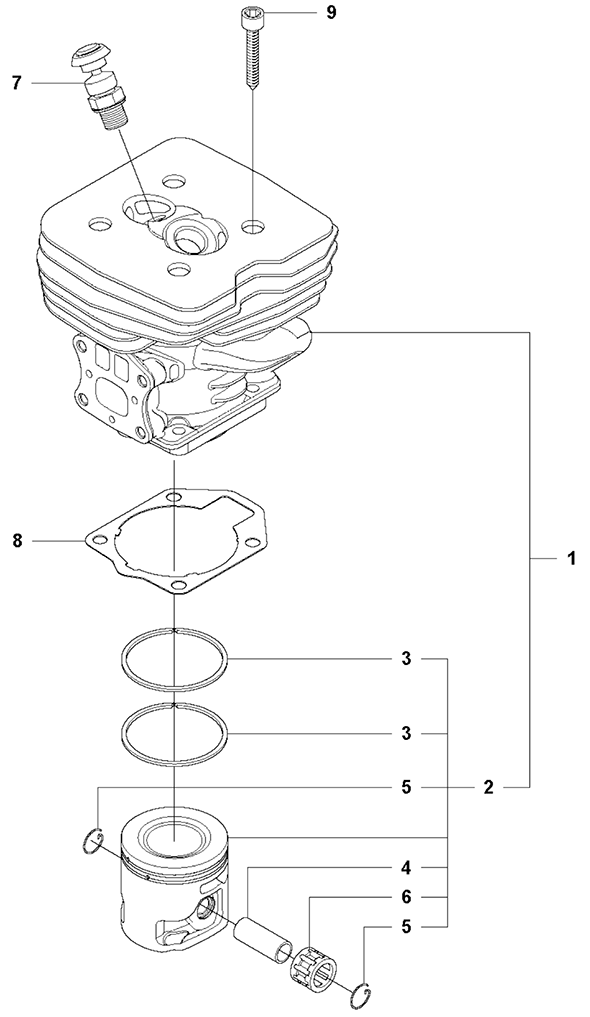

1
Cylinder Assembly, Incl. Pos. 2-6 HUS-544986002
...
2
Piston Assembly, Incl. Pos. 3-6 HUS-576954801
...
3
Piston Ring HUS-502653901
...
4
Piston Pin HUS-505495701
...
5
Circlip HUS-505495801
...
6
Needle Bearing HUS-501451601
...
7
Decompression Valve HUS-544200001
...
8
Gasket HUS-537346801
...
9
Screw Ihscm HUS-725533355

Jonsered FC2256

...
...

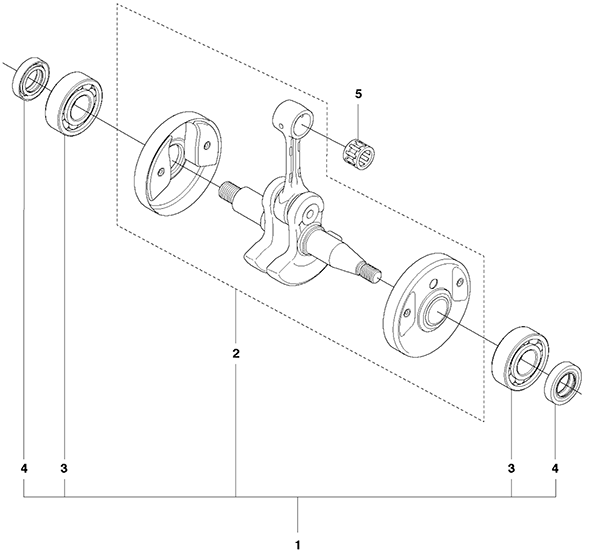

1
Crankshaft HUS-544952602
...
2
Crankshaft HUS-537293804
...
3
Sealing Ring HUS-503260204
...
4
Ball Bearing HUS-738220225
...
5
Needle Bearing HUS-501451601

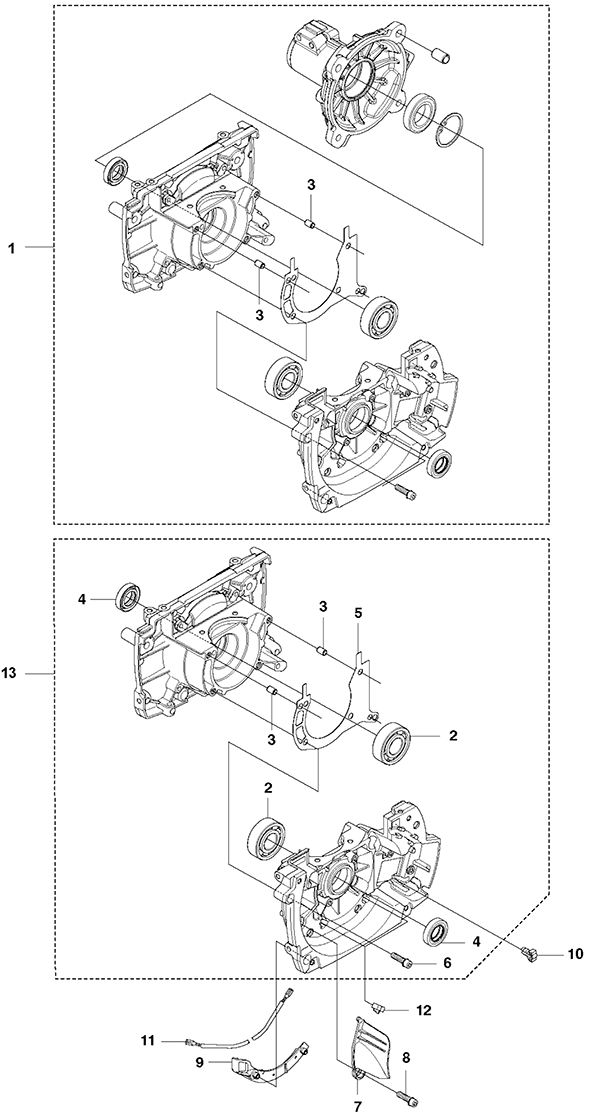

Jonsered FC2256

...
...
1
Crankcase Assembly, Up To S/N - 20191600180 HUS-503911501
...
2
Bearing HUS-503250801
...
3
Guide Bushing, From S/N 20175100007 - HUS-593806001
...
3
Parallel Pin, Up To S/N - 20175100006 HUS-720130710
...
4
Sealing Ring HUS-503260204
...
5
Gasket, Up To S/N - 20175100006 HUS-537346701
...
5
Gasket, From S/N 20175100007 HUS-590182301
...
6
Screw Ihscfm HUS-503200230
...
7
Nozzle HUS-544094501
...
8
Screw Ihscm HUS-503202516
...
9
Cable Holder HUS-544094401
...
10
Retainer HUS-540070101
...
11
Short Circuit Cable HUS-544331801
...
12
Retainer HUS-501044401
...
13
Crankcase, From S/N 20191600181 HUS-544952503

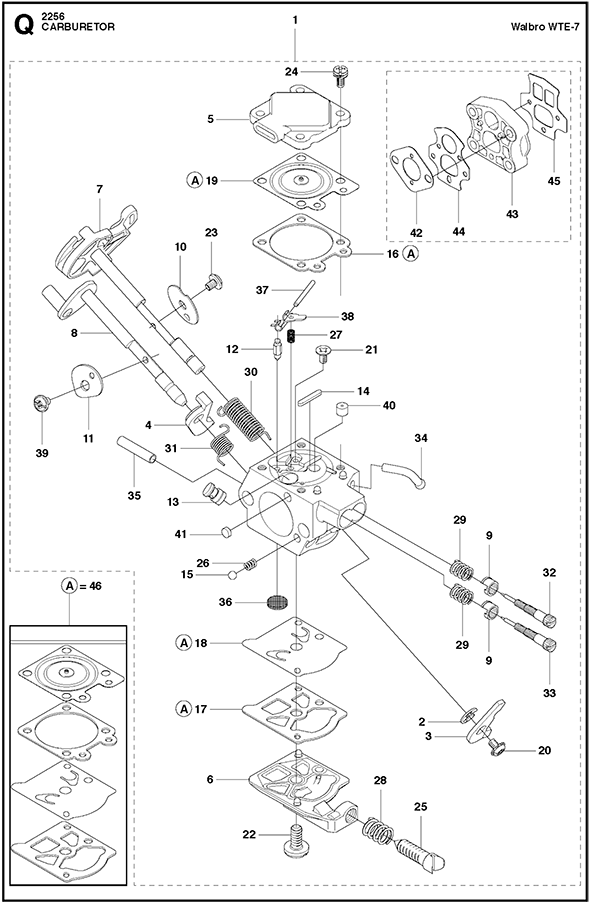

Jonsered FC2256

...
...
1
Carburettor, S/N From 20130600067 HUS-586108801
...
1
Carburettor Kit, S/N Up To -20130600067 HUS-586154101
...
2
Ring HUS-505316736
...
3
Lever HUS-544970701
...
4
Lever HUS-544177701
...
5
Cover HUS-574358101
...
6
Cover HUS-503584301
...
7
Shaft HUS-544043601
...
8
Shaft HUS-544044001
...
9
Limiter Cap HUS-544970801
...
10
Valve HUS-505427101
...
11
Valve HUS-537109601
...
12
Needle Valve HUS-503563401
...
13
Nozzle Assembly HUS-502846801
...
14
Plug HUS-502846901
...
15
Ball HUS-501468501
...
16
Gasket HUS-504350906
...
17
Gasket HUS-504130906
...
18
Diaphragm HUS-577016601
...
19
Diaphragm HUS-580804201
...
20
Screw HUS-501468701
...
21
Screw HUS-502847101
...
22
Screw HUS-501466901
...
23
Screw HUS-537003401
...
24
Screw HUS-537003101
...
25
Screw HUS-537408201
...
26
Spring HUS-501468401
...
27
Spring HUS-501795901
...
28
Spring HUS-501667801
...
29
Spring HUS-544971001
...
30
Spring HUS-544177601
...
31
Spring HUS-544971101
...
32
Needle HUS-502847201
...
33
Needle HUS-502847301
...
34
Fitting HUS-544971501
...
35
Fitting HUS-544971601
...
36
Screen HUS-501666101
...
37
Pin HUS-505520125
...
38
Lever HUS-502847401
...
39
Screw HUS-544111501
...
40
Jet HUS-505426901
...
41
Plug HUS-503574301
...
46
Gasket Kit HUS-515999601

Jonsered FC2256

...
...

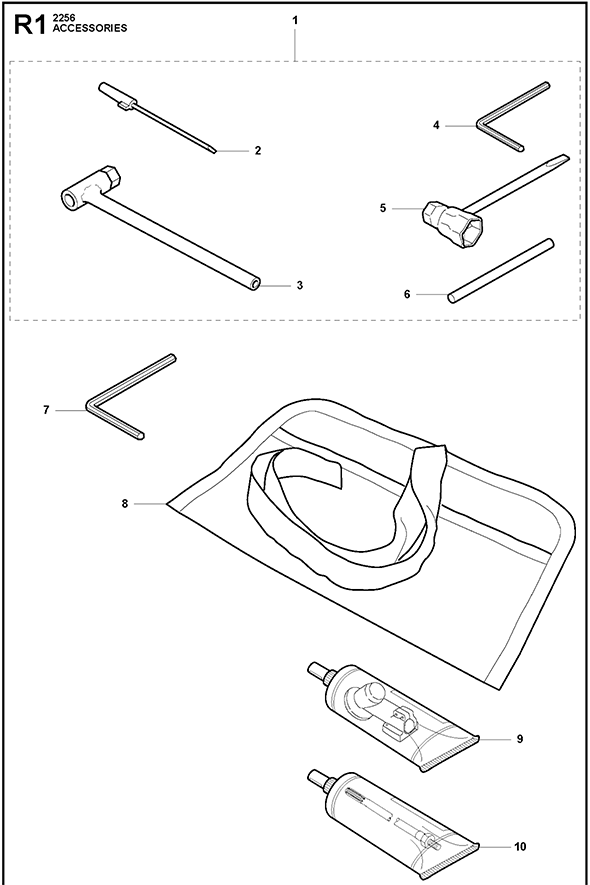

1
Accessory Bag, Incl. Pos. 2-6 HUS-502216015
...
2
Screwdriver HUS-501600203
...
3
Key HUS-502114603
...
4
Wrench, 4Mm HUS-502215801
...
5
Combination Wrench HUS-501691701
...
6
Stop HUS-502285901
...
7
Spanner, 5Mm HUS-503558605
...
8
Tool HUS-501192201
...
9
Grease HUS-503976401
...
10
Grease HUS-503801701

Jonsered FC2256

...
...

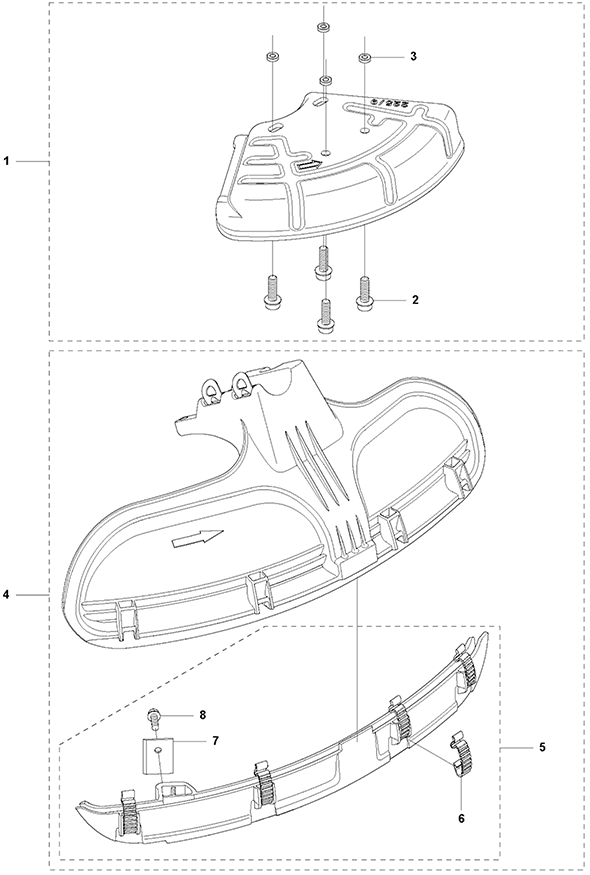

1
Saw Blade Guard, Fc, Fcw Incl. Pos. 2-3 HUS-574506702
...
2
Screw Ihscfm HUS-503200316
...
3
Lock Nut HUS-574039501
...
4
Combination Guard HUS-544464302
...
5
Combination Guard HUS-544464402
...
6
Screw Ihscft HUS-503217572
...
7
Blade HUS-503798802
...
8
Snap Locking HUS-537387201

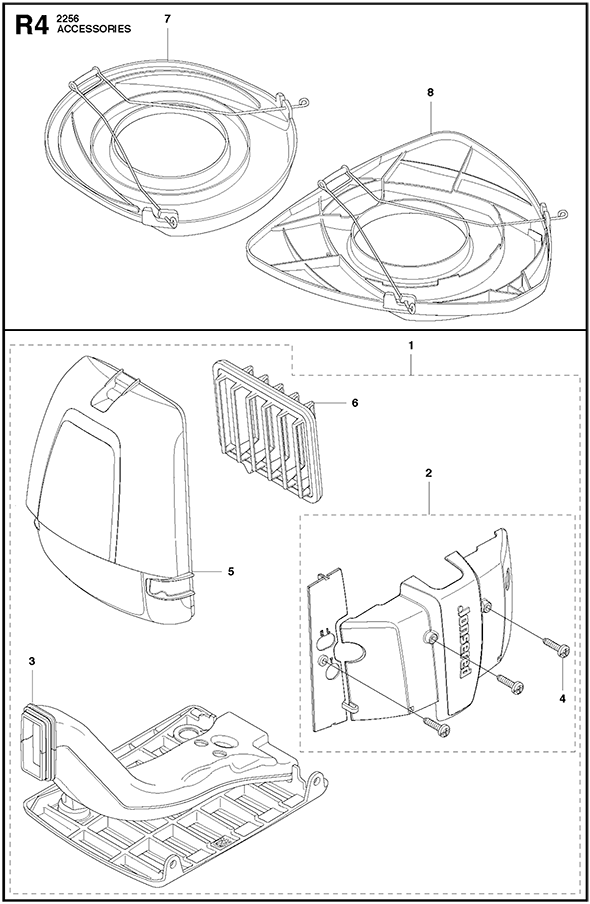

Jonsered FC2256

...
...
1
Winter Kit, Winter Kit Incl. Pos. 2-6 HUS-502435802
...
2
Winter Cover Assembly HUS-504023602
...
3
Air Duct HUS-537351001
...
4
Screw Ihsct HUS-503210716
...
5
Cover HUS-544870301
...
6
Filter HUS-537410801
...
7
Transport Guard HUS-537312901
...
8
Transport Guard HUS-544359101

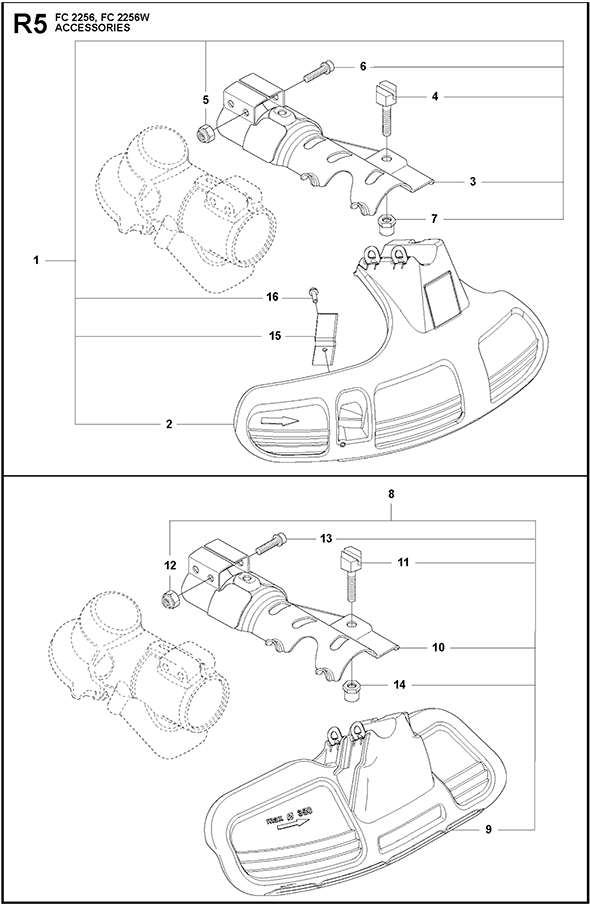

Jonsered FC2256

...
...
1
Trimmer Guard Assembly, Incl. Pos. 2-7 HUS-502465002
...
2
Trimmer Guard HUS-544107404
...
3
Attachment Plate HUS-544895701
...
4
Screw HUS-537189501
...
5
Lock Nut HUS-732211601
...
6
Screw Ihscm HUS-725537655
...
7
Spacing Sleeve HUS-505436701
...
8
Blade Guard, Incl. Pos. 9-14 HUS-502464902
...
9
Blade Guard HUS-544160302
...
10
Attachment Plate HUS-544895701
...
11
Screw HUS-537189501
...
12
Lock Nut HUS-732211601
...
13
Screw Ihscm HUS-725537655
...
14
Spacing Sleeve HUS-505436701
...
15
Blade HUS-537285301
...
16
Screw Ihscft HUS-503217572

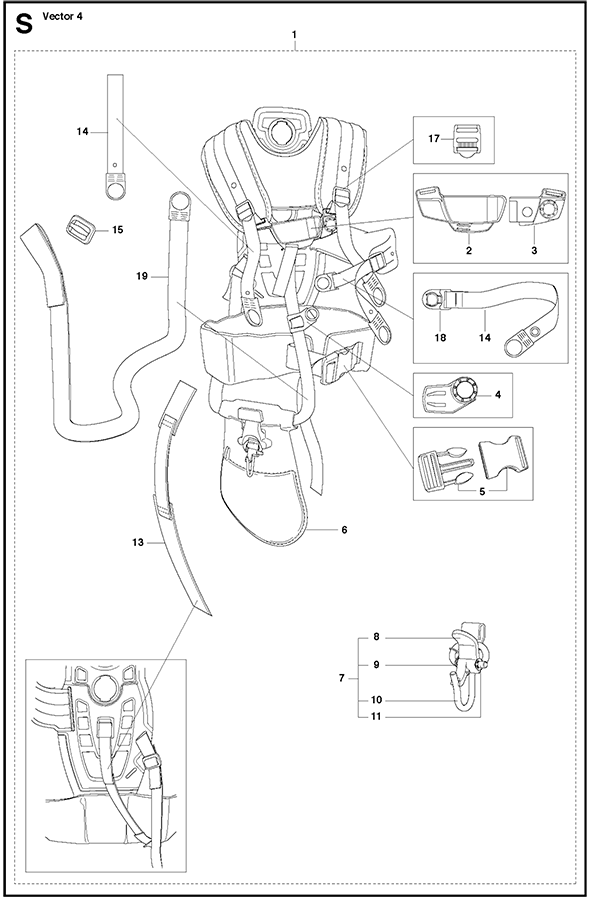

Jonsered FC2256

...
...
1
Harness HUS-579184601
...
2
Front Piece HUS-504545202
...
3
Front Piece HUS-504545102
...
4
Snap Locking HUS-504637502
...
5
Buckle HUS-537331501
...
6
Hip Pad HUS-544901706
...
7
Welt Hook HUS-544960702
...
8
Lock HUS-502023002
...
9
Spring HUS-502023801
...
10
Hook HUS-502022902
...
11
E-Clip HUS-735310920
...
13
Strap HUS-537153506
...
14
Band HUS-503996110
...
15
Retainer HUS-537113501
...
17
Buckle HUS-505444601
...
18
Snap Locking HUS-504637401
...
19
Band HUS-503996111

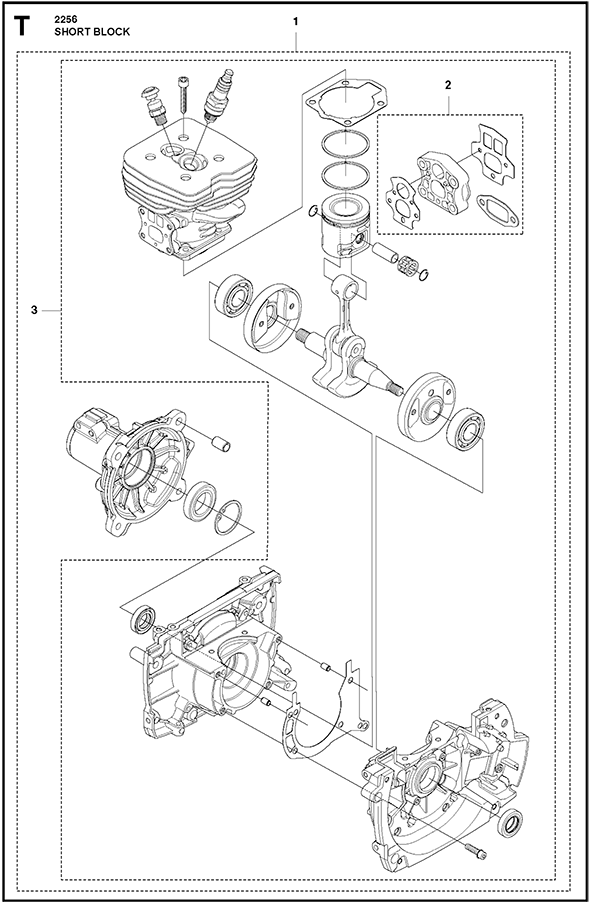

Jonsered FC2256

...
...
1
Short Block, Up To S/N - 20191600180 HUS-576798803
...
2
Gasket Kit HUS-576798701
...
3
Short Block, From S/N 20191600181 HUS-576798802
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
