Jonsered FC2145S-2008-05 Brushcutters/clearing Saws

Model: FC2145S-2008-05

Save Part Not Listed?
product name

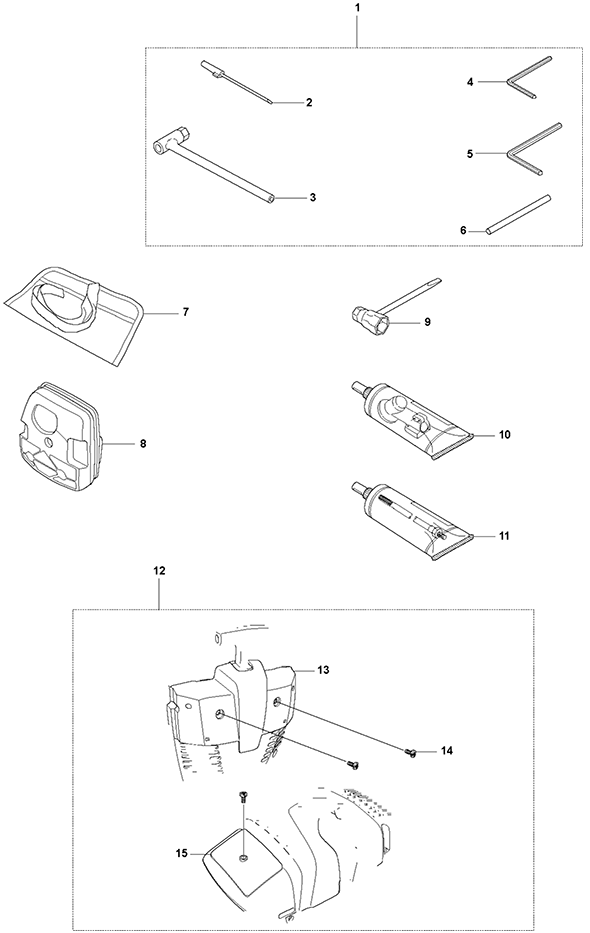

Jonsered FC2145S-2008-05

...
...
1
Accessory Bag HUS-502216013
...
2
Screwdriver HUS-501600203
...
3
Key HUS-502114603
...
4
Wrench HUS-502215801
...
5
Spanner HUS-503558602
...
6
Stop HUS-502285901
...
7
Tool HUS-501192201
...
8
Filter HUS-537381101
...
8
Filter HUS-537381102
...
8
Filter HUS-537381103
...
8
Filter HUS-537381104
...
9
Combination Wrench HUS-501691701
...
10
Grease HUS-503976501
...
11
Grease HUS-503801701
...
12
Winter Kit HUS-537410001
...
13
Winter Cover HUS-537265401
...
14
Screw Ccrpant HUS-503217010
...
15
Winter Cover HUS-537265301

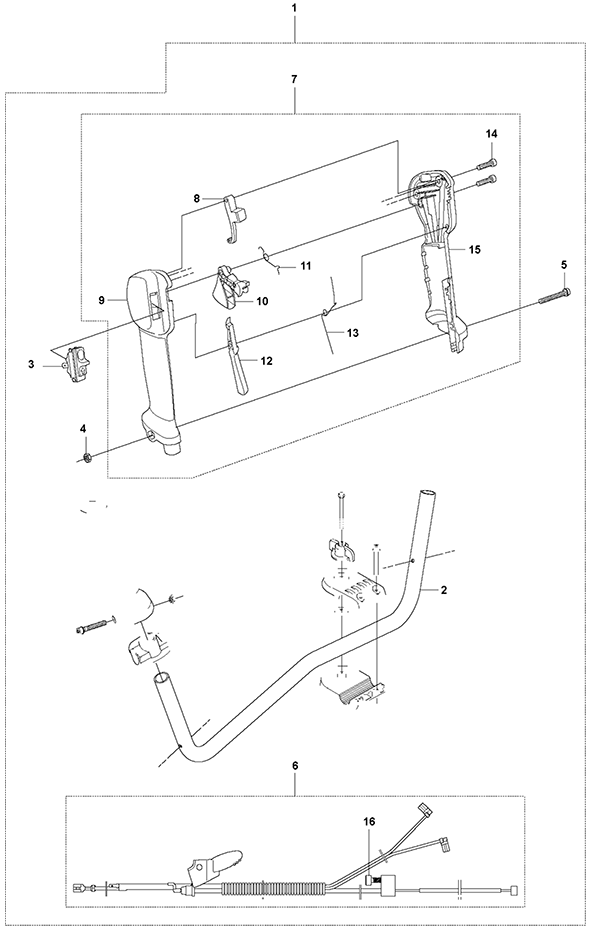

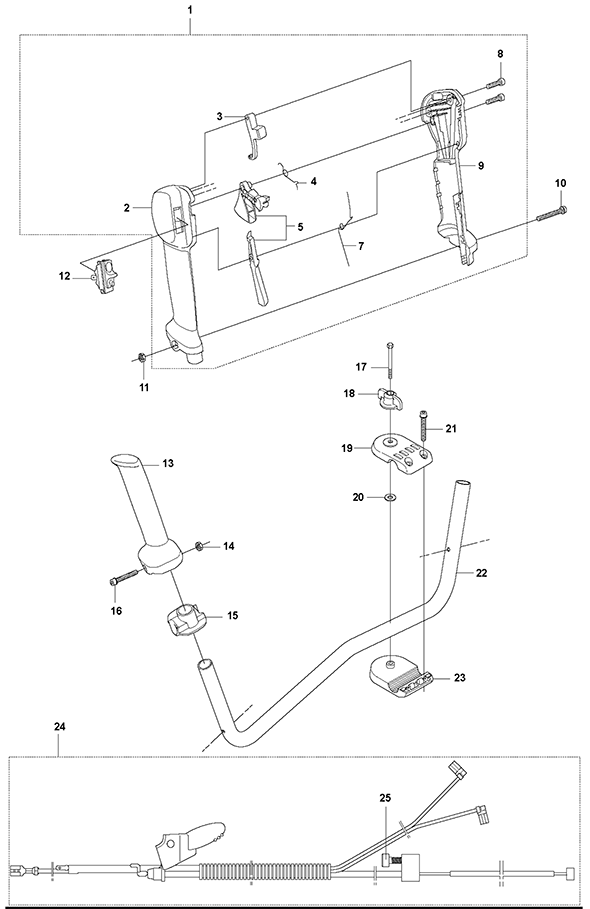

Jonsered FC2145S-2008-05

...
...
1
Kit HUS-510118802
...
2
Handlebar HUS-537334901
...
3
Chain Brake Assembly HUS-503419001
...
4
Hexagon Nut HUS-503221013
...
5
Screw Ihscfm HUS-503200735
...
6
Wiring Assembly HUS-544977802
...
7
Throttle Handle Assembly HUS-504209806
...
8
Starter Throttle Loc HUS-537160702
...
9
Handle Half HUS-537180704
...
10
Throttle Trigger HUS-537160802
...
11
Spring Throttle Trig HUS-537174201
...
12
Throttle Lockout HUS-537160602
...
13
Spring HUS-537174301
...
14
Screw Ihsct HUS-503216618
...
15
Handle Half HUS-537180807
...
16
Screw Ihsct HUS-503216616

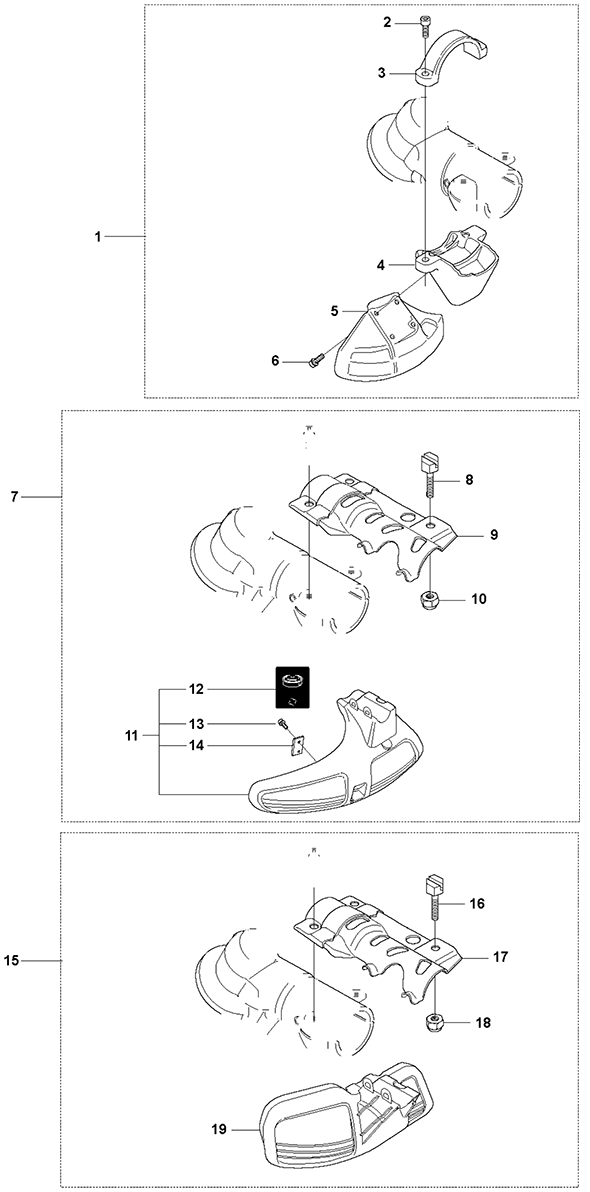

Jonsered FC2145S-2008-05

...
...
1
Saw Blade Guard HUS-537310902
...
2
Screw Ihscfm HUS-503200220
...
3
Clamp HUS-504006501
...
4
Adapter HUS-504003301
...
5
Blade Guard HUS-537217104
...
6
Screw Ihscfm HUS-503200316
...
7
Trimmer Guard HUS-537297302
...
8
Screw HUS-537189501
...
9
Attachment Plate HUS-537230301
...
10
Nut HUS-732211601
...
11
Trimmer Guard HUS-503954304
...
12
Decal HUS-503742901
...
13
Screw Ihsct HUS-503210716
...
14
Blade HUS-537285301
...
15
Cover HUS-537297402
...
16
Screw HUS-537189501
...
17
Attachment Plate HUS-537230301
...
18
Nut HUS-732211601
...
19
Grass Blade Guard HUS-537288502

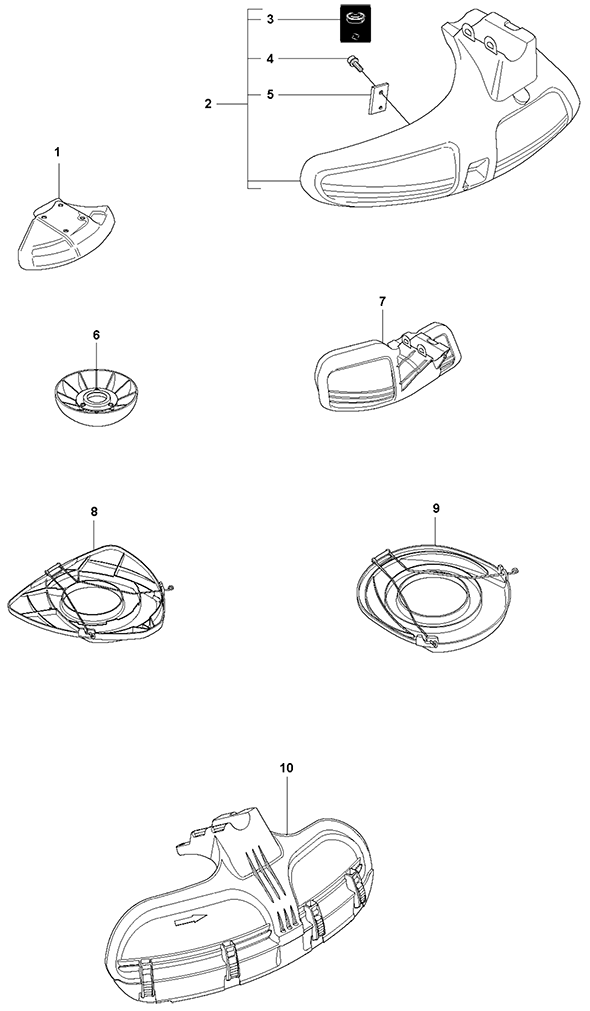

Jonsered FC2145S-2008-05

...
...
1
Saw Blade Guard HUS-544016501
...
1
Saw Blade Guard HUS-537217101
...
2
Trimmer Guard HUS-503954303
...
3
Decal HUS-503742901
...
4
Screw Ihsct HUS-503210716
...
5
Blade HUS-503798801
...
6
Support Cup HUS-502157002
...
7
Grass Blade Guard HUS-537288502
...
8
Transport Guard HUS-544359101
...
9
Transport Guard HUS-537312901
...
10
Combination Guard HUS-544464303

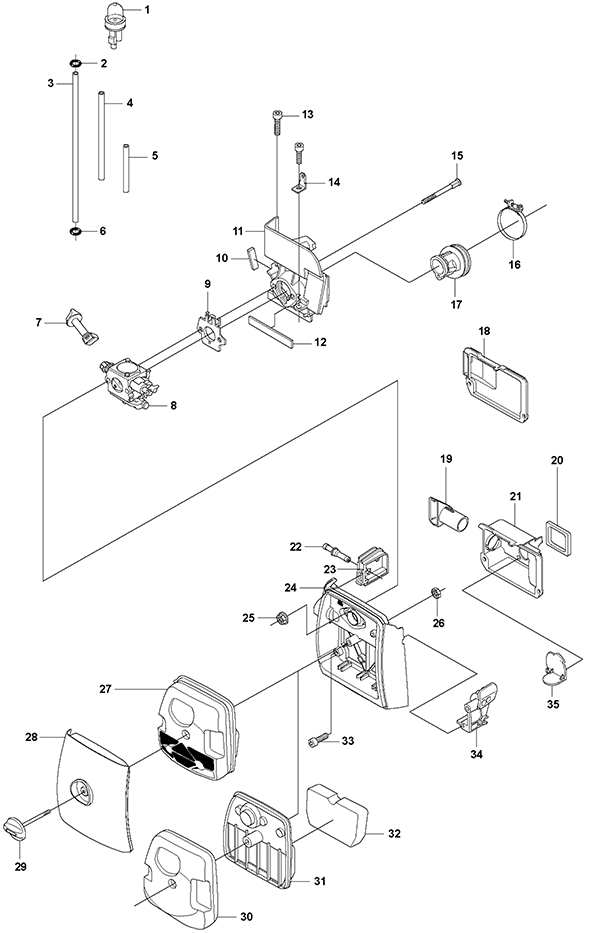

Jonsered FC2145S-2008-05

...
...
1
Purge HUS-503936601
...
2
O-Ring HUS-537184901
...
3
Fuel Hose HUS-544324923
...
4
Fuel Hose HUS-537042401
...
5
Fuel Hose HUS-537052303
...
6
Bearing HUS-537181901
...
7
Choke Control HUS-537110001
...
8
Carburettor HUS-503283116
...
9
Spacer HUS-537110101
...
10
Moulding HUS-537229602
...
11
Insulation Wall HUS-537300201
...
12
Moulding HUS-537229601
...
13
Screw Ihscfm HUS-503200320
...
14
Flat Pin HUS-503238802
...
15
Screw HUS-544082002
...
16
Hose Clamp HUS-503560009
...
17
Bellows HUS-503958301
...
18
Muffler HUS-537276101
...
19
Air Intake HUS-537141501
...
20
Sealing HUS-537309301
...
21
Muffler HUS-537109902
...
22
Folie HUS-537294601
...
23
Grommet HUS-537165901
...
24
Filter Holder HUS-537259501
...
25
Hexagon Nut Flange HUS-731711451
...
26
Hexagon Nut HUS-731231405
...
27
Filter HUS-537381101
...
28
Filter Cover HUS-537320701
...
29
Knob HUS-537213205
...
30
Hub Cap HUS-503958001
...
31
Retainer HUS-503957901
...
32
Air Filter HUS-537427101
...
33
Screw Ihscfm HUS-503200320
...
34
Chisel Guide HUS-537421101
...
35
Hub Cap HUS-537141401

Jonsered FC2145S-2008-05

...
...
1
Gear Assembly HUS-504103503
...
2
Ball Bearing HUS-738210110
...
3
Bearing HUS-503250801
...
4
Sealing HUS-503261701
...
5
Cover Washer HUS-503758901
...
6
Circlip HUS-735313310
...
7
Driver HUS-544197801
...
8
Support Flange HUS-544217801
...
9
Blade HUS-502291101
...
10
Screw Ihscfm HUS-503200316
...
11
Screw Ihhm HUS-503201501
...
12
Screw Ihscfm HUS-503200225
...
13
Ball Bearing HUS-738218712
...
14
Circlip HUS-735311700
...
15
Circlip HUS-735313110

Jonsered FC2145S-2008-05

...
...
1
Gear Assembly HUS-504103803
...
2
Screw Ihscfm HUS-503200225
...
3
Ball Bearing HUS-738210110
...
4
Bearing HUS-503250801
...
5
Sealing HUS-503261701
...
6
Cover Washer HUS-503758901
...
7
Circlip HUS-735313310
...
8
Driver HUS-537351401
...
9
Cup HUS-537292401
...
10
Support Flange HUS-544217801
...
11
Blade HUS-502291101
...
12
Screw Ihhm HUS-503201501
...
13
Ball Bearing HUS-738218712
...
14
Circlip HUS-735311700
...
15
Circlip HUS-735313110
...
16
Screw HUS-537189501
...
17
Attachment Plate HUS-503954501
...
18
Nut HUS-732211601

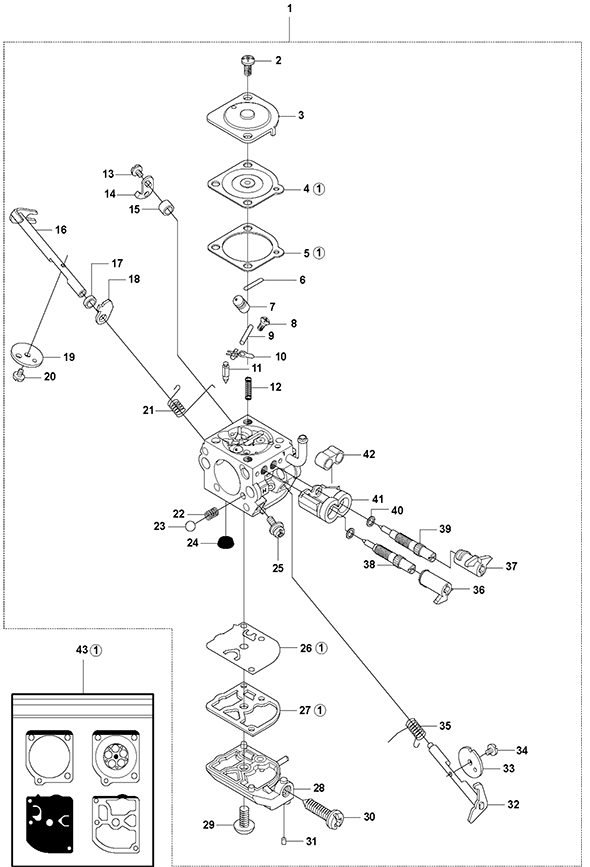

Jonsered FC2145S-2008-05

...
...
1
Carburettor HUS-503283116
...
2
Screw HUS-503480501
...
3
Cover HUS-503974301
...
4
Diaphragm HUS-503480201
...
5
Gasket HUS-503480301
...
6
Plug Welch HUS-503535601
...
7
Nozzle Assembly HUS-544114901
...
8
Screw HUS-503480101
...
9
Pin Retaining Screw HUS-503480001
...
10
Lever HUS-503665901
...
11
Valve HUS-503479701
...
12
Spring HUS-537020301
...
13
Screw HUS-503479001
...
14
Lever HUS-537019801
...
15
Collar HUS-503478901
...
16
Shaft Assembly HUS-537020901
...
17
Collar HUS-503481901
...
18
Lever HUS-537049001
...
19
Valve HUS-537021101
...
20
Screw HUS-503481801
...
21
Spring HUS-537021001
...
22
Spring HUS-537012601
...
23
Ball HUS-537012501
...
24
Strainer HUS-503535701
...
25
Screw HUS-503755301
...
26
Diaphragm Pump HUS-537020001
...
27
Gasket HUS-537020101
...
28
Cover HUS-537020201
...
29
Screw HUS-503479601
...
30
Screw HUS-537020701
...
31
Piece HUS-503481101
...
32
Shaft Assembly HUS-537275401
...
33
Valve HUS-537386801
...
34
Screw HUS-503479201
...
35
Spring HUS-537287101
...
36
Limiter Cap HUS-503903301
...
37
Limiter Cap HUS-503903201
...
38
Screw HUS-537275601
...
39
Screw HUS-537275501
...
40
Washer HUS-503974001
...
41
Retainer HUS-503903401
...
42
Boot HUS-537274201
...
43
Gasket Kit HUS-537243601

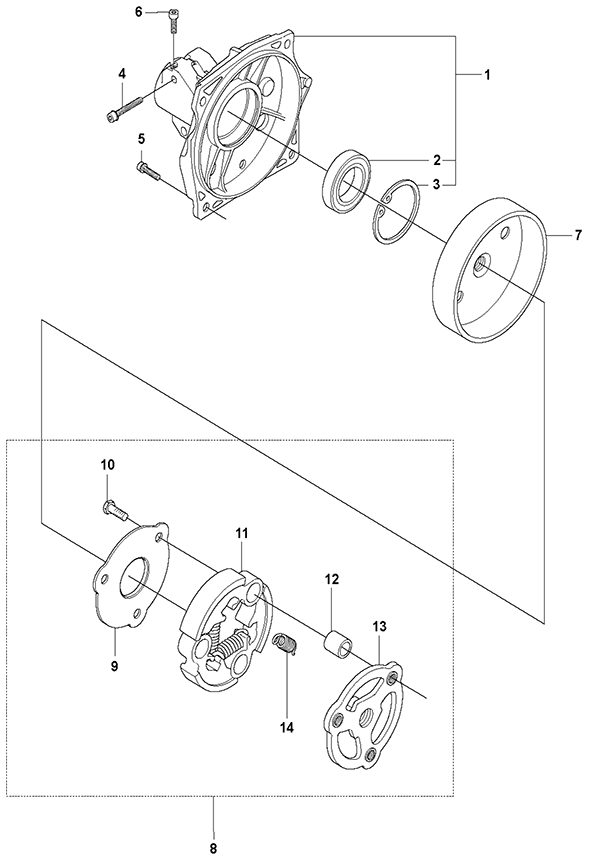

Jonsered FC2145S-2008-05

...
...
1
Clutch Cover HUS-503954103
...
2
Ball Bearing HUS-738220219
...
3
Circlip HUS-735313310
...
4
Screw Ihscfm HUS-503200230
...
5
Screw Ihscfm HUS-503200220
...
6
Screw Ihscm HUS-503202001
...
7
Clutch Drum Assembly HUS-544900701
...
8
Clutch Assembly HUS-503953501
...
9
Washer HUS-537135301
...
10
Screw Ehhm HUS-503201818
...
11
Clutch Shoe HUS-503953601
...
12
Bearing Bush HUS-537135401
...
13
Clutch Hub HUS-503953701
...
14
Clutch Spring HUS-505435301

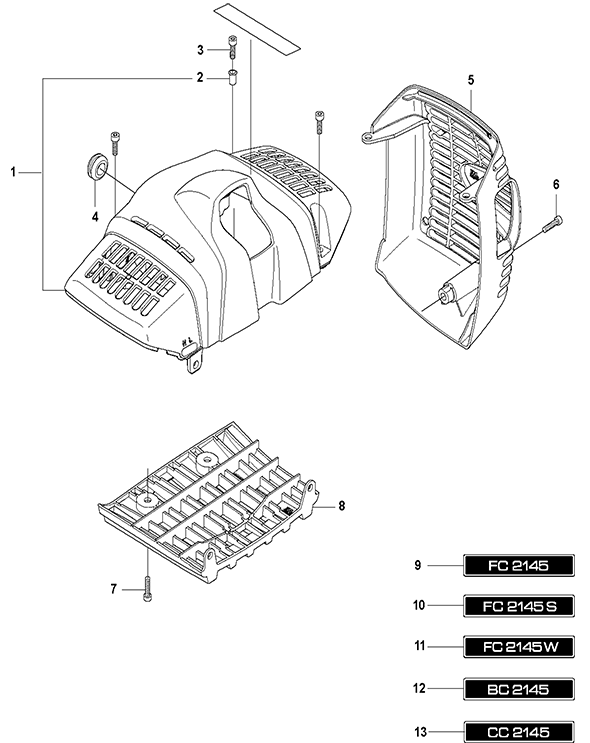

Jonsered FC2145S-2008-05

...
...
1
Cylinder Cover Assembly HUS-544457301
...
2
Tubular Rivet HUS-537444503
...
3
Screw Ihscfm HUS-503200302
...
4
Plug HUS-537376801
...
5
Heat Protector HUS-537260001
...
6
Screw Ihscfm HUS-503200302
...
7
Screw Ihscfm HUS-503200302
...
8
Protective Cover HUS-537260102
...
9
Label HUS-537375702
...
10
Label HUS-537375701
...
11
Label HUS-537375704
...
12
Label HUS-537375703
...
13
Label HUS-537375705

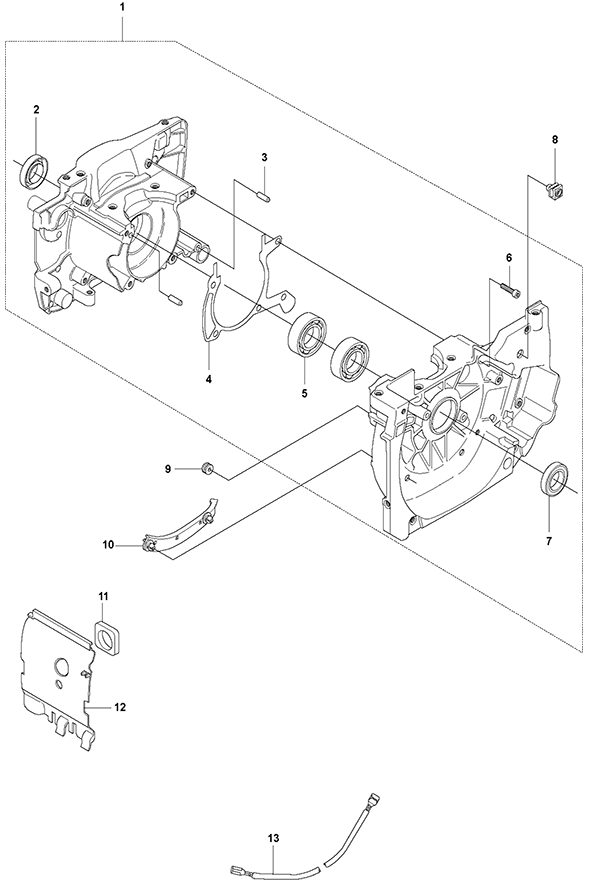

Jonsered FC2145S-2008-05

...
...
1
Crankcase HUS-537230401
...
2
Sealing Ring HUS-503260204
...
3
Parallel Pin HUS-720130710
...
4
Gasket HUS-503948001
...
5
Ball Bearing HUS-738220225
...
6
Screw Ihscm HUS-725533155
...
7
Sealing Ring HUS-505275719
...
8
Cable Holder HUS-502089601
...
9
Bushing HUS-503735801
...
10
Cable Holder HUS-537280501
...
11
Sealing HUS-537309401
...
12
Wall HUS-537279401
...
12
Wall HUS-537309901
...
13
Short Circuit Cable HUS-537391001

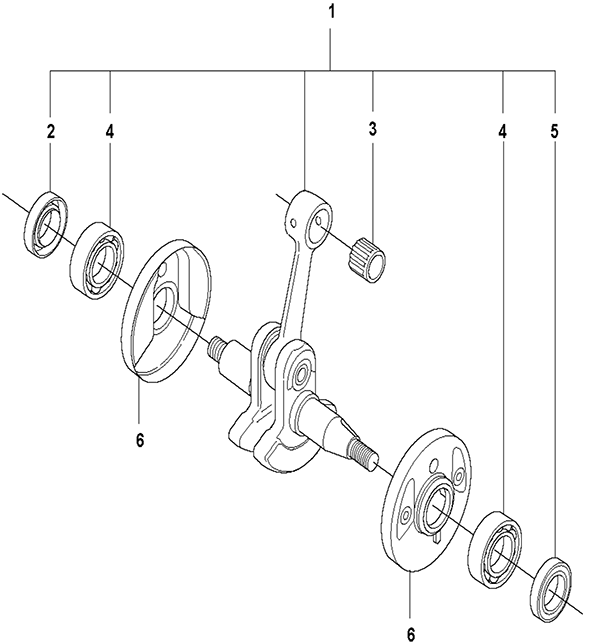

Jonsered FC2145S-2008-05

...
...
1
Crankshaft HUS-537189702
...
2
Sealing Ring HUS-503260204
...
3
Needle Bearing HUS-501451601
...
4
Ball Bearing HUS-738220225
...
5
Sealing Ring HUS-505275719
...
6
Cup HUS-537158501

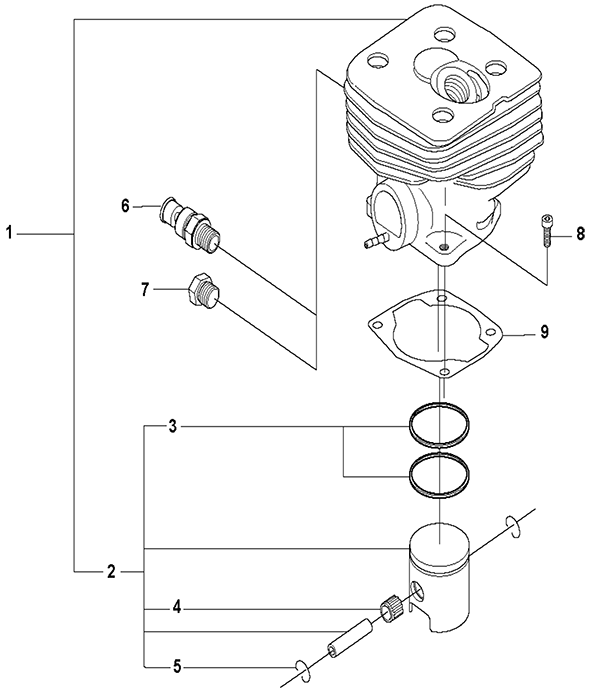

Jonsered FC2145S-2008-05

...
...
1
Cylinder Assembly HUS-503956402
...
1
Cylinder Assembly HUS-505034804
...
2
Piston Assembly HUS-537159402
...
2
Piston Assembly HUS-544093002
...
3
Piston Ring HUS-503289045
...
3
Piston Ring HUS-506449401
...
4
Needle Bearing HUS-501451601
...
5
Snap Ring HUS-737441000
...
6
Decompression Valve HUS-503665401
...
7
Plug HUS-503552201
...
8
Screw Ihscm HUS-725533155
...
9
Gasket HUS-503952701

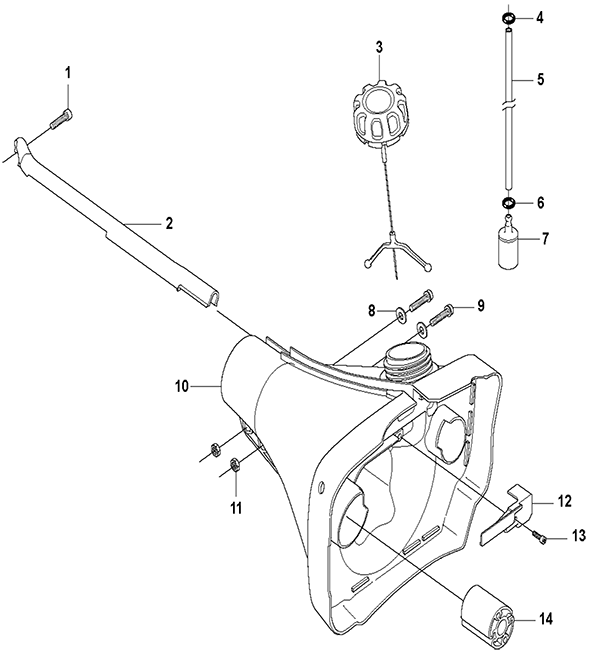

Jonsered FC2145S-2008-05

...
...
1
Screw Ihscfm HUS-503200216
...
2
Cover HUS-537172504
...
2
Cover HUS-537172503
...
3
Tank Cap HUS-544076902
...
4
O-Ring HUS-537184901
...
5
Fuel Hose HUS-544324933
...
6
O-Ring HUS-537184901
...
7
Fuel Filter HUS-503443201
...
8
Washer HUS-503230011
...
9
Screw Ihscfm HUS-503200216
...
10
Fuel Tank HUS-503949302
...
11
Hexagon Nut HUS-503221012
...
12
Hose Guard HUS-537219901
...
13
Screw Ihsct HUS-503217116
...
14
Antivibration Element HUS-503956101

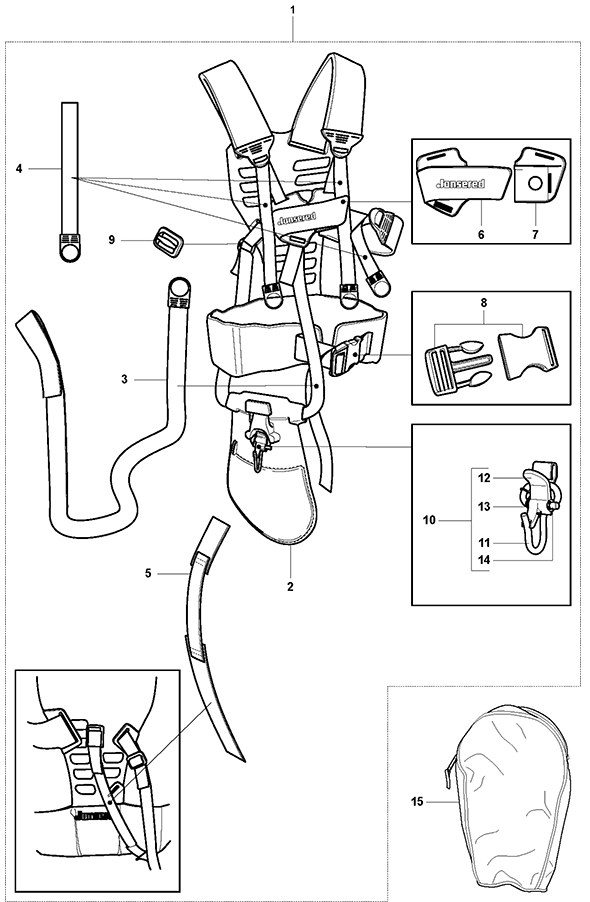

Jonsered FC2145S-2008-05

...
...
1
Harness HUS-504045301
...
1
Harness HUS-505406301
...
2
Hip Pad HUS-544901702
...
3
Band HUS-503996105
...
4
Band HUS-503996101
...
5
Strap HUS-537153502
...
6
Front Piece HUS-537277001
...
7
Front Piece HUS-537276901
...
8
Buckle HUS-537331501
...
9
Retainer HUS-537113501
...
10
Welt Hook HUS-544960702
...
11
Hook HUS-502022902
...
12
Lock HUS-502023002
...
13
Spring HUS-502023801
...
14
E-Clip HUS-735310920
...
15
Bag HUS-537306601

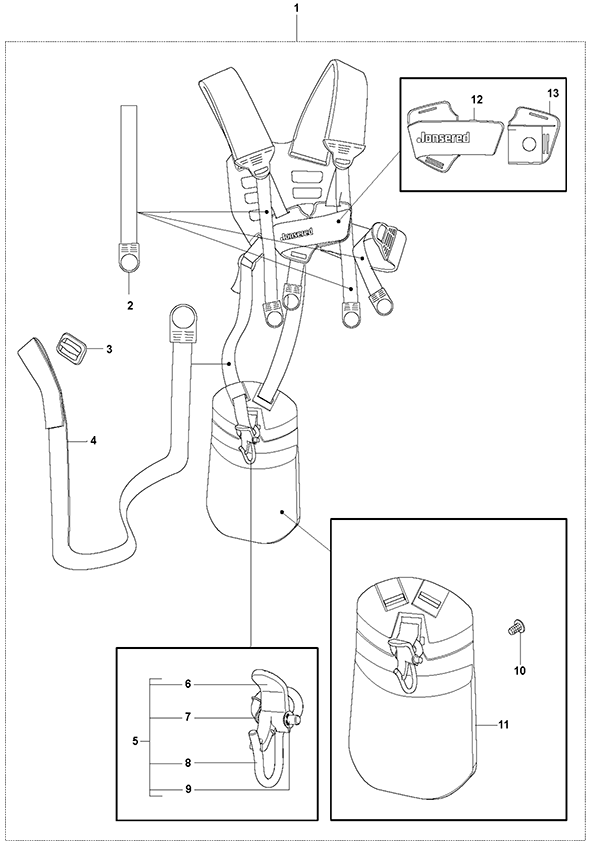

Jonsered FC2145S-2008-05

...
...
1
Harness HUS-537275801
...
1
Harness HUS-537275803
...
2
Band HUS-503996101
...
3
Retainer HUS-537113501
...
4
Band HUS-503996103
...
5
Hook HUS-502022801
...
6
Lock HUS-502023002
...
7
Spring HUS-502023801
...
8
Hook HUS-502022902
...
9
E-Clip HUS-735310920
...
10
Hip Pad HUS-537175401
...
11
Hip Pad HUS-537275902
...
12
Front Piece HUS-537277001
...
13
Front Piece HUS-537276901

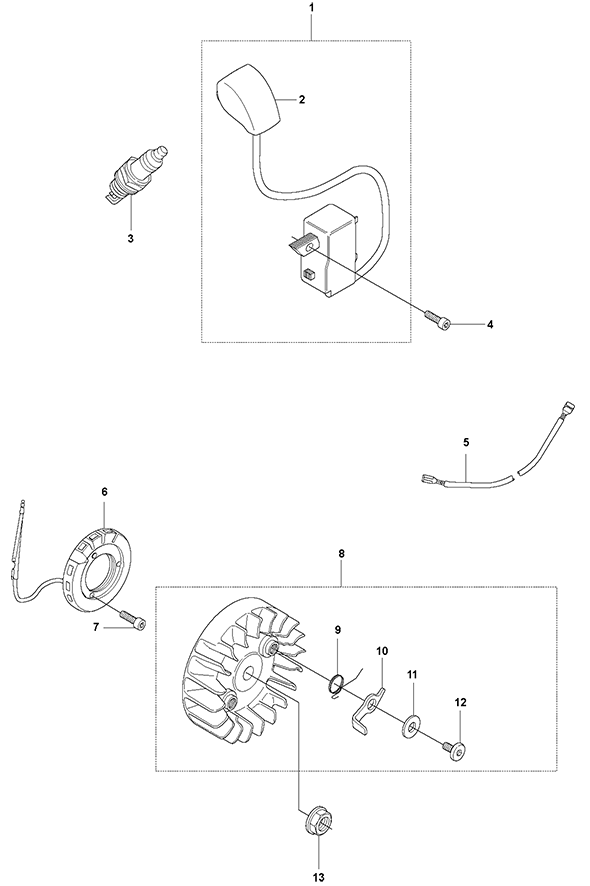

Jonsered FC2145S-2008-05

...
...
1
Ignitionition Module HUS-501001301
...
1
Ignitionition Module HUS-501001302
...
2
Spark Plug Cap HUS-537428001
...
3
Spark Plug HUS-503235109
...
4
Screw Ihscm HUS-503202516
...
5
Short Circuit Cable HUS-537391001
...
6
Generator Stator HUS-537256301
...
7
Screw Ihsct HUS-503216618
...
8
Flywheel HUS-503953301
...
8
Flywheel HUS-503953302
...
9
Spring HUS-503812901
...
10
Starter Pawl HUS-503812401
...
11
Washer HUS-503230042
...
12
Screw HUS-501819903
...
13
Nut HUS-503220401

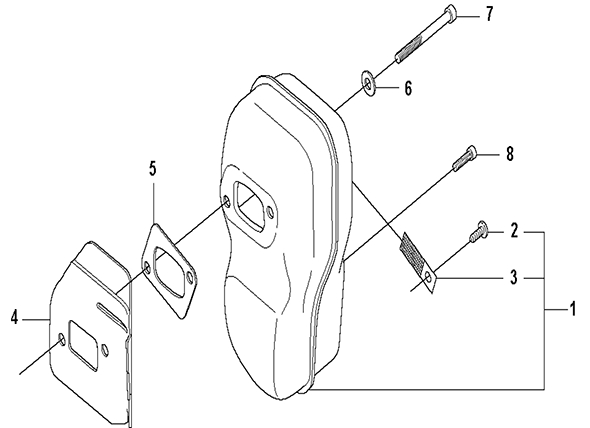

Jonsered FC2145S-2008-05

...
...
1
Muffler Assembly HUS-503949001
...
1
Muffler Assembly HUS-503949002
...
2
Screw Crpanm HUS-724128759
...
3
Spark Arrester Screen HUS-537270901
...
4
Heat Deflector HUS-537228501
...
5
Gasket HUS-537198701
...
6
Washer HUS-503230402
...
7
Screw Ihscfm HUS-503202970
...
8
Screw Ihscfm HUS-503200302

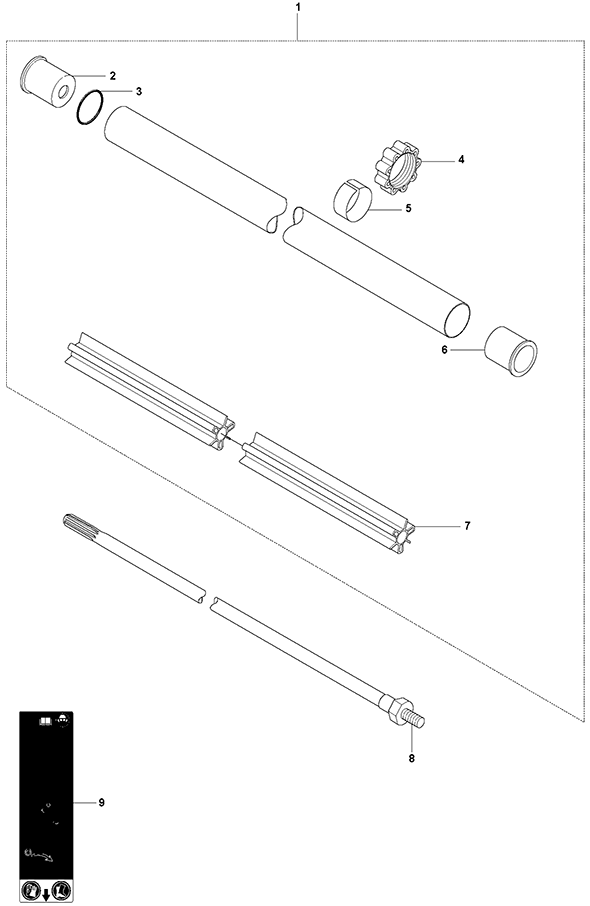

Jonsered FC2145S-2008-05

...
...
1
Tube HUS-537279203
...
1
Tube HUS-537279208
...
1
Tube HUS-537279210
...
2
Spacer HUS-544029401
...
3
O-Ring HUS-506110301
...
4
Antivibration Element HUS-537309801
...
5
Tape HUS-537309701
...
6
Spacer HUS-544029401
...
7
Guide HUS-537183104
...
7
Guide HUS-537183105
...
8
Drive Shaft HUS-503955401
...
8
Drive Shaft HUS-503955402
...
8
Drive Shaft HUS-503924401
...
8
Drive Shaft HUS-503924402
...
8
Drive Shaft HUS-503924403
...
9
Label HUS-537294707
...
9
Label HUS-537294703

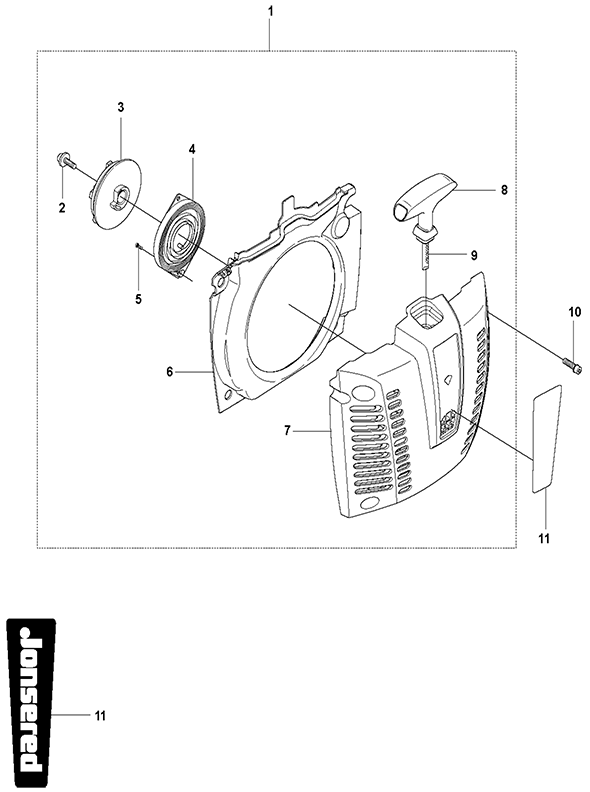

Jonsered FC2145S-2008-05

...
...
1
Starter HUS-537259302
...
2
Screw Ihsct HUS-503216916
...
3
Starter Pulley HUS-503957301
...
4
Spring Cassette Assembly HUS-502200601
...
5
Screw Ccrpant HUS-503212906
...
6
Air Conductor HUS-537259001
...
7
Starter Housing HUS-537258901
...
8
Starter Handle HUS-537196501
...
9
Starter Cord HUS-505305125
...
10
Screw Ihscfm HUS-503200302
...
11
Label HUS-537375801

Jonsered FC2145S-2008-05

...
...
1
Throttle Handle Assembly HUS-504209805
...
2
Handle Half HUS-537180712
...
3
Starter Throttle Loc HUS-537160702
...
4
Spring Throttle Trig HUS-537174201
...
5
Throttle Control HUS-506497702
...
7
Spring HUS-537174301
...
8
Screw Ihsct HUS-503216618
...
9
Handle Half HUS-537180812
...
10
Screw Ihscfm HUS-503200735
...
11
Hexagon Nut HUS-503221013
...
12
Switch HUS-537419001
...
13
Handle HUS-537172807
...
14
Hexagon Nut HUS-731231405
...
15
Bracket HUS-537172904
...
16
Screw Ihscfm HUS-503200245
...
17
Screw Ehhm HUS-725238285
...
18
Turning Knob HUS-502219301
...
19
Handlebar Bracket HUS-537129002
...
20
Washer HUS-502282101
...
21
Screw Ihscfm HUS-503200225
...
22
Handlebar HUS-537334901
...
23
Handlebar Bracket HUS-537129102
...
24
Wiring Assembly HUS-544977801
...
24
Wiring Assembly HUS-544977802
...
25
Screw Ihsct HUS-503216616

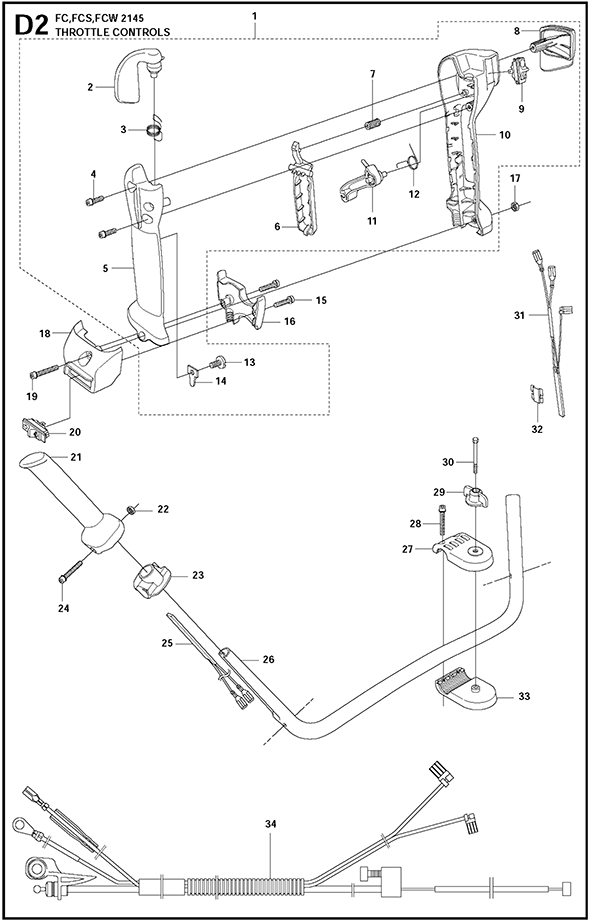

Jonsered FC2145S-2008-05

...
...
1
Throttle Handle, Fc, Fcs, Fcw HUS-537197214
...
2
Throttle Trigger HUS-537263402
...
3
Spring Throttle Trig HUS-537283701
...
4
Screw Ihscft HUS-503217520
...
5
Handle Half HUS-537155305
...
6
Throttle Lockout HUS-537155602
...
7
Spring HUS-537199701
...
8
Cover HUS-537182402
...
9
Switch HUS-537419001
...
10
Handle Half HUS-537155205
...
11
Throttle Lever HUS-537263501
...
12
Spring HUS-537342701
...
13
Screw Ccrpant HUS-503217010
...
14
Securing Plate HUS-537251101
...
15
Screw Ihsct, Fcw HUS-503217120
...
16
Retainer, Fcw HUS-537201602
...
17
Hexagon Nut HUS-731231405
...
18
Retainer, Fcw HUS-537201502
...
19
Screw Ihscfm, Fc, Fcs HUS-503200235
...
19
Screw Ihscfm, Fcw HUS-503200245
...
20
Switch, Fcw HUS-503718202
...
21
Handle, Fc, Fcs, Fcw HUS-537172808
...
22
Hexagon Nut HUS-731231405
...
23
Bracket HUS-537172904
...
24
Screw Ihscfm HUS-503200245
...
25
Element, Fcw HUS-537227201
...
26
Handlebar, Fc, Fcs HUS-503958601
...
26
Handlebar, Fcw HUS-503958602
...
27
Handlebar Bracket HUS-537129002
...
28
Screw Ihscfm HUS-503200225
...
29
Turning Knob HUS-502219301
...
30
Screw Ehhm HUS-725238485
...
31
Element, Fcw HUS-537227101
...
32
Securing Plate, Fcw HUS-537265101
...
33
Handlebar Bracket HUS-537129102
...
34
Wiring Assembly, Fcw HUS-504538602
...
34
Wiring Assembly, Fc, Fcs HUS-505165501

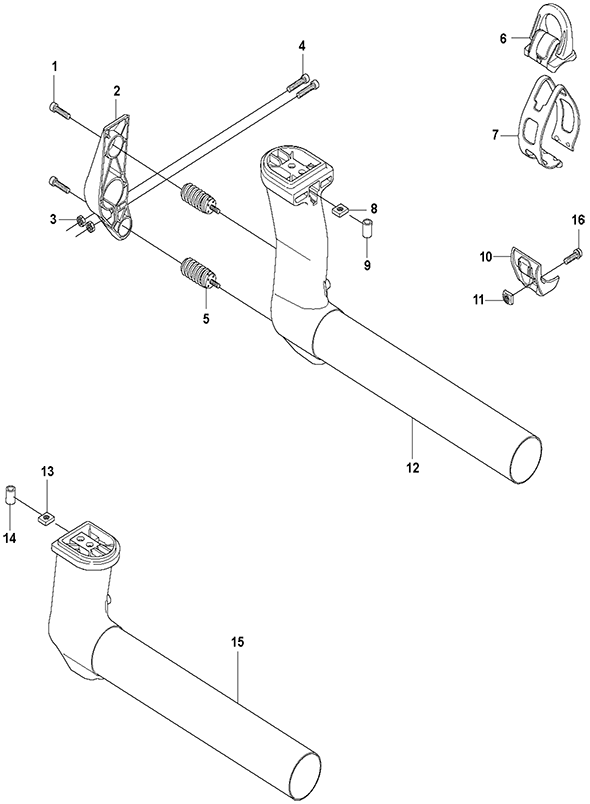

Jonsered FC2145S-2008-05

...
...
1
Screw Ihscfm HUS-503200216
...
2
Holder Antivibration HUS-503955305
...
3
Hexagon Nut HUS-503221012
...
4
Screw Ihscfm HUS-503200225
...
5
Antivibration Element HUS-537299701
...
6
Loop HUS-537201802
...
7
Band HUS-537197901
...
8
Square Nut HUS-502197101
...
9
Cover HUS-503857302
...
10
Guide Rail HUS-537271102
...
11
Square Nut HUS-503226501
...
12
Suspension HUS-537198906
...
13
Square Nut HUS-502197101
...
14
Cover HUS-503857302
...
15
Suspension HUS-503955907
...
16
Screw Ihscfm HUS-503200220
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
