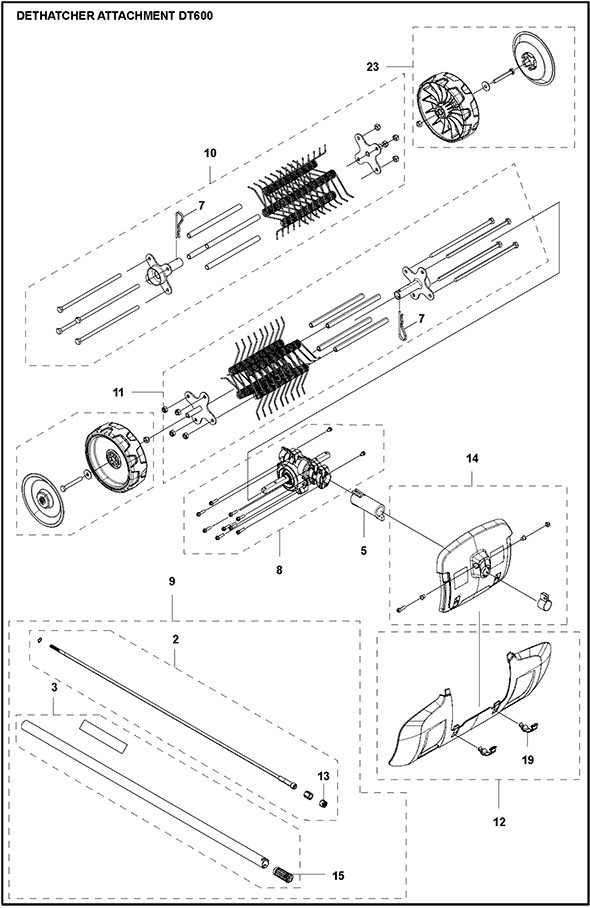

Jonsered DT600-967297001 Dethatcher Attachment

Model: DT600-967297001

Save Part Not Listed?
product name

Jonsered DT600-967297001

...
...
2
Drive Shaft Assembly HUS-587676601
...
3
Tube HUS-587675901
...
5
Distance HUS-588016501
...
7
Locking Spring HUS-578430301
...
8
Gear Assembly HUS-577634901
...
9
Tube HUS-579268801
...
10
Spring Cassette Assembly HUS-587677402
...
11
Spring Cassette Assembly HUS-587677401
...
12
Cover HUS-579706601
...
13
Clip HUS-583938301
...
14
Cover HUS-579709001
...
15
Plug HUS-579269301
...
19
Snap HUS-503894702
...
23
Wheel Assembly HUS-587677501
