Jonsered CS2250SII Chain Saw

Model: CS2250SII

Save Part Not Listed?
product name

Jonsered CS2250SII

...
...
1
Clutch Cover Assembly HUS-544217202
...
2
Cover Lid HUS-504542801
...
3
Brake Band Assembly HUS-537043001
...
4
Wear Protection HUS-544083001
...
5
Guide Bushing HUS-503855201
...
6
Brake Spring HUS-503465901
...
7
Cover Lid HUS-544082901
...
8
Knee Joint Assembly HUS-503890802
...
9
Pin HUS-503892901
...
10
E-Clip HUS-735310820
...
11
Screw HUS-537392901
...
12
Chain Tensioner HUS-537347202
...
13
Heat Protector HUS-537392602
...
14
Label HUS-544357502
...
15
Screw Ccrpant HUS-503217010
...
16
Bearing Sleeve HUS-525354301
...
17
Wear Plate HUS-544250501
...
18
Knob HUS-537347802

Jonsered CS2250SII

...
...
1
Clutch Assembly HUS-537110503
...
2
Clutch Spring HUS-537359101
...
3
Clutch Drum Assembly HUS-578097901
...
4
Needle Bearing HUS-503255201
...
5
Pump Pinion HUS-503931801
...
6
Pump Piston HUS-540057901
...
7
Pump Cylinder HUS-537154801
...
8
Oil Hose HUS-544084202

Jonsered CS2250SII

...
...

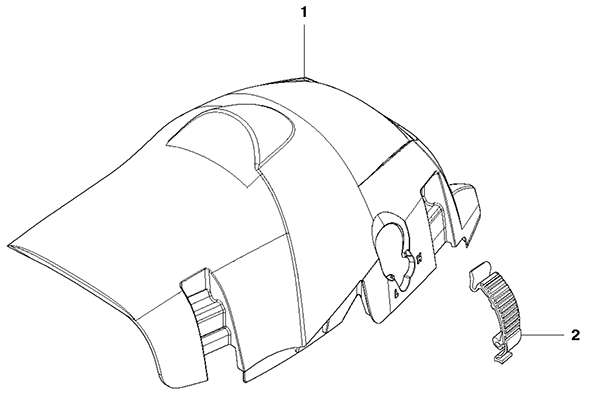

1
Cylinder Cover HUS-581112801
...
2
Snap Locking HUS-503894702

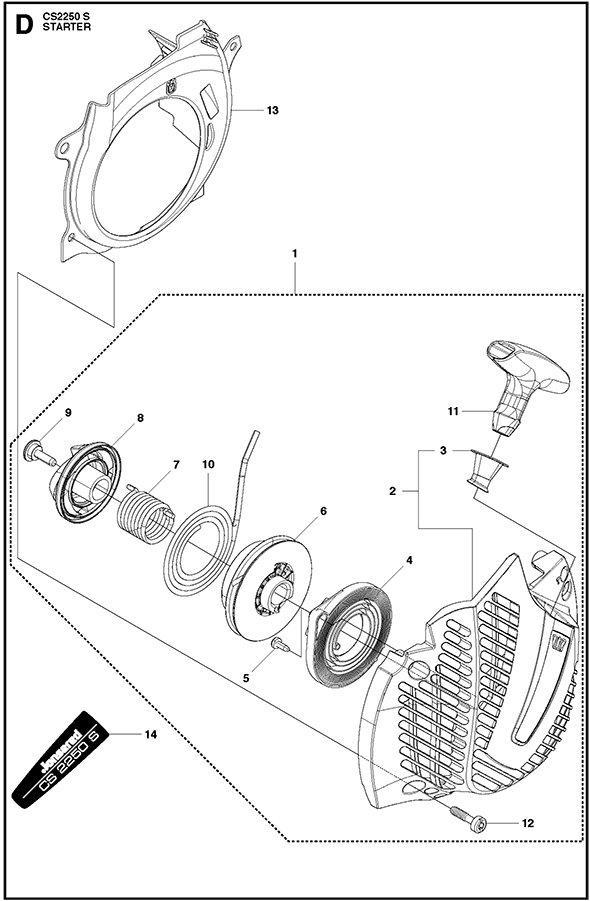

Jonsered CS2250SII

...
...
1
Starter Assembly HUS-502300402
...
2
Starter Housing HUS-502300501
...
3
Sleeve HUS-537283201
...
4
Spring Cassette Assembly HUS-540057502
...
5
Screw Ccrpant HUS-503212810
...
6
Starter Pulley HUS-537423201
...
7
Spring HUS-537423401
...
8
Driver HUS-537423301
...
9
Screw HUS-537426601
...
10
Starter Cord HUS-505305125
...
11
Starter Handle HUS-544376501
...
12
Screw HUS-503217321
...
13
Cooling Air Conducter HUS-544081501
...
14
Label HUS-505402802

Jonsered CS2250SII

...
...

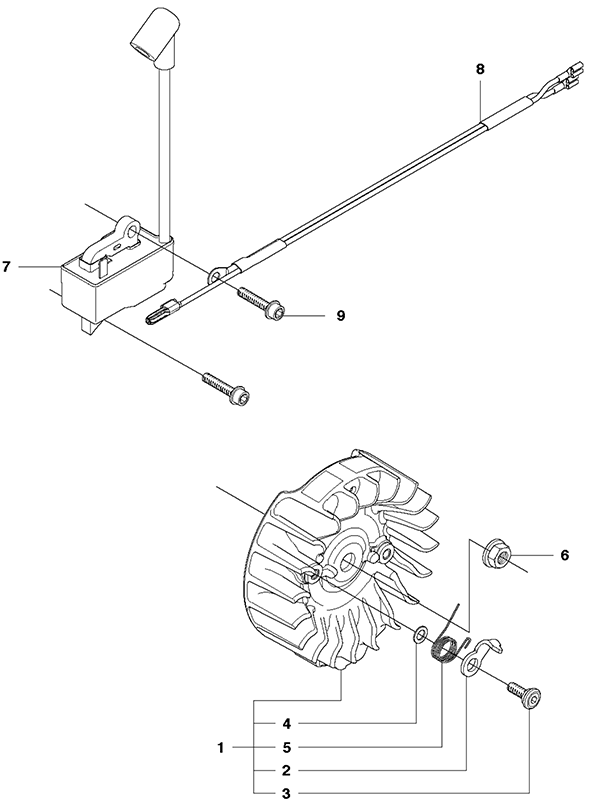

1
Flywheel Assembly HUS-580279601
...
2
Starter Pawl HUS-537245601
...
3
Screw HUS-501819903
...
4
Washer HUS-503230042
...
5
Spring HUS-529271101
...
6
Nut HUS-503220401
...
7
Ignitionition Module HUS-579638805
...
8
Wiring Assembly HUS-510101501
...
9
Screw Ihscfm HUS-503200220

Jonsered CS2250SII

...
...

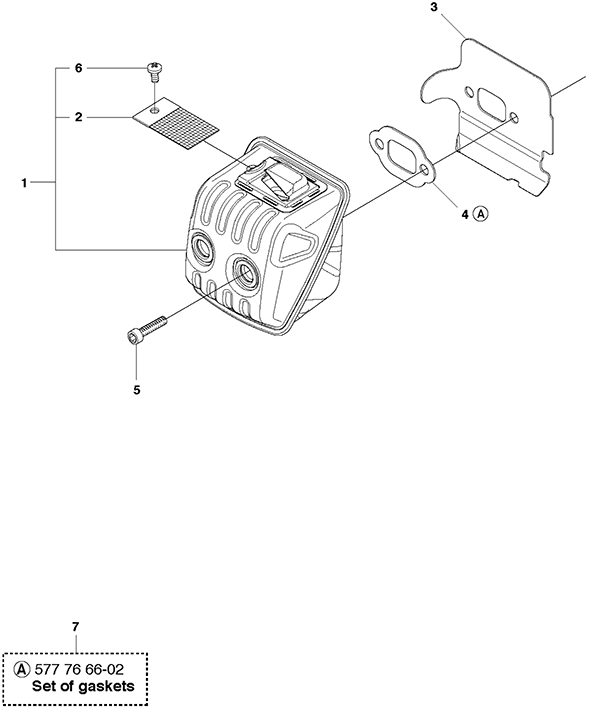

1
Muffler Assembly HUS-544147702
...
2
Screen HUS-579753301
...
3
Heat Deflector HUS-579753201
...
4
Gasket HUS-579753101
...
5
Screw Ihscm HUS-725536855
...
6
Screw Crpanm HUS-724128759
...
7
Gasket Kit, Set Of Gaskets HUS-544972001

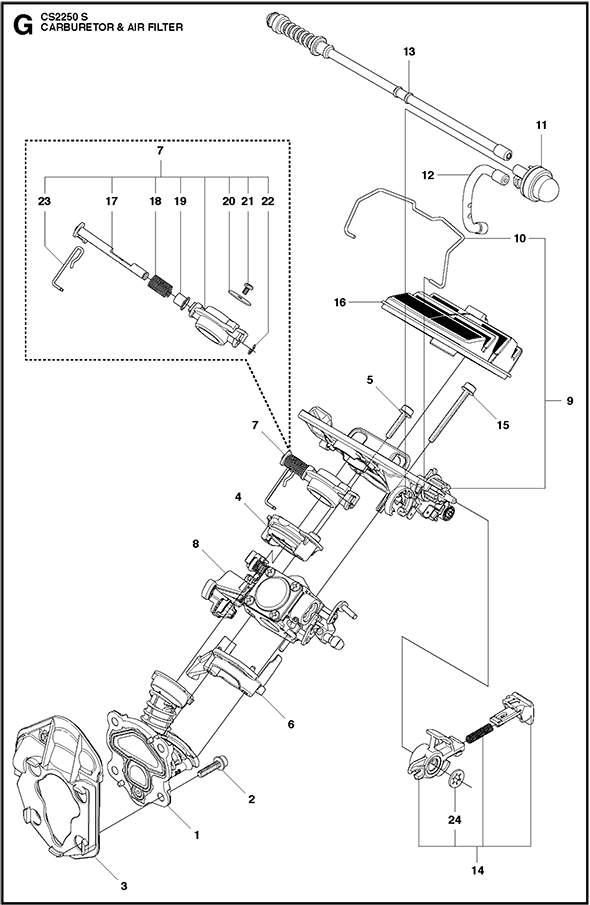

Jonsered CS2250SII

...
...
1
Pipe Assembly HUS-544082301
...
2
Screw Ihscfm HUS-503200216
...
3
Intermedate Wall HUS-544083801
...
4
Flange HUS-544084001
...
5
Screw Ihscft HUS-503210725
...
6
Flange HUS-544084101
...
7
Throttle HUS-544148201
...
8
Carburettor, C1M-El37B HUS-506450401
...
9
Filter Holder HUS-504003401
...
10
Shackle HUS-544231401
...
11
Purge HUS-503936601
...
12
Hose HUS-544401901
...
13
Return Hose HUS-577535101
...
14
Control HUS-544359902
...
15
Screw Ihscft HUS-503210750
...
16
Air Filter, Ls Pa 80 HUS-544080801
...
16
Air Filter, Ls Pa 44 HUS-544080802
...
16
Air Filter, Felt HUS-544080803
...
17
Shaft Assembly HUS-502081001
...
18
Spring HUS-502081101
...
19
Collar HUS-502080801
...
20
Valve HUS-502081201
...
21
Screw HUS-503481801
...
22
Clip HUS-537385201
...
23
Rod HUS-502080901
...
24
Washer HUS-735583000

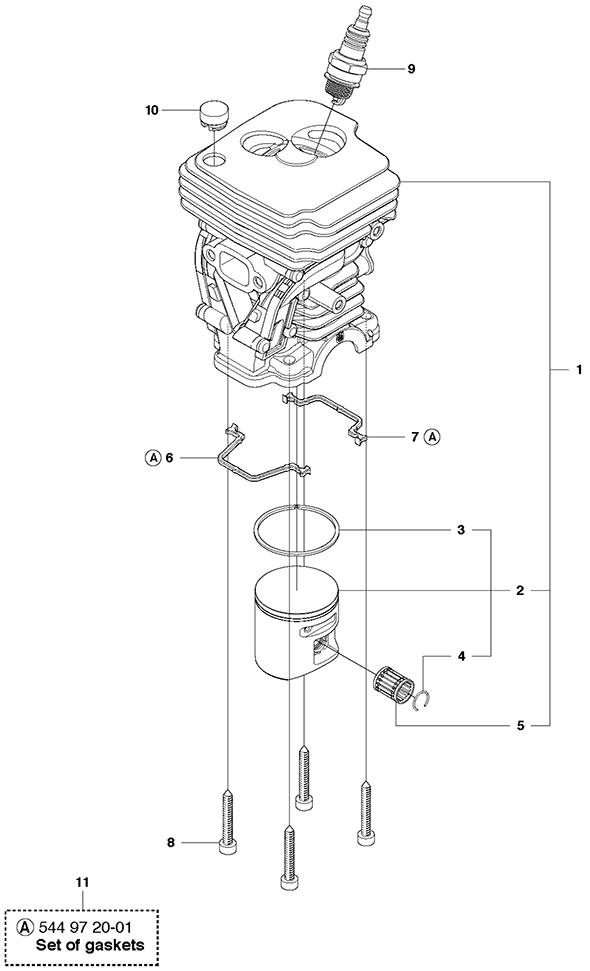

Jonsered CS2250SII

...
...
1
Cylinder HUS-544119803
...
2
Piston Assembly HUS-544088903
...
3
Piston Ring HUS-544088701
...
4
Circlip HUS-544211301
...
5
Needle Bearing HUS-503256301
...
6
Gasket HUS-544108701
...
7
Gasket HUS-544109201
...
8
Screw Ihscm HUS-503200527
...
9
Spark Plug HUS-503235111
...
10
Support HUS-540057301
...
11
Gasket Kit, Set Of Gaskets HUS-544972001

Jonsered CS2250SII

...
...

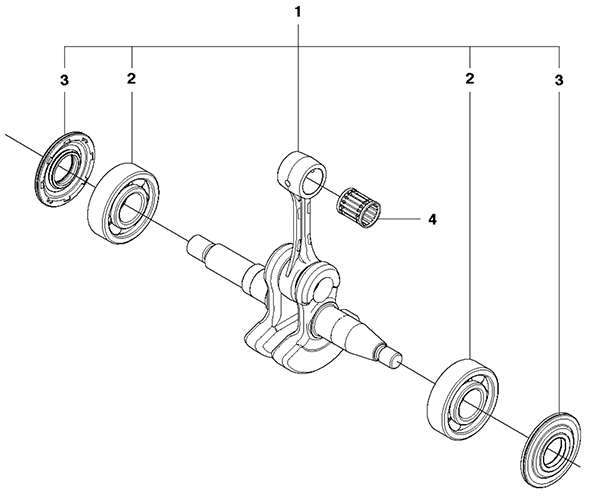

1
Crankshaft Assembly HUS-525605001
...
2
Bearing HUS-544062001
...
3
Sealing HUS-544013801
...
4
Needle Bearing HUS-503256301

Jonsered CS2250SII

...
...

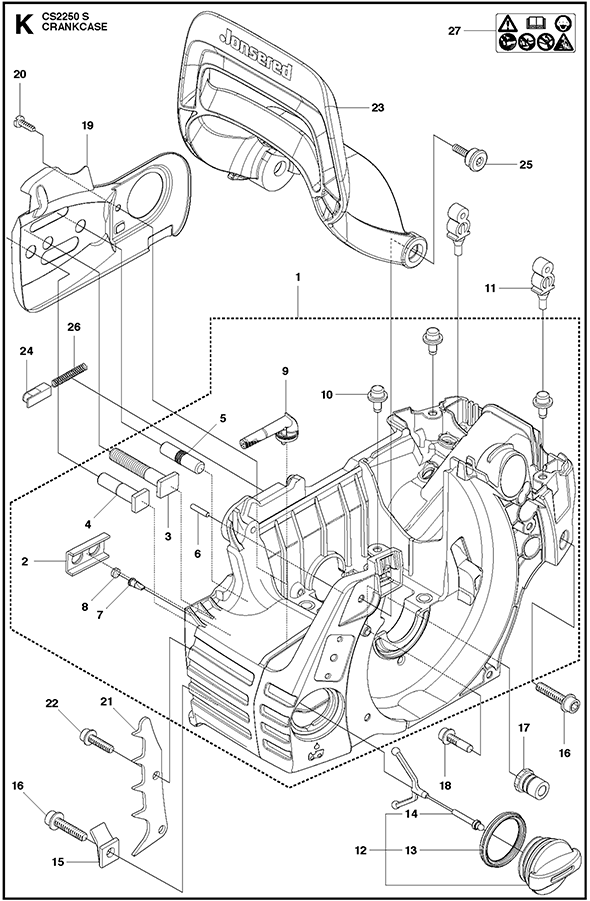

1
Crankcase HUS-537438203
...
2
Stiffening Plate HUS-503875802
...
3
Bar Bolt HUS-503875402
...
4
Bar Bolt HUS-537334601
...
5
Bar Bolt HUS-544036401
...
6
Needle Roller HUS-503240905
...
7
Check Valve HUS-530026119
...
8
Filter HUS-537403501
...
9
Oil Screen HUS-544083301
...
10
Guide Pin HUS-544331601
...
11
Support HUS-503869301
...
12
Tank Cap Assembly HUS-544111202
...
13
Sealing HUS-537215001
...
14
Holder HUS-503578901
...
15
Pin HUS-503886301
...
16
Screw Ihsct HUS-544316201
...
17
Support HUS-501007601
...
18
Screw Ihsct HUS-503218876
...
19
Chain Guide Plate HUS-544094001
...
20
Screw Ccrpant HUS-503217010
...
21
Spike HUS-503905901
...
22
Screw Ihscft HUS-503217520
...
23
Hand Guard HUS-502300901
...
24
Lock HUS-503892401
...
25
Screw HUS-503893001
...
26
Position Spring HUS-503436501
...
27
Decal HUS-505557601

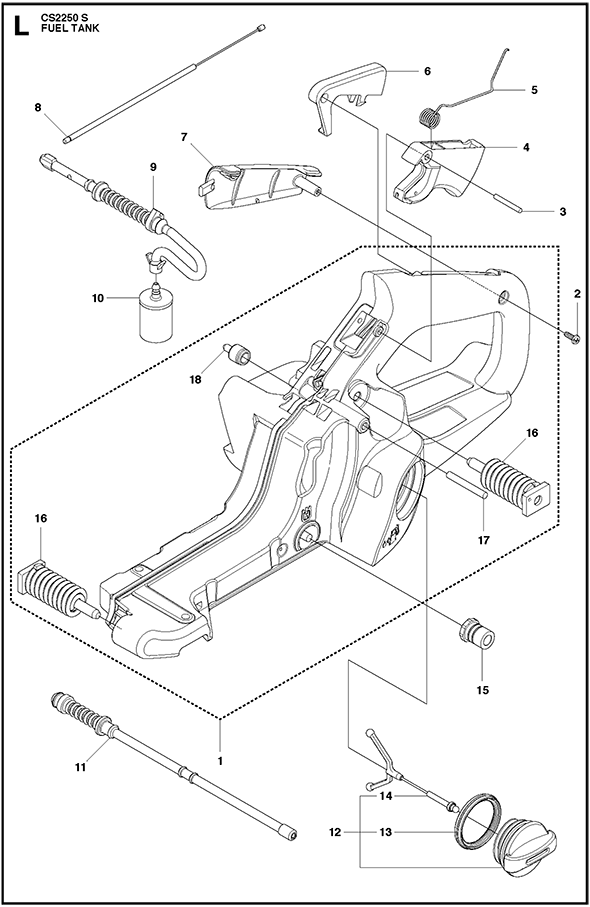

Jonsered CS2250SII

...
...
1
Fuel Tank Assembly HUS-525862105
...
2
Screw Ccrpant HUS-503212810
...
3
Parallel Pin HUS-720182520
...
4
Throttle Trigger HUS-544099702
...
5
Spring HUS-544099901
...
6
Throttle Lockout HUS-544099802
...
7
Handle Insert HUS-504122202
...
8
Throttle Cable Assembly HUS-504098801
...
9
Fuel Hose HUS-578764301
...
10
Fuel Filter HUS-503443201
...
11
Return Hose HUS-577535101
...
12
Tank Cap Assembly HUS-544111204
...
13
Gasket HUS-589241101
...
14
Holder HUS-503578901
...
15
Support HUS-501007601
...
16
Antivibration Element HUS-544101201
...
17
Grooved Pin HUS-721126339
...
18
Tank Vent Assembly HUS-501152901

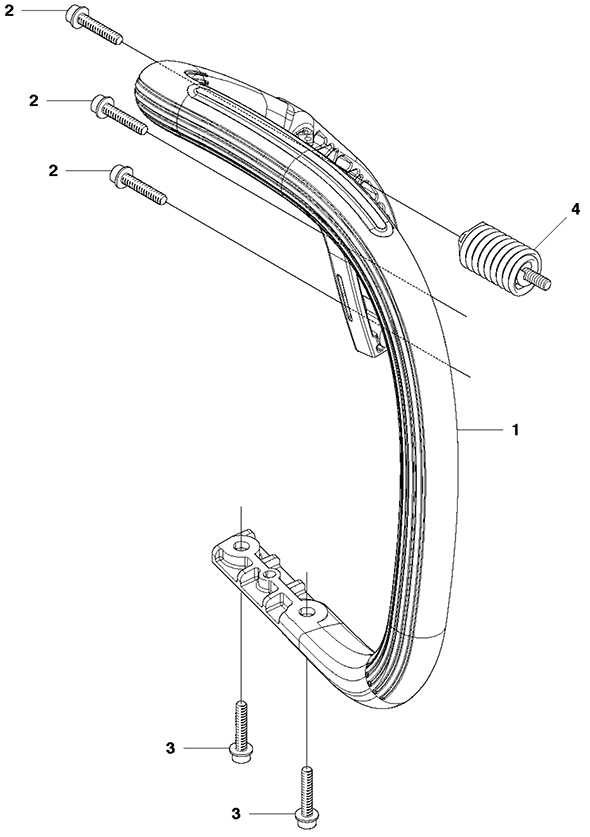

Jonsered CS2250SII

...
...
1
Front Handle HUS-502300801
...
2
Screw Ihsct HUS-503218876
...
3
Screw Ihsct HUS-503210270
...
4
Antivibration Element HUS-503898301

Jonsered CS2250SII

...
...

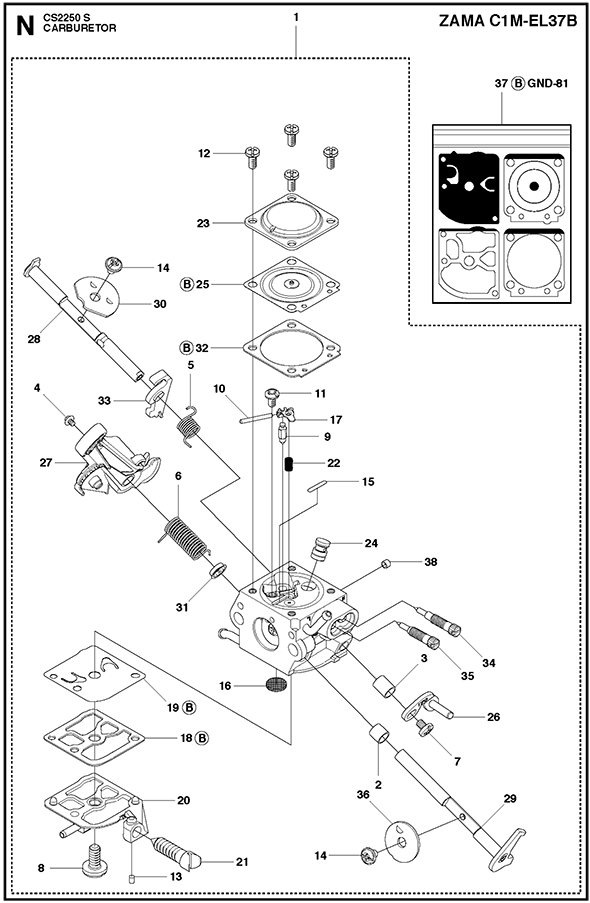

1
Carburettor HUS-506450401
...
2
Collar HUS-502078201
...
3
Collar HUS-502078301
...
4
Screw HUS-502078401
...
5
Spring HUS-502078601
...
6
Spring HUS-502078701
...
7
Screw HUS-503479001
...
8
Screw HUS-503479601
...
9
Valve HUS-503479701
...
10
Pin Retaining Screw HUS-503480001
...
11
Screw HUS-503480101
...
12
Screw HUS-503480501
...
13
Piece HUS-503481101
...
14
Screw HUS-503481801
...
15
Plug Welch HUS-503535601
...
16
Strainer HUS-503535701
...
17
Lever HUS-503665901
...
18
Gasket HUS-537020101
...
19
Diaphragm Pump HUS-537383101
...
20
Cover HUS-502078901
...
21
Screw HUS-537383301
...
22
Spring HUS-537383401
...
23
Cover HUS-537383701
...
24
Nozzle Assembly HUS-544237701
...
25
Diaphragm HUS-502079001
...
26
Lever HUS-502079101
...
27
Lever HUS-505101701
...
28
Shaft Assembly HUS-502079401
...
29
Shaft Assembly HUS-502079501
...
30
Valve HUS-502247701
...
31
Collar HUS-502079801
...
32
Gasket HUS-537383601
...
33
Lever HUS-502081701
...
34
Screw HUS-502079901
...
35
Screw HUS-502080001
...
36
Valve HUS-502080101
...
37
Gasket Kit, B = Set Of Gaskets HUS-502080201
...
38
Plug HUS-544119501

Jonsered CS2250SII

...
...

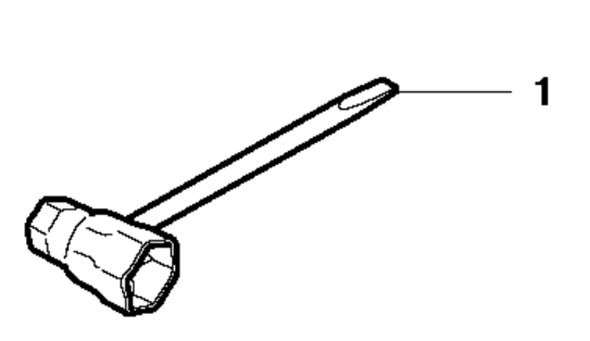

1
Tool HUS-503558504

Jonsered CS2250SII

...
...

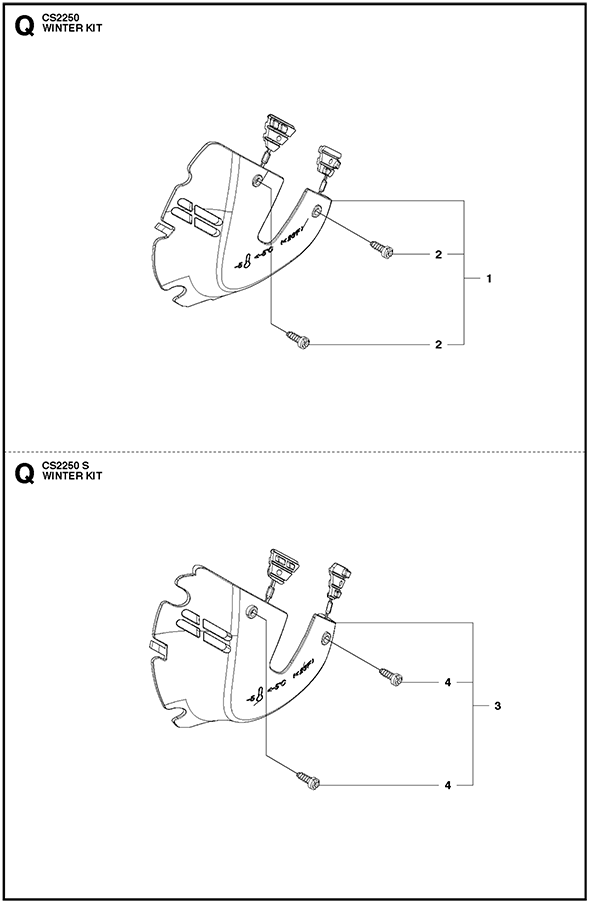

1
Winter Kit HUS-504835701
...
2
Screw Ccrpant HUS-503212713
...
3
Winter Kit HUS-504835702
...
4
Screw Ccrpant HUS-503212713
