product name

Jonsered CS2240S-2009-02 Chain Saw

Model: CS2240S-2009-02

Save
 Part Not Listed?Part Not Listed?
product name

Jonsered CS2240S-2009-02

...
...
1
Clutch Cover Assembly HUS-544194902
...
2
Cover HUS-504542801
...
3
Brake Band Assembly HUS-544306001
...
4
Wear Protection HUS-544253101
...
5
Guide Bushing HUS-503855201
...
6
Brake Spring HUS-503892601
...
7
Cover Lid HUS-544248501
...
8
Knee Joint HUS-503890802
...
9
Pin Knee Joint HUS-503892901
...
10
E-Clip HUS-735310820
...
11
Chain Tension Screw HUS-537392901
...
12
Chain Tensioner Wheel HUS-537347202
...
13
Heat Protector HUS-537392602
...
14
Label HUS-544357502
...
15
Screw HUS-503217010
...
16
Bearing Sleeve HUS-544845501
...
17
Wear Plate HUS-544250501
...
18
Knob HUS-537347802

Jonsered CS2240S-2009-02

...
...
1
Clutch Assembly HUS-544871201
...
2
Clutch Spring HUS-502080301
...
3
Clutch Drum Assembly HUS-505441501
...
4
Support Bushing HUS-503539201
...
5
Worm Gear HUS-544212401
...
6
Pump Piston HUS-540057901
...
7
Pump Cylinder HUS-537154801
...
8
Oil Hose HUS-544084201

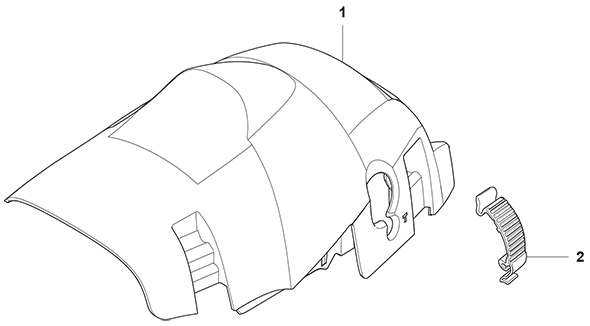

Jonsered CS2240S-2009-02

...
...
1
Cylinder Cover Kpl HUS-505192101
...
2
Snap HUS-503894702

Jonsered CS2240S-2009-02

...
...
2
Starter Housing HUS-505425401
...
3
Reinforcement Sleeve HUS-510411101
...
4
Spring Casette Assembly HUS-540057501
...
5
Screw Ccrpant HUS-503212810
...
6
Starter Pulley HUS-537423201
...
7
Spring HUS-505647301
...
8
Driver HUS-537423301
...
9
Screw HUS-537426601
...
10
Starter Cord HUS-505305125
...
11
Starthandtag HUS-544376501
...
12
Screw Cihscto HUS-503217321
...
13
Label, Starter HUS-522599802
...
14
Cooling Air Conductor HUS-544197101

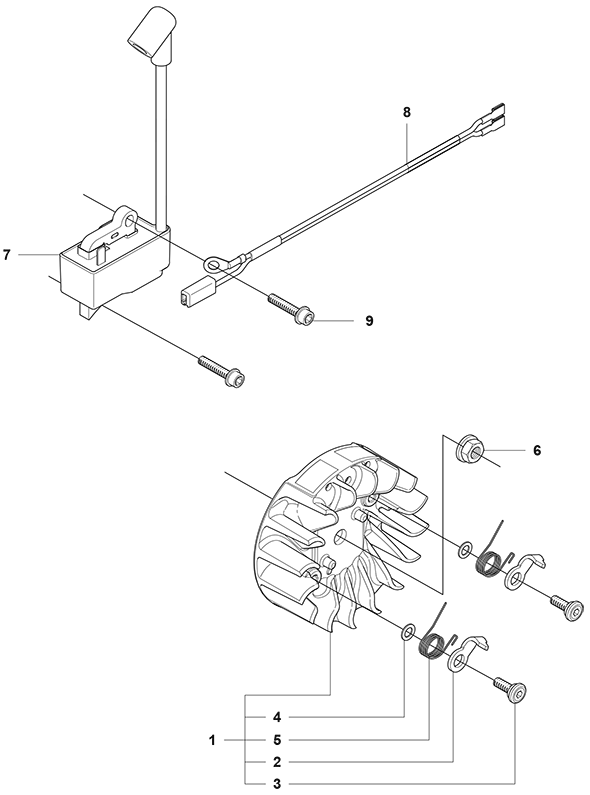

Jonsered CS2240S-2009-02

...
...
1
Flywheel Assembly HUS-544874201
...
2
Starter Pawl HUS-537245601
...
3
Screw HUS-501819903
...
4
Washer Steel HUS-503230042
...
5
Spring HUS-503783201
...
6
Nut HUS-503220401
...
7
Ignitionition Module HUS-505427201
...
8
Wiring Assembly HUS-544848201
...
9
Screw Ihscfm HUS-503200220

Jonsered CS2240S-2009-02

...
...
1
Muffler Assembly HUS-544147701
...
2
Spark Arrester HUS-544148401
...
3
Heat Deflector HUS-501323101
...
4
Gasket HUS-544084401
...
5
Screw HUS-725536855

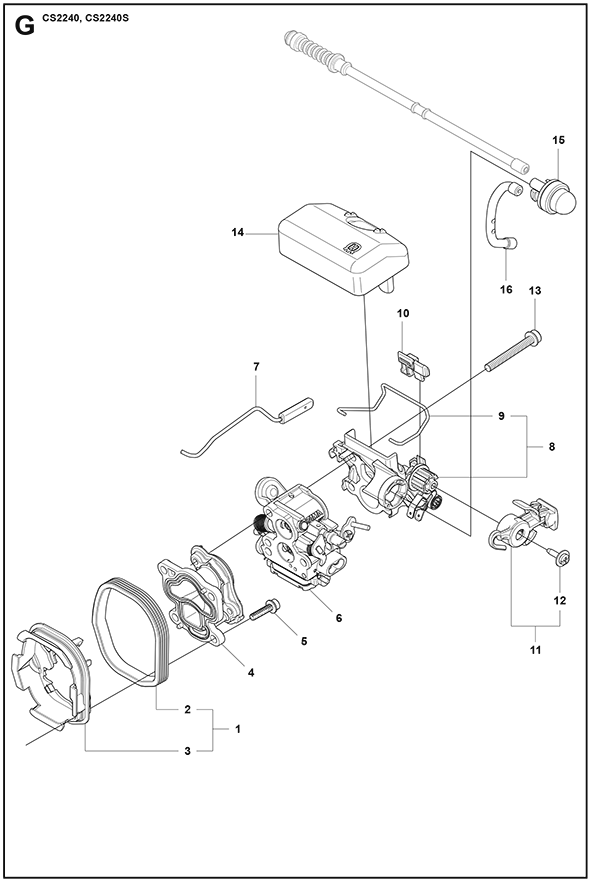

Jonsered CS2240S-2009-02

...
...
1
Insulation Wall Assembly HUS-504724701
...
2
Insulation Wall Rubber HUS-504724501
...
3
Inulation Wall Plastic HUS-504724401
...
4
Inlet Pipe HUS-504201201
...
5
Screw HUS-503200216
...
6
Carburettor HUS-506450501
...
7
Throttle Rod Assembly HUS-544284401
...
8
Filter Holder Assembly HUS-544976401
...
9
Shackle HUS-544392601
...
10
Guide Sliding Shoe HUS-504712501
...
11
Control Assembly HUS-544844302
...
12
Screw HUS-544976601
...
13
Screw HUS-503200240
...
14
Air Filter Assembly (44 Micron) HUS-544805402
...
14
Air Filter Assembly (Felt) HUS-544805403
...
15
Air Purge HUS-503936601
...
16
Hose, Airpurge Suction HUS-544401901

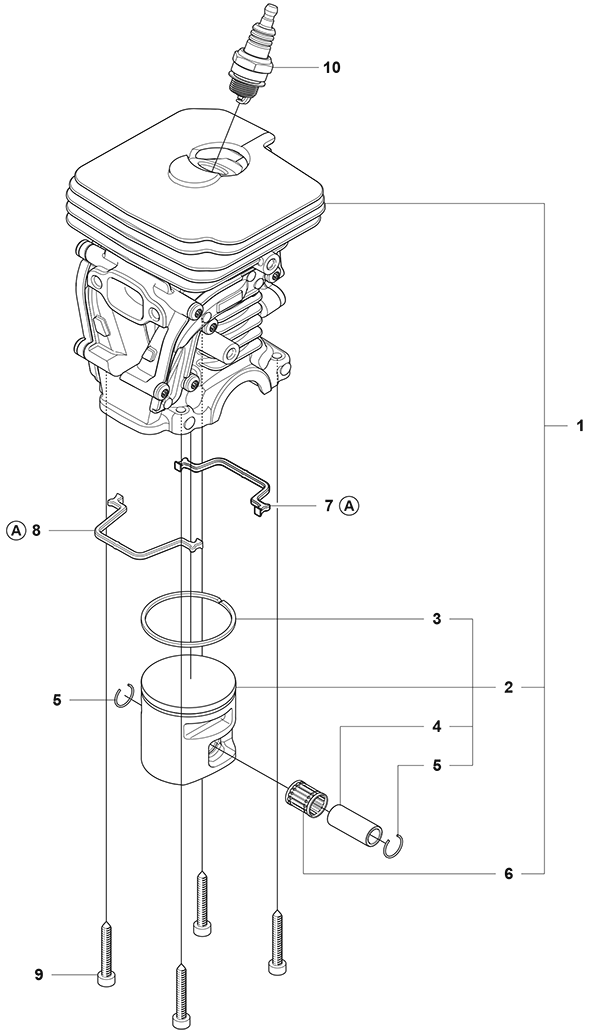

Jonsered CS2240S-2009-02

...
...
1
Cylinder Assembly HUS-504735101
...
2
Piston Assembly HUS-502625002
...
3
Piston Ring HUS-544405901
...
4
Piston Pin HUS-544406001
...
5
Circlip HUS-537399901
...
6
Needle Bearing HUS-503414101
...
7
Gasket, Cylinder Rear HUS-544396001
...
8
Gasket, Cylinder Front HUS-544395901
...
9
Screw HUS-725533355
...
10
Spark Plug HUS-503235111

Jonsered CS2240S-2009-02

...
...
1
Crankshaft HUS-544343801
...
2
Ball Bearing 6001 Od32 HUS-544248701
...
3
Sealing 12X32X3,7 HUS-544251201
...
4
Ball Bearing 6001 Od32W HUS-544248801
...
5
Sealing 16,6X32,3,7 HUS-544251301
...
6
Needle Bearing HUS-503414101

Jonsered CS2240S-2009-02

...
...
1
Crankcase Assembly HUS-544932502
...
2
Stiffening Plate HUS-503875802
...
3
Bar Bolt HUS-503875402
...
4
Bar Bolt HUS-537334601
...
5
Bar Bolt HUS-544036401
...
6
Needle Roller HUS-503240905
...
7
Check Valve HUS-530026119
...
8
Filter HUS-537403501
...
9
Oil Screen HUS-544083301
...
10
Guide Pin HUS-544331601
...
11
Support HUS-503869301
...
12
Tank Cap Assembly HUS-544111202
...
13
Sealing HUS-537215001
...
14
Holder HUS-503578901
...
15
Chain Catcher Pin HUS-503886301
...
16
Screw HUS-544316201
...
17
Lateral Support HUS-501007601
...
18
Screw HUS-503215103
...
19
Chain Guide Plate HUS-544284601
...
20
Screw HUS-503217010
...
21
Spike Inner HUS-544286501
...
22
Screw HUS-503217520
...
23
Hand Guard HUS-506492501
...
24
Catch HUS-503892401
...
25
Screw HUS-503893002
...
26
Lock Spring HUS-503436501

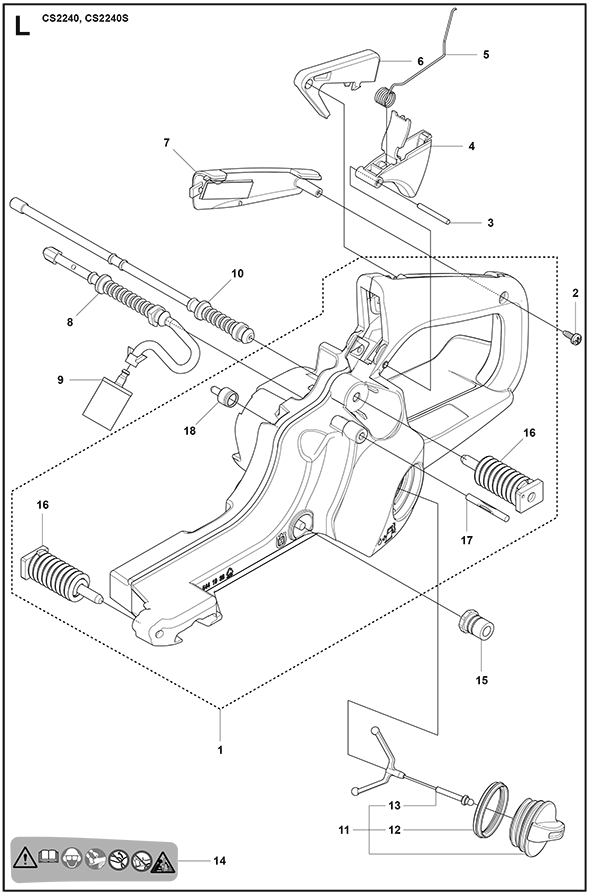

Jonsered CS2240S-2009-02

...
...
1
Fuel Tank Assembly HUS-544193802
...
2
Screw HUS-503212810
...
3
Pin HUS-720182520
...
4
Throttle Control HUS-544968502
...
5
Spring HUS-544099901
...
6
Throttle Lockout HUS-544284102
...
7
Handle Insert HUS-544284902
...
8
Fuel Hose HUS-544128601
...
9
Filter Mix HUS-503443201
...
10
Return Hose HUS-544129701
...
11
Tank Cap Assembly HUS-544111202
...
12
Sealing HUS-537215001
...
13
Holder HUS-503578901
...
14
Decal Warning HUS-544375001
...
15
Lateral Support HUS-501007601
...
16
Antivibration Element HUS-504795601
...
17
Grooved Pin HUS-721126339
...
18
Fuel Tank Vent HUS-537359501

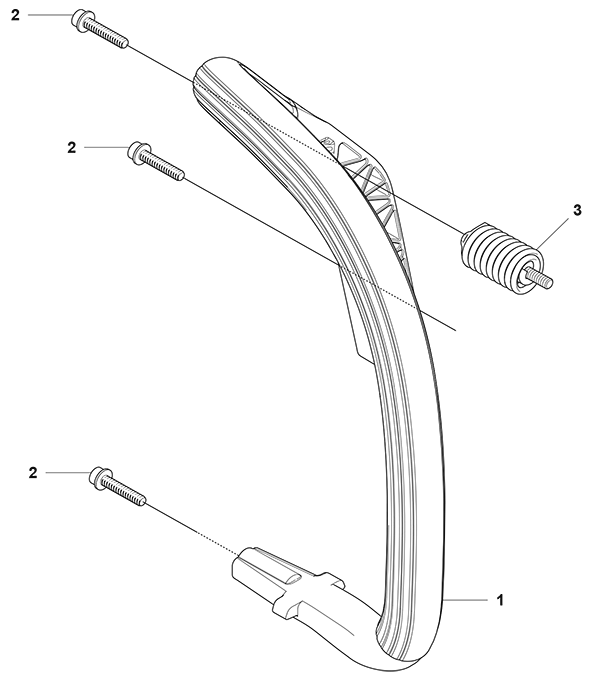

Jonsered CS2240S-2009-02

...
...
1
Front Handle HUS-506492601
...
2
Screw HUS-503218876
...
3
Antivibration Element HUS-503898301

Jonsered CS2240S-2009-02

...
...
1
Zama C1T-El41 HUS-506450501
...
2
Piece HUS-503481101
...
3
Nozzle Assembly HUS-504024001
...
4
Plug Welch HUS-503535601
...
5
Valve HUS-503479701
...
6
Spring HUS-537020301
...
7
Lever HUS-503665901
...
8
Pin Retaning Screw HUS-503480001
...
9
Screw HUS-504024101
...
10
Cap HUS-505535201
...
11
Shaft Assembly HUS-504026101
...
12
Collar HUS-505110701
...
13
Spring HUS-504028501
...
14
Valve HUS-504027501
...
15
Screw HUS-503481801
...
16
Circlip HUS-504026701
...
17
Shaft Assembly HUS-504026201
...
18
Lever HUS-540053701
...
19
Spring HUS-504028301
...
20
Lever HUS-504026301
...
21
Screw HUS-503479001
...
22
Valve HUS-504027401
...
23
Screw HUS-503481801
...
24
Shaft Assembly HUS-504026001
...
25
Spring HUS-504028401
...
26
Lever HUS-544983101
...
27
Screw HUS-503479001
...
28
Valve HUS-504027601
...
29
Screw HUS-503479201
...
30
Screw HUS-504027301
...
31
Screw HUS-504909201
...
32
Screw HUS-504028101
...
33
Gasket HUS-504024301
...
34
Diaphragm HUS-504024501
...
35
Body HUS-504024601
...
36
Screw HUS-504028201
...
37
Strainer HUS-504025001
...
38
Diaphragm HUS-504025601
...
39
Gasket HUS-504025701
...
40
Cover HUS-504025901
...
41
Screw HUS-504027801
...
42
Gasket Kit HUS-504028601

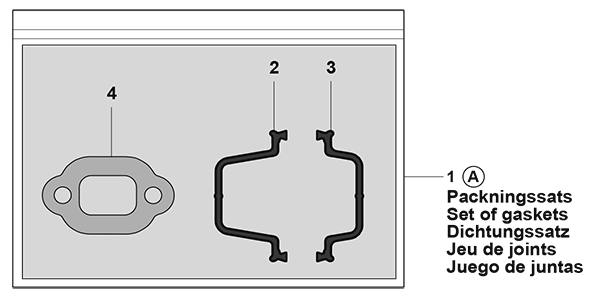

Jonsered CS2240S-2009-02

...
...
1
A HUS-504794001
...
2
Gasket, Cylinder HUS-544395901
...
3
Gasket, Cylinder HUS-544396001
...
4
Gasket HUS-544084401

Jonsered CS2240S-2009-02

...
...
1
Tool HUS-503558504

Jonsered CS2240S-2009-02

...
...
1
Winter Kit HUS-522857201
...
2
Screw HUS-503212713
...
3
Winter Plug HUS-503405901
...
...
...
