Jonsered CS2240-2010-06 Chain Saw

Model: CS2240-2010-06

Save Part Not Listed?
product name

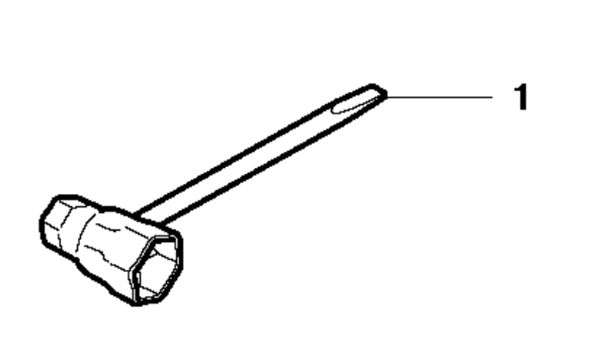

Jonsered CS2240-2010-06

...
...
1
Tool HUS-503558504

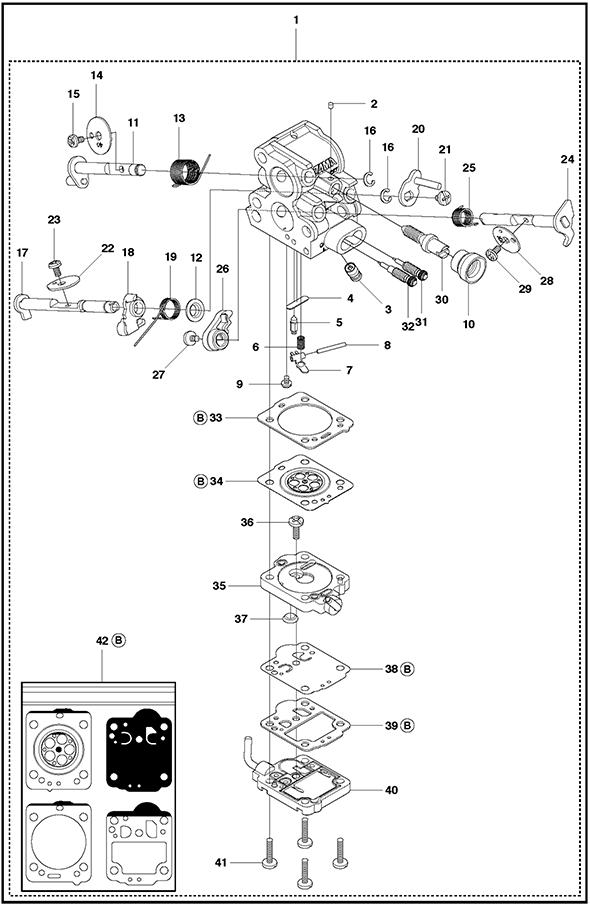

Jonsered CS2240-2010-06

...
...
1
Carburettor HUS-506450501
...
2
Piece HUS-503481101
...
3
Nozzle Assembly HUS-504024001
...
4
Plug Welch HUS-503535601
...
5
Valve HUS-503479701
...
6
Spring HUS-537020301
...
7
Lever HUS-503665901
...
8
Pin Retaining Screw HUS-503480001
...
9
Screw HUS-504024101
...
10
Hub Cap HUS-505535201
...
11
Shaft Assembly HUS-504026101
...
12
Collar HUS-505110701
...
13
Spring HUS-504028501
...
14
Valve HUS-504027501
...
15
Screw HUS-503481801
...
16
Circlip HUS-504026701
...
17
Shaft Assembly HUS-504026201
...
18
Lever HUS-540053701
...
19
Spring HUS-504028301
...
20
Lever HUS-504026301
...
21
Screw HUS-503479001
...
22
Valve HUS-504027401
...
23
Screw HUS-503481801
...
24
Shaft Assembly HUS-504026001
...
25
Spring HUS-504028401
...
26
Lever HUS-544983101
...
27
Screw HUS-503479001
...
28
Valve HUS-504027601
...
29
Screw HUS-503479201
...
30
Screw HUS-504027301
...
31
Screw HUS-504909201
...
32
Screw HUS-504028101
...
33
Gasket HUS-504024301
...
34
Diaphragm HUS-504024501
...
35
Body HUS-504024601
...
36
Screw HUS-504028201
...
37
Strainer HUS-504025001
...
38
Diaphragm HUS-504025601
...
39
Gasket HUS-504025701
...
40
Cover HUS-504025901
...
41
Screw HUS-504027801
...
42
Gasket Kit HUS-504028601

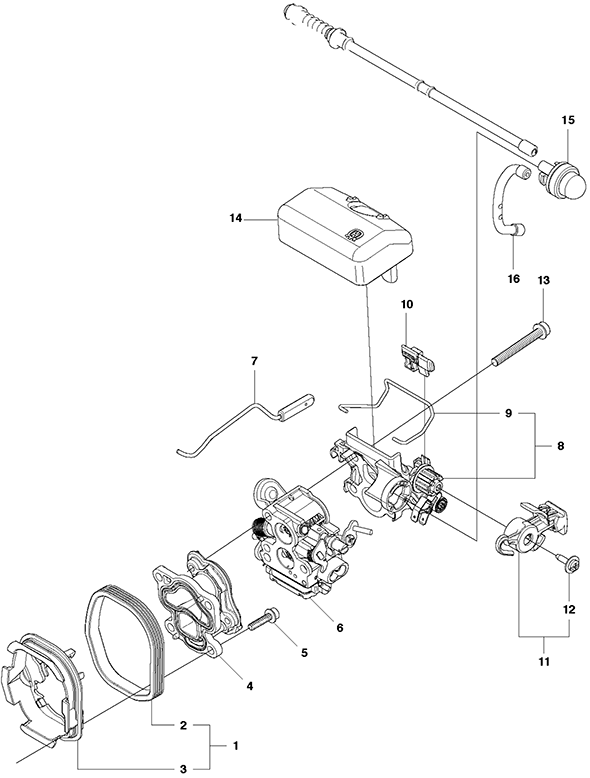

Jonsered CS2240-2010-06

...
...
1
Insulation Wall HUS-504724701
...
2
Insulation Wall HUS-504724501
...
3
Insulation Wall HUS-504724401
...
4
Inlet Pipe HUS-504201201
...
5
Screw Ihscfm HUS-503200216
...
6
Carburettor HUS-506450501
...
7
Throttle Rod Assembly HUS-544284401
...
8
Filter Holder HUS-544976401
...
9
Shackle HUS-544392601
...
10
Guide HUS-504712501
...
11
Control HUS-544844302
...
12
Screw HUS-544976601
...
13
Screw Ihscfm HUS-503200240
...
14
Air Filter, 44 Micron HUS-544805402
...
14
Air Filter, Felt HUS-544805403
...
15
Primer Housing HUS-503936601
...
16
Hose HUS-544401901

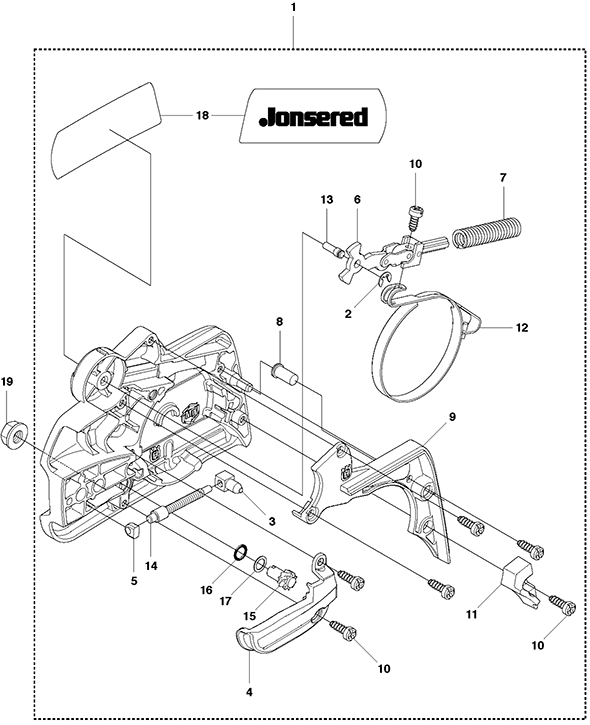

Jonsered CS2240-2010-06

...
...
1
Clutch Cover Assembly HUS-501388202
...
2
E-Clip HUS-735310820
...
3
Pawl HUS-537286601
...
4
Chain Guide HUS-540063301
...
5
Bearing Sleeve HUS-537017401
...
6
Knee Joint Assembly HUS-503890802
...
7
Brake Spring HUS-505892601
...
8
Guide Bushing HUS-503855201
...
9
Cover Lid HUS-544248501
...
10
Screw Ccrpant HUS-503217010
...
11
Wear Protection HUS-544253101
...
12
Brake Band Assembly HUS-544306001
...
13
Pin Knee-Joint HUS-503892901
...
14
Worm Screw HUS-537397001
...
15
Worm Wheel HUS-537079402
...
16
O-Ring HUS-740480702
...
17
Washer HUS-503230063
...
18
Label HUS-544376802
...
19
Hexagon Nut Flange HUS-503220001

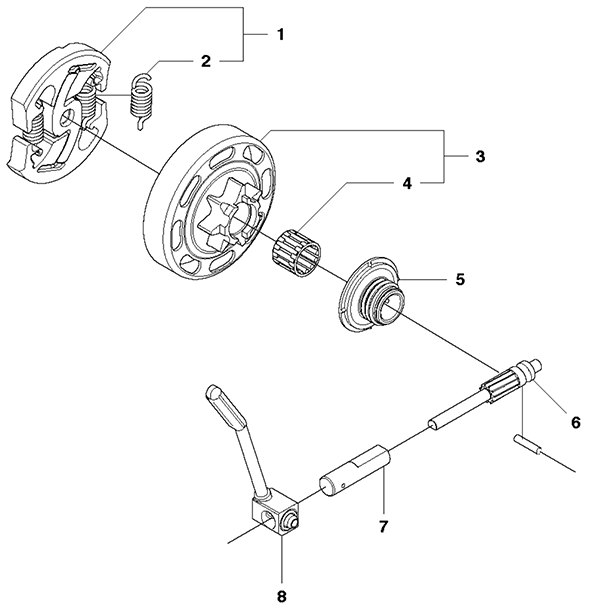

Jonsered CS2240-2010-06

...
...
1
Clutch Assembly HUS-544871201
...
2
Clutch Spring HUS-502080301
...
3
Clutch Drum HUS-505441501
...
4
Needle Bearing HUS-503539201
...
5
Worm Gear HUS-544212401
...
6
Pump Piston HUS-540057901
...
7
Pump Cylinder HUS-537154801
...
8
Oil Hose HUS-544084201

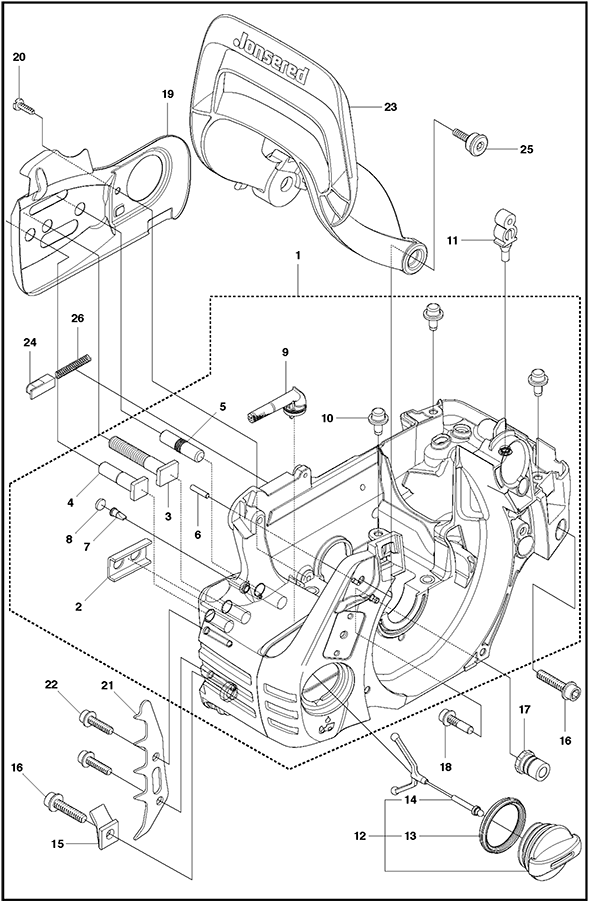

Jonsered CS2240-2010-06

...
...
1
Crankcase Assembly HUS-544932502
...
2
Stiffening Plate HUS-503875802
...
3
Bar Bolt HUS-503875402
...
4
Bar Bolt HUS-537334601
...
5
Bar Bolt HUS-544036401
...
6
Needle Roller HUS-503240905
...
7
Check Valve HUS-530026119
...
8
Filter HUS-537403501
...
9
Oil Screen HUS-544083301
...
10
Guide Pin HUS-544331601
...
11
Carburettor Mounting HUS-503869301
...
12
Tank Cap Assembly HUS-544111202
...
13
Sealing HUS-537215001
...
14
Holder HUS-503578901
...
15
Chain Catcher Pin HUS-503886301
...
16
Screw Ihscft HUS-503218876
...
17
Lateral Support HUS-501007601
...
18
Screw Ihscft HUS-503215103
...
19
Chain Guide Plate HUS-544284601
...
20
Screw Ccrpant HUS-503217010
...
21
Indre Barkstd HUS-544286501
...
22
Screw Ihscft HUS-503217520
...
23
Hand Guard HUS-506492501
...
24
Lock HUS-503892401
...
25
Screw HUS-503893001
...
26
Position Spring HUS-503436501

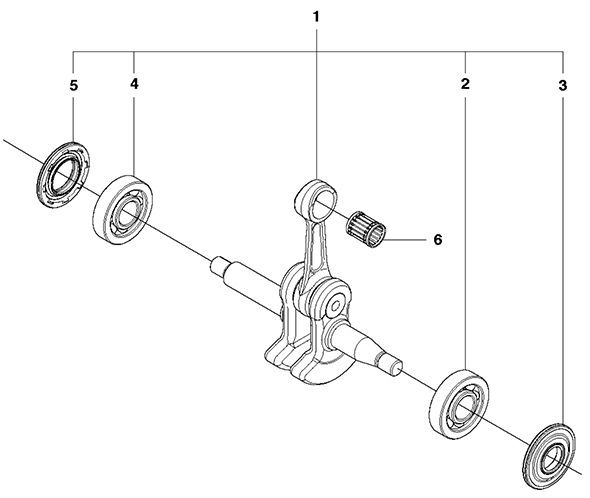

Jonsered CS2240-2010-06

...
...
1
Crankshaft HUS-544343801
...
2
Ball Bearing HUS-544248702
...
3
Sealing HUS-544251201
...
4
Ball Bearing HUS-544248802
...
5
Sealing HUS-544251301
...
6
Needle Bearing HUS-503414101

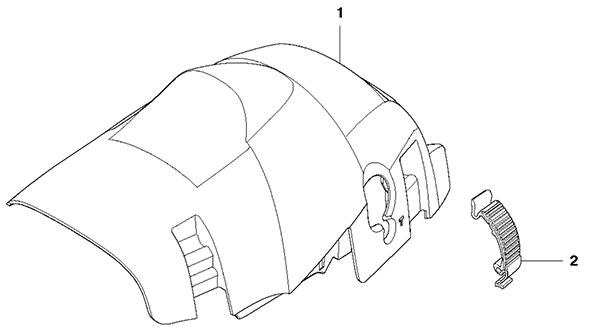

Jonsered CS2240-2010-06

...
...
1
Cylinder Cover HUS-505192101
...
2
Snap HUS-503894702

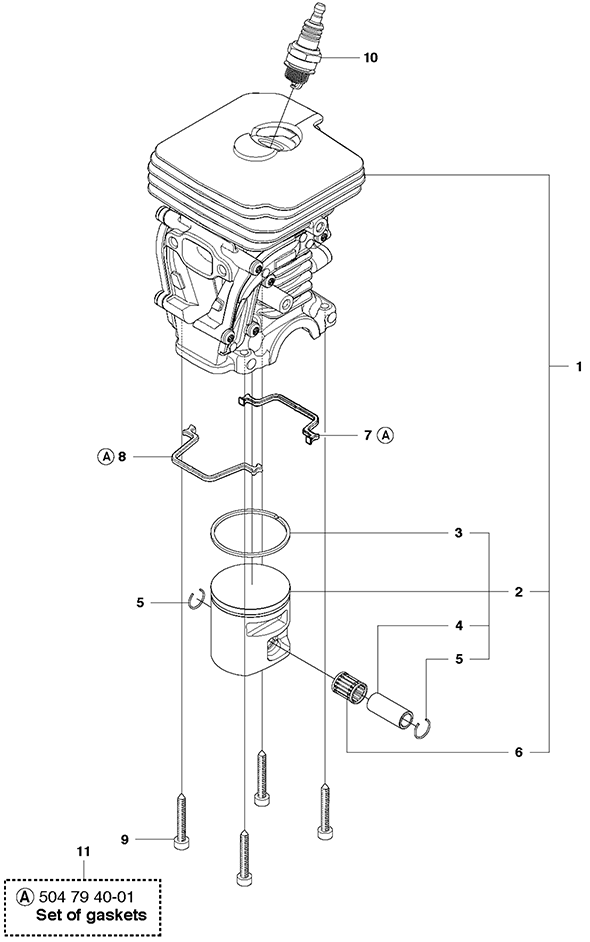

Jonsered CS2240-2010-06

...
...
1
Cylinder HUS-504735101
...
2
Piston Assembly HUS-502625002
...
3
Piston Ring HUS-544405901
...
4
Piston Pin HUS-544406001
...
5
Snap Ring HUS-737441000
...
6
Needle Bearing HUS-503414101
...
7
Gasket HUS-544396001
...
7
Gasket HUS-504794001
...
8
Gasket HUS-544395901
...
9
Screw Ihscm HUS-725533355
...
10
Spark Plug HUS-503235111

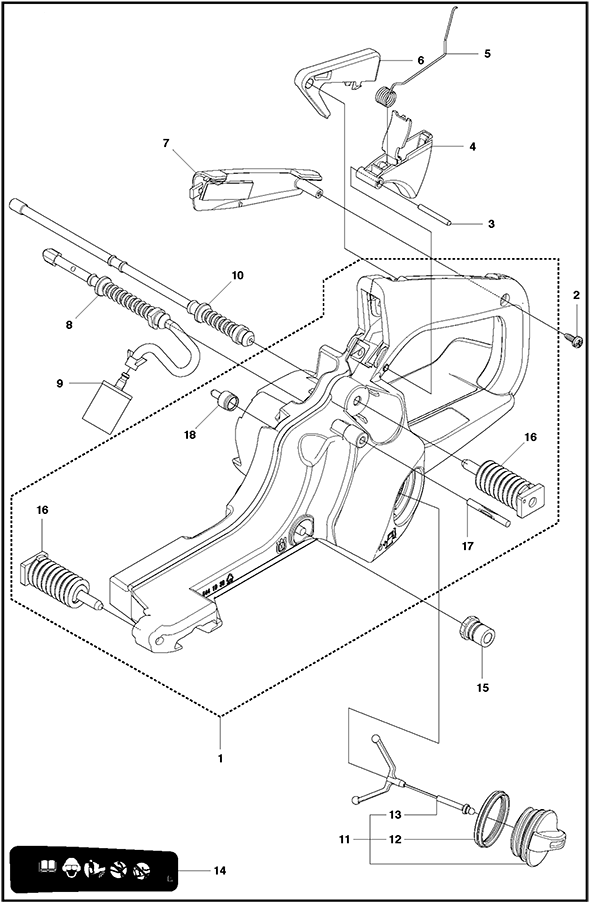

Jonsered CS2240-2010-06

...
...
2
Screw Ccrpant HUS-503212810
...
3
Parallel Pin HUS-720182520
...
4
Throttle Control HUS-544968502
...
5
Spring HUS-544099901
...
6
Throttle Lockout HUS-544284102
...
7
Handle Insert HUS-544284902
...
8
Fuel Hose HUS-544128601
...
9
Filter HUS-503443201
...
10
Return Hose HUS-544129701
...
11
Tank Cap Assembly HUS-544111202
...
12
Sealing HUS-537215001
...
13
Holder HUS-503578901
...
14
Label HUS-544375001
...
15
Lateral Support HUS-501007601
...
16
Antivibration Element HUS-504795601
...
17
Grooved Pin HUS-721126339
...
18
Tank Vent Assembly HUS-537359501

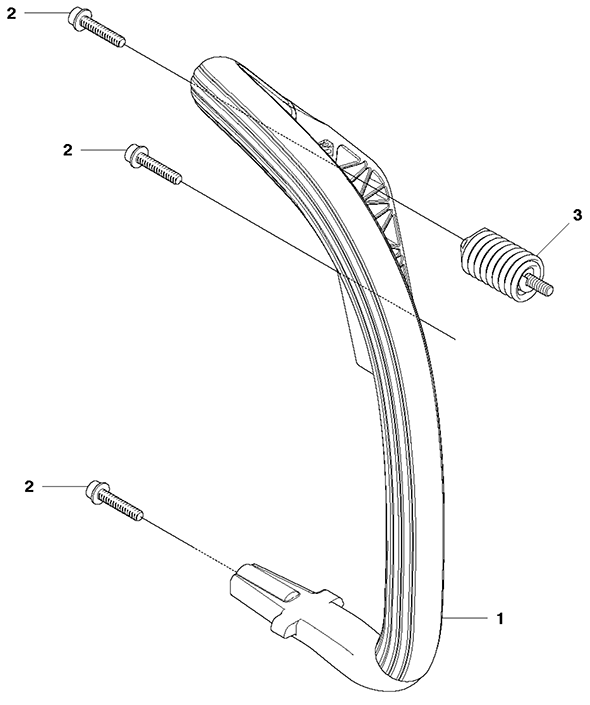

Jonsered CS2240-2010-06

...
...
1
Front Handle HUS-506492601
...
2
Screw Ihscft HUS-503218876
...
3
Antivibration Element HUS-503898301

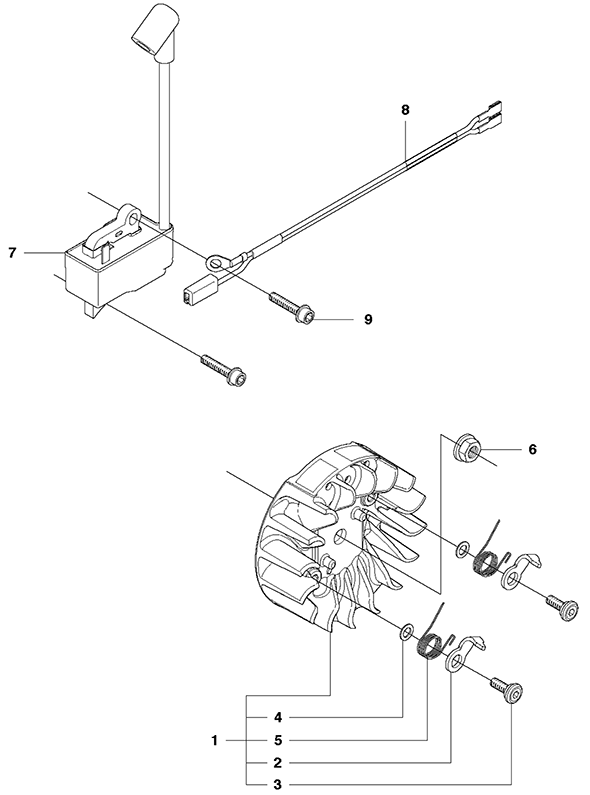

Jonsered CS2240-2010-06

...
...
1
Flywheel Assembly HUS-544874202
...
2
Starter Pawl HUS-537245601
...
3
Screw HUS-501819903
...
4
Washer HUS-503230042
...
5
Spring HUS-529271101
...
6
Nut HUS-503220401
...
7
Ignitionition Module HUS-573935701
...
8
Wiring Assembly HUS-510101401
...
9
Screw Ihscfm HUS-503200220

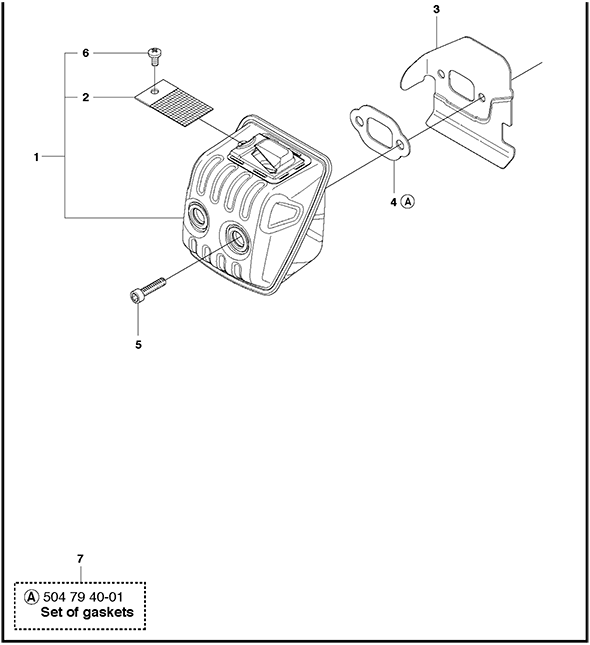

Jonsered CS2240-2010-06

...
...
1
Muffler Assembly HUS-544147702
...
2
Spark Arrestor Screen HUS-503863601
...
3
Heat Deflector HUS-501323101
...
4
Gasket HUS-544084401
...
5
Screw Ihscm HUS-725536855
...
6
Screw Crpanm HUS-724128759
...
7
Gasket HUS-504794001

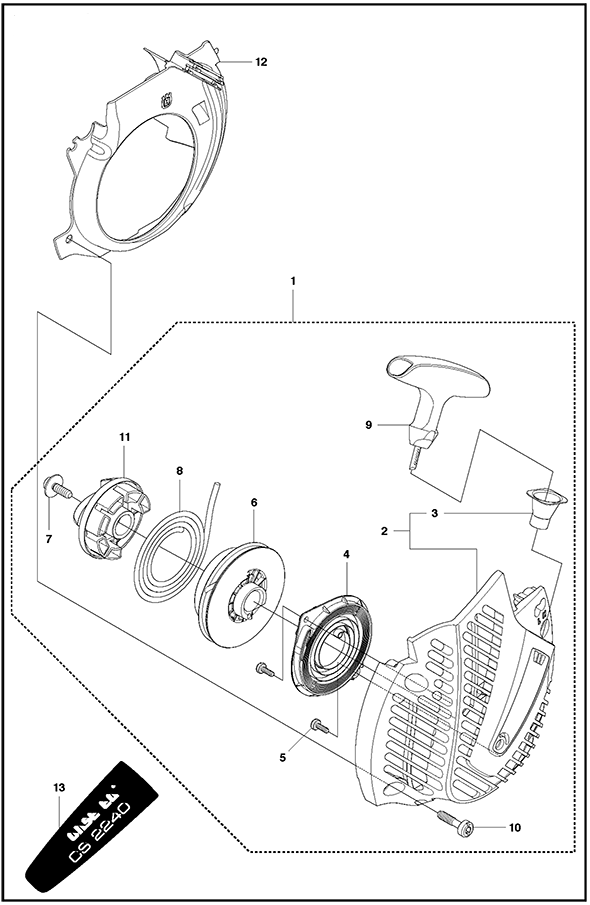

Jonsered CS2240-2010-06

...
...
1
Starter HUS-516020702
...
2
Starter Housing HUS-505425401
...
3
Reinforcement Sleeve HUS-537283201
...
4
Spring Cassette Assembly HUS-540057502
...
5
Screw Ccrpant HUS-503212810
...
6
Starter Pulley HUS-537423201
...
7
Screw HUS-537426601
...
8
Starter Cord HUS-505305125
...
9
Starter Handle HUS-544376501
...
10
Screw Cihscto HUS-503217321
...
11
Driver HUS-510443301
...
12
Cooling Air Conductor HUS-544197101
...
13
Label HUS-522599801

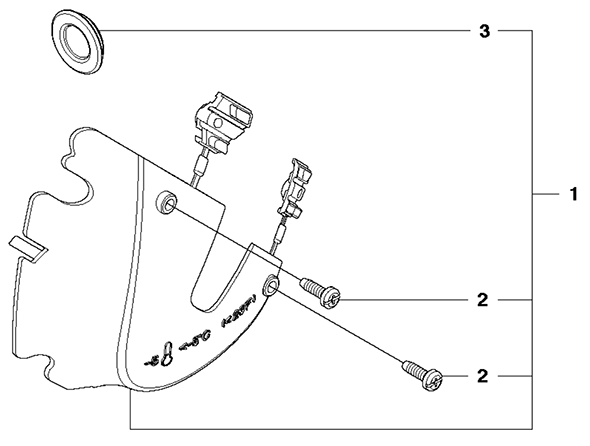

Jonsered CS2240-2010-06

...
...
1
Winter Kit HUS-522857201
...
2
Screw Crpant HUS-503212713
...
3
Winter Plug HUS-503405901
