Jonsered CS2238-2014-05 Chain Saw

Model: CS2238-2014-05

Save
 Part Not Listed?Part Not Listed?
product name

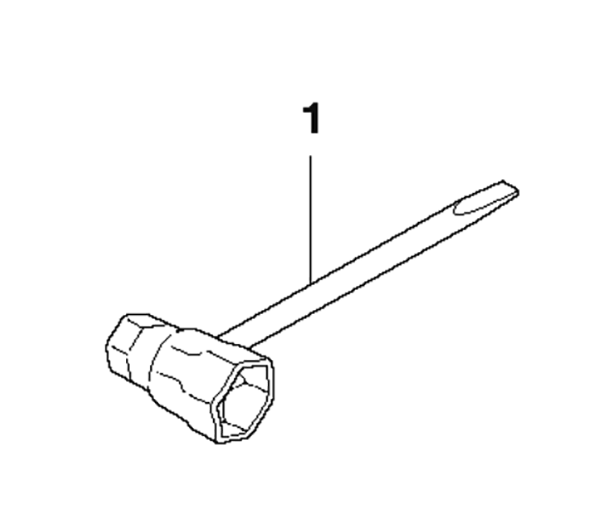

Jonsered CS2238-2014-05

...
...
1
Wrench HUS-530031135

Jonsered CS2238-2014-05

...
...
1
Carburettor HUS-574719402
...
2
Throttle Wire HUS-545062801
...
3
Air Filter HUS-575493401
...
4
Air Filter HUS-545061801
...
5
Filter Plate HUS-545151801
...
6
Nut HUS-530016101
...
7
Isolator Filter Housing HUS-545061901
...
8
Switch. Spring HUS-545063401
...
9
Switch Lever HUS-545061701
...
10
Choke Knob HUS-545061601
...
11
Carb Adaptor Seal HUS-545061501
...
13
Adaptor HUS-577636501
...
15
Stud-Carburetor HUS-545033701
...
16
Carb Adaptor Screw HUS-545158301
...
17
Screw HUS-530016080
...
18
Top Stud-Carburetor HUS-545074901
...
19
Gasket Kit HUS-545081892
...
20
Screw HUS-530016349

Jonsered CS2238-2014-05

...
...
1
Carburettor HUS-574719402
...
2
Purge And Line Assembly HUS-545008030
...
3
Kit HUS-545008032

Jonsered CS2238-2014-05

...
...
2
Pin. Dowel HUS-530057950
...
3
Assembly. Front Link HUS-530057940
...
4
Screw HUS-574780301
...
5
Spring Compression HUS-530016415
...
6
Screw HUS-530016110
...
7
Retainer HUS-530038593
...
8
Pin HUS-530015826
...
10
Pin HUS-530015913
...
11
Brake Band HUS-530057923
...
12
Cover HUS-545071002
...
13
Screw HUS-545227101
...
14
Nut HUS-530015917
...
15
Decal HUS-545166001
...
16
Chain Brake HUS-525611501

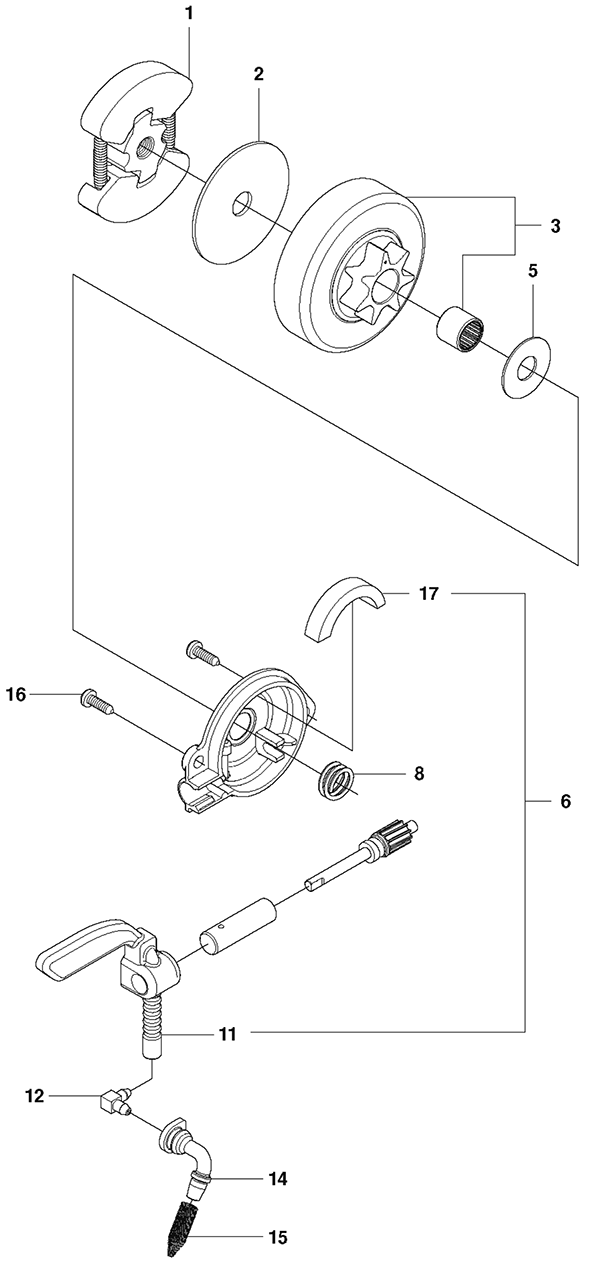

Jonsered CS2238-2014-05

...
...
1
Clutch HUS-530014949
...
2
Washer HUS-530015611
...
3
Clutch Drum, 3/8 6-Tooth HUS-530047061
...
3
Clutch Drum, 325 7-Tooth HUS-530048132
...
5
Washer HUS-530015907
...
6
Oil Pump Assembly HUS-581063901
...
8
Pinion HUS-530037820
...
11
Block HUS-545227501
...
12
Elbow HUS-530049477
...
14
Seal HUS-545069401
...
15
Screen HUS-530056533
...
16
Screw HUS-545227101
...
17
Dust Seal HUS-525318401

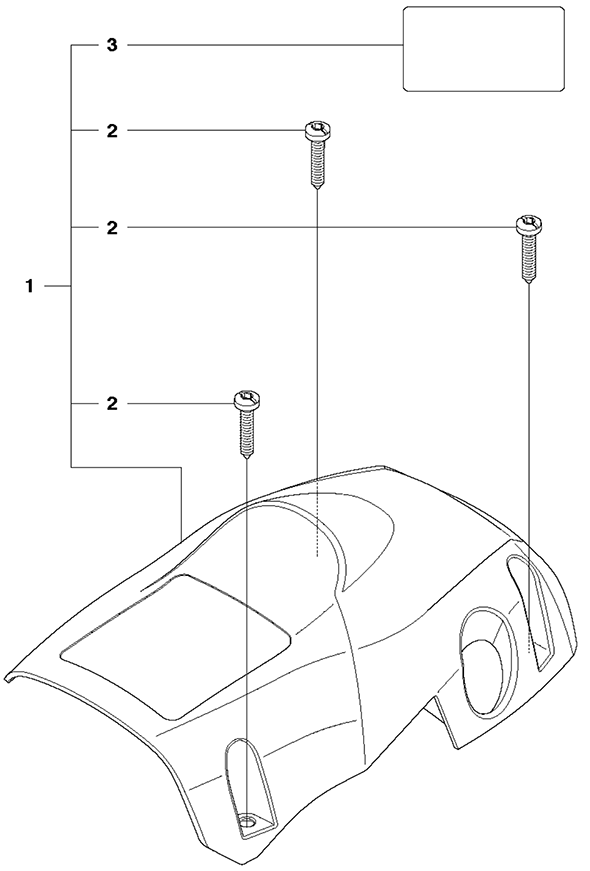

Jonsered CS2238-2014-05

...
...
1
Shield HUS-575531001
...
2
Screw HUS-574320601
...
3
Warning SIgnition HUS-545165957

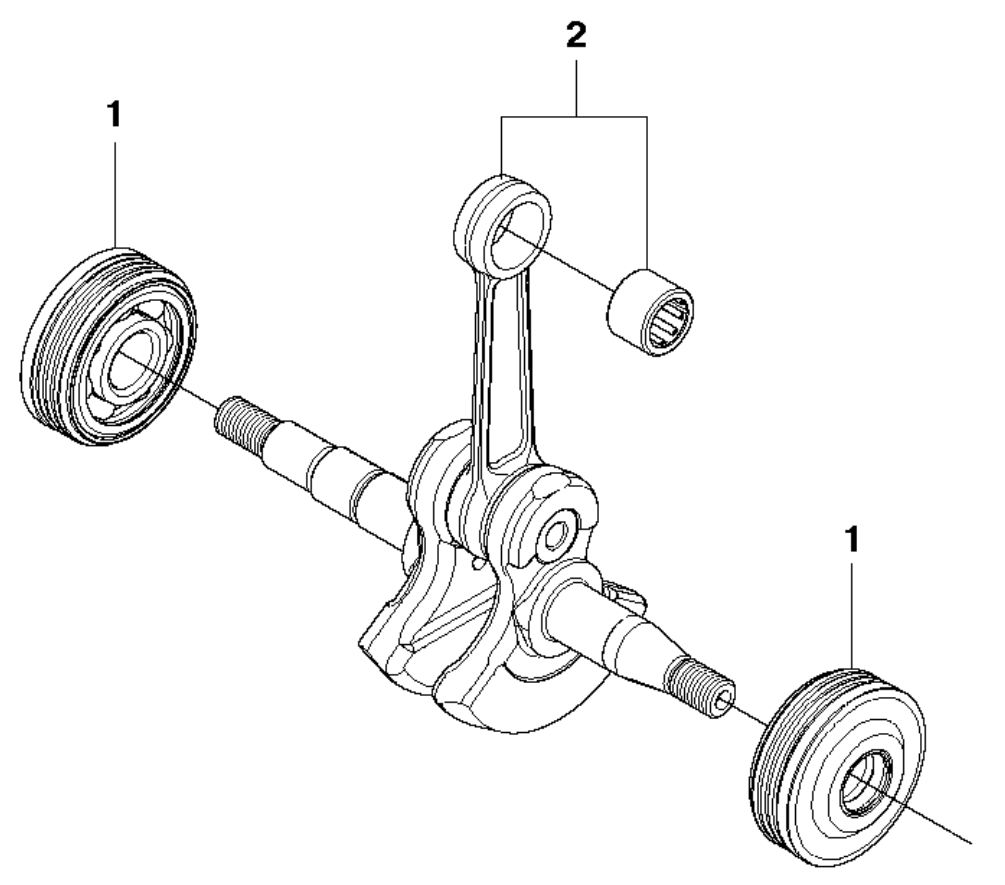

Jonsered CS2238-2014-05

...
...
1
Assembly HUS-576243901
...
2
Crankshaft HUS-580302601

Jonsered CS2238-2014-05

...
...
1
Kit HUS-545050417
...
2
Bolt HUS-545081501
...
3
Insert HUS-574190901
...
4
Insert HUS-574190801
...
5
Piston Ring HUS-530012608
...
8
Locking Ring HUS-530015697
...
9
Spark Plug HUS-503235108
...
10
Kit HUS-545081894

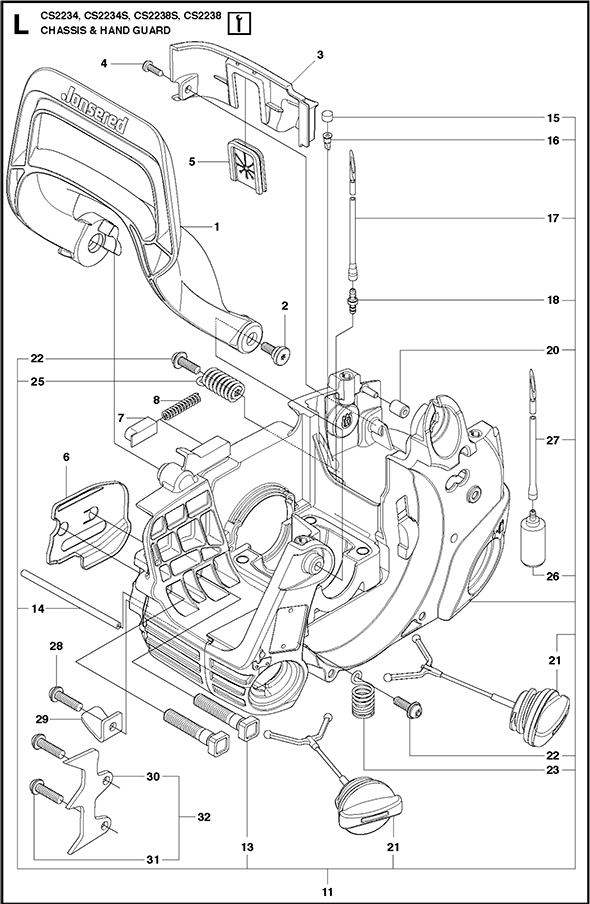

Jonsered CS2238-2014-05

...
...
1
Hand Guard HUS-574417101
...
2
Boss Screw. Handguard HUS-545127301
...
3
Wall HUS-545061202
...
4
Screw HUS-545227101
...
5
Grommet HUS-545075401
...
6
Plate Bar Mounting HUS-545071401
...
7
Cap. Spring Handguard HUS-545071301
...
8
Spring. Handguard Position HUS-545071201
...
11
Chassis HUS-579665301
...
13
Bolt HUS-529310301
...
14
Hose HUS-545033501
...
15
Plug HUS-530029868
...
16
Check Valve HUS-530026119
...
17
Hose HUS-530021025
...
18
Nipple HUS-530023877
...
20
Isolator Filter Housing HUS-545061901
...
21
Tank Cap Assembly HUS-544111202
...
22
Screw HUS-530015906
...
23
Ass Y Front Isolator HUS-545033801
...
25
Rear Isolator Spring HUS-545063101
...
26
Assembly HUS-577167201
...
27
Line HUS-580632317
...
28
Screw HUS-530015814
...
29
Chain Catcher HUS-530029850
...
30
Felling Dog HUS-530038990
...
31
Screw HUS-530016439
...
32
Felling Dog HUS-530014381

Jonsered CS2238-2014-05

...
...
1
Front Handle HUS-545161101
...
2
Rear Handle HUS-545062204
...
3
Handle Rear HUS-545062203
...
4
Throttle Lockout HUS-545062602
...
6
Trigger HUS-545121502
...
7
Isolator HUS-545033901
...
8
Isolation Limiter Screw HUS-545076301
...
9
Screw HUS-530016433
...
10
Screw HUS-530016349
...
11
Screw HUS-530016432
...
12
Trigger Throttle Control HUS-545180814

Jonsered CS2238-2014-05

...
...
1
Flywheel HUS-575635502
...
2
Washer HUS-530015127
...
3
Nut HUS-530016134
...
4
Ignitionition Module HUS-545199901
...
5
Screw HUS-545121901
...
6
Assembly- Wire Harness HUS-545079901

Jonsered CS2238-2014-05

...
...
1
Nut HUS-574266401
...
2
Exhaust Plate HUS-545076901
...
3
Screen HUS-545167401
...
4
Bolt HUS-530016338
...
5
Muffler HUS-586094301
...
6
Muffler Gasket HUS-530054884
...
7
Muffler Back Plate HUS-545066901
...
8
Kit HUS-545008027
...
9
Muffler HUS-545180843

Jonsered CS2238-2014-05

...
...
1
Hand Guard HUS-545161501

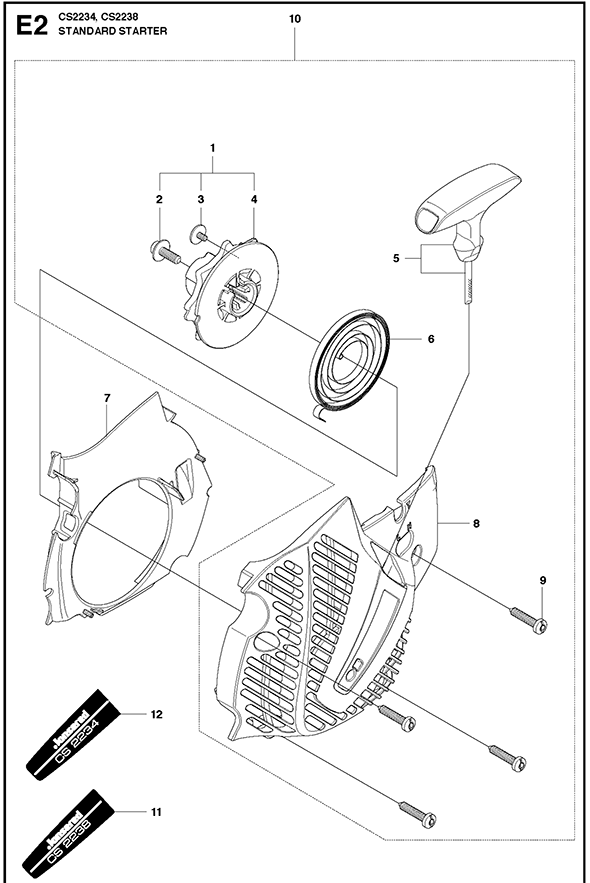

Jonsered CS2238-2014-05

...
...
1
Kit HUS-545008028
...
2
Screw HUS-530015920
...
3
Screw HUS-530016080
...
4
Starter Pulley HUS-530057890
...
5
Handle Kit HUS-545010012
...
6
Spring HUS-530042095
...
7
Baffle HUS-545161301
...
8
Fan Housing HUS-545161201
...
9
Screw HUS-530016432
...
10
Starter Assembly HUS-545180813
...
11
Decal HUS-545165983
...
12
Decal HUS-545165901
...
...
...
