product name

Jonsered CS2236T-2014-02 Chain Saw

Model: CS2236T-2014-02

Save Part Not Listed?
product name

Jonsered CS2236T-2014-02

...
...

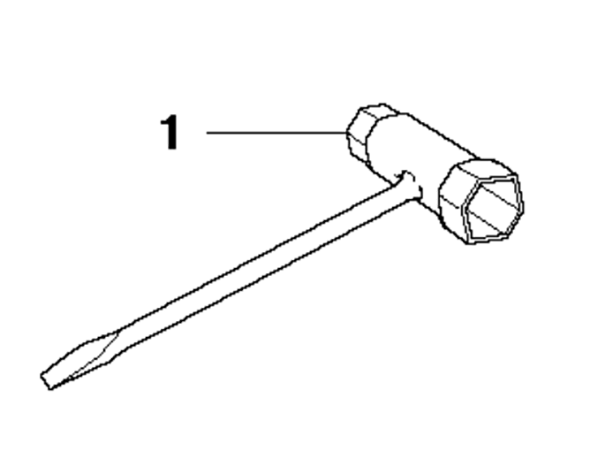

1
Wrench HUS-521532901

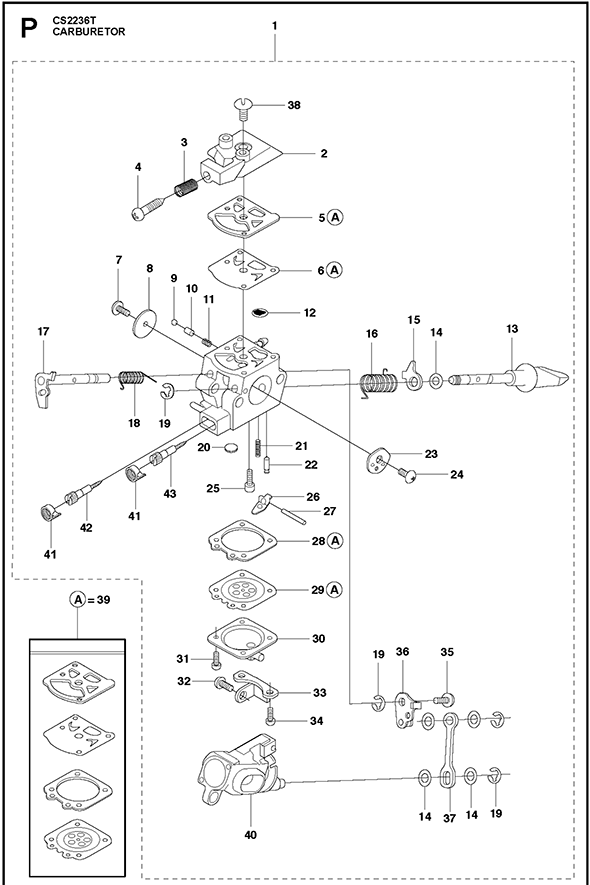

Jonsered CS2236T-2014-02

...
...
1
Carburettor HUS-578936901
...
2
Cover HUS-521575601
...
3
Spring HUS-521066301
...
4
Screw HUS-516778301
...
5
Gasket HUS-520954801
...
6
Diaphragm HUS-520954901
...
7
Screw HUS-520759801
...
8
Valve HUS-520978601
...
9
Ball HUS-516936001
...
10
Piston HUS-516935901
...
11
Spring HUS-505057901
...
12
Screen HUS-520957001
...
13

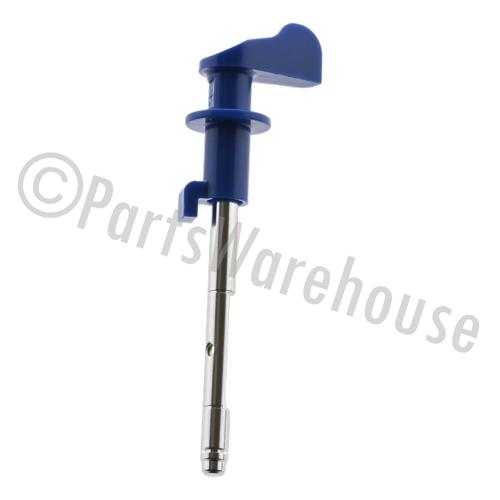

Shaft HUS-522632001
...
14
Washer HUS-516524201
...
15
Lever HUS-521581101
...
16
Spring HUS-521580101
...
17
Shaft Asst Thro HUS-522646201
...
18
Spring HUS-516843901
...
19
Ring HUS-505056501
...
20
Plug HUS-516342901
...
21
Spring HUS-516980001
...
22
Valve.Inlet HUS-521085401
...
23
Choke Valve HUS-516956901
...
24
Screw HUS-520759801
...
25
Screw HUS-520977301
...
26
Lever HUS-520977201
...
27
Pin HUS-520977401
...
28
Gasket Meteri HUS-516972101
...
29
Diaphragm HUS-522648401
...
30
Cover HUS-522646001
...
31
Screw Assembly HUS-520978801
...
32
Screw HUS-522646101
...
33
Bracket HUS-579236401
...
34
Screw Assembly HUS-522645601
...
35
Screw HUS-520759801
...
36
Link Assembly Throt HUS-522645901
...
37
Rod.Link HUS-522646401
...
38
Screw HUS-520976301
...
39
Gasket Kit HUS-527661601
...
40
Body HUS-579236301
...
41
Cap HUS-578913001
...
42
Needle HUS-579223701
...
43
Needle HUS-578913101
...
44
Spring HUS-578912801

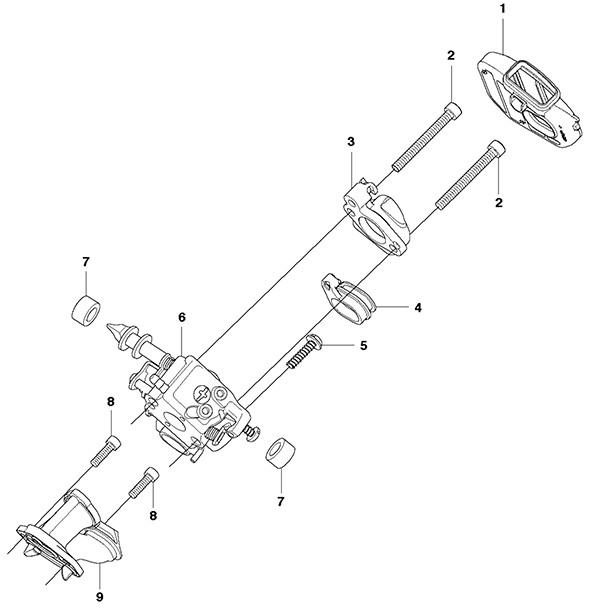

Jonsered CS2236T-2014-02

...
...
1
Cleaner HUS-527674701
...
2
Bolt HUS-522638701
...
3
Manifold HUS-527674501
...
4
Seal HUS-527675101
...
5
Screw HUS-521518101
...
6
Carburettor HUS-578936901
...
7
Seal HUS-516828601
...
8
Bolt HUS-522638501
...
9
Inlet Pipe HUS-573954401

Jonsered CS2236T-2014-02

...
...
1
Clutch Cover Assembly HUS-586731002
...
2
Gear HUS-513637901
...
3
Screw HUS-513730701
...
4
Nut HUS-513701401
...
5
Plate HUS-522643301
...
6
Screw HUS-516827201
...
7
Spring HUS-522643201
...
8
Screw HUS-516967501
...
9
Spacer Inner HUS-516967601
...
10
Spacer HUS-516967801
...
11
Return Spring HUS-516967401
...
12
Washer HUS-521025401
...
13
Nut HUS-505051501
...
14
Weight HUS-527752201
...
15
Spring HUS-516988401
...
16
Hand Guard HUS-586591601
...
17
Roller HUS-505051701
...
18
Brake Lever Comp HUS-516976401
...
19
Arm HUS-516825601
...
20
Brake Spring HUS-516826601
...
21
Roller HUS-521075401
...
22
Cover,Brake HUS-527671201
...
23
Brake Band HUS-580885901
...
24
Protector HUS-523080601
...
25
Hexagon Nut Flange HUS-503220001
...
26
Decal HUS-585747301

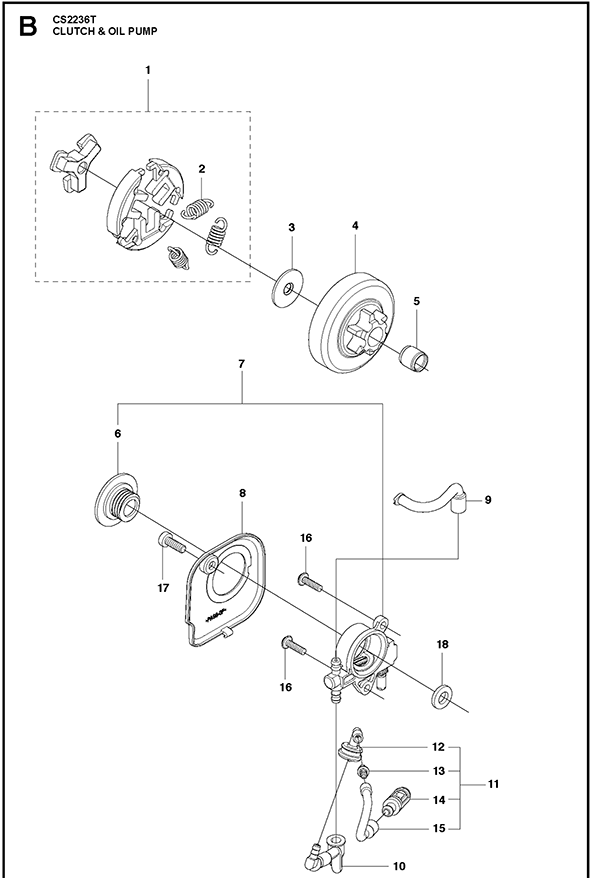

Jonsered CS2236T-2014-02

...
...
1
Clutch-Assembly HUS-521557401
...
2
Spring HUS-521557501
...
3
Plate HUS-512423401
...
4
Drum.3/8 HUS-512489201
...
5
Bearing HUS-514183301
...
6
Worm HUS-505053101
...
7
Oil Pump HUS-505053001
...
8
Cover.Pump HUS-522643801
...
9
Pipe Out Comp HUS-521792601
...
10
Pipe In Comp HUS-522643601
...
11
Filter Comp HUS-527672301
...
12
Pipe,Oil Filter HUS-527672101
...
13
Joint HUS-516950301
...
14
Filter HUS-521580001
...
15
Pipe HUS-529251701
...
16
Screw HUS-516829401
...
17
Bolt HUS-521516201
...
18
Washer HUS-522638901

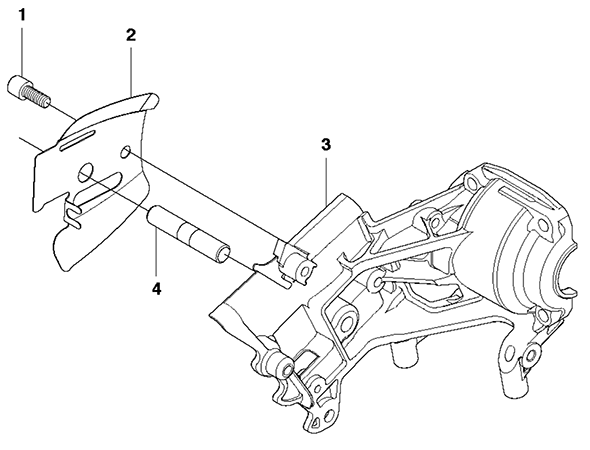

Jonsered CS2236T-2014-02

...
...
1
Bolt HUS-521799901
...
2
Plate HUS-522012001
...
3
Case,Crank HUS-527665601
...
4
Stud Bolt HUS-516738001

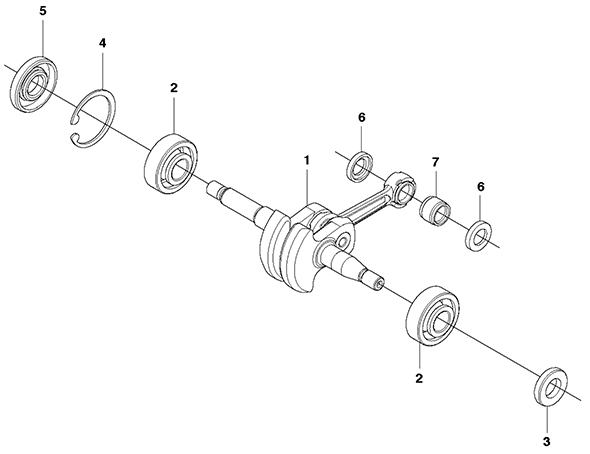

Jonsered CS2236T-2014-02

...
...
1
Crankshaft HUS-576449701
...
2
Bearing HUS-522639001
...
3
Seal HUS-522639101
...
4
Snap Ring HUS-504121001
...
5
Seal HUS-522639201
...
6
Washer HUS-513752401
...
7
Bearing HUS-505297301

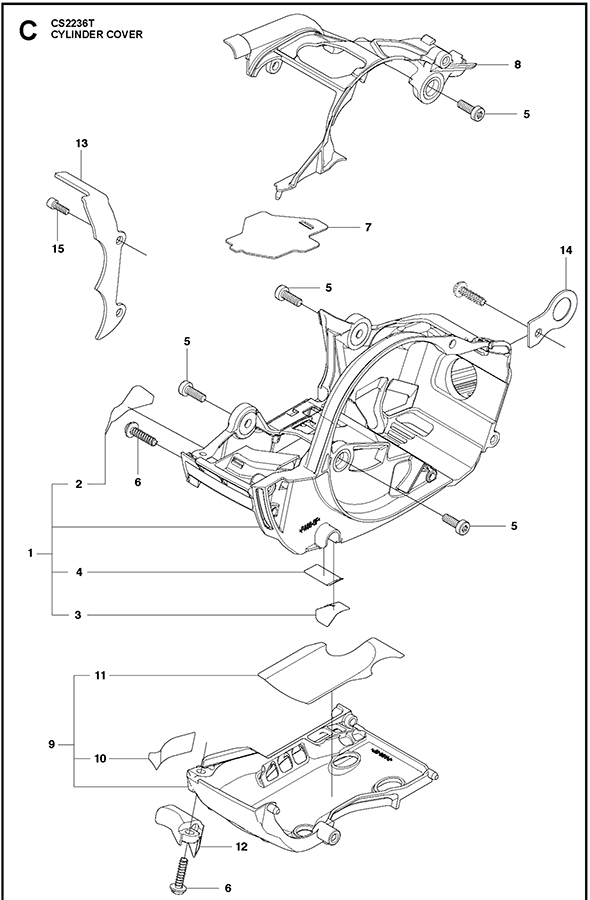

Jonsered CS2236T-2014-02

...
...
1
Case Comp HUS-527668001
...
2
Tape,Case HUS-527667901
...
3
Tape,Case HUS-527682801
...
4
Tape,Case HUS-527684001
...
5
Bolt HUS-521516201
...
6
Screw HUS-521518001
...
7
Gasket HUS-522641201
...
8
Cover,Top HUS-527667201
...
9
Case Assembly HUS-577104801
...
10
Tape,Case HUS-527677201
...
11
Tape HUS-577103701
...
12
Catcher HUS-522012101
...
13
Bumper HUS-527683001
...
14
Hook HUS-522001801
...
15
Bolt HUS-521516201

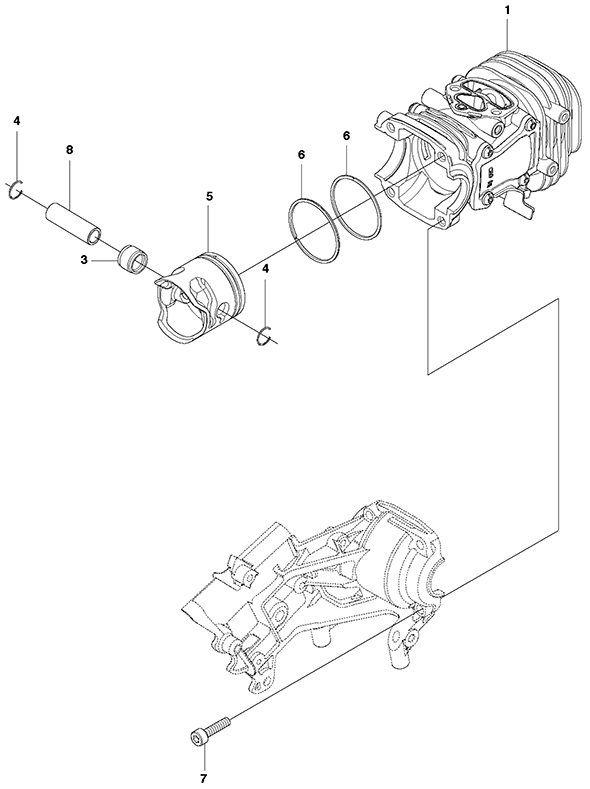

Jonsered CS2236T-2014-02

...
...
1
Cylinder Assembly HUS-522640301
...
3
Bearing HUS-505297301
...
4
Ring HUS-516283001
...
5
Piston HUS-522642501
...
6
Ring HUS-513284901
...
7
Screw HUS-504114301
...
8
Pin HUS-522639301

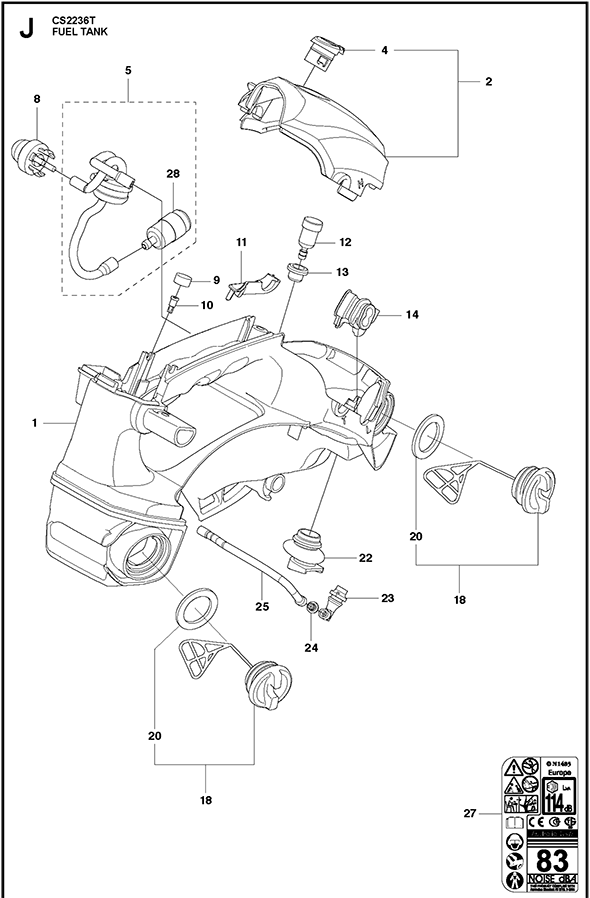

Jonsered CS2236T-2014-02

...
...
1
Handle HUS-585746101
...
2
Cover HUS-585746701
...
4
Knob HUS-527675401
...
5
Fuel Hose Assembly HUS-579519201
...
8
Pump HUS-513789301
...
9
Breather Seal HUS-516948101
...
10
Air Control Breather HUS-516961901
...
11
Bracket HUS-585746601
...
12
Breather HUS-513751501
...
13
Grommet HUS-520996101
...
14
Guide HUS-585745001
...
18
Tank Cap Assembly HUS-579518901
...
20
Gasket HUS-579519001
...
22
Pipe.Air HUS-522647101
...
23
Pipe HUS-522647801
...
24
Joint HUS-516950301
...
25
Pipe HUS-522639401
...
27
Decal HUS-585747101
...
28
Filter HUS-503443201

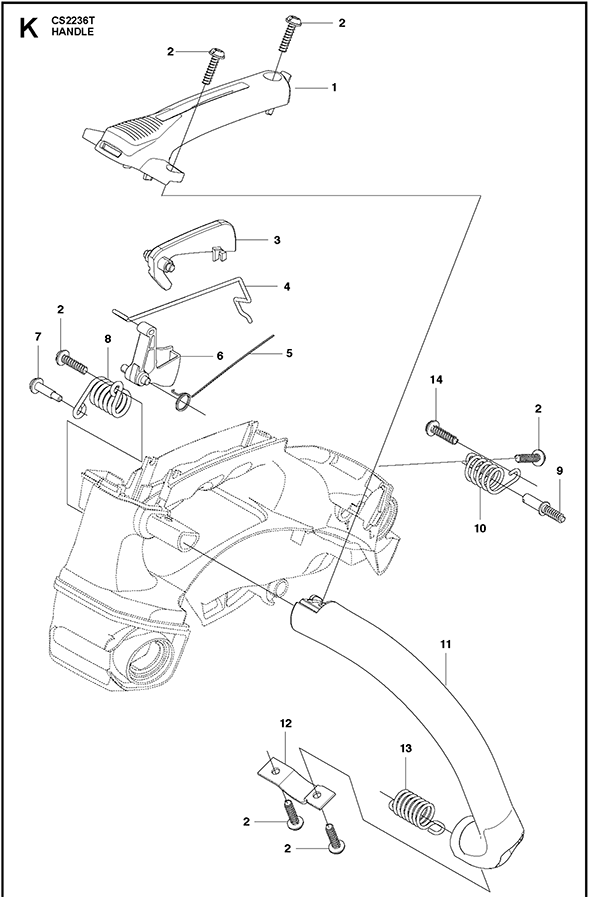

Jonsered CS2236T-2014-02

...
...
1
Cover HUS-585746501
...
2
Screw HUS-521518101
...
3
Arm HUS-521556501
...
4
Rod.Th HUS-522646601
...
5
Spring HUS-505048001
...
6
Lever.Th HUS-522641801
...
7
Screw HUS-522638601
...
8
Spring.Front HUS-522642201
...
9
Bolt HUS-513727801
...
10
Spring.Pto HUS-522642401
...
11
Front Handle HUS-576286201
...
12
Band HUS-521557201
...
13
Damper.Mag HUS-522642301
...
14
Screw HUS-521518001

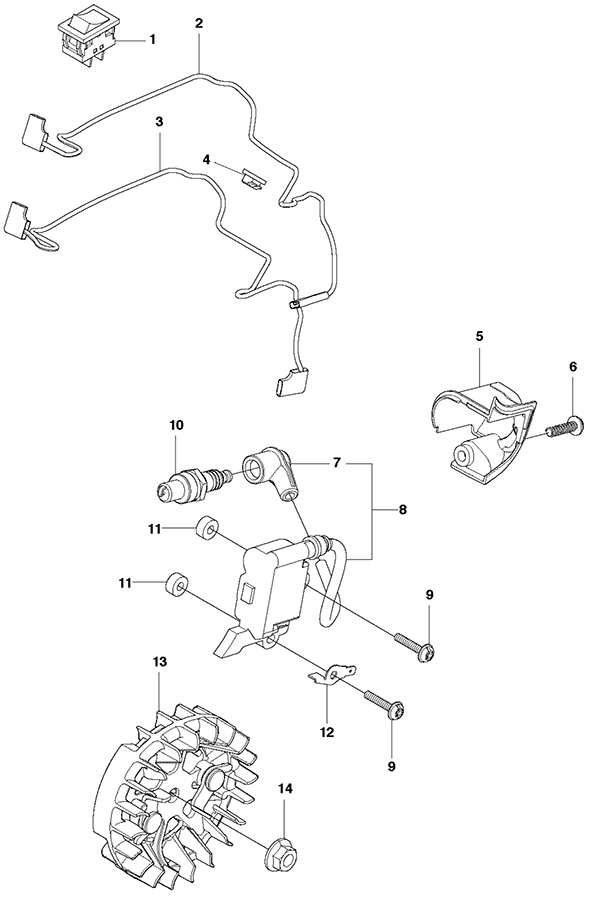

Jonsered CS2236T-2014-02

...
...
1
Stop Switch HUS-586246801
...
2
Cord.Switch HUS-522644501
...
3
Cord.Earth HUS-522644601
...
4
Grommet HUS-522644301
...
5
Cover HUS-585517901
...
6
Screw HUS-521518101
...
7
Hub Cap HUS-523082801
...
8
Coil HUS-576857201
...
9
Bolt HUS-585702901
...
10
Plug HUS-521233501
...
11
Spacer HUS-505043401
...
12
Terminal HUS-522644401
...
13
Rotor Assembly HUS-522644101
...
14
Nut HUS-504118001

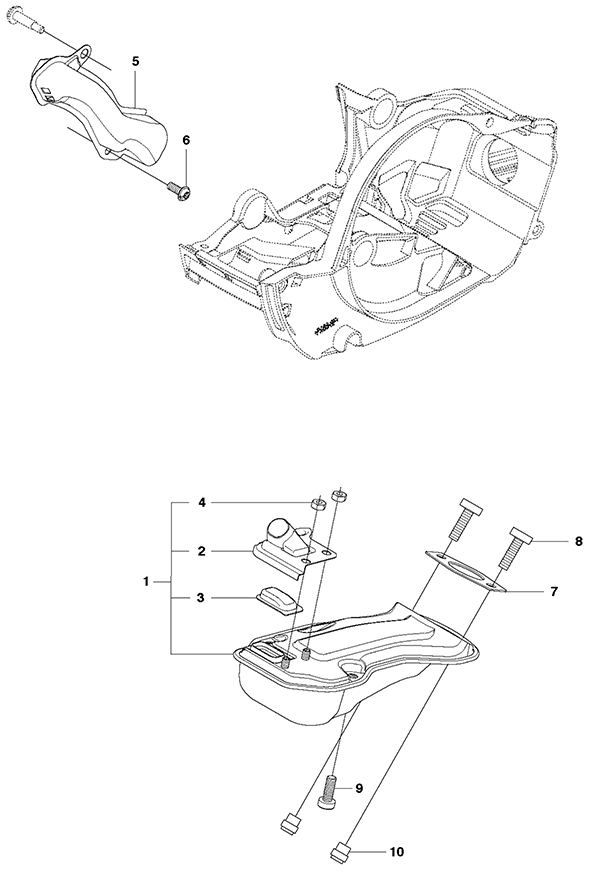

Jonsered CS2236T-2014-02

...
...
1
Muffler Assembly HUS-577742001
...
2
Guide HUS-574381401
...
3
Arrester HUS-527682601
...
4
Nut HUS-510485801
...
5
Pipe.Exhaust HUS-522640901
...
6
Screw HUS-516808801
...
7
Gasket HUS-521792001
...
8
Bolt HUS-522638801
...
9
Bolt HUS-521516201
...
10
Nut HUS-516960901

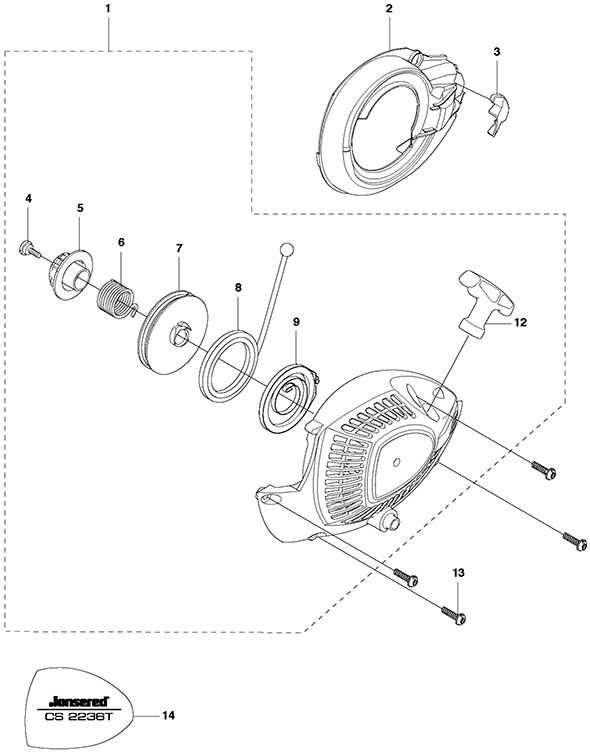

Jonsered CS2236T-2014-02

...
...
1
Starter Assembly HUS-585745301
...
2
Cover,Fan HUS-527673601
...
3
Guide,Df HUS-527673801
...
4
Screw HUS-515367101
...
5
Cam.Plate HUS-522645401
...
6
Spring HUS-522645301
...
7
Reel HUS-522645001
...
8
Rope HUS-522645101
...
9
Spring_Assembly HUS-522644901
...
12
Knob HUS-522645201
...
13
Screw HUS-521518101
...
14
Decal HUS-585747501
