Jonsered CS2172-2018-04 Chain Saw

Model: CS2172-2018-04

Save
 Part Not Listed?Part Not Listed?
product name

Jonsered CS2172-2018-04

...
...
1
Clutch Cover Assembly HUS-537072002
...
2
Screw Citxpant HUS-525887402
...
3
Sleeve HUS-503897001
...
4
Chip Guard HUS-503762902
...
5
Label HUS-537244301
...
6
Clutch Cover Assembly HUS-537072071
...
7
Screw Citxpant HUS-525887402
...
8
Chain Guide HUS-537190601
...
9
Screw Citxpant HUS-525887402
...
10
Cover HUS-537016801
...
11
Bearing Sleeve HUS-537017401
...
12
Pawl HUS-503998301
...
13
Worm Screw HUS-537079502
...
14
Washer HUS-503230066
...
15
Worm Wheel HUS-537079402
...
16
Washer HUS-503230063
...
17
O-Ring HUS-740480702
...
18
Chain Tensioner HUS-537044102
...
19
Hexagon Nut HUS-503220001
...
20
Screw Citxpant HUS-525887402
...
21
Spike HUS-503719701

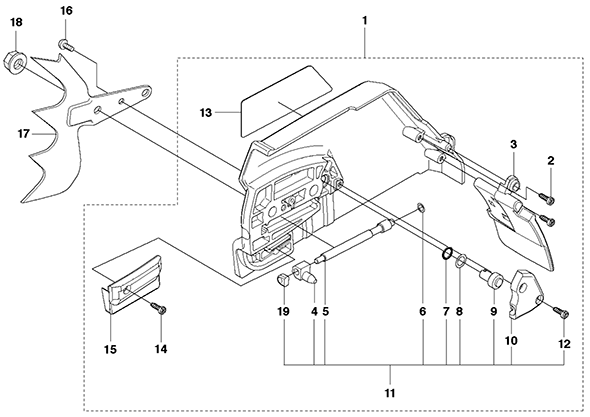

Jonsered CS2172-2018-04

...
...
1
Clutch Cover Assembly, Wa HUS-537331002
...
2
Screw Citxpant HUS-525887402
...
3
Chip Guard HUS-537174101
...
4
Pawl HUS-503998301
...
5
Worm Screw HUS-537079502
...
6
Washer HUS-503230066
...
7
O-Ring HUS-740480702
...
8
Washer HUS-503230063
...
9
Worm Wheel HUS-537079402
...
10
Cover HUS-537016801
...
11
Chain Tensioner HUS-537044102
...
12
Screw Citxpant HUS-525887402
...
13
Label HUS-537033802
...
14
Screw Citxpant HUS-525887402
...
15
Chain Guide HUS-537043401
...
16
Screw Citxpant HUS-525887402
...
17
Spike, Wa HUS-503922701
...
18
Hexagon Nut HUS-503220001
...
19
Bearing Sleeve HUS-537017401

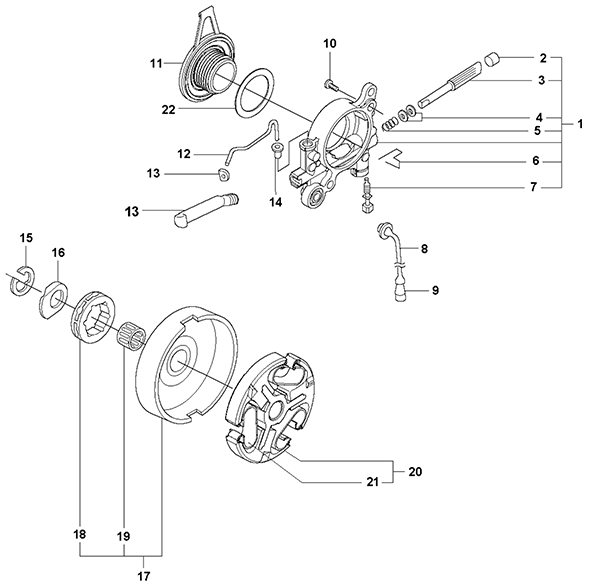

Jonsered CS2172-2018-04

...
...
1
Oil Pump Assembly HUS-503521303
...
2
Sealing Plug HUS-503624901
...
3
Pump Piston HUS-503521501
...
4
Washer HUS-503230004
...
5
Spring HUS-501615801
...
6
Spring HUS-503813001
...
7
Pin Screw HUS-503811301
...
8
Oil Hose HUS-503426701
...
9
Oil Screen HUS-501544102
...
10
Screw Itxscm HUS-525824912
...
11
Pump Pinion HUS-537207807
...
12
Oil Pipe HUS-503774301
...
13
Inlet Pipe, Up To Serial Number 20182009999 HUS-503644701
...
13
Oil Pressure Hose, From Serial Number 20182100001 HUS-587291801
...
14
Sealing HUS-504300026
...
15
E-Clip HUS-503272101
...
16
Washer HUS-503752401
...
17
Clutch Drum Assembly, "3/8""X7T" HUS-586980601
...
17
Clutch Drum Assembly, "3/8""X8T" HUS-586980602
...
18
Rim, "3/8""X7T" HUS-501598002
...
18
Rim, "3/8""X8T" HUS-505303661
...
19
Needle Holder HUS-503432001
...
20
Clutch Assembly HUS-586798401
...
21
Clutch Spring HUS-537360601
...
22
Washer HUS-503230059

Jonsered CS2172-2018-04

...
...
1
Starter Assembly HUS-503692803
...
2
Screw Itxscft HUS-586443101
...
4
Starter Pulley HUS-503859601
...
5
Starter Handle HUS-537196501
...
6
Starter Cord HUS-503432902
...
7
Recoil Spring HUS-503787201
...
8
Starter Housing HUS-503692904
...
9
Bushing HUS-537086701
...
10
Sleeve HUS-501630601
...
11
Screw Citxpanmo HUS-525824501
...
12
Label HUS-537145509
...
12
Label, Wh HUS-537145510
...
13
Air Conductor HUS-503628301

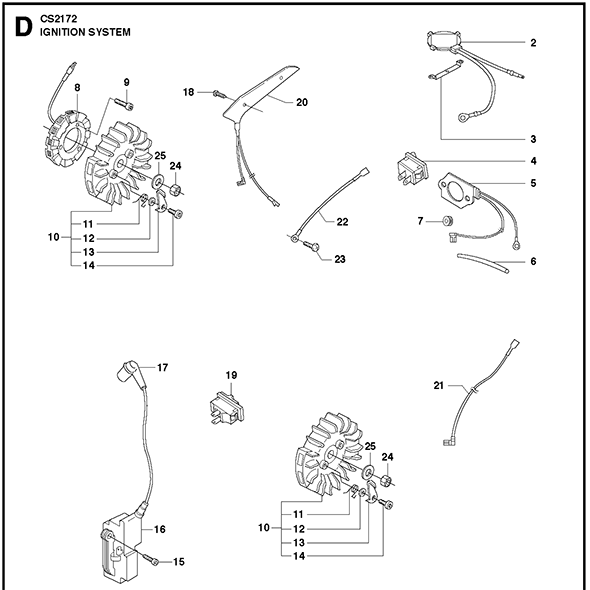

Jonsered CS2172-2018-04

...
...
2
Thermostat Assembly, W HUS-537189801
...
3
Retainer, W HUS-537063201
...
4
Switch, W HUS-503554901
...
5
Foil Element, W HUS-537065302
...
6
Shrinkage Hose, W HUS-503238565
...
7
Cable Grommet, W HUS-501430001
...
8
Stator Assembly, W HUS-537071802
...
9
Screw Itxscm, W HUS-586438502
...
10
Flywheel Assembly, W HUS-537051606
...
10
Flywheel Assembly HUS-537051605
...
11
Spring HUS-501673501
...
12
Washer HUS-503230042
...
13
Starter Pawl HUS-537015501
...
14
Screw HUS-506006901
...
15
Screw Itxscm HUS-582029701
...
16
Ignitionition Module, Dm51 Cot HUS-586880303
...
17
Spark Plug Cap HUS-501485402
...
18
Screw Itxcsrt HUS-586505401
...
19
Switch HUS-503718201
...
20
Heating Plate, W HUS-503705901
...
21
Cable HUS-503626101
...
22
Cable HUS-503897601
...
23
Screw Citxpant HUS-525887402
...
24
Hexagon Nut HUS-503221011
...
25
Washer HUS-503230101

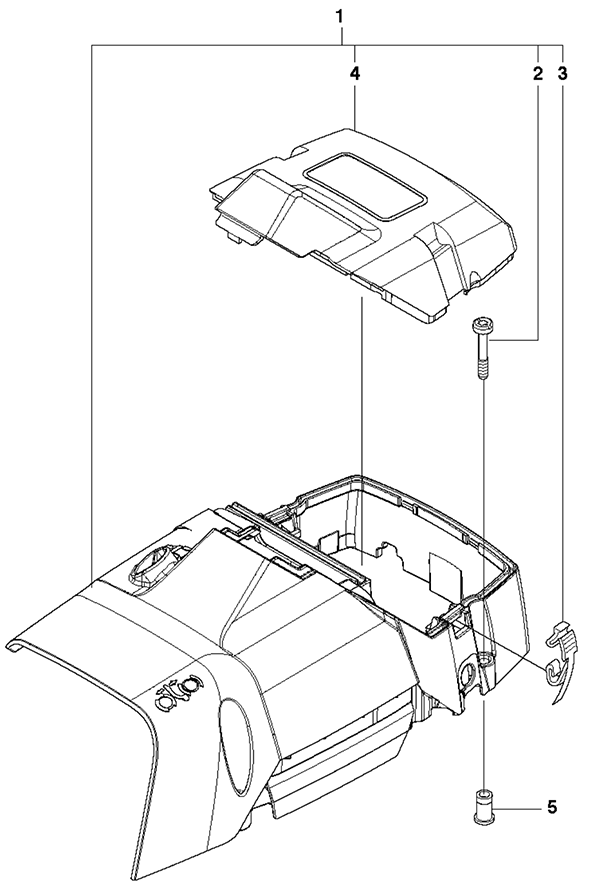

Jonsered CS2172-2018-04

...
...
1
Cylinder Cover Assembly HUS-574458202
...
2
Screw Citxpanmo HUS-525887001
...
3
Snap Locking HUS-503699102
...
4
Filter Cover HUS-503696001
...
5
Sleeve HUS-537055903

Jonsered CS2172-2018-04

...
...
1
Air Filter Assembly, 80 My HUS-575269101
...
1
Air Filter Assembly, 44 My HUS-575269102
...
1
Air Filter Assembly, Felt HUS-575269103
...
2
Clamp HUS-503735401
...
3
Screw Itxscm HUS-581143002
...
4
Filter Holder HUS-515982902
...
5
Lever HUS-503684101
...
6
Guide Sleeve HUS-522418801
...
7
Carburettor, Walbro Rwj-4B HUS-581100701
...
8
Impulse Hose HUS-503400604
...
9
Flange HUS-522446201
...
11
Inlet Pipe HUS-521992503
...
11
Inlet Pipe, For Cold Conditions HUS-521992504
...
12
Hose Clamp HUS-505283311

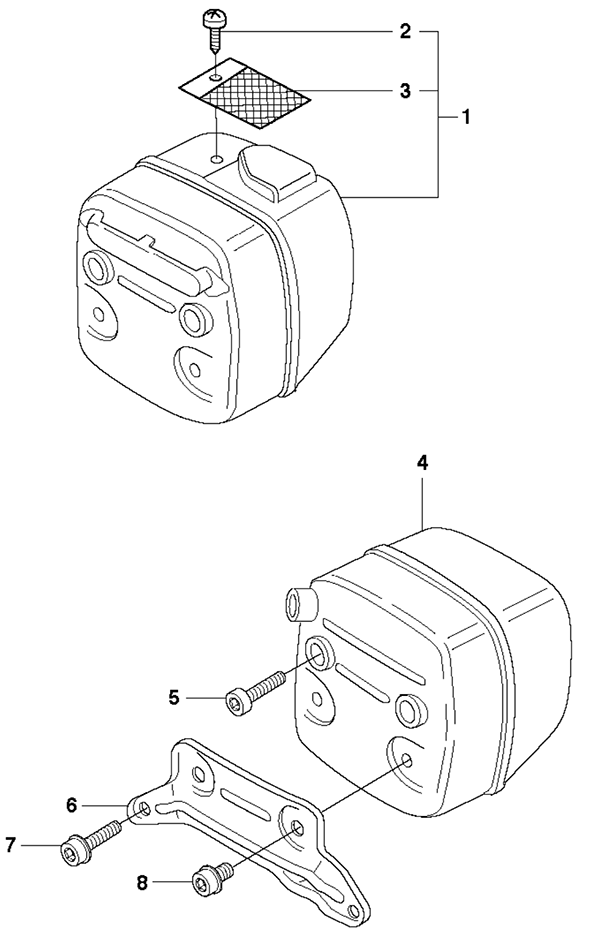

Jonsered CS2172-2018-04

...
...
1
Muffler Assembly, Df HUS-544029702
...
2
Screw Crpanm HUS-724128759
...
3
Spark Arrester Screen HUS-503766402
...
4
Muffler Assembly, Tube HUS-544029501
...
5
Screw Itxscm HUS-525825101
...
6
Support HUS-579025901
...
7
Screw Itxscfm HUS-525755101
...
8
Screw Itxscfm HUS-525755107

Jonsered CS2172-2018-04

...
...
1
Cylinder Assembly HUS-575255702
...
2
Spark Plug, Ngk Bpmr7A HUS-503235111
...
3
Screw Itxscm HUS-525824903
...
4
Decompression Valve HUS-584288701
...
5
Plug HUS-537207101
...
6
Plug HUS-503552201
...
7
Heat Deflector HUS-523049101
...
8
Gasket HUS-503775901
...
9
Gasket HUS-503961501
...
10
Piston Assembly HUS-577207702
...
11
Piston Ring HUS-576818401
...
12
Snap Ring HUS-737431200
...
13
Needle Bearing HUS-577572401
...
14
Gasket Kit, Set Of Gaskets HUS-503647201

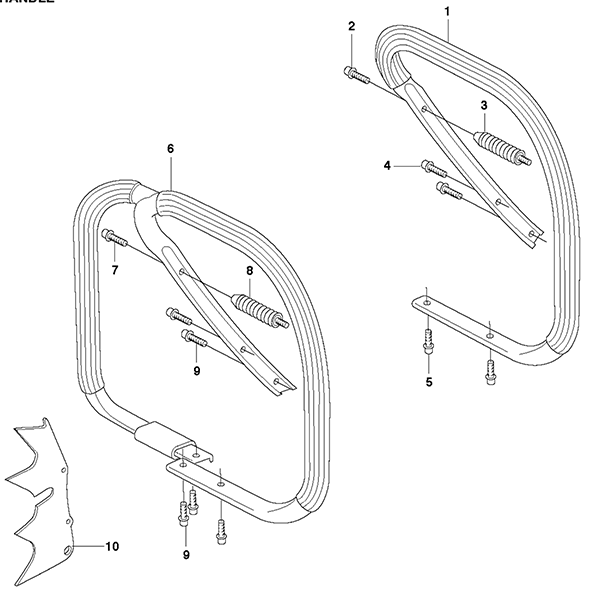

Jonsered CS2172-2018-04

...
...
1
Front Handle Assembly HUS-574457801
...
1
Front Handle Assembly, W HUS-574457802
...
2
Screw Itxscft HUS-586440001
...
3
Antivibration Element, Std HUS-503637504
...
3
Antivibration Element, Hard HUS-503637505
...
3
Antivibration Element, W HUS-503684504
...
4
Screw Itxscft HUS-586443001
...
5
Screw Itxscft HUS-586443001
...
6
Handle, Wrap HUS-574458001
...
7
Screw Itxscft HUS-586440001
...
8
Antivibration Element HUS-503637504
...
9
Screw Itxscft HUS-586443001
...
10
Spike HUS-537017201

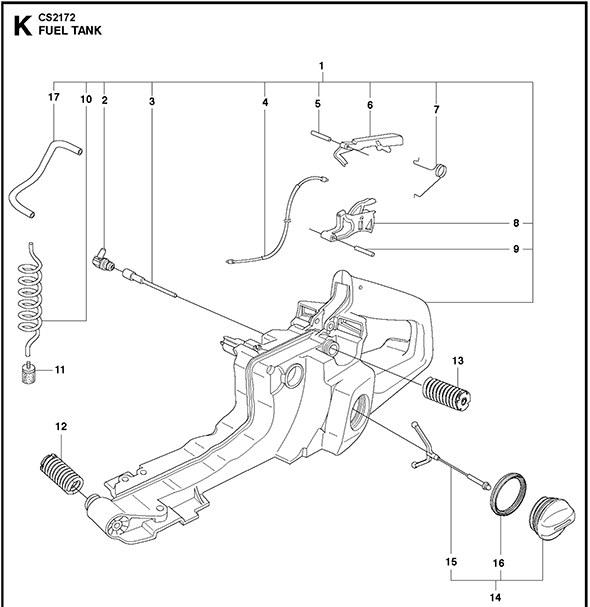

Jonsered CS2172-2018-04

...
...
1
Fuel Tank HUS-503719105
...
2
Connection Bend HUS-537099301
...
3
Tank Vent Assembly HUS-537092201
...
4
Throttle Cable Assembly HUS-503717601
...
5
Parallel Pin HUS-720124020
...
6
Throttle Lockout HUS-503556602
...
7
Spring HUS-503736401
...
8
Throttle Trigger HUS-503829802
...
9
Parallel Pin HUS-720127220
...
10
Fuel Hose HUS-581756202
...
11
Fuel Filter HUS-503443201
...
12
Antivibration Element, Std HUS-503637601
...
12
Antivibration Element, Hard HUS-503637602
...
13
Antivibration Element, Std HUS-503895601
...
13
Antivibration Element, Hard HUS-503895602
...
14
Tank Cap Assembly HUS-537215206
...
15
Holder HUS-503578903
...
16
Gasket HUS-589241101
...
17
Fuel Hose HUS-581756106

Jonsered CS2172-2018-04

...
...
1
Hand Guard HUS-576255901
...
2
Screw Itxscfm HUS-525755201
...
3
Hub Cap HUS-503751103
...
4
Screw Citxpant HUS-525887402
...
5
Knee Joint HUS-501875303
...
6
Brake Spring HUS-503709902
...
7
Support HUS-503792702
...
8
Screw Itxscm HUS-586438501
...
9
Position Spring HUS-503436501
...
10
Lock HUS-503838102
...
11
Brake Lever HUS-537008701
...
12
Bushing HUS-503775201
...
13
Brake Band Assembly HUS-503752202
...
14
Label HUS-503987401

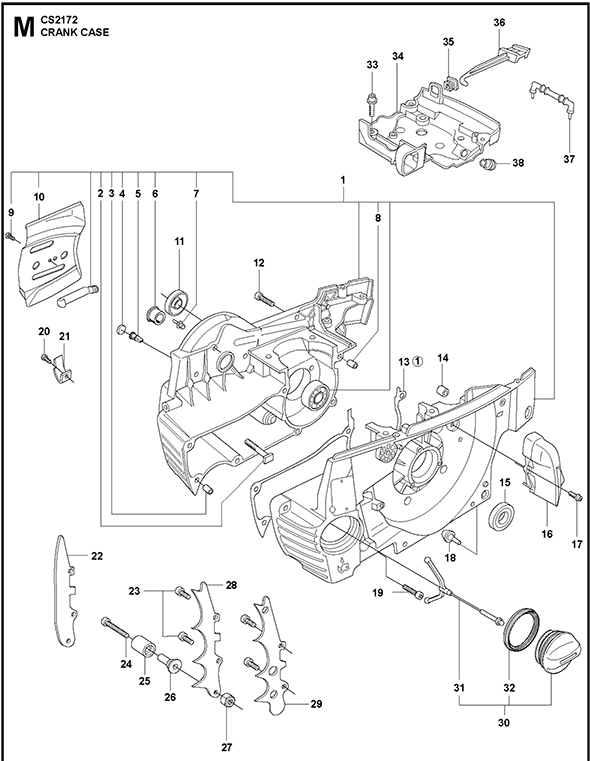

Jonsered CS2172-2018-04

...
...
1
Crankcase Assembly HUS-503626820
...
2
Bar Bolt HUS-537051301
...
3
Guide Bushing HUS-501270801
...
4
Check Valve HUS-530026119
...
5
Filter HUS-537403501
...
6
Bushing HUS-503967001
...
7
Pin Knee-Joint HUS-503751801
...
8
Guide Bushing HUS-501270801
...
9
Screw Citxpant HUS-525887402
...
10
Chain Guide Plate, Up To Serial Number 20182009999 HUS-537013701
...
10
Chain Guide Plate, From Serial Number 20182100001 HUS-537013702
...
11
Sealing Ring HUS-503260301
...
12
Screw Itxscm HUS-586445401
...
13
Gasket HUS-503627201
...
14
Cover HUS-503857301
...
15
Sealing Ring HUS-505275719
...
16
Air Nozzle HUS-503628401
...
17
Screw Itxscfm HUS-525755201
...
18
Buffer HUS-503846101
...
19
Screw Itxscm HUS-575791202
...
20
Screw Itxscm HUS-525824913
...
21
Chain Catcher HUS-501686801
...
22
Bumper HUS-537042901
...
23
Screw Itxpanm HUS-575793501
...
24
Screw Itxscfm HUS-525755103
...
25
Wear Protection HUS-537024401
...
26
Chain Catcher HUS-537089201
...
27
Lock Nut HUS-503222401
...
28
Spike HUS-537017101
...
29
Spike HUS-503647902
...
30
Tank Cap Assembly HUS-537215206
...
31
Holder HUS-503578901
...
32
Gasket HUS-589241101
...
33
Screw Itxscfm HUS-525755201
...
34
Carburettor Area Base HUS-588093702
...
35
Grommet HUS-503734401
...
36
Choke HUS-515982201
...
37
Support HUS-579468901
...
38
Grommet HUS-537095401

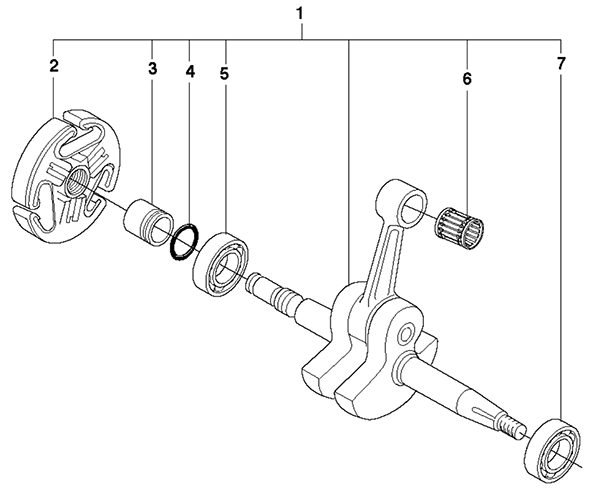

Jonsered CS2172-2018-04

...
...
1
Crankshaft Assembly HUS-503748705
...
2
Clutch Assembly HUS-586798401
...
3
Sleeve HUS-503779101
...
4
O-Ring HUS-503263019
...
5
Ball Bearing HUS-585975001
...
6
Needle Bearing HUS-577572401
...
7
Ball Bearing HUS-585975001

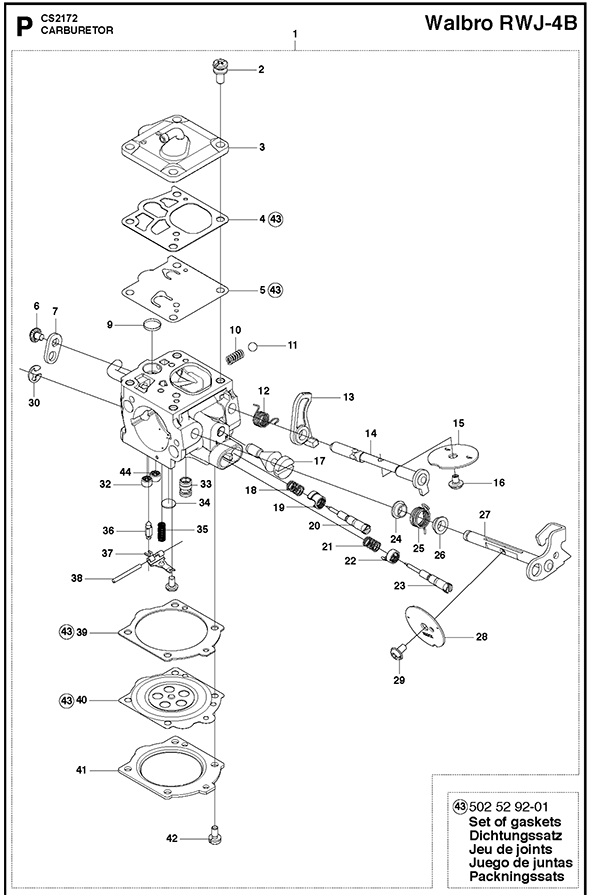

Jonsered CS2172-2018-04

...
...
1
Carburettor, Walbro Rwj-4B HUS-581100701
...
2
Screw HUS-503117501
...
3
Pump Cover HUS-522923501
...
4
Gasket HUS-503117201
...
5
Diaphragm Pump HUS-544897201
...
6
Screw HUS-501468701
...
7
Lever HUS-504790701
...
9
Screen HUS-501666101
...
10
Spring HUS-503117701
...
11
Ball HUS-503117101
...
12
Spring HUS-504791501
...
13
Lever HUS-537409201
...
14
Shaft Assembly HUS-504790501
...
15
Valve HUS-544896801
...
16
Screw HUS-537003401
...
17
Screw, S/N Up To - 20131800192 HUS-504791101
...
17
Idle Speed Screw, S/N From 20131800193 HUS-585186701
...
18
Spring HUS-544971001
...
19
Limiter Cap HUS-544970801
...
20
Needle HUS-522923901
...
21
Spring HUS-544971001
...
22
Limiter Cap HUS-544970801
...
23
Needle HUS-544971301
...
24
Bushing HUS-502103101
...
25
Spring, S/N Up To - 20131800192 HUS-504791401
...
25
Spring, S/N From 20131800193 HUS-576138201
...
26
Bushing HUS-502103101
...
27
Shaft Assembly HUS-522923701
...
28
Valve, S/N Up To - 20131800192 HUS-522923801
...
28
Valve, S/N From 20131800193 HUS-577657901
...
29
Screw HUS-537003401
...
30
Ring HUS-505316736
...
32
Check Valve, S/N Up To - 20131800192 HUS-522924101
...
32
Check Valve, S/N From 20131800193 HUS-580642301
...
33
Nozzle Assembly, S/N Up To - 20131800192 HUS-503786101
...
33
Main Nozzle, S/N From 20131800193 HUS-577699801
...
34
Plug HUS-504790801
...
35
Spring HUS-504791201
...
36
Needle Valve HUS-503563401
...
37
Lever HUS-505316734
...
38
Pin HUS-505316731
...
39
Gasket HUS-501467501
...
40
Spring, S/N Up To - 20131800192 HUS-503634801
...
40
Diaphragm Assembly, S/N From 20131800193 HUS-503635801
...
41
Cover HUS-505316702
...
42
Screw HUS-503108701
...
43
Gasket Kit, Set Of Gaskets HUS-502529201
...
44
Check Valve HUS-577699701

Jonsered CS2172-2018-04

...
...
1
Tool HUS-588797401
...
2
Combination Wrench HUS-501691701
...
3
Spanner, Nv5 HUS-503558602
...
4
Spanner, Nv4 HUS-503558601
...
5
Grease HUS-503621201
...
6
Grease Gun HUS-501911401
...
7
Winter Kit, Winter HUS-503969012
...
8
Screw Citxpant HUS-586505201
...
9
Wrench, Torx T27/T20 HUS-575880701
...
...
...
