product name

Jonsered CS2166-2013-11 Chain Saw

Model: CS2166-2013-11

Save
 Part Not Listed?Part Not Listed?
product name

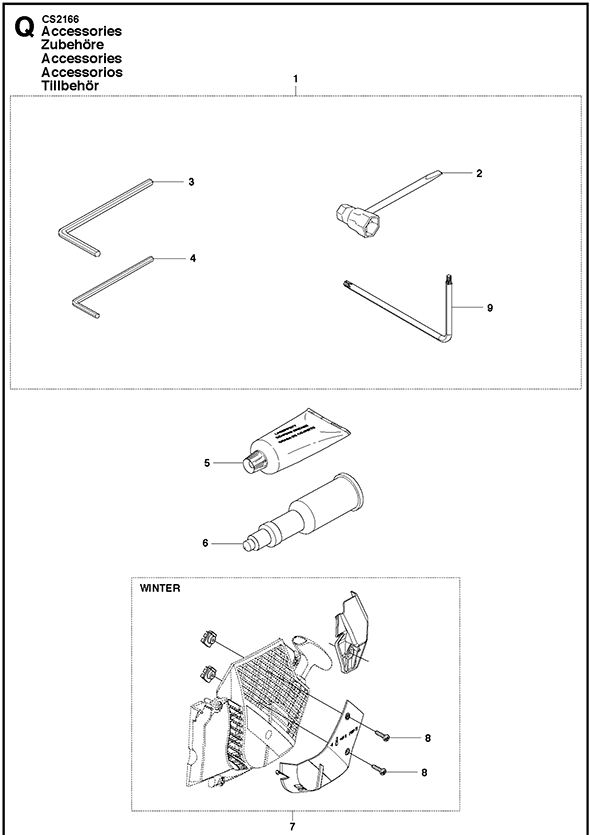

Jonsered CS2166-2013-11

...
...
1
Tool HUS-588797401
...
2
Combination Wrench HUS-501691701
...
3
Spanner, Nv5 HUS-503558602
...
4
Spanner, Nv4 HUS-503558601
...
5
Grease HUS-503621201
...
6
Grease Gun HUS-501911401
...
7
Kit, Winter HUS-503969010
...
8
Screw Crpant HUS-503212716
...
9
Wrench, Torx T27/T20 HUS-575880701

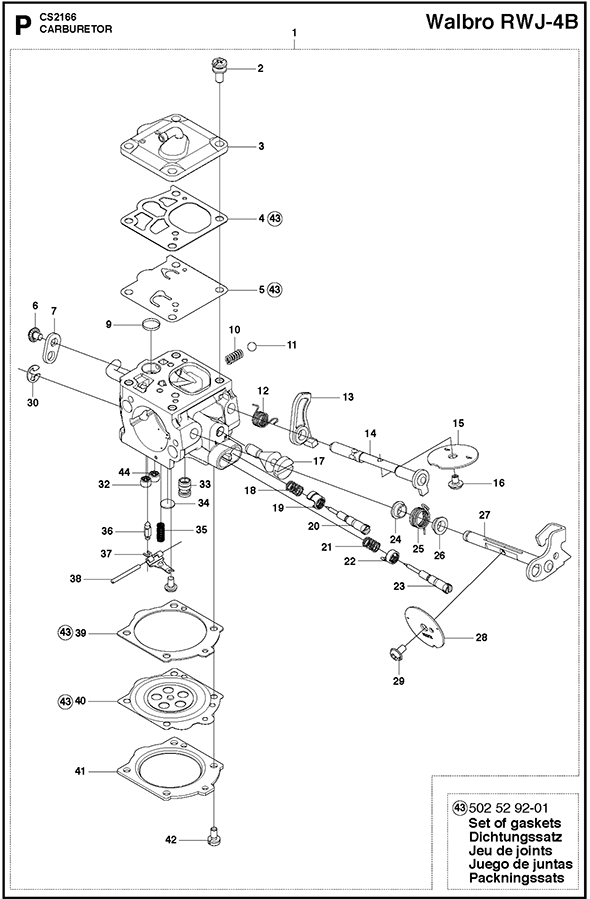

Jonsered CS2166-2013-11

...
...
1
Carburettor, Walbro Rwj-4B HUS-581100701
...
2
Screw HUS-503117501
...
3
Pump Cover HUS-522923501
...
4
Gasket HUS-503117201
...
5
Diaphragm Pump HUS-544897201
...
6
Screw HUS-501468701
...
7
Lever HUS-504790701
...
9
Screen HUS-501666101
...
10
Spring HUS-503117701
...
11
Ball HUS-503117101
...
12
Spring HUS-504791501
...
13
Lever HUS-537409201
...
14
Shaft Assembly HUS-504790501
...
15
Valve HUS-544896801
...
16
Screw HUS-537003401
...
17
Screw, S/N Up To - 20131800192 HUS-504791101
...
17
Idle Speed Screw, S/N From 20131800193 HUS-585186701
...
18
Spring HUS-544971001
...
19
Limiter Cap HUS-544970801
...
20
Needle HUS-522923901
...
21
Spring HUS-544971001
...
22
Limiter Cap HUS-544970801
...
23
Needle HUS-544971301
...
24
Bushing HUS-502103101
...
25
Spring, S/N Up To - 20131800192 HUS-504791401
...
25
Spring, S/N From 20131800193 HUS-576138201
...
26
Bushing HUS-502103101
...
27
Shaft Assembly HUS-522923701
...
28
Valve, S/N Up To - 20131800192 HUS-522923801
...
28
Valve, S/N From 20131800193 HUS-577657901
...
29
Screw HUS-537003401
...
30
Ring HUS-505316736
...
32
Check Valve, S/N Up To - 20131800192 HUS-522924101
...
32
Check Valve, S/N From 20131800193 HUS-580642301
...
33
Nozzle Assembly, S/N Up To - 20131800192 HUS-503786101
...
33
Main Nozzle, S/N From 20131800193 HUS-577699801
...
34
Plug HUS-504790801
...
35
Spring HUS-504791201
...
36
Inlet HUS-503563401
...
37
Lever HUS-505316734
...
38
Pin-Metering Lever HUS-505316731
...
39
Gasket HUS-501467501
...
40
Spring, S/N Up To - 20131800192 HUS-503634801
...
40
Diaphragm Assembly, S/N From 20131800193 HUS-503635801
...
41
Cover HUS-505316702
...
42
Screw HUS-503108701
...
43
Gasket Kit, Set Of Gaskets HUS-502529201
...
44
Check Valve HUS-577699701

Jonsered CS2166-2013-11

...
...
1
Air Filter Assembly, 80 My HUS-575269101
...
1
Air Filter Assembly, 44 My HUS-575269102
...
1
Air Filter Assembly, Felt HUS-575269103
...
2
Clamp HUS-503735401
...
3
Screw Ihscm HUS-725530955
...
4
Filter Holder HUS-515982901
...
5
Lever HUS-503684101
...
6
Guide Sleeve HUS-522418801
...
7
Carburettor, Walbro Rwj-4B HUS-581100701
...
8
Impulse Hose HUS-503400604
...
9
Flange HUS-522446201
...
11
Inlet Pipe HUS-521992503
...
11
Inlet Pipe, For Cold Conditions HUS-521992504
...
12
Hose Clamp HUS-505283307

Jonsered CS2166-2013-11

...
...
1
Hand Guard HUS-576255901
...
2
Screw Ihscfm HUS-503200212
...
3
Hub Cap HUS-503751103
...
4
Screw Ccrpant HUS-503212810
...
5
Knee Joint HUS-501875303
...
6
Brake Spring HUS-503709902
...
7
Support HUS-503792702
...
8
Screw Ihscm HUS-503202602
...
9
Position Spring HUS-503436501
...
10
Lock HUS-503838102
...
11
Brake Lever HUS-537008701
...
12
Bushing HUS-503775201
...
13
Brake Band Assembly HUS-503752202
...
14
Label HUS-503987401

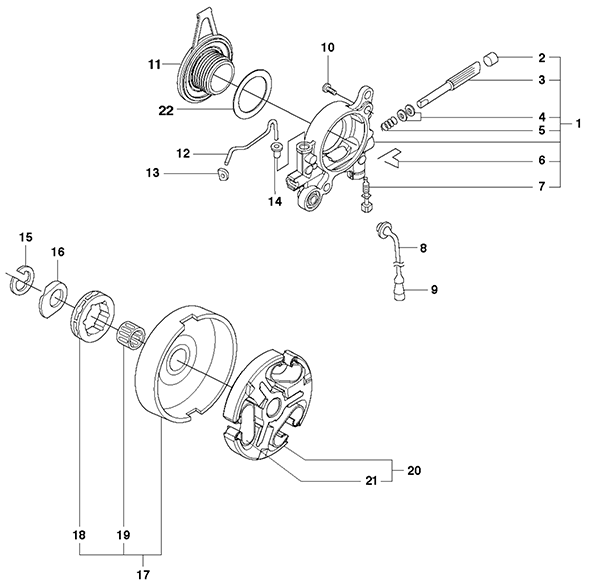

Jonsered CS2166-2013-11

...
...
1
Oil Pump Assembly HUS-503521303
...
2
Sealing Plug HUS-503624901
...
3
Pump Piston HUS-503521501
...
4
Washer HUS-503230004
...
5
Spring HUS-501615801
...
6
Spring HUS-503813001
...
7
Pin Screw HUS-503811301
...
8
Oil Hose HUS-503426701
...
9
Oil Screen HUS-501544102
...
10
Screw Ihscm HUS-725532956
...
11
Pump Pinion HUS-537207807
...
12
Oil Pipe HUS-503774301
...
13
Inlet Pipe HUS-503644701
...
14
Sealing HUS-504300026
...
15
E-Clip HUS-503272101
...
16
Washer HUS-503752401
...
17
Clutch Drum Assembly, "3/8""X7T" HUS-586980601
...
17
Clutch Drum Assembly, "3/8""X8T" HUS-586980602
...
18
Rim, "3/8""X7T" HUS-501598002
...
18
Rim, "3/8""X8T" HUS-505303661
...
19
Needle Holder HUS-503432001
...
20
Clutch Assembly HUS-586798401
...
21
Clutch Spring HUS-537360601
...
22
Washer HUS-503230059

Jonsered CS2166-2013-11

...
...
1
Clutch Cover Assembly HUS-537072002
...
2
Screw Ccrpant HUS-503212810
...
3
Sleeve HUS-503897001
...
4
Chip Guard HUS-503762902
...
5
Label HUS-537244301
...
6
Clutch Cover Assembly HUS-537072071
...
7
Screw Ccrpant HUS-503212810
...
8
Chain Guide HUS-537190601
...
9
Screw Ccrpant HUS-503212810
...
10
Cover HUS-537016801
...
11
Bearing Sleeve HUS-537017401
...
12
Pawl HUS-503998301
...
13
Worm Screw HUS-537079502
...
14
Washer HUS-503230066
...
15
Worm Wheel HUS-537079402
...
16
Washer HUS-503230063
...
17
O-Ring HUS-740480702
...
18
Chain Tensioner HUS-537044102
...
19
Hexagon Nut HUS-503220001
...
20
Screw Ccrpant HUS-503212810
...
21
Spike HUS-503719701

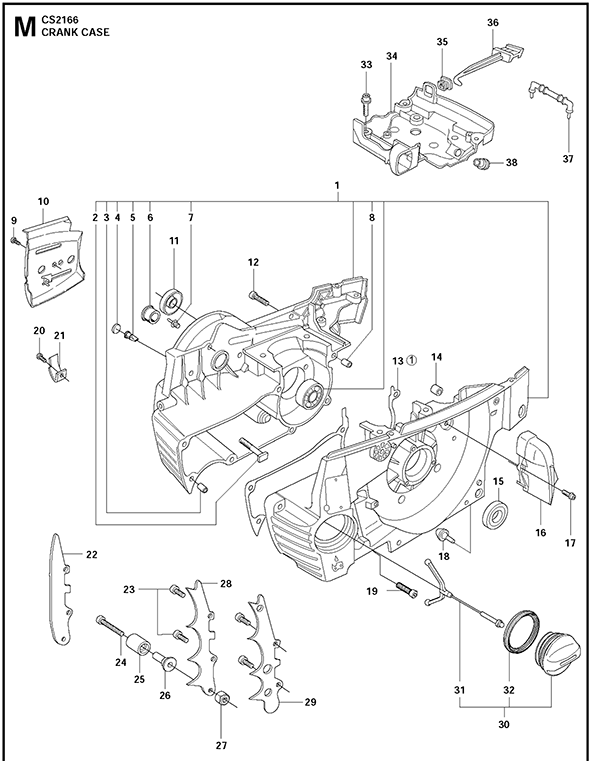

Jonsered CS2166-2013-11

...
...
1
Crankcase Assembly HUS-503626814
...
2
Bar Bolt HUS-537051301
...
3
Guide Bushing HUS-501270801
...
4
Check Valve HUS-530026119
...
5
Filter HUS-537403501
...
6
Bushing HUS-503967001
...
7
Pin Knee-Joint HUS-503751801
...
8
Guide Bushing HUS-501270801
...
9
Screw Ccrpant HUS-503212810
...
10
Chain Guide Plate HUS-537013701
...
11
Sealing Ring HUS-503260301
...
12
Screw HUS-503749301
...
13
Gasket HUS-503627201
...
14
Cover HUS-503857301
...
15
Sealing Ring HUS-505275719
...
16
Air Nozzle HUS-503628401
...
17
Screw Ihscfm HUS-503200212
...
18
Buffer HUS-503846101
...
19
Screw Ihscm HUS-503200870
...
20
Screw Ihscm HUS-725533165
...
21
Chain Catcher HUS-501686801
...
22
Bumper HUS-537042901
...
23
Screw Ihpanm HUS-503212616
...
24
Screw Ihscfm HUS-503200780
...
25
Wear Protection HUS-537024401
...
26
Chain Catcher HUS-537089201
...
27
Lock Nut HUS-503222401
...
28
Spike HUS-537017101
...
29
Spike HUS-503647902
...
30
Tank Cap Assembly HUS-537215201
...
31
Holder HUS-503578901
...
32
Sealing HUS-537215001
...
33
Screw Ihscfm HUS-503200212
...
34
Carburettor Area Base HUS-588093702
...
35
Grommet HUS-503734401
...
36
Choke Control HUS-574457701
...
37
Support HUS-579468901
...
38
Grommet HUS-537095401

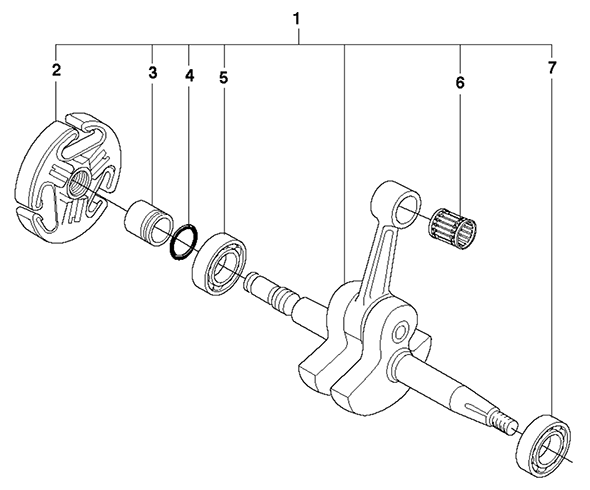

Jonsered CS2166-2013-11

...
...
1
Crankshaft Assembly HUS-503748704
...
2
Clutch Assembly HUS-586798401
...
3
Sleeve HUS-503779101
...
4
O-Ring HUS-503263019
...
5
Ball Bearing HUS-585975001
...
6
Needle Bearing HUS-577572401
...
7
Ball Bearing HUS-585975001

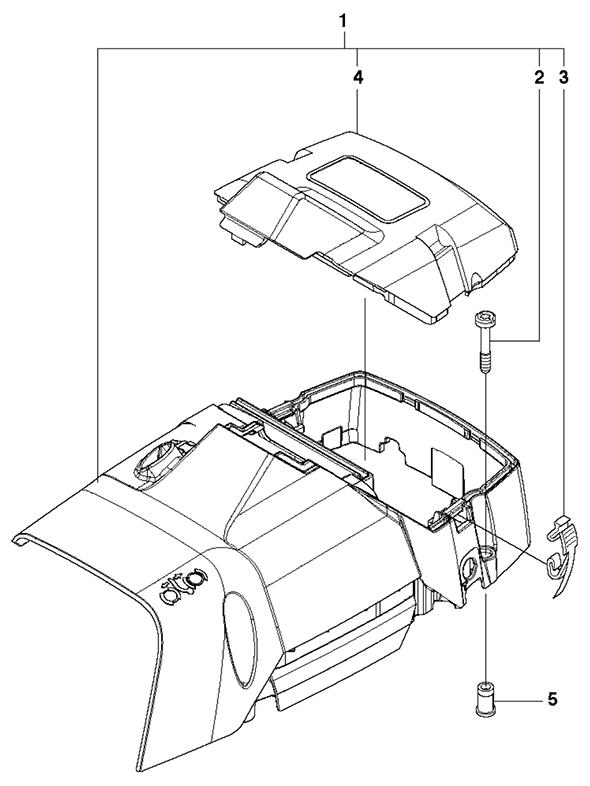

Jonsered CS2166-2013-11

...
...
1
Cylinder Cover Assembly HUS-574458202
...
2
Screw Citxpanmo HUS-525887001
...
3
Snap HUS-503699102
...
4
Filter Cover HUS-503696001
...
5
Sleeve HUS-537055903

Jonsered CS2166-2013-11

...
...
1
Cylinder Assembly HUS-575774102
...
2
Spark Plug, Ngk Bpmr7A HUS-503235111
...
3
Screw Ihscm HUS-725533355
...
4
Decompression Valve HUS-537294401
...
5
Plug HUS-537207101
...
6
Plug HUS-503552201
...
7
Heat Deflector HUS-523049101
...
8
Gasket HUS-503775901
...
9
Gasket HUS-503961501
...
10
Piston Assembly HUS-577207702
...
11
Piston Ring HUS-503289036
...
12
Snap Ring HUS-737431200
...
13
Needle Bearing HUS-577572401
...
14
Gasket Kit, Set Of Gaskets HUS-503647201

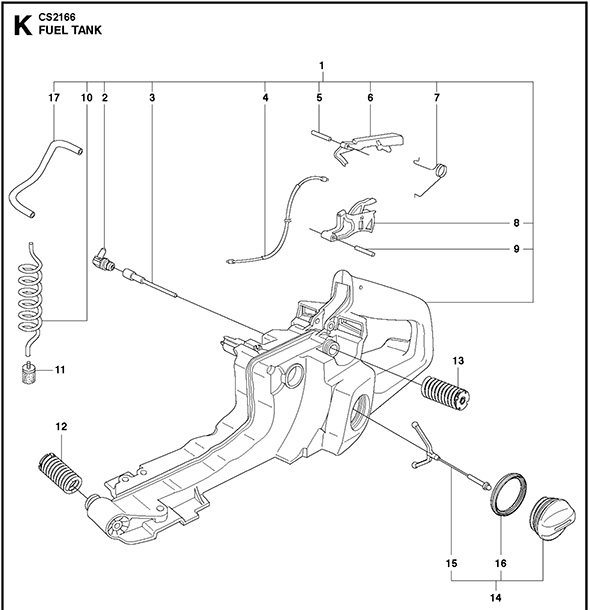

Jonsered CS2166-2013-11

...
...
1
Fuel Tank HUS-503719105
...
2
Connection Bend HUS-537099301
...
3
Tank Vent Assembly HUS-537092201
...
4
Throttle Wire Assembly HUS-503717601
...
5
Parallel Pin HUS-720124020
...
6
Throttle Lockout HUS-503556602
...
7
Spring HUS-503736401
...
8
Throttle Trigger HUS-503829802
...
9
Parallel Pin HUS-720127220
...
10
Fuel Hose HUS-581756202
...
11
Filter HUS-503443201
...
12
Antivibration Element, Std HUS-503637601
...
12
Antivibration Element, Hard HUS-503637602
...
13
Antivibration Element, Std HUS-503895601
...
13
Antivibration Element, Hard HUS-503895602
...
14
Tank Cap Assembly HUS-537215201
...
15
Holder HUS-503578901
...
16
Sealing HUS-537215001
...
17
Fuel Hose HUS-581756106

Jonsered CS2166-2013-11

...
...
1
Front Handle Assembly HUS-574457801
...
2
Screw Ihsct HUS-503210522
...
3
Antivibration Element, Std HUS-503637502
...
3
Antivibration Element, Hard HUS-503637503
...
4
Screw Ihscft HUS-503214972
...
5
Screw Ihscft HUS-503214972

Jonsered CS2166-2013-11

...
...
1
Flywheel Assembly HUS-537051605
...
2
Spring HUS-501673501
...
3
Washer HUS-503230042
...
4
Starter Pawl HUS-537015501
...
5
Screw HUS-501819901
...
6
Screw Ihscm HUS-586289301
...
7
Ignitionition Module, Dm51 Cot HUS-586880303
...
8
Spark Plug Cap HUS-501485402
...
9
Switch HUS-503718201
...
10
Cable HUS-503626101
...
11
Hexagon Nut HUS-503221011
...
12
Washer HUS-503230101

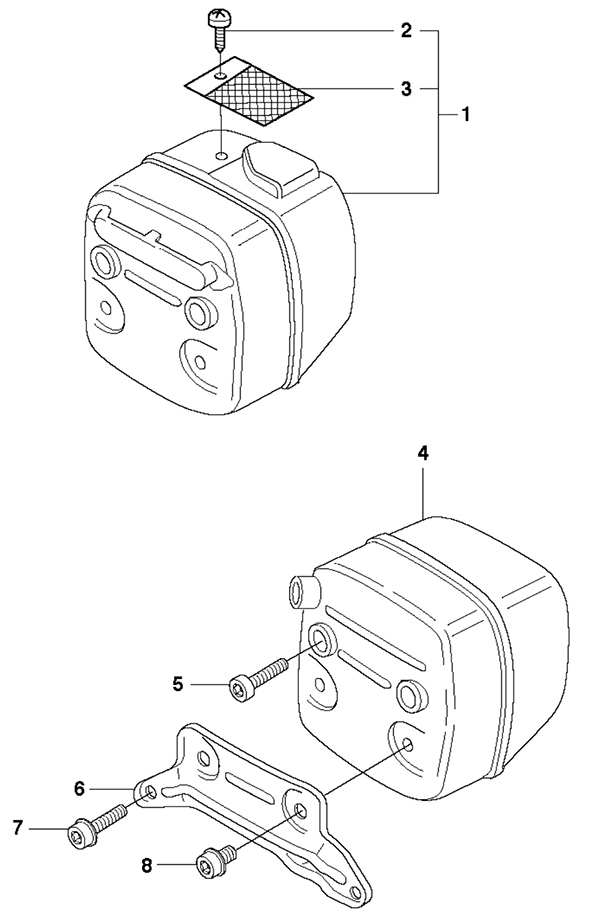

Jonsered CS2166-2013-11

...
...
1
Muffler Assembly, Df HUS-544029702
...
2
Screw Crpanm HUS-724128759
...
3
Spark Arrester Screen HUS-503766402
...
4
Muffler Assembly, Tube HUS-544029501
...
5
Screw Ihscm HUS-725537055
...
6
Support HUS-579025901
...
7
Screw Ihscfm HUS-503200774
...
8
Screw Ihscfm HUS-503200702

Jonsered CS2166-2013-11

...
...
1
Starter Assembly HUS-503692803
...
2
Screw Ihscft HUS-503215216
...
4
Starter Pulley HUS-503859601
...
5
Starter Handle HUS-537196501
...
6
Starter Cord HUS-503432902
...
7
Recoil Spring HUS-503787201
...
8
Starter Housing HUS-503692904
...
9
Bushing HUS-537086701
...
10
Sleeve HUS-501630601
...
11
Screw HUS-544080301
...
12
Label HUS-537145511
...
13
Air Conductor HUS-503628301
...
...
...
