Jonsered CS2139 T, 2010-03 Chain Saw

Model: CS2139T

Save Part Not Listed?
product name

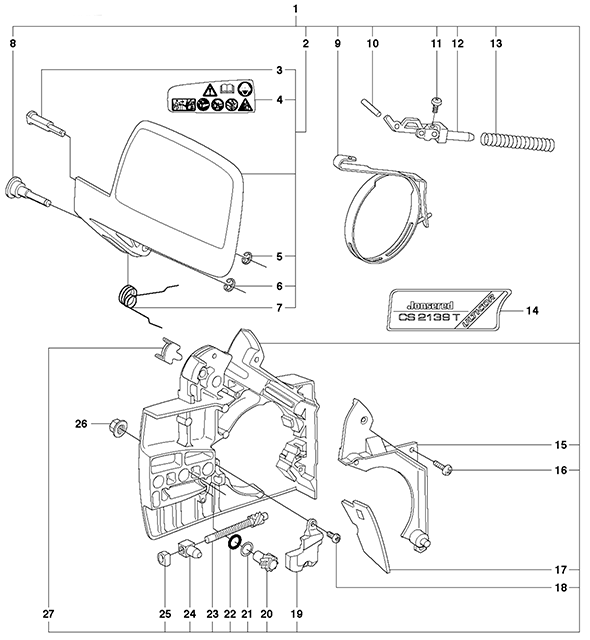

Jonsered CS2139T

...
...
1
Brake Assembly HUS-503935206
...
2
Hand Guard Assembly HUS-544013603
...
3
Pivot Pin HUS-503854601
...
4
Label HUS-544927101
...
5
E-Clip HUS-735310820
...
6
E-Clip HUS-735311020
...
7
Position Spring HUS-537092802
...
8
Shaft Pivot HUS-503817101
...
9
Brake Band Assembly HUS-503809703
...
10
Parallel Pin HUS-720123300
...
11
Screw Ccrpant HUS-503212810
...
12
Knee Joint Assembly HUS-501875301
...
13
Brake Spring HUS-503908301
...
14
Label HUS-505434901
...
15
Hub Cap HUS-503805202
...
16
Screw Ccrpant HUS-503212810
...
17
Chip Guard HUS-503855101
...
18
Screw Ccrpant HUS-503212810
...
19
Cover Lid HUS-537396901
...
20
Worm Wheel HUS-537079402
...
21
Washer HUS-503230063
...
22
O-Ring HUS-740480702
...
23
Worm Screw HUS-537397001
...
24
Pin HUS-588850301
...
25
Bearing Sleeve HUS-537017401
...
26
Hexagon Nut HUS-503220001
...
27
Spring Guide HUS-503862001

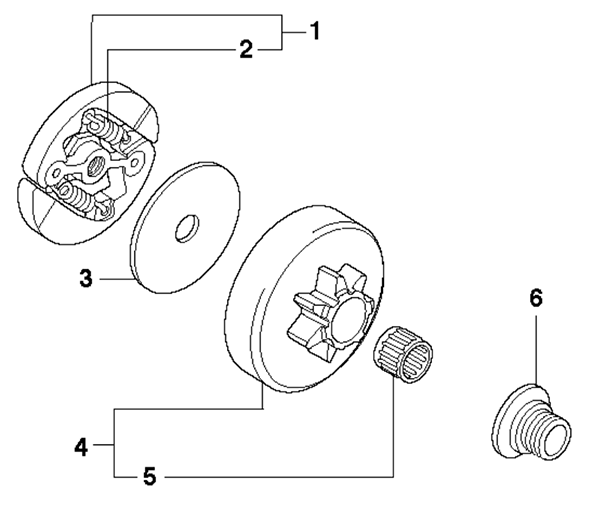

Jonsered CS2139T

...
...
1
Clutch Assembly HUS-503714003
...
2
Clutch Spring HUS-503749501
...
3
Washer HUS-503521204
...
4
Clutch Drum Assembly, "3/8" HUS-503822271
...
5
Needle Bearing HUS-503254601
...
6
Pump Pinion, "3/8" HUS-503789201

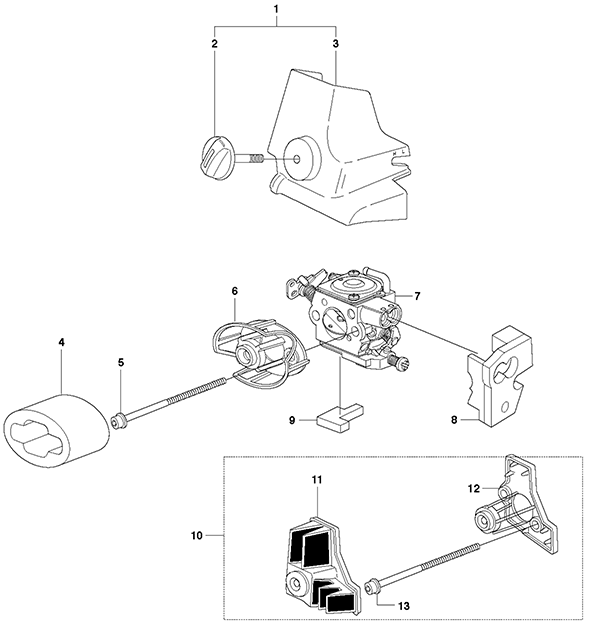

Jonsered CS2139T

...
...
1
Air Filter Cover HUS-503792605
...
2
Knob HUS-537213203
...
3
Air Filter Cover HUS-503820905
...
4
Air Filter HUS-503844901
...
5
Screw Ihscft HUS-503217550
...
6
Filter Holder HUS-503822901
...
7
Carburettor, Zama C1Q-El33A HUS-544160901
...
8
Sealing HUS-537332802
...
9
Sealing HUS-537241902
...
10
Air Filter Assembly, 80 HUS-537021502
...
10
Air Filter Assembly, 52 HUS-537021501
...
11
Air Filter, 80 HUS-503967202
...
11
Air Filter, 52 HUS-503967201
...
12
Air Filter Bottom, 80 HUS-503967102
...
12
Air Filter Bottom, 52 HUS-503967101
...
13
Screw Ihscft HUS-503217550

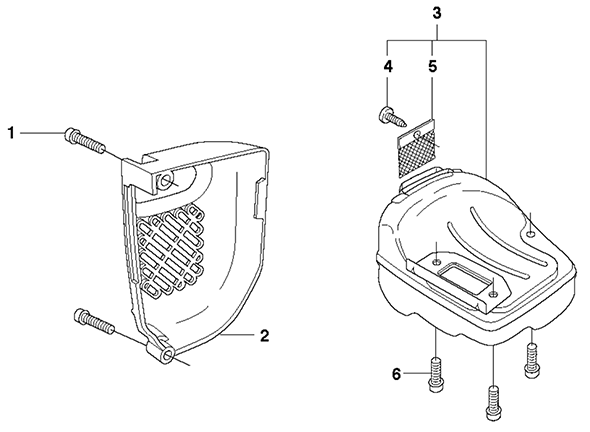

Jonsered CS2139T

...
...
1
Screw Cihscto HUS-503215825
...
2
Muffler Cover HUS-537416201
...
3
Muffler Assembly HUS-503930303
...
4
Screw Crpanm HUS-724128759
...
5
Spark Arrester Screen HUS-503821701
...
6
Screw Ihscfm HUS-503200216

Jonsered CS2139T

...
...

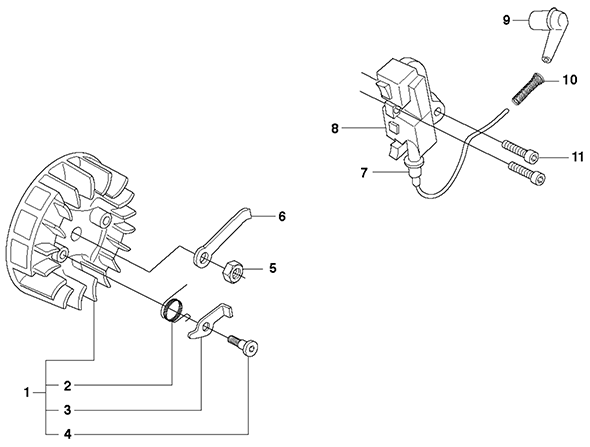

1
Flywheel HUS-537233901
...
2
Spring HUS-503818101
...
3
Starter Pawl HUS-503710203
...
4
Screw HUS-501819905
...
5
Hexagon Nut HUS-503221011
...
6
Counterweight HUS-503909802
...
7
Cable Guide HUS-505548401
...
8
Ignitionition Module HUS-544047001
...
9
Spark Plug Cap HUS-501485402
...
10
Cable Cover HUS-505549301
...
11
Screw Ihscm HUS-503202516

Jonsered CS2139T

...
...
1
Starter Assembly HUS-537404602
...
2
Screw Ihsct HUS-503217716
...
3
Starter Pulley HUS-537201901
...
4
Starter Handle HUS-503997701
...
5
Starter Cord HUS-505305125
...
6
Spring Cassette Assembly HUS-501763101
...
7
Starter Housing HUS-537404501
...
8
Screw Cihscto HUS-503215825
...
9
Air Conductor HUS-503822503
...
10
Label HUS-537429301

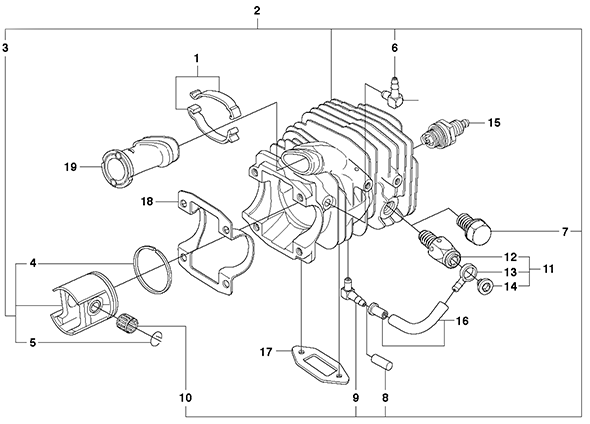

Jonsered CS2139T

...
...
1
Clip HUS-537167301
...
2
Cylinder HUS-537132001
...
3
Piston HUS-537132702
...
4
Piston Ring HUS-503289004
...
5
Snap Ring HUS-737441000
...
6
Fitting HUS-504340004
...
7
Plug HUS-503552201
...
8
Protective Cap HUS-537180001
...
9
Fitting HUS-504340004
...
10
Needle Bearing HUS-503414101
...
11
Kit HUS-537126806
...
12
Decompression Valve HUS-537359401
...
13
Nipple HUS-537137001
...
14
Screw HUS-537222901
...
15
Spark Plug, Rcj-7Y HUS-503235108
...
16
Hose Assembly HUS-537113203
...
17
Gasket HUS-503821101
...
18
Gasket HUS-537100401
...
19
Inlet Pipe HUS-537157701

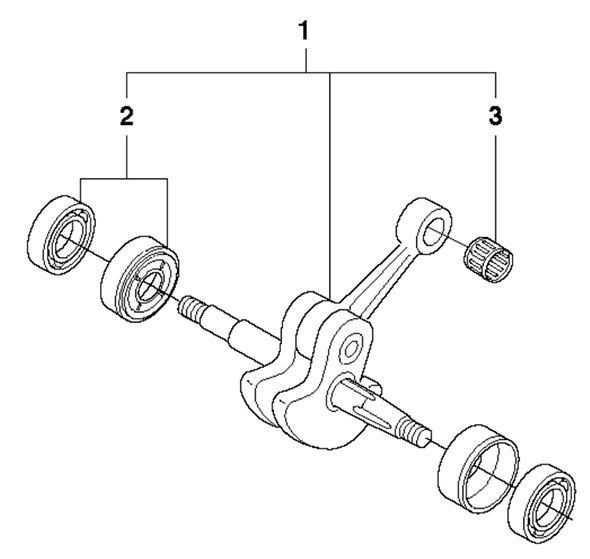

Jonsered CS2139T

...
...
1
Crankshaft Assembly HUS-537376702
...
2
Bearing Cage HUS-503934502
...
3
Needle Bearing HUS-503414101

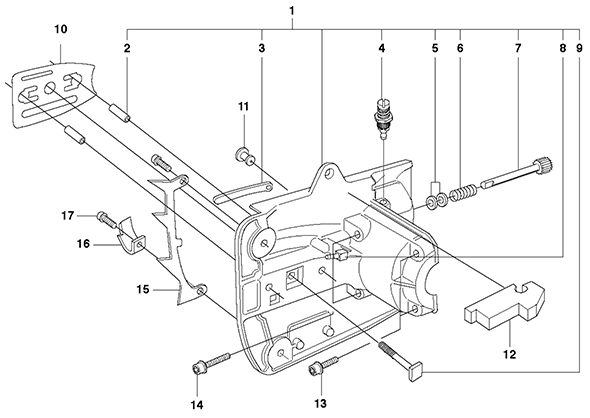

Jonsered CS2139T

...
...
1
Crankcase Assembly HUS-503792206
...
2
Spring Pin HUS-501623301
...
3
Sealing HUS-503986201
...
4
Insert HUS-537396001
...
5
Washer HUS-503230016
...
6
Spring HUS-503184901
...
7
Pump Piston HUS-503808303
...
8
Nipple HUS-537046101
...
9
Bar Bolt HUS-501454301
...
10
Chain Guide Plate HUS-544339901
...
11
Bushing HUS-503723101
...
12
Heat Sealing HUS-503842701
...
13
Screw Ihscfm HUS-503200225
...
14
Screw Ihscfm HUS-503200240
...
15
Spike HUS-503817301
...
16
Chain Catcher HUS-501686801
...
17
Screw Ihscfm HUS-503200216

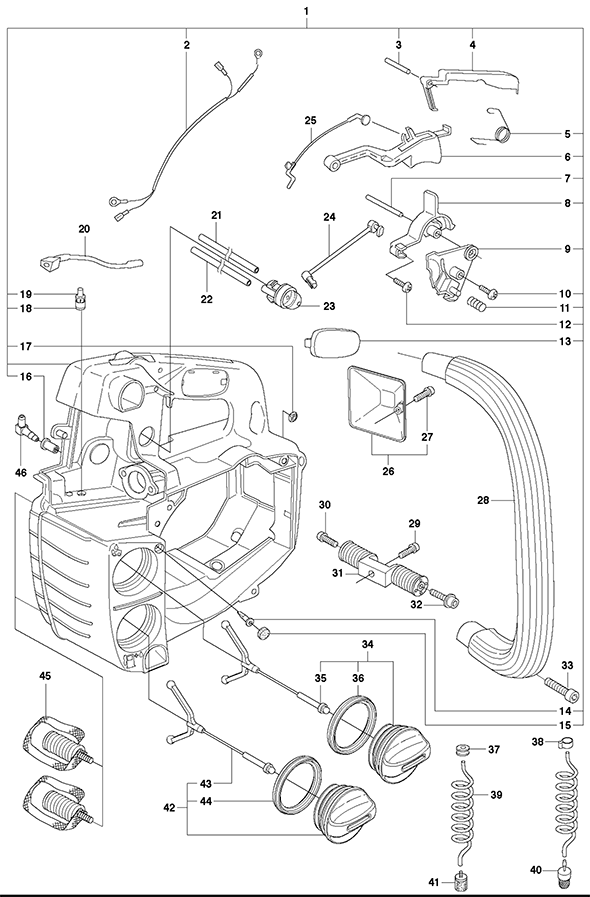

Jonsered CS2139T

...
...
1
Tank Unit Assembly HUS-544110905
...
2
Wiring HUS-503963201
...
3
Parallel Pin HUS-720124020
...
4
Throttle Lockout HUS-503813301
...
5
Spring HUS-503851301
...
6
Throttle Trigger HUS-503813202
...
7
Parallel Pin HUS-720124620
...
8
Choke HUS-503813402
...
9
Plate HUS-503813501
...
10
Screw Ccrpant HUS-503212810
...
11
Spring HUS-503929601
...
12
Screw Ccrpant HUS-729565501
...
13
Handle Insert HUS-544042002
...
14
Check Valve HUS-530026119
...
15
Plug HUS-503981301
...
16
Valve Sleeve HUS-537052801
...
17
Square Nut HUS-503226504
...
18
Tank Vent Assembly HUS-537359501
...
19
Protective Cap HUS-537139701
...
20
Impulse Hose HUS-503842601
...
21
Fuel Hose HUS-537042408
...
22
Fuel Hose HUS-537042409
...
23
Purge HUS-503936601
...
24
Choke Rod HUS-503822702
...
25
Throttle Rod HUS-503822801
...
26
Spark Plug Cover Ass HUS-537390502
...
27
Screw Cihscmo HUS-503215601
...
28
Front Handle HUS-503816902
...
29
Screw Ihscfm HUS-503200216
...
30
Screw Ihscfm HUS-503200216
...
31
Antivibration Element HUS-503823302
...
32
Screw Ihscfm HUS-503200216
...
33
Screw Ihsct HUS-503218830
...
34
Tank Cap Assembly HUS-537215204
...
35
Holder HUS-503578901
...
36
Sealing HUS-537215001
...
37
Bushing HUS-503735801
...
38
Hose Clamp HUS-537051101
...
39
Fuel Hose HUS-544325002
...
40
Oil Plummet HUS-503967501
...
41
Fuel Filter HUS-503443201
...
42
Tank Cap Assembly HUS-537215201
...
43
Holder HUS-503578901
...
44
Sealing HUS-537215001
...
45
Antivibration Element HUS-503853804
...
46
Nipple HUS-537192301

Jonsered CS2139T

...
...

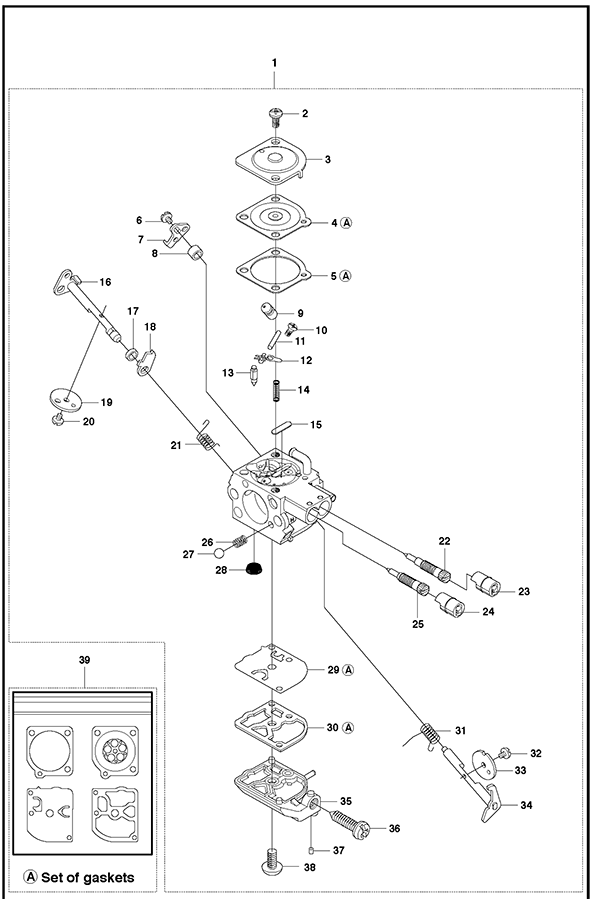

1
Carburettor, Zama C1Q-El33A HUS-544160901
...
2
Screw HUS-503480501
...
3
Cover HUS-503974301
...
4
Diaphragm HUS-537048901
...
5
Gasket HUS-537020401
...
6
Screw HUS-503479001
...
7
Lever HUS-537274101
...
8
Collar HUS-503478901
...
9
Nozzle Assembly HUS-537413501
...
10
Screw HUS-503480101
...
11
Pin Retaining Screw HUS-503480001
...
12
Lever HUS-503665901
...
13
Valve HUS-503479701
...
14
Spring HUS-537273401
...
15
Plug Welch HUS-503535601
...
16
Shaft Assembly HUS-537273801
...
17
Collar HUS-537274401
...
18
Lever HUS-537274301
...
19
Valve HUS-537266801
...
20
Screw HUS-503481801
...
21
Spring HUS-537134901
...
22
Screw L HUS-537416901
...
23
Limiter Cap HUS-537417001
...
24
Limiter Cap HUS-537417001
...
25
Screw H HUS-537387501
...
26
Spring HUS-537012601
...
27
Ball HUS-537012501
...
28
Strainer HUS-503535701
...
29
Diaphragm Pump HUS-537020001
...
30
Gasket HUS-537020101
...
31
Spring HUS-537019701
...
32
Screw HUS-503481801
...
33
Valve HUS-537388301
...
34
Shaft HUS-544119001
...
35
Cover HUS-537273301
...
36
Screw HUS-537273701
...
37
Piece HUS-503481101
...
38
Screw HUS-503479601
...
39
Gasket Kit, A = Set Of Gaskets HUS-531004552

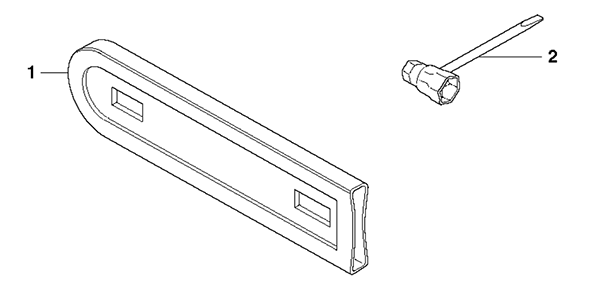

Jonsered CS2139T

...
...
1
Bar Cover HUS-501834402
...
2
Combination Wrench HUS-501691701
