Jonsered CS2137 46cc, 2009-02 Chain Saw

Model: CS2137-46cc

Save Part Not Listed?
product name

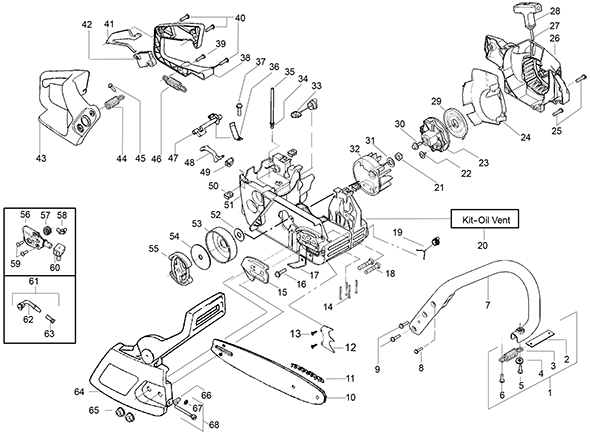

Jonsered CS2137-46cc

...
...
1
Assembly--Isolator HUS-530059667
...
2
Limiter Strap HUS-530047608
...
3
Spring--Isolator HUS-530059668
...
4
Washer HUS-530015158
...
5
Screw HUS-530016018
...
6
Screw HUS-530015843
...
7
Front Handle HUS-545048001
...
8
Screw HUS-530015940
...
9
Screw HUS-530015814
...
12
Kit--Spike (Incl. 13) HUS-530014381
...
13
Screw HUS-530016439
...
14
Screw HUS-530016132
...
15
Plate--Bar Mount. HUS-530038238
...
16
Screw HUS-530015814
...
17
Chain Catcher HUS-530029850
...
18
Bolt--Bar HUS-530016133
...
19
Assembly--Oil Cap HUS-530010846
...
20
Kit--Oil Vent HUS-530071666
...
21
Nut--Flywheel HUS-530016134
...
22
Screw HUS-530016080
...
23
Starter Pulley HUS-530037817
...
24
Baffle--Air HUS-530055723
...
25
Screw HUS-530015892
...
26
Housing--Fan HUS-530057099
...
27
Kit -- Rope HUS-530069232
...
28
Handle--Starter HUS-530056402
...
29
Spring--Recoil HUS-530027531
...
30
Screw HUS-530015920
...
31
Washer--Flywheel HUS-530015127
...
32
Assembly--Flywheel HUS-530047534
...
33
Assembly--Fuel Cap HUS-530047192
...
34
Fitting--Fuel Line HUS-530023877
...
35
Kit--Fuel Line (Large) HUS-530069216
...
36
Spring--Switch HUS-530016149
...
37
Screw HUS-530015775
...
38
Cover--Rear Handle HUS-530047581
...
39
Screw HUS-530015886
...
40
Screw HUS-530015906
...
41
Throttle Lockout HUS-530036098
...
42
Trigger--Throttle HUS-530036097
...
43
Handle -- Rear HUS-545025001
...
44
Kit--Isolator (Upper) HUS-530071958
...
45
Screw HUS-530015875
...
46
Spring--Isolator HUS-530059668
...
47
Lever--Switch HUS-530057473
...
48
Lever--Choke HUS-530057474
...
49
Grommet--Knob HUS-530049005
...
50
Nut--"U"--Type HUS-530015922
...
51
Assembly -- Chassis (Black) (Incl. Fuel Lines/Caps) HUS-530058730
...
52
Washer--Thrust HUS-530015907
...
53
Assembly--Clutch Drum W/Bearing HUS-530047061
...
54
Washer--Clutch HUS-530015611
...
55
Assembly Clutch HUS-530014949
...
56
Kit -- Oil Pump (Incl. 59,60,62) HUS-530071259
...
57
Gear--Worm Spring HUS-530037820
...
58
Elbow--Oil Pickup HUS-530049477
...
59
Screw HUS-530016064
...
60
Seal Block HUS-530019206
...
61
Assembly--Oil Pick--Up (Incl. 64,65) HUS-530047663
...
62
Pick--Up Oiler HUS-530038373
...
63
Filter--Oil HUS-530056533
...
64
Assembly--Chain Brake HUS-545139905
...
65
Nut--Bar Mounting HUS-530015917
...
66
Pin--Bar Adjust HUS-530015826
...
67
Retainer HUS-530038593
...
68
Kit--Bar Adjusting (Incl. 68,69) HUS-530069611

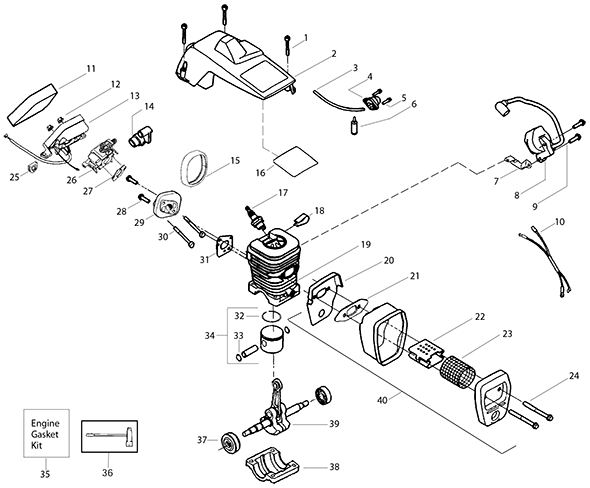

Jonsered CS2137-46cc

...
...
xx
Walbro (Wt --- 89) (Incl. Grommet) HUS-545081885
...
1
Screw HUS-530016153
...
2
Assembly --- Cylinder Shield (Includes 16) HUS-530055709
...
3
Kit--- Fuel Line (Small) HUS-530069247
...
4
Kit--- Purge Bulb(Incl. 5) HUS-530071835
...
5
Screw HUS-530015780
...
6
Assembly --- Fuel Pick--- Up HUS-530095646
...
7
Strap --- Ground HUS-530047442
...
8
Ignitionition Module HUS-530039167
...
9
Screw HUS-530015814
...
10
Assembly --- Wire Harness HUS-530057475
...
11
Foam--- Air Filter HUS-530037793
...
12
Nut HUS-530016101
...
13
Assembly --- Air Box HUS-530057702
...
14
Grommet--- Carb Adjust HUS-530049244
...
15
Seal--- Carb Adapter HUS-530054144
...
16
Re Ector---Heat HUS-530055698
...
17
Spark Plug (Rcj --- 7Y) HUS-952030150
...
18
Clip --- High Tension Lead HUS-530016136
...
19
Cylinder (46Cc) HUS-545122101
...
20
Backplate---Mu Er HUS-530049870
...
21
Gasket--- Mu Er(Kit) HUS-530069608
...
22
Di User --- Mu Er HUS-530037813
...
23
Screen --- Spark HUS-530036103
...
24
Bolt--- Mu Er HUS-530016132
...
25
Grommet--- Throttle Cable HUS-530047631
...
27
Gasket--- Carb. (Kit) HUS-530069608
...
28
Screw HUS-530016386
...
29
Carb. Adapter HUS-530049700
...
30
Screw HUS-530016187
...
31
Gasket--- Adaptor(Kit) HUS-530069608
...
32
Ring --- Piston (46Cc) HUS-530037380
...
33
Retainer --- Piston Pin HUS-530015697
...
34
Kit--- Piston (46Cc) (Incl. 32 & 33) HUS-545081872
...
35
Kit--- Engine Gasket (Incl. 21, 27 & 31) HUS-530069608
...
36
Scrench HUS-530031135
...
37
Assembly --- Seal & Bearing HUS-530056363
...
38
Cap---Crankcase HUS-530037935
...
39
Assembly --- Crankshaft HUS-545113101
...
40
Assembly --- Mu Er (Incl . 20--- 24) HUS-530047207
