Jonsered CS2125 T, 2009-08 Chain Saw

Model: CS2125T-2009-08

Save Part Not Listed?
product name

Popular Parts

Popular Parts

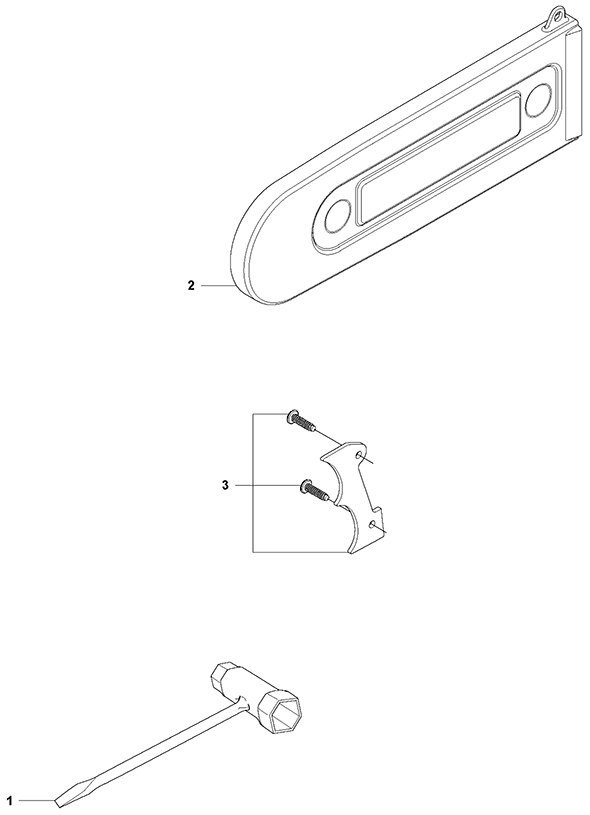

Jonsered CS2125T-2009-08

...
...
1
Combi Tool HUS-505059401
...
2
Protector HUS-970420201
...
3
Spike Kit HUS-505060201

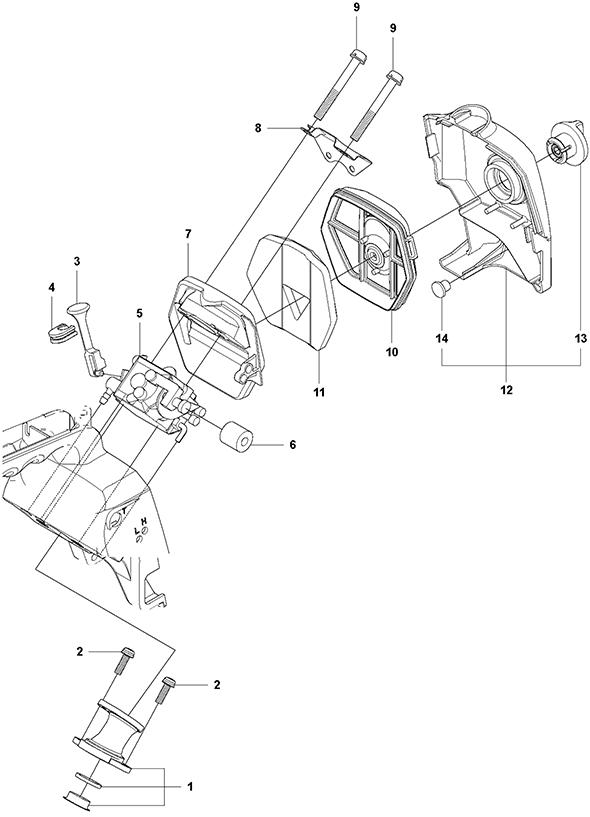

Jonsered CS2125T-2009-08

...
...
1
Pipe Set HUS-505060401
...
2
Screw HUS-505041601
...
3
Rod HUS-505058401
...
4
Grommet HUS-505058501
...
5
Carburettor HUS-588152201
...
6
Seal HUS-505058101
...
7
Plate.Base HUS-505058201
...
8
Plate HUS-505058601
...
9
Screw HUS-505058301
...
10
Cleaner HUS-505058701
...
11
Element HUS-505058801
...
12
Cover Comp HUS-527718001
...
13
Knob HUS-514252901
...
14
Grommet HUS-505049401

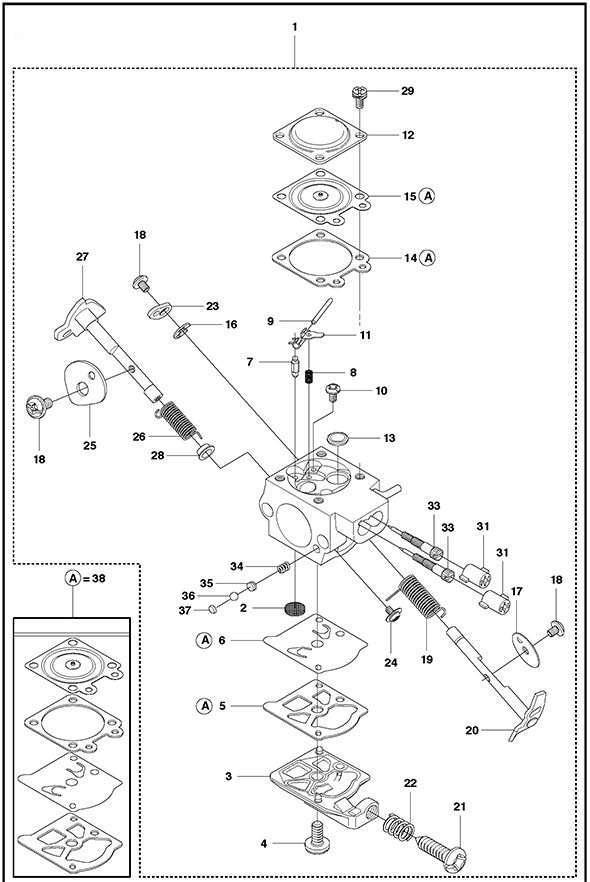

Jonsered CS2125T-2009-08

...
...
1
Carburettor HUS-588152201
...
2
Screen HUS-505055101
...
3
Cover HUS-505055201
...
4
Screw HUS-505055301
...
5
Gasket HUS-505055401
...
6
Diaphragm HUS-505055501
...
7
Valve.Inlet HUS-505055601
...
8
Spring HUS-505055701
...
9
Pin HUS-505055801
...
10
Screw HUS-505055901
...
11
Lever HUS-505056001
...
12
Cover HUS-505056101
...
13
Plug HUS-505056201
...
14
Gasket HUS-505056301
...
15
Diaphragm HUS-522648401
...
16
Ring HUS-505056501
...
17
Valve HUS-505056601
...
18
Screw HUS-505056701
...
19
Spring HUS-505056801
...
20
Shaft HUS-505056901
...
21
Screw HUS-505057001
...
22
Spring HUS-505057101
...
23
Lever HUS-505057101
...
24
Screw HUS-505057301
...
25
Valve HUS-505057401
...
26
Spring HUS-505057501
...
27
Shaft HUS-505057601
...
28
Bushing HUS-505057701
...
29
Screw HUS-505057801
...
31
Hub Cap HUS-505134301
...
33
Needle HUS-505134101
...
34
Spring HUS-505057901
...
35
Piston HUS-505058001
...
36
Lighting Kit HUS-506123001
...
37
Plug HUS-525555001
...
38
Gasket.Kit HUS-522640201

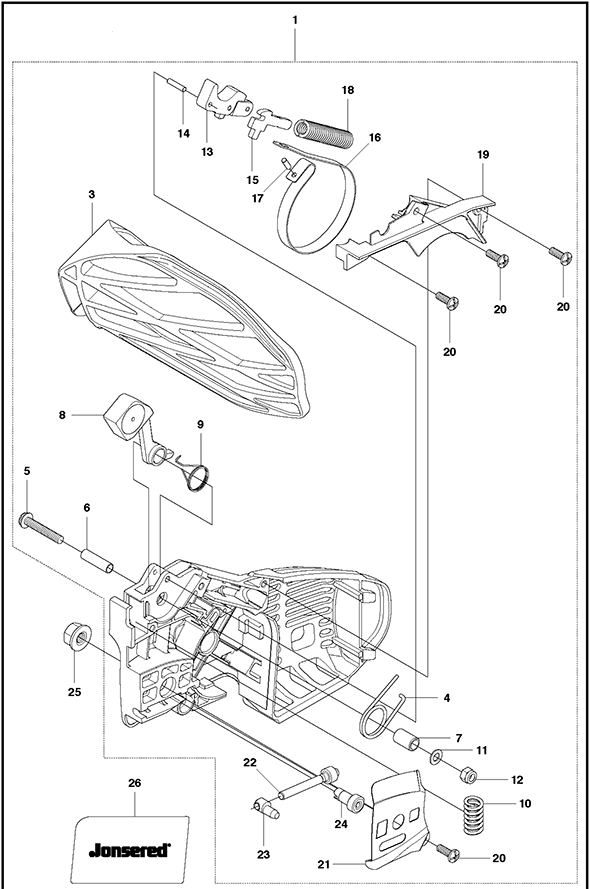

Jonsered CS2125T-2009-08

...
...
1
Brake Assembly HUS-527717801
...
3
Guard HUS-513731801
...
4
Spring HUS-505050701
...
5
Screw HUS-505050801
...
6
Spacer HUS-505050901
...
7
Spacer HUS-505051001
...
8
Weight HUS-505051101
...
9
Spring HUS-505051201
...
10
Spring HUS-505051301
...
11
Washer HUS-505051401
...
12
Nut HUS-505051501
...
13
Lever HUS-505051601
...
14
Roller HUS-505051701
...
15
Arm HUS-505051801
...
16
Band HUS-505051901
...
17
Roller HUS-505052001
...
18
Spring HUS-505052101
...
19
Cover,Spring HUS-527717701
...
20
Screw HUS-505052301
...
21
Plate HUS-505052401
...
22
Screw HUS-505052501
...
23
Nut HUS-505052601
...
24
Gear HUS-505052701
...
25
Nut HUS-505052801
...
26
Label,Cover HUS-527718201

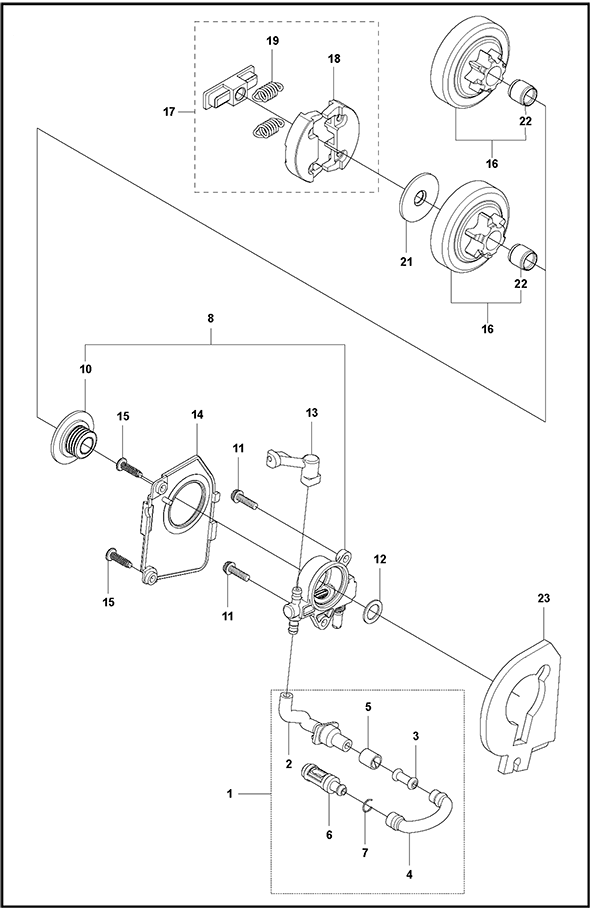

Jonsered CS2125T-2009-08

...
...
1
Pipe Comp HUS-505044601
...
2
Pipe HUS-505044701
...
3
Joint HUS-505044801
...
4
Pipe HUS-505044901
...
5
Clip HUS-505045001
...
6
Filter HUS-505045101
...
7
Ring HUS-505045201
...
8
Oil Pump Assembly HUS-505052901
...
10
Worm HUS-505053101
...
11
Screw HUS-505041601
...
12
Washer HUS-505053301
...
13
Pipe HUS-505053501
...
14
Cover HUS-513733001
...
15
Screw HUS-505047001
...
16
Clutch Drum, 1/4 8-Tooth HUS-525615201
...
16
Clutch Drum, 3/8 6-Tooth HUS-525615301
...
17
Clutch HUS-505049801
...
18
Shoe.Clutch HUS-505049901
...
19
Spring HUS-505050001
...
21
Plate HUS-505050201
...
22
Bearing HUS-505050301
...
23
Seal HUS-505053401

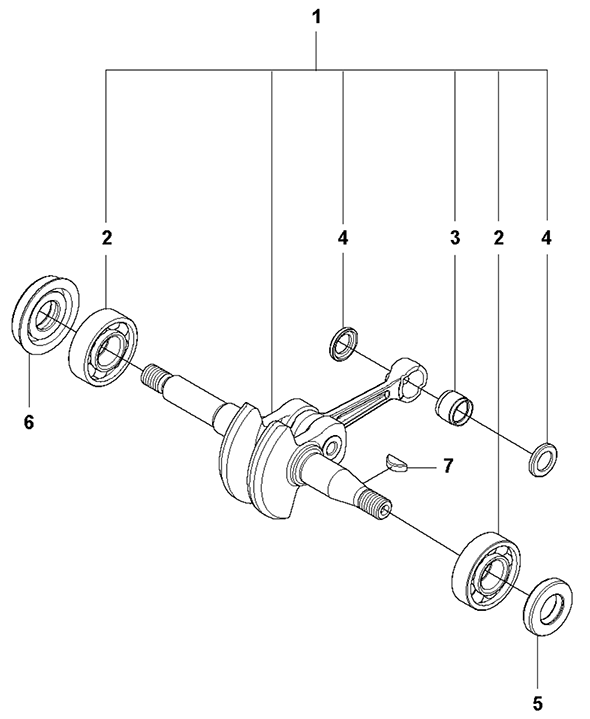

Jonsered CS2125T-2009-08

...
...
1
Crankshaft HUS-525616101
...
2
Bearing HUS-505041201
...
3
Bearing HUS-505040901
...
4
Washer HUS-505041001
...
5
Seal HUS-505041301
...
6
Seal HUS-505041401
...
7
Key HUS-544260001

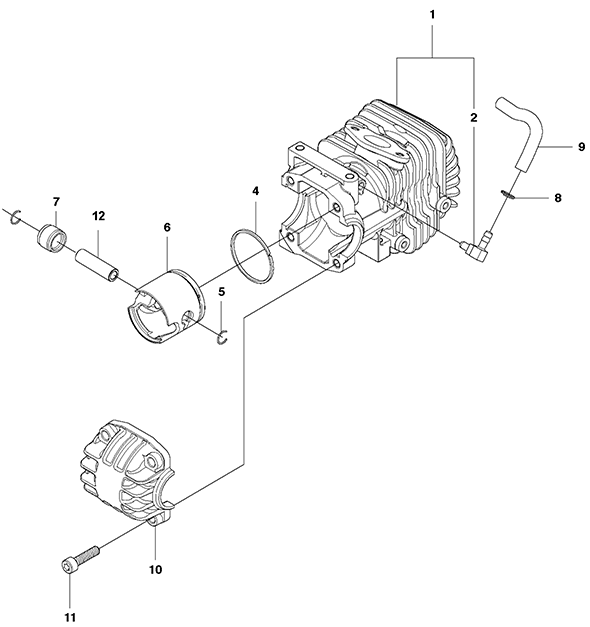

Jonsered CS2125T-2009-08

...
...
1
Cylinder-Comp HUS-521553201
...
2
Elbow HUS-505040001
...
4
Piston Ring HUS-505040601
...
5
Ring HUS-505040801
...
6
Piston HUS-505040501
...
7
Bearing HUS-505040901
...
8
Clip HUS-505040201
...
9
Pipe HUS-505040101
...
10
Crankcase HUS-505040301
...
11
Bolt HUS-505040401
...
12
Pin HUS-505040701

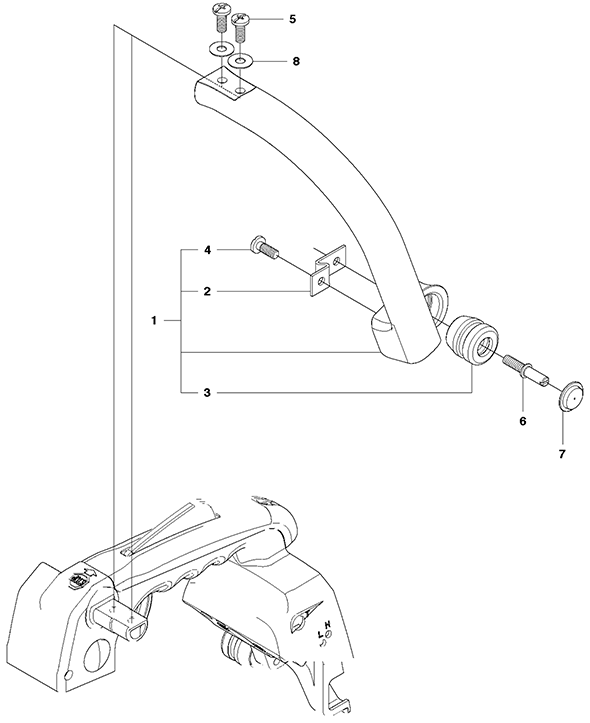

Jonsered CS2125T-2009-08

...
...
1
Handle Assembly HUS-526359701
...
2
Stopper HUS-505047401
...
3
Damper HUS-505047501
...
4
Screw HUS-505047601
...
5
Screw HUS-505047601
...
6
Bolt HUS-505049501
...
7
Hub Cap HUS-505049601
...
8
Washer HUS-586060401

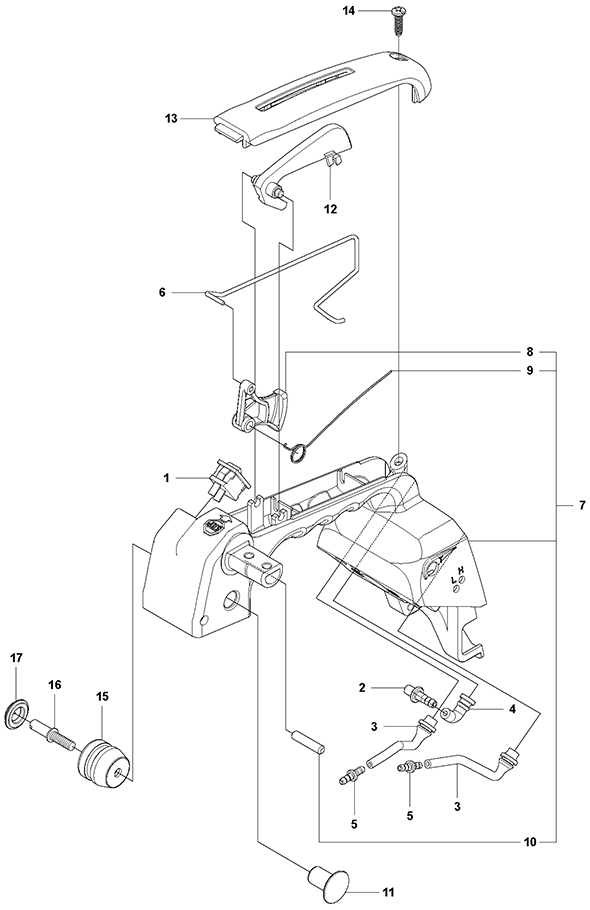

Jonsered CS2125T-2009-08

...
...
1
Stop Switch HUS-586246901
...
2
Elbow HUS-505048501
...
3
Pipe HUS-505048201
...
4
Pipe HUS-505048401
...
5
Joint HUS-505048301
...
6
Rod HUS-505048901
...
7
Handle Comp HUS-527717501
...
8
Lever HUS-521549901
...
9
Spring HUS-505048001
...
10
Spring Pin HUS-505048101
...
11
Stopper HUS-505048601
...
12
Arm HUS-521556501
...
13
Cover,Handle HUS-527717301
...
14
Screw HUS-505047001
...
15
Damper HUS-505048701
...
16
Bolt HUS-505049501
...
17
Hub Cap HUS-505049601

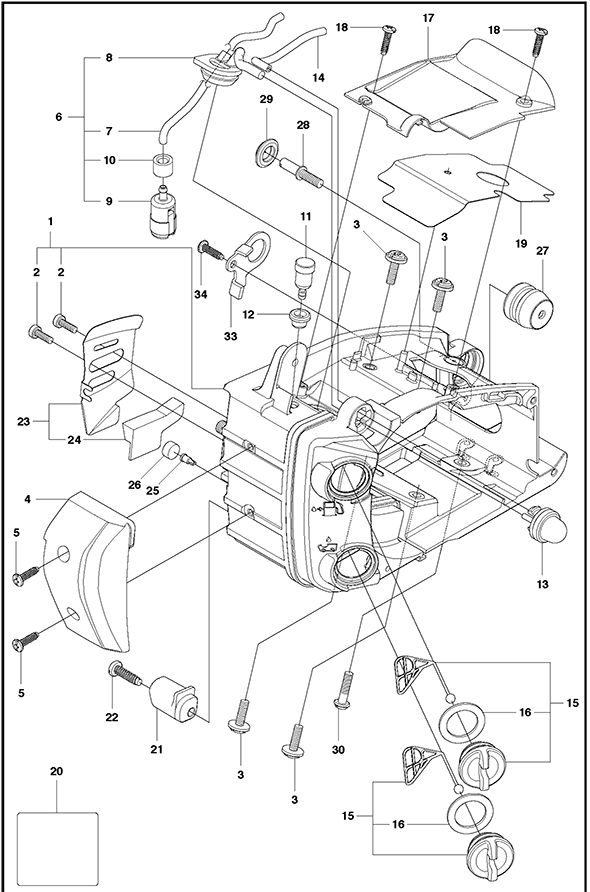

Jonsered CS2125T-2009-08

...
...
1
Case Comp HUS-521549701
...
2
Screw HUS-505044001
...
3
Bolt HUS-586950501
...
4
Cover,Front HUS-527717101
...
5
Screw HUS-505047001
...
6
Pipe Assembly HUS-505044101
...
7
Pipe HUS-505044201
...
8
Grommet HUS-505044301
...
9
Filter HUS-505044401
...
10
Collar HUS-505044501
...
11
Breather HUS-505045301
...
12
Grommet HUS-505045401
...
13
Pump HUS-505045801
...
14
Pipe HUS-505045901
...
15
Cap-Assembly HUS-521551101
...
16
Gasket HUS-505046101
...
17
Cover HUS-521779301
...
18
Screw HUS-505047001
...
19
Mat HUS-505047101
...
20
Decal HUS-587120901
...
21
Catcher HUS-505046601
...
22
Screw HUS-505046701
...
23
Plate HUS-505046401
...
24
Seal HUS-505046501
...
25
Valve HUS-505045501
...
26
Seal HUS-505045601
...
27
Damper HUS-505047501
...
28
Bolt HUS-505049501
...
29
Hub Cap HUS-505049601
...
30
Screw HUS-505047201
...
33
Hanger HUS-505152101
...
34
Screw HUS-505052301

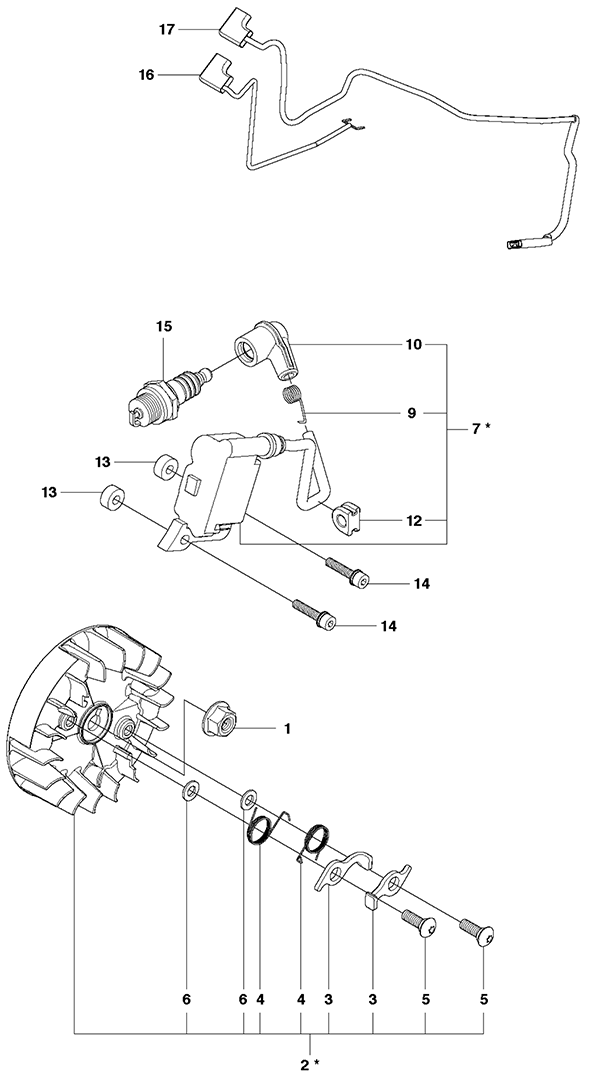

Jonsered CS2125T-2009-08

...
...
1
Nut HUS-505041501
...
2
Rotor HUS-575322101
...
3
Pawl HUS-521551701
...
4
Spring HUS-521551801
...
5
Screw HUS-521516001
...
6
Washer HUS-506614401
...
7
Ignitionition Module HUS-525738101
...
9
Spring HUS-513243301
...
10
Hub Cap HUS-513765601
...
12
Grommet HUS-513190201
...
13
Spacer HUS-505043401
...
14
Bolt HUS-505043501
...
15
Spark Plug HUS-503235108
...
16
Cord HUS-505043701
...
17
Cord HUS-505043801

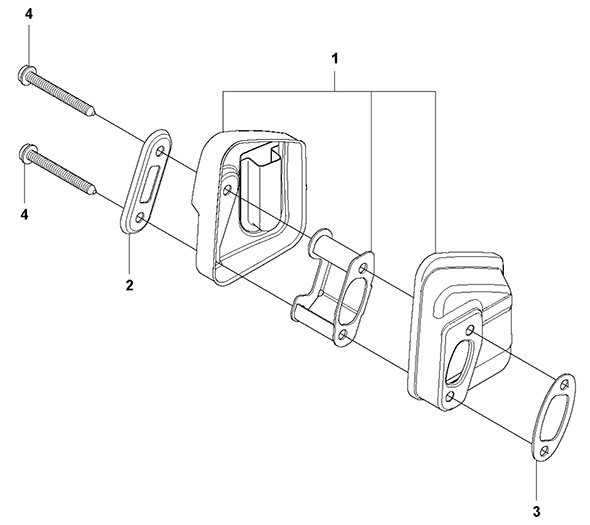

Jonsered CS2125T-2009-08

...
...
1
Muffler HUS-505041701
...
2
Plate HUS-505042001
...
3
Gasket HUS-505041801
...
4
Screw HUS-505041901

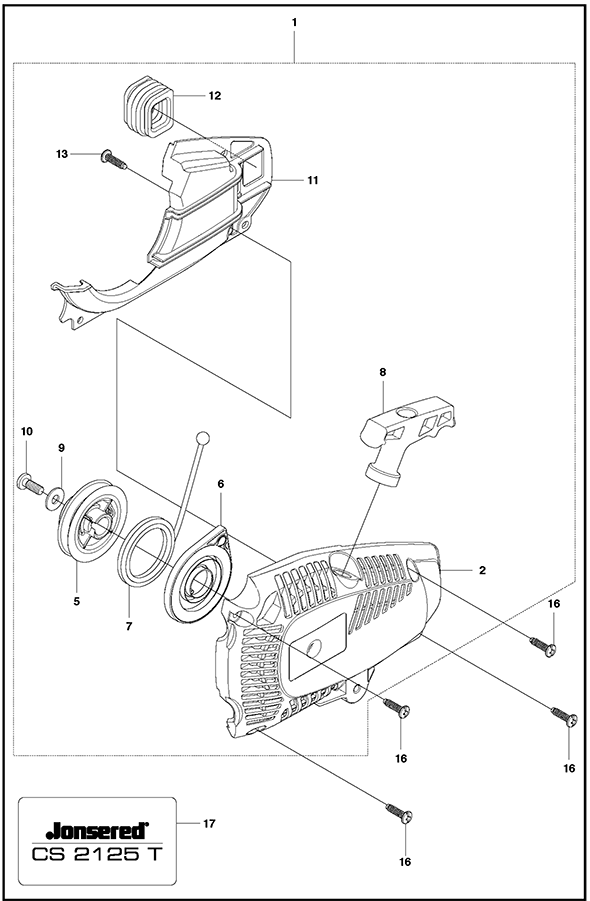

Jonsered CS2125T-2009-08

...
...
1
Starter Assembly HUS-526361301
...
2
Case Comp HUS-526361401
...
5
Reel HUS-505054001
...
6
Spring HUS-505054101
...
7
Rope HUS-505054201
...
8
Knob HUS-506614701
...
9
Washer HUS-505054401
...
10
Screw HUS-505047601
...
11
Cover HUS-505054601
...
12
Pipe HUS-505054701
...
13
Screw HUS-505047001
...
16
Screw HUS-505047001
...
17
Label,Recoil HUS-527718301
