Jonsered CS2040, 2003-01, 106 30 00-61 Chain Saw

Model: CS2040

Save Part Not Listed?

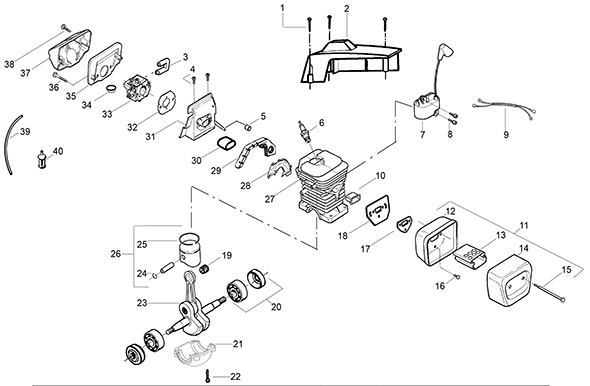

product name

Jonsered CS2040

...
...
xx
36Cc HUS-503920801
...
xx
40Cc HUS-503920801
...
xx
36Cc HUS-530029805
...
xx
40Cc HUS-530029982
...
xx
36Cc HUS-530069944
...
xx
40Cc HUS-530069454
...
xx
36Cc HUS-530069940
...
xx
40Cc HUS-530069941
...
1
Screw HUS-530016154
...
2
Shield--Cylinder HUS-530037477
...
3
Grommet --Carb. HUS-530037464
...
4
Screw HUS-530015814
...
5
Seal--Impulse HUS-530053435
...
6
Spark Plug (Rcj--7Y) HUS-952030150
...
7
Module--Ignitionition HUS-530039143
...
8
Screw HUS-530015895
...
9
Assembly--Switch Wire HUS-530037467
...
10
Insulator--Heat HUS-530037652
...
11
Kit--Muffler (Incl.12 -- 15) HUS-530069416
...
12
Body--Muffler HUS-530037248
...
13
Diffuser--Muffler HUS-530037813
...
14
Cover--Muffler HUS-530037249
...
15
Bolt--Muffler HUS-530016170
...
16
Bolt--Muffler HUS-530015902
...
17
Gasket--Muffler HUS-530019205
...
18
Backplate--Muf Fler HUS-530037640
...
19
Bearing--Piston Pin HUS-530032117
...
20
Assembly--Bearing & Seal HUS-530056363
...
21
Cap--Crankcase HUS-530049794
...
22
Screw HUS-530015897
...
24
Retainer--Piston Pin HUS-530015697
...
28
Assembly--Turbo Air Cleaner HUS-530029813
...
29
Seal--Turbo Clean HUS-530019203
...
30
Sleeve--Intake HUS-530029814
...
31
Adapter--Carb. HUS-530037465
...
32
Gasket--Carb. HUS-530019172
...
33
Kit--Carburetor (Wt--289) HUS-530069629
...
34
Isolator HUS-530036792
...
35
Filter--Air (Bottom) HUS-530037478
...
36
Screw HUS-530015970
...
37
Filter--Air (Top) HUS-530036141
...
38
Screw HUS-530015899
...
39
Kit--Fuel Line (Small) HUS-530069247
...
40
Assembly--Fuel Pick--Up HUS-530095646

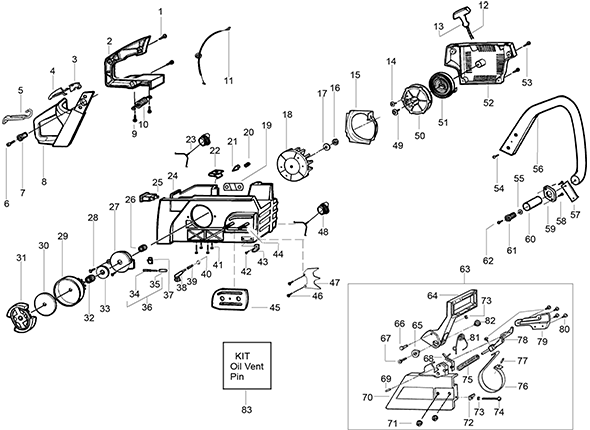

Jonsered CS2040

...
...
xx
3/8--Sprocket HUS-530047061
...
xx
.325--Sprocket HUS-530069342
...
1
Screw HUS-530015957
...
2
Cover--Handle HUS-530036491
...
3
Trigger--Throttle HUS-530036097
...
4
Lockout--Throttle HUS-530036098
...
5
Lever--Choke HUS-530053443
...
6
Screw HUS-530015937
...
7
Spring--Isolator HUS-530038985
...
8
Handle--Rear HUS-530036130
...
9
Screw HUS-530015906
...
10
Spring--Isolator HUS-530038986
...
11
Assembly--Throttle Cable (Incl. Grommet) HUS-530038471
...
12
Kit--Rope HUS-530069232
...
13
Handle--Starter HUS-530037357
...
14
Screw HUS-530016080
...
15
Plate--Baffle Fan HUS-530037457
...
16
Nut--Flywheel HUS-530016134
...
17
Washer--Flywheel HUS-530015127
...
18
Assembly--Flywheel HUS-530039147
...
19
Plate--Support (Bar Stud) HUS-530036043
...
20
Plug--Vent HUS-530029868
...
21
Valve--Check HUS-530026119
...
22
Nut--Speed HUS-530015922
...
23
Assembly--Fuel Cap HUS-530010845
...
24
Assembly--Chassis HUS-530054578
...
25
Kit--Switch HUS-530069572
...
26
Worm--Oil Pump HUS-530029833
...
27
Hsg.--Oil Pump HUS-530029835
...
28
Screw HUS-530015896
...
30
Washer--Clutch HUS-530015611
...
31
Assembly--Clutch HUS-530014949
...
32
Bearing--Clutch HUS-530032119
...
33
Washer--Thrust HUS-530015907
...
34
Assembly--Plunger/Gear HUS-530029838
...
35
Barrel--Oil Pump HUS-530029834
...
36
Assembly--Oil Pump (Incl. 27, 34, & 35) HUS-530014410
...
37
Seal--Oil HUS-530019174
...
38
Pickup--Oil HUS-530037057
...
39
Filter--Oil HUS-530037821
...
40
Plug--Oil Filter HUS-530030189
...
41
Screw HUS-530016037
...
42
Screw HUS-530015814
...
43
Chain Catcher HUS-530029850
...
44
Bar Bolt HUS-530015877
...
45
Bar Plate HUS-530047855
...
46
Screw HUS-530015805
...
47
Kit--Spike Assembly(Incl 46) HUS-530014381
...
48
Assembly--Oil Cap HUS-530010846
...
49
Screw HUS-530015920
...
50
Kit--Starter Pulley HUS-530069313
...
51
Spring--Recoil HUS-530015891
...
52
Housing--Fan HUS-530054547
...
53
Screw HUS-530015892
...
54
Screw HUS-530015814
...
55
Washer HUS-530015123
...
56
Handle--Front HUS-530038327
...
57
Front Strap--Av HUS-530036113
...
58
Screw--Plate HUS-530015775
...
59
Plate--Isolator HUS-530036101
...
60
Spring Sleeve--Av HUS-530036142
...
61
Spring--Isolator HUS-530038985
...
62
Screw HUS-530015984
...
63
Assembly--Chainbrake HUS-530054871
...
64
Handguard HUS-506158601
...
65
Journal--Right HUS-530056531
...
66
Pin--Pivot HUS-530029879
...
67
Screw HUS-530016384
...
68
Spring--Position HUS-530029878
...
69
Link Pin--Front HUS-530015915
...
70
Cover--Clutch HUS-530053666
...
71
Nut--Bar Mounting HUS-530015917
...
72
Pin--Bar Adjust HUS-530015826
...
73
Retainer--E--Clip HUS-530038593
...
74
Kit--Bar Adjust (Incl.72,73) HUS-530069611
...
75
Spring--Compression HUS-530016237
...
76
Band--Brake HUS-530052232
...
77
Pin--Spring Band HUS-530015913
...
78
Assembly--Front/Rear Link HUS-530054741
...
79
Cover--Spring HUS-530053129
...
80
Screw--Brake Band HUS-530015911
...
81
Spring--Handguard HUS-506164801
...
82
Journal--Left HUS-530029881
...
83
Kit--Oil Vent Pin HUS-530069583

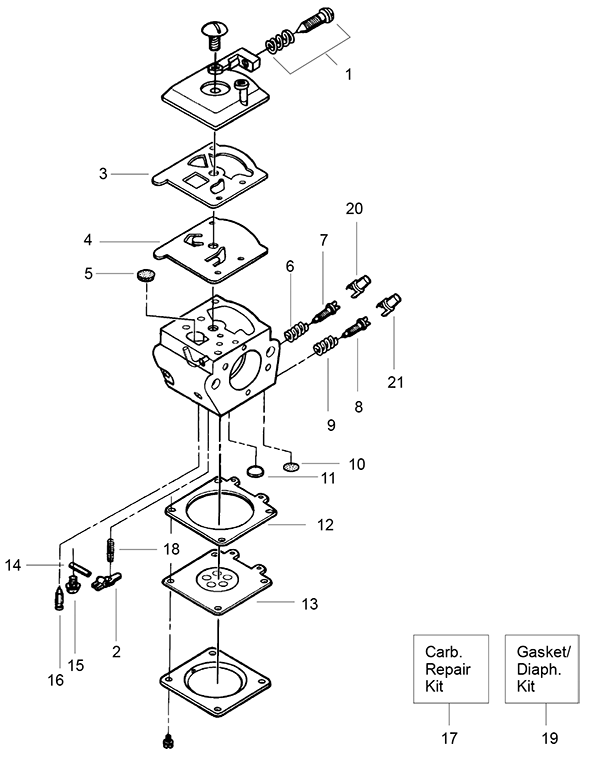

Jonsered CS2040

...
...
xx
Wt--202 HUS-530035281
...
xx
Wt--289 HUS-530035383
...
xx
Wt--202 HUS-530035294
...
xx
Wt--289 HUS-530035384
...
1
Idle Adv. Screw Kit HUS-530035296
...
2
Metering Lever HUS-530035031
...
3
Fuel Pump Gasket HUS-530035164
...
4
Fuel Pump Diaphragm HUS-530035166
...
5
Fuel Inlet Screen HUS-507432582
...
6
Needle Spring (Low Speed) HUS-530035293
...
9
Needle Spring (High Speed) HUS-530035295
...
10
Welch Plug (5/16) HUS-530035162
...
11
Cup Plug HUS-530035225
...
12
Metering Diaphragm Gasket HUS-530035165
...
13
Metering Diaphragm HUS-530035014
...
14
Metering Lever Pin HUS-530035028
...
15
Metering Lever Pin Screw HUS-530035016
...
16
Inlet Needle Valve HUS-530035106
...
17
Carburetor Repair Kit (Incl. 3--5 & 10--18) HUS-530069826
...
18
Metering Lever Spring HUS-530035188
...
19
Gasket/Diaphragm Kit (Incl. 3, 4, 12, & 13) HUS-530069844
...
20
Limiter Cap (Low) Wt--289 Only HUS-530038478
...
21
Limiter Cap (High) Wt--289 Only HUS-530038479
