Jonsered CS 2138, 2005-01, 544 03 53-01 Chain Saw

Model: CS2138

Save Part Not Listed?
product name

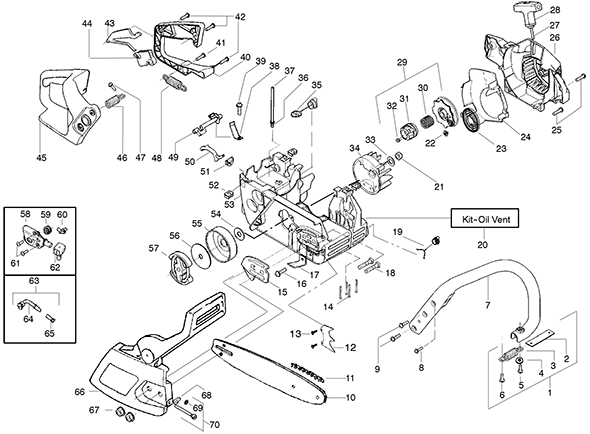

Jonsered CS2138

...
...
1
Assembly--Isolator HUS-530059667
...
2
Limiter Strap HUS-530047608
...
3
Spring--Isolator HUS-530059668
...
4
Washer HUS-530015158
...
5
Screw HUS-530016018
...
6
Screw HUS-530015843
...
7
Front Handle HUS-530047583
...
8
Screw HUS-530015940
...
9
Screw HUS-530015814
...
12
Kit--Spike (Incl. 13) HUS-530014381
...
13
Screw HUS-530016439
...
14
Screw HUS-530016132
...
15
Plate--Bar Mount. HUS-530038238
...
16
Screw HUS-530015814
...
17
Chain Catcher HUS-530029850
...
18
Bolt--Bar HUS-530016133
...
19
Assembly--Oil Cap HUS-530057236
...
20
Kit--Oil Vent HUS-530071666
...
21
Nut--Flywheel HUS-530016134
...
22
Screw HUS-530016392
...
23
Spring--Starter HUS-530027531
...
24
Baffle--Air HUS-530055723
...
25
Screw HUS-530015892
...
26
Housing--Fan HUS-530059884
...
27
Kit -- Rope HUS-530069232
...
28
Handle--Starter HUS-530056402
...
29
Kit--Eps Starter (Incl. 22,30,31,32) HUS-530071966
...
30
Spring--Eps HUS-530021180
...
31
Hub--Eps HUS-530059677
...
32
Screw HUS-530021179
...
33
Washer--Flywheel HUS-530015127
...
34
Assembly--Flywheel HUS-545016301
...
35
Assembly--Fuel Cap HUS-530047192
...
36
Fitting--Fuel Line HUS-530023877
...
37
Kit--Fuel Line (Large) HUS-530069216
...
38
Spring--Switch HUS-530016149
...
39
Screw HUS-530015775
...
40
Cover--Rear Handle HUS-530047581
...
41
Screw HUS-530015886
...
42
Screw HUS-530015906
...
43
Throttle Lockout HUS-530036098
...
44
Trigger--Throttle HUS-530036097
...
45
Handle -- Rear HUS-530047582
...
46
Kit--Isolator (Upper) HUS-530071958
...
47
Screw HUS-530015875
...
48
Spring--Isolator HUS-530059668
...
49
Lever--Switch HUS-530057473
...
50
Lever--Choke HUS-530057474
...
51
Grommet--Knob HUS-530049005
...
52
Nut--"U"--Type HUS-530015922
...
53
Assembly--Chassis Fuel Lines And Caps ) HUS-530058724
...
54
Washer--Thrust HUS-530015907
...
55
Assembly--Clutch Drum W/Bearing HUS-530047061
...
56
Washer--Clutch HUS-530015611
...
57
Assembly Clutch HUS-530014949
...
58
Kit -- Oil Pump (Incl. 59,60,62) HUS-530071259
...
59
Gear--Worm Spring HUS-530037820
...
60
Elbow--Oil Pickup HUS-530049477
...
61
Screw HUS-530016064
...
62
Seal Block HUS-530019206
...
63
Assembly--Oil Pick--Up (Incl. 64,65) HUS-530047663
...
64
Pick--Up Oiler HUS-530038373
...
65
Filter--Oil HUS-530056533
...
66
Assembly--Chain Brake HUS-530054678
...
67
Nut--Bar Mounting HUS-530015917
...
68
Pin--Bar Adjust HUS-530015826
...
69
Retainer HUS-530038593
...
70
Kit--Bar Adjusting (Incl. 68,69) HUS-530069611

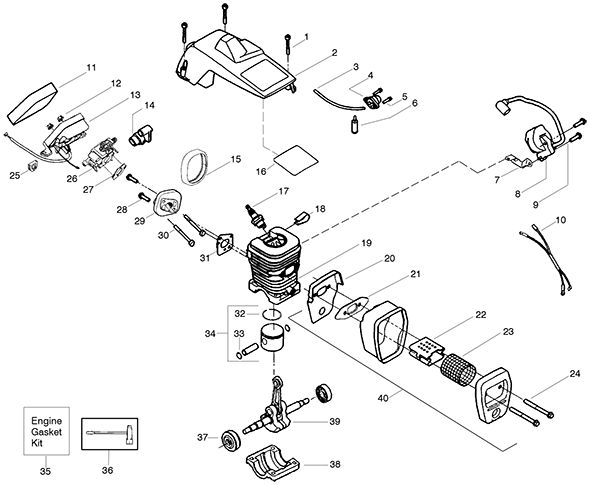

Jonsered CS2138

...
...
xx
Zama (W---20) HUS-530071820
...
xx
Walbro (Wt --- 662) HUS-530071821
...
1
Screw HUS-530016153
...
2
Assembly --- Cylinder Shield (Includes 16) HUS-530056914
...
3
Kit--- Fuel Line (Small) HUS-530069247
...
4
Kit--- Purge Bulb(Incl.5) HUS-530071835
...
5
Screw HUS-530015780
...
6
Assembly --- Fuel Pick--- Up HUS-530095646
...
7
Strap --- Ground HUS-530047442
...
8
Ignitionition Module HUS-530039238
...
9
Screw HUS-530015814
...
10
Assembly --- Wire Harness HUS-530057475
...
11
Foam--- Air Filter HUS-530037793
...
12
Nut HUS-530016101
...
13
Assembly --- Air Box HUS-530057702
...
14
Grommet--- Carb Adjust HUS-530035526
...
15
Seal--- Carb Adapter HUS-530054144
...
16
Reflector --- Heat HUS-530055698
...
17
Spark Plug (Rcj --- 7Y) HUS-952030150
...
18
Clip --- High Tension Lead HUS-530016136
...
19
Cylinder HUS-530012550
...
20
Backplate---Muffler HUS-530049870
...
21
Gasket--- Muffler(Kit) HUS-530069608
...
22
Diffuser --- Muffler HUS-530037813
...
23
Screen --- Spark HUS-530036103
...
24
Bolt--- Muffler HUS-530016132
...
25
Grommet--- Throttle Cable HUS-530047631
...
27
Gasket--- Carb. (Kit) HUS-530069608
...
28
Screw HUS-530016386
...
29
Carb. Adapter HUS-530049700
...
30
Screw HUS-530016187
...
31
Gasket--- Adaptor(Kit) HUS-530069608
...
32
Ring --- Piston HUS-530038729
...
33
Retainer --- Piston Pin HUS-530015697
...
34
Kit--- Piston (Incl. 32 & 33) HUS-530071408
...
35
Kit--- Engine Gasket (Incl. 21, 27 & 31) HUS-530069608
...
36
Scrench HUS-530031135
...
37
Assembly --- Seal & Bearing HUS-530056363
...
38
Cap---Crankcase HUS-530037935
...
39
Assembly --- Crankshaft HUS-530047062
...
40
Assembly --- Muffler (Incl . 20,21,22,23,24) HUS-530047207
