Jonsered CS 2137, 2004-01, 106 29 99-62 Chain Saw

Model: CS2137-2004-01

Save
 Part Not Listed?Part Not Listed?
product name

Jonsered CS2137-2004-01

...
...
1
Assembly--- Isolator HUS-530047963
...
2
Strap --- Limiter HUS-530047608
...
3
Spring --- Isolator HUS-530042082
...
4
Washer HUS-530015123
...
5
Screw HUS-530016018
...
6
Screw HUS-530015843
...
7
Sleeve--- Av Spring HUS-530036142
...
8
Handle---Front HUS-530047583
...
9
Screw HUS-530015940
...
10
Screw HUS-530015814
...
13
Kit--- Assembly Spike(Incl.14) HUS-530014381
...
14
Screw HUS-530015805
...
15
Plate--- Bar Mounting HUS-530038238
...
16
Screw HUS-530015814
...
17
Chain Catcher HUS-530029850
...
18
Screw HUS-530016132
...
19
Assembly --- Oil Cap HUS-530010846
...
20
Kit--- Oil Check Valve HUS-530071666
...
21
Spring --- Starter Dog HUS-530023817
...
22
Screw HUS-530016080
...
23
Baffle---Air HUS-530055723
...
24
Screw HUS-530015892
...
25
Housing --- Fan HUS-530057099
...
26
Kit--- Rope HUS-530069232
...
27
Handle---Starter HUS-530056402
...
28
Spring --- Recoil HUS-530027531
...
29
Pulley---Starter HUS-530037817
...
30
Screw HUS-530015920
...
31
Nut---Flywheel HUS-530016134
...
32
Washer --- Flywheel HUS-530015127
...
33
Assembly --- Flywheel HUS-530039209
...
34
Bolt--- Bar HUS-530016133
...
35
Assembly --- Fuel Cap HUS-530047192
...
36
Nut---"U"---Type HUS-530015922
...
37
Fitting --- Fuel Line HUS-530023877
...
38
Kit--- Fuel Line (Large) HUS-530069216
...
39
Grommet--- Cable HUS-530047631
...
40
Cable---Throttle HUS-530047602
...
41
Cover --- Rear Handle HUS-530047581
...
42
Screw HUS-530015906
...
43
Screw HUS-530015886
...
44
Lockout--- Throttle HUS-530036098
...
45
Trigger --- Throttle HUS-530036097
...
46
Spring HUS-530042082
...
47
Kit--- Switch HUS-530069572
...
48
Handle --- Rear HUS-530047582
...
49
Screw HUS-530015814
...
50
Assembly Isolator --- Lower HUS-530053274
...
51
Kit--- Isolator (Upper) HUS-530071385
...
52
Screw HUS-530015875
...
53
Knob --- Choke HUS-530047605
...
54
Grommet--- Knob HUS-530049005
...
55
Assembly --- Chassis HUS-530056599
...
56
Kit--- Oil Pump (Incls. 57,58,60) HUS-530071259
...
57
Gear --- Worm Spring HUS-530037820
...
58
Elbow --- Oil Pickup HUS-530049477
...
59
Screw HUS-530016064
...
60
Seal Block HUS-530019206
...
61
Assembly --- Oil Pickup (Incl. 62--- 64) HUS-530047663
...
62
Pick--- Up Oiler HUS-530038373
...
63
Filter --- Oil HUS-530037821
...
64
Plug --- Oil Filter HUS-530030189
...
65
Washer --- Thrust HUS-530015907
...
66
Assembly--- Clutch Drum W/Bearing HUS-530047061
...
67
Washer --- Clutch HUS-530015611
...
68
Assembly Clutch HUS-530014949
...
69
Assembly --- Chain Brake HUS-530054678
...
70
Nut---Bar Mounting HUS-530015917
...
71
Pin --- Retainer HUS-530015826
...
72
Retainer HUS-530038593
...
73
Kit--- Bar Adjust HUS-530069611

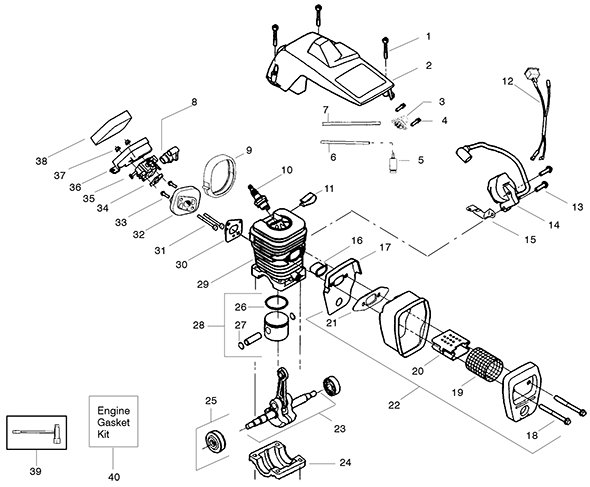

Jonsered CS2137-2004-01

...
...
xx
(Wt--391) HUS-530069722
...
xx
(Wt--625) HUS-530071621
...
1
Screw HUS-530016153
...
2
Shield--Cylinder HUS-530056914
...
3
Assembly--Air Purge HUS-530047213
...
4
Screw HUS-530015780
...
5
Assembly--Fuel Pick--Up HUS-530095646
...
6
Kit--Line Purge/Carb. (Small Dia) HUS-530069247
...
7
Kit--Line Purge/Tank (Large Line) HUS-530069216
...
8
Grommet--Carb Adjust. HUS-530035526
...
9
Seal--Carb Adapter HUS-530054144
...
10
Spark Plug (Rcj--7Y) HUS-952030150
...
11
Clip--High Tension Lead HUS-530016136
...
12
Assembly--Wire Harness (Includes Switch) HUS-530049117
...
13
Screw HUS-530015814
...
14
Module--Ignitionition HUS-530039167
...
15
Strap--Ground HUS-530047442
...
16
Insulator--Heat HUS-530037652
...
17
Back Plate--Muffler HUS-530049870
...
18
Screw HUS-530016132
...
19
Screen--Spark HUS-530036103
...
20
Diffuser--Muffler HUS-530037813
...
21
Gasket--Muffler (Kit) HUS-530069608
...
22
Assembly--Muffler (Incl. 17--21) HUS-530047207
...
23
Assembly--Crankshaft HUS-530047062
...
24
Cap--Crankcase HUS-530037935
...
25
Assembly--Seal & Bearing HUS-530056363
...
26
Ring--Piston HUS-530038729
...
27
Retainer -- Piston Pin HUS-530015697
...
28
Kit--Piston -- (Incl. 26--27) Not Shown HUS-530071408
...
29
Kit--Cylinder HUS-530071412
...
30
Gasket--Carb. Adapter (Kit) HUS-530069608
...
31
Screw HUS-530016187
...
32
Kit--Carb. Adapter HUS-530049700
...
33
Screw HUS-530016386
...
34
Carb. Gasket (Kit) HUS-530069608
...
36
Housing--Air Filter HUS-530047604
...
37
Nut HUS-530016101
...
38
Air Filter -- Foam HUS-530037793
...
39
Wrench--Bar HUS-530031135
...
40
Kit--Engine Gasket (Incl. 34,30,21) HUS-530069608

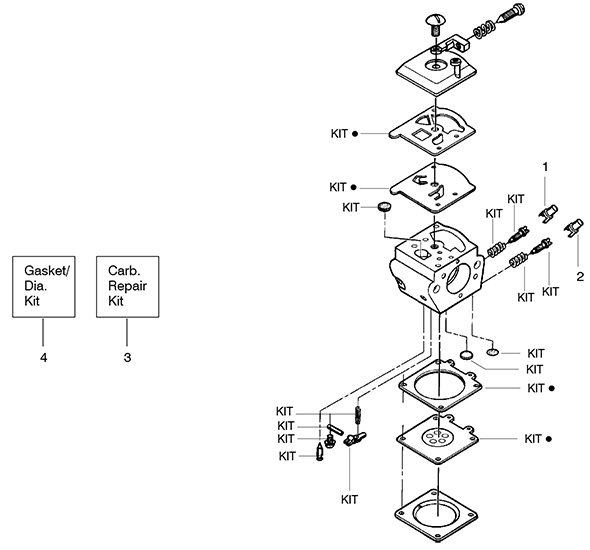

Jonsered CS2137-2004-01

...
...
1
Limiter Cap --- High HUS-530038479
...
2
Limiter Cap --- Low HUS-530038478
...
3
Carburetor Repair Kit ( Kit= Indicates Contents) & Includes Limiter Caps HUS-530069826
...
4
Gasket/Diaphragm Kit HUS-530069844
...
...
...
