Jonsered CC2245 Brushcutters/clearing Saws

Model: CC2245

Save Part Not Listed?
product name

Jonsered CC2245

...
...

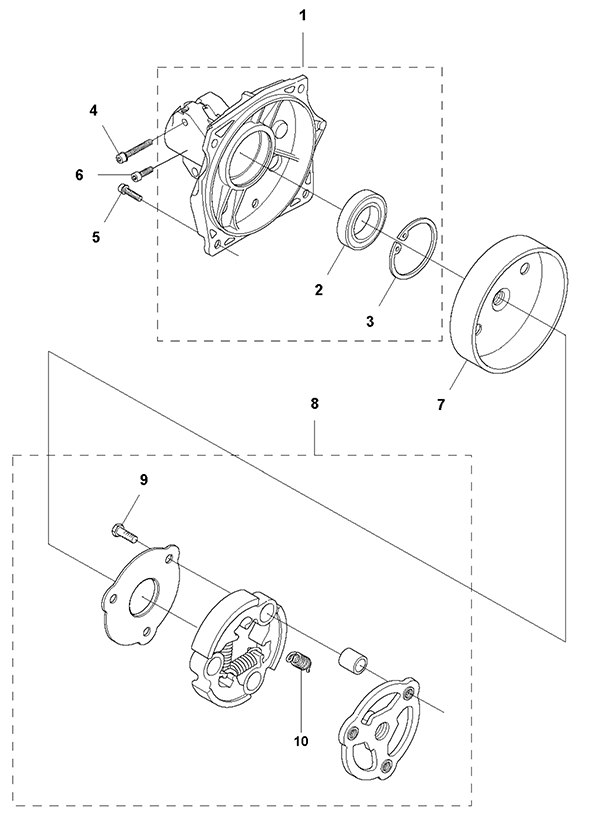

1
Clutch Cover, From S/N 20194300361 -For Older Products Use Kit 5978421-02 HUS-503954105
...
2
Ball Bearing HUS-738220219
...
3
Circlip HUS-735313310
...
4
Screw Ihscfm HUS-503200230
...
5
Screw Ihscfm HUS-503200220
...
6
Screw Ihscfm, From S/N 20194300361 HUS-503200770
...
6
Screw Ihscm, Up To S/N - 20194300360. HUS-503202001
...
7
Clutch Drum Assembly HUS-544900701
...
8
Clutch Assembly HUS-594512301
...
9
Screw Ehhm HUS-503201802
...
10
Clutch Spring HUS-505435302

Jonsered CC2245

...
...
1
Gear Assembly HUS-502235201
...
2
Ball Bearing HUS-738210110
...
3
Bearing HUS-503250801
...
4
Sealing HUS-503261701
...
5
Cover Washer HUS-503758901
...
6
Circlip HUS-735313310
...
7
Ball Bearing HUS-738218712
...
8
Circlip HUS-735311700
...
9
Circlip HUS-735313110
...
10
Screw HUS-503201501
...
11
Screw Ihscfm HUS-503200225
...
12
Gear HUS-537290701
...
13
Gear Housing HUS-502235101
...
14
Driver HUS-537351402
...
15
Cup HUS-537292401
...
16
Support Flange HUS-537343502
...
17
Blade Nut HUS-502291101
...
18
Attachment Plate HUS-583972401

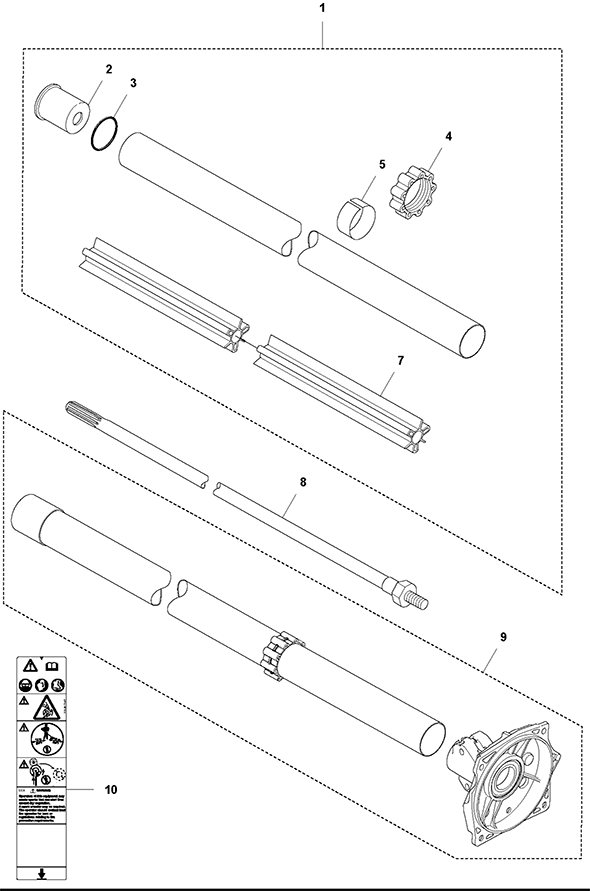

Jonsered CC2245

...
...
1
Tube Assembly, From S/N 20194300361 - For Older Products Use Kit 5978421-02 HUS-586262611
...
2
Spacer HUS-544029401
...
3
O-Ring HUS-506110301
...
4
Antivibration Element HUS-537309801
...
5
Tape HUS-537309701
...
7
Bearing Shaft, Cc HUS-523018803
...
8
Drive Shaft, Cc L=1431 9, Solid HUS-503924403
...
9
Clutch Cover Assembly, Up To S/N - 20194300360. HUS-597842102
...
10
Label HUS-589295101

Jonsered CC2245

...
...

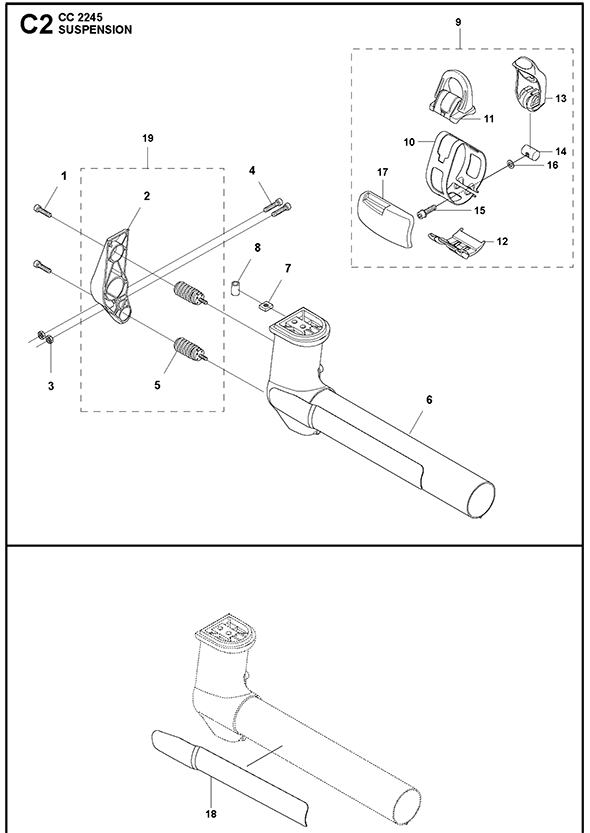

1
Screw Ihscfm HUS-503200216
...
2
Holder, S/N Before 174200147, Holder Kit 591 18 60-02 Needs To Be Used. HUS-589015802
...
3
Hexagon Nut HUS-503221012
...
4
Screw Ihscfm HUS-503200225
...
5
Antivibration Element, S/N Up To 174200146 HUS-537299701
...
5
Antivibration Element, S/N From 174200147 HUS-588829901
...
6
Suspension, Cc HUS-581978904
...
7
Square Nut HUS-502197101
...
8
Cover HUS-503857302
...
9
Loop HUS-577375702
...
10
Band HUS-537197901
...
11
Loop HUS-537201804
...
12
Guide Rail HUS-577299301
...
13
Lever HUS-577208302
...
14
Nut HUS-537427301
...
15
Screw Ihscfm HUS-503200725
...
16
Washer HUS-503230011
...
17
Wear Protection HUS-544250702
...
18
Wear Plate, Cc HUS-501015501
...
19
Holder Kit HUS-591186002

Jonsered CC2245

...
...

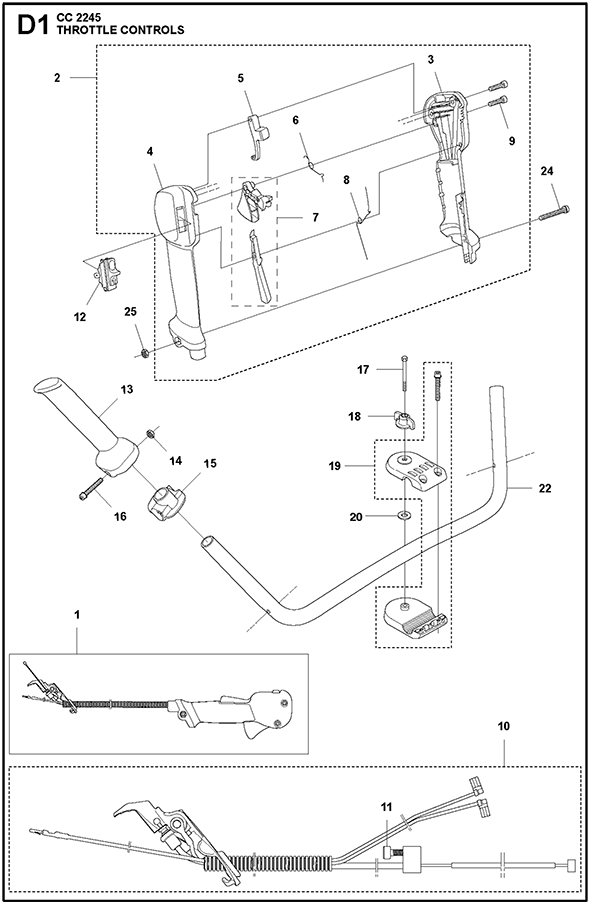

1
Throttle Handle Assembly HUS-577071904
...
2
Throttle Handle Assembly HUS-504209805
...
3
Handle Half HUS-537180812
...
4
Handle Half HUS-537180712
...
5
Throttle Lockout HUS-537160702
...
6
Spring Throttle Trig HUS-537174201
...
7
Throttle Control HUS-506497702
...
8
Spring HUS-537174301
...
9
Screw Ihsct HUS-503216618
...
10
Wiring Assembly HUS-525419802
...
11
Screw Ihsct HUS-503216616
...
12
Switch HUS-537419001
...
13
Handle HUS-537172803
...
14
Hexagon Nut HUS-731231405
...
15
Bracket HUS-537172902
...
16
Screw Ihscfm HUS-503200245
...
17
Screw Ehhm HUS-725238381
...
18
Knob HUS-502203801
...
19
Handlebar Bracket, S/N From 20173300001 Up To 20181100180 HUS-595303602
...
19
Handlebar Bracket HUS-596283302
...
20
Washer HUS-502282101
...
22
Handlebar HUS-505433303
...
24
Screw Ihscfm HUS-503200735
...
25
Hexagon Nut HUS-503221013

Jonsered CC2245

...
...
1
Screw Ihscfm HUS-503200216
...
2
Cover HUS-537172502
...
2
Cover, Cc2245 HUS-537172501
...
3
Tank Cap HUS-544076902
...
4
O-Ring HUS-537184901
...
5
Fuel Hose HUS-581756116
...
6
O-Ring HUS-537184901
...
7
Fuel Filter HUS-503443201
...
8
Washer HUS-503230011
...
9
Screw Ihscfm HUS-503200316
...
10
Fuel Tank HUS-503949302
...
11
Hexagon Nut HUS-503221012
...
12
Hose Guard HUS-537219901
...
13
Screw Ihsct HUS-503217116
...
14
Antivibration Element HUS-510208701

Jonsered CC2245

...
...

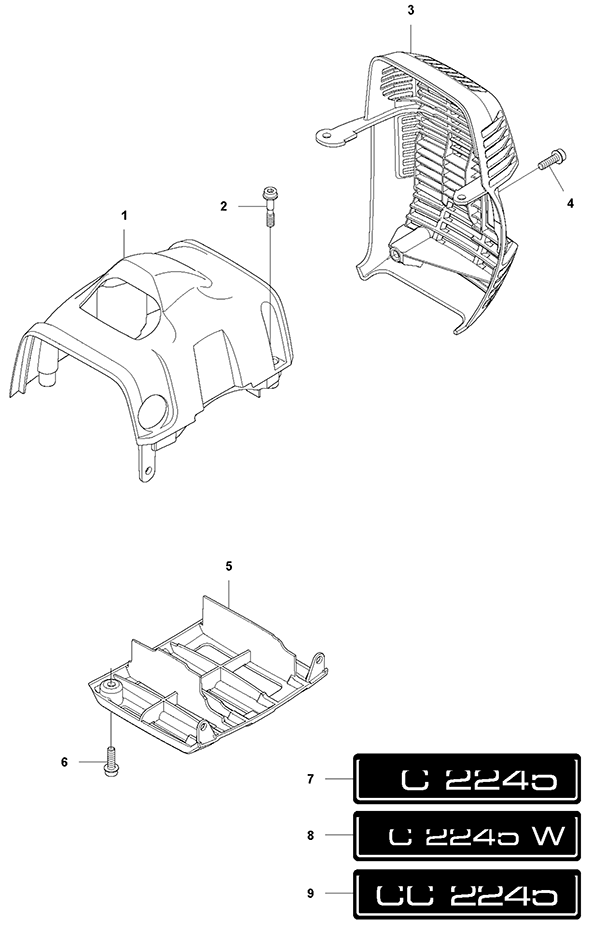

1
Cylinder Cover HUS-522528301
...
2
Screw Ihscfmo, Captive Screw HUS-574477004
...
3
Heat Protector HUS-576920002
...
4
Screw Ihscfm HUS-503200774
...
5
Protective Cover HUS-510422202
...
6
Screw Ihscfm HUS-503200774
...
7
Decal, Fc HUS-504061509
...
8
Decal, Fcw HUS-504061510
...
9
Decal, Cc HUS-504061511

Jonsered CC2245

...
...

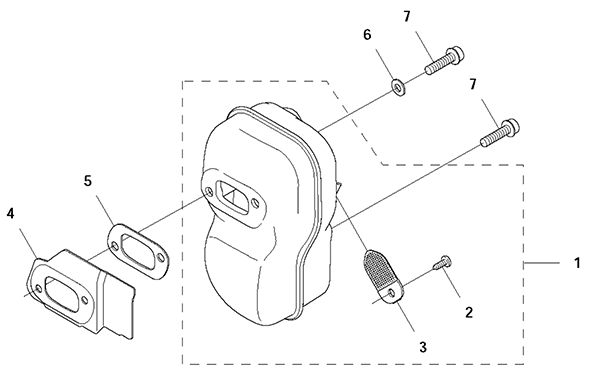

1
Muffler Kit HUS-574381106
...
2
Screw Crpanm HUS-724128759
...
3
Spark Arrester Screen HUS-522609501
...
4
Heat Deflector HUS-522938701
...
5
Gasket HUS-522954401
...
6
Washer HUS-503230402
...
7
Screw Ihscfm HUS-503200776

Jonsered CC2245

...
...

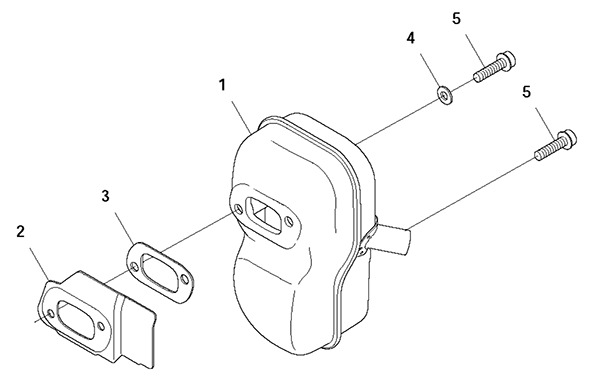

1
Muffler Kit HUS-574381105
...
2
Heat Deflector HUS-522938701
...
3
Gasket HUS-522954401
...
4
Washer HUS-503230402
...
5
Screw Ihscfm HUS-503200776

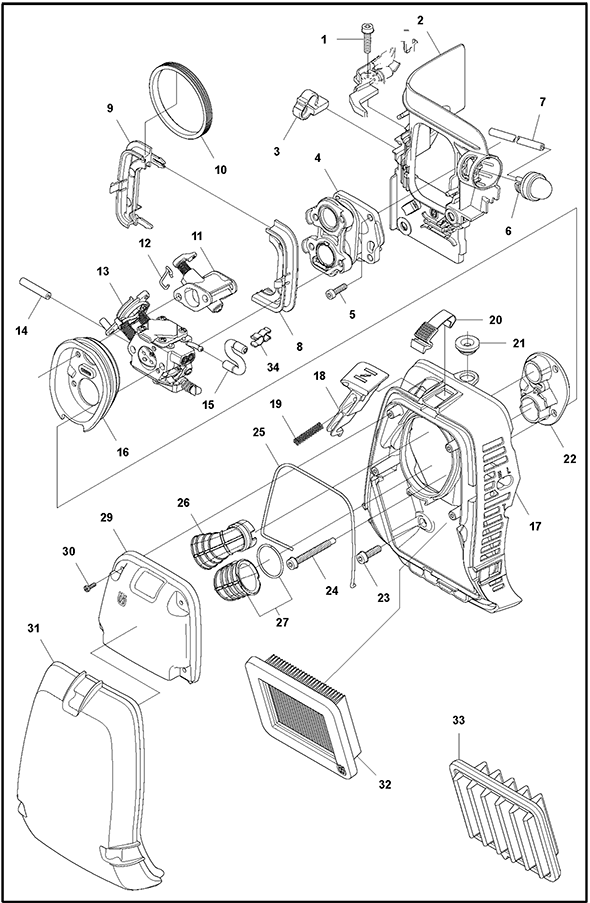

Jonsered CC2245

...
...
1
Screw Ihscfm HUS-503200776
...
2
Insulation Wall HUS-525289201
...
3
Grommet HUS-575239501
...
4
Inlet Pipe HUS-574440301
...
5
Screw Ihscm HUS-503202516
...
6
Purge HUS-503936601
...
7
Fuel Hose HUS-537042407
...
8
Frame HUS-576122701
...
9
Frame HUS-576123701
...
10
Sealing Ring HUS-576223701
...
11
Housing HUS-574297901
...
12
Link HUS-522543301
...
13
Carburettor HUS-580803901
...
14
Fuel Hose HUS-581756143
...
15
Fuel Hose HUS-523056801
...
16
Sealing HUS-574851201
...
17
Filter Holder Assembly HUS-523044802
...
18
Choke Control HUS-522449901
...
19
Spring HUS-524853001
...
20
Snap Locking HUS-503740102
...
21
Support HUS-537016501
...
22
Cover Plate HUS-574851301
...
23
Screw Ihscfm HUS-503200774
...
24
Screw Ihscfm HUS-537316001
...
25
O-Ring HUS-503263204
...
26
Inlet Pipe HUS-586946901
...
27
Inlet Pipe Assembly HUS-594028001
...
29
Cover Lid HUS-575268401
...
30
Screw Ccrpant HUS-503212910
...
31
Filter Cover HUS-510189702
...
32
Filter, Paper HUS-574668003
...
33
Filter, Nylon 25 HUS-537410804
...
34
Clip HUS-580451701

Jonsered CC2245

...
...

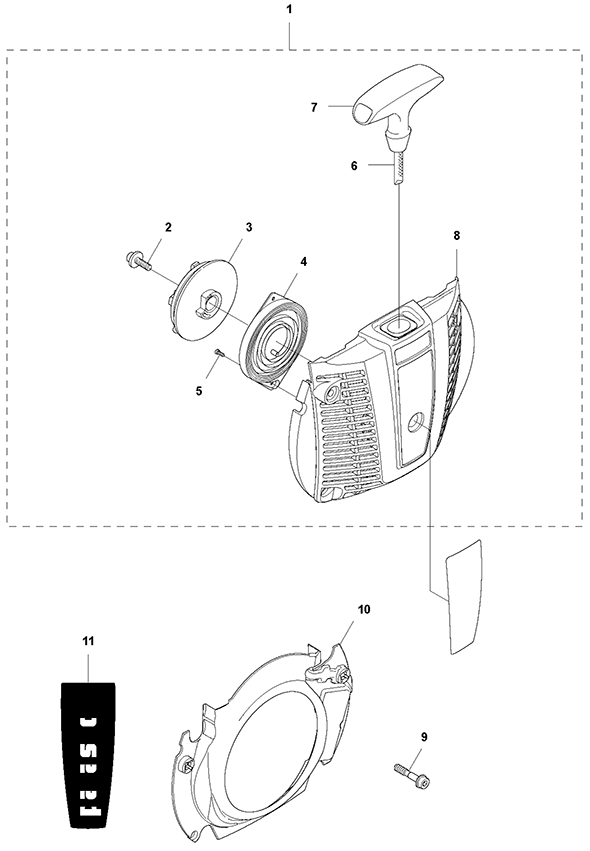

1
Starter HUS-573960901
...
2
Screw Ihsct HUS-503216916
...
3
Starter Pulley HUS-503957301
...
4
Spring Cassette Assembly HUS-502200601
...
5
Screw Ccrpant HUS-503212910
...
6
Starter Cord HUS-505305125
...
7
Starter Handle HUS-544376501
...
8
Starter Housing HUS-522936001
...
9
Screw Ihscfmo, Captive Screw HUS-574477004
...
10
Air Conductor HUS-510205001
...
11
Decal HUS-504061401

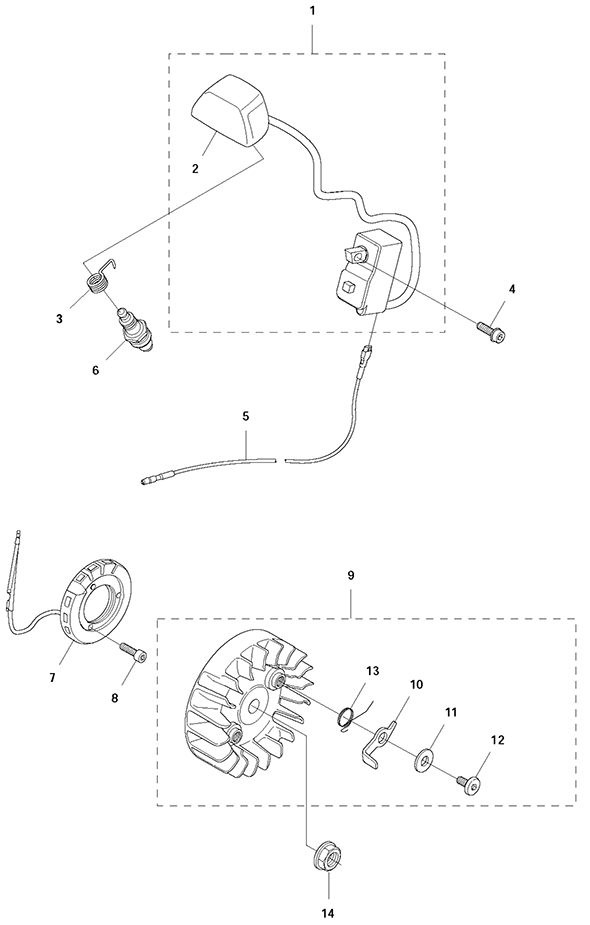

Jonsered CC2245

...
...
1
Ignitionition System, Cc HUS-585073904
...
2
Spark Plug Cap HUS-576889501
...
3
Contact Spring HUS-537323801
...
4
Screw Ihscfm HUS-503200774
...
5
Short Circuit Cable HUS-525858401
...
6
Spark Plug HUS-574519601
...
7
Generator Stator HUS-537256301
...
8
Screw Ihsct HUS-503216618
...
9
Flywheel HUS-503953301
...
10
Starter Pawl HUS-503812401
...
11
Washer HUS-503230042
...
12
Screw HUS-501819903
...
13
Spring HUS-503812902
...
14
Nut HUS-503220401

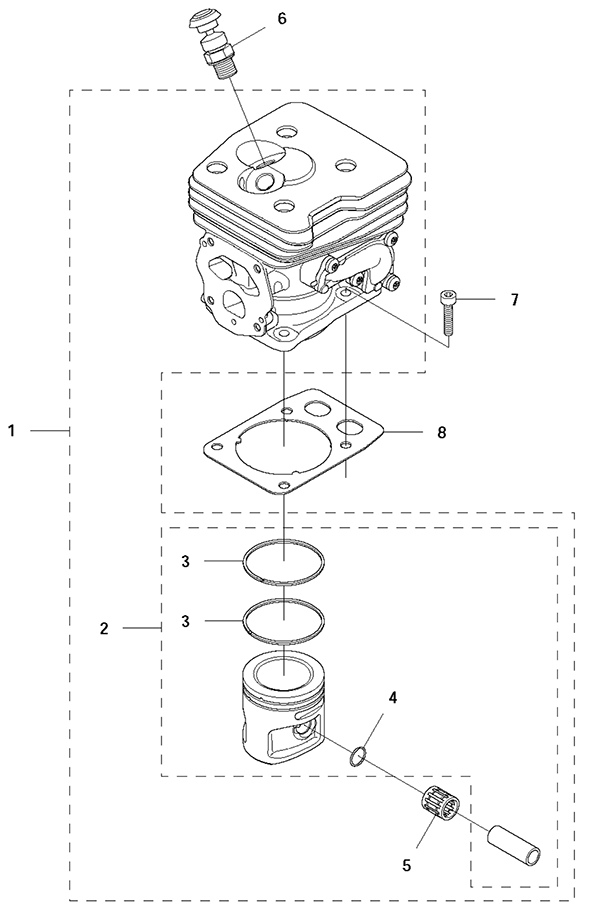

Jonsered CC2245

...
...
1
Cylinder Kit HUS-577274901
...
2
Piston Assembly HUS-576282702
...
3
Piston Ring HUS-576283001
...
4
Snap Ring HUS-737441000
...
5
Needle Bearing HUS-503256301
...
6
Decompression Valve HUS-544200001
...
7
Screw Ihscm HUS-725533155
...
8
Gasket HUS-587153401

Jonsered CC2245

...
...

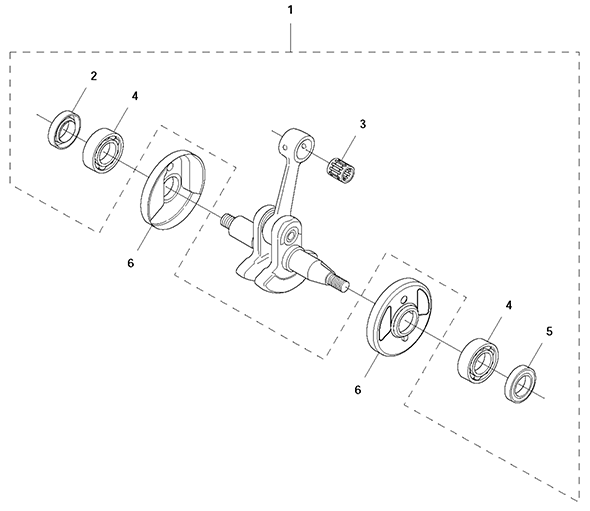

1
Crankshaft Kit HUS-577274801
...
2
Radial Seal HUS-577324901
...
3
Needle Bearing HUS-503256301
...
4
Bearing HUS-503250801
...
5
Sealing Ring HUS-505275719
...
6
Cup HUS-537158501

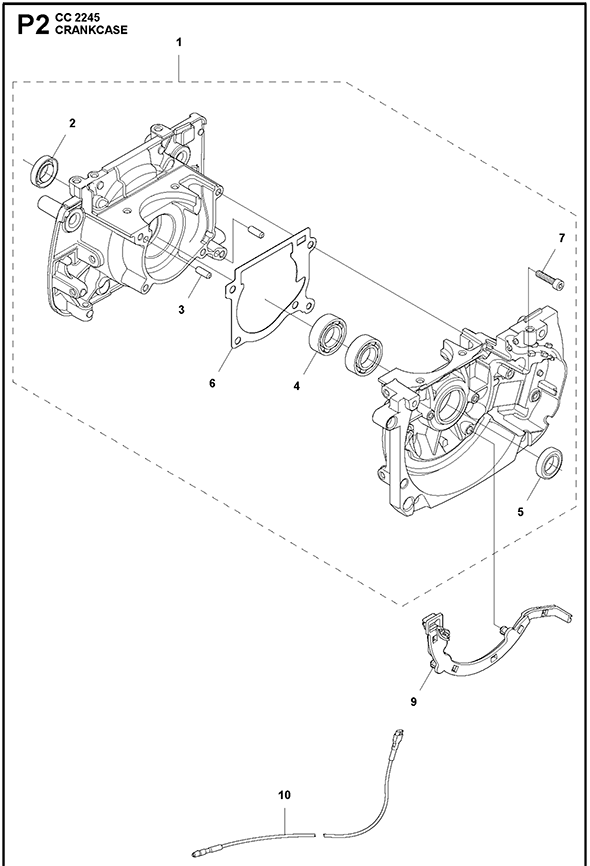

Jonsered CC2245

...
...
1
Crankcase Assembly HUS-588676301
...
2
Radial Seal HUS-577324901
...
3
Guide Bushing, S/N From 20132700001 HUS-593806001
...
3
Parallel Pin, S/N Up To - 20132699999 HUS-720130710
...
4
Bearing HUS-503250801
...
5
Sealing Ring HUS-505275719
...
6
Gasket, S/N Up To - 20132699999 HUS-510241101
...
6
Gasket, S/N 20132700001-20151601100 HUS-584469601
...
6
Gasket,S/N From 20151601101 HUS-593777501
...
7
Screw Ihscfm HUS-503200230
...
9
Cable Holder HUS-510179901
...
10
Short Circuit Cable HUS-525858401

Jonsered CC2245

...
...

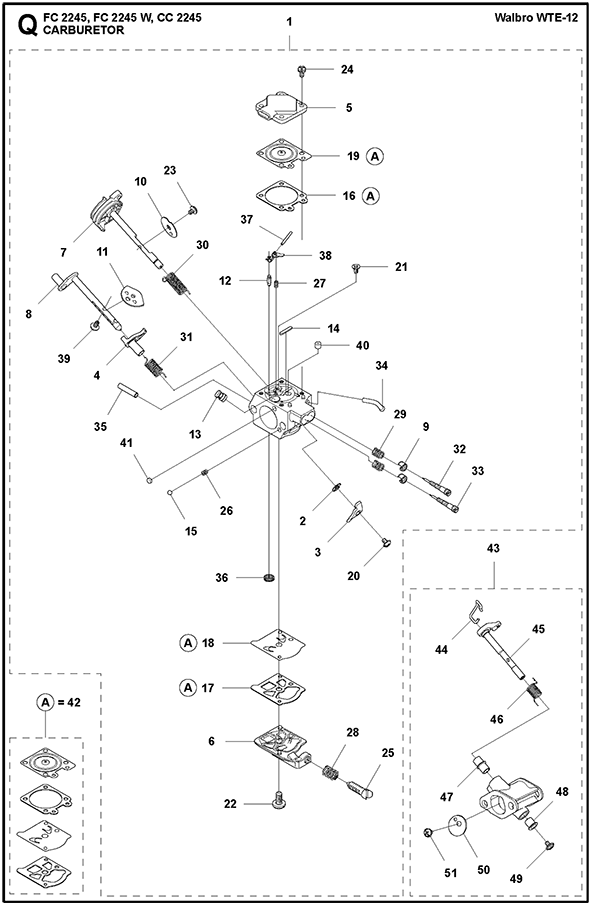

1
Carburettor, Walbro Wte 12 HUS-574329101
...
2
Ring HUS-505316736
...
3
Lever HUS-575463701
...
4
Lever HUS-544177701
...
5
Cover HUS-574358101
...
6
Cover HUS-503584301
...
7
Shaft Assembly HUS-577016701
...
8
Shaft HUS-544044001
...
9
Limiter Cap HUS-544970801
...
10
Valve HUS-503935101
...
11
Valve HUS-537109601
...
12
Needle Valve HUS-503563401
...
13
Nozzle Assembly HUS-502846801
...
14
Plug HUS-502846901
...
15
Ball HUS-501468501
...
16
Gasket HUS-504350906
...
17
Gasket HUS-504130906
...
18
Diaphragm HUS-577016601
...
19
Diaphragm Assembly HUS-576684501
...
20
Screw HUS-501468701
...
21
Screw HUS-502847101
...
22
Screw HUS-501466901
...
23
Screw HUS-537003401
...
24
Screw HUS-537003101
...
25
Screw HUS-537408201
...
26
Spring HUS-501468401
...
27
Spring HUS-501795901
...
28
Spring HUS-501667801
...
29
Spring HUS-525755401
...
30
Spring HUS-544177601
...
31
Spring HUS-544971101
...
32
Needle HUS-502847201
...
33
Needle HUS-502847301
...
34
Fitting HUS-577016801
...
35
Fitting HUS-544971601
...
36
Screen HUS-501666101
...
37
Pin HUS-505520125
...
38
Lever HUS-502847401
...
39
Screw HUS-544111501
...
40
Jet HUS-505426901
...
41
Plug HUS-503574301
...
42
Gasket Kit HUS-515999601
...
43
Housing HUS-574297901
...
44
Link HUS-522543301
...
45
Shaft HUS-574323901
...
46
Spring HUS-544971801
...
47
Bushing HUS-501021901
...
48
Bushing HUS-501022001
...
49
Screw HUS-503515501
...
50
Valve HUS-522543501
...
51
Screw HUS-537003401

Jonsered CC2245

...
...

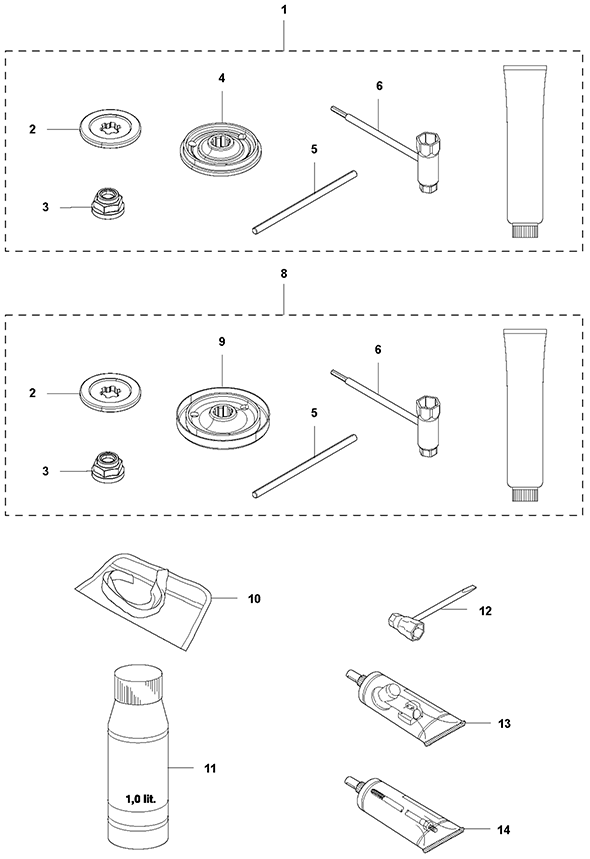

1
Accessory Bag, Fc2245, Fc2245W HUS-502216024
...
2
Support Flange HUS-537343502
...
3
Blade Nut HUS-502291101
...
4
Driver HUS-544197801
...
5
Stop HUS-502285901
...
6
Combination Wrench HUS-537362102
...
8
Accessory Bag, Cc2245 HUS-502216027
...
9
Driver HUS-537351402
...
10
Tool HUS-501192201
...
11
Filter Oil HUS-531009248
...
12
Combination Wrench HUS-501691702
...
13
Grease HUS-503976401
...
14
Grease HUS-503801701

Jonsered CC2245

...
...

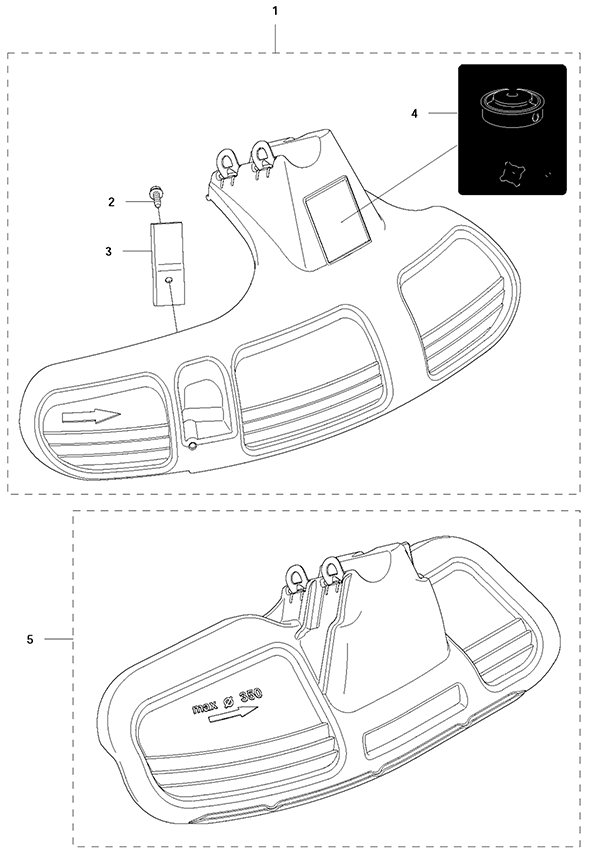

1
Trimmer Guard HUS-503954303
...
2
Screw Ihsct HUS-503210716
...
3
Blade HUS-503798802
...
4
Decal HUS-503742901
...
5
Grass Blade Guard HUS-537288502

Jonsered CC2245

...
...

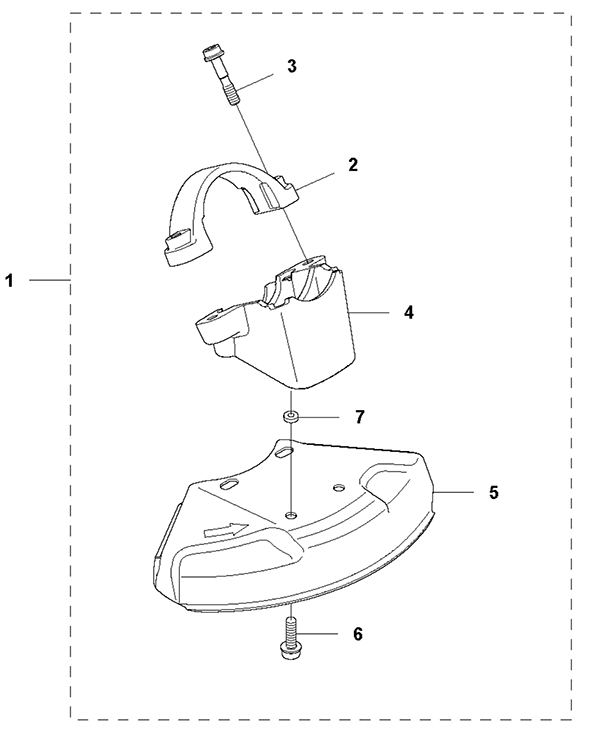

1
Combination Guard HUS-544464303
...
2
Splash Guard HUS-537396302
...
3
Screw Ihscft HUS-503217572
...
4
Blade HUS-503798802
...
5
Snap Locking HUS-537387201

Jonsered CC2245

...
...

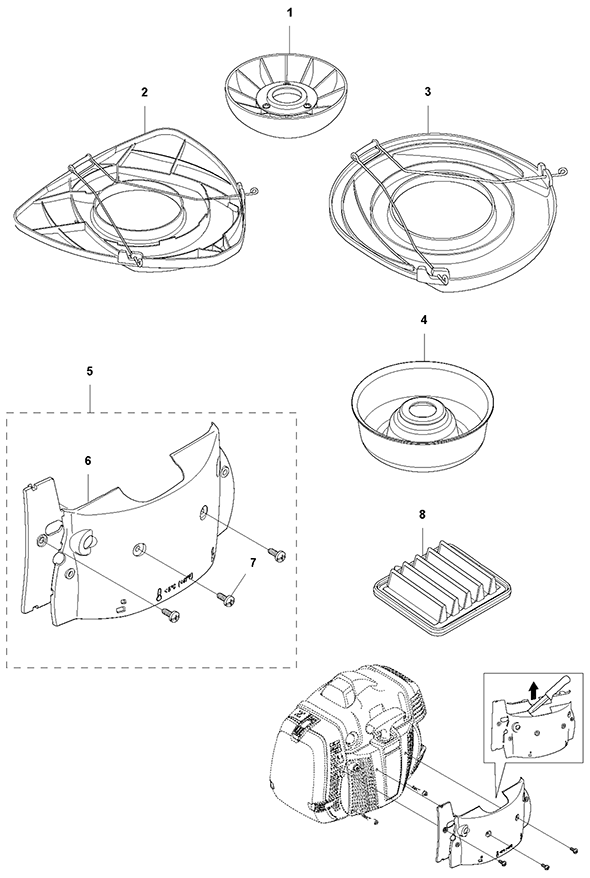

1
Support Cup HUS-502157002
...
2
Transport Guard HUS-544359101
...
3
Transport Guard HUS-537312901
...
4
Support Cup HUS-544380201
...
5
Winter Kit HUS-577043902
...
6
Winter Cover HUS-522550901
...
7
Screw Ccrpant HUS-503217010
...
8
Filter, Nylon 25, Winter HUS-537410804

Jonsered CC2245

...
...
1
Saw Blade Guard HUS-537310902
...
2
Clamp, Spare Part With Captive Screw HUS-574555401
...
3
Screw Ihscfmo, Captive Screw HUS-573994304
...
4
Adapter HUS-504003301
...
5
Blade Guard HUS-537217104
...
6
Screw Ihscfm HUS-503200316
...
7
Lock Nut HUS-574039501

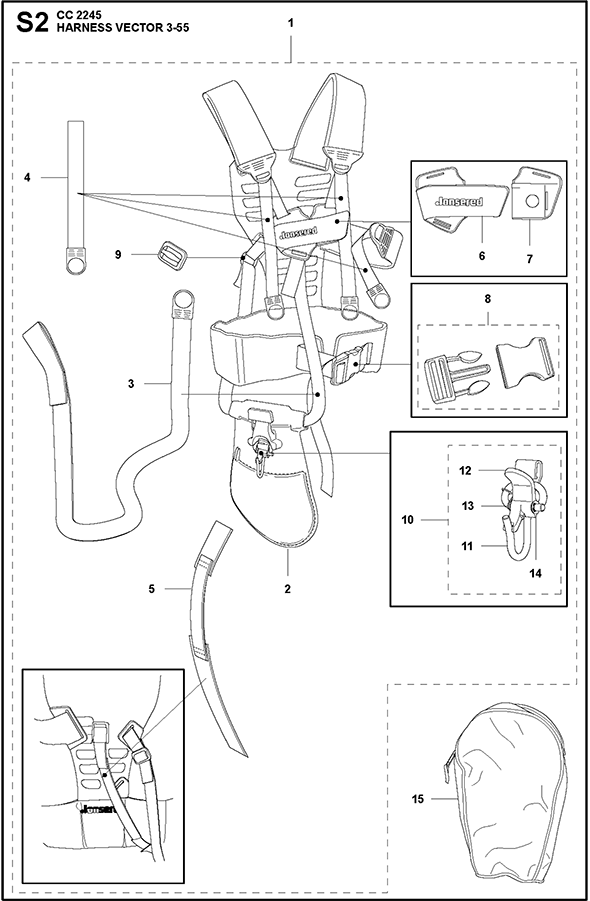

Jonsered CC2245

...
...

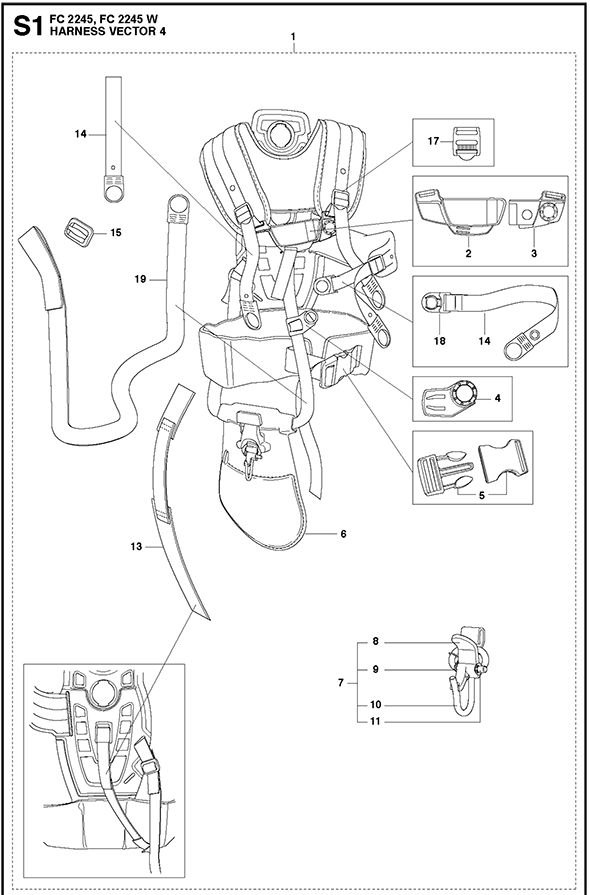

1
Harness HUS-579184601
...
2
Front Piece HUS-504545202
...
3
Front Piece HUS-504545102
...
4
Snap Locking HUS-504637502
...
5
Buckle HUS-537331501
...
6
Hip Pad HUS-544901706
...
7
Welt Hook HUS-544960702
...
8
Lock HUS-502023002
...
9
Spring HUS-586341001
...
10
Hook HUS-502022902
...
11
E-Clip HUS-735310920
...
13
Strap HUS-537153506
...
14
Band HUS-503996110
...
15
Retainer HUS-537113501
...
17
Buckle HUS-505444601
...
18
Snap Locking HUS-504637401
...
19
Band HUS-503996111

Jonsered CC2245

...
...
1
Harness, Bc, Fcs, Fcw HUS-504045301
...
1
Harness, Us HUS-505406301
...
2
Hip Pad HUS-544901702
...
3
Band HUS-503996105
...
4
Band HUS-503996101
...
5
Strap HUS-537153502
...
6
Front Piece HUS-537277001
...
7
Front Piece HUS-537276901
...
8
Buckle HUS-537331501
...
9
Retainer HUS-537113501
...
10
Welt Hook HUS-544960702
...
11
Hook HUS-502022902
...
12
Lock HUS-502023002
...
13
Spring HUS-586341001
...
14
E-Clip HUS-735310920
...
15
Bag, Vector 3-55 Tool Bag 1 HUS-537306601

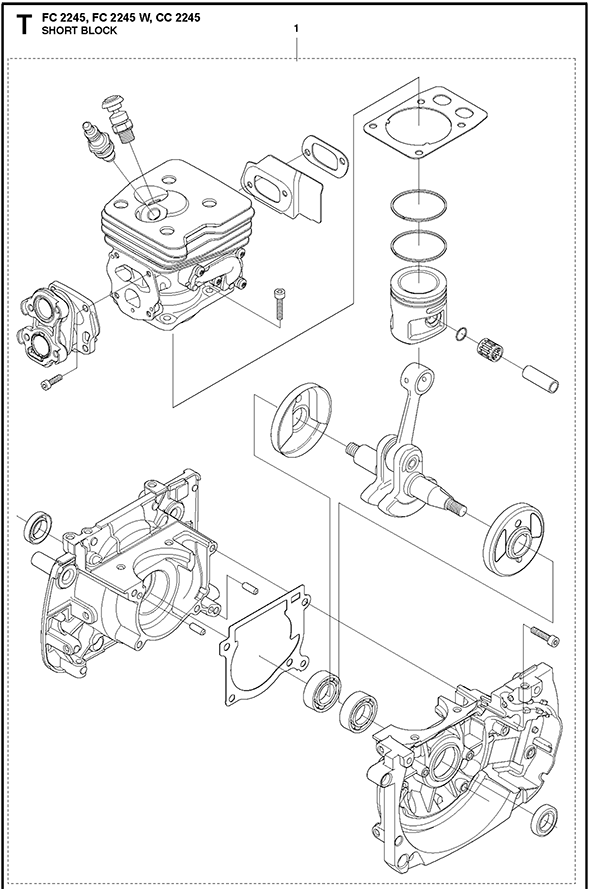

Jonsered CC2245

...
...
1
Crankcase System HUS-585451501
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
