product name

Jonsered CC2235 Brushcutters/clearing Saws

Model: CC2235

Save Part Not Listed?
product name

Jonsered CC2235

...
...
1
Gear HUS-544216401
...
2
Gear Housing HUS-537295902
...
3
Ball Bearing HUS-738219900
...
4
Spare Parts Kit HUS-505133301
...
5
Ball Bearing HUS-503252801
...
6
Circlip HUS-735313110
...
7
Ball Bearing HUS-738210110
...
8
Ball Bearing HUS-738210112
...
9
Circlip HUS-735311400
...
10
Circlip HUS-735312810
...
11
Magnet HUS-537147401
...
12
Screw HUS-503201501
...
13
Clamp HUS-574306801
...
14
Clamp HUS-544087601
...
15
Screw HUS-537189501
...
16
Lock Nut HUS-732211601
...
17
Screw Ihscfm HUS-503200210
...
18
Lock Nut HUS-574039501
...
19
Driver HUS-537351402
...
20
Support Flange HUS-537343501
...
21
Blade Nut HUS-502291101
...
22
Screw Ihscfm HUS-503200325

Jonsered CC2235

...
...
1
Tube Assembly HUS-501919701
...
2
Tube HUS-537214101
...
3
Guide HUS-537313901
...
4
Spacer HUS-537360201
...
5
Spacer HUS-537360202
...
6
Drive Shaft HUS-544183201
...
7
Wear Protection HUS-576478202
...
8
Screw HUS-725233151
...
9
Wear Protection HUS-576219602
...
10
Damper HUS-544101702
...
11
Screw Ihscfm HUS-503200778
...
12
Label HUS-589295101

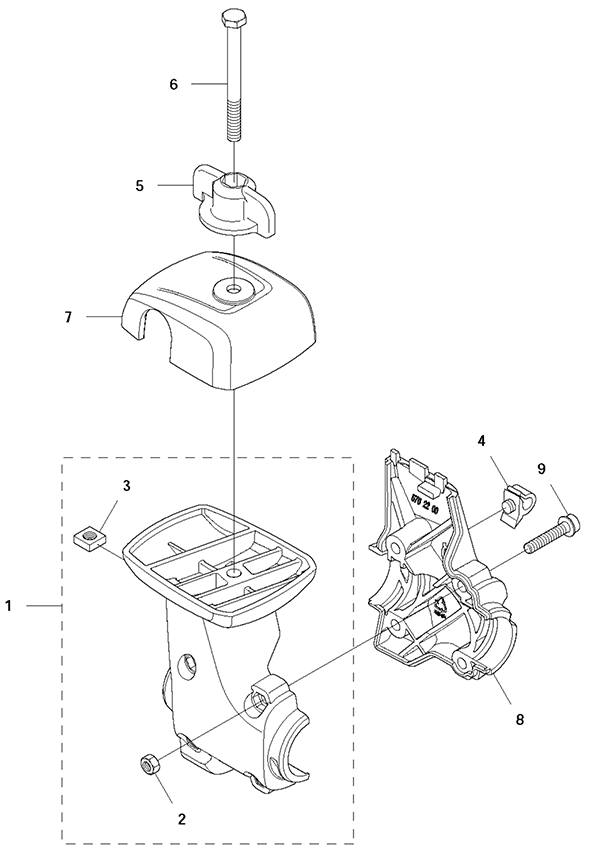

Jonsered CC2235

...
...
1
Handlebar Bracket HUS-576277402
...
2
Hexagon Nut HUS-731231401
...
3
Square Nut HUS-502197101
...
4
Clip HUS-502286101
...
5
Knob HUS-502203801
...
6
Screw Ehhm HUS-725238351
...
7
Cover HUS-576220102
...
8
Lid HUS-576220002
...
9
Screw Ihscfm HUS-503200778

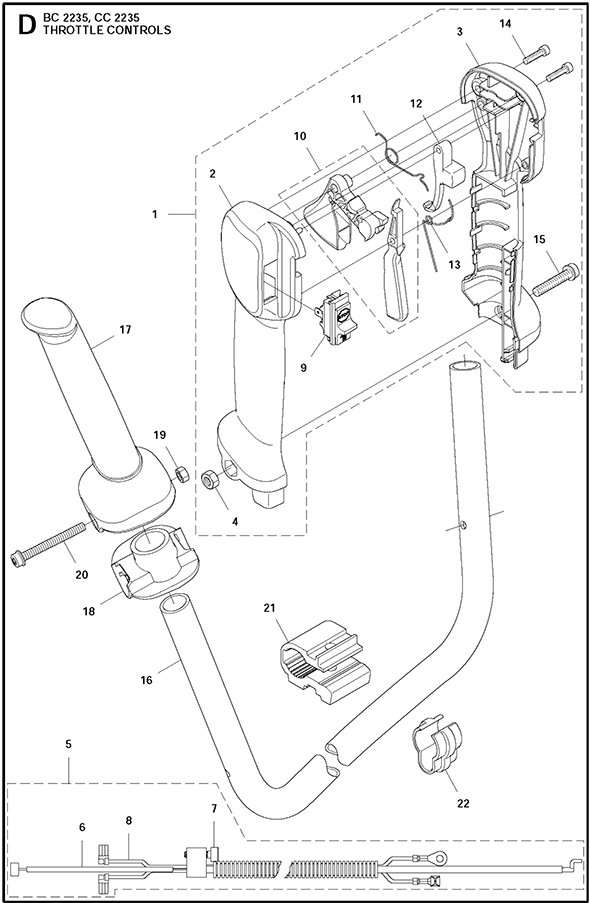

Jonsered CC2235

...
...
1
Handle System HUS-537424508
...
2
Handle Half HUS-537160204
...
3
Handle Half HUS-537160303
...
4
Hexagon Nut HUS-503221013
...
5
Wiring Assembly HUS-537359602
...
6
Throttle Wire Assembly HUS-537377801
...
7
Screw Ihsct HUS-503216618
...
8
Short Circuit Cable HUS-503878507
...
9
Switch HUS-537419001
...
10
Throttle Control HUS-506497702
...
11
Spring Throttle Trig HUS-537174201
...
12
Starter Throttle Loc HUS-537160701
...
13
Spring HUS-537174301
...
14
Screw Ihsct HUS-503216618
...
15
Screw Ihscfm HUS-503200735
...
16
Handlebar, Bc2235 HUS-502199503
...
16
Handlebar, Cc2235 HUS-537360001
...
17
Handle HUS-537172806
...
18
Bracket HUS-537172903
...
19
Hexagon Nut HUS-731231401
...
20
Screw Ihscfm HUS-503200245
...
21
Clip HUS-544020901
...
22
Grommet HUS-502211201

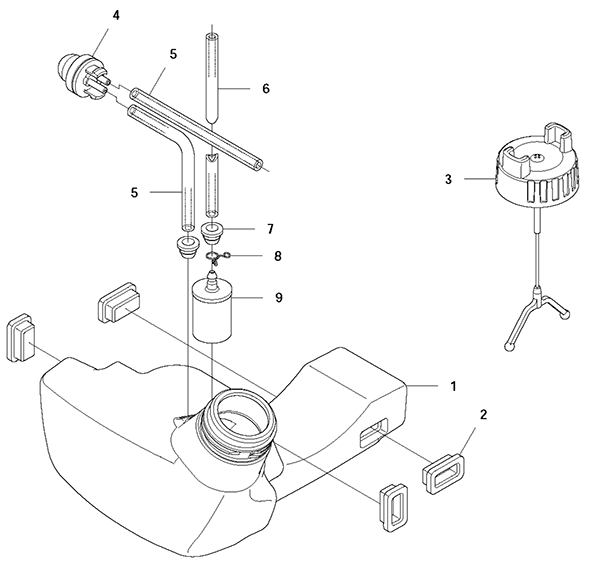

Jonsered CC2235

...
...
1
Tank Assembly HUS-544328801
...
2
Suspension HUS-503911001
...
3
Tank Cap HUS-544889701
...
3
Tank Cap HUS-544889703
...
4
Purge HUS-503936601
...
5
Fuel Hose HUS-537042412
...
6
Fuel Hose HUS-537052301
...
7
Bushing HUS-503735801
...
8
O-Ring HUS-537184901
...
9
Fuel Filter HUS-503443201

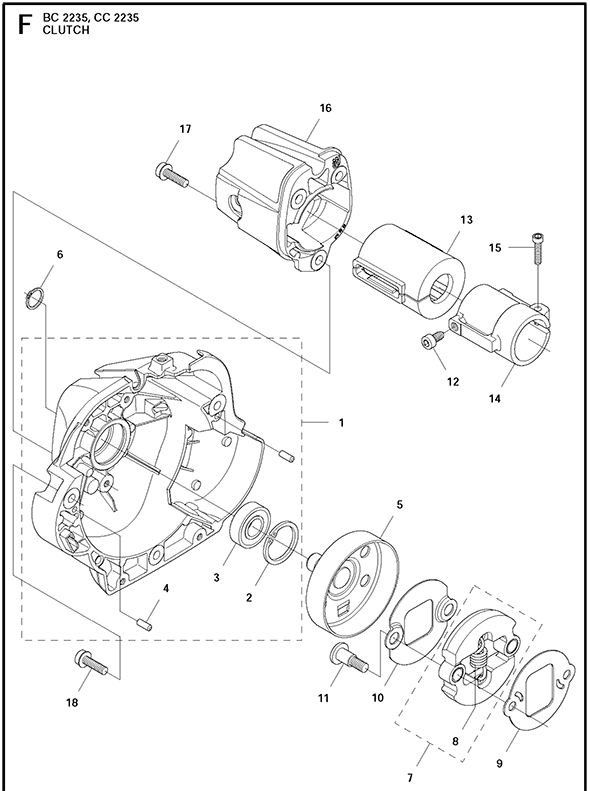

Jonsered CC2235

...
...
1
Clutch Cover Assembly HUS-574842902
...
2
Circlip HUS-735312810
...
3
Ball Bearing HUS-738210104
...
4
Parallel Pin HUS-503240702
...
5
Clutch Drum HUS-537352901
...
6
Circlip HUS-735311400
...
7
Clutch HUS-537340401
...
8
Spring HUS-537427201
...
9
Washer HUS-537046801
...
10
Washer HUS-537415701
...
11
Screw HUS-537418101
...
12
Screw Ihsct HUS-503217411
...
13
Antivibration Element HUS-537322701
...
14
Compression Sleeve HUS-537310101
...
15
Screw Ihscm HUS-725533355
...
16
Cover HUS-575865802
...
17
Screw Ihscfm HUS-503200320
...
18
Screw HUS-537418101

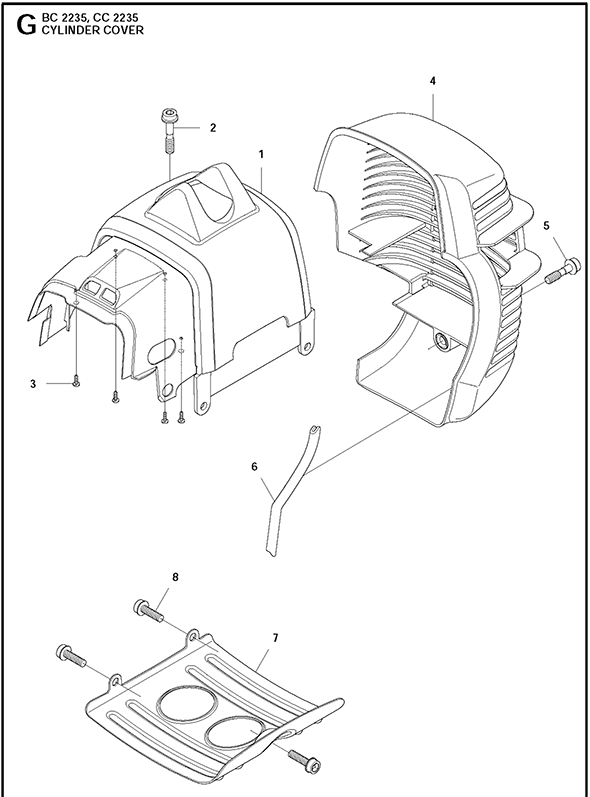

Jonsered CC2235

...
...
1
Cylinder Cover Spare Part With Captive Screw HUS-544142002
...
2
Screw Ihscfmo Captive Screw HUS-573994304
...
3
Screw Ccrpant HUS-503212910
...
4
Heat Protector Spare Part With Captive Screw HUS-544144602
...
5
Heat Protector Captive Screw HUS-537425102
...
6
Bar HUS-544029801
...
7
Protective Plate HUS-537357201
...
8
Screw Ihscft HUS-503217516

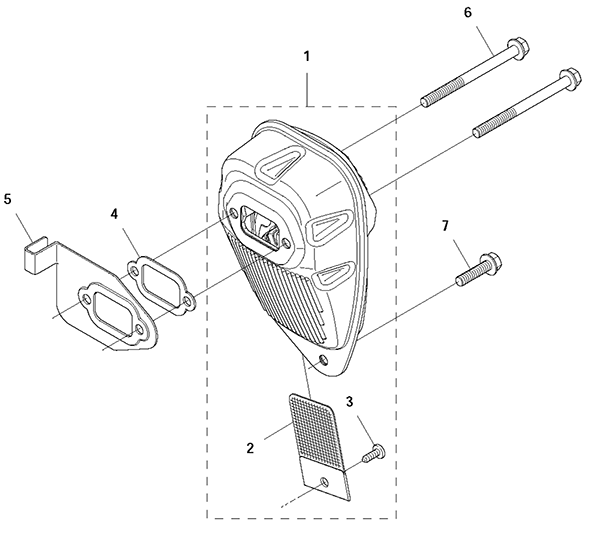

Jonsered CC2235

...
...
1
Muffler Assembly Cat HUS-505408601
...
2
Spark Arrester Screen HUS-544116801
...
3
Screw Crpanm HUS-724128759
...
4
Gasket HUS-537333101
...
5
Air Conductor HUS-537340801
...
6
Screw Ihscfm HUS-503202963
...
7
Screw Ihscfm HUS-503200320

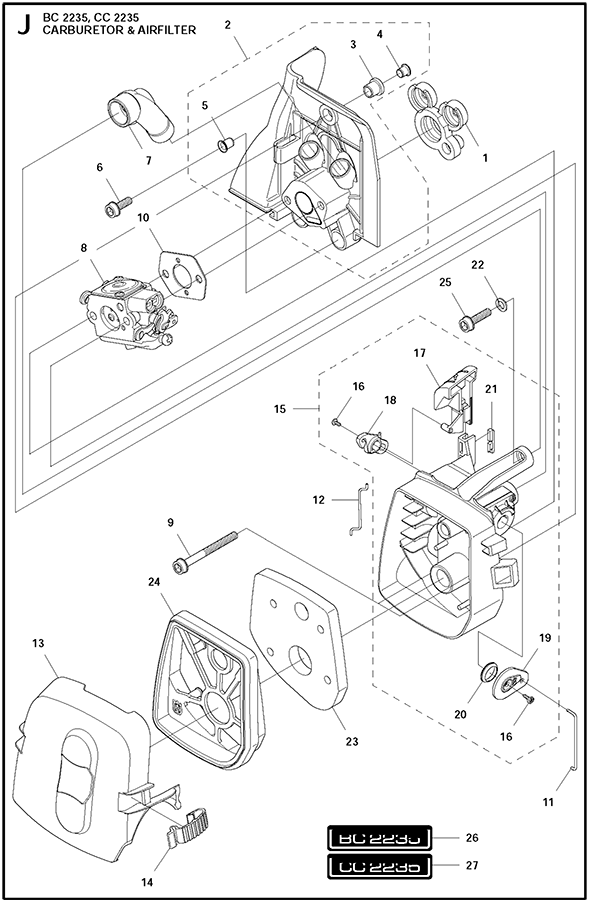

Jonsered CC2235

...
...
1
Inlet Pipe HUS-537334301
...
2
Insulation Wall HUS-537371202
...
3
Sleeve HUS-537371101
...
4
Tubular Rivet HUS-544019101
...
5
Tubular Rivet HUS-537373803
...
6
Screw Ihscfm HUS-503200316
...
7
Air Duct HUS-537341301
...
8
Carburettor, Zama C1Q-El45 HUS-575729001
...
9
Screw Ihscft HUS-503217550
...
10
Gasket HUS-503497101
...
11
Lever HUS-537349001
...
12
Sleeving Bracket HUS-544372701
...
13
Filter Cover HUS-544126501
...
14
Snap Locking HUS-537387201
...
15
Filter Holder HUS-537314101
...
16
Screw Ccrpant HUS-503212906
...
17
Choke Control HUS-537337101
...
18
Lever HUS-537355801
...
19
Lever HUS-544014601
...
20
Bellows HUS-544014701
...
21
Bar HUS-544025801
...
22
Washer HUS-503231006
...
23
Filter HUS-537337201
...
24
Frame HUS-537314201
...
25
Screw Ihscfm HUS-503200320
...
26
Label, Bc 2235 HUS-544209807
...
27
Label, Cc 2235 HUS-544209806

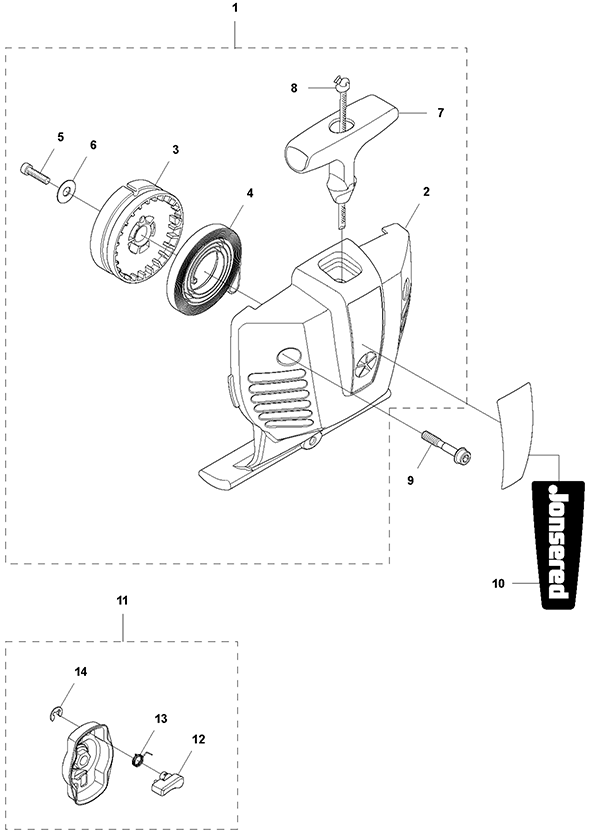

Jonsered CC2235

...
...
1
Starter Housing HUS-544128402
...
2
Starter Housing Spare Part Adapted For Captive Screw HUS-544126402
...
3
Starter Pulley HUS-537325003
...
4
Recoil Spring HUS-503859901
...
5
Screw Ihsct HUS-503217920
...
6
Washer HUS-535072301
...
7
Starter Handle HUS-503997701
...
8
Starter Cord HUS-505305125
...
9
Screw Ihscfmo Captive Screw HUS-573994305
...
10
Label HUS-537182801
...
11
Starter Pawl HUS-503873305
...
12
Starter Pawl HUS-503873502
...
13
Spring HUS-503873601
...
14
E-Clip HUS-735310820

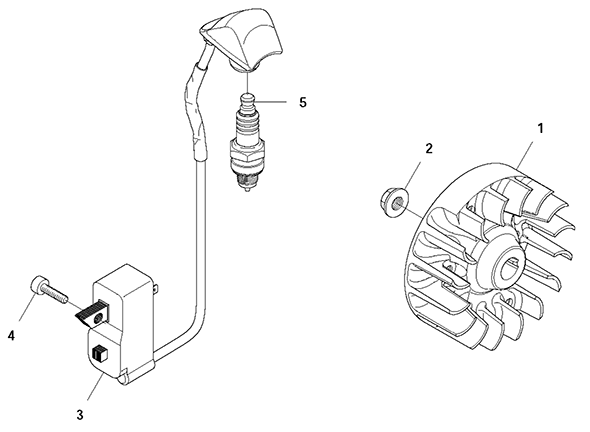

Jonsered CC2235

...
...
1
Flywheel HUS-537249601
...
2
Hexagon Nut Flange HUS-731711651
...
3
Ignitionition Module HUS-544127001
...
4
Screw Ihsct HUS-503216618
...
5
Spark Plug HUS-503235109

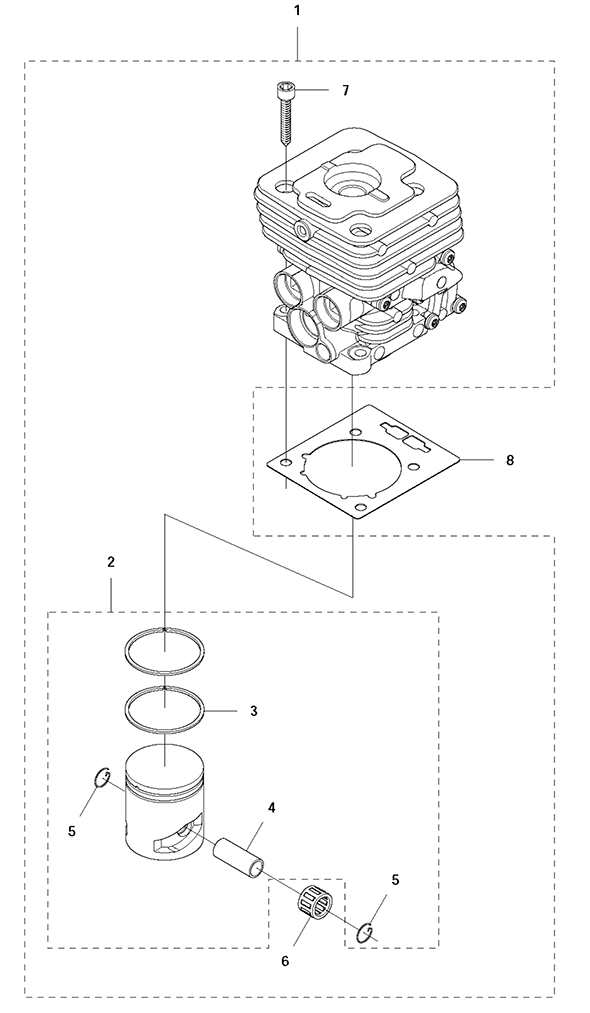

Jonsered CC2235

...
...
1
Cylinder Assembly HUS-544400601
...
2
Piston Assembly HUS-585998302
...
3
Piston Ring HUS-503289054
...
4
Piston Pin HUS-503289119
...
5
Snap Ring HUS-737441000
...
6
Needle Bearing HUS-503414101
...
7
Screw Ihscm HUS-725533355
...
8
Gasket HUS-537333002

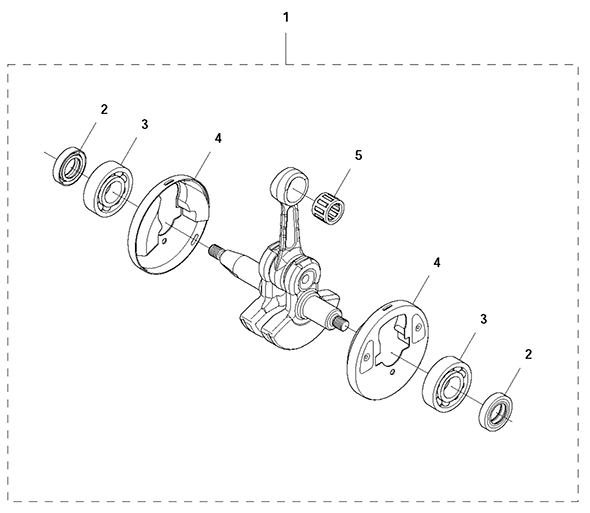

Jonsered CC2235

...
...
1
Crankshaft Assembly HUS-544039001
...
2
Sealing Ring HUS-503260202
...
3
Ball Bearing HUS-738210110
...
4
Cup HUS-537297601
...
5
Needle Bearing HUS-503414101

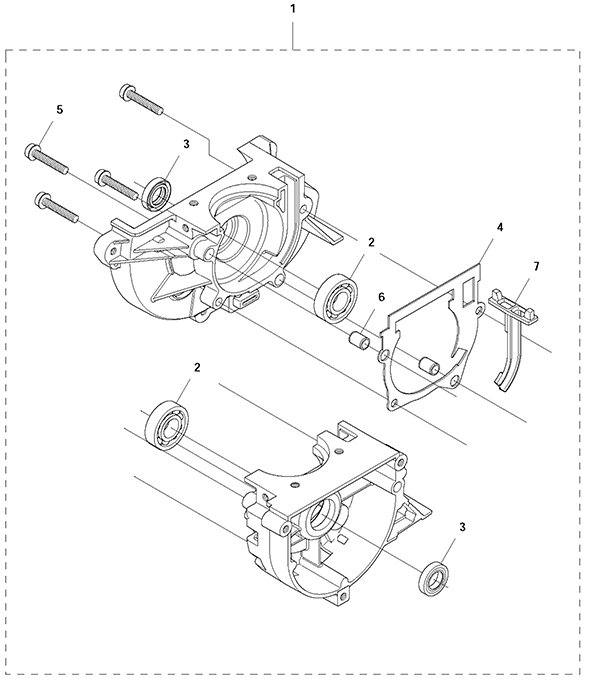

Jonsered CC2235

...
...
1
Crankcase Assembly HUS-585382201
...
2
Ball Bearing HUS-738210110
...
3
Sealing Ring HUS-503260202
...
4
Gasket HUS-593777601
...
5
Screw Ihscfm HUS-503200230
...
6
Guide Bushing HUS-593806001
...
7
Insert HUS-537324201

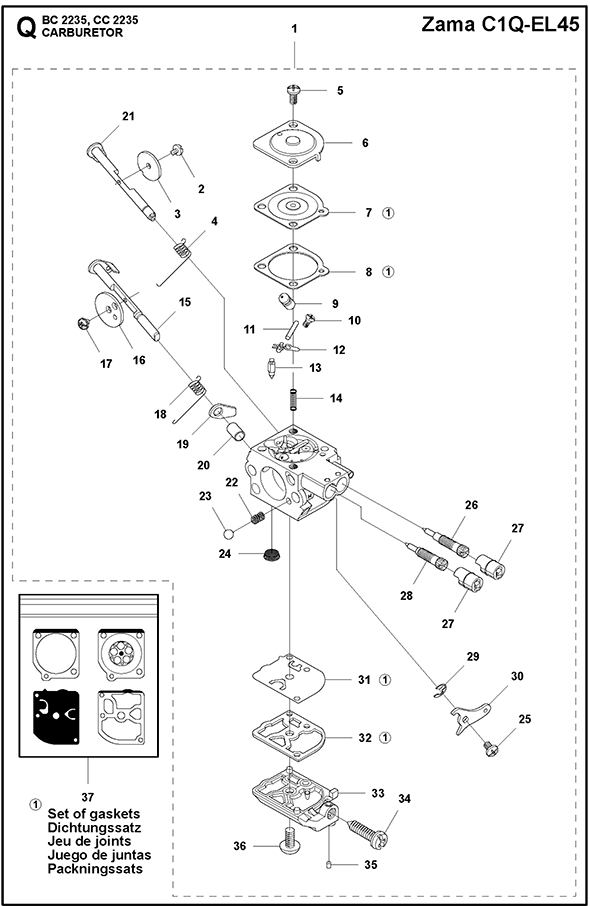

Jonsered CC2235

...
...
1
Carburettor, Zama C1Q-El45 HUS-575729001
...
2
Screw HUS-503479201
...
3
Valve HUS-537417201
...
4
Spring HUS-544372401
...
5
Screw HUS-503480501
...
6
Cover HUS-503974301
...
7
Diaphragm HUS-504105601
...
8
Gasket HUS-537020401
...
9
Nozzle Assembly HUS-537387301
...
10
Screw HUS-503480101
...
11
Pin Retaining Screw HUS-503480001
...
12
Lever HUS-503665901
...
13
Valve HUS-503479701
...
14
Spring HUS-537020301
...
15
Shaft Assembly HUS-501327101
...
16
Valve HUS-537370301
...
17
Screw HUS-503481801
...
18
Spring HUS-544372601
...
19
Lever HUS-544372501
...
20
Collar HUS-544427001
...
21
Shaft Assembly HUS-504102701
...
22
Spring HUS-537012601
...
23
Ball HUS-537012501
...
24
Strainer HUS-503481301
...
25
Screw HUS-503479001
...
26
Screw HUS-537416901
...
27
Limiter Cap HUS-537417001
...
28
Screw HUS-537387501
...
29
Clip HUS-537385201
...
30
Throttle Lever HUS-576270201
...
31
Diaphragm Pump HUS-537020001
...
32
Gasket HUS-537020101
...
33
Cover HUS-537020201
...
34
Screw HUS-537020701
...
35
Piece HUS-503481101
...
36
Screw HUS-503479601
...
37
Gasket Kit, Set Of Gaskets HUS-531004552

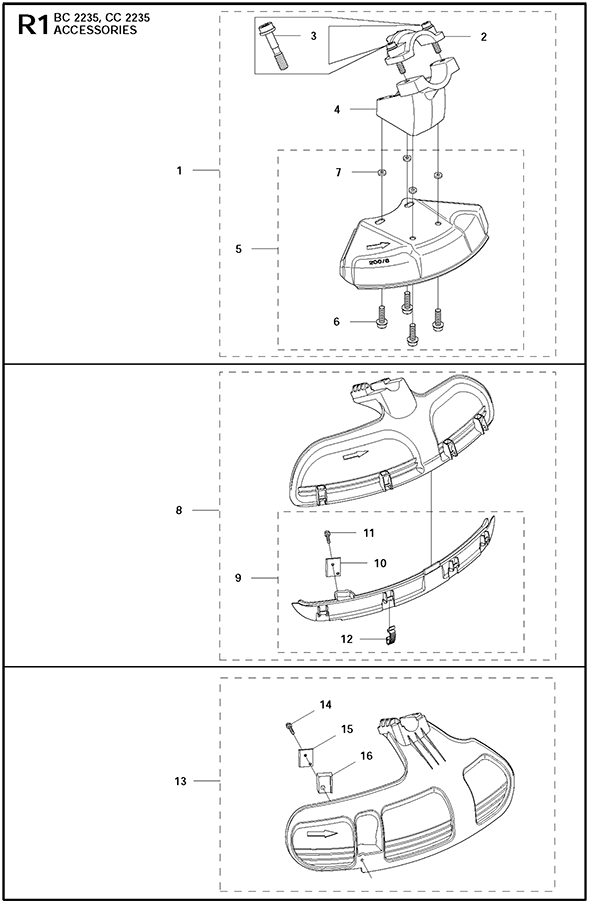

Jonsered CC2235

...
...
1
Saw Blade Guard HUS-501320402
...
2
Clamp, Spare Part With Captive Screw HUS-574530601
...
3
Screw Ihscfmo, Captive Screw HUS-573994304
...
4
Adapter HUS-501320801
...
5
Blade Guard HUS-574532601
...
6
Screw Ihscfm HUS-503200216
...
7
Lock Nut HUS-574039501
...
8
Combi Guard HUS-537331602
...
9
Splash Guard HUS-537396303
...
10
Blade HUS-503798801
...
11
Screw Ihsct HUS-503210716
...
12
Snap Locking HUS-537387201
...
13
Trimmer Guard HUS-537349404
...
14
Screw Ihscft HUS-503216825
...
15
Blade HUS-503798801
...
16
Retainer HUS-544124501

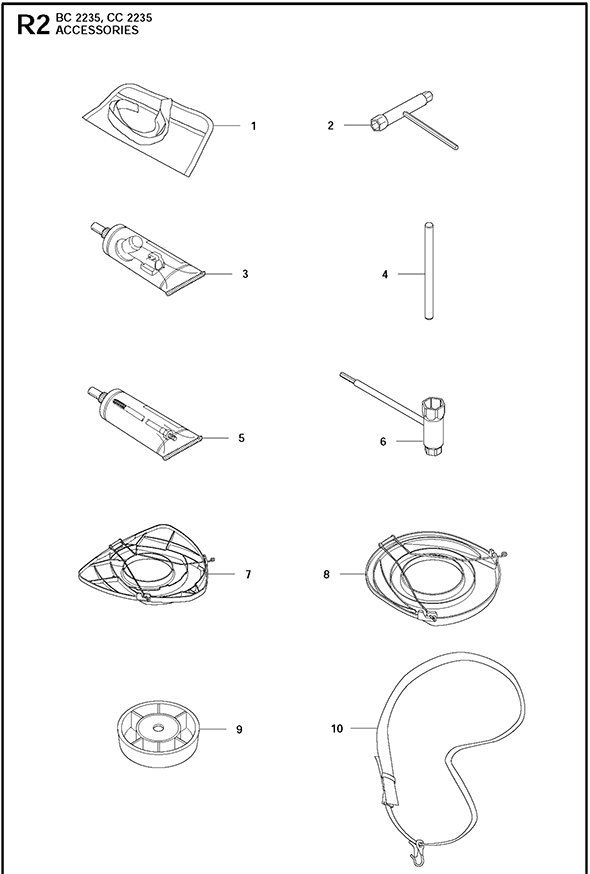

Jonsered CC2235

...
...
1
Tool HUS-501192201
...
2
Combination Wrench HUS-501688901
...
3
Grease HUS-503976501
...
4
Stop HUS-502285901
...
5
Grease HUS-503801701
...
6
Combination Wrench HUS-537362101
...
7
Transport Guard HUS-544359101
...
8
Transport Guard HUS-537312901
...
9
Support Cup HUS-503890102
...
10
Harness HUS-537216201
...
10
Harness, Usa HUS-537216202

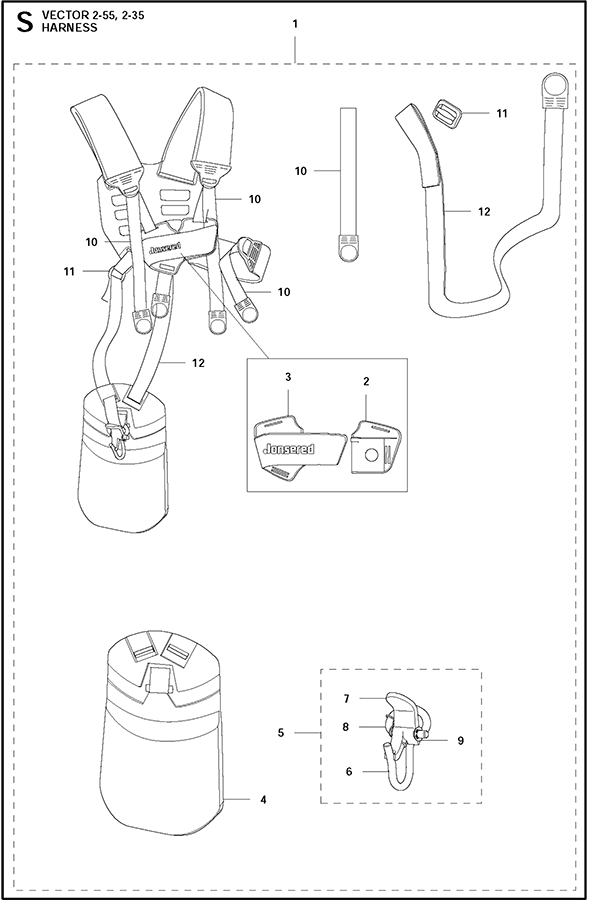

Jonsered CC2235

...
...
1
Harness HUS-537275801
...
1
Harness, Us HUS-537275803
...
2
Front Piece HUS-537276901
...
3
Front Piece HUS-537277001
...
4
Hip Pad HUS-537275902
...
5
Hook HUS-502022801
...
6
Hook HUS-502022902
...
7
Lock HUS-502023002
...
8
Spring HUS-586341001
...
9
E-Clip HUS-735310920
...
10
Band HUS-503996101
...
11
Retainer HUS-537113501
...
12
Band HUS-503996103

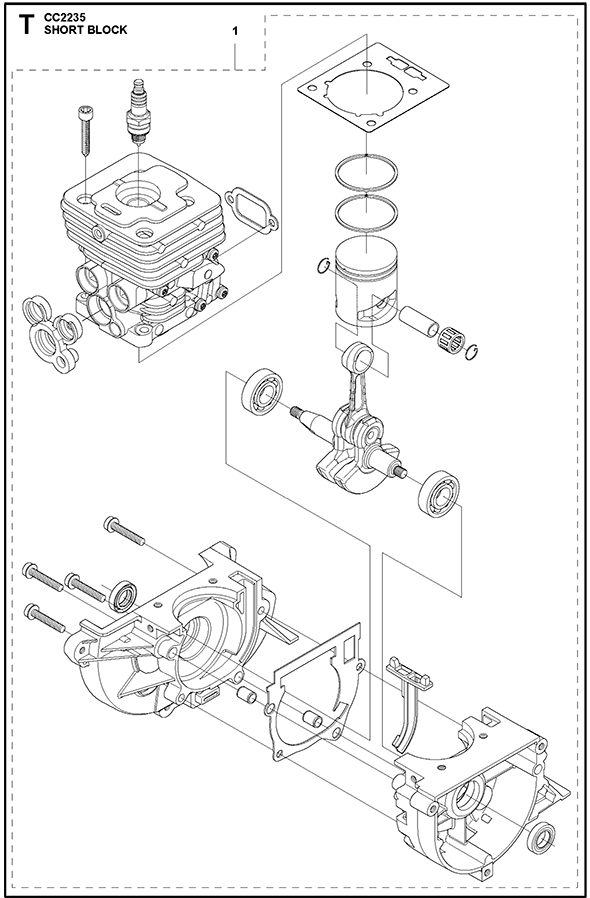

Jonsered CC2235

...
...
1
Short Block Assembly, Assembled HUS-594729101
