Jonsered CA230 Cultivator Attachment (967294301)

Model: CA230

Save Part Not Listed?
product name

Jonsered CA230

...
...
1
Tiller Kit HUS-578284401
...
2
Drive Shaft Assembly HUS-587676601
...
3
Tube HUS-587675901
...
5
Distance HUS-588016501
...
6
Tiller Kit HUS-578284501
...
7
Locking Spring HUS-578430301
...
8
Gear Assembly HUS-577634901
...
9
Tube HUS-579268801
...
10
Clip HUS-583938301
...
12
Blade HUS-579443501
...
14
Cover HUS-588193201
...
15
Plug HUS-579269301

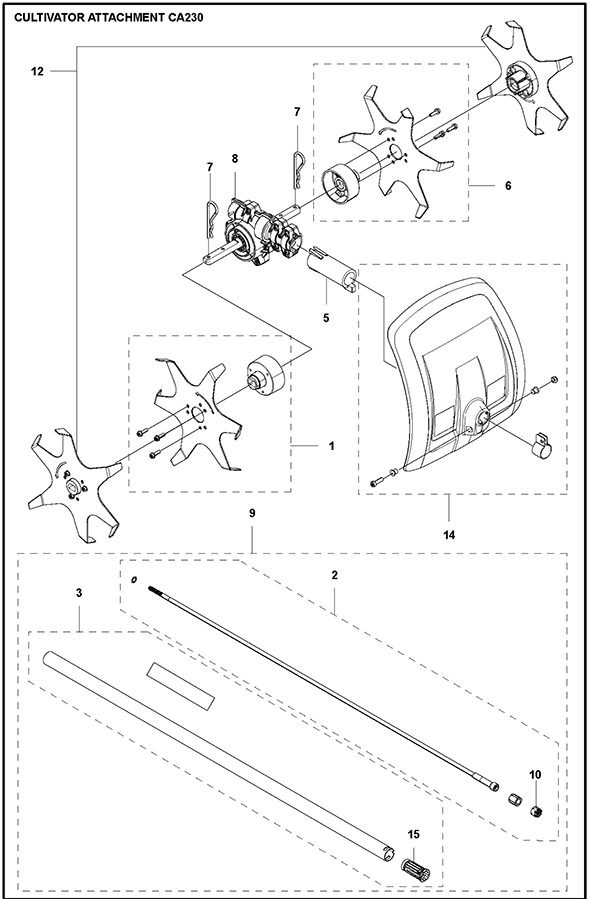

Schematic Image Zoomed
