Jonsered BP2053, 2010-01 Brushcutters/clearing Saws

Model: BP2053-2010-01

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Jonsered BP2053-2010-01

...
...

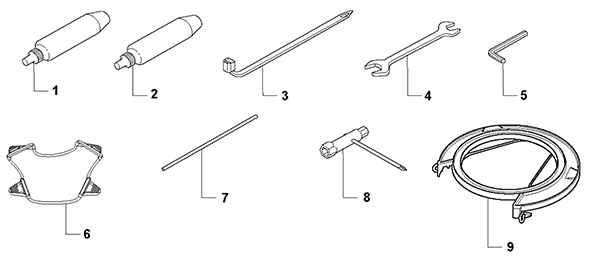

1
Grease HUS-503976401
...
2
Grease HUS-531007820
...
3
Band HUS-531007821
...
4
Spanner Open-Ended HUS-501314001
...
5
L-Nyckel HUS-502215801
...
6
Transportskydd Kpl HUS-502035502
...
7
Pin Retaining Screw HUS-531007819
...
8
Combi Tool HUS-502193001
...
9
Transport Guard HUS-502035503

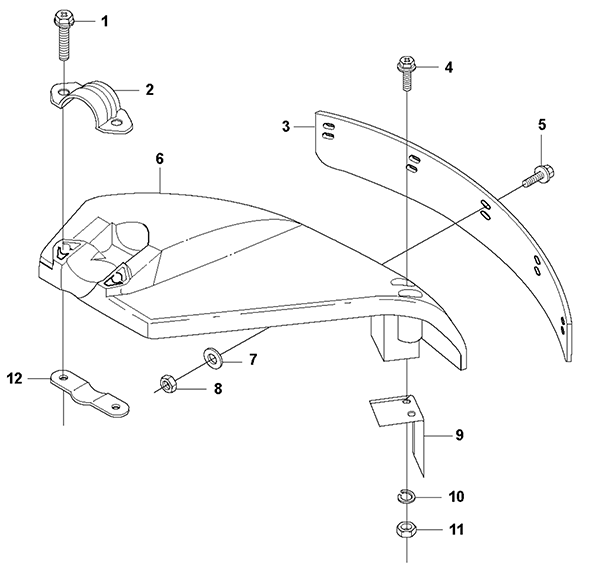

Jonsered BP2053-2010-01

...
...
1
Screw Ehhm HUS-725237471
...
2
Bracket HUS-531007703
...
3
Protector HUS-531007706
...
4
Screw Ihscfm HUS-503200225
...
5
Screw Ehhm HUS-725232971
...
6
Combi Guard HUS-531007901
...
7
Washer HUS-734114601
...
8
Hexagon Nut HUS-731231401
...
9
Blade HUS-531007705
...
10
Spring Washer HUS-735114601
...
11
Hexagon Nut HUS-731231401

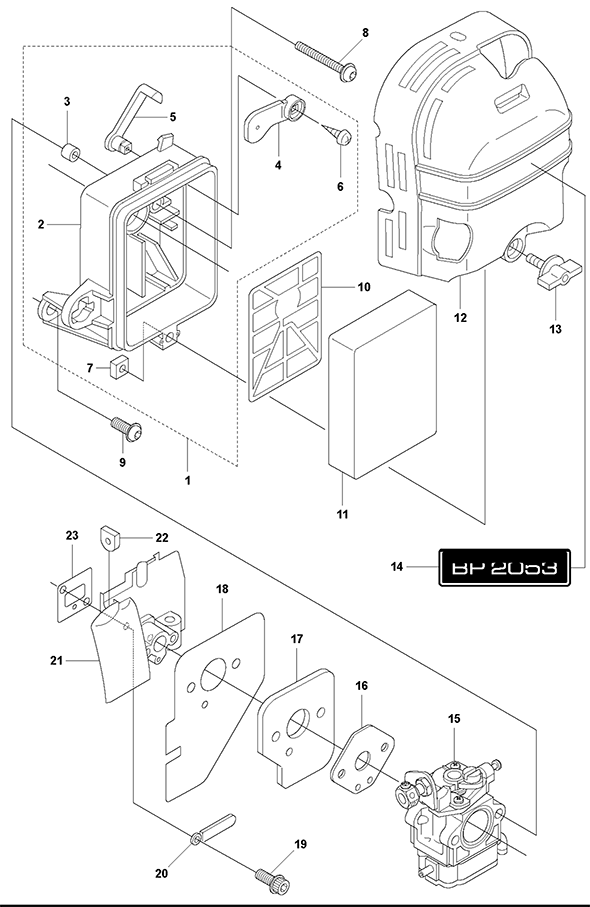

Jonsered BP2053-2010-01

...
...
1
Case HUS-523108601
...
2
Case HUS-523108701
...
3
Sleeve HUS-523108801
...
4
Valve HUS-523108901
...
5
Lever HUS-523109001
...
6
Screw HUS-523109101
...
7
Nut HUS-523109201
...
8
Cap Screw HUS-523109301
...
9
Cap Screw HUS-523109401
...
10
Plate HUS-523109501
...
11
Element HUS-523109601
...
12
Cleaner Cover HUS-523109701
...
13
Knob HUS-523109801
...
14
Label HUS-523350603
...
15
Carburetor Assembly HUS-523106501
...
16
Gasket HUS-523108301
...
17
Divider HUS-523108401
...
18
Gasket HUS-523108501
...
19
Cap Screw HUS-523100101
...
20
Clamp HUS-523104101
...
21
Insulator HUS-523099901
...
22
Grommet HUS-523103901
...
23
Gasket HUS-523100001

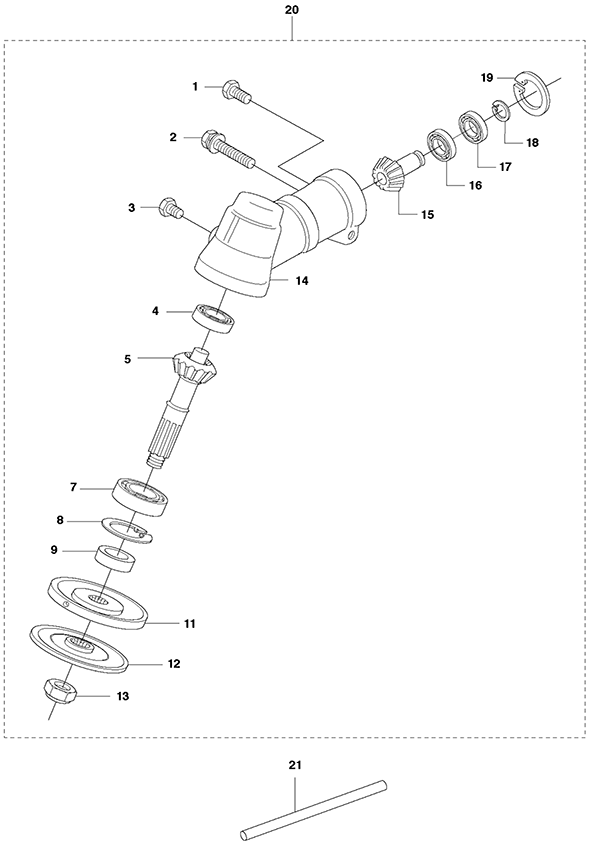

Jonsered BP2053-2010-01

...
...
1
Screw Ehhm HUS-725236671
...
2
Screw Ehhm HUS-725237471
...
3
Screw HUS-590268501
...
4
Ball Bearing HUS-587742601
...
5
Gear Wheel Shaft HUS-590268601
...
7
Ball Bearing HUS-587742801
...
8
Circlip HUS-587742901
...
9
Sealing HUS-587743001
...
11
Carrier HUS-590268301
...
12
Flange HUS-531007890
...
13
Nut Blade HUS-502291101
...
14
Gear Housing HUS-588235201
...
15
Pinion HUS-590269901
...
16
Ball Bearing HUS-738210000
...
17
Ball Bearing HUS-738210001
...
18
Circlip HUS-735311200
...
19
Circlip HUS-735312710
...
20
Gearbox Assembly HUS-588235101
...
21
Stop HUS-502026101

Jonsered BP2053-2010-01

...
...

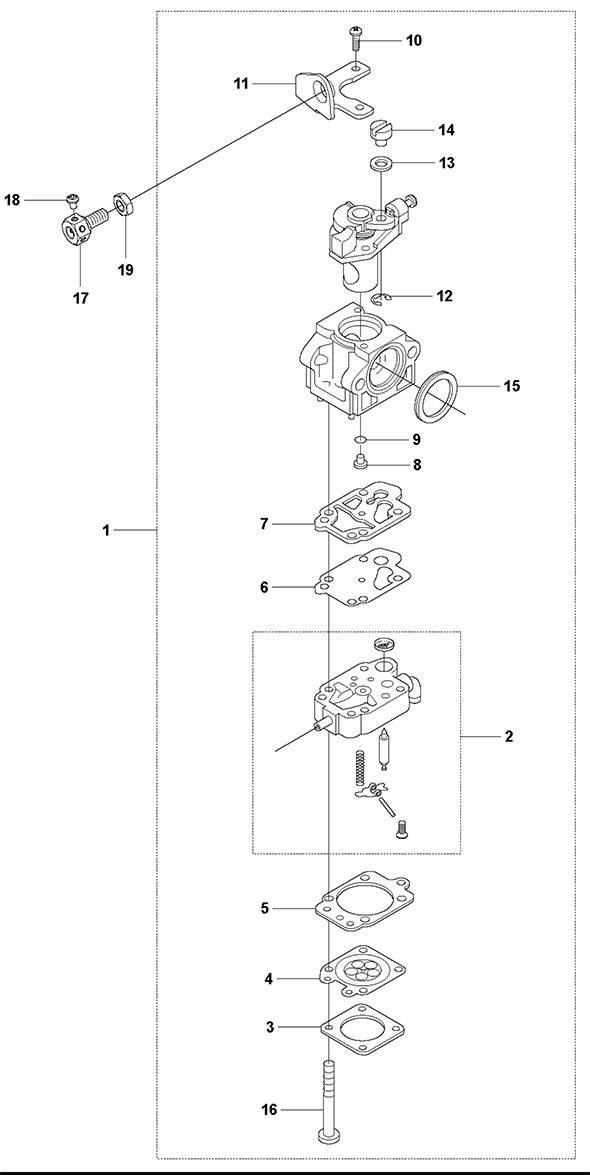

1
Carburetor Assembly HUS-523106501
...
2
Pump Body HUS-523106601
...
3
Cover Plate HUS-523106701
...
4
Diaphragm. Meterring HUS-523106801
...
5
Gasket HUS-523106901
...
6
Diaphragm.Fuel Pump HUS-523107001
...
7
Gasket HUS-523107101
...
8
Main Jet HUS-523107201
...
9
O-Ring HUS-523107301
...
10
Screw HUS-523107401
...
11
Bracket HUS-523107501
...
12
E-Ring HUS-523107601
...
13
Washer HUS-523107701
...
14
Swivel HUS-523107801
...
15
Packing HUS-523107901
...
16
Screw HUS-523108001
...
17
Screw HUS-521518701
...
18
Screw HUS-521518401
...
19
Nut HUS-523111401

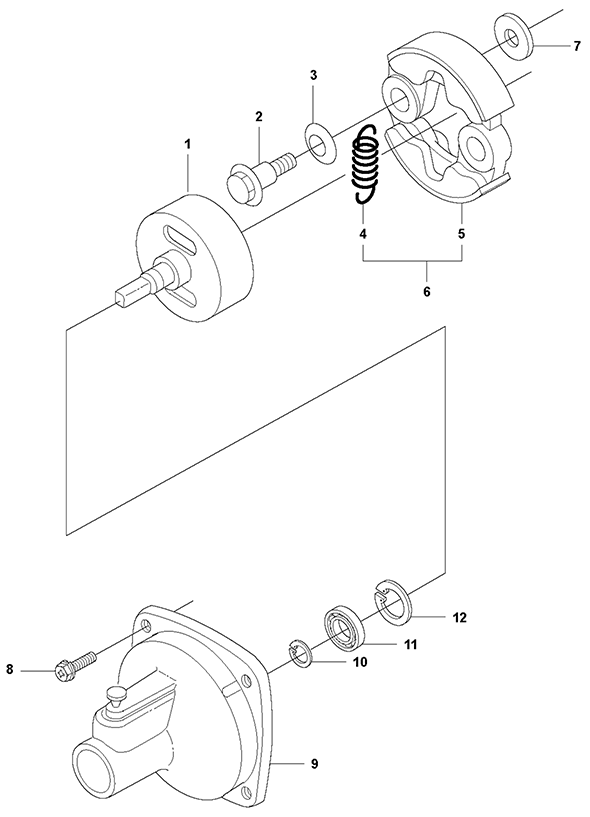

Jonsered BP2053-2010-01

...
...
1
Clutch Drum HUS-531007715
...
2
Screw HUS-531007764
...
3
Washer HUS-531007783
...
4
Spring HUS-531007761
...
5
Clutch Shoe HUS-523101901
...
6
Clutch HUS-531007760
...
7
Washer HUS-531007762
...
8
Screw Ehhm HUS-725237071
...
9
Clutch Cover HUS-531007718
...
10
Retaining Ring HUS-531007717
...
11
Ball Bearing HUS-738220219
...
12
Circlip HUS-735313310

Jonsered BP2053-2010-01

...
...

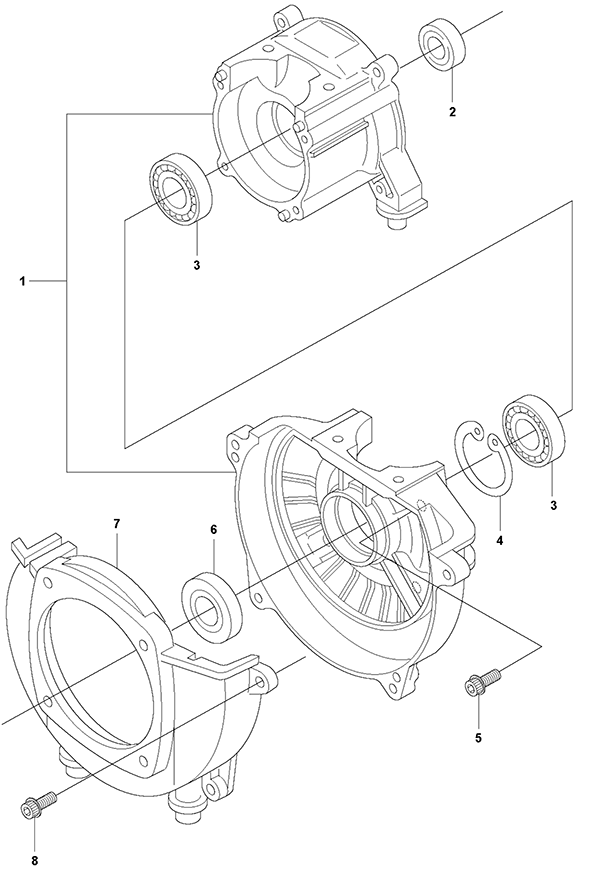

1
Crankcase HUS-523100801
...
2
Oil Seal HUS-523101101
...
3
Bearing HUS-523100901
...
4
Snap Ring HUS-523101201
...
5
Cap Screw HUS-523101301
...
6
Oil Seal HUS-523101001
...
7
Fan Cover HUS-523102401
...
8
Cap Screw, M5X20 HUS-523102501

Jonsered BP2053-2010-01

...
...

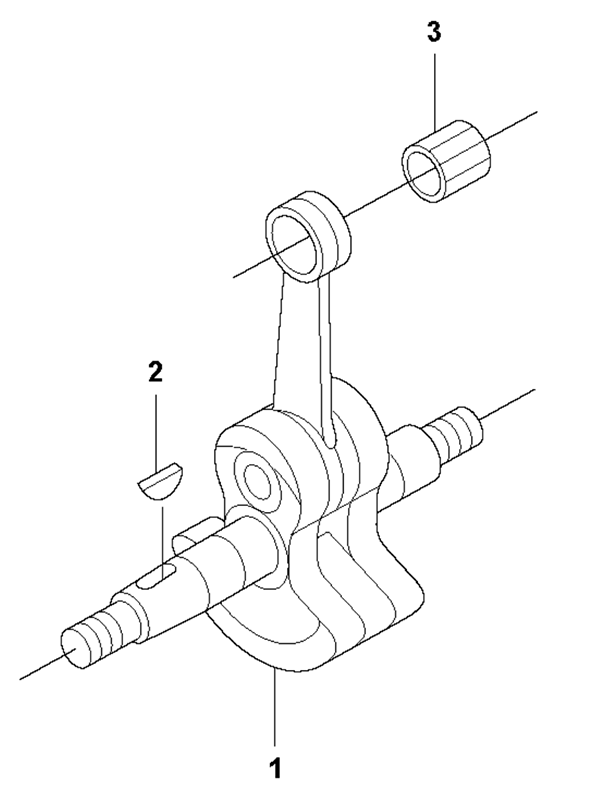

1
Crankshaft HUS-523101701
...
2
Woodruff Key HUS-523103501
...
3
Bearing,Needle HUS-523122201

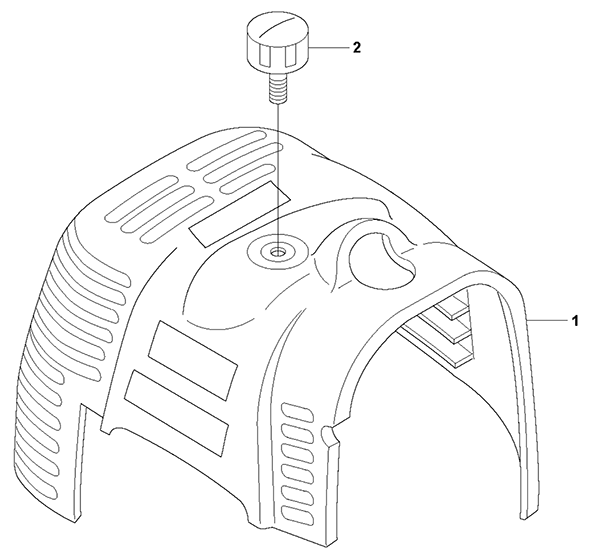

Jonsered BP2053-2010-01

...
...
1
Top Cover HUS-523100601
...
2
Knob HUS-523100701
...
3
Cap Screw HUS-523106301
...
4
Stand HUS-523106201

Jonsered BP2053-2010-01

...
...

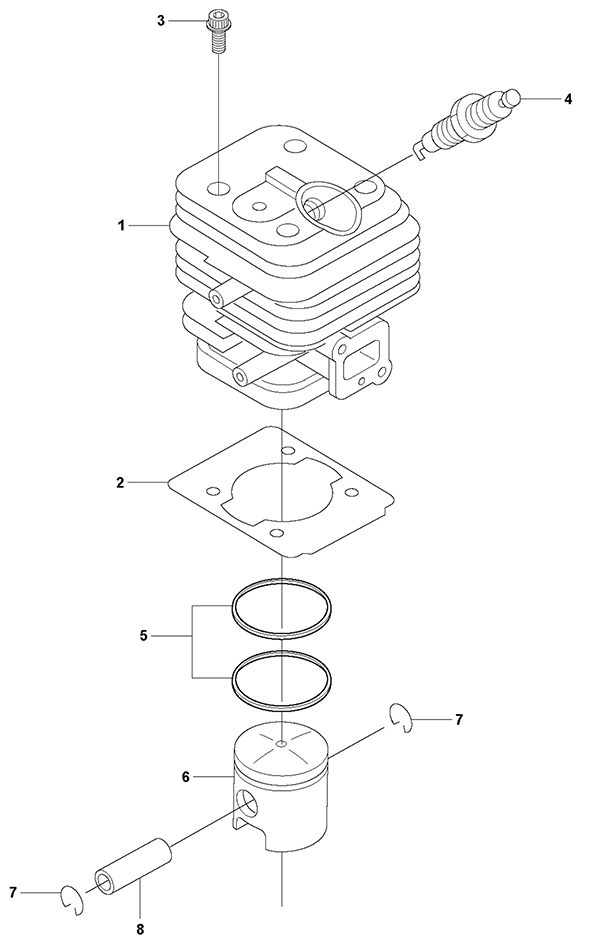

1
Cylinder HUS-523122601
...
2
Gasket HUS-523099701
...
3
Cap Screw HUS-523099801
...
4
Spark Plug HUS-523103801
...
5
Piston Ring HUS-523122801
...
6
Piston HUS-523122701
...
7
Clip HUS-523101601
...
8
Piston Pin HUS-523122101

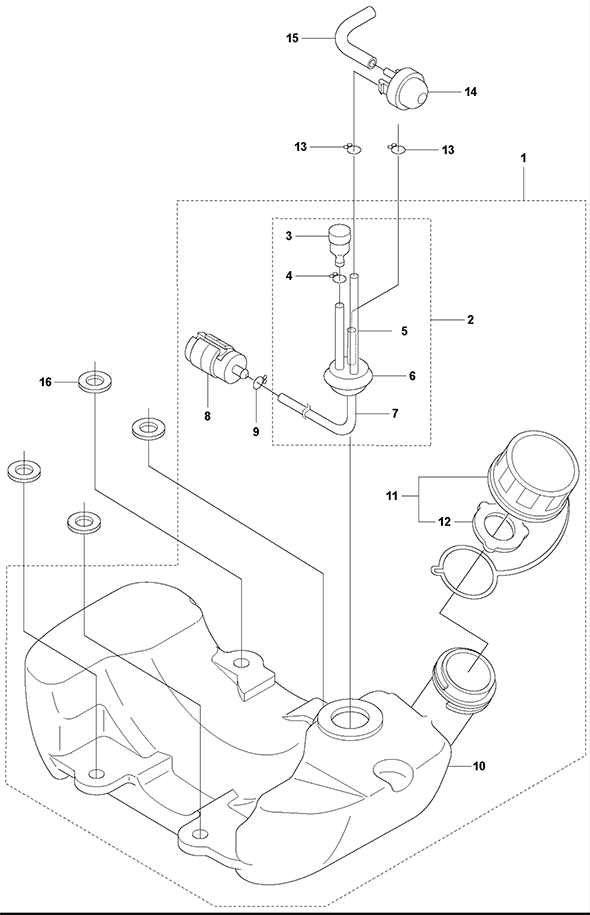

Jonsered BP2053-2010-01

...
...
1
Fuel Tank Assembly HUS-523109901
...
2
Fuel Pipe Ass Y HUS-523110301
...
3
Breather HUS-523110701
...
4
Clip HUS-523110801
...
5
Return Pipe HUS-523110501
...
6
Grommet HUS-523110401
...
7
Fuel Pipe HUS-523110601
...
8
Fuel Filter Assembly HUS-523110901
...
9
Clip HUS-523111001
...
10
Fuel Tank HUS-523110001
...
11
Fuel Tank HUS-523110101
...
12
Gasket HUS-523110201
...
13
Clip HUS-523111101
...
14
Pump HUS-523108101
...
15
Fuel Pipe HUS-523108201
...
16
Washer HUS-574236001

Jonsered BP2053-2010-01

...
...

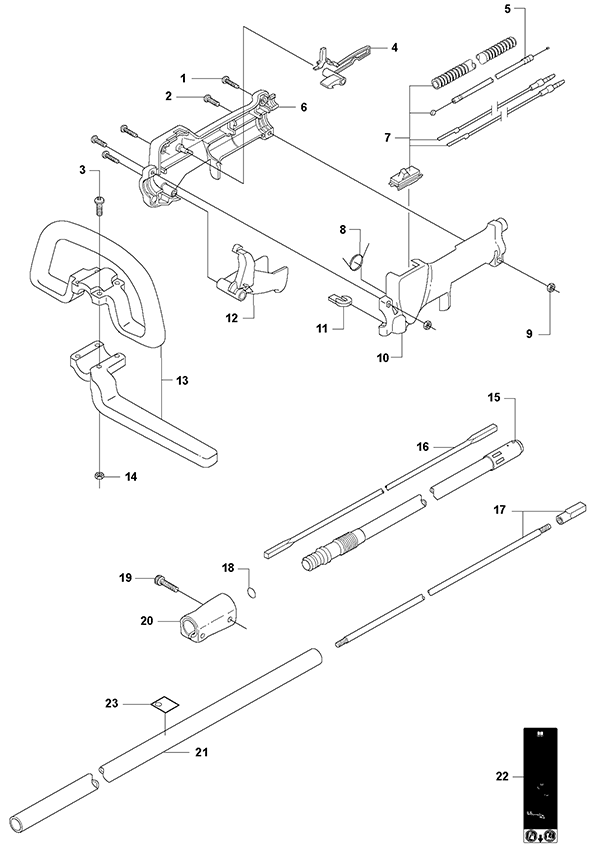

1
Screw HUS-531007864
...
2
Screw HUS-531007874
...
3
Screw Crpanm HUS-724133501
...
4
Throttle Lock HUS-531007862
...
5
Wire HUS-531007883
...
6
Handle HUS-531007916
...
7
Cable Assembly HUS-531007868
...
8
Return Spring HUS-531007871
...
9
Hexagon Nut HUS-731231405
...
10
Handle HUS-531007915
...
11
Cover HUS-531007872
...
12
Lever HUS-531007873
...
13
Handle HUS-531007914
...
14
Hexagon Nut HUS-731231401
...
15
Shaft HUS-531007714
...
16
Shaft HUS-531007712
...
17
Shaft HUS-531007710
...
18
Ring HUS-531007713
...
19
Screw Ihscm HUS-725533301
...
20
Connection HUS-531007709
...
21
Tube HUS-531007711
...
22
Label HUS-537027601
...
23
Label HUS-575375701

Jonsered BP2053-2010-01

...
...

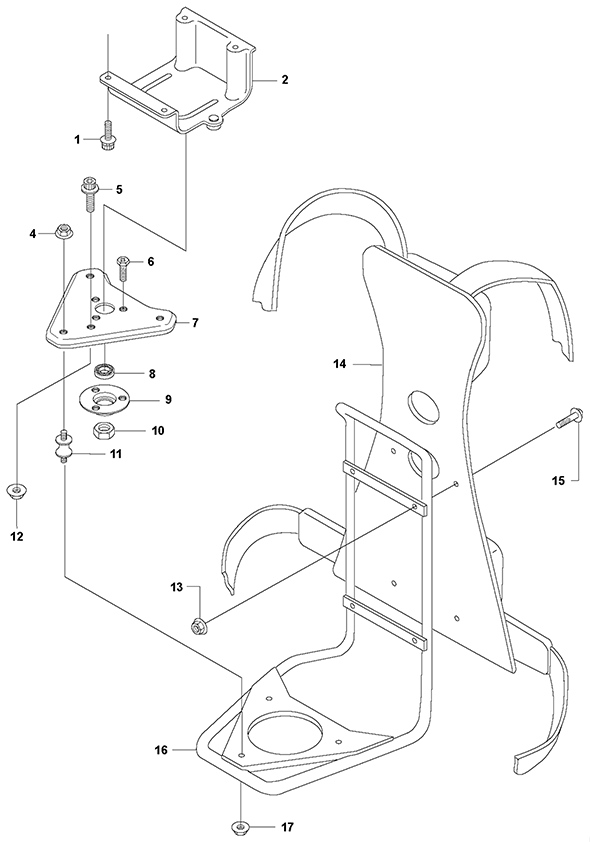

1
Cap Screw HUS-523106001
...
2
Bracket HUS-575641801
...
3
Screw Ihscfm HUS-503200240
...
4
Hexagon Nut Flange HUS-731711651
...
5
Screw Ihscm HUS-725536606
...
6
Screw Ehhm HUS-725232571
...
7
Bracket HUS-531007720
...
8
Ball Bearing HUS-738210102
...
9
Bearing Housing HUS-531007721
...
10
Hexagon Nut HUS-731232201
...
11
Absorber HUS-531007722
...
12
Hexagon Nut Flange HUS-731711651
...
13
Hexagon Nut Flange HUS-731711451
...
14
Harness HUS-503738602
...
15
Screw Ehhm HUS-725233171
...
16
Frame HUS-531007719
...
17
Hexagon Nut Flange HUS-731711651

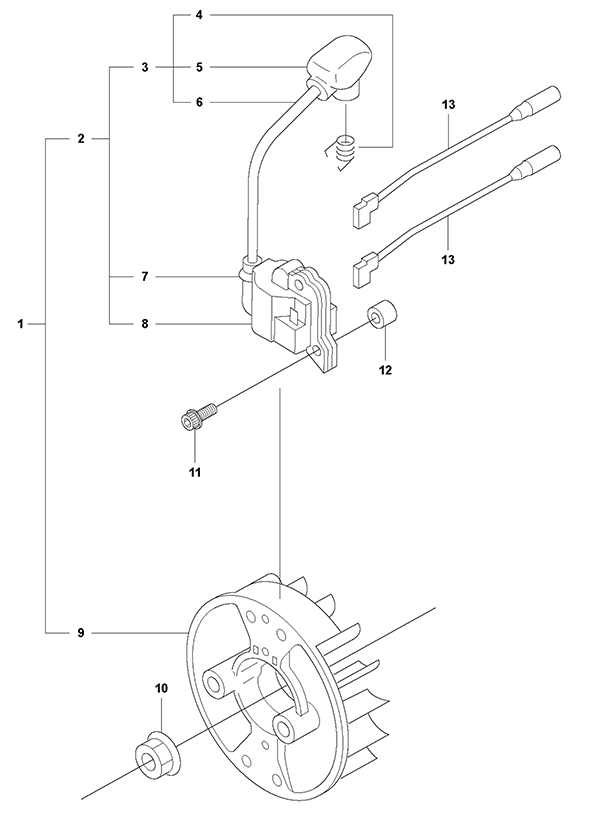

Jonsered BP2053-2010-01

...
...
1
Magneto Ass Y HUS-523102601
...
2
Ignitionition Coil HUS-523102801
...
3
Spark Plug Wire Ass Y HUS-523103001
...
4
Connector HUS-523103201
...
5
Plug Boot HUS-523103101
...
6
Spark Plug Wire HUS-523103301
...
7
Hub Cap HUS-523103401
...
8
Coil HUS-523102901
...
9
Rotor/Fan HUS-523102701
...
10
Nut.Rotor HUS-523103601
...
11
Cap Screw HUS-523123001
...
12
Spacer HUS-523122301
...
13
Lead HUS-523104001

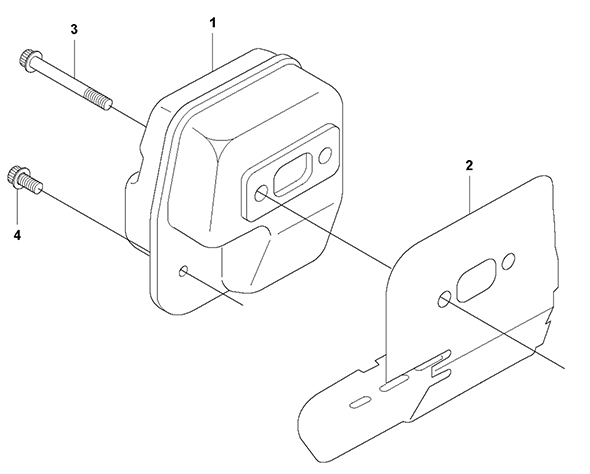

Jonsered BP2053-2010-01

...
...
1
Muffler Comp. HUS-523100201
...
2
Gasket HUS-523100301
...
3
Cap Screw HUS-523100401
...
4
Screw HUS-523100501

Jonsered BP2053-2010-01

...
...

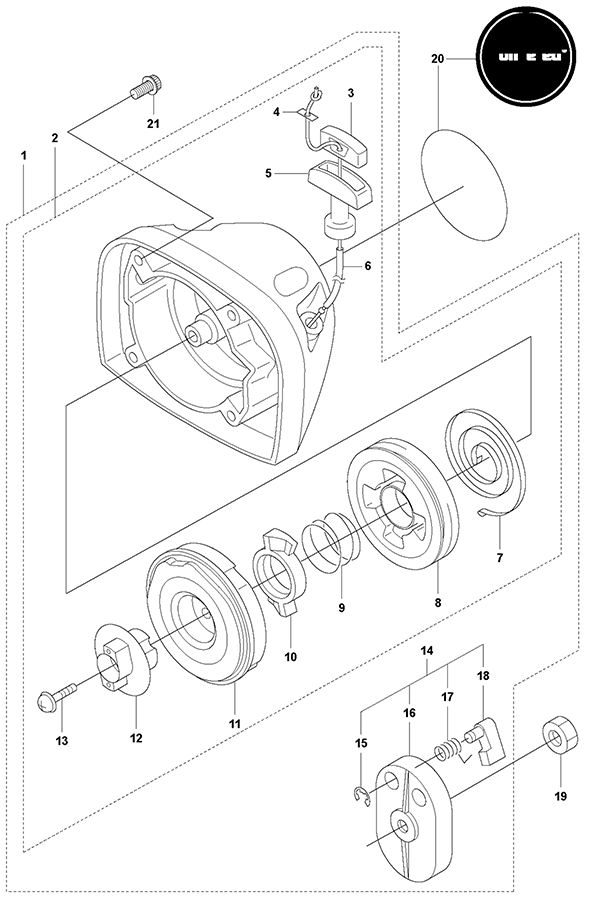

1
Recoil Starter Ass Y HUS-523104201
...
2
Recoil Ass Y HUS-523104301
...
3
Hub Cap HUS-523105301
...
4
Rope Stopper HUS-523105401
...
5
Starter Grip HUS-523105201
...
6
Starter Rope HUS-523105101
...
7
Spiral Spring HUS-523104501
...
8
Starter Pulley HUS-523104401
...
9
Return Spring HUS-523104701
...
10
Pawl HUS-523104601
...
11
Spring Comp. HUS-523104801
...
12
Plate HUS-523104901
...
13
Set Screw HUS-523105001
...
14
Starter Pulley Assembly HUS-523105501
...
15
E-Ring HUS-523105901
...
16
Starter Pawl Attachment HUS-523105601
...
17
Return Spring HUS-523105801
...
18
Pawl HUS-523105701
...
19
Nut HUS-523106101
...
20
Label HUS-523106401
...
21
Cap Screw HUS-523106001
