Jonsered BC2255, 2019-07 Brushcutters/clearing Saws

Model: BC2255-2019-07

Save
 Part Not Listed?Part Not Listed?
product name

Jonsered BC2255-2019-07

...
...
1
Bevel Gear, Incl. Pos. 2-13 HUS-537428405
...
2
Gear Housing HUS-537428501
...
3
Ball Bearing HUS-738210110
...
4
Ball Bearing HUS-503252501
...
5
Circlip HUS-735313310
...
6
Bearing HUS-503251801
...
7
Circlip HUS-735311700
...
8
Circlip HUS-735313110
...
9
Gear Wheel Kit HUS-502434601
...
10
Screw HUS-503201501
...
11
Screw Ihscm HUS-725537265
...
12
Attachment Plate HUS-501365901
...
13
Screw Ihscfm HUS-503200776
...
14
Screw HUS-537189501
...
15
Driver, Incl. Pos. 16 HUS-537351401
...
16
Grass Sealing HUS-537240301
...
17
Support Flange HUS-544217801
...
18
Nut HUS-503227301

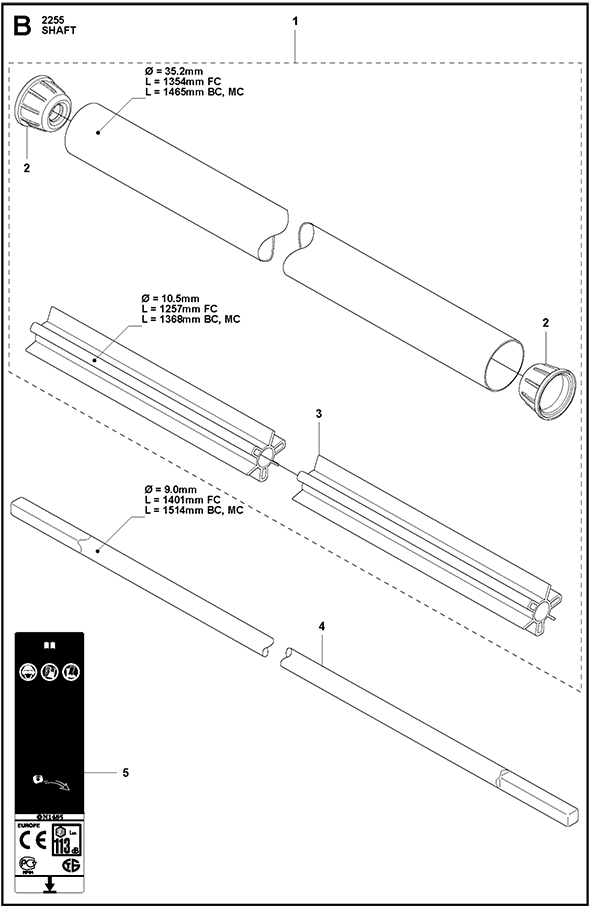

Jonsered BC2255-2019-07

...
...
1
Tube, Incl. Pos. 2-3 HUS-502259403
...
2
Spacer HUS-544320501
...
3
Bearing Shaft, L=1368Mm, =10.5Mm HUS-544868502
...
4
Drive Shaft, L=1514Mm, =9.0Mm HUS-544156702
...
5
Label HUS-537294710

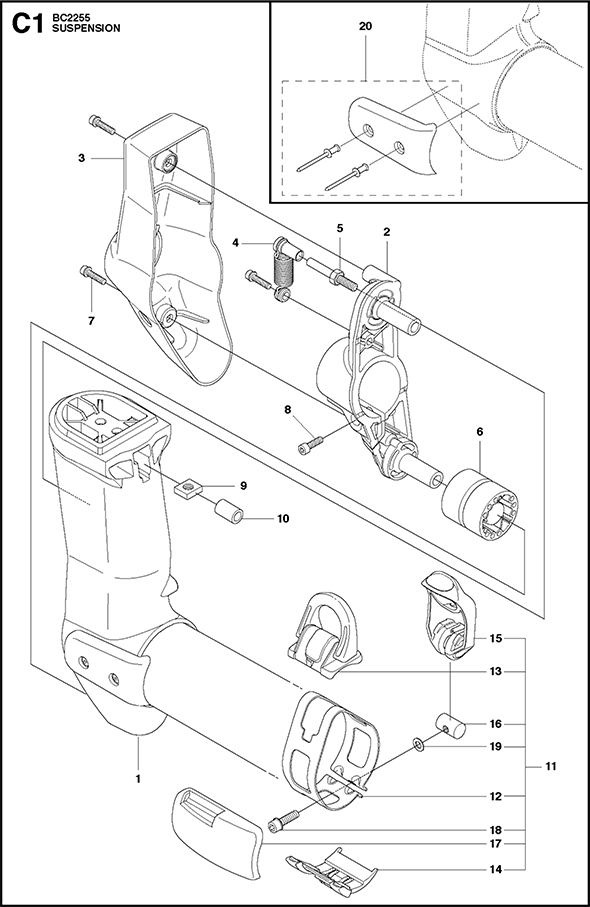

Jonsered BC2255-2019-07

...
...
1
Suspension HUS-581978702
...
2
Retainer HUS-544378301
...
3
Cover HUS-544378502
...
4
Spring HUS-506068801
...
5
Parallel Pin HUS-544367701
...
6
Antivibration Element HUS-544230901
...
7
Screw Ihscfm HUS-503200774
...
8
Screw Ihscm HUS-725537265
...
9
Square Nut HUS-502197101
...
10
Cover HUS-503857302
...
11
Loop, Incl. Pos. 12-19 HUS-504023802
...
12
Band HUS-537395701
...
13
Loop HUS-537201803
...
14
Guide Rail HUS-537427402
...
15
Lever HUS-537427002
...
16
Nut HUS-537427301
...
17
Wear Protection HUS-544250702
...
18
Screw Ihscfm HUS-503200725
...
19
Washer HUS-503230011
...
20
Wear Protection HUS-586202702

Jonsered BC2255-2019-07

...
...
1
Suspension HUS-544401602
...
2
Retainer HUS-544378301
...
3
Cover HUS-544378502
...
4
Spring HUS-506068801
...
5
Parallel Pin HUS-544367701
...
6
Antivibration Element HUS-544230901
...
7
Screw Ihscfm HUS-503200774
...
8
Screw Ihscm HUS-725537265
...
9
Square Nut HUS-502197101
...
10
Cover HUS-503857302
...
11
Loop, Incl. Pos. 12-19 HUS-504023802
...
12
Band HUS-537395701
...
13
Loop HUS-537201803
...
14
Guide Rail HUS-537427402
...
15
Lever HUS-537427002
...
16
Nut HUS-537427301
...
17
Wear Protection HUS-544250702
...
18
Screw Ihscfm HUS-503200725
...
19
Washer HUS-503230011

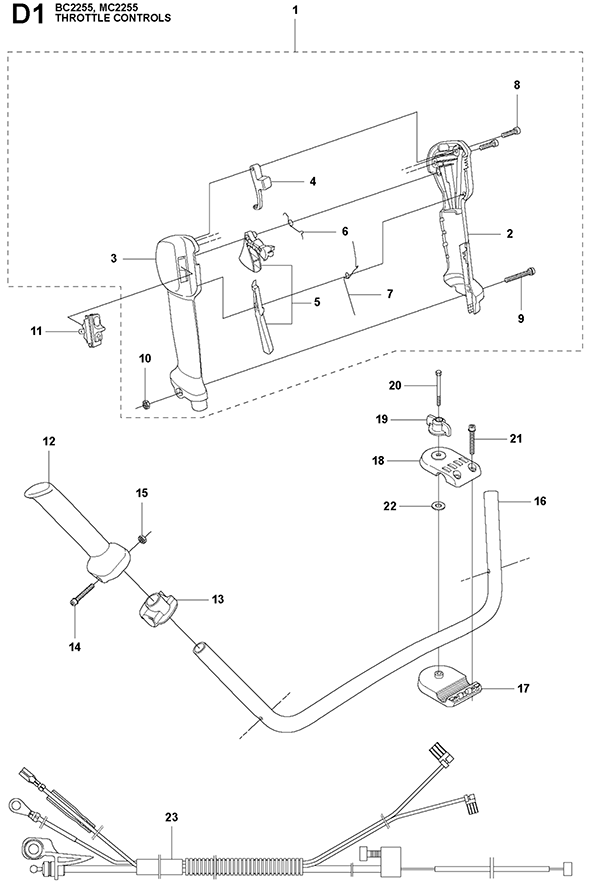

Jonsered BC2255-2019-07

...
...
1
Throttle Handle Assembly, Incl. Pos. 2-10 HUS-504209805
...
2
Handle Half HUS-537180812
...
3
Handle Half HUS-537180712
...
4
Starter Throttle Loc HUS-537160702
...
5
Throttle Control HUS-506497702
...
6
Spring Throttle Trig HUS-537174201
...
7
Spring HUS-537174301
...
8
Screw Ihsct HUS-503216618
...
9
Screw Ihscfm HUS-503200735
...
10
Hexagon Nut HUS-503221013
...
11
Switch HUS-537419001
...
12
Handle HUS-537172809
...
13
Bracket HUS-537172902
...
14
Screw Ihscfm HUS-503200245
...
15
Hexagon Nut HUS-731231405
...
16
Handlebar HUS-503958603
...
17
Handlebar Bracket HUS-537129102
...
18
Handlebar Bracket HUS-537129002
...
19
Turning Knob HUS-502219301
...
20
Screw Ehhm HUS-725238485
...
21
Screw Ihscfm HUS-503200778
...
22
Washer HUS-502282101
...
23
Wiring, Bc, Mc HUS-544203101
...
23
Wiring, Fc HUS-544203102

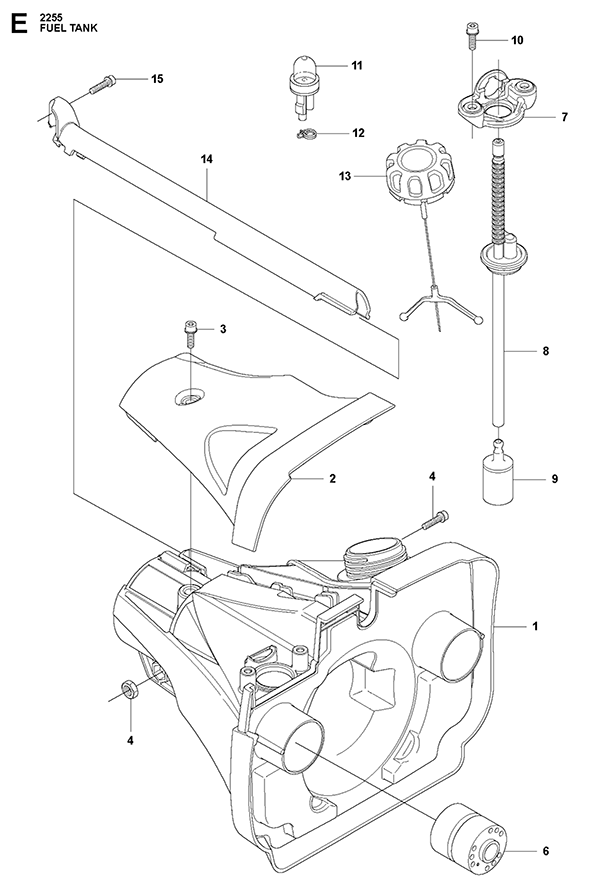

Jonsered BC2255-2019-07

...
...
1
Fuel Tank HUS-537358802
...
2
Cover HUS-537358602
...
3
Screw Ihscfm HUS-503200772
...
4
Screw Ihscfm HUS-503200776
...
5
Hexagon Nut HUS-503221012
...
6
Antivibration Element HUS-544230901
...
7
Bracket HUS-544215301
...
8
Fuel Hose HUS-544215401
...
9
Fuel Filter HUS-503443201
...
10
Screw Ihscfm HUS-503200776
...
11
Purge HUS-503936601
...
12
Hose Clamp HUS-544348601
...
13
Tank Cap HUS-504113201
...
14
Wiring Protection, Bc HUS-544109503
...
14
Wiring Protection, Fc, Fcw, Mc HUS-544109504
...
15
Screw Ihscfm HUS-503200774

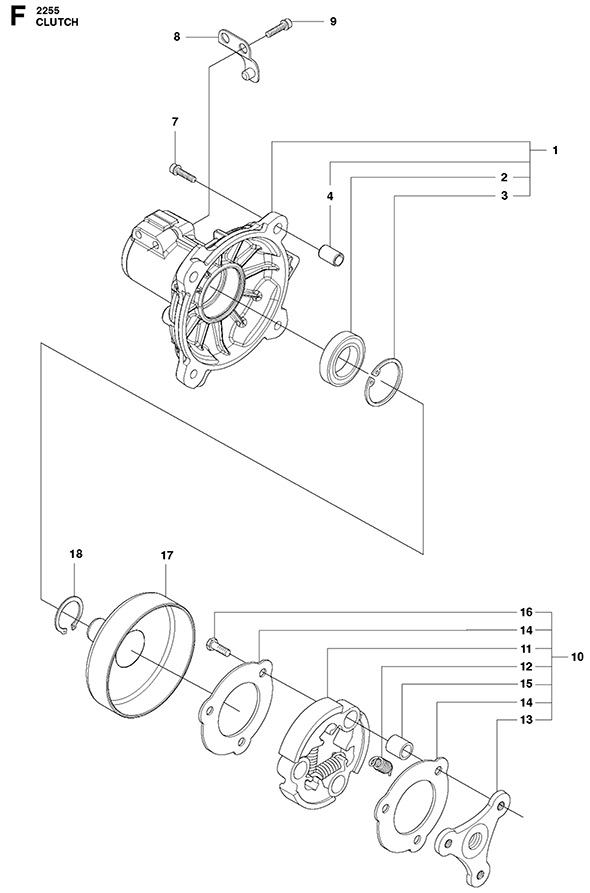

Jonsered BC2255-2019-07

...
...
1
Clutch Cover Assembly, From S/N 20191600181-Incl. Pos. 2-4 HUS-597519201
...
1
Clutch Cover Assembly, Up To S/N - 20191600180.Incl. Pos. 2-4 HUS-597519202
...
2
Ball Bearing HUS-738220219
...
3
Circlip HUS-735313310
...
4
Guide Bushing, From S/N 20191600181 HUS-593806001
...
4
Sleeve, Up To S/N - 20191600180 HUS-597371101
...
7
Screw Ihscfm HUS-503200778
...
8
Locking Plate HUS-544294801
...
9
Screw Ihscm HUS-725537265
...
10
Clutch Assembly, Incl. Pos. 11-16 HUS-537404002
...
11
Clutch Shoe HUS-537403701
...
12
Clutch Spring, 1.7 Mm HUS-505435301
...
13
Clutch Hub HUS-537403601
...
14
Washer HUS-544892801
...
15
Bearing Bush HUS-537135401
...
16
Screw Ehhm HUS-503201802
...
17
Clutch Drum Assembly HUS-575861601
...
18
Circlip HUS-735311700

Jonsered BC2255-2019-07

...
...
1
Cylinder Cover HUS-544326101
...
2
Screw Ihscfm HUS-503200776
...
3
Heat Protector HUS-544326301
...
4
Screw Ihscfm HUS-503200776
...
5
Protective Cover HUS-505492602
...
6
Screw Ihscfm HUS-503200776
...
7
Decal, Fc HUS-504061501
...
7
Decal, Fcw HUS-504061502
...
7
Decal, Bc HUS-504061503
...
7
Decal, Mc HUS-504061504

Jonsered BC2255-2019-07

...
...
1
Cylinder Cover Assembly, Spare Part Incl. Screws Pos. 2-3 HUS-575527701
...
2
Screw Ihscfmo, Captive Screw M5 HUS-573994304
...
3
Screw Ihscfmo, Captive Screw M5 HUS-573994301
...
4
Heat Protector HUS-544326301
...
5
Screw Ihscfm HUS-503200776
...
6
Protective Cover HUS-505492602
...
7
Screw Ihscfm HUS-503200776
...
8
Decal, Fc HUS-504061501
...
8
Decal, Fcw HUS-504061502
...
8
Decal, Bc HUS-504061503
...
8
Decal, Mc HUS-504061504

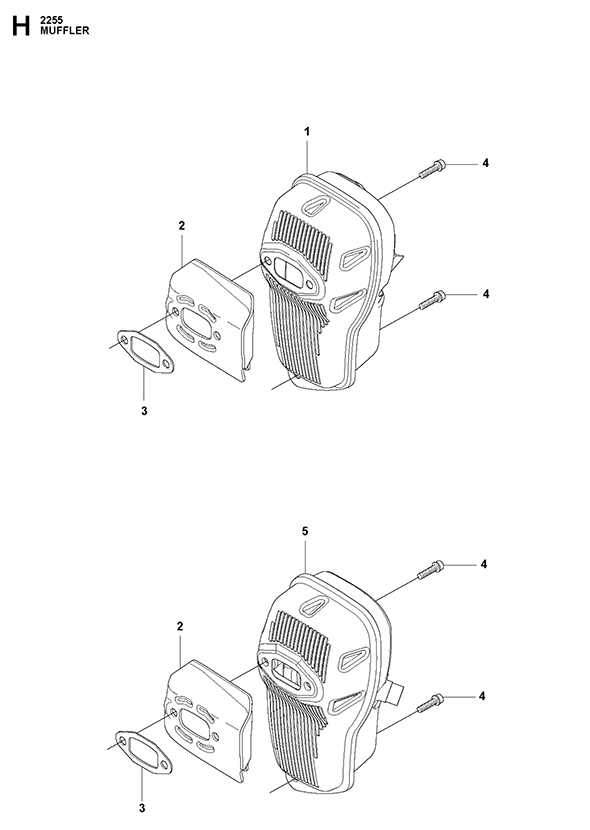

Jonsered BC2255-2019-07

...
...
1
Muffler Assembly, Mesh HUS-537360301
...
2
Plate HUS-537345701
...
3
Gasket HUS-503821101
...
4
Screw Ihscfm HUS-503200220
...
5
Muffler, Pipe HUS-504037901

Jonsered BC2255-2019-07

...
...
1
Filter Holder Assembly HUS-544326203
...
2
Snap Locking HUS-503740103
...
3
Choke Control HUS-537352601
...
4
Grommet HUS-537387801
...
5
Filter Cover HUS-544278601
...
6
Filter, Nylon 80/32 Winter HUS-537410801
...
6
Filter, Nylon 44/27 HUS-537410802
...
6
Filter, Flock HUS-537410803
...
7
Screw Ihscfm HUS-503200776
...
8
Hexagon Nut Flange HUS-731711451
...
9
Insulation Wall HUS-537350401
...
10
Screw HUS-503988101
...
11
Screw HUS-503988104
...
12
Square Nut HUS-503226504
...
13
Screw Ihscfm HUS-503200776
...
14
Gasket HUS-544429901
...
15
Carburettor Kit HUS-586154101
...
16
Gasket HUS-510043701
...
17
Manifold HUS-544043301
...
18
Gasket HUS-544043001
...
19
Gasket HUS-544043101
...
20
Gasket HUS-544160801
...
21
Valve Housing HUS-544214001
...
22
Link HUS-544847801
...
23
Hexagon Nut Flange HUS-731711451
...
24
Inlet Pipe HUS-537410501
...
25
Screw Ihscfm HUS-503200780
...
26
Grommet Kit HUS-544161501
...
27
Suction Hose HUS-537425802
...
28
Fuel Hose HUS-544324914
...
29
Hose Clamp HUS-544348601
...
30
Filter, Bc, Incl. Pos. 31 HUS-505034701
...
31
Filter HUS-505031002
...
32
Sealing Plug HUS-577969301

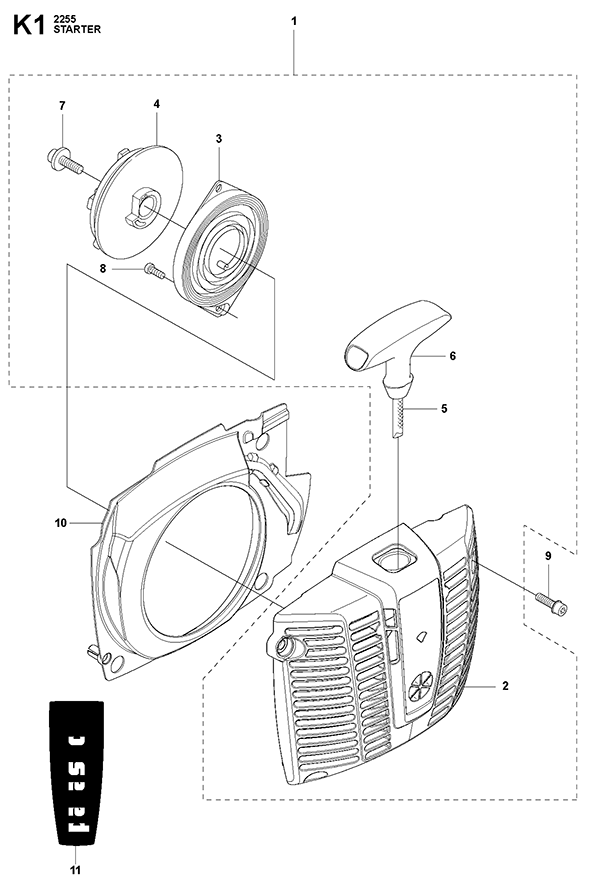

Jonsered BC2255-2019-07

...
...
1
Starter, Incl. Pos. 2-8 HUS-544325901
...
2
Starter Housing HUS-544325801
...
3
Spring Cassette Assembly HUS-502200601
...
4
Starter Pulley HUS-503957301
...
5
Starter Cord HUS-505305125
...
6
Starter Handle HUS-544376501
...
7
Screw Ihsct HUS-503216916
...
8
Screw Ccrpant HUS-503212906
...
9
Screw Ihscfm HUS-503200776
...
10
Air Conductor HUS-544278901
...
11
Decal HUS-504061401

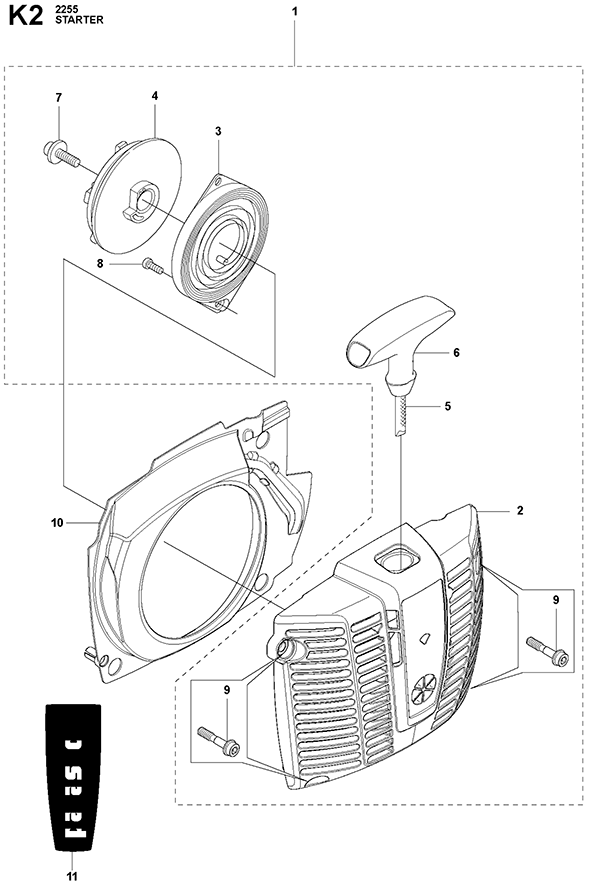

Jonsered BC2255-2019-07

...
...
1
Starter Assembly, Incl. Pos. 2-9 HUS-575527901
...
2
Starter Housing, Spare Part Incl. Screws Pos. 9 HUS-575541601
...
3
Spring Cassette Assembly HUS-502200601
...
4
Starter Pulley HUS-503957301
...
5
Starter Cord HUS-505305125
...
6
Starter Handle HUS-544376501
...
7
Screw Ihsct HUS-503216916
...
8
Screw Ccrpant HUS-503212906
...
9
Screw Ihscfmo, Captive Screw M5 HUS-573994304
...
10
Air Conductor HUS-544278901
...
11
Decal HUS-504061401

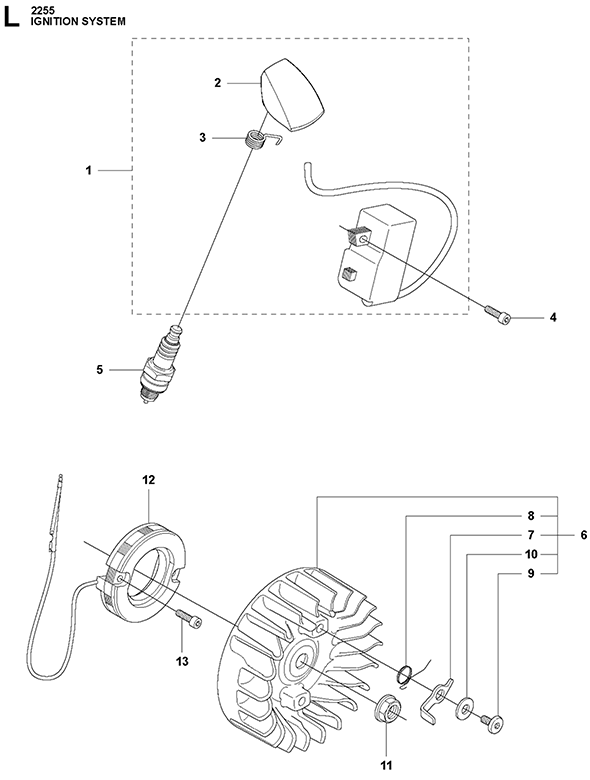

Jonsered BC2255-2019-07

...
...
1
Ignitionition Module, Pos. 2-3 HUS-504708701
...
2
Spark Plug Cap HUS-544307001
...
3
Contact Spring HUS-501485601
...
4
Screw Ihscm HUS-503202516
...
5
Spark Plug, Ngk Bpmr7A HUS-503235111
...
6
Flywheel Assembly, Bc, Fc, Mc Incl. Pos. 7-10 1 HUS-537240501
...
6
Flywheel Assembly, Fcw Incl. Pos. 7-10 HUS-537240502
...
7
Starter Pawl HUS-503812401
...
8
Spring HUS-503812901
...
9
Screw HUS-501819903
...
10
Washer HUS-503230042
...
11
Nut HUS-503220401
...
12
Generator Stator, Fcw HUS-537256302
...
13
Screw Ihsct, Fcw HUS-544444301

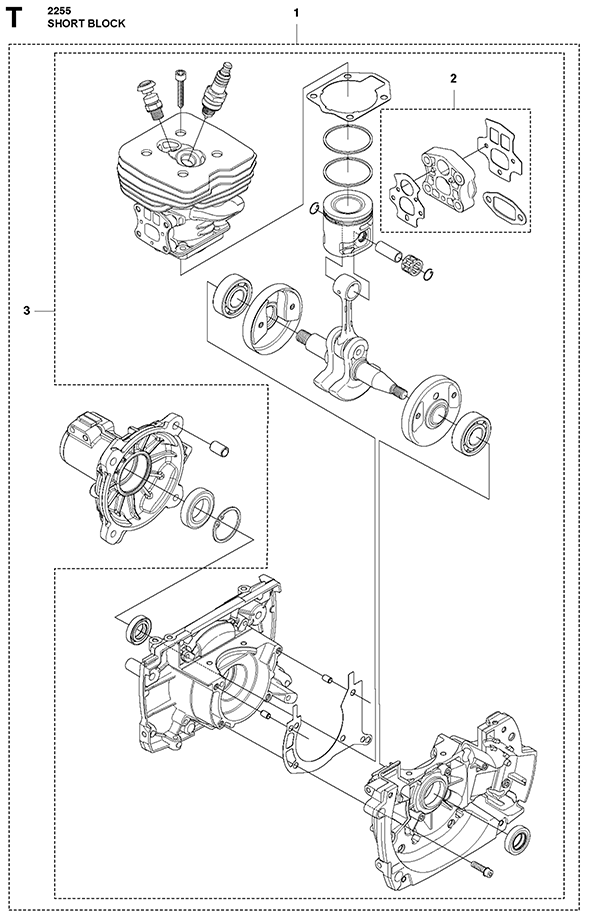

Jonsered BC2255-2019-07

...
...
1
Cylinder Assembly, Incl. Pos. 2-6 HUS-544986002
...
2
Piston Assembly, Incl. Pos. 3-6 HUS-576954801
...
3
Piston Ring HUS-502653901
...
4
Piston Pin HUS-505495701
...
5
Circlip HUS-505495801
...
6
Needle Bearing HUS-501451601
...
7
Decompression Valve HUS-544200001
...
8
Gasket HUS-537346801
...
9
Screw Ihscm HUS-725533355

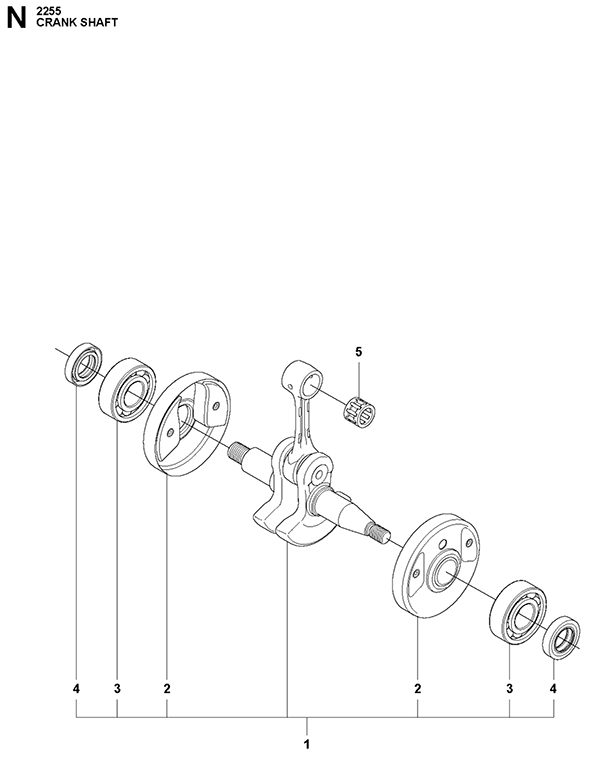

Jonsered BC2255-2019-07

...
...
1
Crankshaft, Incl. Pos. 2-4 HUS-544952602
...
2
Cup HUS-544010101
...
3
Bearing HUS-503250801
...
4
Sealing Ring HUS-503260204
...
5
Needle Bearing HUS-501451601

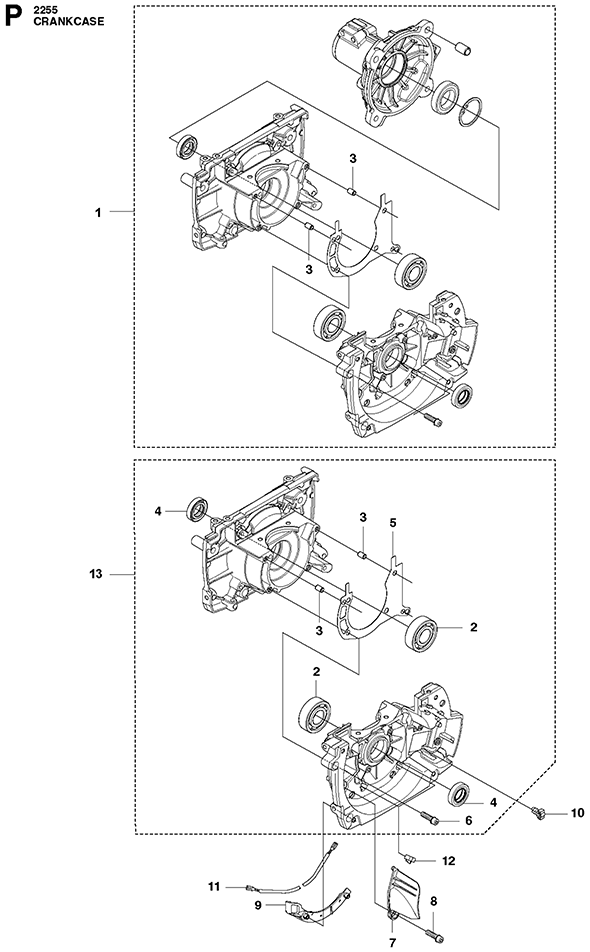

Jonsered BC2255-2019-07

...
...
1
Crankcase Assembly, Up To S/N - 20191600180 HUS-503911501
...
2
Bearing HUS-503250801
...
3
Guide Bushing, From S/N 20175100007 HUS-593806001
...
3
Parallel Pin, Up To S/N - 20175100006 HUS-720130710
...
4
Sealing Ring HUS-503260204
...
5
Gasket, From S/N 20175100007 - HUS-590182301
...
5
Gasket ,Up To S/N - 20175100006 HUS-537346701
...
6
Screw Ihscfm HUS-503200230
...
7
Nozzle HUS-544094501
...
8
Screw Ihscm HUS-503202516
...
9
Cable Holder HUS-544094401
...
10
Retainer HUS-540070101
...
11
Short Circuit Cable HUS-544331801
...
12
Retainer HUS-501044401
...
13
Crankcase From S/N 20191600181 HUS-544952503

Jonsered BC2255-2019-07

...
...
1
Carburettor, Walbro Wte7 Incl. Pos. 2-45 HUS-510242001
...
2
Ring HUS-505316736
...
3
Lever HUS-544970701
...
4
Lever HUS-544177701
...
5
Lock Styrmembran HUS-505316754
...
6
Cover HUS-503584301
...
7
Shaft HUS-544043601
...
8
Shaft HUS-544044001
...
9
Limiter Cap HUS-544970801
...
10
Valve HUS-505427101
...
11
Valve HUS-537109601
...
12
Needle Valve HUS-503563401
...
13
Nozzle Assembly HUS-502846801
...
14
Plug HUS-502846901
...
15
Ball HUS-501468501
...
16
Gasket HUS-504350906
...
17
Gasket HUS-504130906
...
18
Diaphragm Pump HUS-502213601
...
19
Diaphragm HUS-502847001
...
20
Screw HUS-501468701
...
21
Screw HUS-502847101
...
22
Screw HUS-501466901
...
23
Screw HUS-537003401
...
24
Screw HUS-503108701
...
25
Screw HUS-537408201
...
26
Spring HUS-501468401
...
27
Spring HUS-501795901
...
28
Spring HUS-501667801
...
29
Spring HUS-544971001
...
30
Spring HUS-544177601
...
31
Spring HUS-544971101
...
32
Needle HUS-502847201
...
33
Needle HUS-502847301
...
34
Fitting HUS-544971501
...
35
Fitting HUS-544971601
...
36
Screen HUS-501666101
...
37
Pin HUS-505520125
...
38
Lever HUS-502847401
...
39
Screw HUS-544111501
...
40
Jet HUS-505426901
...
41
Plug HUS-503574301
...
46
Kit HUS-515999601

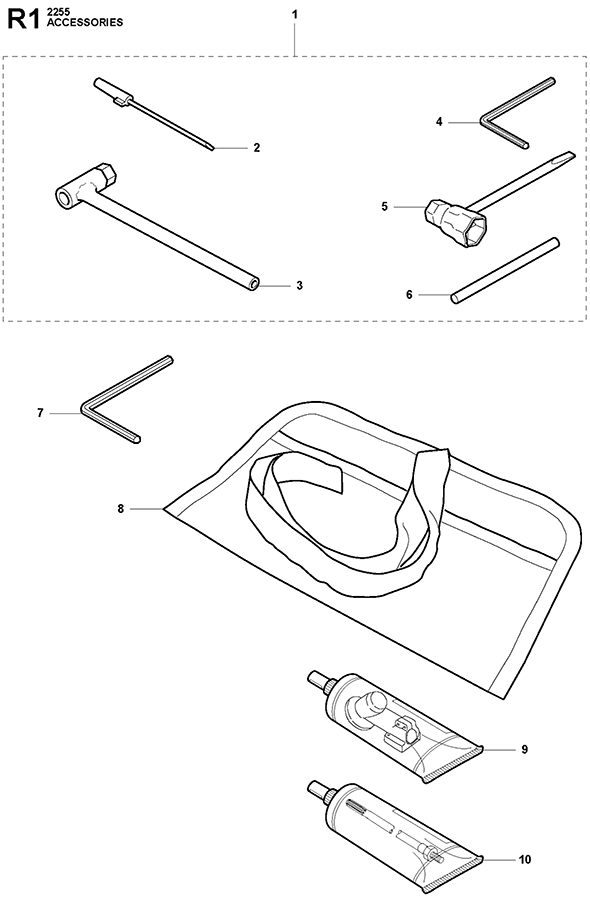

Jonsered BC2255-2019-07

...
...
1
Accessory Bag, Incl. Pos. 2-6 HUS-502216015
...
2
Screwdriver HUS-501600203
...
3
Key HUS-502114603
...
4
Wrench, 4Mm HUS-502215801
...
5
Combination Wrench HUS-501691701
...
6
Stop HUS-502285901
...
7
Spanner, 5Mm HUS-503558605
...
8
Tool HUS-501192201
...
9
Grease HUS-503976401
...
10
Grease HUS-503801701

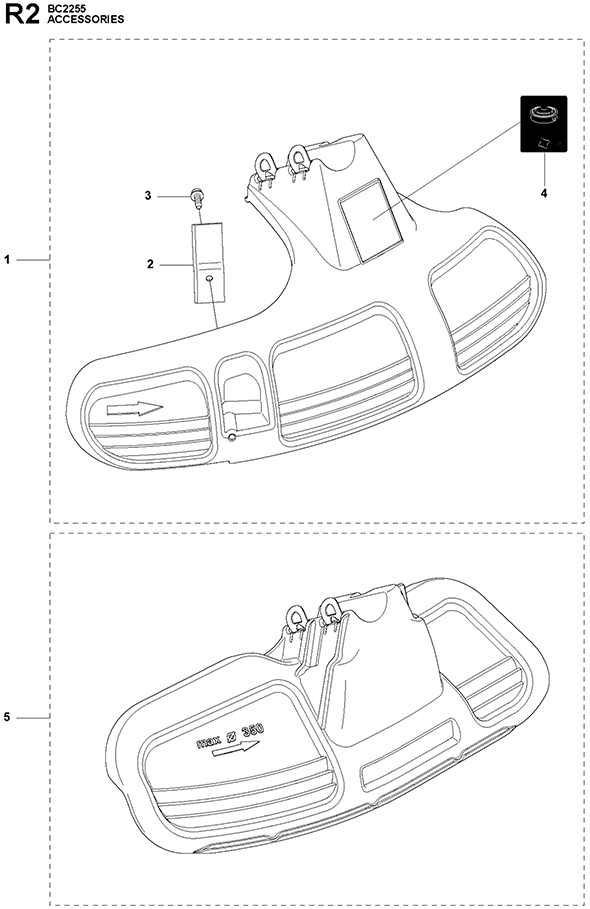

Jonsered BC2255-2019-07

...
...
1
Trimmer Guard, Bc Incl. Pos. 2-4 HUS-544107404
...
2
Blade HUS-537285301
...
3
Screw Ihsct HUS-503210716
...
4
Decal HUS-503742901
...
5
Grass Blade Guard, Bc HUS-544160302

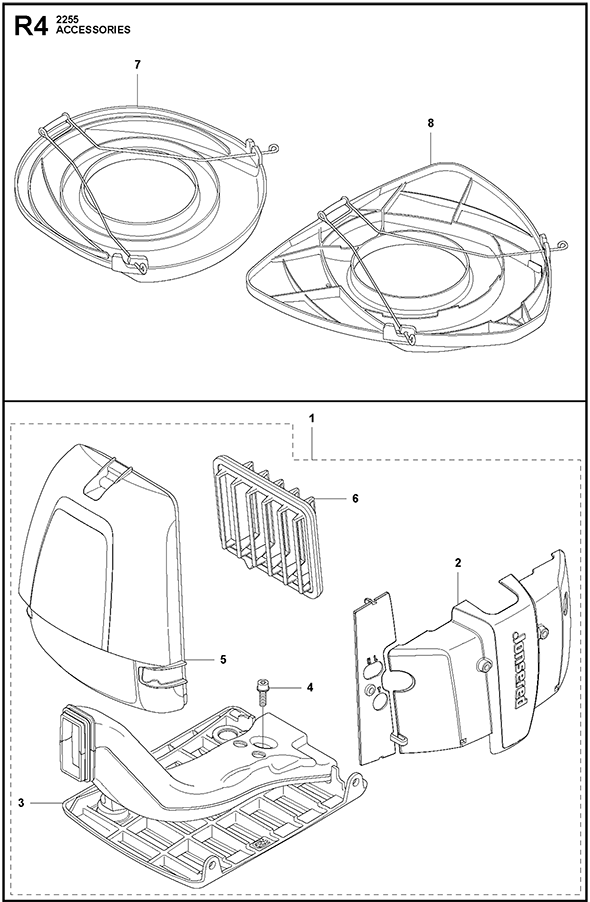

Jonsered BC2255-2019-07

...
...
1
Winter Kit, Winter Kit Incl. Pos. 2-6 HUS-502435802
...
2
Winter Cover HUS-544961601
...
3
Air Duct HUS-537351001
...
4
Screw Ihsct HUS-503210716
...
5
Cover HUS-544870301
...
6
Filter HUS-537410801
...
7
Transport Guard HUS-537312901
...
8
Transport Guard HUS-544359101

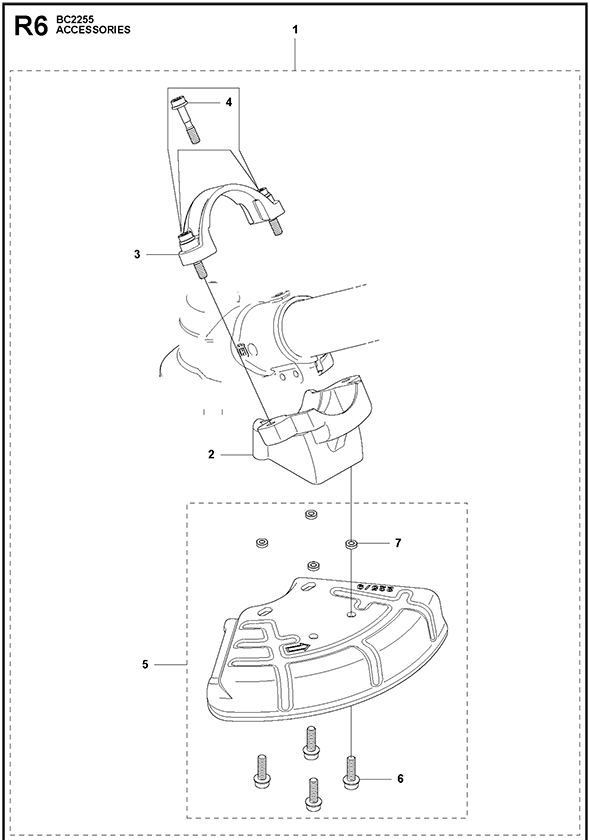

Jonsered BC2255-2019-07

...
...
1
Saw Blade Guard HUS-502435501
...
2
Adapter HUS-544836901
...
3
Clamp, Spare Part Incl. Screws Pos. 3 HUS-574520301
...
4
Screw Ihscfmo, Captive Screw M5 HUS-573994304
...
5
Saw Blade Guard, Incl. Pos. 6-7 HUS-574506702
...
6
Screw Ihscfm HUS-503200316
...
7
Lock Nut HUS-574039501

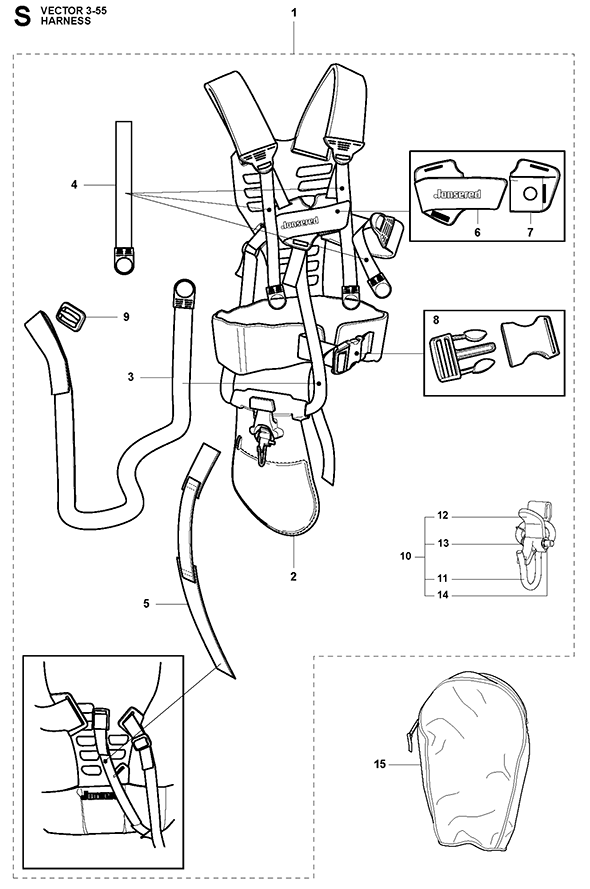

Jonsered BC2255-2019-07

...
...
1
Harness, Incl. Pos. 2-14 HUS-504045301
...
2
Hip Pad HUS-544901702
...
3
Band HUS-503996105
...
4
Band HUS-503996101
...
5
Strap HUS-537153502
...
6
Front Piece HUS-537277001
...
7
Front Piece HUS-537276901
...
8
Buckle HUS-537331501
...
9
Retainer HUS-537113501
...
10
Welt Hook, Incl. Pos. 11-14 HUS-544960702
...
11
Hook HUS-502022902
...
12
Lock HUS-502023002
...
13
Spring HUS-502023801
...
14
E-Clip HUS-735310920
...
15
Bag, Vector 3-55 Tool Bag HUS-537306601

Jonsered BC2255-2019-07

...
...
1
Short Block, Up To S/N - 20191600180 HUS-576798803
...
2
Gasket Kit HUS-576798701
...
3
Short Block, From S/N 20191600181 HUS-576798802
...
...
...
Processing
