Jonsered BC2236, 2007-01 Brushcutters/clearing Saws

Model: BC2236-2007-01

Save Part Not Listed?
product name

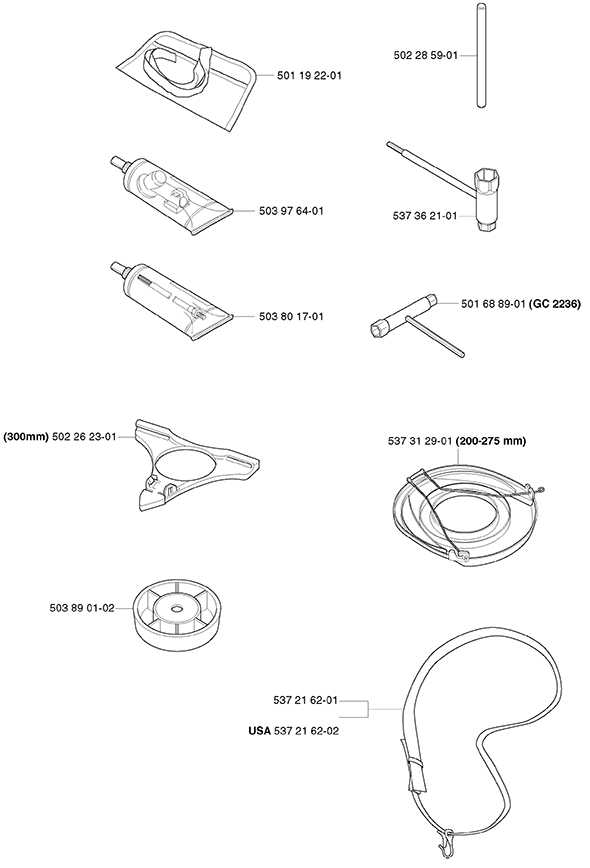

Jonsered BC2236-2007-01

...
...
XX
Tool HUS-501192201
...
XX
Sleeve Tool HUS-501688901
...
XX
Transport Guard HUS-502262301
...
XX
Stop HUS-502285901
...
XX
Grease HUS-503801701
...
XX
Support Cup HUS-503890102
...
XX
Grease HUS-503976401
...
XX
Harness HUS-537216201
...
XX
Harness HUS-537216202
...
XX
Transport Guard HUS-537312901
...
XX
Combination Wrench HUS-537362101

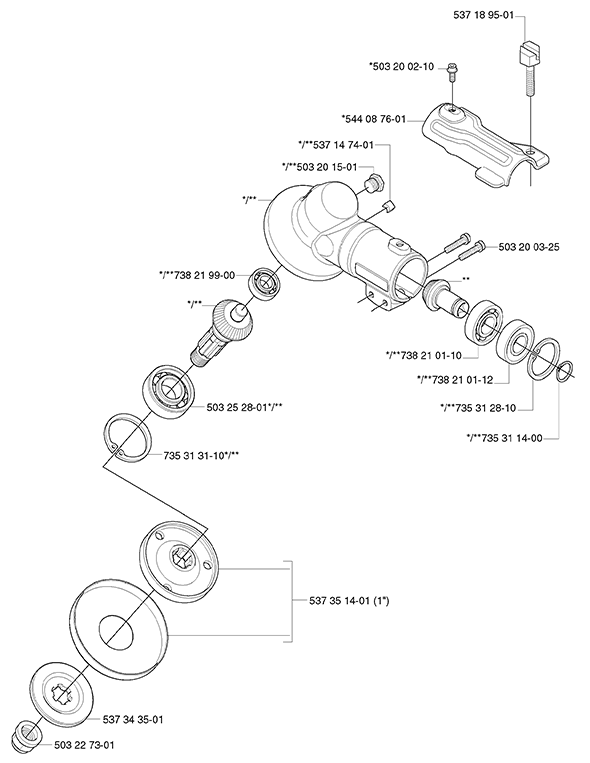

Jonsered BC2236-2007-01

...
...
XX
Screw Ihscfm HUS-503200210
...
XX
Screw Ihscfm HUS-503200325
...
XX
Screw Ihhm HUS-503201501
...
XX
Nut HUS-503227301
...
XX
Ball Bearing HUS-503252801
...
XX
Magnet HUS-537147401
...
XX
Screw HUS-537189501
...
XX
Bevel Gear HUS-537295802
...
XX
Support Flange HUS-537343501
...
XX
Driver HUS-537351401
...
XX
Clamp HUS-544087601
...
XX
Gear HUS-544216401
...
XX
Circlip HUS-735311400
...
XX
Circlip HUS-735312810
...
XX
Circlip HUS-735313110
...
XX
Ball Bearing HUS-738210110
...
XX
Ball Bearing HUS-738210112
...
XX
Ball Bearing HUS-738219900

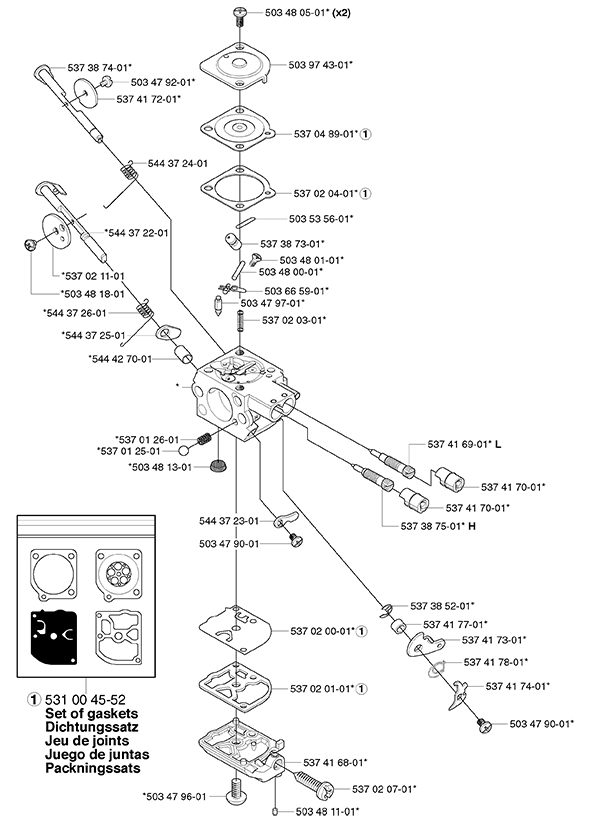

Jonsered BC2236-2007-01

...
...
XX
Carburettor HUS-544325601
...
XX
Shaft Assembly HUS-537387401
...
XX
Screw HUS-503479201
...
XX
Valve HUS-537417201
...
XX
Spring HUS-544372401
...
XX
Shaft Assembly HUS-544372201
...
XX
Valve HUS-537021101
...
XX
Screw HUS-503481801
...
XX
Spring HUS-544372601
...
XX
Lever HUS-544372501
...
XX
Collar HUS-544427001
...
XX
Spring HUS-537012601
...
XX
Ball HUS-537012501
...
XX
Strainer HUS-503481301
...
XX
Lever HUS-544372301
...
XX
Screw HUS-503479001
...
XX
Screw HUS-503479601
...
XX
Piece HUS-503481101
...
XX
Screw HUS-537020701
...
XX
Cover HUS-537416801
...
XX
Gasket HUS-537020101
...
XX
Diaphragm Pump HUS-537020001
...
XX
Lever HUS-537417401
...
XX
Spring Thrott.Return HUS-537417801
...
XX
Lever HUS-537417301
...
XX
Collar HUS-537417701
...
XX
Clip HUS-537385201
...
XX
Screw HUS-537387501
...
XX
Limiter Cap HUS-537417001
...
XX
Screw HUS-537416901
...
XX
Spring HUS-537020301
...
XX
Valve HUS-503479701
...
XX
Lever HUS-503665901
...
XX
Pin Retaining Screw HUS-503480001
...
XX
Screw HUS-503480101
...
XX
Nozzle Assembly HUS-537387301
...
XX
Plug Welch HUS-503535601
...
XX
Gasket HUS-537020401
...
XX
Diaphragm HUS-537048901
...
XX
Cover HUS-503974301
...
XX
Screw HUS-503480501

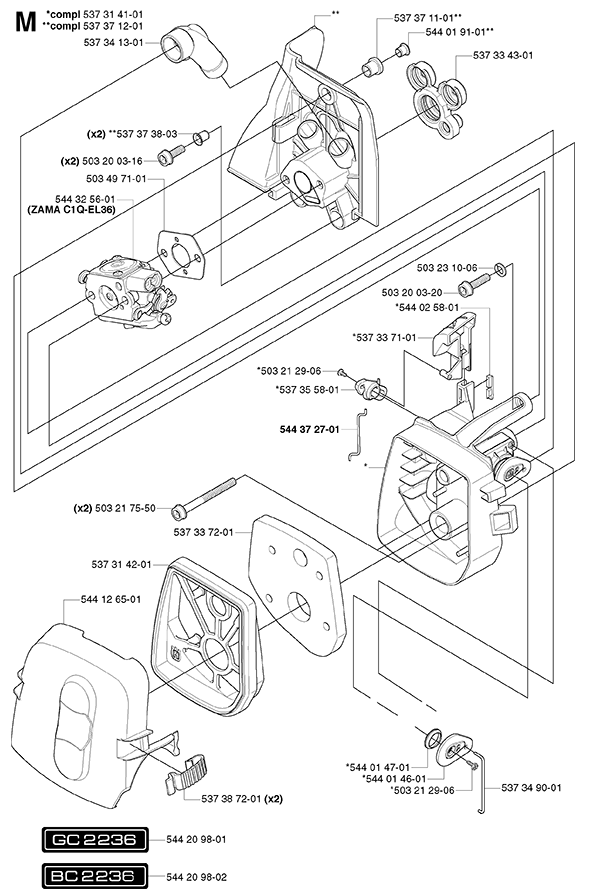

Jonsered BC2236-2007-01

...
...
XX
Screw Ihscfm HUS-503200316
...
XX
Screw Ihscfm HUS-503200320
...
XX
Screw Ccrpant HUS-503212906
...
XX
Screw Ihscft HUS-503217550
...
XX
Washer HUS-503231006
...
XX
Gasket HUS-503497101
...
XX
Filter Holder HUS-537314101
...
XX
Frame HUS-537314201
...
XX
Inlet Pipe HUS-537334301
...
XX
Choke Control HUS-537337101
...
XX
Filter HUS-537337201
...
XX
Air Duct HUS-537341301
...
XX
Lever HUS-537349001
...
XX
Lever HUS-537355801
...
XX
Sleeve HUS-537371101
...
XX
Insulation Wall HUS-537371201
...
XX
Tubular Rivet HUS-537373803
...
XX
Snap HUS-537387201
...
XX
Lever HUS-544014601
...
XX
Bellows HUS-544014701
...
XX
Tubular Rivet HUS-544019101
...
XX
Bar HUS-544025801
...
XX
Filter Cover HUS-544126501
...
XX
Label HUS-544209801
...
XX
Label HUS-544209802
...
XX
Carburettor HUS-544325601
...
XX
Sleeving Bracket HUS-544372701

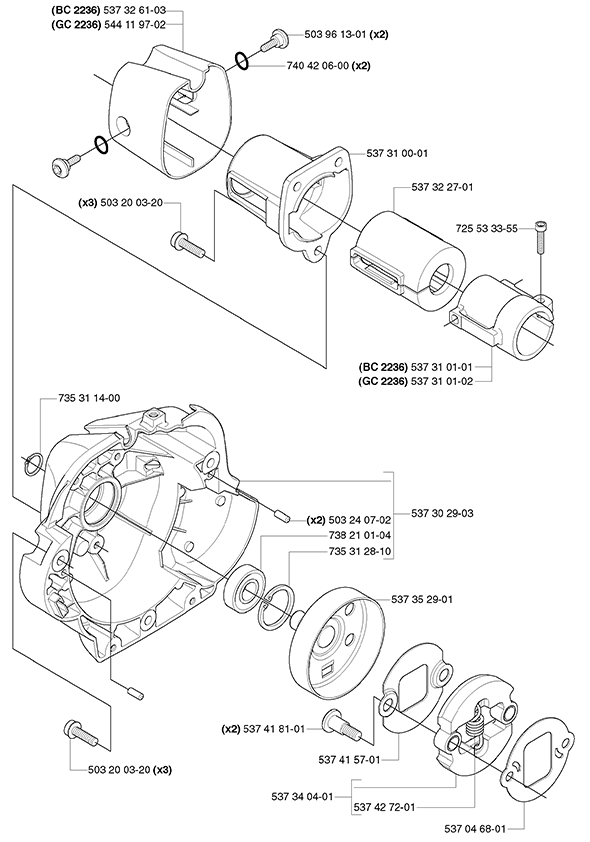

Jonsered BC2236-2007-01

...
...
XX
Screw Ihscfm HUS-503200320
...
XX
Parallel Pin HUS-503240702
...
XX
Screw HUS-503961301
...
XX
Washer HUS-537046801
...
XX
Clutch Cover HUS-537302903
...
XX
Cover HUS-537310001
...
XX
Compression Sleeve HUS-537310101
...
XX
Compression Sleeve HUS-537310102
...
XX
Antivibration Element HUS-537322701
...
XX
Cover HUS-537326103
...
XX
Clutch HUS-537340401
...
XX
Clutch Drum HUS-537352901
...
XX
Washer HUS-537415701
...
XX
Screw HUS-537418101
...
XX
Spring HUS-537427201
...
XX
Cover HUS-544119702
...
XX
Screw Ihscm HUS-725533355
...
XX
Circlip HUS-735311400
...
XX
Circlip HUS-735312810
...
XX
Ball Bearing HUS-738210104
...
XX
O-Ring HUS-740420600

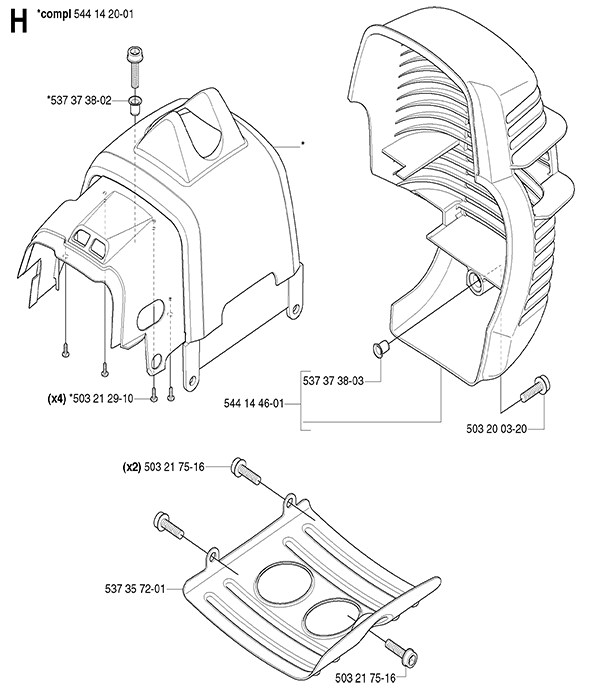

Jonsered BC2236-2007-01

...
...
XX
Screw Ihscfm HUS-503200320
...
XX
Screw Ccrpant HUS-503212910
...
XX
Screw Ihscft HUS-503217516
...
XX
Protective Plate HUS-537357201
...
XX
Tubular Rivet HUS-537373802
...
XX
Tubular Rivet HUS-537373803
...
XX
Cylinder Cover HUS-544142001
...
XX
Heat Protector HUS-544144601

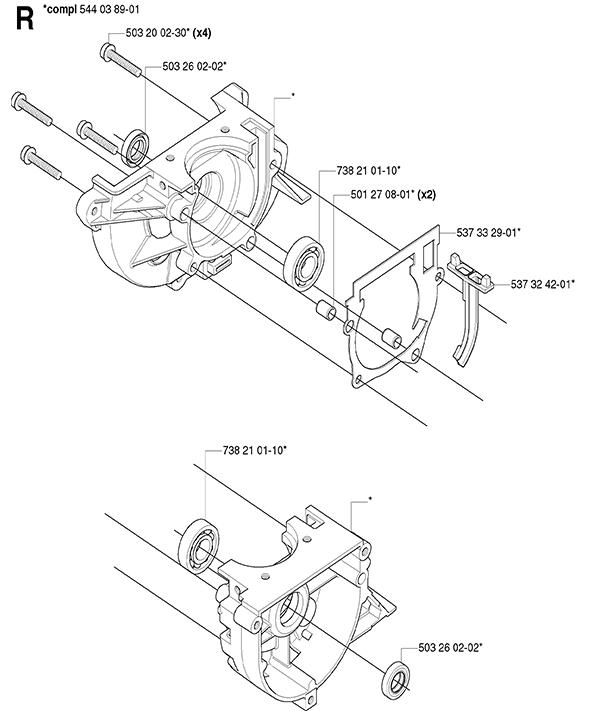

Jonsered BC2236-2007-01

...
...
XX
Guide Bushing HUS-501270801
...
XX
Screw Ihscfm HUS-503200230
...
XX
Sealing Ring HUS-503260202
...
XX
Insert HUS-537324201
...
XX
Gasket HUS-537332901
...
XX
Crankcase Assembly HUS-544038901
...
XX
Ball Bearing HUS-738210110

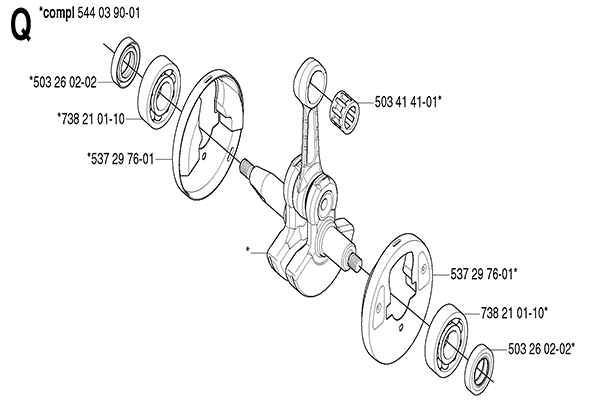

Jonsered BC2236-2007-01

...
...
XX
Sealing Ring HUS-503260202
...
XX
Needle Bearing HUS-503414101
...
XX
Cup HUS-537297601
...
XX
Crankshaft Assembly HUS-544039001
...
XX
Ball Bearing HUS-738210110

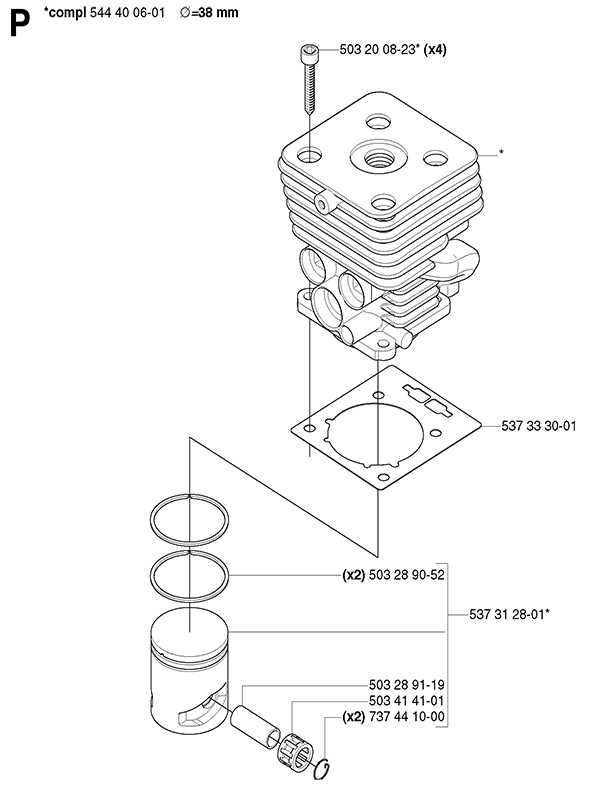

Jonsered BC2236-2007-01

...
...
XX
Screw Ihscm HUS-503200823
...
XX
Piston Ring HUS-503289052
...
XX
Piston Pin HUS-503289119
...
XX
Needle Bearing HUS-503414101
...
XX
Piston HUS-537312801
...
XX
Gasket HUS-537333001
...
XX
Cylinder Assembly HUS-544400601
...
XX
Snap Ring HUS-737441000

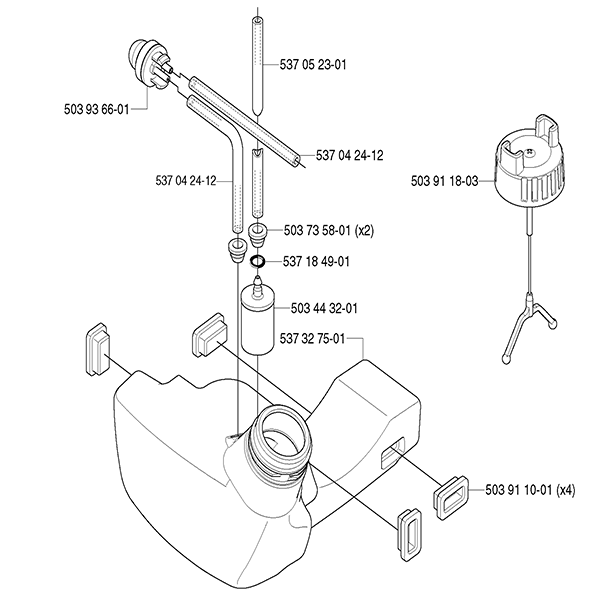

Jonsered BC2236-2007-01

...
...
XX
Fuel Filter HUS-503443201
...
XX
Bushing HUS-503735801
...
XX
Suspension HUS-503911001
...
XX
Tank Cap HUS-503911803
...
XX
Purge HUS-503936601
...
XX
Fuel Hose HUS-537042412
...
XX
Fuel Hose HUS-537052301
...
XX
O-Ring HUS-537184901
...
XX
Fuel Tank HUS-537327501

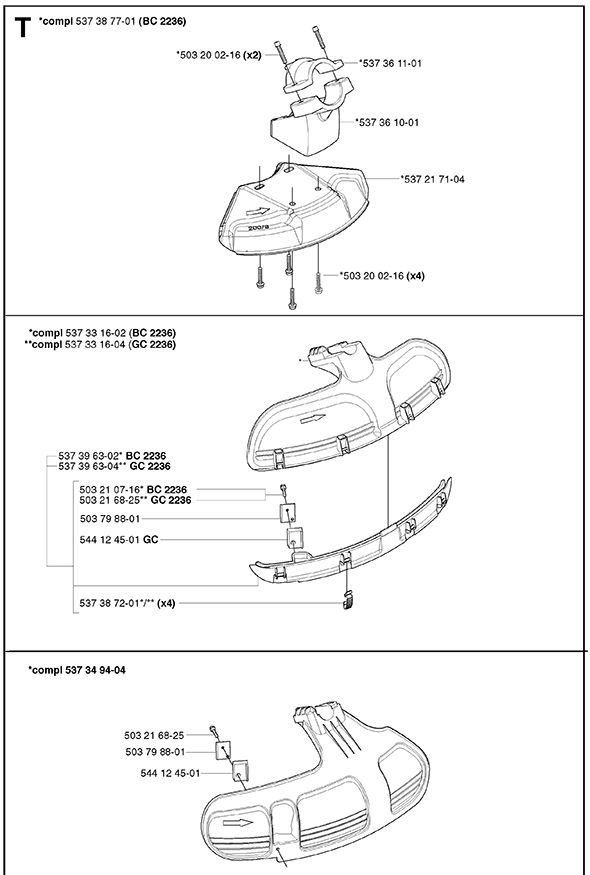

Jonsered BC2236-2007-01

...
...
XX
Screw Ihscfm HUS-503200216
...
XX
Screw Ihsct HUS-503210716
...
XX
Screw Ihscft HUS-503216825
...
XX
Blade HUS-503798801
...
XX
Blade Guard HUS-537217104
...
XX
Combi Guard HUS-537331602
...
XX
Splash Guard HUS-537331604
...
XX
Trimmer Guard HUS-537349404
...
XX
Adapter HUS-537361001
...
XX
Clamp HUS-537361101
...
XX
Snap HUS-537387201
...
XX
Blade Guard HUS-537387701
...
XX
Splash Guard HUS-537396302
...
XX
Splash Guard HUS-537396304
...
XX
Retainer HUS-544124501

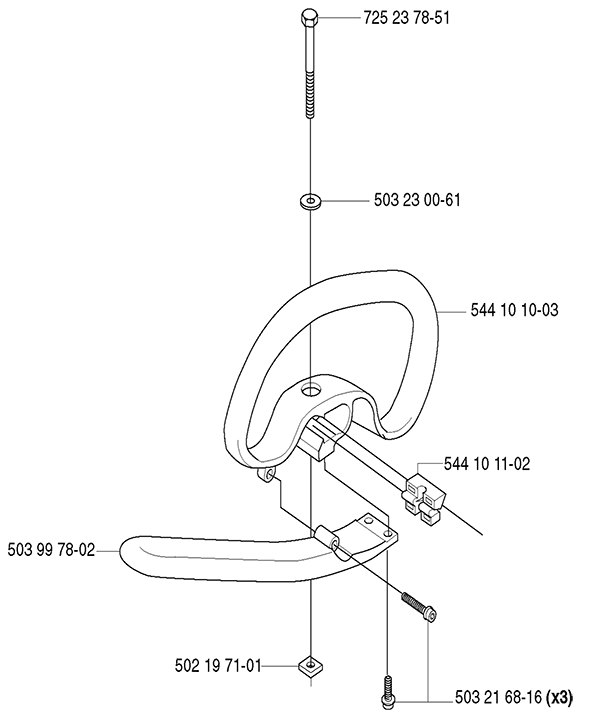

Jonsered BC2236-2007-01

...
...
XX
Square Nut HUS-502197101
...
XX
Screw Ihsct HUS-503216816
...
XX
Washer HUS-503230061
...
XX
Handle HUS-503997802
...
XX
Handle Loop HUS-544101003
...
XX
Spacing Block HUS-544101102
...
XX
Screw Ehhm HUS-725237851

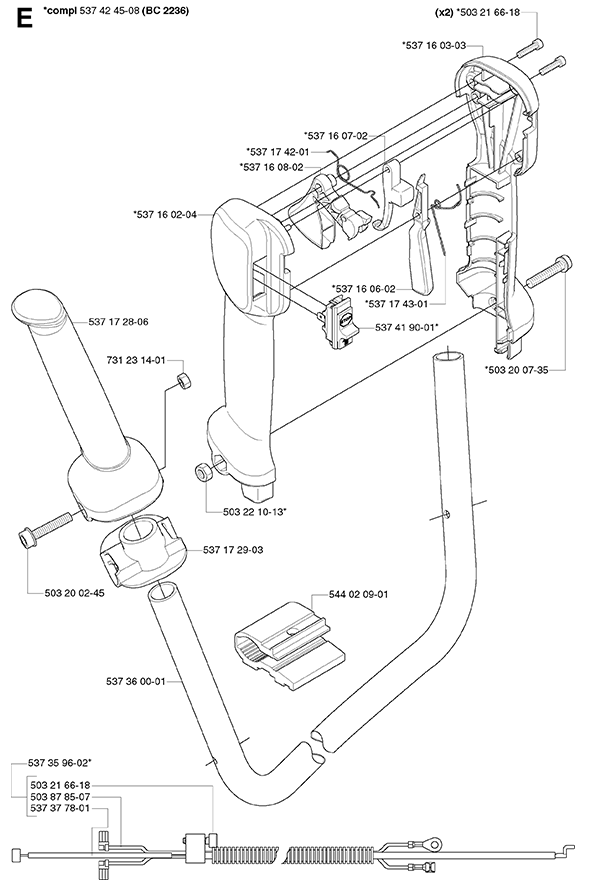

Jonsered BC2236-2007-01

...
...
XX
Handle System HUS-537424508
...
XX
Screw Ihsct HUS-503216618
...
XX
Handle Half HUS-537160303
...
XX
Starter Throttle Loc HUS-537160702
...
XX
Spring Throttle Trig HUS-537174201
...
XX
Throttle Trigger HUS-537160802
...
XX
Handle Half HUS-537160204
...
XX
Handle HUS-537172806
...
XX
Hexagon Nut HUS-731231401
...
XX
Hexagon Nut HUS-503221013
...
XX
Bracket HUS-537172903
...
XX
Screw Ihscfm HUS-503200245
...
XX
Handlebar HUS-537360001
...
XX
Wiring Assembly HUS-537359602
...
XX
Short Circuit Cable HUS-503878507
...
XX
Throttle Wire Assembly HUS-537377801
...
XX
Clip HUS-544020901
...
XX
Screw Ihscfm HUS-503200735
...
XX
Switch HUS-537419001
...
XX
Spring HUS-537174301
...
XX
Throttle Lockout HUS-537160602

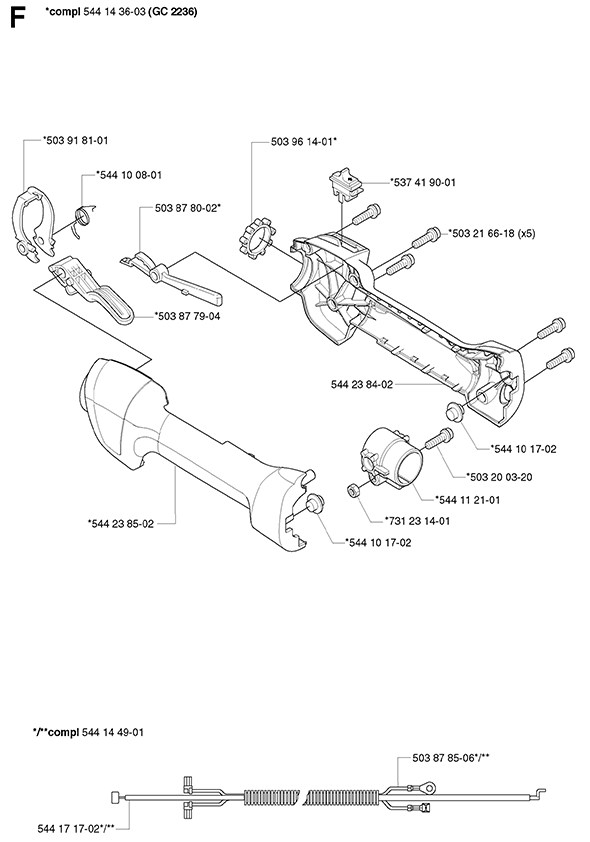

Jonsered BC2236-2007-01

...
...
XX
Control HUS-544143603
...
XX
Throttle Lever HUS-503918101
...
XX
Recoil Spring HUS-544100801
...
XX
Throttle Lockout HUS-503878002
...
XX
Throttle Trigger HUS-503877904
...
XX
Handle Half HUS-544238502
...
XX
Wiring Assembly HUS-544144901
...
XX
Throttle Wire Assembly HUS-544171702
...
XX
Short Circuit Cable HUS-503878506
...
XX
Damper HUS-544101702
...
XX
Hexagon Nut HUS-731231401
...
XX
Retainer HUS-544112101
...
XX
Screw Ihscfm HUS-503200320
...
XX
Handle Half HUS-544238402
...
XX
Screw Ihsct HUS-503216618
...
XX
Switch HUS-537419001
...
XX
Absorber HUS-503961401

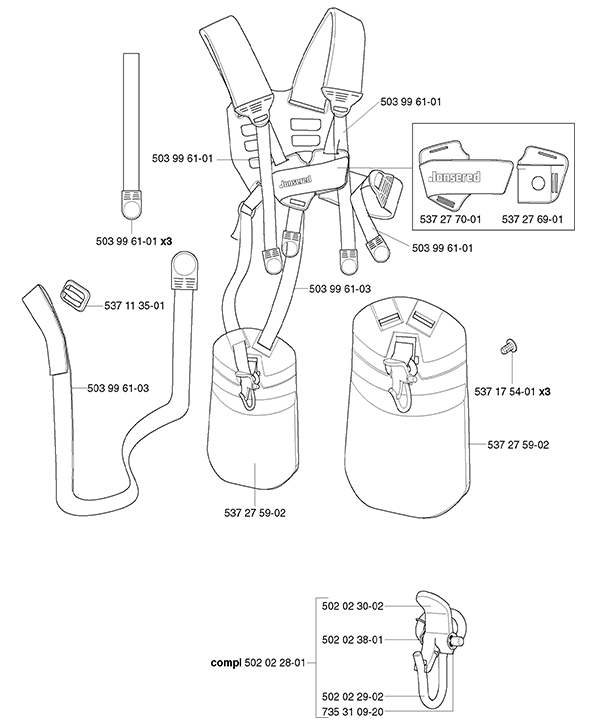

Jonsered BC2236-2007-01

...
...
XX
Hook HUS-502022801
...
XX
Hook HUS-502022902
...
XX
Lock HUS-502023002
...
XX
Spring HUS-502023801
...
XX
Band HUS-503996101
...
XX
Band HUS-503996103
...
XX
Retainer HUS-537113501
...
XX
Hip Pad HUS-537175401
...
XX
Harness HUS-537275801
...
XX
Harness HUS-537275803
...
XX
Hip Pad HUS-537275902
...
XX
Front Piece HUS-537276901
...
XX
Front Piece HUS-537277001
...
XX
E-Clip HUS-735310920

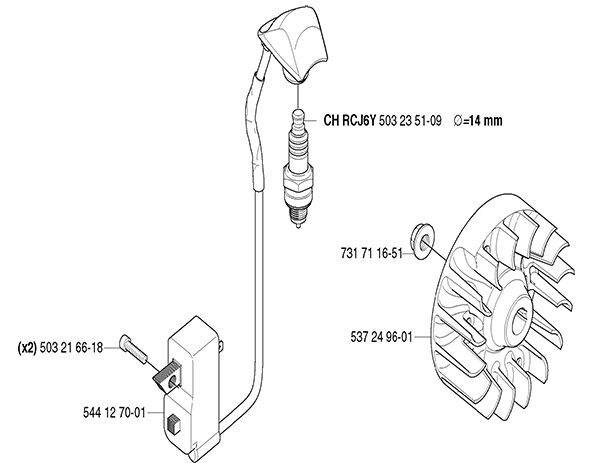

Jonsered BC2236-2007-01

...
...
XX
Screw Ihsct HUS-503216618
...
XX
Spark Plug HUS-503235109
...
XX
Flywheel HUS-537249601
...
XX
Ignitionition Module HUS-544127001
...
XX
Hexagon Nut Flange HUS-731711651

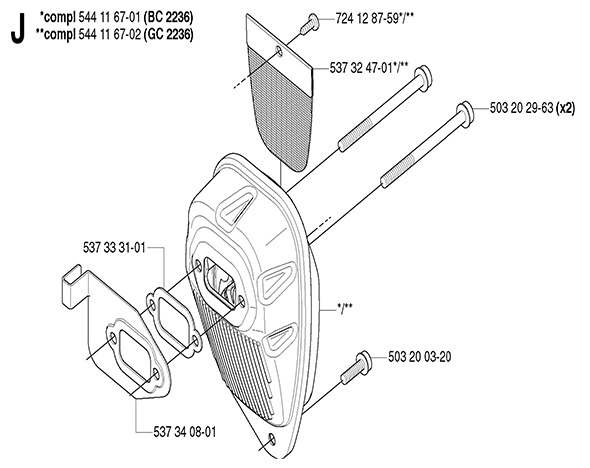

Jonsered BC2236-2007-01

...
...
XX
Screw Ihscfm HUS-503200320
...
XX
Screw Ihscfm HUS-503202963
...
XX
Spark Arrester Screen HUS-537324701
...
XX
Gasket HUS-537333101
...
XX
Air Conductor HUS-537340801
...
XX
Muffler Assembly HUS-544116701
...
XX
Muffler Assembly HUS-544116702
...
XX
Screw Crpanm HUS-724128759

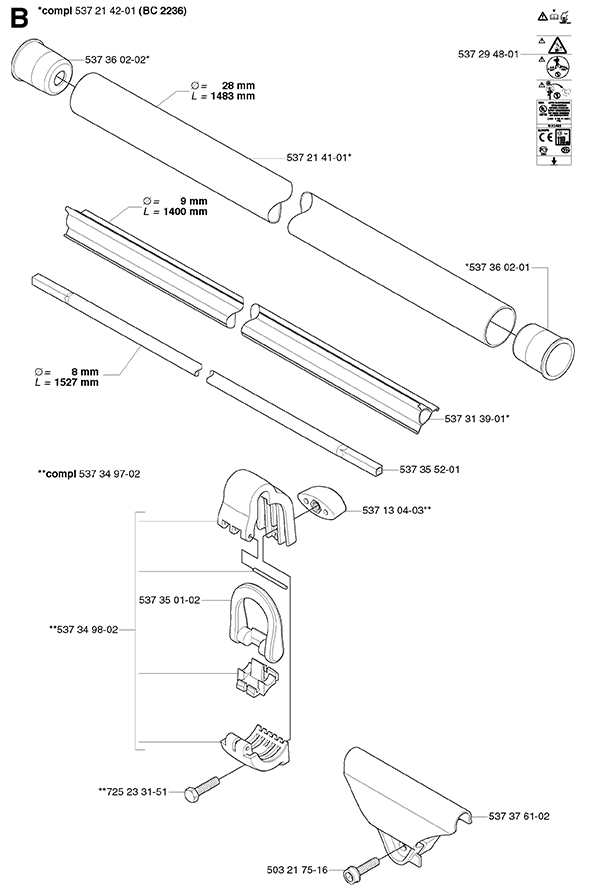

Jonsered BC2236-2007-01

...
...
XX
Screw Ihscft HUS-503217516
...
XX
Knob HUS-537130403
...
XX
Tube HUS-537214101
...
XX
Tube HUS-537214201
...
XX
Label HUS-537294801
...
XX
Guide HUS-537313901
...
XX
Loop HUS-537349702
...
XX
Loop HUS-537349802
...
XX
Loop HUS-537350102
...
XX
Drive Shaft HUS-537355201
...
XX
Spacer HUS-537360201
...
XX
Spacer HUS-537360202
...
XX
Wiring HUS-537376102
...
XX
Screw HUS-725233151

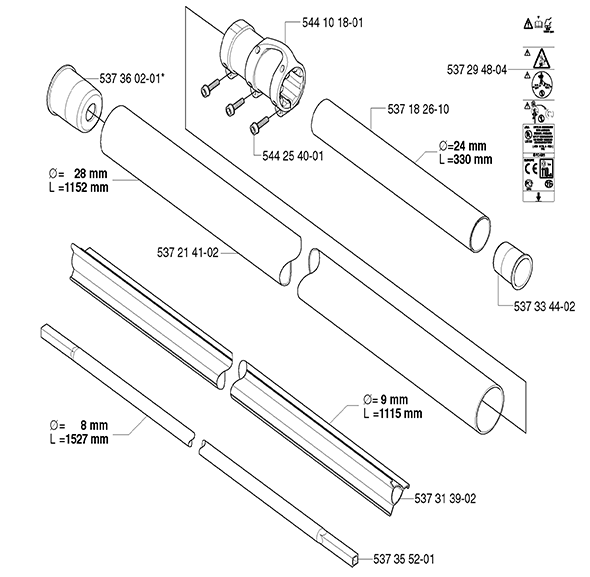

Jonsered BC2236-2007-01

...
...
XX
Tube HUS-537182610
...
XX
Tube HUS-537214102
...
XX
Label HUS-537294804
...
XX
Guide HUS-537313902
...
XX
Spacer HUS-537334402
...
XX
Drive Shaft HUS-537355201
...
XX
Spacer HUS-537360201
...
XX
Sleeve HUS-544101801
...
XX
Screw HUS-544254001

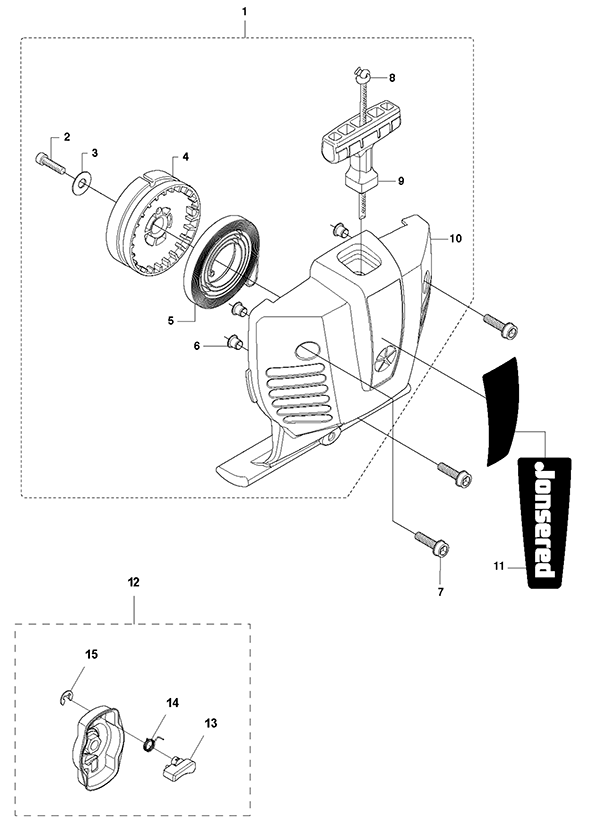

Jonsered BC2236-2007-01

...
...
1
Starter Housing HUS-544128401
...
2
Screw Ihsct HUS-503217920
...
3
Washer HUS-535072301
...
4
Starter Pulley HUS-537325002
...
5
Recoil Spring HUS-503859901
...
6
Tubular Rivet HUS-537373802
...
7
Screw Ihscfm HUS-503200320
...
8
Starter Cord HUS-505305125
...
9
Starter Handle HUS-503997701
...
10
Starter Housing HUS-544126401
...
11
Label HUS-537182801
...
12
Bridge HUS-503873305
...
13
Starter Pawl HUS-503873502
...
14
Spring HUS-503873601
...
15
E-Clip HUS-735310820

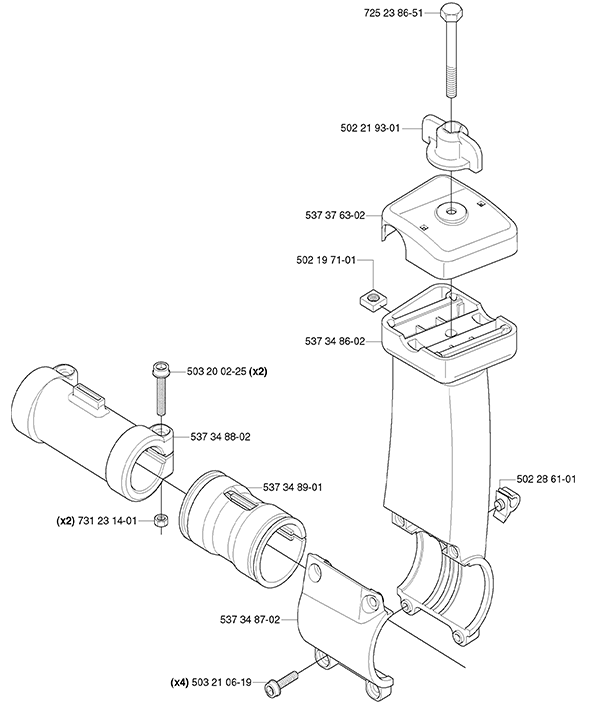

Jonsered BC2236-2007-01

...
...
XX
Square Nut HUS-502197101
...
XX
Turning Knob HUS-502219301
...
XX
Clip HUS-502286101
...
XX
Screw Ihscfm HUS-503200225
...
XX
Screw Ihsct HUS-503210619
...
XX
Handlebar Bracket HUS-537348602
...
XX
Hub Cap HUS-537348702
...
XX
Compression Sleeve HUS-537348802
...
XX
Antivibration Element HUS-537348901
...
XX
Cover HUS-537376302
...
XX
Screw Ehhm HUS-725238651
...
XX
Hexagon Nut HUS-731231401
