Jonsered BC2128 Brushcutter

Model: BC2128

Save Part Not Listed?
product name

Jonsered BC2128

...
...
5
Handle-Assist HUS-537172810
...
6
Screw HUS-503200245
...
7
Clamp-Harness (Lower) HUS-545056601
...
8
Screw HUS-530015940
...
9
Assembly-Throttle Housing (Incl. 19,20,21,22,23,24,25,26,27,28,29,30) HUS-545125502
...
10
Handlebar HUS-502199503
...
11
Nut HUS-731231401
...
12
Cover-Assist Handle HUS-537172903
...
13
Clip-Handlebar HUS-502211201
...
14
Clamp-Harness (Upper) HUS-545113301
...
15
Kit-Driveshaft (Incl. 40,41,42,45,47) HUS-575776301
...
16
Screw HUS-530015814
...
17
Clamp - Bracket HUS-530058563
...
18
Clamp 1" Handlebar HUS-545058502
...
19
Switch-Stop HUS-537419001
...
20
Lockout-Starter Throttle HUS-537160704
...
21
Spring - Lockout HUS-537174301
...
22
Nut HUS-503221013
...
23
Lockout - Throttle HUS-506495102
...
24
Housing - Throttle -Lh HUS-537160205
...
25
Assembly - Cable Wire HUS-545125801
...
26
Spring - Trigger HUS-537174201
...
27
Trigger - Throttle HUS-506495002
...
28
Screw HUS-503216618
...
29
Screw HUS-503200735
...
30
Housing-Throttle - Rh HUS-537160304
...
31
Flexshaft HUS-545007507
...
32
Harness HUS-544845802
...
33
Kit-Shield (Incl. 34,35,44) HUS-545081703
...
34
Limiter - Line HUS-530052286
...
35
Screw HUS-530015814
...
40
Screw HUS-530016014
...
41
Screw HUS-545003902
...
42
Grease Plug - 9Mm HUS-575724601
...
43
Disc-Driver HUS-537234901
...
44
Screw HUS-530015771
...
45
Bracket - Shield HUS-530057554
...
46
Pin - Locking HUS-502285901
...
47
Assembly - Gearbox HUS-530096295

Jonsered BC2128

...
...
1
Filter HUS-530150253
...
2
Nut-Carb. Screw HUS-530016101
...
3
Lever - Choke HUS-530057844
...
4
Bulb-Purge HUS-530058709
...
5
Kit-Carb. Gasket (Incl 7,66) HUS-545008086
...
6
Adaptor-Carb. HUS-530035596
...
7
Foam-Gasket (Kit) HUS-545008084
...
8
Bolt HUS-530016400
...
9
Plug-Spark (Rcj-8Y) HUS-952030201
...
10
Seal-Cylinder (Kit) HUS-545008084
...
11
Seal-Crankshaft (Kit) HUS-545008084
...
12
Assembly-Starter Pawl HUS-503873305
...
13
Assembly-Fuel Filter HUS-530095646
...
14
Kit-Fuel Line (Incl. 15) HUS-530069599
...
15
Fitting-Fuel Line HUS-530023877
...
16
Assembly-Cap W/Ret.(Incl. 17) HUS-545073101
...
17
O-Ring-Fuel Cap (Kit) HUS-545008084
...
18
Isolator-Fuel Tank HUS-530059780
...
19
Kit-Fuel TankAssembly (Incl. 13,14,15,16,17,18) HUS-545180871
...
20
Shroud-Rear HUS-545065201
...
21
Screw HUS-530016448
...
22
Kit-Rope HUS-545008079
...
23
Handle-Starter HUS-545043205
...
24
Screw HUS-530016426
...
25
Screw HUS-530016449
...
26
Starter Hsg. W/Eyelet HUS-545219503
...
27
Kit-Spring HUS-545008087
...
28
Kit-Starter Pulley HUS-545008078
...
29
Spring - Driver HUS-544038802
...
30
Pulley-Driver HUS-544038702
...
31
Screw HUS-530016468
...
32
Assembly-Starter Hsg.(Incl.22,23,26,27,28,29,30,31) HUS-545219501
...
33
Plate-Wear HUS-545071601
...
34
Bolt-Muffler HUS-530058982
...
35
Screw HUS-530015241
...
36
Shield-Heat HUS-530150440
...
37
Screw HUS-530016449
...
38
Kit - Muffler Guard (Incl. Screws) HUS-576215101
...
39
Kit-Spark (Incl. 35) HUS-545030501
...
40
Kit-Muffler (Incl. 34,35,39,41) HUS-574031502
...
41
Gasket-Paper Met.(Kit) HUS-545008084
...
42
Screw HUS-530015897
...
43
Module-Ignitionition HUS-545046702
...
44
Assembly-Leadwire HUS-530039227
...
45
Screw HUS-530016456
...
46
Washer HUS-530016463
...
47
Washer-Clutch HUS-530094189
...
48
Bearing - Thrust HUS-545173401
...
49
Washer - Thrust HUS-530016420
...
52
Locknut HUS-530015768
...
53
Screw HUS-530016456
...
55
Assembly-Clutch Drum HUS-530150039
...
56
Assembly-Clutch HUS-530055122
...
57
Spacer HUS-530057852
...
58
Flywheel HUS-530039242
...
59
Crankcase-Cast HUS-545195601
...
60
Bearing HUS-545013401
...
61
Assembly-Crankshaft HUS-545195202
...
62
Retainer-Piston Pin HUS-530015162
...
63
Ring-Piston HUS-530019283
...
64
Kit-Piston (Incl. 62,63) HUS-545081814
...
65
Kit-Cyl./Piston (Incl. 64) HUS-545008083
...
66
Seal-Adaptor (Kit) HUS-545008084
...
67
Screw HUS-530015897
...
68
Kit-Carb. (Incl. 3,4,5) HUS-545081848
...
69
Airbox HUS-576459201
...
70
Cover-Air Box HUS-545071901
...
71
Assembly-Knob HUS-545072201
...
72
Kit-Gasket (Incl. 5,7,10,11,17,41,66) HUS-545008084
...
73
Kit - Decal HUS-545180880

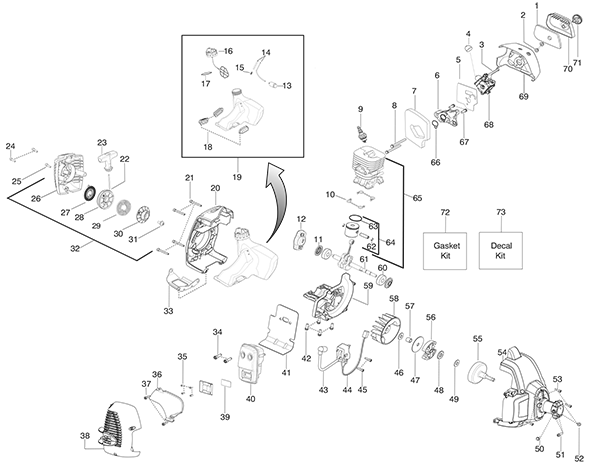

Schematic Image Zoomed
