product name

Jonsered BC2126, 2006-09, 545 10 34-04 Cylinder Kit

Model: BC2126-2006-09

Save Part Not Listed?
product name

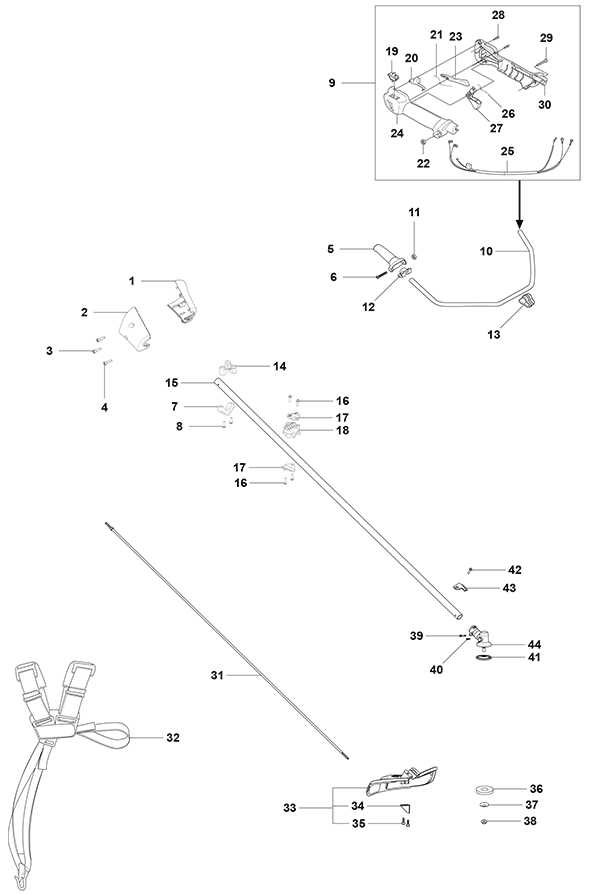

Jonsered BC2126-2006-09

...
...
1
Nose Cone, Left Hand HUS-545036402
...
2
Nose Cone, Right Hand HUS-545036502
...
3
Screw HUS-530016448
...
4
Screw HUS-530016449
...
5
Handle - Assist, New Part HUS-537172810
...
6
Bolt, New Part HUS-503200245
...
7
Clamp - Harness, Lower HUS-545056601
...
8
Screw HUS-530015940
...
9
Assembly - Throttle Housing, Incl.18,19,20,21,22, 23,24,25,26,27,28, 29 HUS-545067102
...
10
Handlebar HUS-502199503
...
11
Nut, New Part HUS-731231401
...
12
Cover - Assist Handle, New Part HUS-537172903
...
13
Clip - Handlebar, Upper HUS-502211201
...
14
Clamp - Harness, New Part HUS-545113301
...
15
Kit - Driveshaft HUS-545081011
...
16
Screw HUS-530015814
...
17
Clamp - Bracket HUS-530058563
...
18
Clamp - 1" Handlebar HUS-545058502
...
19
Kit - Switch HUS-537419001
...
20
Lockout - Starter Throttle HUS-537160702
...
21
Spring - Lockout HUS-537174301
...
22
Nut HUS-503221013
...
23
Lockout - Throttle, Left Hand HUS-537160605
...
24
Housing - Throttle, New Part HUS-537160204
...
25
Assembly - Cable Wire HUS-545056201
...
26
Spring - Trigger HUS-537174201
...
27
Trigger - Throttle HUS-537160802
...
28
Screw HUS-503216618
...
29
Screw, Right Hand HUS-503200735
...
30
Housing - Throttle, New Part HUS-537160304
...
31
Flexshaft, With Out Warning HUS-545007507
...
32
Harness, New Part, Incl.33,34 HUS-544845802
...
33
Kit - Shield HUS-545081703
...
34
Limiter - Line HUS-530052286
...
35
Screw HUS-530015814
...
36
Cup - Support HUS-503890101
...
37
Support - Flange HUS-537285601
...
38
Locknut - Blade HUS-503856301
...
39
Screw HUS-530016014
...
40
Screw HUS-530016301
...
41
Assembly - Dustcup, New Part HUS-537234901
...
42
Screw HUS-530015771
...
43
Bracket - Shield HUS-530057554
...
44
Assembly - Gearbox HUS-530096295

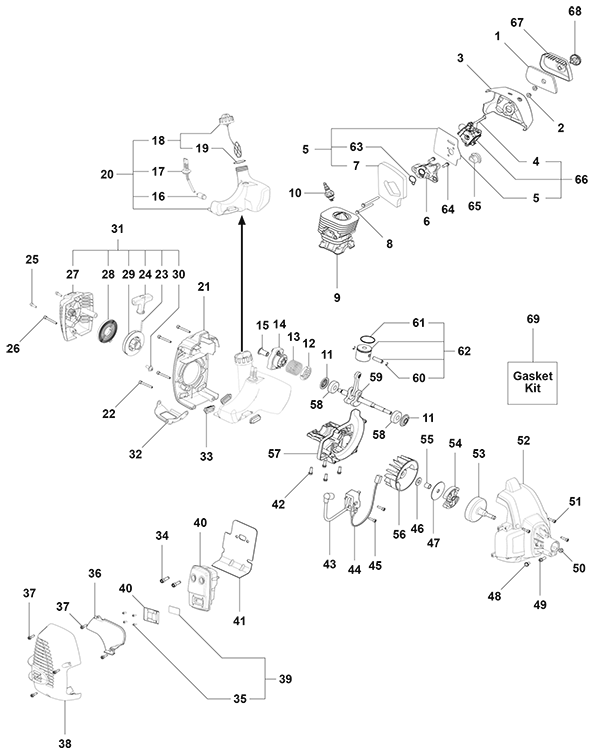

Jonsered BC2126-2006-09

...
...
1
Filter HUS-530150253
...
2
Nut - Carb. Screw HUS-530016101
...
3
Air Box HUS-545071701
...
4
Lever - Choke HUS-530057844
...
5
Kit - Carb. Gasket, Incl.7,63 HUS-545050402
...
6
Adaptor - Carburettor HUS-530035596
...
7
Kit - Gasket, Foam. HUS-545030101
...
8
Bolt HUS-530016400
...
9
Cylinder HUS-545001001
...
10
Spark Plugg, Rcj-8Y HUS-952030201
...
11
Kit - Crankshaft Seal HUS-545050403
...
12
Whaser - Starter HUS-530016475
...
13
Spring - Starter Cup HUS-530016450
...
14
Assembly - Starter Cup, New Part HUS-545102302
...
15
Coupling - Starter HUS-530059800
...
16
Assembly - Fuel Filter HUS-530095646
...
17
Kit - Fuel Line HUS-545030201
...
18
Assembly - Cap, Incl.19 , W/Ret. HUS-545073101
...
19
O-Ring - Fuel Tank HUS-530019293
...
20
Assembly - Fuel Tank, Incl.16,17,18,19 HUS-545073001
...
21
Shroud - Rear HUS-545065201
...
22
Screw HUS-530016448
...
23
Kit - Rope HUS-545029901
...
24
Handle - Starter HUS-545043201
...
25
Screw HUS-530016426
...
26
Screw HUS-530016449
...
27
Starter Hsg, With Eyelet. HUS-545104401
...
28
Kit - Starter Spring HUS-545029801
...
29
Kit - Starter Pulley HUS-545029701
...
30
Screw HUS-530016468
...
31
Assembly - Starter Hsg, Incl.23,24,27,28,29,30 HUS-545102701
...
32
Plate - Wear HUS-545071601
...
33
Isolator - Tank HUS-530059780
...
34
Bolt - Muffler HUS-530058982
...
35
Screw HUS-530015496
...
36
Shield - Heat HUS-530150440
...
37
Screw HUS-530016449
...
38
Guard - Muffler HUS-545065401
...
39
Kit - Spark Arrestor, Incl.35 HUS-545030501
...
40
Assembly - Muffler, New Part HUS-545057502
...
41
Gasket - Paper Metal HUS-530057848
...
42
Screw HUS-530015897
...
43
Module HUS-545046702
...
44
Assembly - Leadwire HUS-530039227
...
45
Screw HUS-530016456
...
46
Washer HUS-530016030
...
47
Washer - Clutch HUS-530094189
...
48
Screw HUS-530016469
...
49
Screw HUS-530016470
...
50
Nut HUS-530403094
...
51
Screw HUS-530016456
...
52
Assembly - Fan Housing HUS-545072901
...
53
Assembly - Clutch Drum, New Part HUS-545106801
...
54
Kit - ClutchAssembly HUS-545050405
...
55
Spacer HUS-530057852
...
56
Flywheel HUS-530039242
...
57
Crankcase HUS-545054601
...
58
Bearing HUS-545013401
...
59
Kit - Crankshaft HUS-545030001
...
60
Retainer - Piston Pin HUS-530015162
...
61
Ring - Piston HUS-530019283
...
62
Kit - Piston, Incl.60,61 HUS-545030301
...
63
Kit - Gasket, Adaptor Seal. HUS-545030101
...
64
Screw HUS-530015897
...
65
Guide - Cable, New Part HUS-545113201
...
66
Kit - Carburettor, New Part Incl.4,5 HUS-545006035
...
67
Cover - Air Box HUS-545071901
...
68
Assembly - Knob HUS-545072201
...
69
Kit - Gasket, Incl.5,7,11,19,41,63 HUS-545030101
