Jonsered 9670272-01 130 LB. Tow Spreader

Model: 9670272-01

Save Part Not Listed?
product name

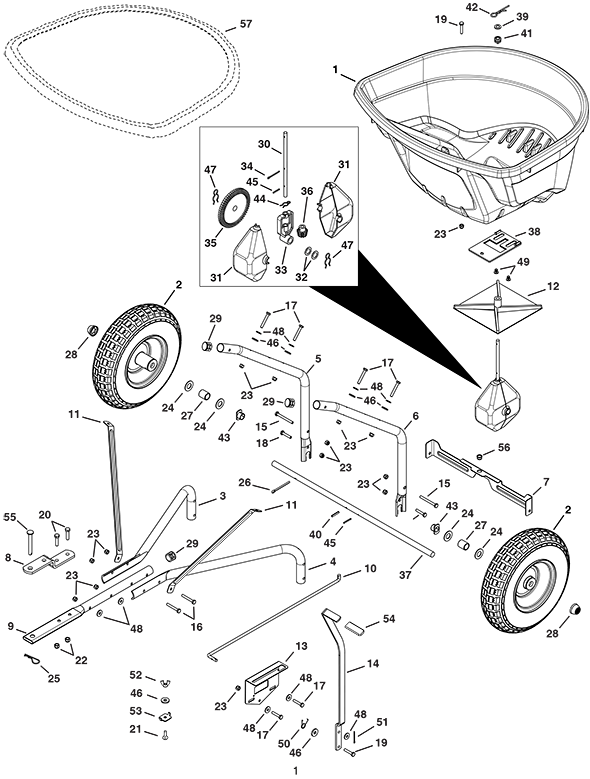

Jonsered 9670272-01

...
...
1
Hopper HUS-577157501
...
2
Wheel HUS-577158301
...
3
Tube, Hitch Support HUS-577157601
...
4
Tube, Hitch Support HUS-577157801
...
5
Tube, Hopper Support HUS-580742901
...
6
Tube, Hopper Support HUS-580743001
...
7
Cross Brace HUS-580743101
...
8
Bracket, Hitch HUS-531002772
...
9
Tube, Hitch HUS-580743901
...
10
Rod, Flow Control HUS-580744001
...
11
Brace, Hopper HUS-580744101
...
12
Spreader Impeller HUS-531002755
...
13
Bracket, Flow Control Mount HUS-580744201
...
14
Arm, Flow Control HUS-580744301
...
15
Bolt, Hex 1/4-20 X 2-1/2 HUS-501347801
...
16
Bolt, Hex 1/4-20 X 2 HUS-577161501
...
17
Bolt, Hex 1/4-20 X 1-3/4 HUS-577158401
...
18
Bolt, Hex 1/4-20 X 1-1/2 HUS-577158501
...
19
Bolt, Hex 1/4-20 X 1 HUS-53100762
...
20
Bolt, Hex 5/16-18 X 1-1/4 HUS-531008117
...
21
Bolt, Carriage 1/4-20 X 3/4 HUS-531007637
...
22
Nut, Hex 5/16-18 Nylock HUS-501021101
...
23
Nut, Hex 1/4-20 Nylock HUS-504066001
...
24
Washer, .6562 X 1.25 X .0598 HUS-577158601
...
25
Pin, Hair Cotter 3/32 X 2-5/16 HUS-580744401
...
26
Pin, Cotter 3/16 X 2 HUS-577158901
...
27
Spacer, .64 Id X .84 Od X 1.00 HUS-577158701
...
28
Hub Cap HUS-577159201
...
29
Plug, 1" Tube HUS-577159301
...
30
Shaft, Spreader HUS-577159701
...
31
Housing, Large Gear HUS-577159801
...
32
Washer, .625 X 1.0 X .03 HUS-577159901
...
33
Yoke, Large HUS-577160001
...
34
Cotter Pin, 1/8 X 1-1/2 HUS-577776801
...
35
Gear, Large (Cast) HUS-577160101
...
36
Gear, Small (Cast) HUS-577160201
...
37
Axle HUS-577160301
...
38
Plate, Flow HUS-580744501
...
39
Spacer HUS-522591701
...
40
Pin, Spring, 3/16 X 1 HUS-531007618
...
41
Bushing, Hopper Bottom Black HUS-580744701
...
42
Hairpin, Agitator HUS-531007693
...
43
Bearing, Flat Sided Flange HUS-577160701
...
44
Clip, Hairpin 5/8 HUS-577160601
...
45
Pin, Spring 1/8 X 1 HUS-531002777
...
46
Washer, Nylon .3281 X .75 HUS-506626301
...
47
Clip, Hairpin 7/8 HUS-577160801
...
48
Washer, 1/4 Std .312 X .734 HUS-522835901
...
49
Plug, 1/4" HUS-531007683
...
50
Spring, Torsion HUS-580744901
...
51
Pin, Cotter 3/32 X 3/4 HUS-580745001
...
52
Nut, Wing 1/4-20 HUS-580745201
...
53
Stop, Adjustable HUS-580745301
...
54
Grip HUS-580745401
...
55
Pin, Hitch 3/8" X 3" Flat Hd HUS-531008118
...
56
Bushing, 3/8" Plastic HUS-501337301
...
57
Vinyl Cover HUS-577161401
