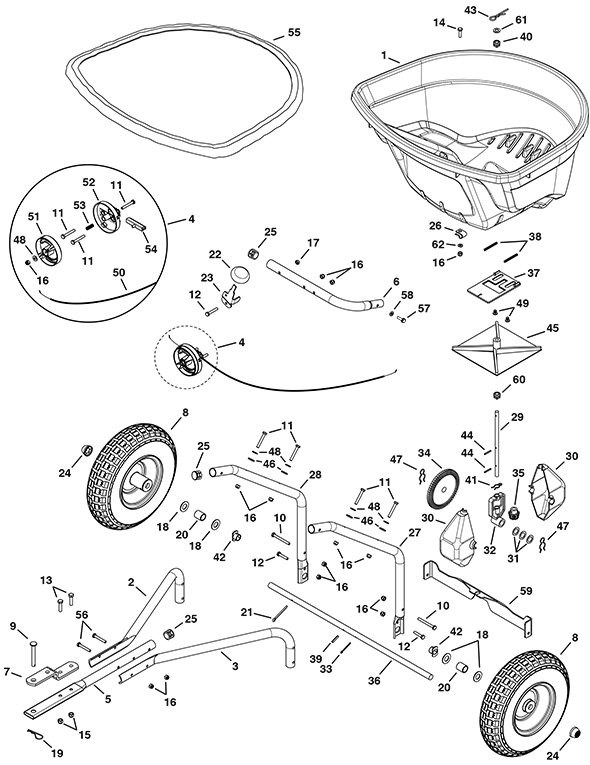

Jonsered 966674301 130 LB. Tow Spreader

Model: 966674301

Save Part Not Listed?
product name

Jonsered 966674301

...
...
xxx
Owners Manual HUS-41420
...
1
Hopper HUS-577157501
...
2
Tube, Rh Hitch Support HUS-577157601
...
3
Tube, Lh Hitch Support HUS-577157801
...
4
Flow Control (Incl. Items 50 - 54) HUS-577157901
...
5
Tube, Hitch HUS-577158001
...
6
Tube, Control HUS-577158101
...
7
Bracket, Hitch HUS-531002772
...
8
Wheel HUS-577158301
...
9
Pin, Hitch 3/8" X 3" Flat Hd HUS-531008118
...
10
Bolt, Hex 1/4-20 X 2-1/2 HUS-501347801
...
11
Bolt, Hex 1/4-20 X 1-3/4 HUS-577158401
...
12
Bolt, Hex 1/4-20 X 1-1/2 HUS-577158501
...
13
Bolt, Hex 5/16-18 X 1-1/4 HUS-531008117
...
14
Bolt, Hex 1/4-20 X 1-1/4 HUS-531002841
...
15
Nut, Hex 5/16-18 Nylock HUS-501021101
...
16
Nut, Hex 1/4-20 Nylock HUS-504066001
...
17
Nut, Hex 1/4-20 Lock HUS-531007629
...
18
Washer, .6562 X 1.25 X .0598 HUS-577158601
...
19
Pin, Hair Cotter 3/32 X 2-5/16 HUS-522752001
...
20
Spacer, .64 Id X .84 Od X 1.00 HUS-577158701
...
21
Pin, Cotter 3/16 X 2 HUS-577158901
...
22
Knob HUS-577159001
...
23
Lever, Flow Control HUS-577159101
...
24
Hub Cap HUS-577159201
...
25
Plug, 1" Tube HUS-577159301
...
26
Conduit Clip HUS-577159401
...
27
Tube, Hopper Support Lh HUS-577159501
...
28
Tube, Hopper Support Rh HUS-577159601
...
29
Shaft, Spreader HUS-577159701
...
30
Housing, Large Gear HUS-577159801
...
31
Washer, .625 X 1.0 X .03 HUS-577159901
...
32
Yoke, Large HUS-577160001
...
33
Pin, Cotter 1/8 X 1-1/4 HUS-576845501
...
34
Gear, Large (Cast) HUS-577160101
...
35
Gear, Small (Cast) HUS-577160201
...
36
Shaft, Axle Spreader HUS-577160301
...
37
Plate, Flow HUS-577160401
...
38
Spring, Flow Plate HUS-577160501
...
39
Pin, Spring, 3/16 X 1 HUS-531007618
...
40
Bushing, Hopper Bottom Black HUS-531004619
...
41
Clip, Hairpin 5/8 HUS-577160601
...
42
Bearing, Flat Sided Flange HUS-577160701
...
43
Hairpin, Agitator HUS-531007693
...
44
Pin, Spring 1/8 X 1 HUS-531002777
...
45
Spreader Impeller HUS-531002755
...
46
Washer, Nylon .3281 X .75 HUS-506626301
...
47
Clip, Hairpin 7/8 HUS-577160801
...
48
Washer, 1/4 Std .312 X .734 HUS-522835901
...
49
Plug, 1/4" (Christmas Tree) HUS-531007683
...
50
Cable, Flow Control (Ref. Item #4) HUS-577160901
...
51
Flow Control Dial (Ref. Item #4) HUS-577161001
...
52
Housing, Flow Control (Ref. Item #4) HUS-577161101
...
53
Spring, Flow Control (Ref. Item #4) HUS-577161201
...
54
Shuttle, Flow Control (Ref. Item #4) HUS-577161301
...
55
Vinyl Cover HUS-577161401
...
56
Bolt, Hex 1/4-20 X 2 HUS-577161501
...
57
Screw, Lag 5/16" X 3/4" HUS-577161601
...
58
Lock Washer, 5/16" HUS-531004656
...
59
Cross Brace HUS-577161701
...
60
Bushing, 3/8" Plastic HUS-501337301
...
61
Spacer HUS-522591701
...
62
Lock Washer, 1/4" HUS-577161801
